Electrolux ICON User manual

808056003 June 2015
Use & Care Guide
French Door Bottom Freezer/Refrigerator
Guia de Uso y Cuidado
Refrigerador con congelador inferior de puerta doble
Guide d’utilisation et d’entretien
Réfrigérateur à portes françaises/Congélateur en bas
Electrolux ICON®

2Finding Information
Please read and save this guide
Thank you for choosing Electrolux, our new premium
brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and
product quality throughout the service life of your
new appliance.
Purchase date
Electrolux model number
Electrolux serial number
Keep a record for quick reference
Finding Information .................................................................. 2
Safety......................................................................................... 3
Feature Overview ...................................................................... 5
Installation................................................................................. 6
Removing the Doors................................................................ 10
Connecting the Water Supply................................................. 12
Controls ...................................................................................13
Automatic Ice & Water Maker/Dispenser..............................15
Storage Features..................................................................... 16
Storing Food and Saving Energy............................................ 20
Normal Operating Sounds & Sights .......................................21
Changing the Water and Air Filters........................................ 22
Care and Cleaning................................................................... 24
Solutions to Common Problems............................................. 27
Warranty ..................................................................................30
Table of contents
Questions?
For toll-free telephone support in the U.S. and
Canada: 1-877-4ELECTROLUX (1-877-435-3287)
For online support and product information visit
http://www.electroluxicon.com
NOTE
Registering your product with Electrolux enhances
our ability to serve you. You can register online
at www.electroluxicon.com or by sending your
Product Registration Card in the mail.
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Freezer drawer is level across the top
Leveling
Refrigerator is level, side-to-side and tilted
¼” (6 mm) front-to-back
Toe grille is properly attached to refrigerator
Cabinet is sitting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to refrigerator
No water leaks present at all connections -
recheck in 24 hours
Ice maker is turned ON
Front filter must be flush with filter housing
(select models)
Final Checks
Shipping material removed
Fresh food and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist

3
Safety
Important safety instructions
General Safety
Safety Precautions
Do not attempt to install or operate your unit until
you have read the safety precautions in this manual.
Safety items throughout this manual are labeled with
a Danger, Warning, or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
• Do not store or use gasoline or other
flammable liquids near this or any other
appliance. Read product labels for warnings
regarding flammability and other hazards.
• Do not operate the refrigerator in the presence
of explosive fumes.
• Avoid contact with any moving parts of the
automatic ice maker.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
IMPORTANT
Indicates installation, operation, or maintenance
information which is important but not hazard-
related.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
WARNING
Please read all safety instructions before using
your new refrigerator.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
• Remove all staples from the carton to avoid
injury. Staples can also damage finishes if
they come in contact with other appliances or
furniture.
Child Safety
Packing Materials:
• Packing cartons covered with rugs,
bedspreads, plastic sheets, or stretch wrap
may become airtight chambers and can quickly
cause suffocation.
• Destroy or recycle the product’s carton, plastic
bags, and any other exterior wrapping material
immediately after the refrigerator is unpacked.
Children should never play with these items.
Child Entrapment and Suffocation:
• These problems are not limited to the past.
Whether junked, abandoned, or temporarily
stored (even for a few hours), unattended
refrigerators and freezers are dangerous.
Please take the precautions listed below.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you recycle or dispose of your old
refrigerator/freezer:
• Remove the
doors.
• Leave the
shelves and
baskets in
place so
children may
not easily
climb inside.
• Have
refrigerant and
compressor oil
removed by a qualified service technician.

4
• The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz, AC-only non-GFCI
electric outlet. The power cord of the appliance
is equipped with a three-prong grounding plug for
your protection against electrical shock hazards. It
must be plugged directly into a properly grounded
three-prong receptacle. The receptacle must
be installed in accordance with local codes and
ordinances. Consult a qualified electrician. Do not
use an extension cord or adapter plug.
• If the power cord is damaged, it should
be replaced by the manufacturer, service
technician, or a qualified person.
• Never unplug the refrigerator by pulling on the
power cord. Always grip the plug firmly and
pull straight out from the receptacle to prevent
damaging the power cord.
• To avoid electrical shock, unplug the
refrigerator before cleaning and before
replacing a light bulb or LED light.
• Performance may be affected if the voltage varies
by 10% or more. Operating the refrigerator with
insufficient power can damage the compressor.
Such damage is not covered under your warranty.
• Do not plug the unit into an outlet controlled
by a wall switch or pull cord to prevent the
refrigerator from being turned off accidentally.
Electrical information
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Safety
WARNING
You must follow these guidelines to ensure
that your refrigerator’s safety mechanisms are
operating correctly.
IMPORTANT
To turn off power to your refrigerator, unplug the
power cord from the wall outlet.
IMPORTANT
CFC/HCFC DISPOSAL
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and HCFCs are
believed to harm stratospheric ozone if released
to the atmosphere. Other refrigerants may also
cause harm to the environment if released to the
atmosphere.
If you are throwing away your old refrigerator, make
sure the refrigerant is removed for proper disposal
by a qualified technician. If you intentionally
release refrigerant, you may be subject to fines and
imprisonment under provisions of environmental
legislation.

5
Feature Overview
Understanding features and terms
Your Electrolux refrigerator is designed for optimal convenience and storage flexibility. The illustration below
is provided to assist you with familiarizing yourself with product features and terminology.
NOTE
Features may vary according to model. Model is shown without freezer drawer
cover.
Wire Tilt-Out Shelf
(inside freezer drawer)
Toe Grille
Luxury-
DesignTM
Shelves
Covered Door Bin
Luxury-DesignTM
Shelves
Freezer Baskets
Custom TempTM
Drawer (CTD)
(select models)
or Cool ZoneTM
Drawer
(with humidity slides)
Crisper
Drawer
Crisper
Drawer
Water
Filter
Adjustable
Hinges
(select models)
Incandescent Light
(select models)
LED Light
(select models)
Tilt-Out
Bin
Special Items
Rack (inside CTD)
(select models)
LED Light LED Light
Flipper Guide
Flipper
Mullion
Air Filter
Ice
Maker
Ice
Bucket
IMPORTANT
Features not included with your refrigerator can be purchased at www.electroluxicon.com or by calling
1-877-435-3287.

6
This Use & Care Guide provides general installation
and operating instructions for your model. We
recommend using a service or kitchen contracting
professional to install your refrigerator. Use the
refrigerator only as instructed in this Use & Care
Guide. Before starting the refrigerator, follow these
important first steps.
Location
• Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher,
or other heat sources.
• The refrigerator must be installed on a floor
that is level and strong enough to support a
fully loaded refrigerator.
• Consider water supply availability for models
equipped with an automatic ice maker.
Installation
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜inch (9.5 mm)
Back 1 inch (25.4 mm)
Door opening
Installation
Your refrigerator should be positioned to allow easy
access to a counter when removing food. For best
use of refrigerator drawers and freezer baskets, the
refrigerator should be in a position where both can
be fully opened.
Guidelines for final positioning
of your refrigerator
• All four corners of the cabinet must rest firmly
on the floor.
• The cabinet should be level at the front and
rear.
• The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
• Doors should align with each other and be
level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
CAUTION
DO NOT install the refrigerator where the
temperature will drop below 55°F (13°C) or rise
above 110°F (43°C). The compressor will not be
able to maintain proper temperatures inside the
refrigerator.
DO NOT block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
NOTE
If your refrigerator is placed with the door hinge
against a wall, you may have to allow additional
space so the door can be opened wider.
NOTE
The refrigerator doors are designed to shut by
themselves within a 20 degree opening.
Tools Necessary:
PhillipsTM Head
or
#2 Square Drive
Head
Socket
Wrench Set
Adjustable
Wrench
3/8" Fixed
Wrench
1/4"
Nut
Driver
(OR)
AND OR OR OR
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
Required Tools
You will need the following tools:

7
Installation
Leveling Freezer Drawer (if necessary) Figure 1: Remove screws and then gently pull forward.
1Check gasket seal around top, bottom, and
sides of freezer drawer.
2If gasket is not sealed, open drawer and slightly
loosen four drawer screws (two on each side) to
allow drawer to rotate (see illustration).
3Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
4Tighten four drawer screws.
5Recheck gasket seal.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your refrigerator:
• All four corners of the cabinet must rest firmly
on the floor.
• The sides should tilt ¼inch (6 mm) from front to
back (to ensure that doors close and seal properly).
• Doors should align with each other and be level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
To level the cabinet using the front rollers:
1Slightly open freezer drawer.
2Remove the toe grille (following the illustrations
below for the toe grille on your model).
AB
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
3 You can raise or lower each door. Use a ⅜
inch socket wrench to turn the adjustment
screws (one per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
4Ensure both doors are bind-free with their seals touching
the cabinet on all four sides and that cabinet is stable.
5After unit is leveled, lower anti-tip leg until it
contacts the floor.
6Install the toe grille by fitting into place (replacing
screws on some models).
Do Not Remove
Other Screws
Remove
Hex
Head Drawer
Screw
Remove hex
head drawer
screw
Remove
Hex
Head Drawer
Screw
Remove hex
head drawer
screw Figure 2: Lift the toe grille and gently pull forward.
Remove
Mounting
Screws
Shoulder
Screw
Clip
Shoulder
Screws
Toe
Grille
Raise
Lower
Anti-tip
Leg
Door
Door

8Installation
To adjust the door stop:
Door stop is adjustable between 85 to 145 degrees.
1Open door to provide access to screw.
2Loosen screw.
3Adjust door to desired location.
4Rotate door stop until it makes contact with
the lower hinge.
5Re-tighten screw.
Open
Door
90
Degrees
Loosen or Remove
Screw
Bottom of Door
Loosen/Remove Screw (where applicable)
6Ensure door stops in desired location before
resuming normal use.
To level the doors using the adjustable lower hinge
(select models):
1Remove all food items from door bins on door
being adjusted.
2Open doors to 90 degrees.
3Loosen or remove screw.
Rotate
Door to Desired
Location
Adjusting Door
Rotate
Door
Stop
Re-tighten
Screw
Re-tighten Screw
NOTE
View shown is looking up at the bottom of the
refrigerator door.
Adjustable Door Stop
Door
Stop
Screw
Lower
Hinge
Min
Open
Max
Open
NOTE
Adjustable hinge should only be used after doors
have been leveled with rollers.

9
Installation
Flipper
Mullion
Screw
Flipper
Mullion
Hinge
Adjusting Flipper Mullion Screw
To adjust the flipper mullion:
1 Loosen the screw located on the flipper mullion
hinge.
2Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of
a coin (0.060 inches, or 1.5 mm) between the
guide and flipper mullion.
3Re-tighten screw.
4Lift the door while adjusting the washer. To
raise the door, rotate washer clockwise (when
viewed from the bottom). To lower door, rotate
washer counter-clockwise (when viewed from
the bottom).
5Re-tighten the screw (where applicable),
ensuring it is between the spokes of the set
washer. Screw will not be tight, just insert until
it is flush with the hinge.
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Screw (where applicable)
Raising/Lowering Door
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace
with the longer one supplied in the handle package.
Re-tighten Screw
Hinge
Washer Spokes
Screw
Hinge
Washer
Raise
Door
Lower
Door
Door

10 Removing the Doors
Once both doors are in place, ensure they are
aligned with each other and level (please see the
“Installation” section for more details), and replace
the top hinge cover.
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury,
or damage to the doors or handles.
To remove the refrigerator doors:
1Trace lightly around the door’s top hinges with
a pencil. This makes reinstallation easier.
2Disconnect the harness by grasping both sides
of the connector firmly, depress the latch, and
pull apart. Remove the two screws from the
top hinge. Lift the door off of the bottom hinge
and set it aside.
Lower Hinge Removal
3Unscrew the three lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above steps.
Getting through narrow spaces
If your refrigerator will not fit through an entrance
area, you can remove the doors. Check first by
measuring the entrance.
To prepare for removing the doors:
1Make sure the electrical power cord is
unplugged from the wall outlet.
2Open the freezer drawer and remove the toe
grille (see “Installation” section).
3Remove any food from the door shelves and
close the doors.
To remove the top hinge covers:
1Remove the two screws from each cover over
the top door hinges.
2Lift inside edge of hinge cover and tilt back.
NOTE
DO NOT remove the ground screw from hinge.
Rear
Cover
Screw
Ground
Screw
Top
Hinge
Top Hinge
Cover
Hinge
Screws
Multi-wire
Cables
Leave
Hinge
With
Door
Front
Cover Screw

11
Removing the Doors
Removing Freezer Drawer
1Open freezer drawer.
2Remove drawer screws on right and left sides
(two screws on each side).
3Lift drawer up and out to remove.
Installing Freezer Drawer
1With lower slides pulled out, hang drawer onto
slide brackets ensuring pins on each side are
fully inserted into slots on each side.
CAUTION
Drawer is heavy. Use caution when lifting.
6Tighten four drawer screws.
7Recheck gasket seal.
8Install the toe grille by fitting into place.
2Reinstall four drawer screws (two per side),
tighten down, and close drawer (C).
AB
Grab
Drawer
at Center
from Both
Sides
Then
Pull
Drawer
Out
Push
Against
Freezer
Drawer
Assembly
Pin
Slot
Cabinet
Fully Extend
Drawer Slides
Install
Screws
(2) Each
Side
3Check gasket seal around top, bottom, and
sides of freezer drawer.
4If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
5Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
Do Not Remove
Other Screws
Remove
Hex
Head Drawer
Screw
Remove hex
head drawer
screw
Remove
Hex
Head Drawer
Screw
Remove hex
head drawer
screw

12 Connecting the Water Supply
Before Installing The Water Supply Line, You Will Need:
• Basic Tools: adjustable wrench, flat-blade
screwdriver, and PhillipsTM screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch (6.4 mm) OD,
copper or stainless steel tubing. To determine the
length of tubing needed, measure the distance
from the ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the refrigerator
can be moved out for cleaning (as shown).
• A shutoff valve to connect the water supply line
to your household water system. DO NOT use
a self-piercing type shutoff valve.
• Do not reuse compression fitting or use thread
seal tape.
• A compression nut and ferrule (sleeve) for connecting
a copper water supply line to the ice maker inlet valve.

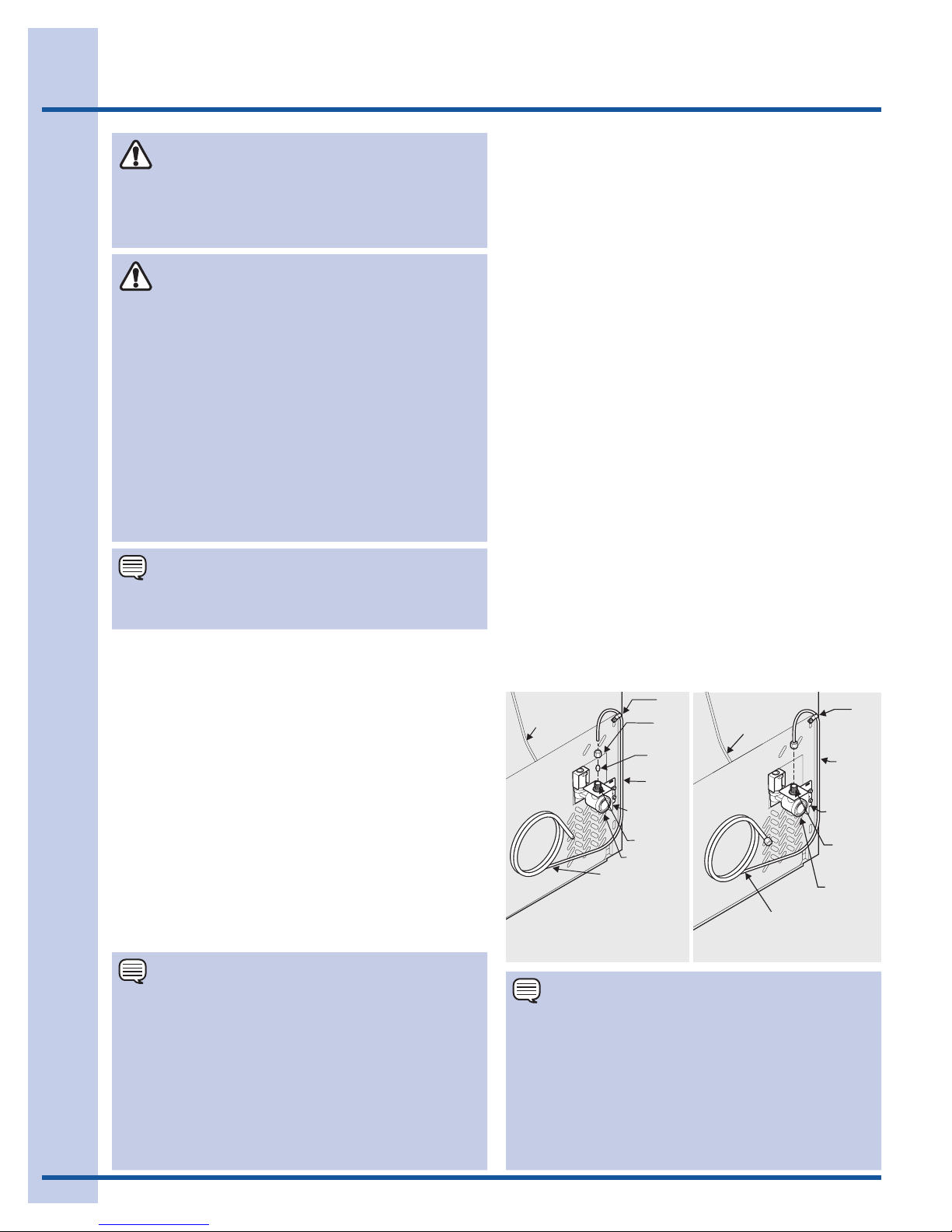

To Connect Water Supply Line To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket.
Turn ON water supply and flush supply line until
water is clear. Turn OFF water supply at shutoff valve.
3. Remove plastic cap from water valve inlet and
discard cap.
4. If you use copper tubing - Slide brass compression
nut, then ferrule (sleeve) onto water supply line.
Push water supply line into water valve inlet as far
as it will go (¼ inch / 6.4 mm). Slide ferrule (sleeve)
into valve inlet and finger tighten compression nut
onto valve. Tighten another half turn with a wrench;
DO NOT over tighten. See Figure 1.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing. Slide
compression nut onto valve inlet and finger tighten
compression nut onto valve. Tighten another half turn
with a wrench; DO NOT over tighten. See Figure 2.
5. With steel clamp and screw, secure water supply line
(copper tubing only) to rear panel of refrigerator as shown.
6. Coil excess water supply line (copper tubing
only), about 2½ turns, behind refrigerator as
shown and arrange coils so they do not vibrate
or wear against any other surface.
7. Turn ON water supply at shutoff valve and
tighten any connections that leak.
8. Reconnect refrigerator to electrical power source.
9. To turn ice maker on, lower wire signal arm (freezer
ice maker) or set the ice maker’s On/Off power
switch to the “On” position (fresh food ice maker).
WARNING
To avoid electric shock, which can cause death or
severe personal injury, disconnect the refrigerator
from electrical power before connecting a water
supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing is
recommended for the water supply line. Water
supply tubing made of ¼ inch plastic is not
recommended to be used. Plastic tubing greatly
increases the potential for water leaks, and the
manufacturer will not be responsible for any
damage if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker. If the ice maker
is connected to soft water, ensure that the
softener is maintained and working properly.
IMPORTANT
Ensure that your water supply line connections
comply with all local plumbing codes.
NOTE
Check with your local building authority for
recommendations on water lines and associated
materials prior to installing your new refrigerator.
Depending on your local/state building codes,
Electrolux recommends for homes with existing valves
its Smart Choice®water line kit 5305513409 (with a 6
ft. Stainless Steel Water Line) and for homes without
an existing valve, Electrolux recommends its Smart
Choice®water line kit 5305510264 (with a 20 ft. Copper
Water Line with self-tapping saddle valve). Please refer
to www.electroluxicon.com for more information.
IMPORTANT
After connecting the water supply, refer to “How to Prime
the Water Supply System” for important information
about priming an empty water supply system.
Your refrigerator’s water supply system includes
several tubing lines, a water filter, a water valve, and
a water tank. To ensure that your water dispenser
works properly, this system must be completely
filled with water when your refrigerator is first
connected to the household water supply line.
Steel
Clamp
Stainless
Steel
water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft. Stainless Steel water line
from household water supply
Plastic Water Tubing
to Ice Maker
Fill Tube
Figure 2
Plastic Water Tubing
to Ice Maker
Fill Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to
allow moving refrigerator out
for cleaning)
Figure 1

13
Controls
IQ-TouchTM
A red indicator light will be illuminated above most active features.
Touch the icon to activate the options below.
fast freeze Activates a faster rate for freezing food.
fast ice Increases the production of ice
energy saver Keep this switch set on energy saver (light on) for lowest energy usage. If moisture ap-
pears on the cabinet between the doors, pressing this button will turn the light off and
enable an electric heater used to reduce moisture on the cabinet between the doors.
water filter Press and hold for three seconds to reset after filter change.
air filter Filter condition status is always displayed when door is open. Press and hold for
three seconds to reset after filter change.
temp mode Touch to toggle display from Fahrenheit to Celsius.
mute sounds Tones emitted by each key press can be turned off based on user preference. The
sounds are muted when the red indicator is lit. Warning signals will stay active.
default settings Resets all refrigerator settings such as temp, temp display and tones to their factory
default settings.
on off Press and hold for three seconds to turn off the cooling system to clean the refrigera-
tor. It also turns off the ice maker. The temperature displays will read OFF.
Setting cooling temperatures
Press the + or – indicator to adjust the temperature to the desired setting.
The temperature display will begin to blink with the first touch. The display will
time out after 10 seconds and return to the basic display.
Alarms
IMPORTANT
Pressing the system on/off icon does not turn off power to your refrigerator.
You must unplug the power cord from the wall outlet.
Door Ajar If the door has been left open for an extended period of time, an alarm will sound and
the door ajar indicator will display on the bottom display of the control panel. The
alarm is turned off by closing the door. The mute sounds key will blink to prompt the
reset of any active alarms. Press this key to reset any system alarms.
High Temp In the event of a high temperature condition, the temperature display will blink and
display “HI”. After 20 minutes, the alarm will sound and the high temp indicator will
be red on the bottom of the control panel. The mute sounds icon will illuminate until
pressed, acknowledging the alarm, at which time the highest temperature reached
will be displayed and the refrigerator will resume normal operation. In case the high
temp alarm is not acknowledged at the first alarm sound time out, when the door is
first opened, the alarm sound will be repeated.
Power Fail In the event of a power failure, the power fail alert will be displayed and the tem-
perature display will blink until the mute sounds icon is pressed, acknowledging the
alarm. Other modes may be turned off until the alarm is acknowledged. The power
fail alert is turned off and the refrigerator will resume normal operation. The high
temp alarm may also be illuminated until a safe operating range temperature has
been reached.
LED COLORS / Assembly

14 Controls
IQ-TouchTM “Sabbath Mode”
The Sabbath Mode is a feature that disables portions
of the refrigerator and its controls for IQ-TouchTM, in
accordance with observance of the weekly Sabbath and
religious holidays within the Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing
and holding the freezer temp “-” and the refrigerator
temp “+” indicators for five seconds. The display
shows “Sb” while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is active
for health reasons. If a high temperature alarm is
activated during this time, for example due to a door
left ajar, the alarm will sound intermittently for about
two minutes. The alarm will then silence on its own
and a red high temperature icon will display. The high
temp icon will continue to display, even if the door is
closed, until the Sabbath mode is exited and the icon
reset. The refrigerator will function normally once the
door is closed, without any violation of the Sabbath/
Holidays.
For further assistance, guidelines for proper
usage and a complete list of models with the
Sabbath feature, please visit the web at
http:\\www.star-k.org.
NOTE
During Sabbath Mode, the ice maker is turned off
by main control board.
NOTE
While in Sabbath Mode, neither the lights nor
the control panel will work until Sabbath Mode is
deactivated.
Refrigerator stays in Sabbath Mode after power
failure recovery. It must be deactivated with the
buttons on the control panel.
Sabbath Mode and the Custom TempTM Drawer
The Custom TempTM Drawer should be turned off for
the Sabbath/Holidays. Before putting the refrigerator
into the Sabbath mode, turn the Custom TempTM
Drawer off by pressing the drawer on/off button. The
display will show “OFF” and the drawer will turn off.
Then enter the Sabbath mode function on the main
refrigerator display. See the IQ-TouchTM “Sabbath
Mode” section. When in Sabbath mode, the display
will not illuminate and the drawer will remain off. The
drawer can still be used as a non-temp controlled
drawer in this mode. When the refrigerator is taken
out of Sabbath mode, the Custom TempTM Drawer will
have to be turned back on.
NOTE
If the Custom TempTM Drawer is not turned off
prior to putting the unit into Sabbath Mode, it will
continue to adjust itself to maintain the set point
even if the display does not illuminate to show
that it is still on.

15
Automatic Ice Maker
Ice maker operation & care
After the refrigerator is installed properly, the ice
maker can produce ice within 24 hours. It can
completely fill an ice bin in about three days.
When using the ice maker for the first time and in order
for the ice maker to work properly, it is necessary to
clear air from water filter tubing. Once ice maker begins
making ice, allow the bucket to fill completely, then
discard the first TWO FULL buckets of ice. It will take at
least two days to completely fill the bucket on regular
ice making mode or 1½days on fast ice mode.
The ice maker produces approximately four pounds of
ice every 24 hours depending on usage conditions.
IMPORTANT
Your ice maker is turned on at the factory so it can
work as soon as you install your refrigerator. If you
cannot connect a water supply, lift the ice maker’s
wire signal arm to turn it off. Otherwise, the ice
maker’s fill valve may make a loud chattering noise
when it attempts to operate without water.
Turning the ice maker on and off
Ice production is controlled by lifting/lowering the ice
maker’s wire signal arm. To gain access to the ice
maker, pull the freezer drawer out. Lift the wire signal
arm to turn the ice maker OFF and lower the wire
signal arm to turn it ON.
Ice maker tips
• If your refrigerator is not connected to a water
supply or the water supply is turned off, turn off
the ice maker by lifting wire signal arm.
Cleaning the ice maker
Clean the ice maker and ice bin at regular intervals,
especially prior to vacation or moving.
1Turn off the ice maker.
2Remove the ice bin.
3Empty and carefully clean the ice bin with
mild detergent. Do not use harsh or abrasive
cleaners. Rinse with clean water.
4Allow the ice bin to dry completely before
replacing in the freezer.
5Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour or longer)
causes ice cubes in the ice bin to melt and
freeze together.
Remove the ice bin and shake to loosen the cubes or
clean as explained above.
CAUTION
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener can
damage the ice maker.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely
dry.
• The following sounds are normal when the ice
maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
Fast Ice Function
Your refrigerator is equipped with a “Smart” Fast Ice
Function, that will, if activated at your user interface,
allow an increase in ice production. You do not need
to deactivate it, if not needed, your refrigerator will
operate on normal conditions.
Wire
Signal Arm
On
Off

16 Storage Features
Your refrigerator includes glass shelves that are
designed to catch and hold accidental spills.
You can easily adjust shelf positions in the fresh food
compartments to suit your needs. The shelves have
mounting brackets that attach to slotted supports at
the rear of each compartment.
To change the position of a shelf:
1 Before adjusting a shelf, remove all food.
2 Lift the front edge up and pull the shelf out.
3 Replace by inserting the mounting bracket
hooks into the desired support slots.
4 Lower the shelf and lock into position.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
CAUTION
To avoid injury from breakage, handle tempered
glass shelves carefully.
NOTE
Features may vary according to model.
Opening Crisper Drawer
Drawers
Your refrigerator includes a variety of storage
drawers. These drawers are located in fixed positions
at the bottom of the fresh food compartment.
Crisper humidity control
Crisper drawers include a sliding control for adjusting
the humidity inside the crisper. Leafy vegetables
keep best when stored with the Humidity Control
set on Higher Humidity. Fresh fruits keep best when
stored with the Humidity Control set on Lower
Humidity.
Adjusting Crisper Humidity
Higher
Humidity
Lower
Humidity
Humidity Control
Shelf features
or
Full Custom-DesignTM Shelf

17
Storage Features
Special
items rack
(select
models)
The
innovative
design of the
special items
rack allows
you to store
four bottles of
wine or soft
drink bottles.
Removing Crisper
Drawer
To remove
the Crisper
Drawer for
cleaning:
1Pull the
drawer
out until
it stops.
2Lift the
front
slightly
and
remove the drawer.
Special Items
Rack
Cool Zone (select models)
Some models are equipped with a meat keeper drawer for short-term storage of bulk meat items. This drawer
includes sliding controls for adjusting the humidity inside.
Any meat to be kept longer than two days should be frozen. If you store fruits or vegetables in this drawer, set
it to a higher humidity.
The Custom TempTM Drawer is designed to keep food items at a precise temperature whether cooler, warmer,
or the same as the fresh food section of the refrigerator. The thaw setting holds a temperature for thawing frozen
foods for 12 hours. At the end of that time, it then switches to the mixed items setting to store the thawed food.
Custom TempTM Drawer (select models)
To operate:
1To turn on and off, press the drawer’s On/Off button.
The numeric display will show a temperature between
“28°F and 38°F” when on and “OFF” when off.
2Press F/C if you prefer to display Fahrenheit “F, ”
or Celsius “C”.
3Press either the up ∧or down ∨scroll buttons to
illuminate the desired item.
4Once an option is selected, the drawer will adjust and
maintain the temperature for the setting selected.
5When turned off, the Custom TempTM Drawer
functions as a standard meat pan. The Custom
TempTM Drawer is best used for packaged food
products. Leafy vegetables and unpackaged
fruits are best kept in one of the crisper drawers.
6The three favorite selections provide flexibility to
set and store personal temperature selections.
The temperature is adjusted up by pressing the Opening the Drawer
+ or – buttons. The drawer will store the selected
temperature setting until it is changed.
7The control buttons can be locked to prevent
accidental changes by pressing the control lock
button for three seconds. Deactivate by pressing
for three seconds again.

18 Storage Features
To remove the Custom TempTM Drawer for cleaning:
1Pull the drawer out until it stops.
2Lift the front slightly and remove the drawer.
Removing the Drawer
IMPORTANT
DO NOT clean the display area of the Custom
TempTM Drawer with abrasive or caustic cleaners.
Wipe clean with a moist sponge.
CAUTION
The Custom TempTM Drawer and cover can
be removed for cleaning but the control unit,
attached to the right side of the fridge, cannot be
removed. Do not immerse the Custom TempTM
Drawer cover in water or put it in a dishwasher.
Clean with a damp cloth or sponge.
NOTE
When the refrigerator is turned off by pressing the
main IQ-TouchTM on/off button, the Custom TempTM
Drawer will also be turned off. When the refrigerator
is turned back on, the Custom TempTM Drawer will
resume operations at the temp setting that was set
before the refrigerator was turned off.
Doors
Storage bins
The doors to your fresh food compartment use a
system of modular storage bins. All of these bins
are removable for easy cleaning. Some of them have
fixed positions, while others can be adjusted to your
needs.
Door bins are ideal for storing jars, bottles, cans,
and large drink containers. They also enable quick
selection of frequently used items.
Adjustable Door Bin
To change the position of an adjustable door bin:
1Before adjusting a bin, remove all food.
2Grip the bin firmly with both hands and lift it upward.
3Remove the bin.
4Place the bin just above desired position.
5Lower the bin onto supports until locked in place.
Accessories (varies by model)
Tilt can bins
The can bins allow you to efficiently and securely
store up to eight 12-ounce canned beverages.
Tilt Can Bin
Covered Door Bin
Use the covered door bin, at the top of the fresh food
compartment door, for short-term storage of cheese,
spreads, or butter. The covered door bin is designed to
be warmer than the open area and includes a lift-up cover
that may be locked and a dairy divider (select models).
Covered Door Bin
Lock

19
Storage Features
Freezer Features (varies by model)
To Remove Upper Basket
1Remove all items from basket.
2Remove basket by pulling basket out to its full
extension and lift out.
To reinstall upper basket, position basket onto the
retainer clips making sure the front of the basket
rests in the retainer clips on the stabilizer bar.
Tilt Wire Shelf
The freezer tilt wire shelf (located on the inside of the
freezer drawer) is not designed to be removed.
Dividers Removal
Lift up on the front of the upper divider and pull out.
Basket
Retainer
Removing Lower Basket
To reinstall lower basket, insert basket into retainer clips.
NOTE
If basket is not resting on stabilizer bar retainer
clips, the drawer will not close properly.
Upper Basket Divider
Middle Basket
Divider
Retainers
Stabilizer
Bar
Lower Basket Divider &
Spill Guard Tray
Lower Basket
Divider
Spill Guard
Tray
Lift up on the rear of the lower divider and pull out.
NOTE
Spill Guard Tray should be hand washed in warm
water.
To Remove Lower Basket
1Remove all items from basket.
2Remove the basket by tilting it forward and
lifting it from the retainer clips.
Two Freezer Baskets
Stabilizer Bar
Basket
Retainer
Clips

20
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment between
34°F and 40°F with an optimum temperature of
37°F.
• Avoid overcrowding the refrigerator shelves,
which reduces air circulation and causes
uneven cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food
quality for longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or high
moisture content.
Meat
• Wrap raw meat and poultry separately and
securely to prevent leaks and contamination of
other foods or surfaces.
• Use the deli drawer or Custom TempTM drawer
and set to meat/poultry setting for short-term
storage. Any meat to be kept longer than two
days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F or lower.
• A freezer operates most efficiently when it is at
least ⅔full.
Packaging foods for freezing
• To minimize food dehydration and quality
deterioration, use aluminum foil, freezer wrap,
freezer bags, or airtight containers. Force as
much air out of the packages as possible and
seal them tightly. Trapped air can cause food to
dry out, change color, and develop an off-flavor
(freezer burn).
• Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
• Do not refreeze meat that has completely
thawed.
Loading the freezer
• Prior to grocery shopping, activate “fast
freeze” so that on your return you can ensure
your newly purchased food designated for
the freezer will be preserved as quickly as
possible.
• Activating “fast freeze” also will help your
freezer more efficiently maintain the selected
Storing Food and Saving Energy
temperature after placing new purchases with
pre-existing frozen foods.
• Avoid adding too much warm food to the
freezer at one time. This overloads the freezer,
slows the rate of freezing, and can raise the
temperature of frozen foods.
• Leave a space between packages, so cold air
can circulate freely, allowing food to freeze as
quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest part of
the room, out of direct sunlight, and away from
heating ducts or registers.
• Do not place the refrigerator next to heat-
producing appliances such as a range, oven,
or dishwasher. If this is not possible, a section
of cabinetry or an added layer of insulation
between the two appliances will help the
refrigerator operate more efficiently.
• Level the refrigerator so that the doors close
tightly.
Temperature settings
• Refer to the “Controls” section for procedures
on temperature settings.
Food storage
• Avoid overcrowding the refrigerator or blocking
cold air vents. Doing so causes the refrigerator
to run longer and use more energy.
• Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts down
on moisture build-up inside the unit.
• Organize the refrigerator to reduce door
openings. Remove as many items as needed
at one time and close the door as soon as
possible.
• Do not place a hot container directly on a cold
shelf. Remember, such an extreme temperature
change may damage the glass.
