Electrolux SMART 726488 RH14DD3U User manual

Approval: ___________________________________________

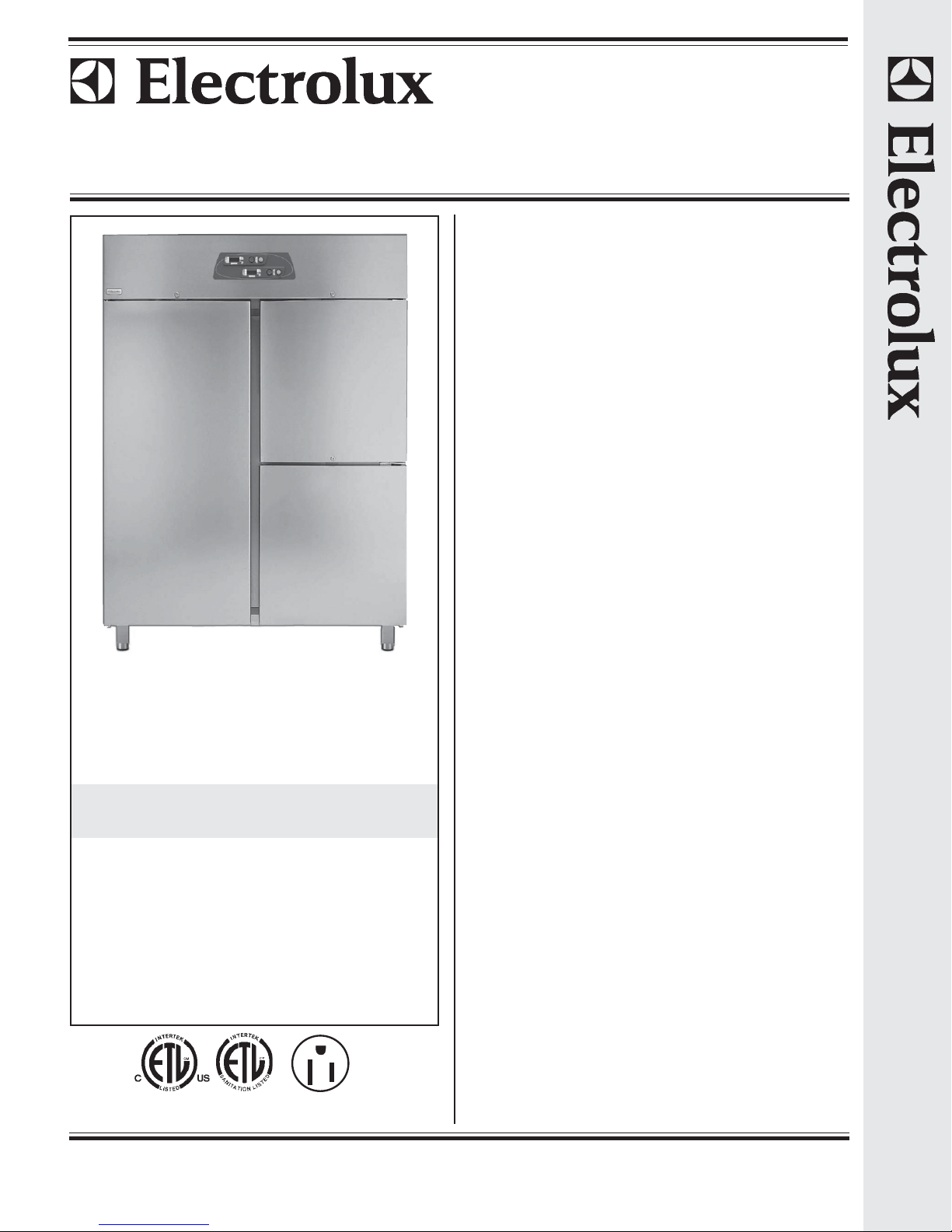

726488 (RH14DD3U) 50 ft3Full Size Dual Temp Refrigerator
1+2 door 115 V/1p/60Hz
Item No. ___________________________________
The Electrolux HD-Line offers one of the most comprehensive
choices of refrigerated storage cabinets available. Manufactured
internally and externally in 304 AISI Stainless steel, operating
over refrigeration or freezer temperature ranges, with solid doors,
and in a choice of either 23 ft3or 50 ft3capacity.
Covered by Electrolux Platinum Star®Service Program two-year
parts and one-year labor warranty, installation start-up and per-
formance check-up after one year from installation.
Short Form Specification
Electrolux Professional, Inc.
www.electroluxusa.com/professional
10200 David Taylor Drive, Charlotte, NC 28262 • Telephone Number: 866-449-4200 • Fax Number: 704-547-7401
ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Refrigeration
SMART 1 + 2 Door Dual Temp
Refrigerator/Fish Cabinet/Freezer (50 FT3)
Main features
EASY TO INSTALL
• Mounted on adjustable stainless steel feet, with castors as an option.
• Choice of doors to suit varying kitchen requirements.
• Refrigeration operating temperatures that can be adjusted from 28 °F
to 50 °F.
• Suitable for ambient temperatures up to 110 °F.
EASY TO CLEAN
• Constructed from the highest quality AISI 304 stainless steel with radiused
corners to the interior base which is pressed from a single sheet.
• Sides and back are formed from just 2 sheets of stainless steel with a
single joint to avoid dirt traps.
• Evaporator unit is inset into the top of the refrigerated chamber to provide
an obstruction free interior.
EASY TO USE
• Forced air circulation for rapid cool down and even temperature uniformity.
• Accommodates GN 2/1 containers or shelves on anti-tilt runners.
• External digital temperature display.
• Interior light and lockable door.
• Refrigerators feature automatic defrost and are fitted with a defrost outlet
pipe.
EASY TO MAINTAIN
• Heavy-duty construction that avoids use of any plastic parts.
• Single refrigeration unit (compressor, condenser and evaporator) that can
be removed in a single piece from either the top or back.
• Evaporator cover is easily removable for maintenance.
EASY ON THE ENVIRONMENT
• 20% reduction in energy consumption compared to previous models.
• Cabinet fitted with up to 3″thickness of cyclopentane insulation for best
insulating performance with 100% environmental.
• Refrigerant type: R134a.
• All models comply with the standards required by the main international
approval bodies and are ETL marked.
Accessories
• Pair of stainless steel runners for
23 and 50 ft3SMART refrigerators 8
• Rilsan®coated full-size sheet grid 8
Optional Accessories
• Basic HACCP Printer (PNC 880048)
• 4 wheels (2 with brake) (PNC 880121)
• Pair of stainless steel runners for
23 and 50 ft3SMART refrigerators (PNC 880175)
• Rilsan®coated full-size sheet grid (PNC 880176)
• Pedal opening for 50 ft3SMART refrigerators (PNC 881459)
Refrigeration
SMART 1 + 2 Door Dual Temp Refrigerator/Fish Cabinet/Freezer (50 FT3)
Refrigeration
SMART 1 + 2 Door Dual Temp
Refrigerator/Fish Cabinet/Freezer (50 FT3)
5-15P
Refrigerator
Fish
Cabinet
Freezer

Refrigeration
SMART 1 + 2 Door Dual Temp
Refrigerator/Fish Cabinet/Freezer (50 FT3)
Supply voltage:
726488 (RH14DD3U) 115 V/1p/60Hz - 12A
Electric
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
3-7-11
Front View
Top View
Side View
LEGEND
C - Water Drain 1/2″(12.7 mm)
I – Electrical Connection 115 V/1p/60Hz
TECHNICAL DATA
Operating temperature min.: 28 °F (-2.22 °C)
Operating temperature max.: 50 °F (10 °C)
Built-in Compressor and Refrigeration Unit
External Dimensions:
Width: 59-1/16″(1500 mm)
Depth: 31-7/8″(962 mm)
Height: 80-11/16″(2049 mm)
Min/Max internal humidity % : 75/ 90
Number and type of doors: 1 Full, 2 Half
Door hinges: 1 Left, 2 Right
Number and type of grids (included): 8, GN 2/1
Compressor power: 1/4 x 2 HP
Refrigerant type: R134a
Refrigerant quantity: 240g
Refrigerant Power: 378W
Power: 880 watts
Net weight: 624 lbs (283 kg)
Configuration:
Left: Refrigerator
Top Right: Fish Cabinet
Bottom Right: Freezer
Key Information
Refrigeration
SMART 1 + 2 Door DualTemp Refrigerator/Fish Cabinet/Freezer (50 FT3)
