Electrolux PM85C Owner's manual

532 19 22-02 Rev. 2 08.05.04 BY Printed in U.S.A.
REPAIR PARTS MANUAL
MODEL NUMBER PM85C
Snow Thrower

2
22
18
21
19
54
54
6
6
5
6
6
9
12
77
8
611
27 27
30
26
25
24
23
20
31
25
24
26
23
29 21
19
20
18
10
13
4
14
16
15
36
37
50
47
42
44 27
43
46
38
45
27
43
42
41
40
39
34
32
49
19
48
51
33
35
28 19
55
28 19
55
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - - MODEL NUMBER PM85C

3
KEY PART
NO. NO. DESCRIPTION
4 532 19 10-79 Pulley, Impeller
5 532 18 89-09 Bearing Assembly, Flange
6 532 15 53-77 Nut, Hex Flange 5/16-18
7 532 18 03-55 Bolt, Flat Head, Carriage 5/16-18 x 5/8
8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8
9 532 17 88-20 Nut, Cage 3/8-16
10 532 18 45-28 Housing, Auger
11 532 18 40-97 Bar, Scraper
12 532 18 40-95 Bracket, Corner Discharge
13 532 17 53-22 Base, Discharge Chute
14 819 11 15-07 Washer, Flat
15 810 04 05-00 Washer, Lock 5/16
16 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
18 532 17 95-82 Screw, Hex Head 5/16 x 1
19 873 80 04-00 Nut, Hex Lock 1/4-20
20 873 80 05-00 Nut, Hex Lock 5/16-18
21 532 15 54-15 Washer, Flat 5/16
22 532 18 40-94 Skid Plate, RH
23 532 17 92-46 Washer, Nylon, Friction
24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
25 532 18 56-00 Bolt, Shoulder 1/4-20
26 532 17 46-58 Bearing, Auger
27 532 17 46-97 Washer, Thrust, 1"
28 532 19 20-90 Bolt, Shear
29 532 18 40-93 Skid Plate, LH
30 532 19 30-67 Auger Assembly, RH
31 532 19 30-66 Auger Assembly, LH
32 532 17 46-99 O-Ring
33 532 17 47-00 Bushing, Flange 3/4
34 532 17 46-81 Washer, Thrust 3/4
35 532 17 46-84 Bearing, Thrust 3/4
36 532 17 46-60 Shaft, Impeller
37 532 17 46-83 Washer, Thrust 5/8
38 532 17 46-86 Bushing, Flange 5/8
39 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
40 532 08 64-47 Plug, Case
41 532 17 46-88 Housing, Gearbox, RH
42 532 17 46-98 Seal, Oil
43 532 17 47-01 Bushing, Flange, 1"
44 532 18 92-82 Key, Square 1/4 x 1/4 x 7/8
45 532 17 46-59 Gear, Worm
46 532 17 46-57 Shaft, Auger
47 532 17 46-87 Housing, Gearbox, LH
48 532 18 41-05 Impeller Assembly
49 874 78 04-26 Screw, Hex Head 1/4-20 x 1-5/8
50 532 17 53-11 Gasket, Gearbox
51 532 18 42-05 Pin, Roll 3/16 x 1-1/8
54 532 05 38-47 Washer, Flat 1/4
55 532 18 82-43 Kit, Shear (Contains 6 each of Key Numbers 19 and 28)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - - MODEL NUMBER PM85C

4
3
2
1
1
2
6
19
2
2
14 26
28
27
27
25 20
29
24
31
30
16
18
17
10
14
3
13
15
9
22
11
12
7
4
5
6
8
8

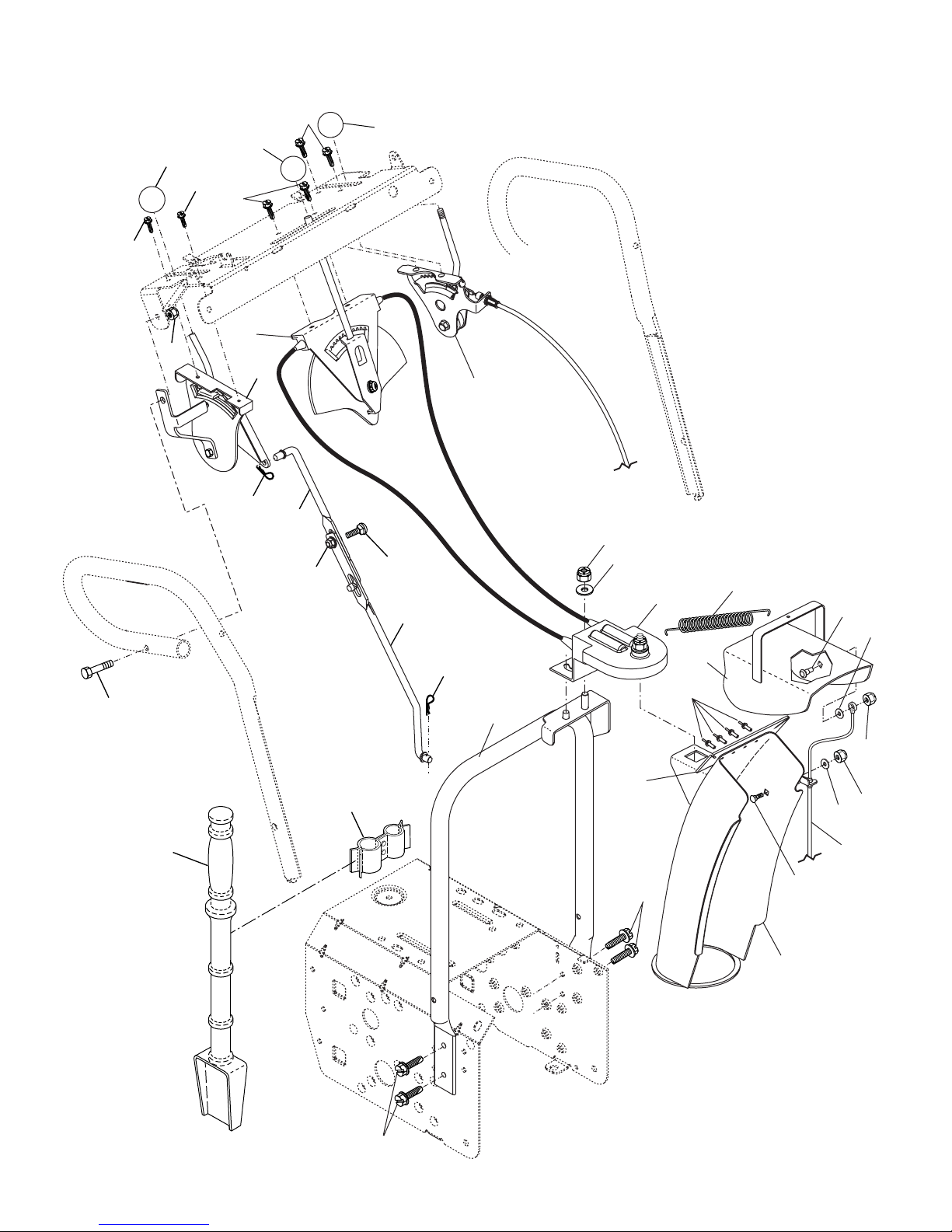

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - - MODEL NUMBER PM85C

5
KEY PART
NO. NO. DESCRIPTION
1 532 18 33-34 Knob, Lever
2 817 50 10-10 Screw #10-24 x 5/8
3 532 17 86-74 Control Assembly, Deflector
4 873 80 06-00 Nut, Lock 3/8-16
5 819 13 13-16 Washer, Flat 3/8
6 532 17 86-59 Control Assembly, Chute Rotater
7 532 18 40-89 Support, Pivot
8 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
9 532 18 45-05 Spring, Deflector
10 532 17 98-29 Bolt, Shoulder
11 532 17 92-46 Washer, Flat 1/4
12 873 80 04-00 Nut, Lock 1/4-20
13 872 25 05-05 Bolt, Carriage 5/16-18
14 873 80 05-00 Nut, Lock 5/16-18
15 532 18 45-10 Chute Assembly
16 532 18 45-11 Deflector Assembly
17 532 17 91-45 Seal, Deflector
18 532 12 84-15 Rivet, Blind
19 532 18 33-33 Knob, Speed Control Lever
20 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
22 532 15 54-15 Washer, Flat
24 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4
25 532 15 53-77 Nut, Lock 5/16-18
26 532 17 92-57 Lever Assembly, Speed Control
27 532 16 96-75 Retainer, Hairpin
28 532 18 04-45 Rod, Upper, Speed Control
29 532 18 77-16 Rod, Lower, Speed Control
30 532 19 27-10 Clamp, Clean-Out Tool
31 532 19 21-99 Tool, Clean-Out
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - - MODEL NUMBER PM85C

6
5
11
12
15
7
10
33
18
19
37
34
35
20
20
21
21
6
11
5
36
13
2
5
15
11
4
4
3
3
16
17 16
23
22
38
39
24 27
26
24
25
27
40
22
17
1
4
4
14
586
28
9
32
30
31
31 32
REPAIR PARTS HANDLES
SNOW THROWER - - MODEL NUMBER PM85C

7
KEY PART
NO. NO. DESCRIPTION
1 532 18 41-10 Lever, Auger Control, RH
2 532 18 41-09 Lever, Traction Drive Control, LH
3 532 17 94-39 Nut, Cage 1/4-20
4 532 17 88-88 Bushing, Flange
5 532 16 96-75 Retainer, Hairpin
6 532 18 04-02 Screw, Hex Head 1/4-20 x 3/4
7 532 17 86-52 Rod, Interlock
8 532 18 40-03 Tube Assembly, Interlock, RH
9 532 17 86-51 Tube Assembly, Interlock, LH
10 532 18 41-06 Panel, Control
11 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2
12 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4
13 532 18 41-07 Handle Tube, LH
14 532 18 41-08 Handle Tube, RH
15 873 80 05-00 Nut, Lock 5/16-18
16 819 13 13-16 Washer, Flat 3/8
17 532 17 88-99 Knob, Handle
18 532 18 45-94 Rod, Auger Control
19 532 19 30-81 Rod, Traction Control
20 532 18 04-28 End, Control Rod
21 873 35 05-00 Nut, Hex, Jam 5/16-18
22 872 12 06-18 Bolt, Carriage 3/8-16 x 2-1/4
23 532 18 40-87 Handle Tube, Lower
24 532 18 04-47 Sleeve, Spring
25 532 18 09-26 Spring, Traction Drive
26 532 17 86-69 Spring, Auger Control
27 871 21 06-16 Screw, Hex Head 3/8-16 x 1
28 532 18 04-94 Clip, Panel
30 532 18 29-06 Console, Panel
31 532 17 52-62 Screw, Hex Head, Tapping #10-24 x 1-1/4
32 532 18 44-71 Screw, Hex Head, Tapping #10-24 x 1/2
33 532 18 41-11 Latch, Interlock
34 532 18 35-18 Bolt, Shoulder
35 532 06 80-38 Nut, Lock 1/4-20
36 532 17 88-31 Spring, Torsion
37 532 17 86-58 Spring, Interlock
38 532 17 86-66 Headlight, Halogen
39 532 17 86-68 Bezel, Headlight
40 532 18 09-64 Harness, Headlight (Halogen)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS HANDLES
SNOW THROWER - - MODEL NUMBER PM85C

8
35
33
15
41
22
34
29
22
31
26
7
2
43
2
11
3
3
25
24
23
12
32
27
44
20
21
21
22
16
17
42
15
2
1
4
13
4
1
2
5
3
4
2
5
3
3
5
1
2
3
13
1
5
2
7
8
910
6
3
3
41
14 2
19
18
28 30
40
39
38
36
37
33

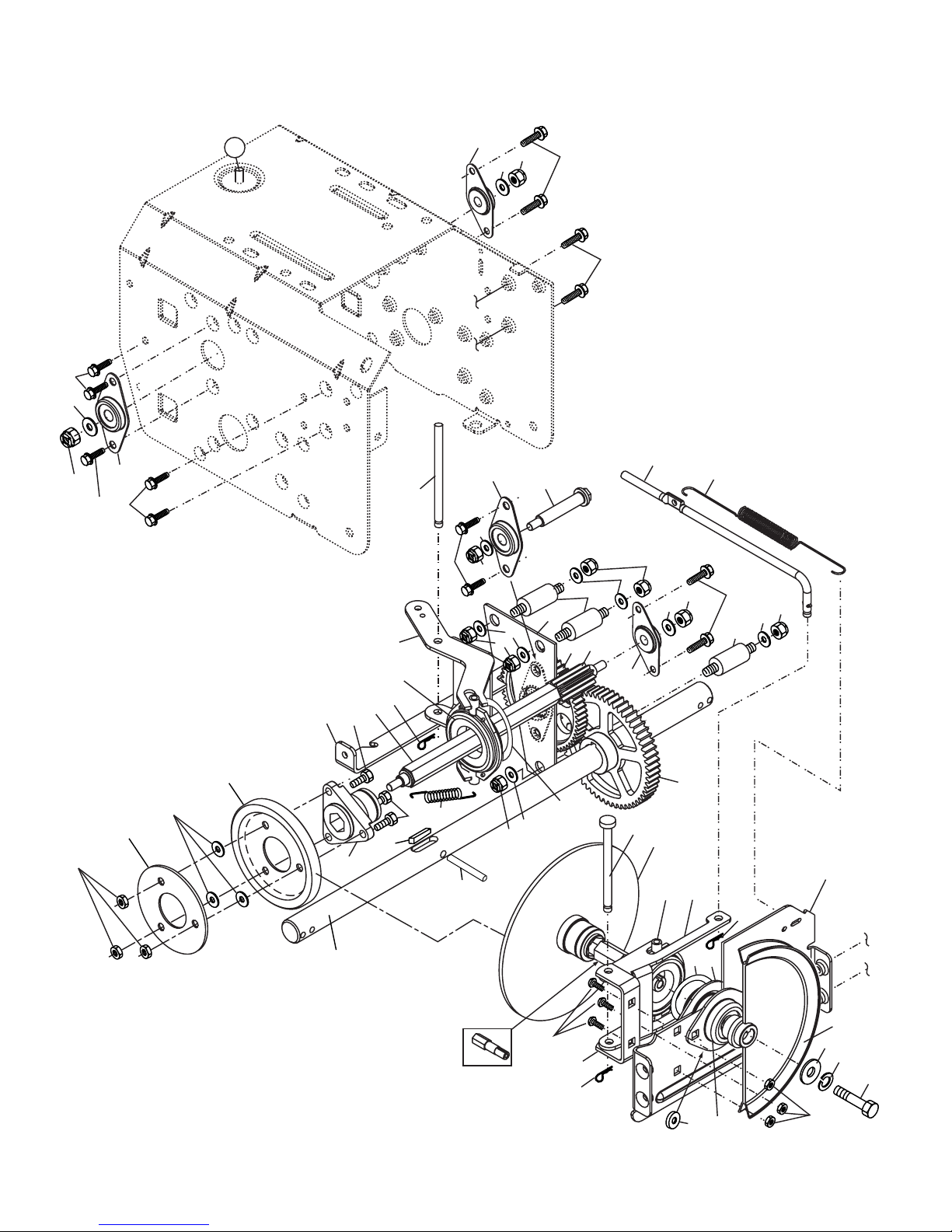

REPAIR PARTS DRIVE
SNOW THROWER - - MODEL NUMBER PM85C

9
KEY PART
NO. NO. DESCRIPTION
1 532 14 63-15 Screw, Hex Head 5/16-18 x 3/4
2 873 80 05-00 Nut, Lock 5/16-18
3 532 15 5415 Washer, Flat
4 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
5 532 18 00-17 Bearing, Flange
6 532 18 01-34 Shaft, Auxiliary
7 532 17 92-70 Spacer, Plate
8 532 19 29-07 Plate, Auxiliary
9 532 18 00-82 Gear, Intermediate (12/58)
10 532 18 00-65 Gear, Pinion
11 532 18 77-14 Rod, Clutch
12 532 18 00-66 Shaft, Long, Hex
13 532 17 88-07 Pin, Pivot
14 532 18 40-80 Lever, Shifter / Wheel
15 532 17 53-44 Trunnion Bearing Assembly
16 532 18 78-57 Bracket, Pivot, Shift
17 532 17 98-31 Ring, Rubber Wheel
18 532 18 40-78 Plate, Rubber Wheel
19 873 93 05-00 Nut, Lock 5/16-18
20 532 17 86-13 Hub, Rubber Wheel
21 874 76 05-14 Screw, Hex Head 5/16-18 x 7/8
22 532 08 51-79 Retainer, Hairpin
23 532 18 01-35 Spring, Bias
24 532 18 00-81 Gear, Axle (58 Teeth)
25 532 17 86-95 Pin, Pivot Lever
26 532 17 53-41 Plate Assembly, Drive
27 532 17 93-52 Shaft, Axle
28 532 17 53-40 Shaft, Short Hex
29 532 18 40-77 Lever, Shifter Plate
30 532 18 40-76 Bracket, Shifter Support
31 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8
32 532 17 88-79 Key, Square 1/4 x 1/4 x 7/8
33 532 18 89-09 Bearing, Flange
34 532 18 40-75 Plate, Drive Mounting
35 532 18 25-04 Spacer, Bearing
36 532 19 10-80 Pulley, Traction Drive
37 532 15 53-77 Nut, Lock 5/16-18
38 819 11 15-07 Washer, Flat
39 810 04 05-00 Washer, Lock 5/16
40 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
41 812 00 00-12 Ring, Retaining
42 532 15 54-15 Washer .20 x 8.5 x 2.0
43 532 17 90-95 Spring, Return
44 532 18 42-06 Pin, Roll
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS DRIVE
SNOW THROWER - - MODEL NUMBER PM85C

10
10
21
6
19
17
10 21
22
23
2
1
3
4
6
7
8
9
12
13
15
27
26
25
24
18
7
6
20
14
28
6
30
29
31
31
47
47
48
46
40
44
26
49
50
51
52
35
55
34
33
32
38
36
41
6
37
39
42
43
11
53
54
5
11
44
26
45
41
11
16
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - - MODEL NUMBER PM85C

11
KEY PART
NO. NO. DESCRIPTION
1 532 18 10-44 Spring, Traction Idler
2 532 18 05-22 Pulley, Idler (2-1/4)
3 - - - Engine, Tecumseh, Model Number OH318A (Order parts from Engine manufacturer)
4 874 78 05-20 Screw, Hex Head 5/16-18 x 1-1/4
5 532 15 00-78 Screw, Hex Washer Head 5/16-18 x 3/4
6 532 05 92-89 Washer, Flat
7 873 93 05-00 Nut, Jam, Lock 5/16-18
8 532 17 53-30 Pin, Idler Pivot
9 532 17 90-92 V-Belt, Traction Drive
10 810 04 05-00 Washer, Lock 5/16
11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2
12 532 17 92-59 Impeller Idler Arm Assembly
13 532 08 51-79 Retainer, Hairpin
14 532 17 88-28 Spring, Brake
15 532 18 35-33 V-Belt, Impeller Drive
16 532 19 23-06 Screw, Hex Head 3/8-16 x 1-1/4
17 532 18 48-04 Arm, Idler
18 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2
19 532 17 53-31 Bushing, Idler Pivot
20 532 18 05-23 Pulley, Idler (2-3/4)
21 874 61 05-16 Screw, Hex Head 5/16-18 x 1
22 532 17 93-71 Spacer, Engine Pulley
23 532 18 04-78 Pulley, Engine, Traction Drive
24 532 17 91-57 Pulley, Engine, Impeller Drive
25 532 06 27-35 Washer, Flat 3/8
26 532 85 02-63 Washer, Lock 3/8
27 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8
28 532 15 54-52 Guide, Belt
29 532 19 21-93 Cover, Belt
30 532 17 88-30 Cover, Toolbox
31 817 49 04-08 Screw, Hex Head 1/4-20 x 1/2
32 532 17 92-56 Bolt, Shoulder 5/16-18
33 532 18 78-53 Bellcrank Shifter
34 532 18 04-01 Screw, Hex Head 1/4-28 x 3/4
35 532 17 92-40 Arm, Auger Control
36 873 80 05-00 Nut, Lock 5/16-18
37 532 18 40-86 Bellcrank Assembly
38 532 18 71-01 Link, Speed Control
39 532 19 21-10 Trunnion, Pivot Bracket
40 532 17 88-90 Nut, Cage 3/8-16
41 532 70 02-79 Hairpin, Cotter 3/32 x 1/2
42 532 17 90-65 Pin, Pivot Bracket
43 532 18 40-85 Bracket, Bellcrank
44 874 78 06-24 Screw, Hex Head 3/8-16 x 1-1/2
45 532 18 40-74 Pivot Bracket, Impeller Idler Arm
46 532 18 40-84 Pan, Frame Bottom
47 871 02 05-12 Screw, Hex Head 5/16-18 x 3/4
48 532 18 11-56 Nut, Speed 5/16-18
49 532 18 45-07 Frame Assembly
50 532 18 83-69 Plate, Frame End
51 532 19 29-08 Shaft, Auger Control
52 532 05 70-79 Washer, Hardened
53 532 19 22-75 Roller
54 532 19 21-47 E-Ring
55 812 00 00-02 Ring, Crescent
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - - MODEL NUMBER PM85C

12
3
2
4
4
5
5
6
6
4
4
12
REPAIR PARTS WHEELS
SNOW THROWER - - MODEL NUMBER PM85C

13
KEY PART
NO. NO. DESCRIPTION
1 532 18 79-04 Wheel Assembly, 16", LH
2 532 15 54-43 Pin, Klik 1/4
3 532 18 79-05 Wheel Assembly, 16", RH
4 532 14 63-15 Bolt, Shoulder
5 532 17 98-30 Bearing, Axle
6 532 17 46-97 Washer, Thrust (1”)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS WHEELS
SNOW THROWER - - MODEL NUMBER PM85C

14
REPAIR PARTS DECALS
SNOW THROWER - - MODEL NUMBER PM85C
5
3
1
4
2
1
13
13
10
7
6
14
8
9
12
11

15
KEY PART
NO. NO. DESCRIPTION
1 532 18 40-26 Decal, Danger
2 532 18 77-31 Decal, McCulloch, 69cm
3 532 18 40-27 Decal, Danger, Deflector
4 532 18 40-45 Decal, Danger
5 532 18 77-29 Decal, McCulloch
6 532 18 40-30 Decal, Instruction
7 532 18 40-36 Decal, Traction Lever
8 532 18 40-35 Decal, Auger Lever
9 532 18 40-32 Decal, Speed Control
10 532 18 40-31 Decal, Remote Deflector
11 532 18 40-37 Decal, Fuel Shut-Off
12 432 18 40-28 Decal, Belt Guard
13 532 18 41-24 Decal, Height Adjustment
14 532 18 04-33 Decal, Sound Level
- - 532 18 46-23 Operator’s Manual, European
- - 532 18 46-24 Operator’s Manual, Scandinavian
- - 532 18 46-25 Operator’s Manual, East Bloc Euro
- - 532 19 22-02 Repair Parts Manual, English
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS DECALS
SNOW THROWER - - MODEL NUMBER PM85C
