Electrolux 300 Series User manual

electroluxappliances.com\register
Use & Care Manual EN 2
Washing Machine
Manuel d’utilisation et d’entretien FR 52
Machine à laver
Manual de uso y cuidado SP 108
Lavadora

2IMPORTANT SAFETY INFORMATION
Please read and save this
manual
Thank you for choosing Electrolux, our
premium brand in home appliances. This Use
& Care Manual is part of our commitment to
customer satisfaction and product quality
throughout the service life of your new
appliance.
Table of contents
Electrolux serial number
Electrolux model number
READ ALL INSTRUCTIONS BEFORE OPERATING THIS
WASHER.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Electrolux model series*
*The series number can be found within the
Model number (example EFLW7637AW=
600 series).
For toll free telephone support or online
support in the US and Canada contact:
U.S.
1-877-4ELECTROLUX (1-877-435-3287)
www.electroluxappliances.com
Canada
1-800-265-8352
www.electroluxappliances.ca
Purchase date
Keep a record for quick
reference
Questions?

NOTE
Registering your product with Electrolux
enhances our ability to serve you.
You can register online at www.
electroluxappliances.com, by sending
your Product Registration Card in the
mail, or PHOTOREGISTERSM using a smart
phone. See registration card for details.

NOTE
The instructions appearing in this
Use & Care Manual are not meant to cover
every possible condition and situation
that may occur. Common sense and
caution must be practiced when installing,
operating and maintaining any appliance.
WARNING
For your safety the information in this manual must be followed to minimize the risk of fire
or explosion or to prevent property damage, personal injury or loss of life. Do not store
or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
Important Safety Information........................... 2
Features.....................................................................6
Pre-Installation Requirements.......................... 7
Installation...............................................................12
Accessories and Replacement Parts...........19
Controls and Settings ........................................20
Operating Instructions ......................................32
Normal Operating Sounds ..............................37
Stain Removal Guide ........................................ 38
Care and Cleaning ............................................ 40
Troubleshooting .................................................. 45
Limited Warranty.................................................. 51

3
Important safety instructions
IMPORTANT SAFETY INFORMATION
Prevent fire
 DO NOT wash items that have been
previously cleaned in, soaked in,
or spotted with gasoline, cleaning
solvents, kerosene, cooking oils,
waxes, or other flammable or explosive
substances. DO NOT store these
items on or near the washer. These
substances give off vapors or chemical
reactions that could ignite or explode.
 DO NOT put oily or greasy rags or
clothing on top of the washer. These
substances give off vapors that could
ignite the materials.
 DO NOT add gasoline, cleaning
solvents, or other flammable or
explosive substances to the wash water.
These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas
may be produced in a hot water system
that has not been used for 2 weeks or
more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been
used for such a period, before using the
washer, turn on all hot water faucets
and let the water flow from each for
several minutes. This will release any
accumulated hydrogen gas. Hydrogen
gas is flammable; DO NOT smoke or use
an open flame during this time.
 DO NOT store or use gasoline or other
flammable vapors or liquids in the
vicinity of this or any other appliance.
• Failure to comply with these warnings
could result in fire, explosion, serious
bodily injury and/or damage to the
rubber or plastic parts of the washer.
 DO NOT continue to use the washer if
you hear squeaking, grinding, rubbing
or other unusual noises. This could be
a sign of mechanical breakdown and
lead to fire or serious injury. Contact a
qualified technician immediately.
Safety precautions
DO NOT attempt to install or operate your
unit until you have read the safety precautions
in this manual. Safety items throughout this
manual are labeled with a Danger, Warning,
or Caution based on the risk type.
Definitions
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
IMPORTANT
IMPORTANT indicates installation, opera-
tion or maintenance information which is
important but not hazard-related.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply
with the warnings listed below. Failure to comply with these Important Safety Information and
warnings could result in property damage, serious personal injury, or death.
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.

4IMPORTANT SAFETY INFORMATION
Protect children
 DO NOT allow children to play on or in
the washer. Close supervision of children
is necessary when the washer is used near
children. As children grow, teach them the
proper, safe use of all appliances.
• Destroy the carton, plastic bag and
other packing materials after the
washer is unpacked. Children might use
them for play. Cartons covered with
rugs, bedspreads or plastic sheets can
become airtight compartments.
• Keep laundry products out of children’s
reach. To prevent personal injury,
observe all warnings on product labels.
• Before the washer is removed from
service or discarded, remove the washer
door to prevent accidental entrapment.
• Failure to comply with these warnings
could result in serious personal injuries.
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
washers and dryers are still dangerous – even if
they will sit for “just a few days”. If you are getting
rid of your old washer or dryer, please follow the
instructions below to help prevent accidents.
We strongly encourage responsible appliance
recycling/disposal methods. Contact your
State/Provence Energy Office, Local Electric
and Water Utilities or Conservation Program
Office or visit www.energystar.gov/recycle
for more information on recycling your old
washer or dryer.
Before you throw away your old
washer or dryer:
• Remove doors
• Remove the electric power cord
• Secure all hoses and drain pipes to
prevent water from leaking out and
creating a slip hazard.
Prevent injury
• To prevent shock hazard and assure
stability during operation, the washer
must be installed and electrically
grounded by a qualified service person
in accordance with local codes.
Installation instructions are packed
in the washer for installer’s reference.

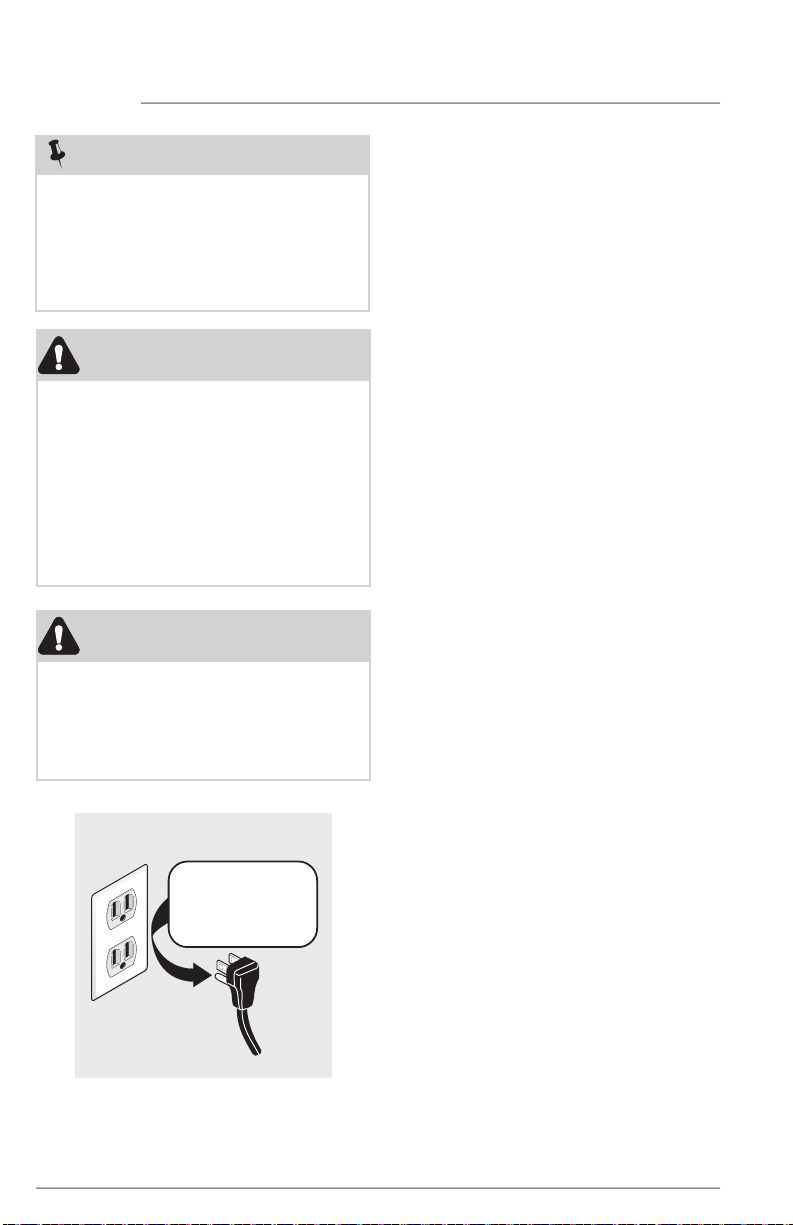

Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
• Follow package directions when using
laundry products. Incorrect usage can
produce poisonous gas - resulting in
serious injury or death.
 DO NOT combine laundry products
for use in 1 load unless specified on
the label.
Refer to the Installation sections of
this manual for detailed grounding
procedures. If the washer is moved
to a new location, have it checked
and reinstalled by a qualified service
person.
• To prevent personal injury or damage
to the washer, the electrical power cord
of the washer must be plugged into
a properly grounded and polarized
3-prong outlet. The third grounding
prong must never be removed. Never
ground the washer to a gas pipe.
DO NOT use an extension cord or an
adaptor plug.
WARNING
FIRE/ELECTRICAL SHOCK HAZARD
Avoid fire hazard or electrical shock. DO
NOT use an adaptor plug or extension cord
or remove grounding prong from electrical
power cord. Failure to follow this warning
can cause serious injury, fire or death.
WARNING
Improper grounding of the washer may cause
serious injury or death. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.

5
IMPORTANT SAFETY INFORMATION
Prevent injury and damage to the
washer
To prevent serious personal injury and
damage to the washer:
• All repairs and servicing must
be performed by an authorized
service technician unless specifically
recommended in this Use & Care
Manual . Use only authorized factory
parts.
 DO NOT tamper with controls.
 DO NOT install or store the washer
where it will be exposed to the weather.
 DO NOT install on carpet. Install washer
on a solid floor. It may be necessary to
reinforce the floor to prevent vibration
or movement.
• To reduce the risk of electric shock,
disconnect this appliance from the
power supply before attempting any
user maintenance. Turning the controls
to the OFF position does not disconnect
this appliance from the power supply.
• To prevent injury, DO NOT reach into
the washer while parts are moving.
• This washer is equipped with an
electrical overload protector. The motor
will stop if it becomes overheated.
• Failure to comply with these warnings
could result in serious personal injuries.
WARNING
HARMFUL VAPOR HAZARD
DO NOT use or mix liquid chlorine bleach
with other household chemicals such
as toilet cleaners, rust removers, acids
such as vinegar, or products containing
ammonia. These mixtures can produce
dangerous fumes which can cause serious
injury or death.
WARNING
RISK OF INJURY
DO NOT WASH: Water resistant and water
repellent clothing or other materials.
Failure to follow these instructions may
result in an abnormal vibrating and out-
of-balance condition that could result in
physical injury, property damage, and/or
appliance damage.

6FEATURES
drum light door reversibility 3 compartment dispenser Adaptive Dispenser™ detergent pack option pure rinse optic whites hand wash whitest whites allergen sanitize stain treatment perfect steam wrinkle release fast wash
300 Series no yes yes no no no no no no no no no no no no
400 Series no yes no yes yes no no no yes no yes yes yes yes 18 min
500 Series yes yes no yes yes yes no no yes yes yes yes yes yes 15 min
600 Series yes yes no yes yes yes yes yes no yes yes yes yes yes 15 min
Refer to the table below for an overview of features available for each model series.
Not all cycles, options, or features listed are available on every model.
1
2
3
45
6
7
8
9
10
1. Door striker 9. Cascading wash vanes
2. Reversible door 10. Door latch with safety lock
3. Laundry products dispenser 11. Adjustable leveling legs
4. LED Display 12. Stainless steel wash drum
5. Cycle Display 13. Flexible door gasket
6. Drum light (select models) 14. Wide angle door hinge
7. Control lock 15. Inner bowl with small article redistribution
ramp
8. Serial and model # 16. Door stand ventilation
11
12
13
14
15
16

7

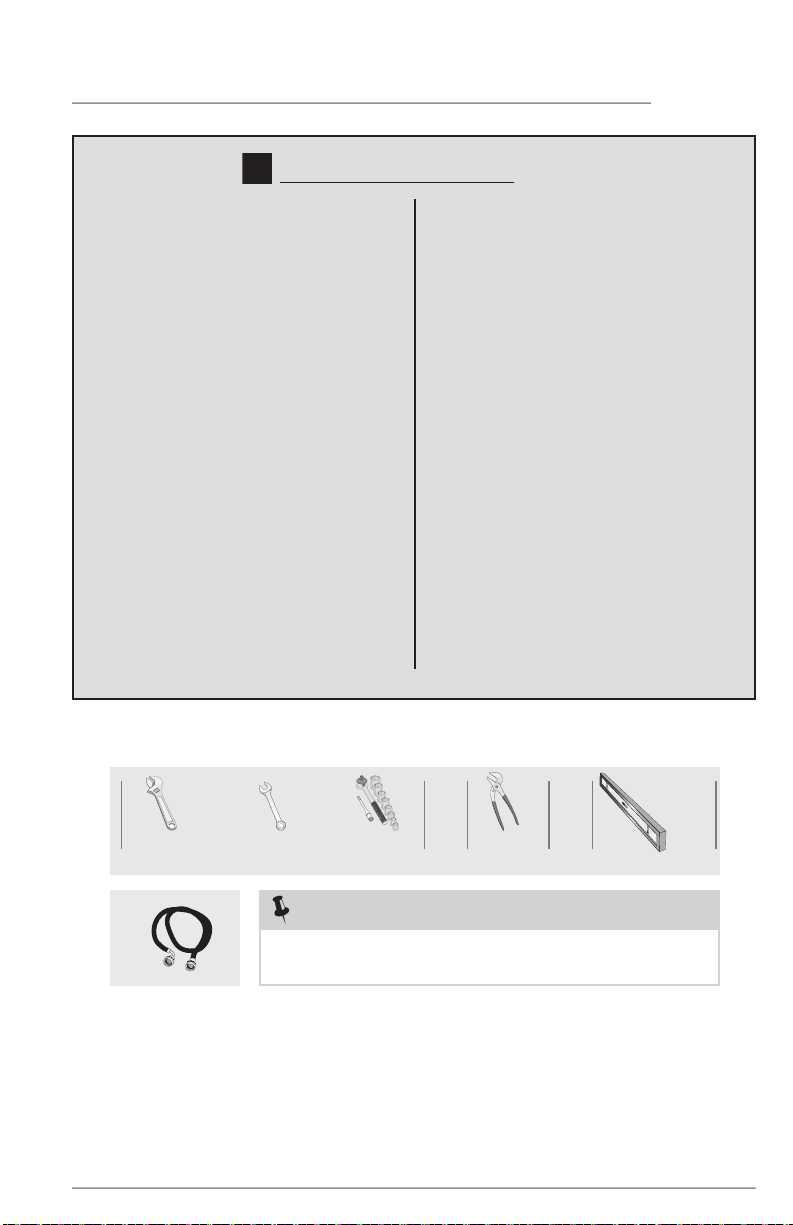

PREINSTALLATION REQUIREMENTS
Tools and materials needed for installation:
Adjustable
pliers
Adjustable
wrench
OR OR AND AND
Carpenter’s level
Ratchet and
socket set
3/8" or
10 mm
box wrench
Shipping Hardware
Foam shipping support (under wash
tub) removed and stored
Shipping bolts and spacers removed
from rear of appliance and stored
Hole plugs (shipped in manual bag)
installed in holes in backsheet
Leveling
Washer is level, side-to-side and front-
to-back
Cabinet is sitting solid on all corners
Water Supply
Use only new hoses and verify rubber
sealing washers are installed
HOT supply is connected to HOT inlet
and COLD supply is connected to
COLD inlet
HOT and COLD water supply
turned on
No leaks present at water supply
connections or appliance inlet
connections - recheck in 24 hours
Drain
Stand pipe or wall drain height
minimum 24”
Verify anti-siphon disc is attached
toward end of drain hose
Drain hose secured in place with
cable tie (shipped in drum)
Door Reversal
Follow detailed instructions in
this manual
Test hinge and latch for function
Electrical Power
House power turned on
Washer plugged in
Final Checks
Installation instructions and Use
& Care Manual read thoroughly
Door locks and water enters drum
when cycle starts
Registration card sent in
Inlet Hose (x2)
Electrical system requirements
CIRCUIT - Individual, properly polarized
and grounded 15 amp. branch circuit
fused with 15 amp. time delay fuse or
circuit breaker.
POWER SUPPLY - 2 wire, with ground, 120
volt single phase, 60 Hz, Alternating
Current.
OUTLET RECEPTACLE - Properly grounded
3-prong receptacle to be located so
the power supply cord is accessible
when the washer is in an installed
position.

Installation Checklist

NOTE
Hoses are not included with washer purchase.

8PREINSTALLATION REQUIREMENTS
Water supply requirements
Grounding requirements
Drain system requirements
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
1. The washer MUST be grounded. In the
event of malfunction or breakdown,
grounding will reduce the risk of
electrical shock by a path of least
resistance for electrical current.
2. Since your washer is equipped with
a power supply cord having an
equipment-grounding conductor and
a grounding plug, the plug MUST be
plugged into an appropriate, copper
wired receptacle that is properly
installed and grounded in accordance
with all local codes and ordinances or
in the absence of local codes, with the
National Electrical Codes, ANSI/NFPA
70 (latest edition), or in Canada, the
Canadian electrical code C22.1 part 1.
If in doubt, call a licensed electrician.
DO NOT cut off or alter the grounding
prong on the power supply cord. In
situations where a two-slot receptacle
is present, it is the owner’s responsibility
to have a licensed electrician replace it
with a properly grounded three prong
grounding type receptacle.
Hot and cold water faucets MUST be
installed within hose length of your washer’s
water inlet. The faucets MUST be 3/4 inch
(1.9 cm) with threading for laundry hose
connection. Water pressure MUST be
between 20 and 120 psi. Pressure difference
between hot and cold cannot be more than
10 psi. Your water department can advise you
of your water pressure.
1. Drain capable of eliminating 17 gals
(64.3 L) per minute.
2. A standpipe diameter of 1-1/4 in. (3.18
cm) minimum.
3. The standpipe height above the floor :
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244 cm).

NOTE
Because of potentially inconsistent
voltage capabilities, the use of this washer
with power created by gas powered
generators, solar powered generators,
wind powered generators or any other
generator other than the local utility
company is not recommended.
WARNING
ELECTRIC SHOCK HAZARD
Certain internal parts are intentionally
not grounded and may present a risk
of electrical shock if contacted during
installation. Do not contact the following
parts while the appliance is energized
• Pump
• Drive motor
• Electrical control boards
• Water valves
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment
grounding conductor can result in a risk
of electrical shock. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.

9
PREINSTALLATION REQUIREMENTS
Installation in a recess or
closet
If washer and dryer are installed in the
same closet, door ventilation is required: A
minimum of 120 square inches (774.2 cm²)
of opening, equally divided at the top and
bottom of the door, is required. Louvered
openings should be located 3 inches (7.6 cm)
from bottom and top of door. Air openings
are required to be unobstructed when a door
is installed. A louvered door with equivalent
air openings for the full length of the door is
acceptable.
Clearance requirements
96"
(244 cm)
max.
24"
(61 cm)
min.
60 sq. Inches
Solid Door with Wall
Ventilation
120 sq. Inches
120 sq. Inches Equally Divided Split Vent
Door
IMPORTANT
DO NOT INSTALL YOUR WASHER:
1. In an area exposed to dripping water
or outside weather conditions.
2. In an area where gasoline or other
flammables are kept or stored.
3. On carpet. Floor MUST be solid with
a maximum slope of 1 inch (2.5 cm).
To minimize vibration or movement,
reinforcement of the floor may be
necessary.
4. On top of another washer or on top of
a dryer. Do not stack a dryer on top of
washer already installed on pedestal.

NOTE
Drain hose length is 59 in. (150 cm). For
installations requiring a longer drain hose,
use hose P/N 137098000, available from
an authorized parts distributor.

10

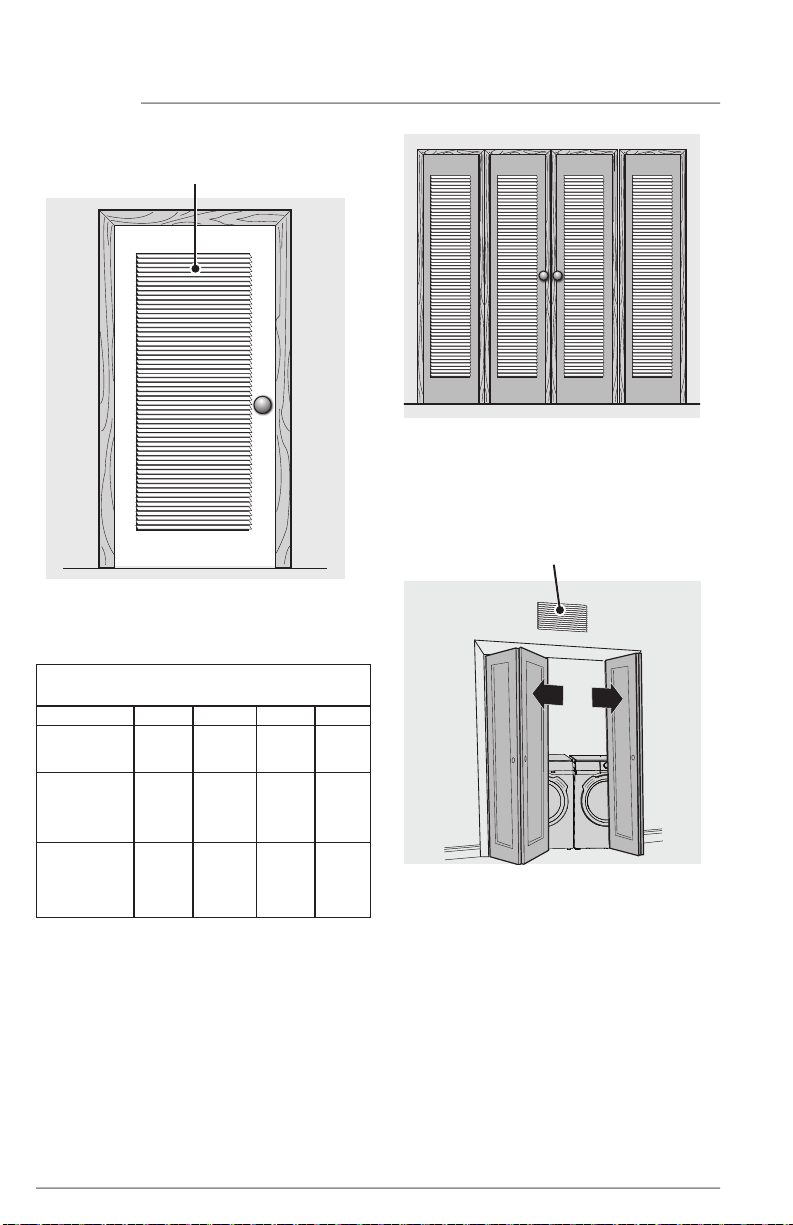

Louvered Door
120 sq. Inches min.
Louvered Opening
MIN. INSTALLATION CLEARANCES -
Inches (cm)
Sides Rear Top Front
Alcove/
recess
0"
(0 cm)
0"
(0 cm)
0"
(0 cm) Open
Closet with
door vent
0"
(0 cm)
0"
(0 cm)
0"
(0 cm)
1"
(2.5 cm)
Closet with
wall vent
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
Bi-Fold louvered doors with
120 sq. in of ventilation
Solid Bi-Fold doors with no
ventilation
120 sq. Inches of
wall venting
PREINSTALLATION REQUIREMENTS

11
PREINSTALLATION REQUIREMENTS
Washer dimensions
*Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
1Power supply cord length on washer approximately 60 inches (152.5 cm).
2Drain hose length on washer approximately 59 inches (150 cm).
3Power supply cord length on gas dryer or electric Canadian dryer approximately 60 inches
(152.5 cm).
water supply
connection on
rear of unit
electrical
supply on
rear of unit3
gas supply
pipe on rear
of gas unit
centerline
height for
rear vent
53.5" (136 cm)*
to clear open door
32" (81.25 cm)*
to front of closed door
75.75"
(192.5 cm)
41.0"
(105 cm)
39.0"
(99 cm)
27.0"
(68.5 cm)
water supply
connection
on rear
of unit
drain
hose on
rear of
unit2
drain hose on
rear of unit3
power
cord on
rear of
unit1
power
cord
on rear
of unit1
floor line
floor line
floor line
freestand washer
on floor
washer mounted on
optional pedestal
38.0"
(96.5 cm)
approved
stacking kit
(STACKIT7X)
required for
stacked
installation
53.5" (136 cm)*
to clear open door
32" (81.25 cm)*
to front of closed door
53.25"
(135.5 cm)

12 INSTALLATION
Unpacking the washer
1. Temporarily
remove door tape.
2. Close door and
reapply door tape.
3. Using a rug,
blanket or piece
of cardboard to
protect the floor,
carefully lay the
washer on its back.
4. Remove styrofoam base and shipping
plug and set them aside.
5. Carefully return
the washer
to an upright
position.
6. Carefully move the washer to within 4
feet (1 m) of its final location.
IMPORTANT
DO NOT place the washer onto its back
without the shipping bolts.
IMPORTANT
Save styrofoam base and shipping plug
for use to help prevent washer damage
during any future moves.
IMPORTANT
DO NOT tip washer upside down onto its
top or onto its right side for any reason.
CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more
than one person move or lift the washer.
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment
grounding conductor can result in a risk
of electrical shock. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment
grounding conductor can result in a risk
of electrical shock. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.

13
INSTALLATION
HOTWaterHose
CALIENTE
CHAUDE
COLDWaterHose
FRIA
FROIDE
x7
Removing shipping hardware
Installing hole plugs
For 300 Series:
Remove all of the following:
4 SHIMS
4 BLACK SPACERS
3 P CLAMPS
4 BOLTS
For 400, 500, and 600 Series:
Remove all of the following:
4 P CLAMPS
1 SHIPPING FORK*
5 SHIMS
4 BLACK SPACERS
1 WHITE SPACER*
5 BOLTS
HOTWaterHose
CALIENTE
CHAUDE
COLDWaterHose
FRIA
FROIDE
*
*
Locate hole plugs in the small bag supplied
with washer instruction manuals. Insert them
in the holes in the washer back panel where
the shipping hardware has been removed.
* on select models
IMPORTANT
Failure to remove shipping hardware completely could result in damage to the appliance,
damage to your home, or unexpected washing results.
Save all shipping bolts and spacers for future use. If the washer is to be transported at a
later date, the shipping hardware must be reinstalled to help prevent shipping damage

NOTE
Rubber expansion material on spacers may need time to relax before they can be easily
pulled through shipping hole.

14
Rubber Washers
Must Be Present USE ONLY
NEW HOSES
Leveling the washer

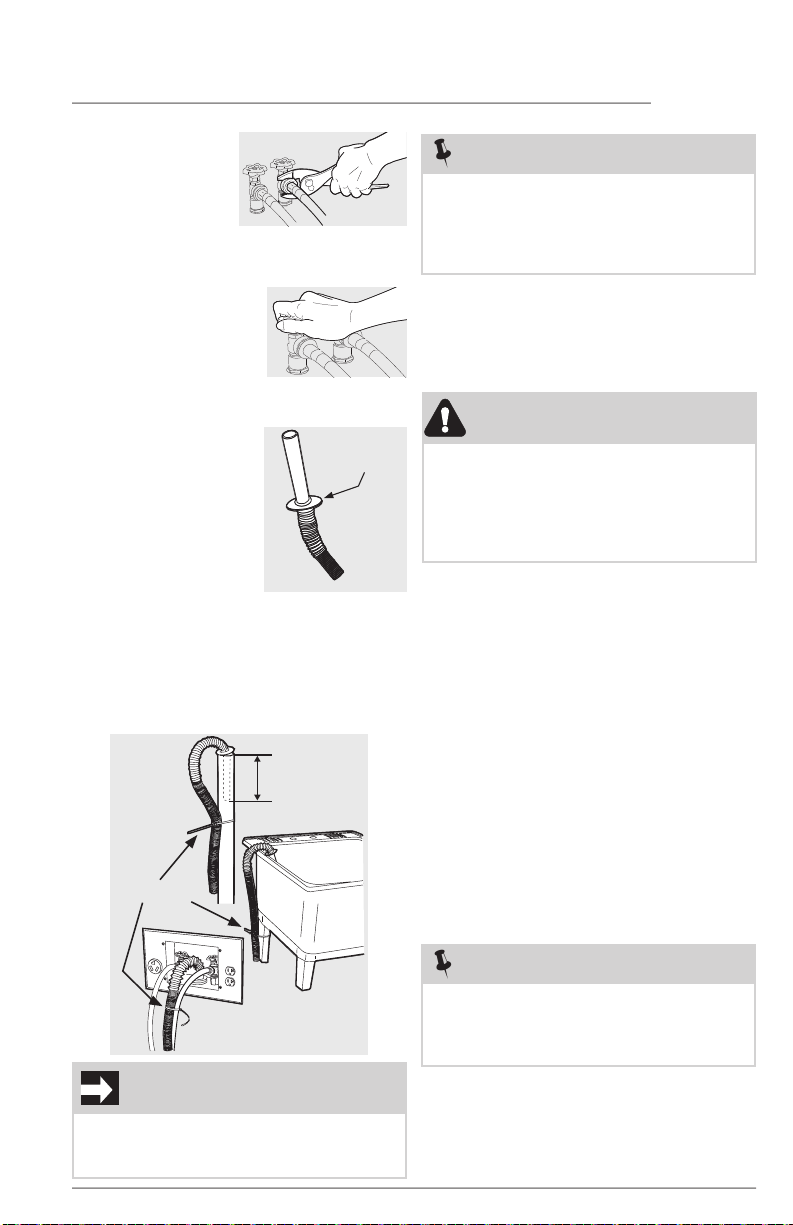

Connecting the water
1. Run some water
from the hot and
cold faucets to flush
the water lines and
remove particles that
might clog the water
valve screens and to
determine which faucet
is hot and which is cold
supply.
2. Check to ensure
that the inlet hoses
have the rubber
washer firmly in
place.
INSTALLATION
3. Connect the HOT
inlet hose (color:
red) to the HOT
inlet connection
on the washer and
the COLD inlet
hose to the COLD
inlet connection
(color: blue) on the
washer.
Excessive noise and vibration can be
prevented by properly leveling the washer.
1. For free standing
installation and
with the washer
within 4 feet
(1 m) of its final
location, place a
level on top of the
washer.
2. Use an adjustable
wrench to adjust
the leveling legs so
the washer is level
front-to-rear and
side-to-side, and
stable corner-to-
corner.
3. Press down on
alternate corners
and sides and feel
for the slightest
movement. Adjust
the appropriate
leg(s) so the
washer sits solidly on the floor on
ALL four legs. Keep the leveling leg
extension at a minimum for best
performance of the washer.
5. Connect the HOT
inlet hose to the HOT
water supply and
the COLD inlet hose
to the COLD water
supply.
Cold Hot
Cold inlet shown on
left side (400, 500,
600 models only).
On 300 series, the
cold inlet is on the
right side.
4. Tighten by hand
until snug. Then
tighten each supply
connection another
2/3 turn with pliers.
Do not cross thread
or over-tighten these connections.
IMPORTANT
The cold water inlet will have a blue cap
cover on the inlet connection and the
hot water inlet will have a red cap cover
on the inlet connection. Additionally,
depending on the model, the hot and
cold inlet connections will be marked
with either an adhesive label or markings
directly on the unit to indicate which side
is cold and which side is hot.

NOTE
For pedestal installations, see additional
installation instructions included with the
pedestal.

NOTE
Hoses are not included with washer
purchase.

15
6. Tighten by
hand until snug.
Then tighten
each supply
connection
another 2/3 turn
with pliers. Do not bend, kink or pinch
water inlet hoses.
7. Turn on the water
and check for leaks.
Anti-Siphon
Disc
1. Verify the anti-
siphon disc is in
place.
2. Form a “U” shape
on the end of the
drain hose with
the hose pointed
toward the drain.
Place the formed
end in a laundry
tub or a standpipe and secure the
drain hose with the cable tie (provided
in the manual bag) to the standpipe,
inlet hose, laundry tub, etc. so the hose
does not pull out from the force of the
water.
Connecting the drain
1. Plug the power cord into a grounded
outlet.
2. Turn on the power at a circuit breaker/
fuse box.
3. Carefully slide the washer to its final
position. Recheck for level and rock
corners for stability. See Leveling the
washer. Remove and discard door
tape.
4. Run the washer through a complete
cycle, checking for water leaks and
proper operation.
5. If you have any questions during
initial operation, please review the
Troubleshooting section before calling
for service.
6. Place these instructions in a location
near the washer for future reference.
INSTALLATION
Insert Less
Than 8.5"
(21.5 cm)
Cable Tie
Completing the installation
IMPORTANT
Check to ensure the power is off at a
circuit breaker/fuse box before plugging
the power cord into an outlet.

NOTE
The standpipe inside diameter must be
1-1/4” (3.2 cm) minimum. There must be
an air gap around the drain hose in the
standpipe. A snug hose fit can cause a
siphoning action.

NOTE
A wiring diagram and technical data
sheet are located under the washer top
panel, on top of the detergent dispenser
housing.
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment
grounding conductor can result in a risk
of electrical shock. Check with a licensed
electrician if you are in doubt as to whether
the appliance is properly grounded.

16 INSTALLATION
Removing door assembly
1. Completely open the door to expose
all four hinge screws.
2. Remove all four hinge screws with #2
square bit driver. Save for reinstalling later.
3. Hold the door with one hand
supporting the handle area and one
hand supporting the hinge. While
supporting the door at the hinge, press
firmly with the other hand until the
locating pins on the back of the hinge
plate dislocate from the front panel.
4. While supporting the door with one
hand, pinch the tabs to release the
plastic terminal cap from the hinge
plate.
5. Set the door face down on a flat
surface protected by soft cloth or
towel.
x4
Fine Thread
Plastic knife
Screwdriver
with #2
square bit
Tools needed for
reversal:

NOTE
Door reversibility is available on all models.
IMPORTANT
BEFORE YOU REVERSE WASHER DOOR:
1. Be sure you have adequate swing area before reversing
door.
2. Gather your tools - including a screw driver with a #2
square bit and plastic knife (or small, flat prying tool that
won’t damage paint).
3. Protect flat work surface, such as top of washer or floor
near washer, with a soft cloth or towel.
4. Be sure washer is unplugged from power source!
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing could result in personal injury or
even death.
Reversing the door
IMPORTANT
Take care not to pull the door away from
the washer until you remove the wiring
harness terminal cap.

17
INSTALLATION
2
1
Reinstalling door lock and hole
cover
1. Move the plastic cover to the other side
of the front panel. Position the cover so
the “hook” is at the bottom. Insert hook
into lower slot, slide the cover down,
and press upper retention tabs into
opening until they snap into place.
2
1
2. Insert wiring harness into door lock.
3. Insert door lock into front panel and
reinstall door lock screws.
Reversing door assembly
1. Locate nine screws on inner door
ring. Remove each and save for
reinstallation later. Remove inner door
(with hinge) and carefully set aside.
2. Lift door bowl slightly and rotate 180
degrees, setting it back onto outer door.
Removing door lock and plastic
hole cover
1. Locate and remove both screws from
door lock. Save screws for later.
2. Rotate the lock as you pull it out
through the front panel. Take care not
to pull too hard or too far as the lock is
still attached to the wiring harness.
3. Disconnect the wiring harness
terminal from the door lock. Set the
door lock aside for reinstallation later.
4. Pry the bottom of the plastic hole
cover upward to release it from the
front panel. You may have to use a
non-scratching plastic knife if you are
unable to release it manually. Then,
slide the cover down slightly and
remove it from the front panel.
1
2
Coarse
Thread
2
1
x2
Coarse
Thread
6. Release wiring harness from retainer
on plastic terminal cap. Then release
terminal from terminal cap. Save the
cap to reinstall later.

18 INSTALLATION
Fine Thread
x4
2
13
4
Connect to Notches
3. Make sure the alignment tabs reengage.
Reinstalling door assembly
1. Insert the wiring harness terminal into
the terminal cap and wrap the harness
into the harness retainer.
Verify reversed door operation
1. Test door for free, smooth swinging
operation and secure latching when
closed.
2. Verify inner door bowl is in the correct
orientation with the “scoop” at the
bottom.
2. Slide terminal cap onto back of hinge
plate until tabs snap into place.
3. Insert hinge locating pins into the hole
that were previously covered by the
plastic hole cover. Press on the face of
the hinge to snap the other locating
pins into place.
4. Reinstall all four screws removed earlier
- two front screws first, then two side
screws.
3. Plug in washer and close the door. Test
correct door lock operation by starting
a test cycle: lock should engage, and
door should not be able to be opened
until cycle is paused or canceled.
4. Reattach the inner door
to the outer door using
the nine screws removed
earlier. See illustration,
Step 1.
5. Check to verify that the
scoop (wider section) of
the door bowl is situated at
the BOTTOM of the door.

19
ACCESSORIES AND REPLACEMENT PARTS
Accessories
MATCHING STORAGE PEDESTAL*
White Pedestal - P/N EPWD257UIW
Titanium Pedestal - P/N EPWD257UTT
A storage pedestal accessory, specifically
designed for this washer may be used to
elevate the washer for ease of use. This
pedestal will add about 15” (38 cm) to the
height of your unit.
*Other colors may be available. Contact the
source where you purchased your washer.
DRYER STACKING KIT
P/N STACKIT7X
Depending on the model purchased, a
kit for stacking a matching dryer on top
of this washer may have been included in
the initial purchase of your dryer. If your
model did not include a stacking kit or
you desire another stacking kit, you may
order one.
INLET HOSE KITS
Please call 866-233-8353 (in Canada,
800-265-8352) to explore hose kit options
that will meet your specific installation
needs.
DRAIN HOSE EXTENSION KIT
P/N 137098000
In order to reach standpipe heights or
distances beyond the reach of the drain
hose supplied, order the Drain Hose
Extension Kit.
UNIVERSAL APPLIANCE WRENCH
P/N 137019200
A Universal Appliance Wrench is available
to aid in dryer/washer/pedestal feet
adjustment.
TOUCH UP PAINT PENS*
White - P/N 5304468812
Titanium - P/N 5304475700
*Other colors may be available. Contact the
source where you purchased your washer.
26.5”
(67 cm)
15”
(38 cm)
27”
(68.5 cm)
Replacement parts in U.S.
and Canada:
Universal Appliance Wrench
Storage Pedestal
If replacements parts are needed for
your dryer, you can contact the source
where you purchased your dryer, call
1-877-4ELECTROLUX (1-877-435-3287) in the
U.S. or 1-800-265-8352 in Canada, or visit
our website, www.electroluxappliances.com
in the U.S. or www.electroluxappliances.ca in
Canada for the Electrolux Authorized Parts
Distributor nearest you.
CAUTION
Failure to use accessories manufactured
by (or approved by) the manufacturer
could result in personal injury, property
damage or damage to the washer.

20 CONTROLS AND SETTINGS
This manual covers many models and not all cycles, options, or features listed are available
on every model. Consoles shown above for reference only. Your model may differ.
400 SERIES
HOT
WARM
COOL
ECO COLD
HEAVY
NORMAL
LIGHT
EXTRA LIG HT
HIGH
MEDIUM
LOW
NO SPIN
EXTENDED REFRESH
EXTRA RINSE
POWER
CYCL ES
TEMP SOIL SPIN OPTIONS
DELAY TIME
CONTRO L LOCK
SANITIZE SOLID SOI L MAX
SELECT
DE-SELECT
PERFECT STE AM
STAI NT REAT
HOLD ‘SELECT’
3s TO MUTE/UNMUTE
LUXCARE WAS H
NOR MAL
DELICATES
RINSE & SPIN
CLEAN WASH ER
HEAVY D UTY
WHIT EST WHI TES
18
MIN
FAST WAS H
PODS
CANCEL
STA R T
PAUS E
S
T
A
I
N
T
R
E
A
T
C
Y
C
L
E
S
MIN
CLOSE D OOR
CALL
SERVICE
O O RD
300 SERIES
600 SERIES
500 SERIES
ECO COLD
COOL
WARM
HOT
SANITIZE
EXTRA LIG HT
LIGHT
NORMAL
HE AV Y
SOLID SOIL
ALLERGEN
PERFECT STE AM
PURE RINSE
STAI NT REAT II
EXTENDED REFRESH
CONTROL LOCK
DE LAY TIM E
TEMP SOIL SPIN OPTIONS
SELECT
DE-SELECT
HOLD ‘SELEC T’
3s TO MUTE/UNMUTE
NO SPIN
LOW
MEDIUM
HIGH
MAX
RINSE & SPIN
POWER
CLEAN WASHER
LUXCARE PLUS WAS H
PODS
CANCEL
STA RT
PAUS E
DELICATES
15
MIN
FAST WASH
WHITEST WHITES
HEAVY DUTY
NORMAL
COLOR S
TOWELS
ACTIVEWEAR
S
T
A
I
N
T
R
E
A
T
I
I
C
Y
C
L
E
S
MIN
CLOSE DO OR
CALL
SERVICE
ANY STAIN BLOOD CHOCOLATE
O O RD
POWER
HOT
WARM
COOL
HEAVY
NORMAL
LIGHT
HIGH
MEDIUM
LOW
CYCL ES
NORMAL
20
MIN
FAST WAS H
DELICATES
RINSE & SPIN
CLEAN WASHER
HEAVY DUTY
WHITES
CONTROL LOCK
DE LAY TIM E
EXTENDED REFRESH
EXTRA RINSE
ECO COLD EX TRA LIGHT NO SPIN
TEMP SOIL SPIN
LUXCARE WAS H
STA R T
PAUS E
OPTIONS
SELECT
DE-SELECT
HOLD ‘SELECT’
3s TO MUTE/UNMUTE
CANCEL
MIN
CLOSE D OOR
CALL
SERVICE
O O RD
1
power
2
cycle selector
3
LED display
4
temperature
5
soil level
6
spin speed
7
options
8
set/select
9
cancel
10
start
11
PODS®
(select models)
Model series
PODS®is a registered trademark of Procter & Gamble Company, Cincinnati OH, used under license by Electrolux.
S
T
A
I
N
S
O
A
K
C
Y
C
L
E
S
ECO COLD
COOL
WARM
HOT
SANITIZE
EXTRA LIG HT
LIGHT
NORMAL
HEAVY
SOLID SOIL
NO SPIN
LOW
MEDIUM ALLERGEN
PERFECT STE AM
PURE RINSE
STAI NSOA K
EXTENDED REFRESH
HIGH
MAX
TEMP SOIL SPIN OPTIONS SELECT
DE-SELECT
HOLD ‘SELECT’
3s TO MUTE/UNMUTE
CONTROL LOCK
DELAY TIME
SMARTBOOST
LUXCARE PLUS WAS H
PODS
CANCEL
STA R T
PAUS E
OPTIC WH ITES
HEAVY DUTY
NORMAL
ACTIVEWEAR
COLORS
TOWELS
DELICATES
15
MIN
FAST WASH
HAND WASH
RINSE & SPI N
CLEAN WASHE R
MIN
CLOSE D OOR
CALL
SERVICE
ANY STAIN BLOOD CHOCOLATE
O O RD
POWER
2 71 63 954 10
811
2 71 63 954 10
811
2
2
7
7
1
1
6
6
3
3
9
9
5
5
4
4
10
8
8
11
10
