Programme information 11
Washing hints 12
Sorting the laundry 12
Temperatures 12
Before loading the laundry 12
Maximum loads 12
Laundry weights 12
Removing stains 12
Detergents and additives 13
International wash code symbols 14
Operating sequence 15-16
Washing programmes 17-19
Maintenance 20
Door seal 20
Bodywork 20
Detergent dispenser drawer 20
Drain pump 20
Water inlet filter 21
Emergency emptying out 21
Frost precautions 21
Something not working? 22-23
Warnings 3-4
Disposal 4
Tips for environmental protection 4
Technical specifications 4
Installation 5
Unpacking 5
Positioning 5
Water inlet 5
Water drainage 6
Electrical connection 6
Your new washing machine 7
Description of the appliance 7
Door locked pilot light 7
Detergent dispenser drawer 7
Use 8
Control panel 8
Controls 8-10
2
Dear customer,
Please read these operating instructions carefully
and pay particular attention to the safety notes
indicated in the first pages. We recommend that you
keep this instruction booklet for future reference and
pass it on to any future owners.
Transport damages
When unpacking the appliance, check that it is not
damaged. If in doubt, do not use it and contact the
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is
particularly important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use
of the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use environmentally
friendly paper.
Contents
132990831 GB.qxd 17/02/2004 16:49 Pagina 2

ENGLISH
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this
appliance must be carried out by a qualified
electrician.
• Any plumbing work required to install this appliance
must be carried out by a qualified plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those
for which it was designed.
• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects
such as coins, safety pins, pins and screws can
cause extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only
by qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children -
danger of suffocation! Keep them out of children’s
reach.
• Keep all detergents in a safe place out of
children’s reach.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
Warnings
3
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
132990831 GB.qxd 17/02/2004 16:49 Pagina 3

4
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing
of them properly in appropriate collection
containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
EWF 1025 EWF 1225 EWF 1020
DIMENSIONS Height 85 cm 85 cm 85 cm
Width 60 cm 60 cm 60 cm
Depth 63 cm 63 cm 59 cm
MAXIMUM LOAD Cotton 6 kg 6 kg 5 kg
Synthetics 3 kg 3 kg 2.5 kg
Delicates 3 kg 3 kg 2.5 kg
Woollens 2 kg 2 kg 2 kg
Hand wash 2 kg 2 kg 2 kg
Silk 1 kg 1 kg 1 kg
SPIN SPEED 1000 rpm max. 1200 rpm max. 1000 rpm max
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz 220-230 V/50 Hz 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W 2200 W 2200 W
MINIMUM FUSE PROTECTION 10 A 10 A 10 A
WATER PRESSURE Minimum 500kPa 500kPa 500kPa
Maximum 800 kPa 800 kPa 800 kPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
Technical specifications
132990831 GB.qxd 17/02/2004 16:49 Pagina 4

ENGLISH
Installation
5
Unpacking
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic pins.
2. Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces between
the machine and the floor.
3. Remove the polystyrene block from the bottom of
the machine and release the two plastic bags.
4. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.
5. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
6. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.
P1127
P1126
P1124
2
3
1
P0001
P1129
7. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
Water inlet
Connect the water inlet hose to a tap with a 3/4"
thread.
Do not use already employed hoses for water
connection.
Important!
Before connecting up the machine to new pipework
or to pipework that has not been used for some time,
run off a reasonable amount of water to flush out any
debris that may have collected in the pipes.
P1088
P1051
P0002
P1128
132990831 GB.qxd 17/02/2004 16:49 Pagina 5

6
The other end of the inlet hose which connects to the
machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose.
P0022
P0021
The drain hose must not be kinked.
For a correct functioning of the machine the
drain hose must remain hooked on the proper
support piece situated on the top part of the back
side of the appliance.
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.
Please ensure that when the appliance is
installed the power supply cable is easily
accessible.
P1118
132990831 GB.qxd 17/02/2004 16:49 Pagina 6

ENGLISH
7
Your new washing machine
1 Detergent dispenser drawer
2 Control panel
3 Door locked pilot light
4 Drain pump
5 Adjustable feet
Door locked light (3)
It stays on during the whole programme indicating
that the door is locked.
When the light goes out, the door can be opened
(see page 16).
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
Description of the appliance
5
2
1
4
3
1200
900
500
95°
60°
40°
30°
700
EWF 1225
E
E
PROGRAM
40° AA
FUNCTION START/PAUSE
P1190
This new machine meets all modern requirements for effective treatment of laundry with low water, energy and
detergent consumption.
•The automatic cooling of the washing water from 95° to 60°C before draining will prevent old drain pipes
from being deformed.
•The special wool programme with its new delicate wash system treats your woolens with extreme care.
•The unbalance detection device prevents vibration during spinning.
•The ECO valve allows total use of detergent and reduces water consumption so saving energy.
•The programme selector dial combines the function of programme and temperature selection, making it
easier to set the programme.
132990831 GB.qxd 17/02/2004 16:49 Pagina 7

8
Use
Control panel
for coloured cotton and synthetic fabrics, 40°C for
delicate fabrics, wool and fabrics to be hand-
washed, 30°C for silk and «Miniprogramme», while
corresponds to cold wash.
4 Spin Speed button
Press this button repeatedly to change the spin
speed, if you want your laundry to be spun at a
speed different from the one proposed by the
washing machine. The relevant light will light up.
Maximum speeds are:
• for cotton: 1000 rpm for model EWF 1025
1200 rpm for model EWF 1225;
1000 rpm for model EWF 1020;
• for synthetic, wool, and fabrics to be handwashed:
0900 rpm
• for delicate, silk fabrics, miniprogramme:
0700 rpm
Rinse hold position : When you choose this
option, the machine will not drain the water of the last
rinse, so as not to wrinkle the laundry.
At the end of the programme, the light of the
START/PAUSE button goes off, the pilot lights
and remain lit, to indicate that the water must be
drained. To empty out water there are 2 possibilities:
• Select programme (draining):
The water is emptied out without spinning.
Attention! Before selecting programme the
selector dial has to be positioned on 0 (cancelling).
• Select programme or . Select the spin
speed by means of the relevant button and then
depress the START/PAUSE button. The water is
emptied out and the laundry is spun at the
selected spin speed.
5 Programme option buttons
1 Programme chart
A programme chart is in the interior part of the
detergent dispenser drawer or together with the
instruction booklet.
2 Programme selector dial
The selector dial is divided into following sections:
• Cotton, linen (blue section)
• Synthetics (green section)
• Delicates, handwash, wool, silk and mini-
programme, rinses, drain, spin and delicate spin
(grey section)
The selector dial can be turned either clockwise or
anticlockwise.
Position Ecorresponds to the ENERGY SAVING
programme for cotton and position Oto Reset
programme/Switching OFF of the machine.
At the end of the programme the selector dial must
be turned to position O, to switch the machine OFF.
3 Temperature button
Press this button repeatedly to increase or
decrease the temperature, if you want your laundry
to be washed at a temperature different from the
one proposed by the washing machine.
Maximum temperatures are 95°C for cotton, 60°C
E
E
40° AA
123456
7
89
1200
900
5
00
95°
60°
40°
30°
7
00
EWF 1225
E
E
PROGRAM
40° AA
FUNCTION START/PAUSE
132990831 GB.qxd 17/02/2004 16:49 Pagina 8

ENGLISH
Depending on the program, different functions can be
combined. These must be selected after choosing the
desired program and before depressing the
START/PAUSE button.
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again,
the pilot lights go out.
If an incorrect option is selected, the pilot lights flash
for about 2 seconds and the message Err is
displayed.
Press these buttons to select the following options:
PREWASH: select this option if you wish your
laundry to be prewashed before the main wash (not
available for wool and handwash cycle, miniprogram
and silk).
The Prewash ends with a short spin at 650 rpm in
programmes for cotton and synthetic fabrics,
whereas in the program for delicate fabrics the water
is only drained.
QUICK WASH: this option can be used for lightly
soiled (not for wool, hand wash, silk and
miniprogramme) in order to obtain a good washing
program in a short time. The washing time will be
reduced according to the type of fabric and the
selected temperature.
EASY IRON: selecting this button the laundry is
gently washed and spun to avoid any creasing. In
this way ironing is easier. Furthermore the machine
will perform 6 rinses instead of 3 for cotton and 4
rinses instead of 3 for synthetics. This function can
be used for cotton and synthetic fabrics. If this
option is selected for cotton programmes, the spin
speed automaticaly will reduce to 900 rpm.
EXTRA RINSE: this option can be selected with
all programmes, except the wool program and
handwash. The machine will add 2 rinses for cottons
and 1 rinse for synthetics, delicates and silk.
This option is recommended for people who are
allergic to detergents, and in areas where the water is
very soft.
6 DELAY START button
The wash programme can be delayed from 30 min -
60 min - 90 min, 2 hours and then by 1 hour up to a
maximum of 23 hours by means of this button.
Selecting the delayed start
• Select the programme and the required options.
• Select the delay start.
• Depress START/PAUSE button: the machine
starts its hourly countdown.
The programme will start after the selected delay has
expired.
Altering the delayed start
• Depress START/PAUSE button .
• Depress DELAY START button until «0’» is
displayed.
• Depress START/PAUSE button again .

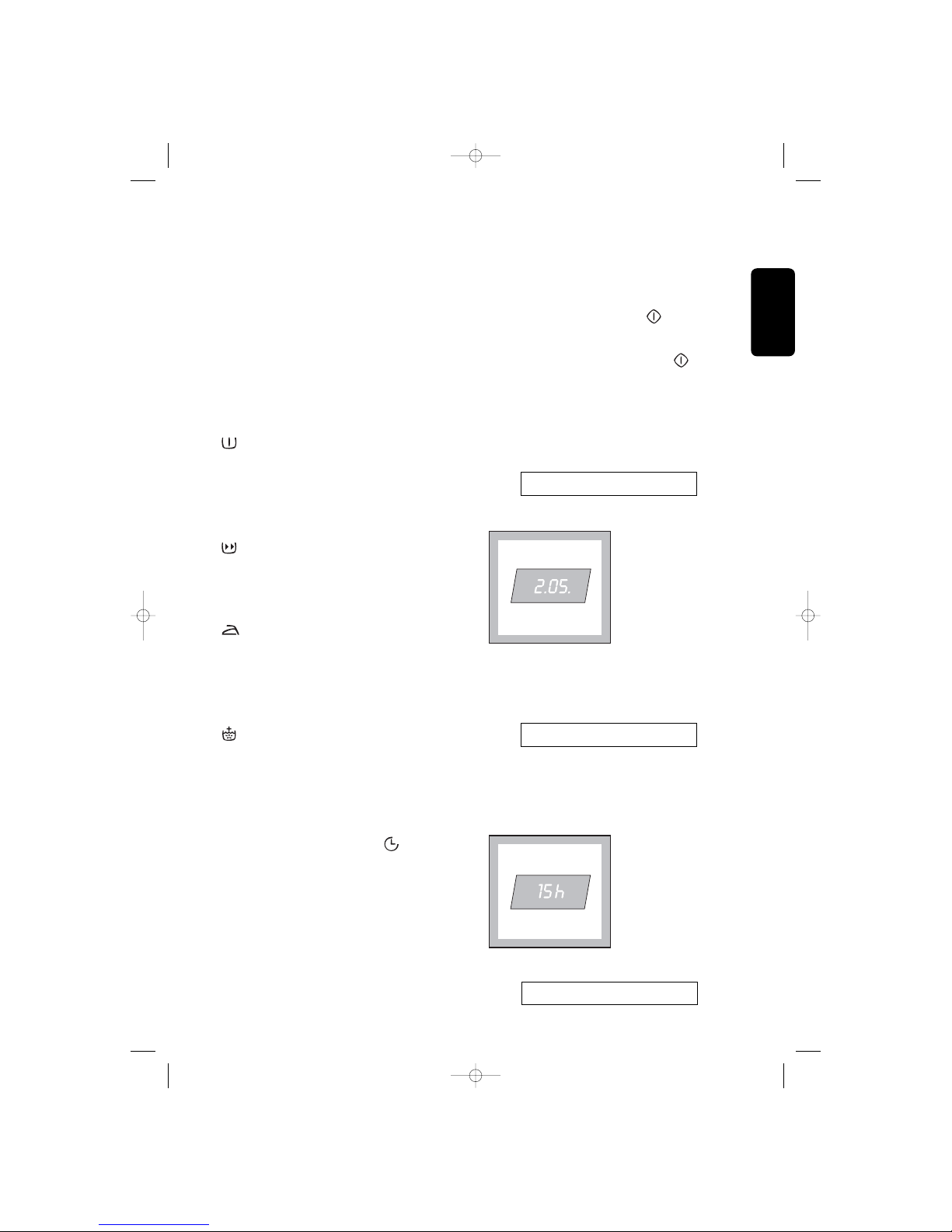

7 DISPLAY
The display shows the following information:
Duration of the programme - Delayed start -
Incorrect option selection - Alarm code - End of
programme.
After selecting a programme, the duration is
displayed in hours and minutes ( for example 2.05).
The duration is calculated automatically on the basis of
the maximum recommended load for each type of
fabric.
After the programme has started, the time remaining
is updated every minute
.
The selected delay (23 hours max) set by means of
the relevant button appears on the display for 3
seconds, then the duration of the previously
selected programme is displayed.
The countdown is updated every hour and when
remain the last 2 hours each 30 min.
Incorrect option selection
Delayed start
Duration of the selected
programme
9
132990831 GB.qxd 17/02/2004 16:49 Pagina 9

If an option which is not compatible with the set
wash programme is selected, the message Err is
displayed for 2 seconds.
In the event of operating problems, some alarm
codes can be displayed, for example E20 (see
paragraph “Something not working”).
When the programme has finished a flashing zero
is displayed.
8 START/PAUSE button
End of programme
Alarm codes
This button has two functions: Start - Pause.
•Start:
After having selected the required programme,
press this button to start the machine; the
corresponding pilot light stops flashing.
If you have selected the delayed start, the machine
begins its countdown. The duration of the
programme or the delay appears on the display.
•Pause
To interrupt a programme which is running, depress
the Start/Pause button: the corresponding pilot light
starts start to flash.
To restart the programme from the point at which it
was interrupted, press the START/PAUSE button
again.
9 Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme has
finished, the End pilot light comes on.
The END pilot light flashes in the event of
operating problems. And the relative alarm code
appears on the display.
E10 = the machine does not fill
E20 = the machine does not empty
E40 = the door has not been closed
To eliminate the problem, see paragraph
"Something not working".
Programme information
START/PAUSE
10
132990831 GB.qxd 17/02/2004 16:49 Pagina 10

ENGLISH
With this programme it is possible to rinse and spin
cotton garments which have been washed by hand.
The machine performs 3 rinses, followed by a final
spin at maximum speed.
The spin speed can be reduced by depressing
button . The final spin is foreseen only for cotton
items as in the spin programme.
For emptying out the water of the last rinse in
programmes with the Rinse hold .
Turn first the programme selector dial to O, then select
programme and depress the START/PAUSE button.
Separate long spin at max.speed for hand washed
garments. It has to be used for cotton items. You
can reduce the speed by means of button to
adapt it to the fabrics to be spun.
Separate short spin at 700 rpm for hand washed
garments. It has to be used for synthetic, delicate,
wool/handwashed, silk items. You can reduce the
speed by means of button to adapt it to the
fabrics to be spun.
This is a complete programme that can be
combined with the following options: spin speed
reduction, rinse hold and delayed start.
To be used for laundry which is lightly soiled or
which needs freshening up.
Max load 2.5 kg;
Washing temperature 30°C
Programme duration 30 minutes
Final spin speed 700 r.p.m.
To reset a programme and to switch off the machine
turn the selector dial to O. Now can a new
programme be selected.
O = Cancelling/OFF
Mini programme
Delicate Spin
Spin
Drain
Rinses
11
132990831 GB.qxd 17/02/2004 16:49 Pagina 11

12
Washing hints
Sorting the laundry

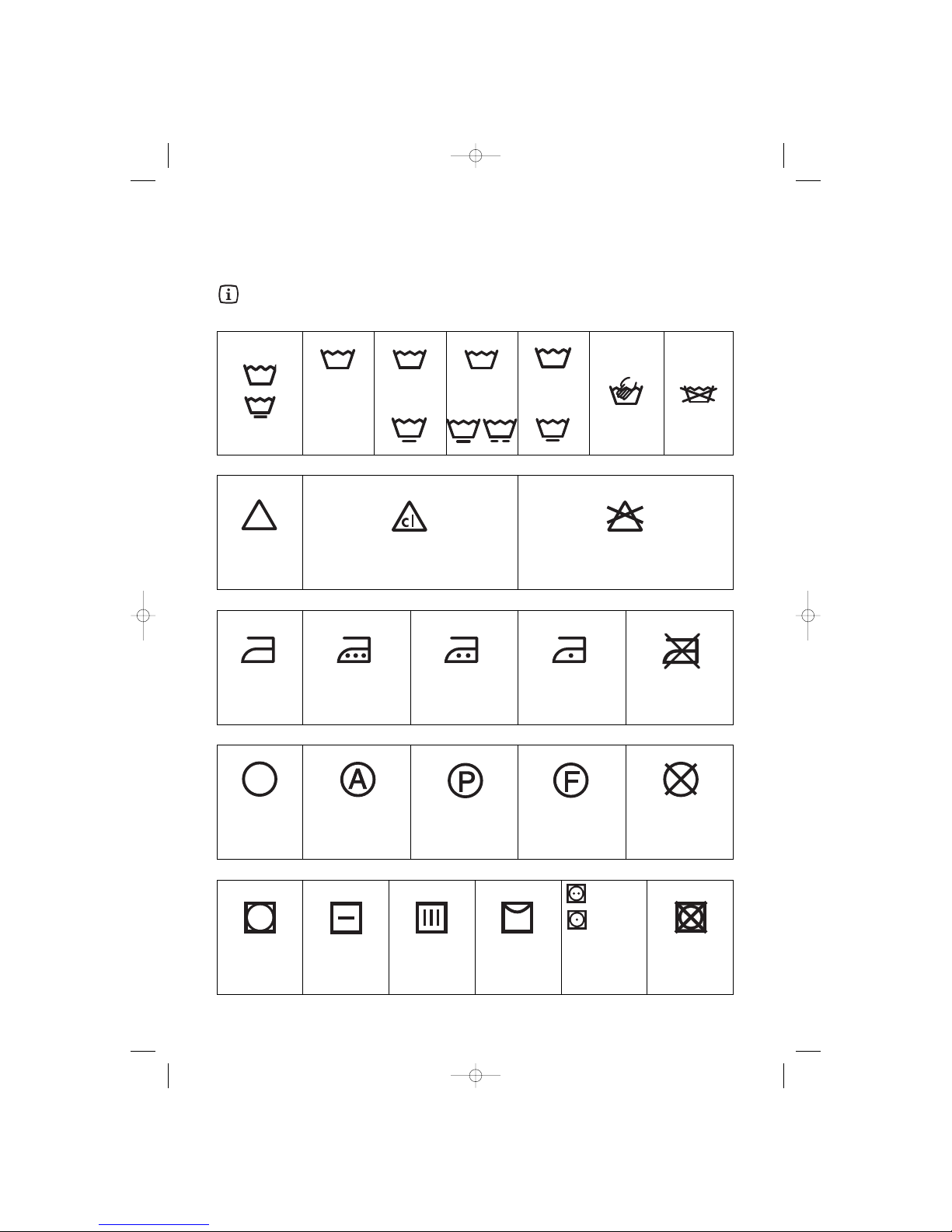

Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
95° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g.
underwear).
(cold)for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or
tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
residual marks with bleach.
132990831 GB.qxd 17/02/2004 16:49 Pagina 12

ENGLISH
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees”
of hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
The washing machine incorporates a recirculation
system which allows an optimal use of the
concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do not
exceed the «MAX» mark in the detergent
dispenser drawer.
13
132990831 GB.qxd 17/02/2004 16:49 Pagina 13

International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C Warm iron max 150°C Lukewarm iron max 110°C Do not iron
Dry cleaning Dry cleaning
in all solvents Dry cleaning in perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
14
132990831 GB.qxd 17/02/2004 16:49 Pagina 14

ENGLISH
15
switch the appliance on.
To switch the appliance off turn it to «0».
5. Select the desired programme
Turn the selector dial to the desired position: the
lights corresponding to the different phases making
up the selected programme light on.
The duration of the programme appears in the
display.
6. Select the temperature
Press the Temperature button if you wish to
select a temperature value different from the one
proposed by the washing machine. The relevant
light will light up.
7. Select the Spin Speed or the
Rinse Hold option.
Press the SPIN SPEED button repeatedly, in
order to select the desired spin speed or the Rinse
Hold option. The relevant light will light up.
If you select the Rinse Hold option, the machine
will stop at the end of the programme with the water
still in the tub.
95
°
60
°
40
°
30
°
Operating sequence
Before the first wash we recommend that you pour 2
litres of water into the main wash compartment
of the detergent drawer in order to activate the ECO
valve. Then run a cotton cycle at 60°C, with the
machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.

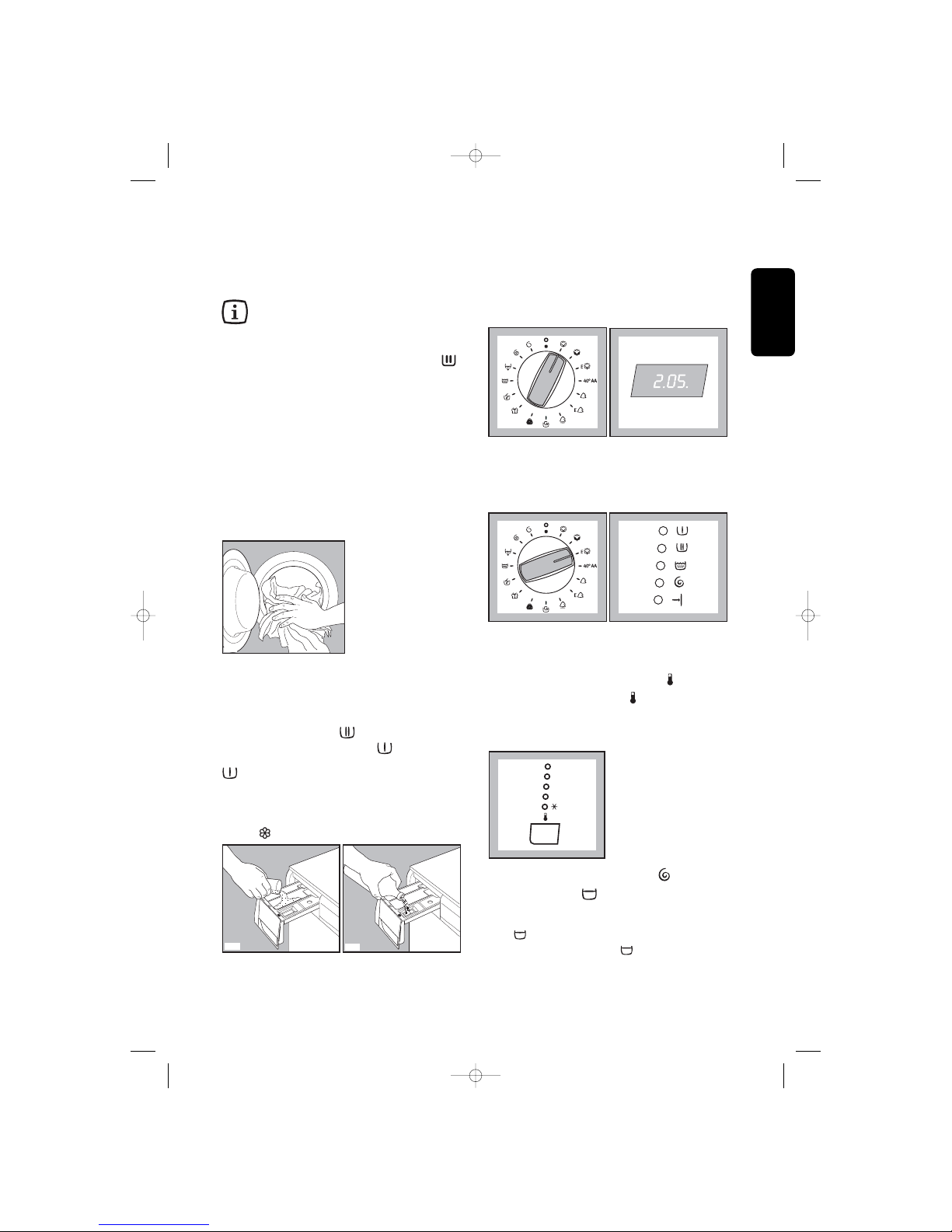

1. Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you have selected the prewash function, pour
detergent into the appropriate compartment marked
.
3. Measure out the additive
If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.
4. Switch the machine ON
Turn the selector dial to the desired programme to
P1195
P1194
P0004
132990831 GB.qxd 17/02/2004 16:49 Pagina 15

16
11. Altering a programme
You can alter the programme before it starts.
When the programme has started, you can only
reset it by turning the programme selector dial to O
and then you can select the new programme. Start it
by depressing the START/PAUSE button .
12. Interrupting a programme
Depress the START/PAUSE button to interrupt a
programme which is running, the corresponding
light starts to flash. Depress the same button again
to restart the programme.
13. Cancelling a programme
Turn the selector dial to «0» to cancel a programme
which is running. Now you can select a new
programme.
14. How to open the door after the
programme has started
First set the machine to PAUSE by pressing the
START/PAUSE button.
If the door does not open (door locked light is on),
this means that the
machine is already heating, that the water level is
above the bottom edge of the door or that the drum
is turning.
If you cannot open the door but you need to open it
you have to switch the machine off turning the
selector dial to 0 . After about 3 minutes the door
can be opened (pay attention to the water level and
temperature!). To restart the programme switch on
the machine and select again the desired
programme and options.
15. At the end of the programme
The washing machine stops automatically.
If the Rinse hold option has been selected, the
door is locked, the light of the START/PAUSE button
goes off, , and the door locked light remain lit,
to indicate that the water must be drained before
opening the door. The display shows a flashing zero.
Turn the programme selector dial to Reset O to
switch the machine off.
Remove the laundry from the drum and carefully
check that the drum is empty so as to avoid any
forgotten items being damaged in a subsequent
wash (e.g. shrinking) or their colour running into a
load of whites.
If you do not intend to carry out another wash, close
the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.
8. Select the desired options
The light corresponding to the depressed button
illuminates.
9. Select the DELAY TIME
To delay starting of the programme, press the
DELAY start button. The figures corresponding to
the selected delay will be displayed for about 3
seconds, after which the duration of the selected
programme will appear on the display.
During this period it is possible to load other
laundry:
•depress START/PAUSE button;
•load the laundry;
•close the door and depress START/PAUSE button
again.
10. Start the programme
Press the START/PAUSE button . The relevant
light will stop flashing. and only the light relevant to
the phase that is in progress will remain lit.
If you have chosen a delayed start, the washing
machine will begin the countdown.
The display will show the duration of the programme
or the selected delay.
1200
900
500
700
132990831 GB.qxd 17/02/2004 16:49 Pagina 16

ENGLISH
17

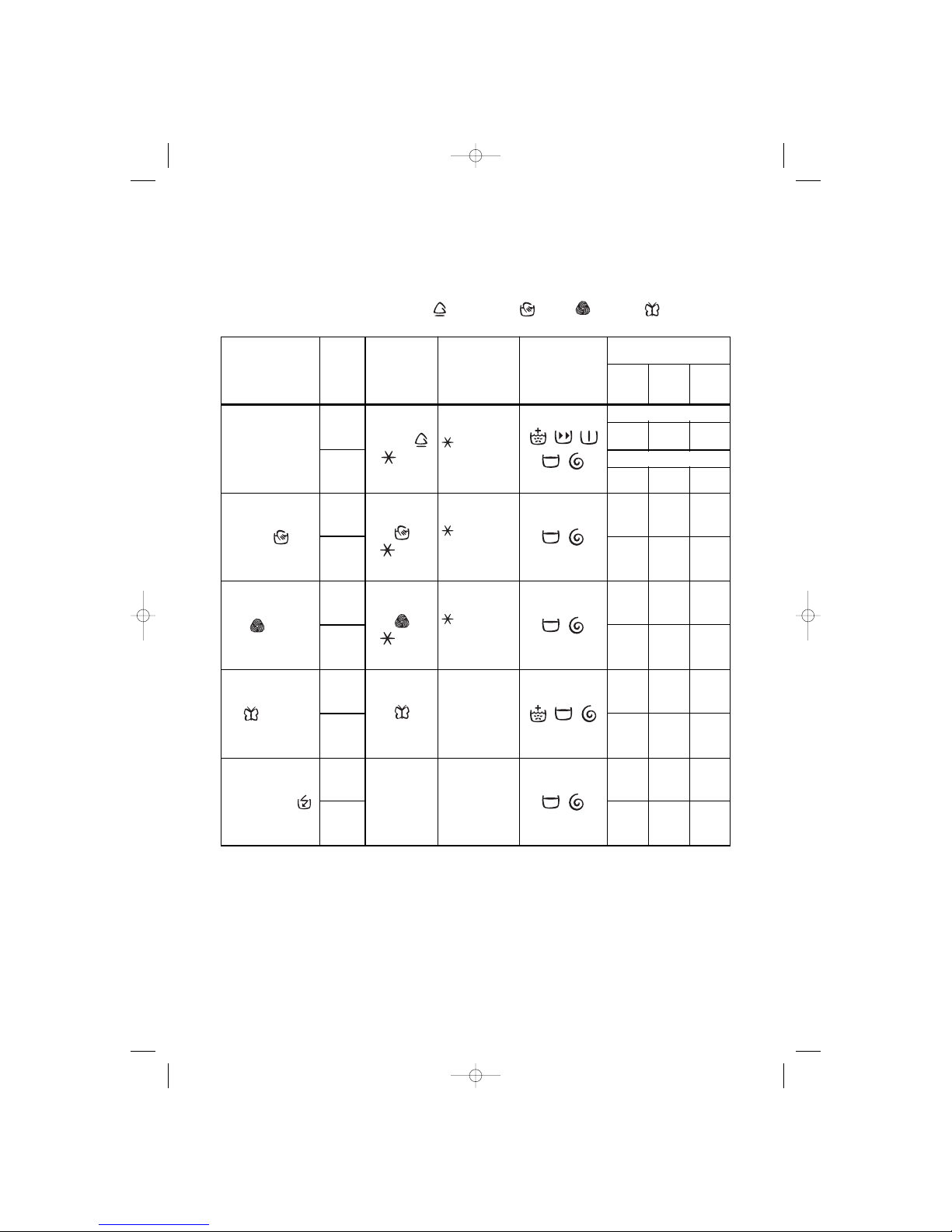

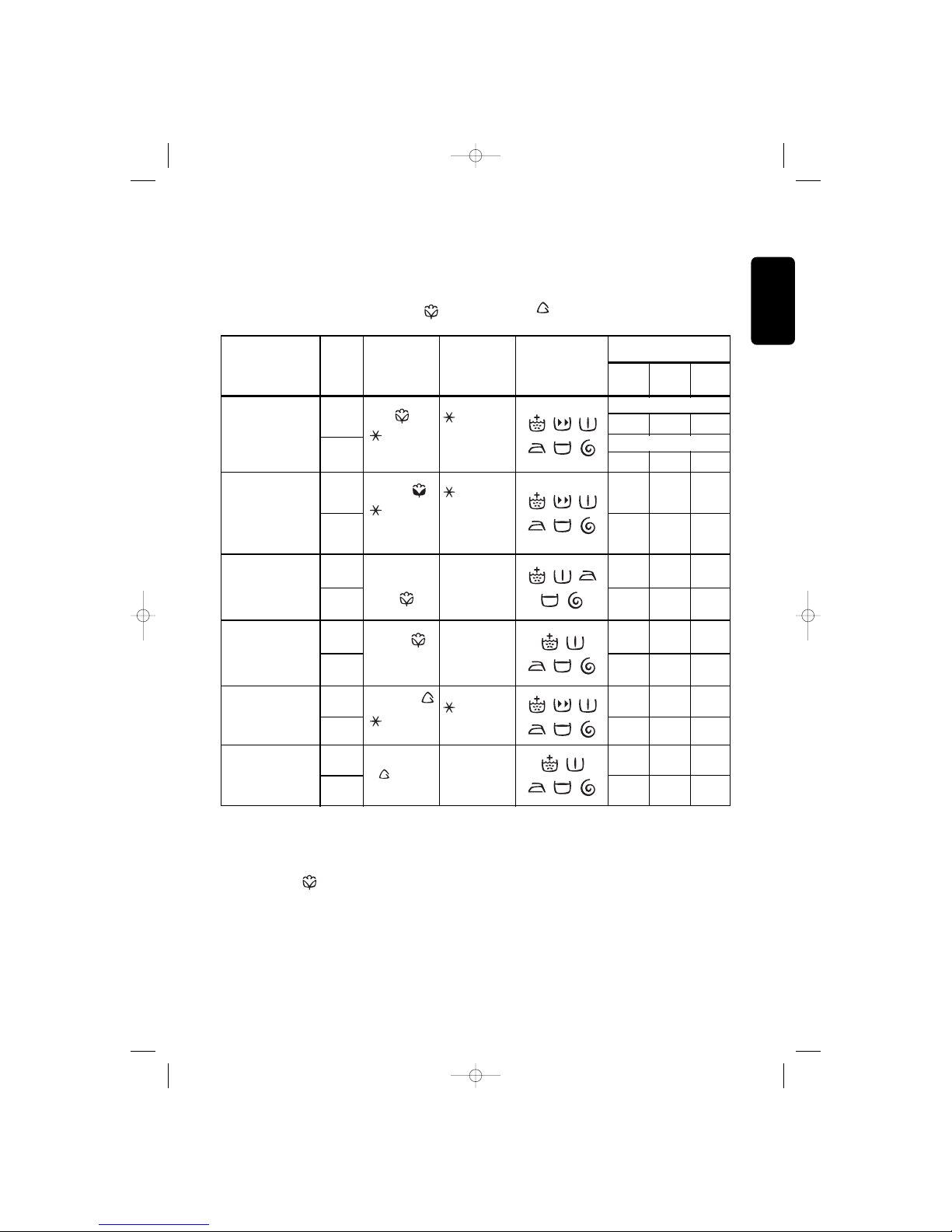

Washing programmes
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending
on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It
refers to the highest temperature for each wash programme.
** In compliance with EC directive 92/75 the consumption figures indicated on the Energy label refer to this
programme E at 60°C.
*** Fabrics washed with this programme have a washing efficiency result of AA.
The wool wash cycle of this machine has been approved by Woolmark for the washing of machine washable
Woolmark products provided that the garments are washed according to the instructions on the garment label
and those issued by the manufacturer of this machine. Licence No. M9605.
Type of laundry
2.3 57 2.25
2.0 53 2.25
1.3 54 2.00
1.2 49 2.00
1.02 54 2.26
0.85 49 2.16
1.14 54 2.20
0.95 49 2.20
0.5 55 1.30
0.45 54 1.30
0.95 55 1.29
0.9 54 1.28
White cotton: e.g.
sheets, tablecloths,
household linen
Coloured cotton:
e.g. shirts, blouses,
underwear, towels,
house-hold linen
Cottons
ECONOMY**: e.g.
shirts, blouses,
underwear
White/Coloured
Cottons 40°AA***
Synthetics
ECONOMY
Synthetics: e.g.
shirts, blouses,
underwear
EWF 1025
EWF 1225
6 kg
EWF 1020
5 kg
6 kg
5 kg
6 kg
5 kg
6 kg
5 kg
3 kg
2.5 kg
3 kg
2.5 kg
Max
load
Programme/
temperature Available options
Consumption*
Energy
kWh
Water
litres
Time
h/min.
White cotton
(cold)-95°C
Coloured
Cotton
(cold)-60°C
Cottons
ECONOMY
E 60°/40°C
E
White/colored
cotton
40°AA
Synthetics
ECONOMY
E E40°C
Synthetics
(cold)-60°C
Description of
programme
Main wash at
(cold)-95°C
3 rinses
Long spin
Main wash at
(cold)-60°C
3 rinses
Long spin
Main wash at
E 60°/40°C
3 rinses
Long spin
Main wash at
40°C
3 rinses
Long spin
Main wash at
E 40°C
3 rinses
Short spin
Main wash at
(cold)-60°C
3 rinses
Short spin
Washing Programmes for cottons and synthetics
EWF 1025 - EWF 1225
EWF 1020
132990831 GB.qxd 17/02/2004 16:49 Pagina 17

18
Washing programmes
Washing programmes for delicates , handwash , wool and silk
Type of laundry Energy
kWh
Water
litres
Time
h/min.
Consumption*
Delicates: e.g.
acrylic fabrics,
viscose, polyester,
synthetic blends
Max
load
EWF 1025
EWF 1225
3 kg
EWF 1020
2,5 kg
Programme/
temperature
Delicates
-40°C
Description of
programme
Main wash at
(cold)-40°C
3 rinses
Short spin
Available
options
0.55 57 1.00
0.5 55 58
Handwash
2 kg
2 kg
Handwash
- 40°C
Main wash at
(cold)-40°C
3 rinses
Short spin
0.35 55 56
0.35 55 56
Wool
2 kg
2 kg
Wool
- 40°C
Main wash at
(cold)-40°C
3 rinses
Short spin
0.35 55 55
0.35 55 55
Silk
1 kg
1 kg
Silk
30°C
Main wash at
30°C
3 rinses
Short spin
0.3 53 40
0.3 53 40
Miniprogramme
2.5 kg
2.5 kg
Mini-
programme
30°C
Main wash at
30°C
2 rinses
Short spin
0.3 40 30
0.3 40 30
EWF 1025 - EWF 1225
EWF 1020
132990831 GB.qxd 17/02/2004 16:49 Pagina 18

ENGLISH
19
Washing programmes
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending
on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
Programme
selector dial
position
0.06 59 45
0.05 52 45
--2
--2
--10
--10
--6
---
Rinses
Drain
Spin
Delicate Spin
O
Reset/Off
/
6 kg
5 kg
6 kg
--6
5 kg
/
Wash
load
max.
Programme Addictional
functions
Consumption*
Energy
kWh
Water
litres
Time
min.
For rinsing items
For empting out the
water of the last
rinses of program-
mes with option
Separate spin for
cottons
Separate spin for
synthetics, delicates,
wool/hanwash and
silk
For cancelling the
programme which is
running or to switch
the machine off.
Programme
description
3 rinses with
liquid additive,
if required.
Long spin at
max. speed
Water draining
Drain and long
spin at the
max. speed
Drain and
delicate spin
Special Programmes
EWF 1025 - EWF 1225
EWF 1020
EWF 1025
EWF 1225
6 kg
EWF 1020
5 kg
132990831 GB.qxd 17/02/2004 16:50 Pagina 19

20

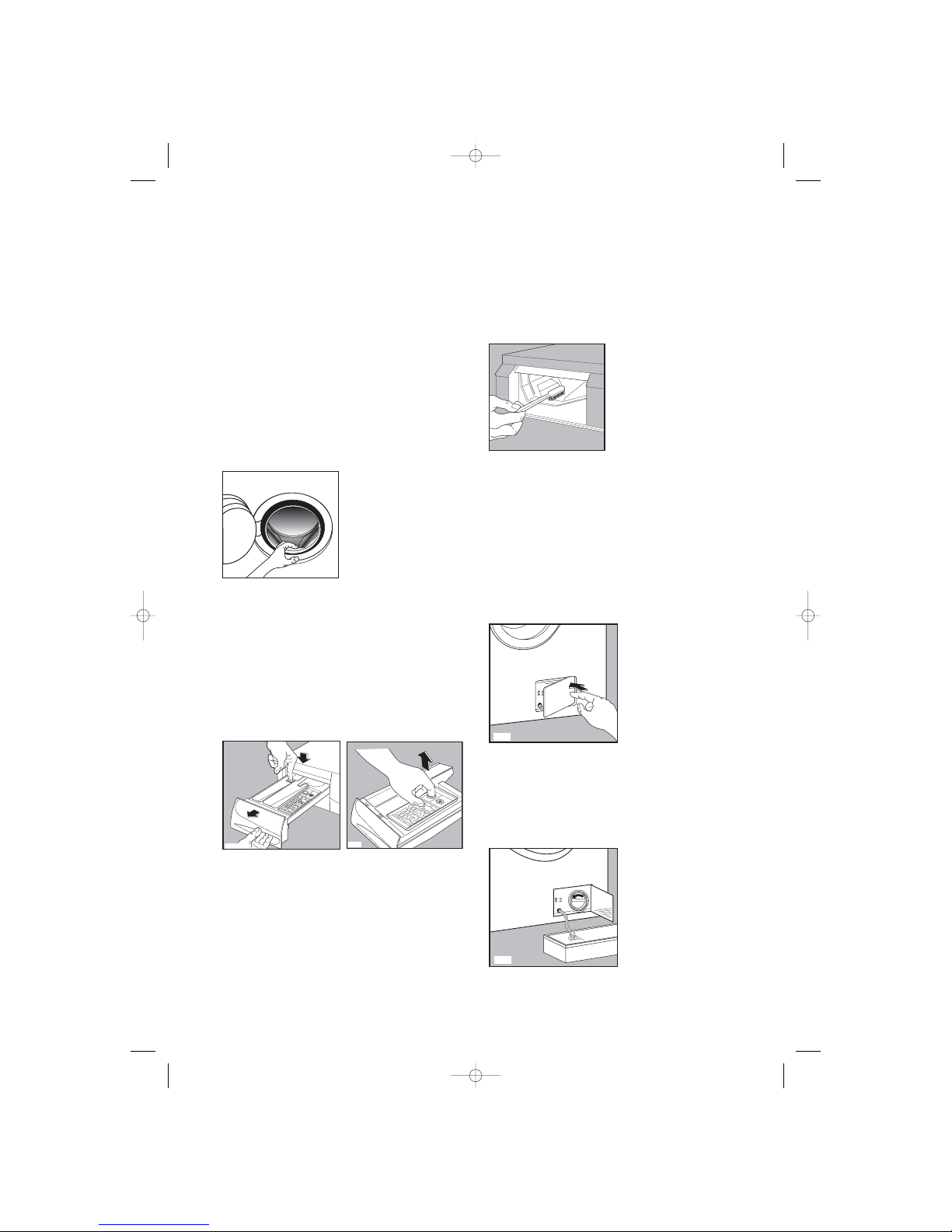

Maintenance
Bodywork
Clean the outside of the machine with soap and
water only. Rinse with clean water and dry with a
soft cloth.
Important: do not use methylated spirits, solvents
or similar products to clean the bodywork.
Door seal
Check from time to time the door seal and eliminate
eventual possible objects that could be trapped in
the fold.
Detergent dispenser drawer
After a while, detergents and fabric softeners leave
deposits in the drawer.
Clean the drawer from time to time by rinsing it
under a running tap. To remove the drawer from the
machine, press the button in the rear left-hand
corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
P1021
P1020
P1050
Detergent can also accumulate inside the drawer
recess: clean it with an old toothbrush. Refit the
drawer after cleaning.
Drain pump
The pump should be inspected if
• the machine does not empty and/or spin
• the machine makes an unusual noise during
draining due to objects such as safety pins, coins
etc. blocking the pump.
Proceed as follows:
• Disconnect the appliance.
• If necessary wait until the water has cooled down.
• Open the pump door.
• Place a container close to the pump to collect any
spillage.
• Release the emergency emptying hose, place it in
the container and remove its cap.
• When no more water comes out, unscrew the
pump cover and remove the pump. Always keep a
rag nearby to dry up spillage of water when
removing the pump.
P1115
P1114
P0038
132990831 GB.qxd 17/02/2004 16:50 Pagina 20
