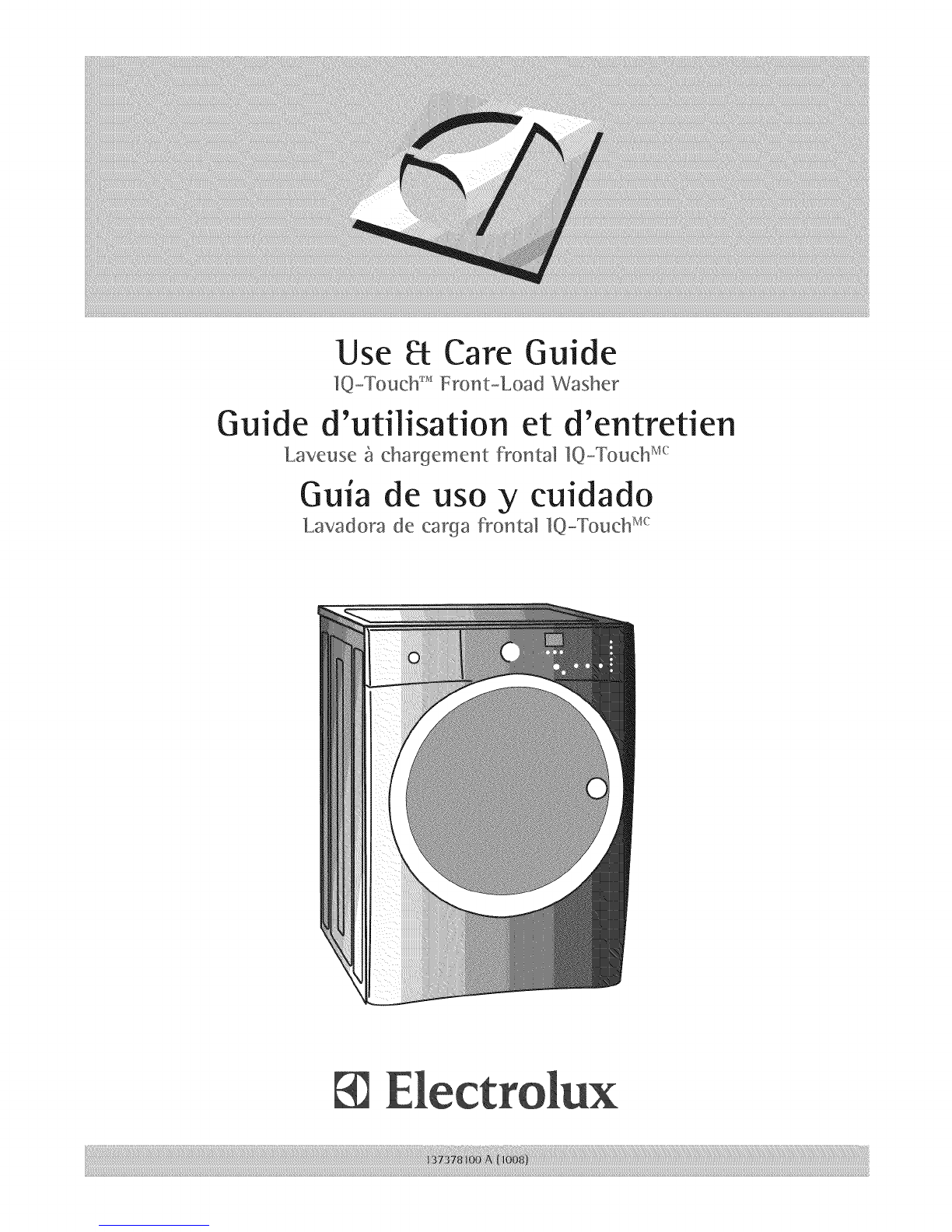

Use _ Care Guide
Q-Touch TMFron t-Loa d Wa sher
Guide d'utilisation et d'entretien
Laveuse _ chargement frontal _Q-Touch Ms
Guia de uso y cuidado
Lavadora de carga frontal _Q-Touch Ms
o

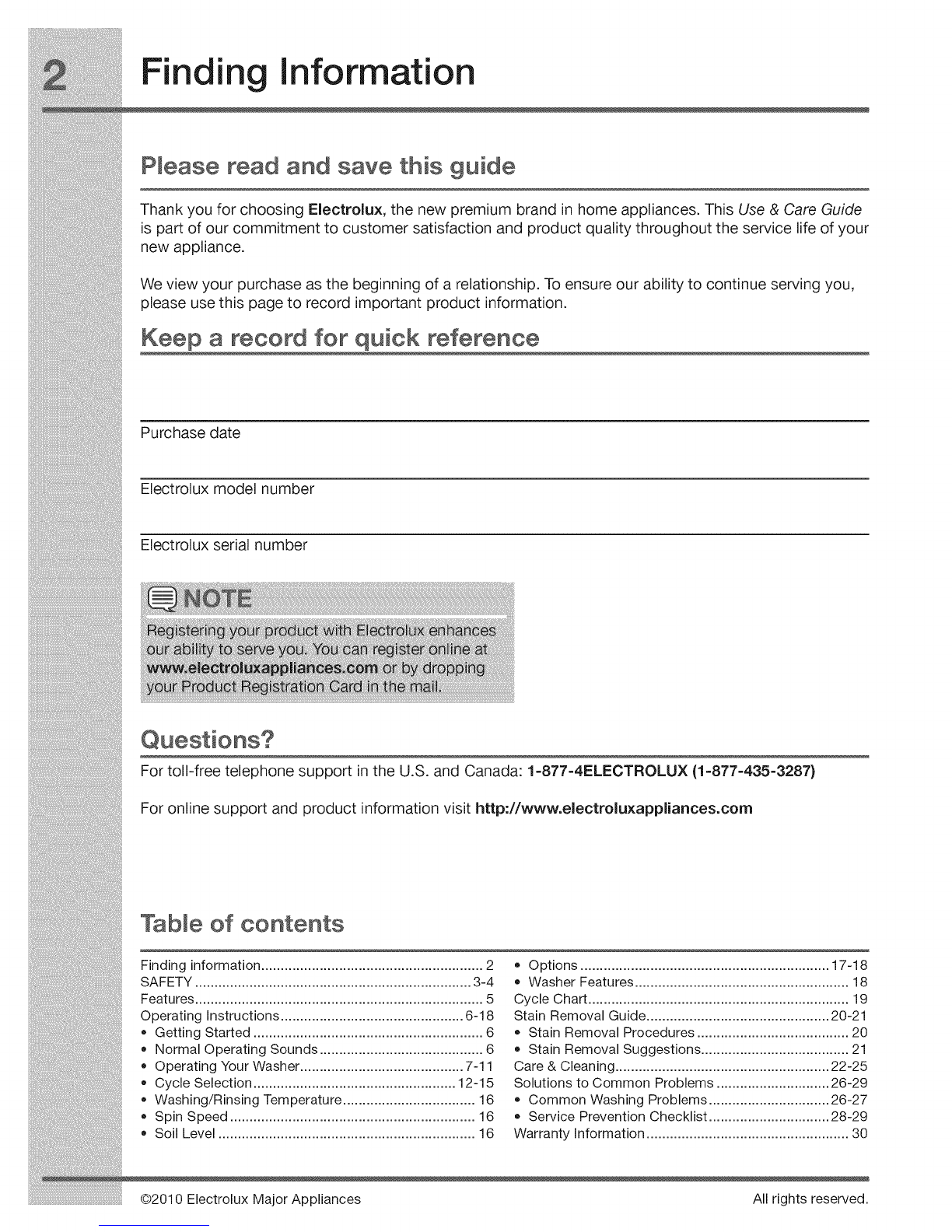

Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the service life of your
new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number
For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX {1-877-435-3287)
For online support and product information visit http://www.electroluxappliances.com
Table of contents
Finding information ......................................................... 2
SAFETY ....................................................................... 3-4
Features .......................................................................... 5
Operating instructions ............................................... 6-18
• Getting Started ........................................................... 6
Normal Operating Sounds .......................................... 6
Operating Your Washer .......................................... 7-11
Cycle Selection .................................................... 12-15
Washing/Rinsing Temperature .................................. 16
Spin Speed ............................................................... 16
Soil Level .................................................................. 16
Options ................................................................ 17-18
Washer Features ....................................................... 18
Cycle Chart ................................................................... 19
Stain Removal Guide ............................................... 20-21
Stain Removal Procedures ....................................... 20
Stain Removal Suggestions ...................................... 21
Care & Cleaning ....................................................... 22-25
Solutions to Common Problems ............................. 26-29
Common Washing Problems ............................... 26-27
• Service Prevention Checklist ............................... 28-29
Warranty information .................................................... 30
©2010 Electrolux Major Appliances All rights reserved.

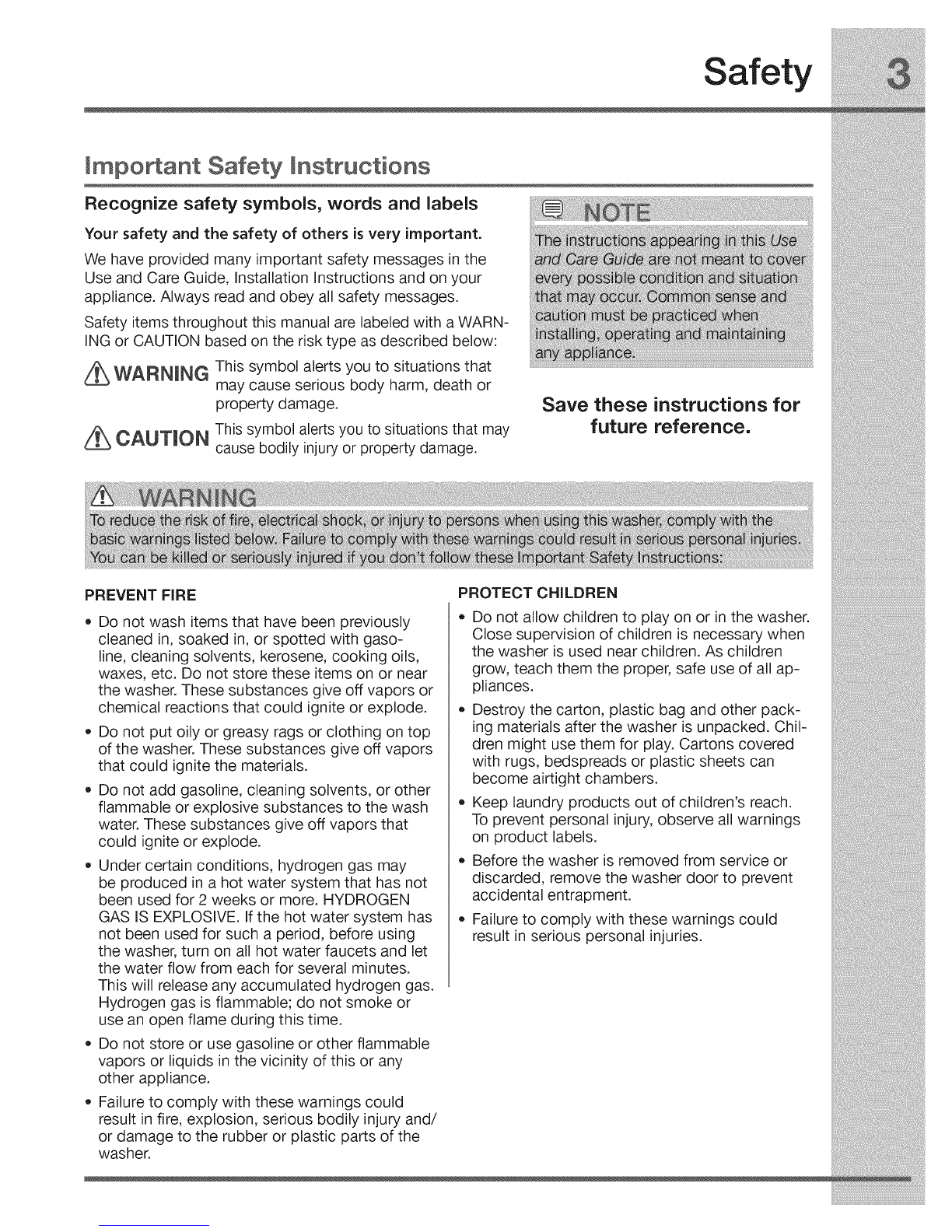

Safety
Important Safety Instructions
Recognize safety symbols, words and labels
Your safety and the safety of others is very important.
We have provided many important safety messages in the
Use and Care Guide, Installation Instructions and on your
appliance. Always read and obey all safety messages.
Safety items throughout this manual are labeled with a WARN-
ING or CAUTION based on the risk type as described below:
WARNING This symbol alerts you to situations that
may cause serious body harm, death or
property damage.
CAUTION This symbol alerts you to situations that may
cause bodily injury or property damage.
Save these instructions for
future reference.
PREVENT FiRE
• Do not wash items that have been previously
cleaned in, soaked in, or spotted with gaso-
line, cleaning solvents, kerosene, cooking oils,
waxes, etc. Do not store these items on or near
the washer. These substances give off vapors or
chemical reactions that could ignite or explode.
Do not put oily or greasy rags or clothing on top
of the washer. These substances give off vapors
that could ignite the materials.
Do not add gasoline, cleaning solvents, or other
flammable or explosive substances to the wash
water. These substances give off vapors that
could ignite or explode.
Under certain conditions, hydrogen gas may
be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water system has
not been used for such a period, before using
the washer, turn on all hot water faucets and let
the water flow from each for several minutes.
This will release any accumulated hydrogen gas.
Hydrogen gas is flammable; do not smoke or
use an open flame during this time.
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any
other appliance.
Failure to comply with these warnings could
result in fire, explosion, serious bodily injuryand/
or damage to the rubber or plastic parts of the
washer.
PROTECT CHILDREN
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. As children
grow, teach them the proper, safe use of all ap-
pliances.
Destroy the carton, plastic bag and other pack-
ing materials after the washer is unpacked. Chil-
dren might use them for play. Cartons covered
with rugs, bedspreads or plastic sheets can
become airtight chambers.
Keep laundry products out of children's reach.
To prevent personal injury, observe all warnings
on product labels.
Before the washer is removed from service or
discarded, remove the washer door to prevent
accidental entrapment.
Failure to comply with these warnings could
result in serious personal injuries.

Safety
important Safety instructions, continued
PREVENTINJURY
• To prevent shock hazard and assure stability
during operation, the washer must be installed
and electrically grounded by a qualified service
person in accordance with local codes. Instal-
lation instructions are packed in the washer for
installer's reference. Refer to iNSTALLATiON
iNSTRUCTiONS for detailed grounding proce-
dures. If the washer is moved to a new location,
have it checked and reinstalled by a qualified
service person.
To prevent personal injuryor damage to the
washer, the electrical power cord of the washer
must be plugged into a properly grounded and
polarized 3-prong outlet. The third grounding
prong must never be removed. Never ground the
washer to a gas pipe. Do not use an extension
cord or an adaptor plug.
Follow package directions when using laundry
products. Incorrect usage can produce poison-
ous gas - resulting in serious injury or death.
Do not combine laundry products for use in 1
load unless specified on the label.
Do not mix chlorine bleach with ammonia or
acids such as vinegar.
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypassthe
grounding prong.
"x
PREVENTINJURY AND DAMAGE TO THE
WASHER
To prevent serious personal injury and damage to
the washer:
All repairs and servicing must be performed by
an authorized servicer unless specifically rec-
ommended in this Use & Care Guide. Use only
authorized factory parts.
Do not tamper with controls.
Do not install or store the washer where it will be
exposed to the weather.
Do not install on carpet. Install washer on a solid
floor. It may be necessary to reinforce the floor to
prevent vibration or movement.
To reduce the risk of electric shock, disconnect
this appliance from the power supply before
attempting any user maintenance. Turning the
controls to the OFF position does not disconnect
this appliance from the power supply.
To prevent injury,do not reach intothe washer
while parts are moving. Before loading, unload-
ing or adding items, push inthe cycle selector
knob and allow the drum to coast to a complete
stop before reaching inside.
This washer isequipped with an electrical over-
load protector. The motor will stop if it becomes
overheated.
•Failure to comply with these warnings could
result in serious personal injuries.
Powercord with
3-prong grounded plug

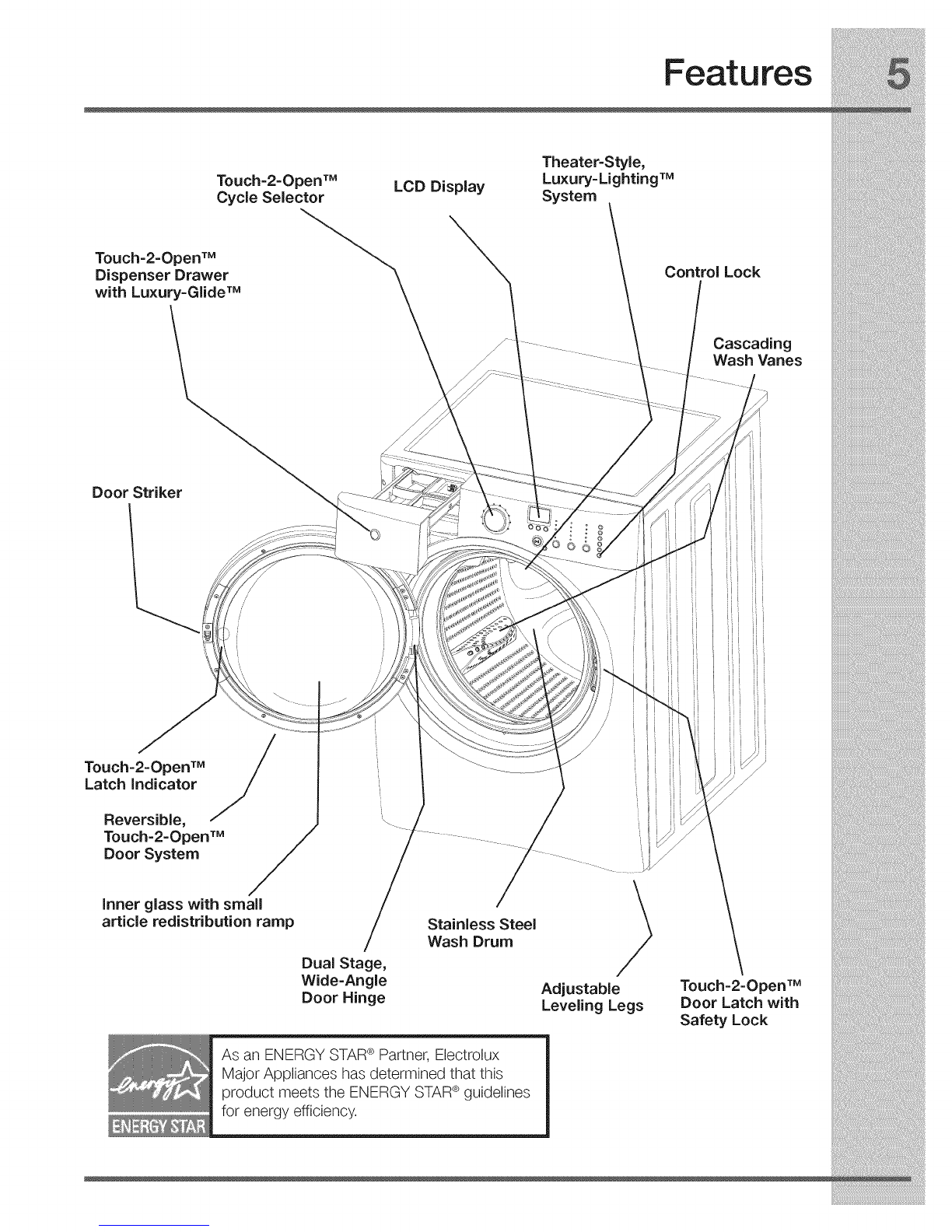

Features
Touch=2=Open TM
Cycle Selector LCD Display Theater=Style,
Luxury=Lighting TM
System
Touch=2=Open TM
Dispenser Drawer
with Luxury=Glide TM
Control Lock
Cascading
Wash Vanes
Door Striker
Touch=2=Open TM
Latch indicator
Reversible,
Touch=2=Open TM
Door System
inner glass with small
article redistribution ramp
Dual Stage,
Wide=Angle
Door Hinge
Stainless Steel
Wash Drum
As an ENERGY STAR<_Partner, Electrolux
Major Appliances has determined that this
product meets the ENERGY STAR_ guidelines
for energy efficiency.
Adjustable
Leveling Legs
\
Touch=2=Open TM
Door Latch with
Safety Lock

Operatin instructions
Getting Started
whites _," //A_' _\ " @ hot _ flig} 0heavy @ d_ay start
heavy 5:,_o i' ,, _ allergen #%_ ow_rn, O'r, ediu_, ¢ _o,_al
o I_ght
deep clean _+o 041' _ F[DSe fe_g_i_e Cd_'_lY S_Y O eo cola O am pr, O exra ligb[ _h a,d , eam_ b
This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown
above for reference only. Your model may differ.
To run your washer, follow these basic steps:
1, Sort laundry into loads that can be washed
together. (See page 8.)
2. Prepare items for washing. (See page 8.)

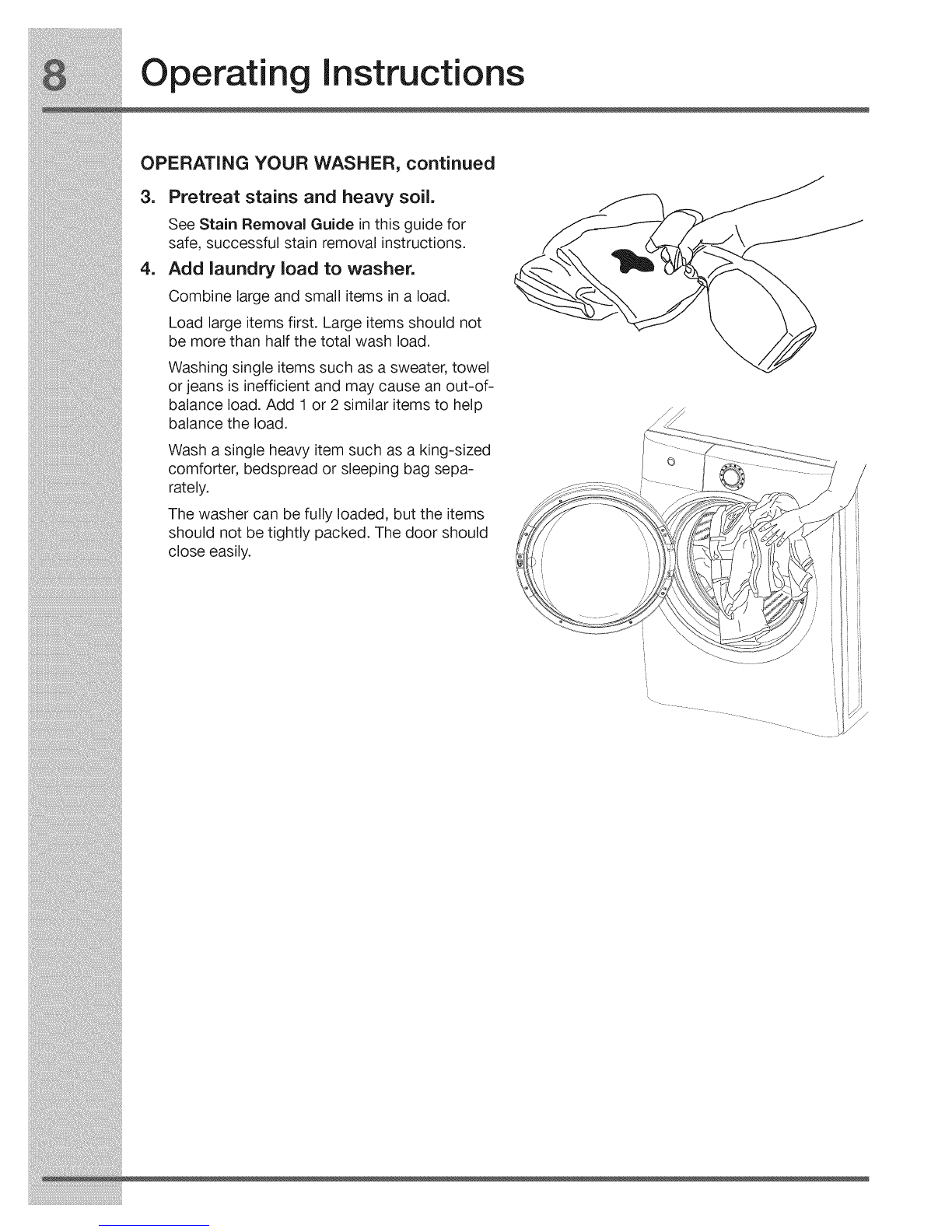

3. Pretreat stains and heavy soil. (See page 9.)
4. Add laundry load to the washer. (See page 9.)
5. Add laundry products to the dispenser. (See
page 10-11 ,)
6. Select the appropriate cycle and settings for the
load. (See page 12.)
7. Start the washer. (See page 12.)
Normal Operating Sounds
You may or may not hear the following sounds
from your new washer:
A. DRAIN HOSE The washer has a flexible drain
hose to carry water from the washer to the
stand pipe of your home. You will hear water
flowing into your stand pipe. This is a normal
part of the operation of the washer.
B. WATER VALVES/DISPENSER As water enters
the dispenser system, it is common to hear a
water flowing sound. This normal sound will
vary slightly based on the water pressure in
your home.
C. DOOR LOCK Your washer is equipped with a
door lock with an electric solenoid. There will be a
clicking sound as the washer door is being locked
or unlocked.
D. DRAIN PUMP Your washer is equipped with
a high velocity drain pump. It is normal to hear
humming and gurgling sounds as water is
pumped from the washer. Both of these sounds
are normal and indicate that your pump is
functioning correctly.
E. HIGH SPEED MOTOR A powerful motor is used
to drive the drum to high spin speeds to extract
water from your load. You will hear a sound
associated with these higher spin speeds. This
sound is normal and will vary slightly as the spin
speed varies with load size and cycle selected.

Operating instructions

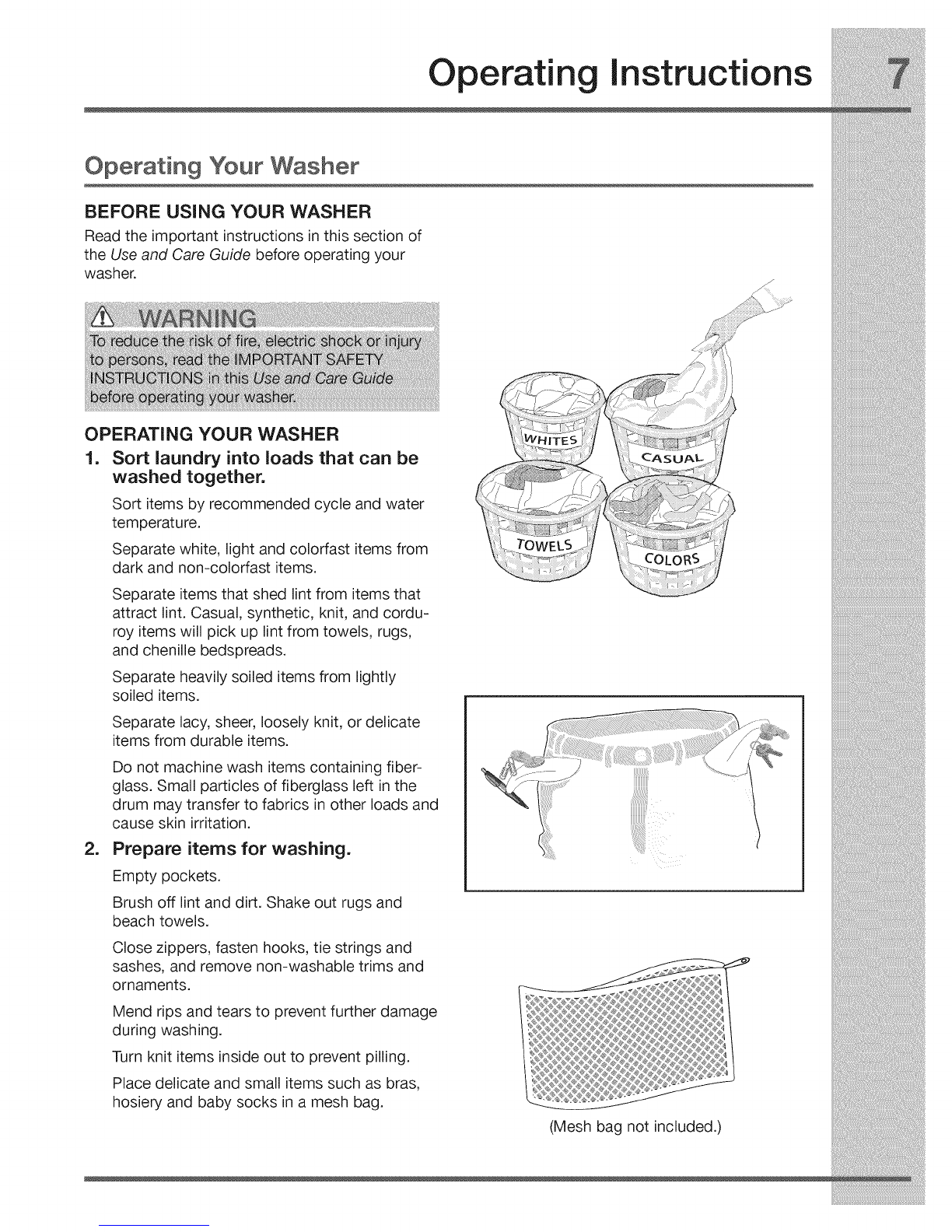

Operating Your Washer
BEFORE USING YOUR WASHER
Read the important instructions in this section of
the Use and Care Guide before operating your
washer.
OPERATING YOUR WASHER
1. Sort laundry into loads that can be
washed together.
Sort items by recommended cycle and water
temperature.
Separate white, light and colorfast items from
dark and non-colorfast items.
Separate items that shed lint from items that
attract lint. Casual, synthetic, knit, and cordu-
roy items will pick up lint from towels, rugs,
and chenille bedspreads.
Separate heavily soiled items from lightly
soiled items.
Separate lacy, sheer, loosely knit, or delicate
items from durable items.
.
Do not machine wash items containing fiber-
glass. Small particles of fiberglass left in the
drum may transfer to fabrics in other loads and
cause skin irritation.
Prepare items for washing.
Empty pockets.
Brush off lint and dirt. Shake out rugs and
beach towels.
Close zippers, fasten hooks, tie strings and
sashes, and remove non-washable trims and
ornaments.
Mend rips and tears to prevent further damage
during washing.
Turn knit items inside out to prevent pilling.
Place delicate and small items such as bras,
hosiery and baby socks in a mesh bag.
iiiiiiiiiiiiii_
iiiiiiiiiiiii_'
(Mesh bag not included.)

Operatin instructions
OPERATING YOUR WASHER, continued
3. Pretreat stains and heavy soil.
See Stain Removal Guide in this guide for
safe, successful stain removal instructions.
4. Add laundry load to washer.
Combine large and small items in a load.
Load large items first. Large items should not
be more than half the total wash load.
Washing single items such as a sweater, towel
or jeans is inefficient and may cause an out-of-
balance load. Add 1 or 2 similar items to help
balance the load.
Wash a single heavy item such as a king-sized
comforter, bedspread or sleeping bag sepa-
rately.
The washer can be fully loaded, but the items
should not be tightly packed. The door should
close easily.

Operating Instructions
OPERATING YOUR WASHER, continued

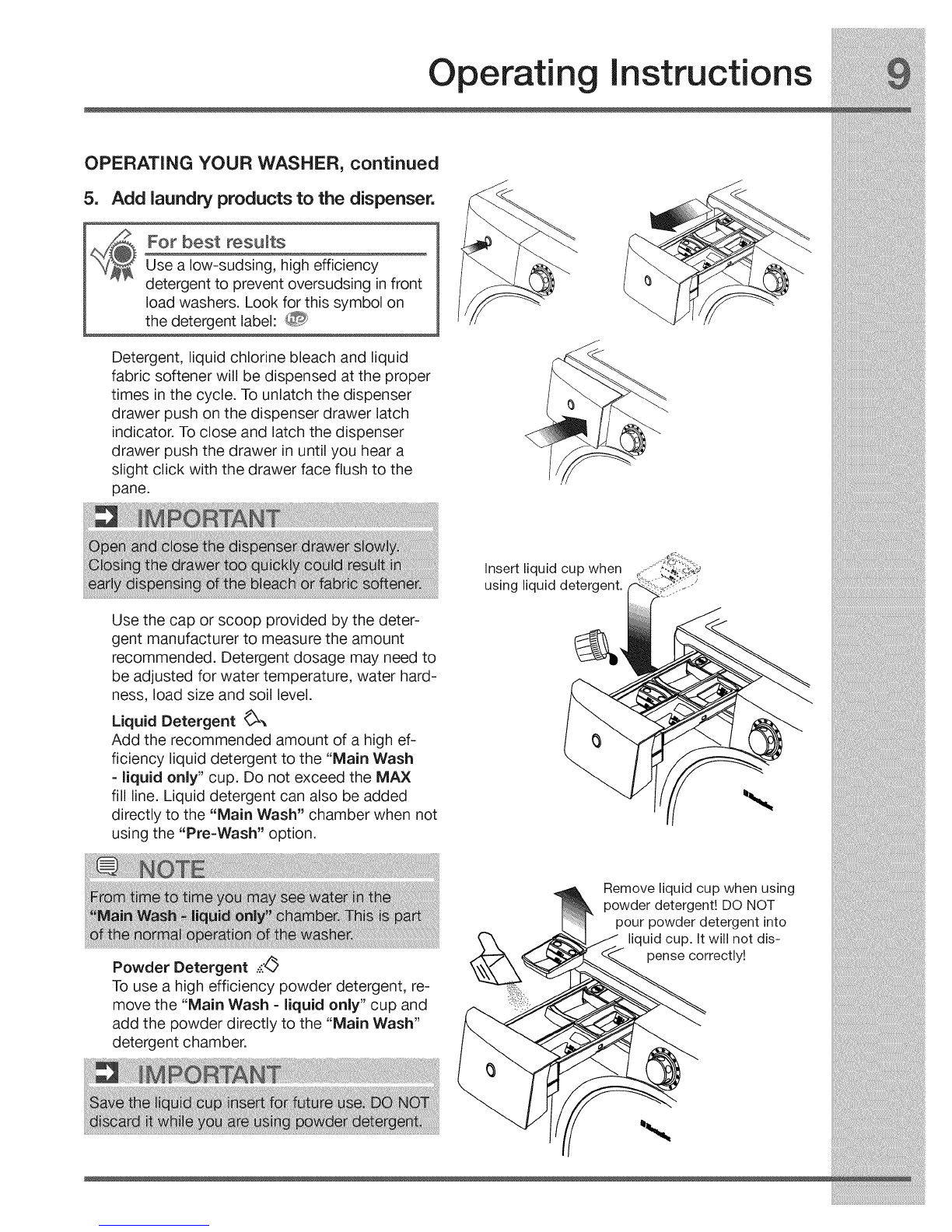

5. Add laundry products to the dispenser.
For best results
Use a low-sudsing, high efficiency
detergent to prevent oversudsing in front
load washers. Look for this symbol on
the detergent label:
Detergent, liquid chlorine bleach and liquid
fabric softener will be dispensed at the proper
times in the cycle. To unlatch the dispenser
drawer push on the dispenser drawer latch
indicator. To close and latch the dispenser
drawer push the drawer in until you hear a
slight click with the drawer face flush to the
pane.
Use the cap or scoop provided by the deter-
gent manufacturer to measure the amount
recommended. Detergent dosage may need to
be adjusted for water temperature, water hard-
ness, load size and soil level.
Liquid Detergent _
Add the recommended amount of a high ef-
ficiency liquid detergent to the "Main Wash
- liquid only" cup. Do not exceed the MAX
fill line. Liquid detergent can also be added
directly to the "Main Wash" chamber when not
using the "Pre-Wash" option.
insert liquid cup when
using liquid detergent.
Powder Detergent -.'._
To use a high efficiency powder detergent, re-
move the "Main Wash =liquid only" cup and
add the powder directly to the "Main Wash"
detergent chamber.
Remove liquid cup when using
powder detergent! DO NOT
pour powder detergent into
liquid cup. it will not dis-
pense correctly!

Operatin Instructions
OPERATING YOUR WASHER, continued
Other Wash Products
Water conditioner, detergent booster and en-
zyme products may be added with the deter-
gent. Put liquid products with liquid detergent
in the "Main Wash =liquid only" detergent
cup or powder products with powder deter-
gent in the "Main Wash" detergent chamber.
Detergent for Prewash _,, -_'_
For heavily soiled or stained loads, select the
prewash option and add the recommended
amount of detergent to the "Pre-Wash" deter-
gent cup.
Liquid Chlorine Bleach Z_
If desired, add liquid chlorine bleach to the
chamber labeled "Liquid Bleach" and marked
with this symbol A_L_.Fill to the MIN line for
small loads or the MAX line for large loads. DO
NOT fill above the maximum fill line.
Liquid Fabric Softener
If desired, pour the recommended amount of
liquid fabric softener into the chamber labeled
"Fabric Softener" and marked with this sym-
bol I_. Fill to the MIN line for small loads or
the MAX line for large loads. DO NOT fill above
the maximum fill line.
\
Use of a fabric softener-dispensing ball is not
recommended in tumble action washers.

Operating Instructions
OPERATING YOUR WASHER, continued
.Select the appropriate cycle and
settings for the load.
Turn the cycle selector knob in either direction
to select the cycle desired. The indicator for
that cycle will be illuminated. See the "Cycle
Selection" section in this guide for descrip-
tions of each cycle.
The estimated cycle time, suitable wash and
rinse water temperatures, final spin speed, soil
level, and options for each cycle will be indi-
cated for the cycle selected. See the "Cycle
Settings" and "Washer Settings Chart" in this
guide for descriptions and available settings
for each cycle.
To change the settings, press the tempera-
ture, spin speed, soil, and options buttons to
scroll to the desired settings.
To select or delete an option, press the button
for that option. The indicator will light when
the option has been selected. It will no longer
be lighted when the option has been deleted.
Adjustments to a cycle will be remembered
and recalled each time that cycle is selected in
the future.
(¢ @ '_ ................. @_:s°_'
To return to factory settings,
press these two buttons at the
same time and hold until the
signal sounds.
7. Start the washer.
Close the door and press start. The washer
will not operate with the door open and DOOR
E}PETIwill be displayed.
Select delay start to delay the beginning of
the cycle for up to 22 hours if desired.
As a safety measure, the door will automati-
cally lock during the entire wash cycle.
To add a forgotten item to the washer any time
during the wash portion of the cycle, press
pause. When the door unlocks, open the door,
add the item, close the door and press start to
resume the cycle.
If changes to the settings or options are at-
tempted after the cycle starts, you will hear
several beeps when the buttons are pressed.
To change the settings or options, press pause,
make the new selections and press start again.
To change the cycle once the cycle has begun,
press cancel, select a new cycle, and press
start again. Just turning the cycle selector
knob will not change the cycle.
To stop the cycle, press cancel.
A signal will sound at the end of the cycle if the
chime option has been selected.
Remove items from the washer when the cycle
ends and place in dryer, line dry or dry flat as
directed on the fabric care label.
For best results
Follow the fabric care label instructions
on items to be washed.
Excess wrinkling, color transfer or odors may
develop in items left in the washer after the
cycle has ended, if not removed promptly.

Operatin instructions
Cycle Selection
normal casual
fast =fT_ @
wash -t_ r.,@ colors Temperature Spin Speed
_+ C sanitize 0 max
@ hot @ high
C warm _j medium
Soil Options
press& hold
,_F_ stain treat
() max ',_ light
© heavy _ delay start
c,,me
@ normal
prewash,) light ma× film
@ extra light _, add steam_ )
I_ shank guard
_ fresh rinse
_ controllock
'_/
@ cold ) low
my eco specialty
favorite friendly cycles @ eco cold () no spin
start
pause
Turn the cycle selector in either direction to the
cycle desired. The indicator for that cycle will be
illuminated. Press on the cycle selector knob to
extend it or return it flush to the console.
For best results
Follow the fabric care label instructions
on items to be washed.
To change the selection after the cycle begins,
press cancel before making another choice. Just
turning the knob to another selection will not
change the cycle.
NORMAL I:_
Use this load for cotton, linen, towels, shirts,
sheets, denims and mixed loads.
FAST WASH -'_--O
Quickly wash a small, lightly soiled load in 15 min-
utes.
WHITEST WHITES _"-
Use this cycle for white fabrics and lightly colored
clothing. Refer to fabric care label for use of liquid
chlorine bleach.
HEAVY DUTY I_
Use this cycle for heavily soiled, durable garments
- ex. towels, sports gear, or fabric tote bags. For
best soil and stain removal, use the hottest water
safe for the fabrics being washed.

Operating Instructions

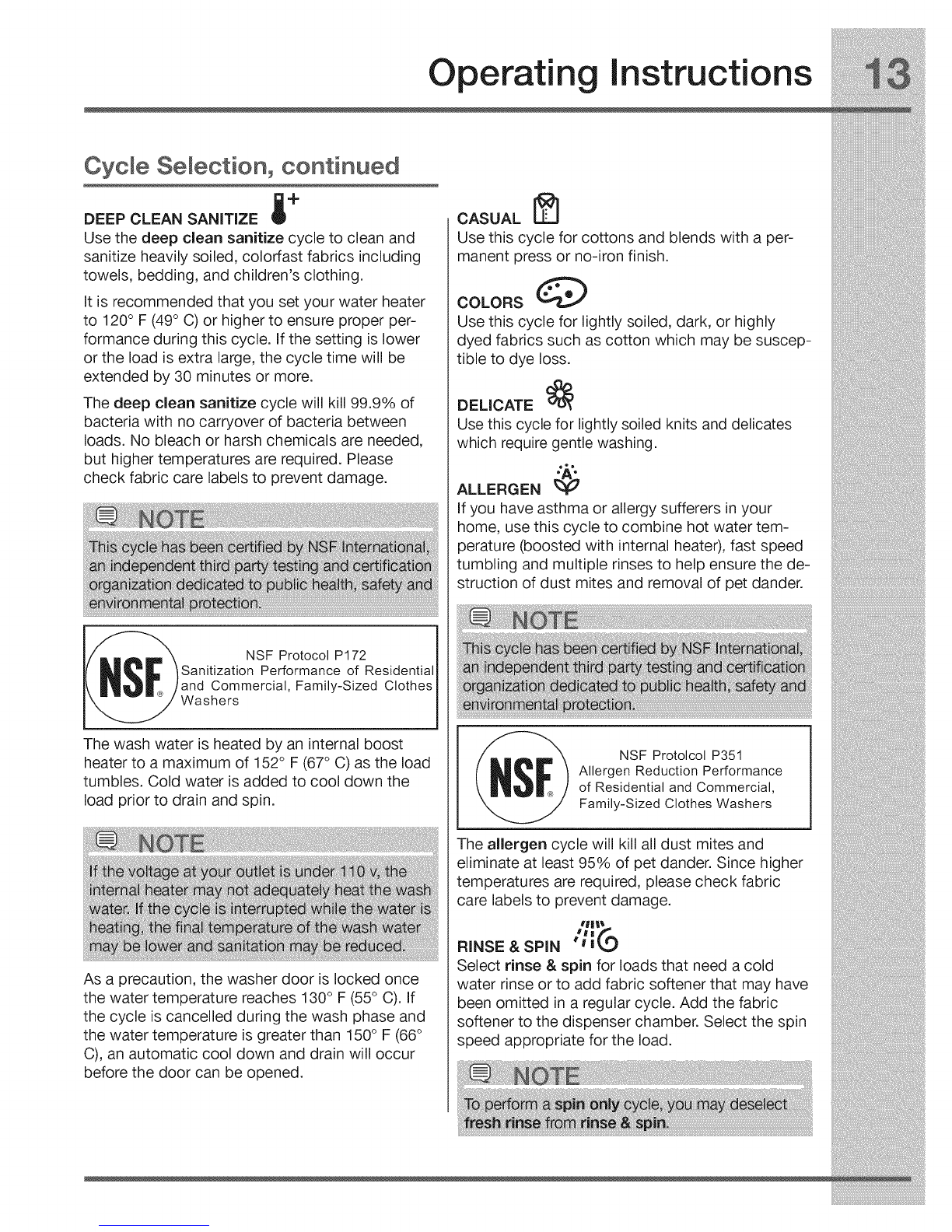

Cycle Selection0 continued
+
DEEP CLEAN SANmZE
Use the deep clean sanitize cycle to clean and
sanitize heavily soiled, colorfast fabrics including
towels, bedding, and children's clothing.
It is recommended that you set your water heater
to 120° F (49° C) or higher to ensure proper per-
formance during this cycle. If the setting is lower
or the load is extra large, the cycle time will be
extended by 30 minutes or more.
The deep clean sanitize cycle will kill 99.9% of
bacteria with no carryover of bacteria between
loads. No bleach or harsh chemicals are needed,
but higher temperatures are required. Please
check fabric care labels to prevent damage.
__///_ _ NSF Protocol Pq 72
/ _ t sanitizati°n Performance of Residential
[\ _11,_,_ /and Commercial, Family-Sized Clothes
Washers
The wash water is heated by an internal boost
heater to a maximum of 152° F (67° C) as the load
tumbles. Cold water isadded to cool down the
load prior to drain and spin.
As a precaution, the washer door is locked once
the water temperature reaches 130 ° F (55° C). If
the cycle is cancelled during the wash phase and
the water temperature is greater than 150° F (66°
C), an automatic cool down and drain will occur
before the door can be opened.
CASUAL [_
Use this cycle for cottons and blends with a per-
manent press or no-iron finish.
COLORS @
Use this cycle for lightly soiled, dark, or highly
dyed fabrics such as cotton which may be suscep-
tible to dye loss.
DELICATE
Use this cycle for lightly soiled knits and delicates
which require gentle washing.
ALLERGEN ¢
If you have asthma or allergy sufferers in your
home, use this cycle to combine hot water tem-
perature (boosted with internal heater), fast speed
tumbling and multiple rinses to help ensure the de-
struction of dust mites and removal of pet dander.
NSF Protolcol P351
Allergen Reduction Performance
of Residential and Commercial,
Family-Sized Clothes Washers
The allergen cycle will kill all dust mites and
eliminate at least 95% of pet dander. Since higher
temperatures are required, please check fabric
care labels to prevent damage.
RINSE&SPIN /ii_"f
Select rinse & spin for loads that need a cold
water rinse or to add fabric softener that may have
been omitted in a regular cycle. Add the fabric
softener to the dispenser chamber. Select the spin
speed appropriate for the load.

Operatin Instructions
Specia(ty Cyc)e Se)ect)on
deep clean _+,o r_,,, -_;:I_ r nse
sanitize : & spin
i
my eco specialty
favorite friendly cycles
start
pause
Temperature
_+ O sanitize
@hot
O warm
()cold
©eco cold
Spin Speed Soil Options
pres_&hol_
/_ stain treat
ma× ,o_a× '_S
@ high O heavy
O medium @ normal
O low O light
_,_ add steam@
() no spin O extra light [,._ sh nkgua d
_controllock

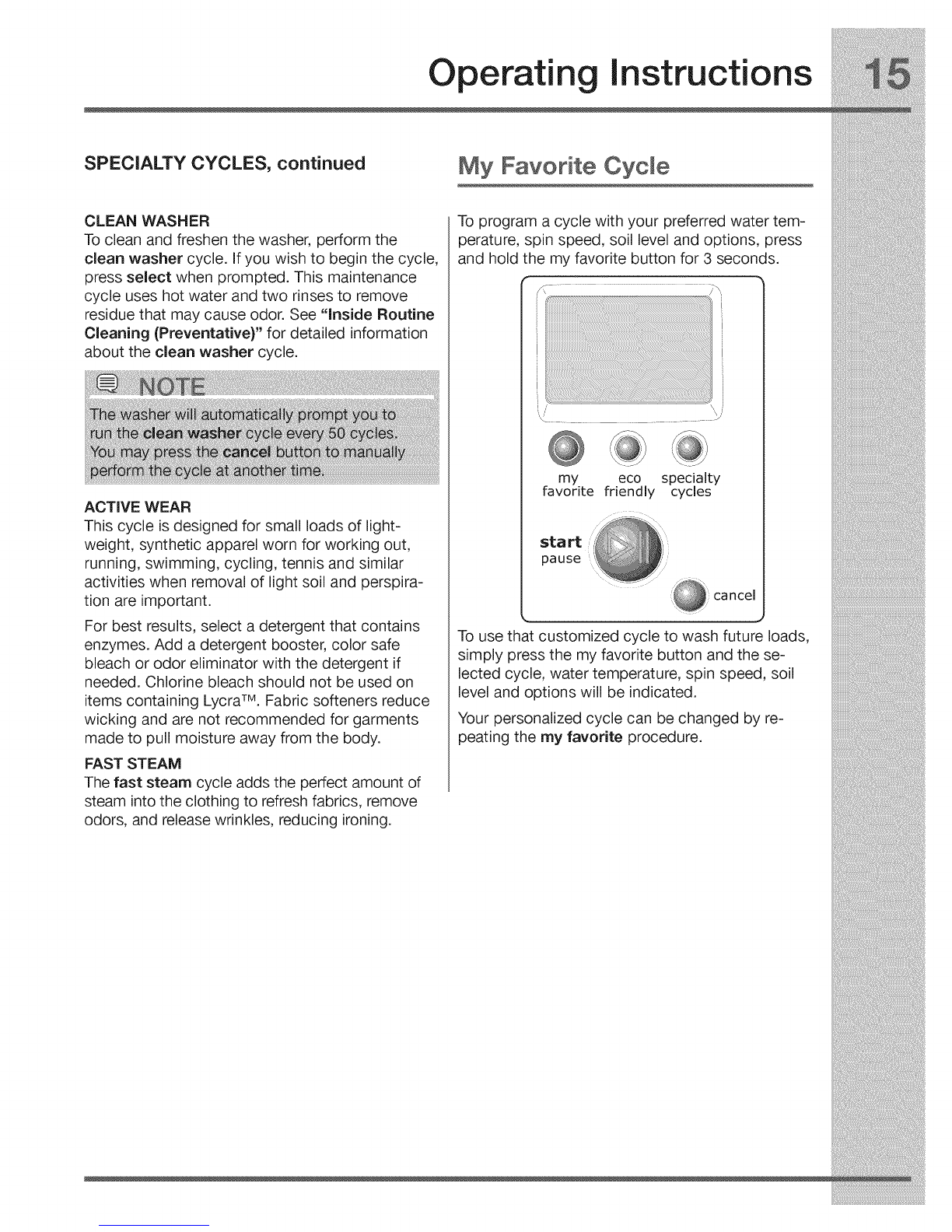

SPECIALTY CYCLES
To access you washer's Specialty Cycles:
Press the button under the LCD corresponding
to specialty cycles.
Rotate the cycle selector knob to scroll
through the list of available Specialty Cycles to
choose from.
Press the start button to begin the cycle.
To exit the specialty cycle navigation without
performing a cycle, press the specialty cycle
button again and cycle selector knob will re-
turn to normal function.
JEANS
Wash an entire load of denim jeans with the jeans
cycle. It provides 20 minutes of reversing tumble
wash action with cold water, medium spin speed
to reduce wrinkling and a fresh rinse to remove
excess dirt and detergent.
FAST SANITIZE
Use the fast sanitize cycle to quickly kill 99.9%
of bacteria with no carryover of bacteria between
loads. No bleach or harsh chemicals are needed,
but higher temperatures are required. Please follow
fabric care labels to prevent damage.
STUFFED ANIMALS
Wash stuffed animals and soft toys with the stuffed
animals cycle. Wash temperature is auto temp
cold, with a mid-agitation injection of steam to
release stubborn stains. To prevent deformation of
toys, fresh rinse and low spin speed are also pre-
set selections. Protect your washer drum finish and
maximize toy life by placing it in a pillow case and
tying the end closed before washing it.
PET BEDS
Wash soft-sided pet beds, pet pillows or pet blan-
kets with the pet beds cycle. The pet beds cycle
will kill dust mites and eliminate 95% of pet dan-
der with multiple rinses. Auto temp cold water to
release protein stains, fresh rinse and high spin
speed to extract more water (reducing drying time)
are preset selections. Not recommended for wool or
fleece fabrics.
l//'_m__ NSF Protocol P172
I/ _!_ tSanitizati°n Performance of Residential
I\ _11 /and Commercial, Family-Sized Clothes
_ Washers

Operating instructions
SPECIALTY CYCLES, continued My Favorite Cycle
CLEAN WASHER
To clean and freshen the washer, perform the
clean washer cycle. If you wish to begin the cycle,
press select when prompted. This maintenance
cycle uses hot water and two rinses to remove
residue that may cause odor. See "inside Routine
Cleaning (Preventative)" for detailed information
about the clean washer cycle.
ACTIVE WEAR
This cycle is designed for small loads of light-
weight, synthetic apparel worn for working out,
running, swimming, cycling, tennis and similar
activities when removal of light soil and perspira-
tion are important.
For best results, select a detergent that contains
enzymes. Add a detergent booster, color safe
bleach or odor eliminator with the detergent if
needed. Chlorine bleach should not be used on
items containing Lycra TM. Fabric softeners reduce
wicking and are not recommended for garments
made to pull moisture away from the body.
FAST STEAM
The fast steam cycle adds the perfect amount of
steam into the clothing to refresh fabrics, remove
odors, and release wrinkles, reducing ironing.
To program a cycle with your preferred water tem-
perature, spin speed, soil level and options, press
and hold the my favorite button for 3 seconds.
\
my eco specialty
favorite friendly cycles
start
pause
J
To use that customized cycle to wash future loads,
simply press the my favorite button and the se-
lected cycle, water temperature, spin speed, soil
level and options will be indicated.
Your personalized cycle can be changed by re-
peating the my favorite procedure.

Operatin instructions
Cycle Settings
Washing Temperature
The appropriate washing temperature wil auto-
maticaly be indicated for the cycle selected.
For best results
Follow the fabric care label instructions
on items to be washed.
Tochange the temperature, press the Tempera-
ture button to scroll to the desired setting. Select a
wash water temperature according to fiber content,
colorfastness and soil level. A cold water rinse saves
energy and reduces wrinkling.
To protect your fabrics, not all temperatures are
available with every cycle. The indicator will not light
if the setting is not available with that cycle.
The temperature selected for the cycle will be
remembered and recalled each time that cycle is
selected in the future.
f,.............. >,
k_ .......... /@ hoL @ high O heavy @ _,1_ Y _[a't
@@@ ....................
To return to factory settings,
press these two buttons at the
same time and hold until the
signal sounds.
All wash water temperatures are automatically
regulated to maximize detergent effectiveness and
improve washing performance. The water heater
setting and its distance from the washer, water
usage in other parts of the home, and seasonally
low ground water temperature in some geographic
areas can affect water temperature.
SANiTiZE
This setting sanitizes heavily soiled colorfast fabrics
such as towels, bedding, and children's clothing by
killing 99.9% of bacteria using wash water heated
with a boost heater to 152° F (67° C). Cold water is
used to cool and rinse the load. This setting is only
available with the deep clean sanitize cycle.
Temperature Spin Speed Soil
_+ {} sanitize O max (} max
@ hot @ high O heavy
{) warm O medium @ normal
O cold O low {) light
O eco cold O no spin () extra light
HOT
Use this setting for heavily soiled white or colorfast
cottons and blends.
WARM
Use this setting for normally soiled white or colorfast
cottons or blends.
COLD
Use this setting for lightly soiled non-colorfast items,
knits, delicates, and hand washables.
ECO COLD
Wash and rinse temperatures are equivalent to tem-
perature of cold tap supply. Use this selection for
fabrics and colors that are prone to dye transfer. For
use with cold water @ detergents.
Spin Speed
Max, high, medium, and low spin speeds are
available for each cycle. The spin speed and/or
duration of final spin vary from cycle to cycle.
Increasing the spin speed will extract more water,
decrease drying time and conserve energy. De-
creasing the spin speed will reduce wrinkling.
Use no spin to omit the final spin at the end of the
cycle. The load will be very wet. Remove items from
the wash drum to drip dry or select the rinse & spin
cycle to remove excess water at a more convenient
time.
Soil Level
Adjust the wash time in 3-minute increments based
on the soil level of each load. Max, heavy, normal,
light and extra light soil levels are available.

Operating Instructions
Cycle Options
normal
fast =,dh
wash - LTJ_,
whitest _.
whites L-:;s(,
heavy %? _-
duty _'"
deep clean _+o
sanitize
casual
@ (,@ colors
0 I_ delicate
@_, allergen
04;[_ rinse
& spin
my eco specialty
favorite friendly cycles
start
pause
Temperature Spin Speed
_+ 0 sanitize 0 rnax
@ hot @ high
@ warm 0 medium
O cold @ low
O eco cold O no spin
Soil Options
pe_ & hold
max stain treat
_@ light
@ heavy @ c_,_,edelaystart
@ normal
prewashf) light ma×fill
_;J:- add steam c_p
(> extra light _@_ shrinkguard
_ fresh rinse
_@ control lock
Suitable options will automatically be indicated
when the cycle is selected.
Toadd options, press the corresponding options
buttons to illuminate the selections desired. To
delete options, press the options buttons again
and the indicator lights will turn off. Some Options
require a "press & hold" effort to activate or deacti-
vate the secondary function.
To protect your fabrics, not all options are available
with every cycle. The indicator will not light if the
option is not available with that cycle. Occasion-
ally, two options in the same cycle will conflict with
each other, like add steam and eco friendly. When
this happens, the option selected first will cause the
conflicting option to not be selectable.
All options selected for the cycle, except add
steam will be remembered and recalled each time
that cycle is selected in the future. To prevent
unintentional and accidental exposure of delicate
material to unexpected steam, the add steam op=
tion will not be remembered and must be rese-
lected each time.
STAIN TREAT
Stain treat uses a special 10 minute soaWpretreat
agitation before the main wash. It fills initially with
detergent and cold water to prevent protein stains
from setting, then the internal heater is activated to
heat the wash water to remove non-protein based
stains. Can be used with prewash for the toughest
stains.
LIGHT (press & hold)
The drum light will come on whenever the door is
opened to illuminate the drum during loading and
unloading. Closing the door turns off the light. The
drum light will automatically turn off if the door is
left open more than 3 minutes.
You can activate the drum light during a cycle by
pressing and holding the stain treat button. The
light will stay on during the cycle for 3 minutes. To
turn it off, press and hold the button again.
DELAY START
Press delay start to select a wash time convenient
to your schedule or during off peak energy hours.
The delay time selected will be displayed and be-
gin counting down when you select start.
CHIME (press & hold)
A signal will sound at the end of the cycle if this
option is selected.
PREWASH
Select this option to add a short initial wash peri-
od to a cycle. Heavily soiled and stained loads will
prewash for approximately 5 minutes. The water
will drain and the load will automatically advance
to the regular wash cycle.
See step 5 in "Operating Your Washer" section in this
guide for details on adding detergent to the dispenser.
MAX FILL (press & hold)
Increase the water fill level of the agitation portion
of any wash cycle.

Operatin Instructions
Cycle Options, continued
ADD STEAM
Select this option to add approximately 20 min-
utes of tumbling in steam during the wash cycle.
It is recommended for heavily soiled loads to help
enhance the release of tough stains from fabrics
after initial agitation.
SHRINK GUARD (press & hold)
Select shrink guard to help relax load after final
spin by agitating, preventing shrinking and wrin-
kling.
FRESH RINSE
Use this option when additional rinsing is desired
to remove excess dirt and detergent. It is recom-
mended for heavily soiled loads or if household
members have sensitive skin.
CONTROL LOCK
To lock the controls between cycles, press and
hold the control lock button for 5 seconds. Re-
peat to unlock the controls when you are ready to
operate the washer. Use this feature to reduce the
likelihood of accidental operation by children.
ECO FRIENDLY
The eco friendly option reduces the hot and warm
water temperature a few degrees to save energy.
Washer Features
STATUS DISPLAY
The estimated total cycle time will be displayed
when the cycle is selected. The time may increase
if water pressure is low, oversudsing occurs or the
load becomes unbalanced. The approximate time
remaining will be displayed during the cycle.
The following will also be displayed at the
appropriate times during the cycle:
DOOR LOCH RIFIS;IFIG
PREUJRSHIFIG DRRIFItFIG
LURSHIFIG SPIFIFIIFIG
RDDtFIG STERm CMCLE comPLETE
OVERSUDS DETECTION
A situation where oversudsing has been detected
by the washer will result in the washer automati-
cally adding up to 4 extra rinses to attempt to clear
the suds. Each extra rinse the washer performs
to clear the suds will add 5 minutes to the cycle
display time. If an excessive amount of detergent
has been added and additional rinsing has not cor-
rected the issue, TOOmUCH DETER'GET'ITwill be
displayed.
REVERSIBLE DOOR
Your washer is equipped with a reversible door.
The door can be hinged on the right or left side.

Cycle Chart
Washer Settings ChaA
These temperature, spin speeds, soil levels and options are available with the following cycles:
specialty cycles
temperature
sanitize
hot
warm
cold
eco cold
m ....... 7----m--
soil level
max
heavy
normal
light
extra light
options
stain treat
delay start
prewash
add steam
fresh rinse
eco friendly
mmmm
,/ ,/ ,/ ,/ ,/ ,/
'/ '/ '/ '/ m
press & hold light
press & hold chime
press & hold max fill _// _//
press & hold shrink guard _// _// _//
,/= Available selections. _ = Factory presets. =Non-modifiable presets.

Stain Removal Guide
Stain Removal Procedures
SAFE STAIN REMOVAL PROCEDURES
To reduce the risk of fire or serious injury to per-
sons or property, comply with the basic warnings
listed below:
• Read and comply with all instructions on stain
removal products.
o
o
Keep stain removal products in their original
labeled containers and out of children's reach.
Thoroughly wash any utensils used.
Do not combine stain removal products, espe-
cially ammonia and chlorine bleach. Dangerous
fumes can result.
Never wash items which have been previously
cleaned in, washed in, soaked in or spotted
with gasoline, dry cleaning solvents or other
flammable or explosive substances because
they give off vapors that could ignite or explode.
Never use highly flammable solvents, such as
gasoline, inside the home. Vapors can explode
on contact with flames or sparks.
FOR SUCCESSFUL STAIN REMOVAL:
Remove stains promptly.
o
o
For best results
Follow the fabric care label instruc-
tions on items to be washed.
Determine the kind of stain, then follow the rec-
ommended treatment in the stain removal chart
on the next page.
To pretreat stains, use a prewash product, liquid
detergent, or a paste made from powder deter-
gent and water.
Use cold water on unknown stains as hot water
can set stains.
Consult care label instructions for treatments to
avoid on specific fabrics.
Check for colorfastness by testing stain remover
products on an inside seam.
[_A []
• Rinse and wash items after stain removal.
