Electrolux EWF 1410 User manual

WASAUTOMAAT
LAVE-LINGE
WASCHAUTOMAT
WASHING MACHINE
GEBRUIKSAANWIJZING
NOTICE DUTILISATION
GEBRAUCHSANWEISUNG
WAGHING MACHINE
EWF 1410
132 983 790 GB
D
F
NL
132983790NL.qxd 12/11/2005 10:20 Pagina 1 (Nero/Process Black pellicola)

69
ENGLISH
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in
the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any
future owners.
Transport damages
When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service
Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is
particularly important for your safety or correct functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use
of the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
Contents
Warnings 70
Disposal 71
Tips for environmental protection 71
Technical specifications 71
Installation 72
Unpacking 72
Positioning and levelling 72
Assembly upon a stand kit 72
Water inlet 73
Water drainage 73
Electrical connection 73
Your new washing machine 74
Detergent dispenser drawer 74
Use 75
Control panel 75
Controls 75-77
Programme information 78
Washing hints 79
Sorting the laundry 79
Temperatures 79
Before loading the laundry 79
Maximum loads 79
Laundry weights 79
Removing stains 79-80
Detergents and additives 80
International wash code symbols 81
Operating sequence 82-83
Programme tables 84-85
Maintenance 86
Bodywork 86
Door seal 86
Detergent dispenser drawer 86
Water inlet filter 86
Drain pump 86-87
Emergency emptying out 87
Frost precautions 87
Something not working? 88-89
132983790GB.qxd 12/11/2005 11:11 Pagina 69 (Nero/Process Black pellicola)

70
Installation
• All internal packing must be removed before using
the appliance. Serious damage may be caused to
the machine or adjacent furniture if the protective
transit devices are not removed or are not
completely removed. Refer to the relevant
paragraph in the instruction book.
• Any electrical work required to install this
appliance must be carried out by a qualified
electrician.
• Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
• After having installed the machine, check that it is
not standing on its electrical supply cable.
• If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between the
feet and the floor.
Use
• This appliance is designed for domestic use. It
must not be used for purposes other than those
for which it was designed.
• Only wash fabrics which are designed to be
machine washed. Follow the instructions on each
garment label.
• Do not overload the appliance. Follow the
instructions in the instruction book.
• Make sure that all pockets are empty. Objects
such as coins, safety pins, pins and screws can
cause extensive damage.
• Do not machine wash garments saturated with
petroleum, methylated spirits, trichlorethylene, etc.
If such fluids have been used to remove stains
prior to washing, wait until they have completely
evaporated from the fabric before placing
garments in the appliance.
• Place small items such as socks, belts, etc. in a
cloth bag or pillowcase to prevent them getting
trapped between the drum and the tub.
• Use only the recommended quantities of fabric
softener. An excessive amount could damage the
laundry.
• Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the door
seal and prevents the formation of musty smells.
• Always check that water has emptied out before
opening the door. If not, drain the water following
the instructions in the instruction book.
Warnings
• Always unplug the appliance and shut the water
tap after use.
General safety
• Repairs to the machine must be carried out only
by qualified personnel. Repairs carried out by
inexperienced persons could cause serious
danger. Contact your local Service Centre.
• Never pull the power supply cable to remove the
plug from the socket; always take hold of the plug
itself.
• During high temperature wash programmes the
door glass may get hot. Do not touch it!
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children -
danger of suffocation! Keep them out of children’s
reach.
• Keep all detergents in a safe place out of
children’s reach.
• This machine incorporates a special child safety
feature to prevent small children from being
trapped inside the machine.
To activate this device, rotate the button (without
pressing it) inside the door clockwise until the
groove is horizontal. If necessary use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise
until the groove is vertical.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
P1131
The following warnings are provided in the interests of overall safety. You must read them carefully before
installing or using the appliance.
132983790GB.qxd 12/11/2005 11:11 Pagina 70 (Nero/Process Black pellicola)

71
ENGLISH
Disposal
Tips for environmental protection
Packaging materials
The materials marked with the symbol are
recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing
of them properly in appropriate collection
containers.
Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
To save water, energy and to help protect the
environment, we recommend that you follow these
tips:
• Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
• The machine works more economically if it is fully
loaded. Do not overload!
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
• Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
DIMENSIONS Height 85 cm
Width 60 cm
Depth 59 cm
MAXIMUM LOAD Cotton 5 kg
Synthetics 2,5 kg
Delicates 2,5 kg
Woollens 2 kg
SPIN SPEED 1400 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz
TOTAL POWER ABSORBED 2200 W
MINIMUM FUSE PROTECTION 10 A
WATER PRESSURE Minimum 0,05 MPa
Maximum 0,8 MPa
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility.
Technical specifications
132983790GB.qxd 12/11/2005 11:11 Pagina 71 (Nero/Process Black pellicola)

72
Installation
Unpacking
All transit bolts and packing must be
removed before using the appliance.
You are advised to keep all transit devices so that
they can be refitted if the machine ever has to be
transported again.
1. Using a spanner, unscrew and remove the two
rear bottom screws. Slide out the two plastic
pins.
2. Lay the machine on its back, taking care not to
squash the hoses. This can be avoided by
placing one of the corner packing pieces
between the machine and the floor.
3. Remove the polystyrene block from the bottom of
the machine and release the two plastic bags.
4. Very carefully slide out the left polythene bag,
removing it towards the right and then
downwards.
5. Very carefully slide out the right polythene bag,
removing it towards the left and then upwards.
6. Set the machine upright and remove the
remaining rear screw. Slide out the relevant pin.
P1127
P1126
P1124
2
3
1
P0001
P1129
7. Plug all the holes with the plugs which you will
find in the envelope containing the instruction
booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is
not impeded by carpets, rugs etc. Check that the
machine does not touch the wall or other kitchen
units.
Carefully level by screwing the adjustable feet in or
out. Never place cardboard, wood or similar
materials under the machine to compensate for any
unevenness in the floor.
Assembly upon a stand kit
Stand Dimension:
Height: 30 cm.
Width: 60 cm.
Depth: 60 cm.
This appliance can be installed upon a steel Stand
with Drawer to make the loading and unloading of
your laundry easier.
Please ask to authorized dealer the suitable stand
kit.
P1216
P1051
P0002
P1128
132983790GB.qxd 12/11/2005 11:11 Pagina 72 (Nero/Process Black pellicola)

73
ENGLISH

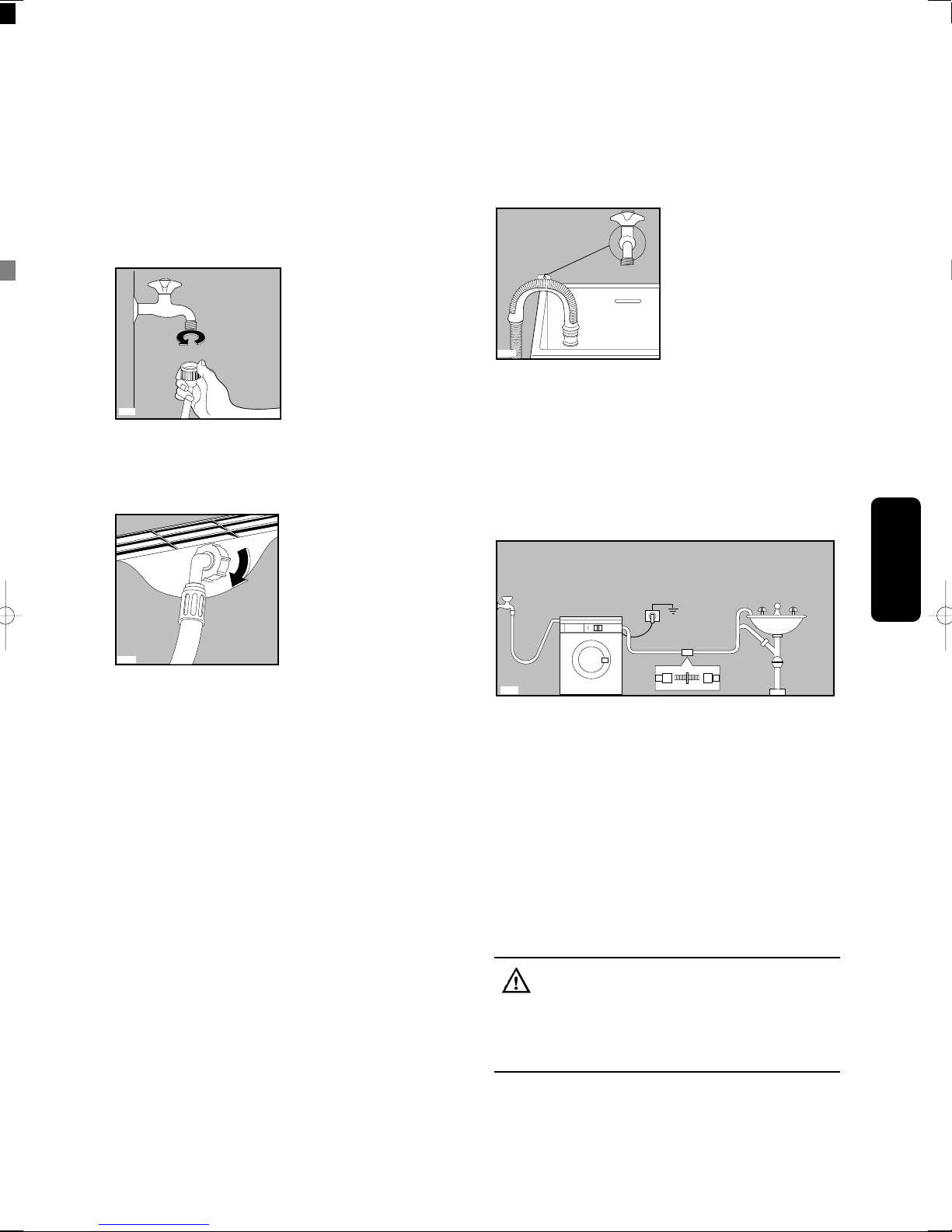

Water inlet
Connect the water inlet hose to a separate tap with a
3/4" thread.
Do not use already employed hoses for water
connection.
The other end of the inlet hose which connects to
the machine can be turned in any direction. Simply
loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too
short and you do not wish to move the tap, you will
have to purchase a new, longer hose specially
designed for this type of use.
Important!
Before connecting up the machine to new pipework
or to pipework that has not been used for some
time, run off a reasonable amount of water to flush
out any debris that may have collected in the pipes.
Water drainage
The end of the drain hose can be positioned in three
ways:
Hooked over the edge of a sink using the plastic
hose guide supplied with the machine. In this
case, make sure the end cannot come unhooked
when the machine is emptying.
P0021
P1088
This could be done by tying it to the tap with a piece
of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be
above the trap so that the bend is at least 60 cm
above the ground.
Directly into a drain pipe at a height of not less
than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain pipe
must be larger than the outside diameter of the drain
hose. The drain hose must not be kinked.
For a correct functioning of the machine the
drain hose must remain hooked on the proper
support piece situated on the top part of the back
side of the appliance.
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.2 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility
for damage or injury through failure to comply
with the above safety precaution.
Should the appliance power supply cable
need to be replaced, this must be carried out
by our Service Centre.
Please ensure that when the appliance is
installed the power supply cable is easily
accessible.
P1118
P0022
132983790GB.qxd 12/11/2005 11:11 Pagina 73 (Nero/Process Black pellicola)

74
This new machine meets all modern requirements for effective treatment of laundry with low water, energy and
detergent consumption.
•The programme selector dial combines the function of programme and temperature selection, making it
easier to set the programme.
•The programme progress display shows the programme steps selected and the programme phase which
is running.
•The special wool programme with its new delicate wash system treats your woollens with extreme care.
•The automatic cooling of the washing water from 95° to 60°C before draining will prevent old drain pipes
from being deformed and will reduce thermal shock to fabrics, helping to prevent creasing.
•The unbalance detection device prevents vibration during spinning.
•The ECO valve allows total use of detergent and reduces water consumption so saving energy.
1 Detergent dispenser drawer
2 Control panel
3 Door handle
4 Drain pump
5 Adjustable feet
Your new washing machine
4
5
12
3
Spoelen/Rinçage
Wasverzachter/
Assouplissant
Afpompen/Vidange
Cerntrifug./Essorage
1400
1200
700
900
EWF 1410
Witte/Bonte was
Blanc/Couleurs
Synthetica
Synthétiques
Fijne was
Délicats
Wol
Laine
40°
40°
60°
40°
30°
95°
60°
E60°
E40°
30°
E60°
40° 30°
UIT
A ET
30°
Kort Centrifug./
Essorage d licat
30 Min.
Centrifug.
Essorage Voorwas Prélavage Kort Court Spoelen + inçage + Vlekken Taches Start/Pauze Marche/Pause
Inweken
Trempage
Voorwassen
Prélavage
Wassen
Lavage
Spoelen
inçage
Centrifugeren
Essorage
Einde
Fin
Detergent dispenser drawer
Prewash
Main wash
Fabric softener, starch
P1206
132983790GB.qxd 12/11/2005 11:11 Pagina 74 (Nero/Process Black pellicola)

75
ENGLISH
Use
1 Programme selector dial
The selector is divided into 5 sections:
• Cotton (Witte/Bonte was - Blanc/Couleurs)
• Synthetic (Synthetica - Synthétiques)
• Delicate (Fijne was - Délicats)
• Wool (Wol - Laine)
• Special programmes
UIT/ARRET Reset programme/OFF
The selector dial can be turned either clockwise or
anticlockwise.
Positions E60° and E40° corresponds to the
ENERGY SAVING programme and position to
“cold wash”.
At the end of the programme the selector dial
must be turned to position UIT/ARRET.
ATTENTION!
If you turn the programme selector dial to another
programme when the machine is working, all the
lights of the programme progress display will flash
for about 2 seconds, but the washing machine will
not perform the new selected programme.
Spoelen/Rinçage
Wasverzachter/
Assouplissant
Afpompen/Vidange
Centrifug./Essorage
Witte/Bonte was
Blanc/Couleurs
Synthetica
Synthétiques
Fijne was
Délicats
Wol
Laine
40°
40°
60°
40°
30°
95°
60°
E60°
E40°
30°
E60°
40° 30°
UIT
A ET
30°
Kort Centrifug./
Essorage d licat
30 Min.
2 “Centrifug./Essorage” button (Spin
reduction)
Press this button repeatedly to change the spin
speed or to select option (anti-crease) , if you
want your laundry to be spun at a speed different
from the one proposed by the washing machine. The
relevant light will light up.
Press this button to select the following options:
●Spin speed reduction:
The following speeds are available for the
different fabrics:
• Cottons, linen:
700/900/1200 max 1400 r.p.m.;
• Synthetics and wool:
700 max 900 r.p.m.;
• Delicates and 30 Min.:
700 r.p.m.
●Rinse Hold (anti-crease)
When selecting this option the water of the last
rinse is not emptied out, to prevent the fabrics
from creasing.
At the end of the programme the pilot lights
and End (Einde/Fin) illuminate and the door is
locked to indicate that the water must be emptied
out before opening the door.
To empty out water there are 2 possibilities:
-Select Drain (Afpompen/Vidange) programme :
the water is emptied out without spinning.
-Select the Spin (Centrifug./Essorage) or the
Delicate Spin (Kort Centrifug./Essorage Délicat)
programme. Select the spin speed by means of
the relevant button and then depress the
Start/Pause button (Start/Pauze -
Marche/Pause). The water is emptied out and the
laundry is spun at the selected spin speed.
1 2 8 9 3 4 5 6 7
Spoelen/Rinçage
Wasverzachter/
Assouplissant
Afpompen/Vidange
Centrifug./Essorage
1400
1200
700
900
EWF 1410
Witte/Bonte was
Blanc/Couleurs
Synthetica
Synthétiques
Fijne was
Délicats
Wol
Laine
40°
40°
60°
40°
30°
95°
60°
E60°
E40°
30°
E60°
40° 30°
UIT
A ET
30°
Kort Centrifug./
Essorage d licat
30 Min.
Centrifug.
Essorage Voorwas Prélavage Kort Court Spoelen + inçage + Vlekken Taches Start/Pauze Marche/Pause
Inweken
Trempage
Voorwassen
Prélavage
Wassen
Lavage
Spoelen
inçage
Centrifugeren
Essorage
Einde
Fin
Control panel
132983790GB.qxd 12/11/2005 11:11 Pagina 75 (Nero/Process Black pellicola)

76
Attention!
Before selecting Drain programme, Spin or Delicate
Spin programme the selector dial has to be
positioned on Off (UIT/ARRET).
Programme Option buttons
Depending on the programme, different functions
can be combined. These must be selected after
choosing the desired programme and before
depressing the START/PAUSE button.
When these buttons are pressed, the corresponding
pilot lights come on. When they are pressed again,
the pilot lights go out.
If an incorrect option is selected, the pilot lights flash
for about 2 seconds.
3 “Voorwas/Prélavage” button (Prewash)
Select this option if you wish your laundry to be
prewashed before the main wash (not available for
wool and 30 Min. programme).
The prewash ends with a short spin in programmes
for cotton and synthetic fabrics, whereas in the
programme for delicate fabrics the water is only
drained. This option cannot be selected with Stain
(Vlekken - Taches) and Soak option
(Inweken/Trempage).
4 “Kort/Court” button (Quick wash)
This button allows you to select the QUICK WASH
function, for laundry that is only slightly soiled (not
for wool, economy programmes E60°/E40º and 30
Min.).
The washing time will be reduced according to the
type of fabric and the selected temperature.
Max. load for cotton 3 kg.
5 “Spoelen +/Rinçage +” button (Extra
rinse)
The Extra Rinse option can be selected with all
programmes except the wool and 30 Min.
programme. The machine will perform 2 additional
rinses. This option is recommended for people who
are allergic to detergents, and in areas where the
water is very soft.
6 “Inweken/Trempage” button (Soak)
Select this option if you wish to perform a soak of
about 30 minutes at 30°C to your laundry.
This function is not available for Wool and 30 Min.
programme.
The soak ends with a short spin at 650 rpm in
programmes for cotton and synthetic fabrics,
whereas in the programme for delicate fabrics the
water is only drained. This option cannot be
selected with Stain (Vlekken - Taches) or Prewash
option (Vorwas/Prélavage).
7 “Vlekken/Taches” button (Stain)
Select this button if you wish to add to the washing
of heavy soiled laundry a stain phase: at the
temperature of 40°C the special detergent for stains
is loaded from the compartment marked .
This function is available in cotton and synthetic
programmes with a temperature of 40° or higher.
The washing time will be prolonged by few minutes.
The Prewash and the Soak options cannot be
selected together with Stain.
8 “Start/Pauze - Marche/Pause” button
(Start/Pause)
This button has two functions:
•Start: after you have selected the desired
programme and options, press this button to start
the washing machine. The light above the button
will stop flashing and remain lit.
•Pause: when you press this button again, the
programme in progress is interrupted. The light
above the button will start flashing. To restart the
programme from the point at which it was
interrupted, press the button again.
When you PAUSE the cycle, and it becomes
possible to open the door, provided:
• the washing machine is not in the heating phase;
• the level of the water is not high;
• the drum is not turning.
If all these requirements are met, the door can be
opened.
132983790GB.qxd 12/11/2005 11:11 Pagina 76 (Nero/Process Black pellicola)

77
ENGLISH
9 Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.
After the machine has started, only the running
phase pilot light stays on.
●Voorwassen/Prélavage (prewash): when this
light comes on this means that the machine is
performing the prewashing phase.
●Wassen/Lavage (washing): when this light
comes on this means that the machine is
performing the washing phase.
●Spoelen/Rinçage= rinses
●Centrifugeren/Essorage= spin
●Einde/Fin= end of programme
When the programme has finished, the End light
comes on.
The End pilot light flashes in the event of operating
problems:
1 flash = the machine does not fill
2 flashes = the machine does not empty
4 flashes = the door has not been closed
To eliminate the problem, see paragraph “Something
not working”.
Voorwassen
Prélavage
Wassen
Lavage
Spoelen
inçage
Centrifugeren
Essorage
Einde
Fin
132983790GB.qxd 12/11/2005 11:11 Pagina 77 (Nero/Process Black pellicola)

78
Programme information
Wol/Laine (Wool)/Handwash
The wool wash cycle of this machine has been
approved by Woolmark for the washing of machine
washable Woolmark products provided that the
garments are washed according to the instructions
on the garment label and those issued by the
manufacturer of this washing machine. Licence No.
M9604.
Kort Centrifug./Essorage délicat
(Delicate Spin)
Select the Delicate Spin programme for hand
washed synthetics, delicates or wool. A short spin at
700 rpm maximum is recommended.
Spoelen/Rinçage (Rinse)
With this programme it is possible to rinse and spin
the garments which have been washed by hand. The
machine performs 3 rinses, followed by a final long
spin at the maximum speed.
The spin speed can be reduced by depressing the
Spin button.
The final spin is foreseen only for cotton items as in
the spin programme.
Wasverzachter/Assouplissant (Softener)
Hand washed cotton garments can be softened with
this program.
The machine performs 1 rinse, followed by a final
long spin at max speed, which can be reduced by
depressing the Spin Speed button.
Afpompen/Vidange (Drain)
For emptying out the water of the last rinse in
programmes with the option. Turn first the
programme selector dial to Off, then select the
Drain programme and depress the Start/Pause
button.
Centrifugeren/Essorage (Spin)
Separate long spin at the max speed for hand
washed garments. It has to be used for cotton items.
You can reduce the speed by means of Spin button
to adapt it to the fabrics to be spun.
30 Min. (30 Minute wash)
This is a complete programme that can be combined
with the option (Rinse Hold).
To be used for laundry which is lightly soiled or
which needs freshening up.
Max. load 2,5 kg.
Washing temperature 30 C.
2 rinses.
Programme duration 30 minutes.
Final spin speed 700 rpm.
UIT/ARRET= Off/Reset / Switching the
machine off
To reset a programme and to switch the machine off
turn the selector dial to “Off”.
Now can a new programme be selected.
132983790GB.qxd 12/11/2005 11:11 Pagina 78 (Nero/Process Black pellicola)

79
ENGLISH
Washing hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturer’s washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
95° for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths,
sheets...)
60° for normally soiled, colour fast garments
(e.g. shirts, night dresses, pyjamas....) in
linen, cotton or synthetic fibres and for
lightly soiled white cotton (e.g. underwear).
(cold)for delicate items (e.g. net curtains), mixed
30°-40° laundry including synthetic fibres and
woollens bearing the label «pure new
wool, machine washable, non-shrink».
The wool wash cycle of this machine has
been approved by Woolmark for the
washing of machine washable Woolmark
products provided that the garments are
washed according to the instructions on
the garment label and those issued by the
manufacturer of this washing machine.
M9604.
Before loading the laundry
Never wash whites and coloureds together. Whites
may lose their “whiteness” in the wash.
New coloured items may run in the first wash; they
should therefore be washed separately the first time.
Make sure that no metal objects are left in the
laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners, hooks
and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent or
detergent paste.
Treat curtains with special care. Remove hooks or
tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more than
one third full.
Washing a maximum load makes the most efficient
use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
men’s underpants 100 g
Removing stains
Stubborn stains may not be removed by just water
and detergent. It is therefore advisable to treat them
prior to washing.
Blood: treat fresh stains with cold water. For dried
stains, soak overnight in water with a special
detergent then rub in the soap and water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab the
stain; treat several times.
Dried grease stains: moisten with turpentine, lay
the garment on a soft surface and dab the stain with
the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and the
fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites
and fast coloureds only).
Grass: soap lightly and treat with bleach (whites and
fast coloureds only).
132983790GB.qxd 12/11/2005 11:11 Pagina 79 (Nero/Process Black pellicola)

80
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat
stains with methylated spirits. Remove any residual
marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse and
treat with acetic or citric acid, then rinse. Treat any
residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric
first with acetone (*), then with acetic acid; treat any
residual marks on white fabrics with bleach and then
rinse thoroughly.
Tar stains: first treat with stain remover, methylated
spirits or benzine, then rub with detergent paste.
(*) do not use acetone on artificial silk.
Detergents and additives
Good washing results also depend on the choice of
detergent and use of the correct quantities to avoid
waste and protect the environment. Although
biodegradable, detergents contain substances
which, in large quantities, can upset the delicate
balance of nature.
The choice of detergent will depend on the type of
fabric (delicates, woollens, cottons, etc.), the colour,
washing temperature and degree of soiling.
All commonly available washing machine detergents
may be used in this appliance:
– powder detergents for all types of fabric,
– powder detergents for delicate fabrics (60°C max)
and woollens,
– liquid detergents, preferably for low temperature
wash programmes (60°C max) for all types of
fabric, or special for woollens only.
The detergent and any additives must be placed in
the appropriate compartments of the dispenser
drawer before starting the wash programme.
If using concentrated powder or liquid detergents, a
programme without prewash must be selected.
Pour liquid detergent into the dispenser drawer
compartment marked just before starting the
programme.
Any fabric softener or starching additives must be
poured into the compartment marked before
starting the wash programme.
Follow the product manufacturer’s
recommendations on quantities to use and do not
exceed the «MAX» mark in the detergent
dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend on
the type of fabric, load size, degree of soiling and
hardness of the water used.
Water hardness is classified in so-called “degrees”
of hardness. Information on hardness of the water in
your area can be obtained from the relevant water
supply company, or from your local authority.
Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
– you are washing a small load,
– the laundry is lightly soiled,
– large amounts of foam form during washing.
Degrees of water hardness
Level Characteristic
Degrees
German
°dH French °T.H.
soft
medium
hard
very hard
0- 7
8-14
15-21
more
than 21
0-15
16-25
26-37
more
than 37
1
2
3
4
132983790GB.qxd 12/11/2005 11:11 Pagina 80 (Nero/Process Black pellicola)

81
ENGLISH
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
Delicate wash
Max. wash
temperature
95°C
Max. wash
temperature
60°C
Max. wash
temperature
40°C
Max. wash
temperature
30°C Hand wash Do not
wash
at all
Bleaching Bleach in cold water Do not bleach
Ironing Hot iron
max 200°C Warm iron max 150°C Lukewarm iron max 110°C Do not iron
Dry cleaning Dry cleaning
in all solvents Dry cleaning in perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not
dry clean
Drying Flat On the line On clothes
hanger Tumble dry
high
temperature
low
temperature
Do not
tumble dry
95
60
60
40
40
40
30
30
132983790GB.qxd 12/11/2005 11:11 Pagina 81 (Nero/Process Black pellicola)

82
4. Select the desired programme
Switch the machine on turning the programme
selector dial to the desired position. To switch the
appliance off turn it to Off.
The lights corresponding to the different phases
making up the selected programme light on.
The light of the Start/Pause button starts to flash.
5. Select the spin speed or the
option
Press the Spin button repeatedly button if order to
select the desired spin speed or the option.
The relevant light will light up.
6. Select the required options
The light corresponding to the depressed button
illuminates.
Voorwas
Prélavage Kort Court Spoelen + inçage + Vlekken Taches
Inweken
Trempage
Centrifug.
Essorage
1400
1200
700
900
Spoelen/Rinçage
Wasverzachter/
Assouplissant
Afpompen/Vidange
Centrifug./Essorage
Witte/Bonte was
Blanc/Couleurs
Synthetica
Synthétiques
Fijne was
Délicats
Wol
Laine
40°
40°
60°
40°
30°
95°
60°
E60°
E40°
30°
E60°
40° 30°
UIT
A ET
30°
Kort Centrifug./
Essorage d licat
30 Min.
Operating sequence
Before the first wash we recommend that you pour 2
litres of water into the main wash compartment
of the detergent drawer in order to activate the ECO
valve. Then run a cotton cycle at 95°C, with the
machine empty, in order to remove any
manufacturing residue from the drum and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1. Place the laundry in the drum
Open the door.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible.
Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out a programme with the
prewash, soak or the stain option, pour detergent or
stain remover into the appropriate compartment
marked .
3. Measure out the additive
If required, pour fabric softener into the
compartment marked , without exceeding the
«MAX» mark.
P1210
P1209
132983790GB.qxd 12/11/2005 11:11 Pagina 82 (Nero/Process Black pellicola)

83
ENGLISH
7. Start the programme
Depress Start/Pause-button, the corresponding
pilot light stops flashing. The the pilot light Washing
remains lit.
8. Altering an option or a programme
during its cycle
It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause the
washing machine by pressing the Start/Pause
button.
Changing a running programme is possible only by
resetting it.
Turn the programme selector dial to Off and then to
the new programme position. The washing water in
the tub will not emptied out .
Start the new programme by depressing the
Start/Pause button.
9. Interrupting a programme
Depress the Start/Pause button to interrupt a
programme which is running, the corresponding light
starts to flash. Depress the same button again to
restart the programme.
10. Cancelling a programme
Turn the selector dial to Off to cancel a programme
which is running.
Now you can select a new programme.
Start/Pauze
Marche/Pause
11. Opening the door after the
programme has started
First set the machine to PAUSE by pressing the
Start/Pause button.
If the door does not open, this means that the water
temperature is above 55°C, that the water level is
above the bottom edge of the door or that the drum
is turning.
If you cannot open the door but you need to open it
you have to switch the machine off by turning the
programme selector dial to Off. After about 3
minutes the door can be opened (pay attention to
the water level and temperature!).
Select the programme again and depress
Start/Pause to restart it.
12. At the end of the programme
The machine stops automatically.
If the anti-crease option have been selected, the
Start/Pause button pilot light goes out, the door is
locked and the End light remains on to indicate that
the water must be emptied out before opening the
door.
To do this turn the programme selector dial to Off
and then to programme Drain (Afpompen/Vidange)
or Spin (Centrifug./Essorage) or the Delicate Spin
(Kort Centrifug./Essorage Délicat) . The spin
programme is performed at the maximum speed.
Select the spin speed by means of the relevant
button. In case of synthetic, delicate and wool items,
select the Delicate Spin programme.
Release of the lock is also indicated by the coming
on of the End light.
Switch the machine off by turning the programme
selector dial to Off.
Remove the laundry from the drum and carefully
check that the drum is empty so as to avoid any
forgotten items being damaged in a subsequent
wash (e.g. shrinking) or their colour running into a
load of whites.
If you do not intend to carry out another wash, close
the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.
132983790GB.qxd 12/11/2005 11:11 Pagina 83 (Nero/Process Black pellicola)

84
Programme table
ECONOMY PROGRAMME
For slightly/normally soiled cottons or synthetics you can use the relevant Economy programme: you will
obtain good washing results by saving energy.
In compliance with EC directive 92/75, the consumption figures indicated on the energy label refer to the E60º
wash programme for cotton.
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to
the highest temperature for each wash programme.
** At 40°C or higher temperature.
WASHING PROGRAMMES
Fabrics
Temperature/
Programme
Type of laundry Additional
functions Wash load max. Energy
kWh Water lt Duration min.
Consumptions*
Coloured
cotton Coloured items, for
example underwear,
shirts, blouses
Coloured
cotton
economy
E40°
Slightly soiled
coloureds
Synthetics
30°-40°
(
COLD)- 30°-
40°
Shirts, blouses,
underwear, mixed
fabrics
Acrylic, viscose,
polyester items,
curtains
Special programme
for garments bearing
the “ Pure new wool,
non-shrink, machine
washable” label
Delicates
Wool
Handwash
White
cotton Sheets, household
linen, towels,
tablecloths
60°-95°
COTTON
White
cotton
economy
Slightly soiled sheets,
household linen,
underwear
E60º
( COLD)-
30°-
40°-60°
( COLD)- 30°-
40°-
60°
5 kg
2,5 kg 0.9 54 90
2,5 kg 0.5 55 60
2 kg 0.35 55 55
5 kg 2.0 53 145
0.95 49 140
5 kg 1.2 49 120
PREWASH
SOAK/QUICK
EXTRA RINSE
SPIN/
PREWASH
QUICK
EXTRA RINSE
SOAK/STAIN
SPIN/
5 kg 0.85 49 140
PREWASH
EXTRA RINSE
SOAK/STAIN
SPIN/
PREWASH
EXTRA RINSE
SOAK/STAIN
SPIN/
PREWASH
QUICK
EXTRA RINSE
SOAK/STAIN **
SPIN/
PREWASH
QUICK
EXTRA RINSE
SOAK/STAIN **
SPIN/
Synthetics
economy Slightly soiled
synthetics
E 60°
2,5 kg 0.4 54 90
PREWASH
EXTRA RINSE
SOAK/STAIN
SPIN/
132983790GB.qxd 12/11/2005 11:11 Pagina 84 (Nero/Process Black pellicola)

85
ENGLISH
Programme table
SPECIAL PROGRAMMES
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on
the quantity and type of laundry, on the inlet water temperature and on the ambient temperature.
Programme
selector dial
position
Rinses
Programme Programme
description Additional functions
Wash load
max. Energy
kWh Water lt Duration min.
Consumptions*
For rinsing
hand washed
cotton items
3 rinses with liquid
additive, if required
Long spin at max.
speed
5 kg 0.08 48 45
/--2
5 kg --10
Drain
For emptying
out the water
of the last
rinse of
programmes
with
option
Separate spin
for cotton
Water draining
Long spin at max.
speed
Spin
SPIN
/---
For
cancelling the
programme
which is
running or to
switch the
machine off.
UIT/
ARRET
Reset/Off
EXTRA RINSE
SPIN/
2,5 kg 0.30 40 30
Short cycle
for lightly
soiled fabrics
Wash at 30°C
2 rinses
Short spin
30 Min.
5 kg -1821
For softening
hand washed
cotton
garmets
1 rinse with liquid
softener, if required
Long spin at max.
speed
Softener
SPIN/
Delicate spin
Separate
short spin for
synthetics,
delicates,
wool and
handwash
Drain and delicate
spin
2,5 kg - - 5
132983790GB.qxd 12/11/2005 11:11 Pagina 85 (Nero/Process Black pellicola)

86
1. Bodywork
Clean the outside of the machine with soap and
water only. Rinse with clean water and dry with a
soft cloth.
Important: do not use methylated spirits, solvents
or similar products to clean the bodywork.
2. Door seal
Check from time to time the door seal and eliminate
eventual possible objects that could be trapped in
the fold.
3. Detergent dispenser drawer
After a while, detergents and fabric softeners leave
deposits in the drawer.
Clean the drawer from time to time by rinsing it
under a running tap. To remove the drawer from the
machine, press the button in the rear left-hand
corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
P1207
P1211
P1050
Detergent can also accumulate inside the drawer
recess: clean it with an old toothbrush. Refit the
drawer after cleaning.
4. Water inlet filter
If you notice that the machine is taking longer to fill,
check that the filter in the water inlet hose is not
blocked.
Turn off the water tap.
Unscrew the hose from the tap.
Clean the filter with a stiff brush.
Screw the hose back onto the tap.
5. Drain pump
The pump should be inspected regularly and
particularly if
• the machine does not empty and/or spin
• the machine makes an unusual noise during
draining due to objects such as safety pins, coins
etc. blocking the pump.
Proceed as follows:
• Disconnect the appliance.
• If necessary wait until the water has cooled down.
• Open the pump door.
P1114
P1090
P0038
Maintenance
132983790GB.qxd 12/11/2005 11:11 Pagina 86 (Nero/Process Black pellicola)

87
ENGLISH
• Place a bowl on the floor to collect any spillage.
• Pull out the emergency emptying hose, place it in
the bowl and remove its cap.
• When no more water comes out, unscrew the
pump cover and remove it.
• Remove any objects from the pump impeller by
rotating it.
• Put the cap back on the emergency emptying hose
and place the latter back in its seat.
• Screw the pump cover fully in.
• Close the pump door.
6. Emergency emptying out
If the water is not discharged, proceed as follows to
empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the pump door;
• place a bowl on the floor and place the end of the
emergency emptying hose into the bowl. Remove
its cap. The water should drain by gravity into the
bowl. Whe the bowl is full, put the cap back on the
hose. Empty the bowl. Repeat the procedure until
water stops flowing out;
• clean the pump if necessary as previously
described;
• replace the emergency emptying hose in its seat
after having plugged it;
• screw the pump cover again and close the door.
P1117
7. Frost precautions
If the machine is installed in a place where the
temperature could drop below 0°C, proceed as
follows:
• Remove the plug from the socket.
• Close the water tap and unscrew the water inlet
hose from the tap.
• Place the end of the emergency emptying hose
and that of the inlet hose in a bowl placed on the
floor and let water drain out.
• Screw the water inlet hose back on and reposition
the emergency emptying hose after having put the
cap on again.
By doing this, any water remaining in the machine is
removed, avoiding the formation of ice and,
consequently, breakage of the affected parts.
When you use the machine again, make sure that
the ambient temperature is above 0°C.
Important!
Every time you drain the water through the
emergency emptying hose you must pour 2 litres of
water into the main wash compartment of the
detergent drawer and then run the drain
programme. This will activate the ECO valve
avoiding that part of the detergent remains unused
at next washing.
P1115
132983790GB.qxd 12/11/2005 11:11 Pagina 87 (Nero/Process Black pellicola)
