Electrolux IQ-Touch EIFLW50LIW0 User manual

Use _ Care Guide
Q-Touch TMFron t-Loa d Washer
Guide d'utilisation et d'entretien
Laveuse _ chargement frontal _Q-Touch Ms
Guia de uso y cuidado
Lavadora de carga frontal _Q-Touch Ms

Finding Information
Please read and save this guide
Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide
is part of our commitment to customer satisfaction and product quality throughout the service life of your
new appliance.
We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,
please use this page to record important product information.
Keep a record for quick reference
Purchase date
Electrolux model number
Electrolux serial number
For toll-free telephone support in the U.S. "1-877-4ELECTROLUX (1-877-435-3287)
For toll-free telephone support in Canada: 1-800-265-8352
For online support and product information visit http://www.electroluxappliances.com
Table of contents
Finding information ......................................................... 2
SAFETY ....................................................................... 3-4
Features .......................................................................... 5
Operating instructions ............................................... 6-18
• Normal Operating Sounds .......................................... 6
• Operating Your Washer .......................................... 7-10
• Cycle Selection .................................................... 11-12
Cycle Settings ........................................................... 13
Cycle Options ........................................................... 14
• Other Features .......................................................... 15
Washer Settings Chart .............................................. 16
Stain Removal Guide ............................................... 17-18
Stain Removal Procedures ....................................... 17
Stain Removal Suggestions ...................................... 18
Care & Cleaning ....................................................... 19-22
Solutions to Common Problems ............................. 23-26
Common Washing Problems ............................... 23-24
Service Prevention Checklist ............................... 26-26
Warranty information .................................................... 27
Notes ............................................................................ 28
©2012 Electrolux Major Appliances All rights reserved.

Safety
Important Safety Instructions
Recognize safety symbols, words and labels
Your safety and the safety of others is very important.
We have provided many important safety messages in the
Use and Care Guide, Installation Instructions and on your
appliance. Always read and obey all safety messages.
Safety items throughout this manual are labeled with a WARN-
ING or CAUTION based on the risk type as described below:
WARNING This symbol alerts you to situations that
may cause serious body harm, death or
property damage.
CAUTION This symbol alerts you to situations that may
cause bodily injury or property damage.
Save these instructions for
future reference.
PREVENT FiRE
• Do not wash items that have been previously
cleaned in, soaked in, or spotted with gaso-
line, cleaning solvents, kerosene, cooking oils,
waxes, etc. Do not store these items on or near
the washer. These substances give off vapors or
chemical reactions that could ignite or explode.
Do not put oily or greasy rags or clothing on top
of the washer. These substances give off vapors
that could ignite the materials.
Do not add gasoline, cleaning solvents, or other
flammable or explosive substances to the wash
water. These substances give off vapors that
could ignite or explode.
Under certain conditions, hydrogen gas may
be produced in a hot water system that has not
been used for 2 weeks or more. HYDROGEN
GAS IS EXPLOSIVE. If the hot water system has
not been used for such a period, before using
the washer, turn on all hot water faucets and let
the water flow from each for several minutes.
This will release any accumulated hydrogen gas.
Hydrogen gas is flammable; do not smoke or
use an open flame during this time.
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any
other appliance.
Failure to comply with these warnings could
result in fire, explosion, serious bodily injuryand/
or damage to the rubber or plastic parts of the
washer.
PROTECT CHILDREN
* Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children. As children
grow, teach them the proper, safe use of all ap-
pliances.
Destroy the carton, plastic bag and other pack-
ing materials after the washer is unpacked. Chil-
dren might use them for play. Cartons covered
with rugs, bedspreads or plastic sheets can
become airtight chambers.
Keep laundry products out of children's reach.
To prevent personal injury, observe all warnings
on product labels.
Before the washer is removed from service or
discarded, remove the washer door to prevent
accidental entrapment.
Failure to comply with these warnings could
result in serious personal injuries.

Safety
important Safety instructions, continued
PREVENTINJURY
• To prevent shock hazard and assure stability
during operation, the washer must be installed
and electrically grounded by a qualified service
person in accordance with local codes. Instal-
lation instructions are packed in the washer for
installer's reference. Refer to iNSTALLATiON
iNSTRUCTiONS for detailed grounding proce-
dures. If the washer is moved to a new location,
have it checked and reinstalled by a qualified
service person.
To prevent personal injuryor damage to the
washer, the electrical power cord of the washer
must be plugged into a properly grounded and
polarized 3-prong outlet. The third grounding
prong must never be removed. Never ground the
washer to a gas pipe. Do not use an extension
cord or an adaptor plug.
Follow package directions when using laundry
products. Incorrect usage can produce poison-
ous gas - resulting in serious injury or death.
Do not combine laundry products for use in 1
load unless specified on the label.
Do not mix chlorine bleach with ammonia or
acids such as vinegar.
PREVENTINJURY AND DAMAGE TO THE
WASHER
To prevent serious personal injury and damage to
the washer:
All repairs and servicing must be performed by
an authorized servicer unless specifically rec-
ommended in this Use & Care Guide. Use only
authorized factory parts.
Do not tamper with controls.
Do not install or store the washer where it will be
exposed to the weather.
Do not install on carpet. Install washer on a solid
floor. It may be necessary to reinforce the floor to
prevent vibration or movement.
Do not sit on, step on or stand on the washer.
Do not rest heavy loads on top. The washer is
not meant to support weight.
To reduce the risk of electric shock, disconnect
this appliance from the power supply before
attempting any user maintenance. Turning the
controls to the OFF position does not disconnect
this appliance from the power supply.
To prevent injury,do not reach intothe washer
while parts are moving. Before loading, unload-
ing or adding items, push inthe cycle selector
knob and allow the drum to coast to a complete
stop before reaching inside.
This washer isequipped with an electrical over-
load protector. The motor will stop if it becomes
overheated.
Failure to comply with these warnings could
result in serious personal injuries.
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypassthe
grounding prong.
"x
Powercord with
3-prong grounded plug

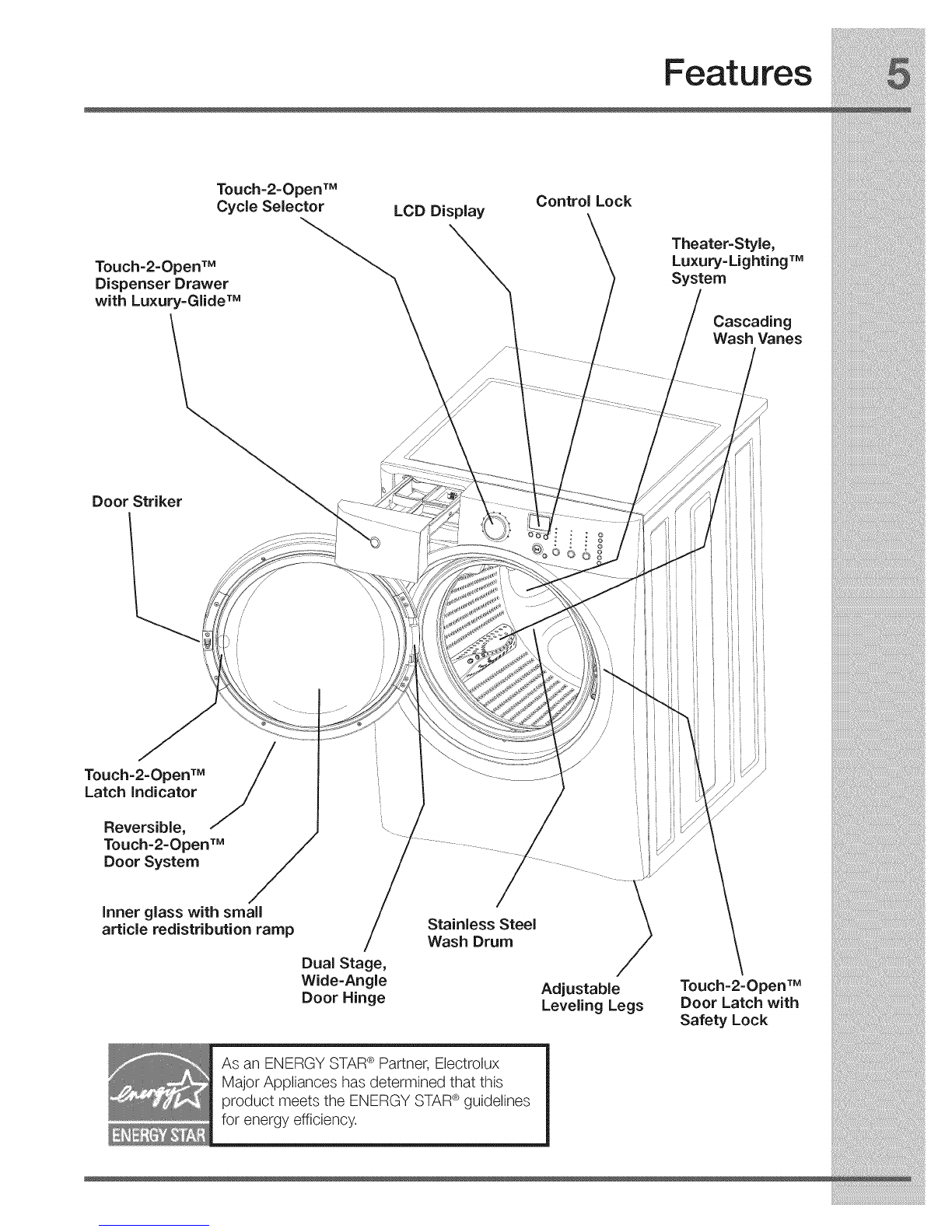

Features
Touch=2=Open TM
Cycle Selector
Touch=2=Open TM
Dispenser Drawer
with Luxury=Glide TM
Door Striker
LCD Display Control Lock
o o
Theater=Style,
Luxury=Lighting TM
System
Cascading
Wash Vanes
Touch=2=Open TM
Latch indicator
Reversible,
Touch=2=Open TM
Door System
inner glass with small
article redistribution ramp
Dual Stage,
Wide=Angle
Door Hinge
Stainless Steel
Wash Drum
Adjustable
Leveling Legs
\
Touch=2=Open TM
Door Latch with
Safety Lock
As an ENERGY STAR<_Partner, Electrolux
Major Appliances has determined that this
product meets the ENERGY STAR_ guidelines
for energy efficiency.

Operatin Instructions
Normal Operating Sounds
You may or may not hear the following sounds
from your new washer:
A. DRAIN HOSE The washer has a flexible drain
hose to carry water from the washer to the
stand pipe of your home. You will hear water
flowing into your stand pipe. This is a normal
part of the operation of the washer.
B. WATER VALVES/DISPENSER As water enters
the dispenser system, it is common to hear a
water flowing sound. This normal sound will
vary slightly based on the water pressure in
your home.
C. DOOR LOCK Your washer is equipped with a
door lock with an electric solenoid. There will be a
clicking sound as the washer door is being locked
or unlocked.
D. DRAIN PUMP Your washer is equipped with
a high velocity drain pump. It is normal to hear
humming and gurgling sounds as water is
pumped from the washer. Both of these sounds
are normal and indicate that your pump is
functioning correctly.
E. HIGH SPEED MOTOR A powerful motor is used
to drive the drum to high spin speeds to extract
water from your load. You will hear a sound
associated with these higher spin speeds. This
sound is normal and will vary slightly as the spin
speed varies with load size and cycle selected.
Operating Your Washer
BEFORE USING YOUR WASHER
Read the important instructions in this section of
the Use and Care Guide before operating your
washer.

Operating Instructions
Operating Your Washer, continued
OPERATING YOUR WASHER
.Sort laundry into loads that can be
washed together. .....
?}
.
Sort
items by
recom-
mended
cycle and water temperature.
• Separate white, light and colorfast items
from dark and non-colorfast items.
Separate items that shed lint from items
that attract lint. Casual, synthetic, knit, and
corduroy items will pick up lint from towels,
rugs, and chenille bedspreads.
Separate heavily soiled items from lightly
soiled items.
Separate lacy, sheer, loosely knit, or delicate
items from durable items.
Do not machine wash items containing fiber-
glass. Small particles of fiberglass left in the
drum may transfer to fabrics in other loads
and cause skin irritation.
Prepare items for washing.
= Empty pockets.
Brush off lint and dirt. Shake out rugs and
beach towels.
Close zippers, fasten hooks, tie strings and
sashes, and remove non-washable trims and
ornaments.
Mend rips and tears to prevent further dam-
age during washing.
.
.
Turn knit items inside out to prevent pilling.
Place delicate and small items
such as bras,
hosiery and baby
socks in a mesh
bag.
Pretreat stains
and heavy
soil
(Mesh bag not included.)
See Stain Removal Guide in this guide for
safe, successful stain removal instructions.
Add laundry load to washer.
Combine large and small items in a load.
Load large items first. Large items should
not be more than half the total wash load.
Washing single items such as a sweater,
towel or jeans is inefficient and may cause
an out-of-balance load. Add 1 or 2 similar
items to help balance the load.
Wash a single heavy item such as a king-
sized comforter, bedspread or sleeping bag
separately.
The washer can be fully loaded, but the
items should not be tightly packed. The door
should close easily.

Operatin Instructions
OPERATING YOUR WASHER, continued
5. Add laundry products to the dispenser.
For best results
Use a low-sudsing, high efficiency
detergent to prevent oversudsing in front
load washers. Look for this symbol on
the detergent label: _
Detergent, liquid chlorine bleach and liquid
fabric softener will be dispensed at the proper
times in the cycle. To unlatch the dispenser
drawer push on the dispenser drawer latch in-
dicator. To close and latch the dispenser drawer
push the drawer in until you hear a slight click
with the drawer face flush to the pane.
Use the cap or scoop provided by the deter-
gent manufacturer to measure the amount
recommended. Detergent dosage may need to
be adjusted for water temperature, water hard-
ness, load size and soil level.
Liquid Detergent _-,
Add the recommended amount of a high ef-
ficiency liquid detergent to the "Main Wash
=liquid only" cup. Do not exceed the MAX
fill line. Liquid detergent can also be added
directly to the "Main Wash" chamber when not
using the "Pre-Wash" option.
insert liquid cup when
using liquid detergent.
Powder Detergent ::::_
To use a high efficiency powder detergent, re-
move the "Main Wash =liquid only" cup and
add the powder directly to the "Main Wash"
detergent chamber.
Remove liquid cup when using
powder detergent! DO NOT
pour powder detergent into
liquid cup. It will not dis-
pense correctly!

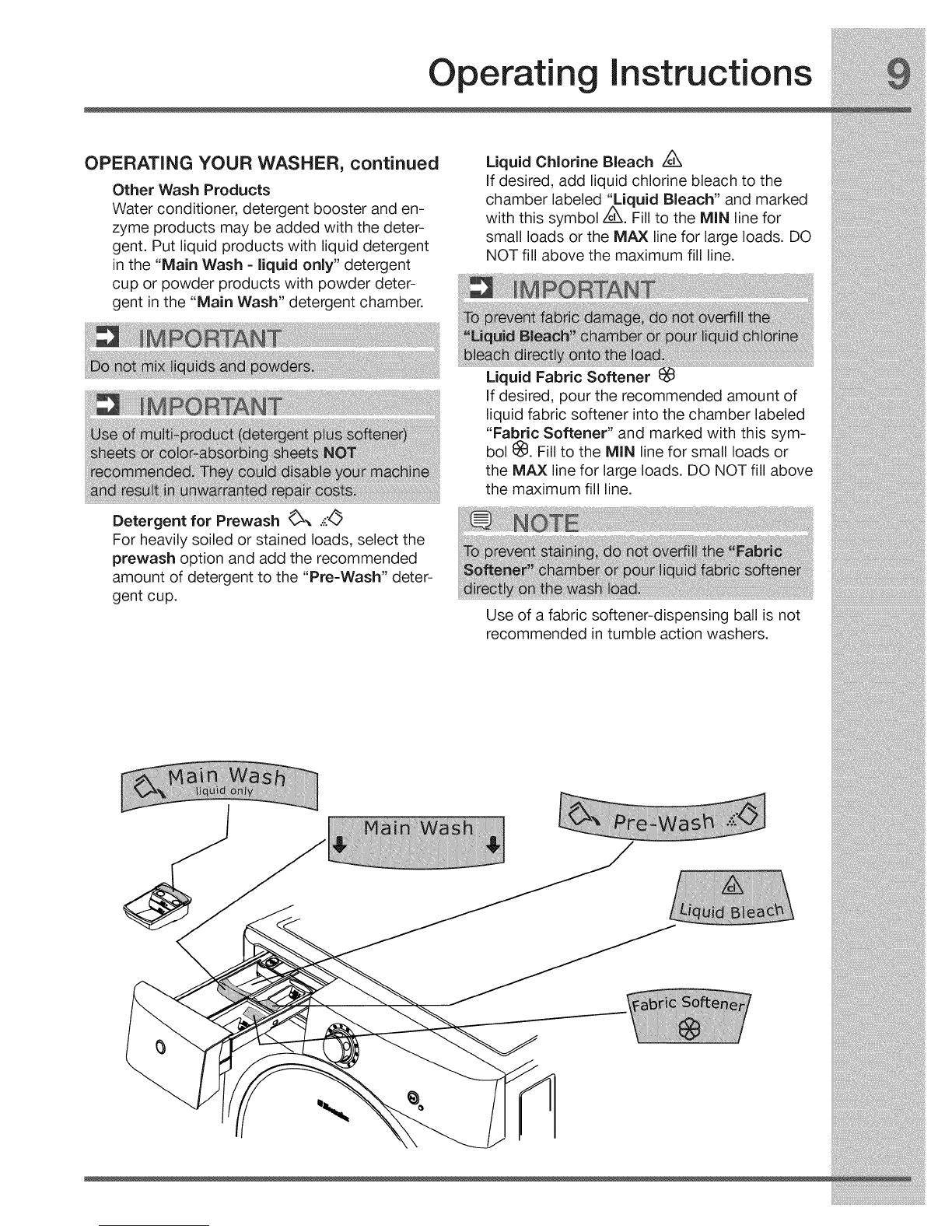

Operating instructions
OPERATING YOUR WASHER, continued
Other Wash Products
Water conditioner, detergent booster and en-
zyme products may be added with the deter-
gent. Put liquid products with liquid detergent
in the "Main Wash =liquid only" detergent
cup or powder products with powder deter-
gent in the "Main Wash" detergent chamber.
Detergent for Prewash _-, -.'.'_
For heavily soiled or stained loads, select the
prewash option and add the recommended
amount of detergent to the "Pre=Wash" deter-
gent cup.
Liquid Chlorine Bleach Z_
If desired, add liquid chlorine bleach to the
chamber labeled "Liquid Bleach" and marked
with this symbol A_L_.Fill to the MIN line for
small loads or the MAX line for large loads. DO
NOT fill above the maximum fill line.
Liquid Fabric Softener
If desired, pour the recommended amount of
liquid fabric softener into the chamber labeled
"Fabric Softener" and marked with this sym-
bol I_. Fill to the MIN line for small loads or
the MAX line for large loads. DO NOT fill above
the maximum fill line.
Use of a fabric softener-dispensing ball is not
recommended in tumble action washers.

Operatin instructions
OPERATING YOUR WASHER, continued
6_ Select the appropriate cycle and
settings for the load.
= Turn the cycle selector knob in either direc-
tion to select the cycle desired. The indica-
tor for that cycle will be illuminated. See the
"Cycle Selection" section in this guide for
descriptions of each cycle.
• The estimated cycle time, suitable wash
and rinse water temperatures, final spin
speed, soil level, and options for each cycle
will be indicated for the cycle selected. See
the "Cycle Settings" and "Washer Settings
Chart" in this guide for descriptions and
available settings for each cycle.
To change the settings, press the Tempera-
ture, Spin Speed, Soil, and Options but-
tons to scroll to the desired settings.
To select or delete an option, press the button
for that option. The indicatorwill light when
the option has been selected. It will no longer
be lighted when the option has been deleted.
To add a forgotten item to the washer any
time during the wash portion of the cycle,
press pause. When the door unlocks, open
the door, add the item, close the door and
press start to resume the cycle.
• If changes to the settings or options are at-
tempted after the cycle starts, you will hear
several beeps when the buttons are pressed.
To change the settings or options, press
pause, make the new selections and press
start again.
To change the cycle once the cycle has
begun, press cancel, select a new cycle,
and press start again. Just turning the cycle
selector knob will not change the cycle.
To stop the cycle, press cancel.
A signal will sound at the end of the cycle if
the chime option has been selected.
Remove items from the washer when the
cycle ends and place in dryer, line dry or dry
flat as directed on the fabric care label.
Adjustments to a cycle will be remembered
and recalled each time that cycle is selected
in the future.
¢
To return to factory settings,
press these two buttons at the ---
same time and hold until the
signal sounds.
7. Start the washer.
/
(@
d®}
@
@
@
@
• Close the door and press start. The washer
will not operate with the door open and
DOOR E}PETIwill be displayed.
• Select delay start to delay the beginning of
the cycle if desired.
As a safety measure, the door will automati-
cally lock during the entire wash cycle.
For best results
Follow the fabric care label instructions
on items to be washed.
Excess wrinkling, color transfer or odors may
develop in items left in the washer after the
cycle has ended, if not removed promptly.

Operating instructions !
Cycle Selection
normal casual
_Temperature Spin Speed Soil Options
colors @ o O _--f3-) fast
( ()_ wash /b,_
_-. _* (_ sanitize © max O extra heavy i_@_ prewash
whites _ _ /_ r_e_g de icate _
g , y @ oi ,ooo
heav i 'i i i _) hand :': _,::_ ()warm ( med urn @med urn
dut y _ _ I,_ ) O_L_Jwash _ @ _O_ :'cold _ low C) li ht _ fresh rinse
'_ _ /ray delay control "_ ,; t g
deep cean _+ 'J __ '_¢ sp!n favorite s!a:t lock d]e .... Id Onospin Oextra light _O_ extraspin
sanitize .... :1 omy _ f_ _ :_
start , _:_ eco fr end y
:: @cancel
This manual covers many models and not all cycles, options, or features listed are available on every model, Console shown above
for reference only, Your model may differ,
Turn the cycle selector in either direction to the It is recommended that you set your water heater
cycle desired. The indicator for that cycle will be to 120° F (49° C) or higher to ensure proper per-
illuminated. Press on the cycle selector knob to formance during this cycle. If the setting is lower
extend it or return it flush to the console, or the load is extra large, the cycle time will be
extended by 30 minutes or more.
For best results The deep clean sanitize cycle will kill 99.9% of
Follow the fabric care label instructions bacteria with no carryover of bacteria between
on items to be washed, loads. No bleach or harsh chemicals are needed,
To change the selection after the cycle begins, but higher temperatures are required. Please
press cancel before making another choice. Just check fabric care labels to prevent damage.
turning the knob to another selection will not
change the cycle.
NORMAL i:_
Use this load for cotton, linen, towels, shirts,
sheets, denims and mixed loads.
COLORS @
Use this cycle for lightly soiled, dark, or highly
dyed fabrics such as cotton which may be suscep-
tible to dye loss.
WHITES _,:"
Use this cycle for white fabrics and lightly colored
clothing. Refer to fabric care label for use of liquid
chlorine bleach.
NSF Protocol P172
LSanitization Performance of Residential
rand Commercial, Family-Sized Clothes
Washers
The wash water is heated by an internal boost
heater to a maximum of 152 ° F (67° C) as the load
tumbles. Cold water is added to cool down the
load prior to drain and spin.
HEAVY DUTY I:_
Use this cycle for heavily soiled, durable garments
- ex. towels, sports gear, or fabric tote bags. For
best soil and stain removal, use the hottest water
safe for the fabrics being washed.
+
DEEP CLEAN SANITIZE
Use the deep clean sanitize cycle to clean and
sanitize heavily soiled, colorfast fabrics including
towels, bedding, and children's clothing.
As a precaution, the washer door is locked once
the water temperature reaches 130° F (55° C). If
the cycle is cancelled during the wash phase and
the water temperature is greater than 150° F (66°
C), an automatic cool down and drain will occur
before the door can be opened.

Operatin Instructions
Cycle Selection0 continued My Favorite Cycle
CASUAL
Use this cycle for cottons and blends with a per-
manent press or no-iron finish.
FAST WASH ------0
Quickly wash a small, lightly soiled load in 18 min-
utes.
DELICATE
Use this cycle for lightly soiled knits and delicates
which require gentle washing.
HAND WASH [_J
Use this cycle to provide intermittent, gentle tum-
bling for items labeled "Hand Wash".
SPIN ONLY
Use the spin only cycle anytime you want to drain
water from the washer and spin out the load or
as a follow-up to the no spin selection. Select the
spin speed appropriate for the load.
To add a cold water rinse prior to the spin, select
the fresh rinse option.
To program a cycle with your preferred water tem-
perature, spin speed, soil level and options, press
and hold the my favorite button for 3 seconds.
my delay control
favorite start lock
start
pause
To use that customized cycle to wash future loads,
simply press the my favorite button and the se-
lected cycle, water temperature, spin speed, soil
level and options will be indicated.
Your personalized cycle can be changed by re-
peating the my favorite procedure.

Operating Instructions
Cycle Settings
Washing Temperature
The appropriate washing temperature wi[I auto-
matically be indicated for the cycle selected.
For best results
Follow the fabric care label instructions
on items to be washed.
Tochange the temperature, press the Tempera-
ture button to scroll to the desired setting. Select a
wash water temperature according to fiber content,
colorfastness and soil level. A cold water rinse saves
energy and reduces wrinkling.
To protect your fabrics, not all temperatures are
available with every cycle. The indicator will not light
if the setting is not available with that cycle.
The temperature selected for the cycle will be
remembered and recalled each time that cycle is
selected in the future.
_@_ @
®
®
e
@
e
e
¢
®
To return to factory settings, \/
press these two buttons at the
same time and hold until the
signal sounds.
@
@
@
@
@
@
All wash water temperatures are automatically
regulated to maximize detergent effectiveness and
improve washing performance. The water heater
setting and its distance from the washer, water
usage in other parts of the home, and seasonally
low ground water temperature in some geographic
areas can affect water temperature.
SANITIZE
This setting sanitizes heavily soiled colorfast fabrics
such as towels, bedding, and children's clothing by
killing 99.9% of bacteria using wash water heated
with a boost heater to 152° F (67° C). Cold water is
used to cool and rinse the load. This setting is only
available with the deep clean sanitize cycle.
Temperature Spin Speed Soi|
_+ O sanitize r_ max C' extra heavy
@hot @ high @ heavy
(9 warm @ medium @ medium
O cold @ low @ light
(9 eco cold _ no spin @ extra light
HOT
Use this setting for heavily soiled white or colorfast
cottons and blends.
WARM
Use this setting for normally soiled white or colorfast
cottons or blends.
COLD
Use this setting for lightly soiled non-colorfast items,
knits, delicates, and hand washables.
ECO COLD
Wash and rinse temperatures are equivalent to tem-
perature of cold tap supply. Use this selection for
fabrics and colors that are prone to dye transfer. For
use with cold water @ detergents.
Spin Speed
Max, high, medium, and low spin speeds are
available for each cycle. The spin speed and/or
duration of final spin vary from cycle to cycle.
Increasing the spin speed will extract more water,
decrease drying time and conserve energy. De-
creasing the spin speed will reduce wrinkling.
Use no spin to omit the final spin at the end of the
cycle. The load will be very wet. Remove items from
the wash drum to drip dry or select the rinse & spin
cycle to remove excess water at a more convenient
time.
Soil Level
Adjust the wash time in 3-minute increments based
on the soil levelof each load. Extra heavy, heavy,
medium, light and extra light soil levels are avail-
able.

Operatin Instructions
Cycle Options
normal casual
colors @F. o o _(_ fast
, j _ wash
O_ delicate
whites _,:. o
heavy _ 0 ©_l_J hand
duty wash
deep clean _+ o _ spin
sanitize only
my delay
favorite start
start
pause
Temperature Spin Speed
_+ Osanitize _ max
@ hot @ high
0 warm © medium
© cold © low
control
lock © eco cold (_ no spin
Soil Options
extra heavy ('_)J prewash
0heavy stain clean
@ medium
O light @ fresh rinse
0 extra light _p':_ extra spin
@_eco friendly
chime
Suitable options will automatically be indicated
when the cycle is selected.
Toadd options, press the corresponding options
buttons to illuminate the selections desired. To de-
lete options, press the options buttons again and
the indicator lights will turn off.
To protect your fabrics, not all options are available
with every cycle. The indicator will not light if the
option is not available with that cycle. Occasion-
ally, two options in the same cycle will conflict with
each other, like extra spin and eco friendly. When
this happens, the option selected first will cause the
conflicting option to not be selectable.
All options selected for the cycle, will be remem-
bered and recalled each time that cycle is selected
in the future.
PREWASH
Select this option to add a short initial wash peri-
od to a cycle. Heavily soiled and stained loads will
prewash for approximately 5 minutes. The water
will drain and the load will automatically advance
to the regular wash cycle.
See step 5 in "Operating Your Washer" section in this
guide for details on adding detergent to the dispenser.
STAIN CLEAN
Use the stain clean option to add a 5-minute
soak in the middle of the wash portion of the
heavy duty, whites, colors, normal, casual, and
delicate cycles.
FRESH RINSE
Use this option when additional rinsing is desired
to remove excess dirt and detergent. It is recom-
mended for heavily soiled loads or if household
members have sensitive skin.
EXTRA SPIN
Use this option to add minutes to the final spin at
the selected spin speed. This will improve water
extraction, decrease drying time and save energy.
ECO FRIENDLY
The eco friendly option reduces the hot and warm
water temperature a few degrees to save energy.
CHIME
A signal will sound at the end of the cycle if this
option is selected.

Operating Instructions
Other Features
STATUS DISPLAY
The estimated total cycle time will be displayed
when the cycle is selected. The time may increase
if water pressure is low, oversudsing occurs or the
load becomes unbalanced. The approximate time
remaining will be displayed during the cycle.
The following will also be displayed at the
appropriate times during the cycle:
DOOR LOCH DRRIFItFIG
PRELURS;HIFI6 sPinninG
WRS;HIFIG CMCLE cOmPLETE
Rinsing
OVERSUDS DETECTION
A situation where oversudsing has been detected
by the washer will result in the washer automatical-
ly adding extra rinses to attempt to clear the suds.
Each extra rinse the washer performs to clear the
suds will add 5 minutes to the cycle display time. If
an excessive amount of detergent has been added
and additional rinsing has not corrected the issue,
TOO mUCHDETERGENT will be displayed.
REVERSIBLE DOOR
Your washer is equipped with a reversible door.
The door can be hinged on the right or left side.
DRUM LIGHT
The drum light will come on whenever the door is
opened to illuminate the drum during loading and
unloading. Closing the door turns off the light. The
drum light will automatically turn off if the door is
left open more than 3 minutes.
CONTROL LOCK
To lock the controls between cycles, press and
hold the control lock button for 5 seconds. Re-
peat to unlock the controls when you are ready to
operate the washer. Use this feature to reduce the
likelihood of accidental operation by children.
DELAY START
Press delay start to select a wash time convenient
to your schedule or during off peak energy hours.
The delay time selected will be displayed and be-
gin counting down when you select start.
SYSTEM CLEAN
To clean and freshen the washer, perform the SYS-
TEM CLEAN cycle. If you wish to begin the cycle,
press select when prompted. This maintenance
cycle uses hot water and two rinses to remove
residue that may cause odor. See Inside Routine
Cleaning (Preventive) for detailed information
about the SYSTEM CLEAN cycle.

Operatin instructions
Washer Settings ChaA
These temperatures, spin speeds, soil levels and options are available with the following cycles:
G)
C
05
o3
C
05
¢
o
O_
G)
g)
-0
m _
m
>.,
>-,
>
05
d)
_c 0 o
A
05
E
0
c05 o
05
__f.J J
03
©
g)
o3
05
C
05
_C
0
.E
0-
03
v
temperature
sanitize
hot
worm _ _ _
cold _// _// _// _// _//
cooco_d ,/ ,/ ,/ ,/ ,/ ,/ ,/ ,/ ,/
spin speed
max ,/ ,/ ,/ ,/
high
mo_,_m _ _ _ _ _ _ _ _
'OW V V V V V V V V li_ll u V
soillevel
extra heavy _// _// _// _// _// _//
heavy _// _// _// _// _// _//
med,um
light _// _// _// _// _// _// _//
extra light
options
prewash _// _// _// _//
stain clean _// _// _// _// _//
fresh rinse _// _// _// _// _// _// _//
extra spin _// _// _//
eco friendly _// _// _//
chime
delay start _// _// _// _// _// _// _// _//
v" = Available selections. _ = Non-modifiable presets.
,/
,/
,/ ,/
,/ ,/
,/
,/ ,/
= Factory presets.

Stain Removal Guide
Stain Removal Procedures
SAFE STAIN REMOVAL PROCEDURES
To reduce the risk of fire or serious injury to per-
sons or property, comply with the basic warnings
listed below:
• Read and comply with all instructions on stain
removal products.
o
o
Keep stain removal products in their original
labeled containers and out of children's reach.
Thoroughly wash any utensils used.
Do not combine stain removal products, espe-
cially ammonia and chlorine bleach. Dangerous
fumes can result.
Never wash items which have been previously
cleaned in, washed in, soaked in or spotted
with gasoline, dry cleaning solvents or other
flammable or explosive substances because
they give off vapors that could ignite or explode.
Never use highly flammable solvents, such as
gasoline, inside the home. Vapors can explode
on contact with flames or sparks.
FOR SUCCESSFUL STAIN REMOVAL:
Remove stains promptly.
o
oDetermine the kind of stain, then follow the rec-
ommended treatment in the stain removal chart
on the next page.
To pretreat stains, use a prewash product, liquid
detergent, or a paste made from powder deter-
gent and water.
Use cold water on unknown stains as hot water
can set stains.
For best results
Follow the fabric care label instruc-
tions on items to be washed.
(_A []
Consult care label instructions for treatments to
avoid on specific fabrics.
Check for colorfastness by testing stain remover
products on an inside seam.
Rinse and wash items after stain removal.

Stain Removal Guide
Stain Removal Suggestions
STAI N TREATM ENT
Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with
gum, rubber cement prewash stain remover or nonflammable dry cleaning fluid.
Baby formula, dairy Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or
products, egg more. Wash.
Beverages (coffee, tea, Pretreat stain. Wash using cold water and bleach safe for fabric.
soda, juice, alcoholic
beverages)
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing
enzymes. Wash using bleach safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm
iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with
prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove sol-
vent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach
safe for fabric.
Collar or cuff soil, cos- Pretreat with prewash stain remover or rub with bar soap.
metics
Dye transfer on white Use packaged color remover. Wash using bleach safe for fabric.
fabric
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach
safe for fabric.
Grease, oil, tar (butter, Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy
fats, salad dressing, stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels
cooking oils, car grease, under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.
motor oils)
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash
stain remover, denatured alcohol or nonflammable dry cleaning fluid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water
before washing. Badly mildewed fabrics may be permanently damaged.
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish May be impossible to remove. Place stain face down on paper towels. Apply nail pol-
ish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on
acetate fabrics.
Paint, varnish WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry,
it cannot be removed. OIL BASED AND VARNISH: Use solvent recommended on can
label. Rinse thoroughly before washing.
Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach
in hottest water safe for fabric.
Rust, brown or yellow Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify
discoloration discoloration.
Shoe polish MQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue
from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid.
Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.
Tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Urine, vomit, mucus, Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
feces
Wine Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric

Care & Cleaning
Inside Routine Cleaning (Preventive)
To help prevent odors, mold or mildew, leave the
door open for a few hours after use or whenever
the washer is not in use. o
o
_. CYCLE A
TO REFRESH OR CLEAN INSIDE OF WASHER
TOclean and freshen the washer, perform the
SYSTEM CLEAN cycle. For best results use the
SYSTEM CLEAN cycle once a month. To begin the
cycle, press select when prompted during auto-
mated reminder mode or manually select the cycle
by following these directions:
1. Wake up the washer by pressing any button, ro-
tate cycle knob to cycle "A" (indicated to right),
press the start button and then the cancel
button.
2. Wake up the washer again by pressing any
button, then immediately and simultaneously
press and hold both button "1" and button "2"
(indicated to right) for 5 seconds, or until the
LCD display changes.
BUTTON 1
÷
®
REMOVE "LIQUID
DISPENSER CUP
¢
¢
e
¢
@ BUTTON 2
If installed, remove the "MAIN WASH =LIQUID
ONLY" cup from the dispenser. REMOVE ALL
ITEMS FROM WASH DRUM before filling the "MAIN
WASH" detergent chamber with one (1) cup of liquid
chlorine bleach OR one (1) pouch of TIDE®WASH-
ING MACHINE CLEANER. DO NOT use both. Press
start to begin.
For best results
Immediately follow up with a spin only
cycle. Select fresh rinse on max spin
speed with no detergent or bleach to help clear
any residual bleach left after the SYSTEM
CLEAN cycle.
"MAIN WASH"
CO MPARTM ENT

Care & Cleaning
Other Inside Routine Cleaning (Preventive)
CLEANING DISPENSER DRAWER AREA
•Remove the drawer by pulling the drawer out
until it stops.
Reach back into the left rear corner of the
drawer cavity and press down firmly on the lock
tab. Pull out the drawer.
•Remove the insert from the prewash, bleach,
and fabric softener compartments.
•Rinse the drawer and inserts with hot tap water
to remove traces of accumulated powders
and liquids. Large amounts of fabric softener
residue may indicate improper dilution or more
frequent cleaning is required.
,To clean the drawer opening, use a small brush
to clean the recess. Remove all residue from
the upper and lower parts of the recess.
Replace the insert by pressing it in place until
you hear a slight click. Return the dispenser
d rawer.
(_ DAILY PREVENTIVE MAINTENANCE
Remove items from the washer as soon as the
cycle ends. Excess wrinkling, color transfer, and
odors may develop in items left in the washer.
If there are no small children or pets present,
you may leave the door ajar when the washer is
not in use.
•Leave the dispenser drawer open slightly at the
end of the wash day.
•Dry around the washer door opening, flexible
gasket, and door glass. These areas should
always be clean to ensure a water tight seal.
•When extremely soiled items have been
washed, a dirty residue may remain on the
drum. Remove this by wiping the drum with a
nonabrasive household cleanser. Rinse thor-
oughly with water.
•Periodically, wipe dry the folds in the bottom
of the flexible gasket to remove lint and other
debris.
\
,
\
