Adherence to the directions for use in this manual is extremely important for health and
safety. Failure to strictly adhere to the requirements in this manual may result in personal
injury, property damage and affect your ability to make a claim under the Electrolux
manufacturer’s warranty provided with your product. Products must be used, installed and
operated in accordance with this manual. You may not be able to claim on the Electrolux
manufacturer’s warranty in the event that your product fault is due to failure to adhere to
this manual.
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER’S WARRANTY
We recommend the use of original spare parts.When contacting Service, ensure that
you have the following data available. The information can be found on the rating plate.
Model, PNC, Serial Number.
Subject to change without notice.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
CUSTOMER CARE AND SERVICE
Get usage advice, brochures, trouble shooter, service information, buy
accessories & spare parts, online product registration : www.electrolux.com
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it
has been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
Visit our website to:
www.electrolux.com

3
CONTENT S
6. CARE AND CLEANING.............. 20
1. .... 4
2. PRODUCT DESCRIPTION............. 7
2.1 Parts .......................................... 7
2.2 Product Features....................... 8
3.1 Control Panel Description...........9
3.2 Program Chart..........................10
3.3 Program Options Compatibility.11
3.4 Options.....................................12
3.5 Settingst....................................13
4. DAILY USE................................... 14
5. WASHING HINTS........................ 17
5.1 Sort Your Washing Into
Separate Wash Loads............. 17
5.2 Detergent ................................ 18
5.3 A Guide To Stain Removal......19
7. TROUBLESHOOTING............... 22
8. TECHNICAL DATA....................... 24
9. INSTALLATION .......................... 25
9.1 Unpacking ............................. 25
9.2 Positioning ............................. 27
9.3 Water Inlet ............................. 27
9.4
Installation of drain hose ........... 28
10. ENVIRONMENT CONCERNS.29
10.1 Packaging Materials.............. 29
10.2 Old Machine .......................... 29
10.3 Ecological Hints..................... 29
1.1 Conditions Of Use...................... 4
1.2 Child Safety............................... 4
1.3 General Safety.......................... 5
1.4 Installation................................. 5
1.5 Use............................................ 6
SAFETY INFORMATION
3. CONTROL PANEL........................... 9
4.1 Starting Your Washing Machine.14
4.2 Load The Washing Machine......14
4.3 Add Fabric Softener...................14
4.4 Setting a Program.....................15
4.5 Starting a Program....................16
4.6 Interruption Of A Program .........16
4.7 Changing A Program..................16
4.8 Changing The Options...............16
4.9 At The End Of The Program......16
6.1 Cleaning The Dispenser ..........20
6.2 Cleaning The Drawer Recess...20
6.3 Clean The Inner Tub Filter........20
6.4 Cleaning The Water Inlet Filter.20
6.5 Cleaning Your Washing
Machine....................................21
6.6 Cleaning Stains In The
Washbowl.................................21
7.1 Possible Failures..................... 22
7.2 Yellowing Or Greying Clothes.23

4www.electrolux.com
1. SAFETY INFORMATION
This appliance is intended to be used in household and similar applications such as:
farm houses;
●
bed and breakfast type environtments;
●
areas for communal use in blocks of flats or in launderettes.
●
staff kitchen areas in shops, offices and other working environtment;
●
by clients in hotels, motels, and other residential type environments;
●
1.1 Conditions Of Use
This appliance is not intended for use by youngchildren or infirm persons without
supervision.
Young children should be supervised to ensure thatthey do not play with the
appliance.
The packaging components (e.g. plastic film,polystyrene) can be dangerous to
children - danger ofsuffocation! Keep them out of children's reach.
Keep all detergents in a safe place out of children'sreach.
Make sure that children or pets do not climb into thedrum.
This machine is provided with child safety lock option( ) to prevent children
playing with the control panel. (see page 14)
WARNING! The appliance must not be supplied
through an external switching device, such as timer,or connected to a circuit that
is regularly switched onand off by utility.
ln the interest of your safety and to ensure the correctuse, before installing and
first using the appliance, readthis user manual carefully, including its hints and
warnings.
To avoid unnecessary mistakes and accidents, it isimportant to ensure that all
people using the applianceare thoroughly familiar with its operation and safety-
features.
Save these instructions and make sure that they remainwith the appliance if it is
moved or sold, so that everyoneusing it through its life will be properly informed
on appliance use and safety.
1.2 Child Safety

5
1.3 General Safety 1.4 Installation
When unpacking the appliance, check
that it is not damaged. If in doubt, do
not use it and contact the Service
Centre.
After having installed the appliance,
check that it is not standing on the inlet
and drain hose.
The appliance should not be installed
in a humid place. The machine should
be installed indoors without touch the
rain.
If the machine is situated on a carpeted
floor, please adjust the feet in order to
allow air to circulate freely.
Always be sure, that there is no water
leakage from hoses and their connec-
tions after the installation.
Any plumbing work required to install
this appliance should be carried out by
a qualified plumber.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
Make sure that the drainage is working
properly.
May cause electric shock! if the
machine is not connected to an
earthed/ground system. DO NOT
touch the wet clothes and metal
parts.
Water pressures between minimum
50kPa and maximum 800kPa are
acceptable.
For safety reasons do not use
double adaptors, extension cords
and multi-plug adapters.
Any objects such as coins, safety pins,
nails, screws, hairpin, toothpick, stones
or any other hard, sharp material can
cause extensive damage and must not
be placed into the machine.
Only use the advised quantities of fabric
softener and detergent. Damage to the
fabric can ensue if you overfill. Refer to
the manufacturer's recommendations of
quantities.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Wash small items such as socks,
laces, washable belts etc in a washing-
bag or pillow case as it is possible for
such items to slip down between the tub
and the agitator.
Always unplug the appliance and turn
off the water supply after use, clean
and maintenance.
Under no circumstances should you
attempt to repair the machine yourself.
Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Contact your local
Service Centre.Always insist on
genuine spare parts.
lf the supply cord is damaged,
should the appliance power supply
cable need to be replaced, this shall
be carried out by our Service Centre.

6www.electrolux.com
Never use the Top-load Washing
Machine if the power supply cable, the
control panel, the working surface or
the base are damaged so that the
inside of the Top-load Washing
Machine is accessible.
Do not touch the power plug
while your hand still wet.
Do not put your hand, foot, or
anything under the washing
machine while the machine is
operated.
Never pull the power supply cable to
remove the plug from the socket,
always take hold of the plug itself.
This appliance is designed for domestic
use. It must not be used for purposes
other than those for which it was
designed.
Only wash fabrics which are designed
to be machine washed. Follow the
instructions on each garment label.
Do not overload the appliance. See the
relevant section in the user manual.
Before washing, ensure that all pockets
are empty and buttons and zips are
fastened. Avoid washing frayed or torn
articles and treat stains such as paint,
ink, rust, and grass before washing.
Garments which have been in contact
with volatile petroleum products should
not be machine washed. If volatile
cleaning fluids are used, care should be
taken to ensure that the fluid is
removed from the garment before
placing in the machine.
1.5 Use

7
Front Feet
2.PRODUCT DESCRIPTION
2.1 Parts

8www.electrolux.com
2.2 Product Features
Auto sensing water level
Auto sensing is a feature where the
washer fills automatically with water to
just the right level for your clothes load.
You do have the option to manually set
the water level if you wish.
We recommend you use the auto sensing
water level option to ensure there is just
the right amount of water for the wash
load in the machine. In other words, it will
usually give you the best wash while also
being the most efficient in terms of water
usage.
At times during a wash it may appear
your machine is either doing nothing or
intermittently it is only gently vibrating/
jiggling/agitating.
This is because your machine could be:
• In auto sensing test mode and the
machine is determining the correct
amount of water for your wash.
• At a drain stage of the wash program
and the machine is allowing time for
water to flow the washbowl to the out
bowl.
• Engaging or disengaging the drive
clutch mechanism. wait a short time,
your washing machine will complete
the above tasks and continue with the
wash.
The amount of water for auto is factory
set at an optimised level. You can adjust
the Auto level up or down by a small

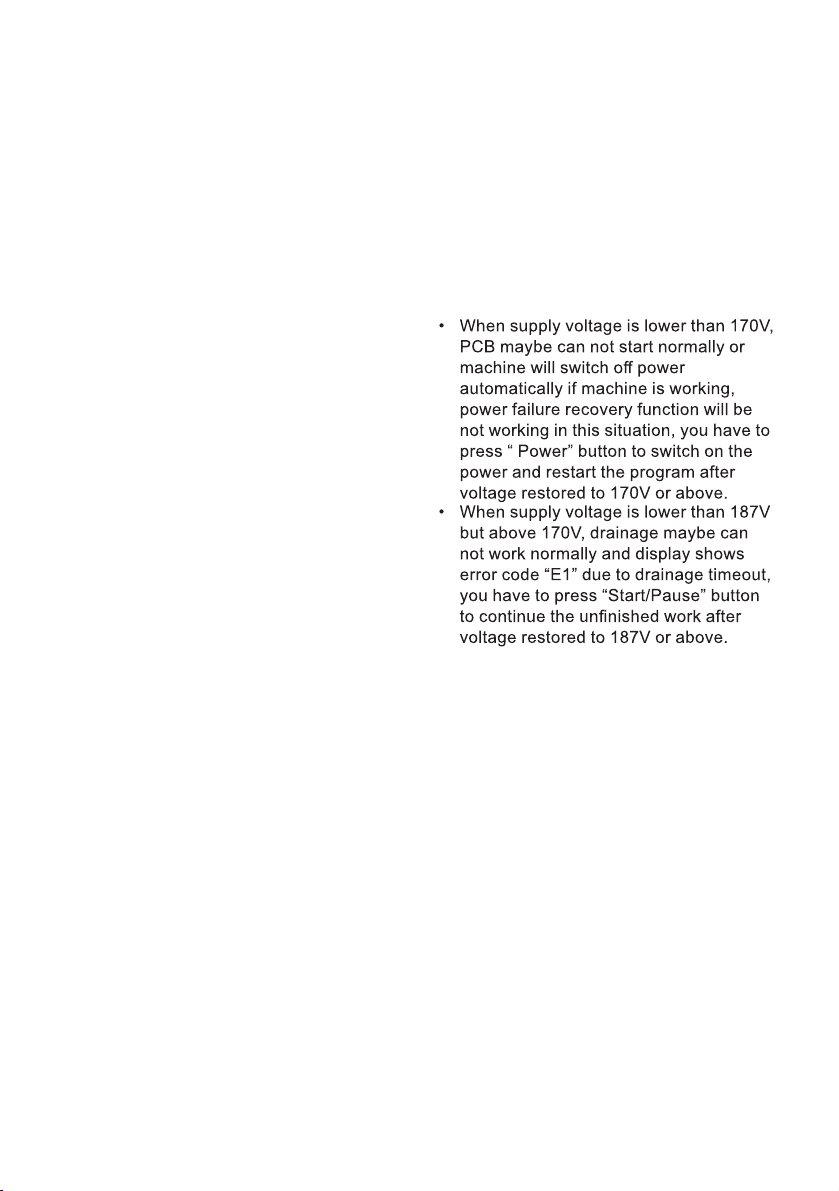

Power Failure Recovery
When there is power failure while machine is
amount.
washing or rinsing or spinning. The machine
tries to save the settings at which stage the
machine is doing and then when the power
returns back the machine will starts washing
from the stage where it is left off.

9
ABCDEF
APower
Start
Pause
B
:
Program
C
DDelay
End
EPhase
Select
FWater
Level
3.CONTROL PANEL
3.1 Control Panel Description

10 www.electrolux.com
Model : EWT7078K6WA
EWT8078K6WA
EWT9078K6WA
EWT0H78K6WA
7 kg
8 kg
9 kg
10.5 kg

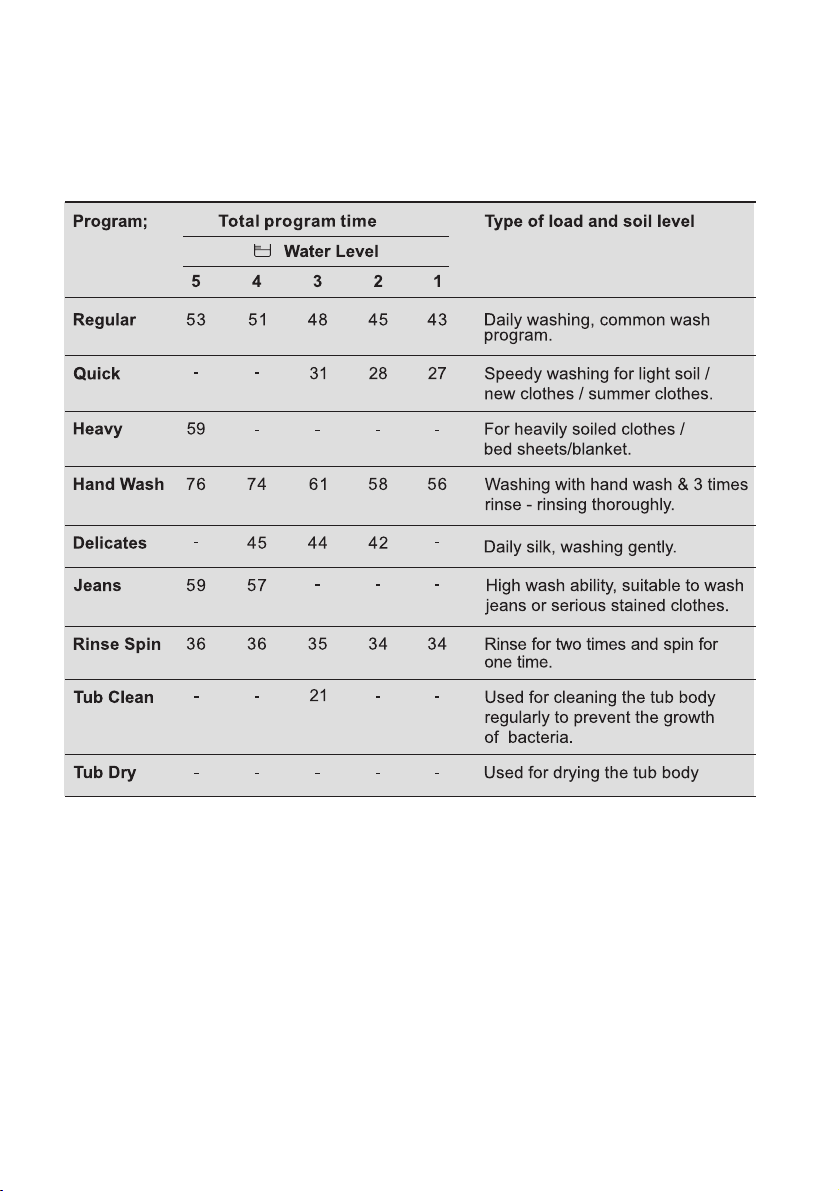

3.2 Program Chart
(min)

11
Program
Option
Spin
RinseSoak Wash Delay
End
Remark
Unavailable select option
Available select option
3.3 Program Options Compatibility
Jeans
Regular
Quick
Heavy
Hand Wash
Tub Clean
Rinse Spin
Tub Dry
Delicates
■
□
10.5kg
■ ■ ■ ■
■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■
□ □ □
■ ■
□ □ □
■■
■
□ □ □□
High(L5)
Mid(L3)
Low(L1)
About42g
About35g
About29g
About42ml
About35ml
About29ml
About74ml
About60ml
About50ml
About74g
About60g
About50g
Max kind of
detergent
Max
Clothes
Quantity Max
Water level
Inspissation
PowderLiquid
Normal
PowderLiquid
■
□ □
Use of laundry detergent and softener
■
□
■

12 www.electrolux.com
Power Button
3.4 Options
Push the “Power” button to switch on
the power. Under power-on mode,
push it to switch off the power.Push
the “power” button to switch on the
pow e r. If t h e s w i t c h o f f t h e
powerautomatically after 10 minutes.
Start/Pause Button
After the power is switched
on,press it to start the machine .
The washing machine running in
accordance with the set operation
procedures. After starting up,
directly click this button, the
machine will running according to
commonly program. Press the
pause key, we can reset the corre-
sponding “Phase Select” and “water
level”, press this key again, con-
tinue the former program or running
according to the new set program.
During working, push it to pause.
During pause,push it to restart and
go on working.
Program Button
This model with 9 wash program for
optional. The default wash program is
“Regular”.
Each time the button is pressed, the
washing program changes: Regular/
Quick/Heavy/ Hand Wash/
Delicates/Jeans/Rinse l Spin/
Tub Clean/Tub Dry
Delay End Button
When choose “Delay End” button to
sele c t s u i t a b l e del a y w a s h
program. After switching on the power,
the reserve time program is set to off
mode automatically. If you need to set
the washing procedure to be finished at
delay timeplease push the “Delay End”
button to set the reserve washing
program. During operation, the digital
tube will display the remained time
(hour s ) . P u sh d o w n t h e del a y
button. The delay indicator light is on
,the digital displays the delaytime of
finishing washing (in hour). The point
light flashes to indicate in the reverse
mode.When the “Delay End” function is
activated, the indicator light of the
program you have set willbe off. The
“Delay Time” and “Remaining Time”
indicator lights will be on. During Delay
procedure, push the “Delay End” button
to display the relay mode. To change
the running program or cancel the
delay setting, you need to switch off the
powerand make new selection.When
you choose “Delay End” button:
2 hours -3-4 -5-6 - ......- 23-24 -
r e m aini n g t i m e ( N o del a y w a sh)
circulation

13
Water Level Button
Phase Select Button
Touch the “Phase Select” button could
select s ingl e was h proce s s or
combine of wash Phase Select. When
the machine running on which kind of
the process, the digital will lightat the
right position - flash during the Phase
Select running, and light off after the
Phase Select finished.
When choose “water level” , there
are 5 water gears choose according
to the quantity of clothes, the
display screen shows the water
level NO.: 1-2-3-4-5
4. Operations after activating the Child
Lock function. Even if the Child Lock
function is activated, every button
works until the door opens. When you
open the door during the Child Lock is
being activated. The alarm sounds and
an error message appears in 5 seconds,
draining begins automatically. However,
if you close the door within 5 seconds,
water will not be drained. (Displayed
error message “E5”). To add laundry
after activating the Child Lock function,
you must deactivate the Child Lock
function. The Power button is disabled
while the washing machine drains
water in Child Lock mode.
5. To deactivate the Child Lock function,
press and hold both the “Delay
End”and “Phas e Select” butto ns
simultaneously for 3 seconds again. (lf
the Child Lock function is deactivated,
the Child ocLock display is turned off .)
This function is for protecting children,
the elderly and the frail.
1. Press the Power button.
3. To activate the Child Lock function,
touch and hold both the “Delay
End” and “Phase Select” button down
simultaneously for 3 seconds. (lf the
Child Lock function is activated, the
Digital tube will display “CL”.)
Child Safety Lock ( ) Option
3.5 Settings
2. After select one program then press
“Start/Pause ”button.

14 www.electrolux.com
4. DAILY USE

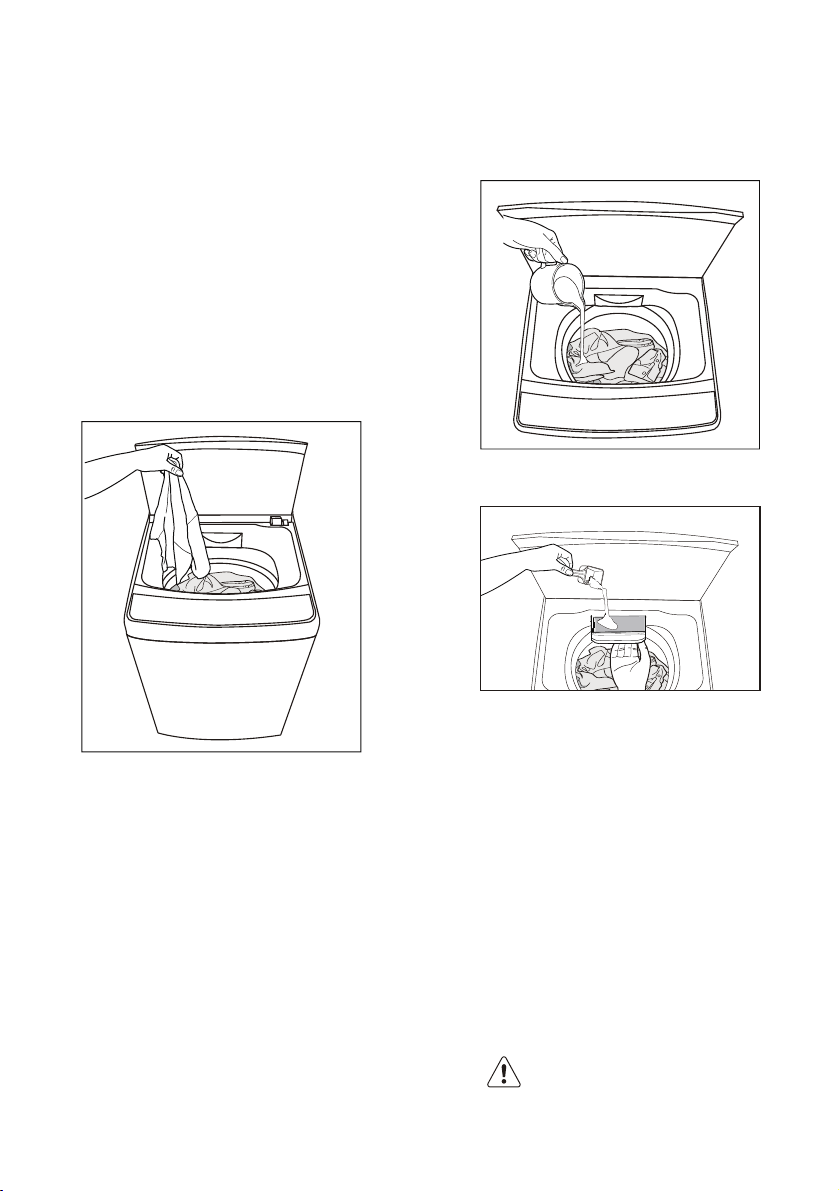

When loading the clothes into your
washing machine, there are four things to
remember:
Clothes must be loaded evenly
around the agitator. For best results
load small items first, followed by
large items.
1.
1.
Clothes must not be wrapped in the
tub.
2.
The washing machine must not be
overloaded. Clothes must be able to
move during wash.
3.
The load should contain only three or
four large items, for example sheets.
The rest of the load should be small
items. A mixed load of large and
small items will wash cleaner than a
load of all large items.
4.
Connect the mains plug to the mains
socket.
2. Turn the water tap on.
4.1 Starting Your Washing
Machine
4.2 Load The Washing
Machine
Pouring onto the drawer. .
Washing Powder
Liquid Detergent
Pouring onto the clothes.
Do not use gelatinous or thick liquid
detergents.
-
4.
1. EWT7078K6WA/EWT8078K6WA
EWT9078K6WA Model
3 Add Fabric Softener
Mix softener with an equal amount of
warm water but only mix enough to fill
to the line marked inside the cup. The
softener cup holds 75ml.
1.2.
Measure the correct amount of fabric
softener by following the
recommendations on the package.
1.1
Do not spill fabric softener on the
clothes as it may stain them.
1.3 Pour the fabric softener down the hole
in the top of washing tub during fill
when there is some water in the
washbowl by tilted the washing tub as
picture below.

15
2.1 Pour softner into right compartment
of detergent box as below picture.
tilted the washing
tub to the right side
-
-The softener amount used must not
exceed the AX mark in the cup.“M ”
If you use thick softeners it is
recommended to dilute with water.
NOTE
Residues of softener and water may
remain in the cup. It is recommended to
clean the cup regularly to remove any
residue.
NOTE
2. EWT0H78K6WA Model
1.4 Turn Program selector to Rinse & Spin
2.2.After adding softener,select any main
washing program and start washing.
2.
If you want your laundry to be
washed with functions different from
the one proposed by the machine,
press Water Level, Soak, Rinse and
Spin option .button
If the settings shown on the control
panel are what you want to use,
press the Start/Pause tobutton
start your wash.
1.
Press Power ( ) , turnbutton
the program selector to the required
program.
The relevant light will light up.
-
Your washing machine is now in
STAND-BY-MODE and ready to
wash your clothes.
-
The buzzer will sound.-
Once you selected a program, the
program selected will stay at that
position for the whole of the cycle.
-
The selector dial can be turned
either clockwise or anticlockwise.
-
The display shows the program
duration.
-
4. Setting a Program4
NOTE:
3.
If you want to define the end of the
washing program, press the elay“D
End repeatedly to choose” ttonbu
your machine end time.
Different functions can be combined
which is dependent on the program
selected. When these arebutton
pressed, the corresponding pilot
lights come on.

This delay is a drain out period to ensure
the bowl is empty of water, which is
necessary before spin commences. Even
though you may have only put wet clothes
into an empty bowl, the delay before spin
will still occur to be safe and to protect
your washing machine.
The time remaining is blink and the
Start/Pause LED will start flashing. Press
the Start/Pause again. The program will
continue.
If you have started your wash and you
wish to stop it for some reason, press the
Start/Pause button to enter PAUSE mode.
4. Interruption Of A Program6
To start a program, press the Start/Pause
( ) a default programbutton
duration will be displayed on the screen.
When you select the Rinse +Spin
program, there will be a delay of at least
2 minutes before the washing machine
starts to spin.
NOTE
4. Starting a Program5
Changing a running programis possible
only by switching off the appliance.
Press the ower button to cancel the“P ”
program and to turn off the appliance.
-
Press the button again to“Power”
start the appliance.
-
Now you can set a new wash program
and change any available options. Press
Start/Pause to start the new program.
4. Changing A Program7
It is possible to change only some option
after the program has started.
Press the Start/Pause tobutton
enter PAUSE mode.
1.
Change the options.2.
Press Start/Pause again.button
The program will continue.
3.
4. Changing The Options8
The appliance stops automatically.
Flashing with 3 consecutive long
beeps.
-
-
-
-
Remove the laundry from the
appliance. Make sure that the washing
tub is empty.
Keep the lid ajar, to prevent the
mildew and odours.
-Turn off the water tap.
4. At The End Of The Program9
16 www.electrolux.com

17
IMPORTANT!
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care.
Never wash whites and coloureds
together. Whites may lose their
“whiteness”in the wash.
New coloured items may run in the first
wash; they should therefore be washed
separately the first time.
Button up pillowcases, close zip
fasteners, hooks and poppers.
Tie any belts or long tapes.
Remove persistent stains before
washing.
Make sure that no metal objects are
left in the laundry (e.g. hair clips, safety
pins, pins).
Wash bras, pantyhose
and other delicates in
a mesh laundry bag,
which you can
purchase from your
supermarket.
Remove hooks or tie them up in a bag
or net.
5. WASHING HINTS
Each load of washing should contain
clothing which needs the same washing
conditions. For example, you should
not wash delicate clothes with very dirty
work clothes.
Colour fast and non-colourfast fabrics
should be separated. Knowing the type
of fabrics you have and how dirty they
are will help when you make selections
from the wash program options.
Some fabrics are lint collectors and can
pick up lint, dirt and colour from other
fabrics which are lint producers. Some
examples are listed below:
Lint collectors Lint producers
- Corduroy
- Synthetics
- Permanent
press fabrics
- Towels
- Nappies
- Chenille/Candlewick
Make sure that you wash lint collectors
separately from lint producers.
NOTE:
However, due to the variables of fabric
types, soil levels, detergent types and
available program settings you may find
some combinations of these which do
not always result in the perfect wash.
If for example you see residuals of
detergent or soils on some items, please
read the section Residues on washed
items paragraph.
Over time you will learn what is the best
set-up of programs, detergent and load
sorting for different load types and soils.
These Washing Instructions are of a
general nature and you should get good
wash results by following them.
5.1 Sort Your Washing Into
Separate Wash Loads

Quantity of detergent to be used
18 www.electrolux.com

Blood: treat fresh stains with cold water.
Oil based paint: moisten with benzine
Dried grease stains: moisten with
Rust:
5.3 A Guide To Stain Removal
19

If your water is very hard or contains
traces of lime deposit, the water inlet
filter may become clogged. It is therefore
a good idea to clean it from time to time.
To clean the water inlet filters:
1. Close the water tap.
Remove the water inlet hose from
the water tap.
2.
Clean the filter in the inlet hose with
a stiff brush.
3.
Remove dispenser drawer from its
places.
Pull out the dispenser drawer until it
stops then lift up and pull out from the
recess.
1.
To do this proceed as follows :
Clean the dispenser drawer with
water and a brush, eg. an old
toothbrush.
2.
The dispenser needs to be cleaned
regularly, preferably after each wash.
Inspect the dispenser after each wash to
see if there is any residue of detergent.
Having removed the drawer, use a small
brush to clean the recess, ensuring that
all washing powder residue is removed
from the upper and lower part of the
recess. Replace the drawer and run the
rinse program without any clothes in the
drum.
6.2 Cleaning The Drawer Recess
6.4 Cleaning The Water Inlet
Filter
6.1 Cleaning The Dispenser
6. CARE AND CLEANING
1. Push out the filter from the inner tub
2. Over turn the filterclean it in water get
ridof the thread
3. Reinstall the filter
6.3 Clean The Inner Tub Filter
20 www.electrolux.com
