I.ÖKO_LAVAMAT 80030
1. Operating elements / panel
1.1 One button - Input philosophy
1.2 Panel
1.3 Program selection switch
2. Additional programes
2.1 Gentle spin
2.2 Spinning
2.3 FU S Unbalance control system
2.4 Pumping
2.5 Starching
2.6 Gentle rinse
2.7 Silk
3. Option buttons / Display
3.1 Prewash
3.2 Soaking
3.3 Quick
3.4 Spots (Intensiv)
3.5 Alternating spin speed
3.6 Rest moisture / Load
3.7 Multidisplay
3.8 Programe duration display
3.9 Start / Break button
3.10 Electronic programe cycle display
3.11 Door lock
4. Additional features
4.1 Stand-By-Operation
4.2 Trum light
4.3 More water switch
4.3.1 Programing the cool down
4.3.3 Programing the extra rinse
4.4 Easy iron program
4.5 Hand laundry program
5. Water intake system
5.1 Waterdistributer + Valve
5.2 Drawer
5.3 Water intake diagrames
5.4 ART2 - Rinse
5.5 First rinse
5.6 Additional rinse
5.7 Second rinse
5.8 Softening rinse
5.9 Foam detection
6. ool down

- 3 -
Spares Operation 07.02 C.D. 599 50 07-52/2
7. Aqua - ontrol - System
7.1 General Function
7.2 Floating switch
8. hild savety device
8.1 Activate the child savety device
8.1.1 Behavior if a button is pressed
8.1.2 Behavior if the program selection switch is turned
9.1.3 Switch off the child savety device
9. The pressure sensor
9.1 Function of the pressure sensor
10. Automatic foot
11. Motor controling EPW
12. ustomer service test programe
12.1 Fault codes
12.2 lassifying the alarm codes
13. Spinning profiles
13.1 Intermediate spin
13.2 Final spin
13.3 Spinning profiles of the extra programes
14.Technic
14.1 Wiring plan
14.2 ircuit diagram
14.3 Legend
14.4 Function chart

- 4 -
Spares Operation 07.02 C.D. 599 50 07-52/2
Machine classes
.BDIJOFDMBTT 1(45:1&
,¢,0@-"7"."5  &8.XJUI)BOEMBVOESZBOEFBTZJSPO
,, ¢,0@-"7"."5  &8. XJUI)BOEMBVOESZBOEFBTZJSPO
&8. XJUI)BOEMBVOESZBOEFBTZJSPO
,,, ¢,0@-"7"."5 8YYY 7T
0WFSWJFX3BOHF
.BDIJOFDMBTT

   8YYYY
1(45ZQF &18
&18
&18
&"$
&"$&"$
&"$&"$
)7
)&
)7
)&
;%
;"%
;%
;"%
ËÊ
.BDIJOFDMBTT   8
ÊË
1(45ZQF &8.
NJSSPSFE
&8. &8. 74

- 5 -
Spares Operation 07.02 C.D. 599 50 07-52/2
Indication of several models
EJHJUT
99 9 9 9
ÄÄÄÄÄ
Ã4BMFTLJOE
-JOJF
0UUP
4QFDJBM/FUIFSMBOETBMFTLJOE
4QFDJBM/FUIFSMBOETBMFTLJOE
4BQIJS
$BSBU
& DMVTJW
ÄÄÄÄ
Ã%FTJHOBOE
FRVJQNFOU
DPOWF
XJUIIPUXBUFSDPOOFDUJPO
3BOHF[#
3BOHF[#
GMBUEPPSHMBTT
GMBUEPPS
ÄÄÄ
Ã0SEFSPGSBOL
JMMVNJOBUFEGSPNCFIJOE
#BTJDNBDIJOFXJUI"RVB$POUSPM
#BTJDNBDIJOFXJUIPVU"RVB$POUSPM
XJUIPVUQSFTFMFDUFETUBSUUJNF
'MBOHFWBMWFXJUI"RVB$POUSPM
XJUIGMBOHFWBMWF
Ä Ä
Ã4QJOTQFFE
NJO








Ä
Ã"QQMJBODFDMBTT
"QQMJBODFHSPVQ



8
5PQMPBEFSIJHI
8
5PQMPBEFSMPX
8BTIFSESZFS

- 6 -
Spares Operation 07.02 C.D. 599 50 07-52/2
ÖKO_LAVAMAT 80030 UP ATE
Characteristics ( features )
- Electronic machine with Fuzzy - Logic
- Sensortronic foam detection
- FU S Unbalanced load system
- Motor is puls with controled (PWM)
- Pressure sensor
- Recirculation - System
- arbon tub
- Maximal number of drum revolution 1800 1/min
- Handlaundry program
- Easy iron program
- Silk program in several variants
- Automatic foot

- 7 -
Spares Operation 07.02 C.D. 599 50 07-52/2

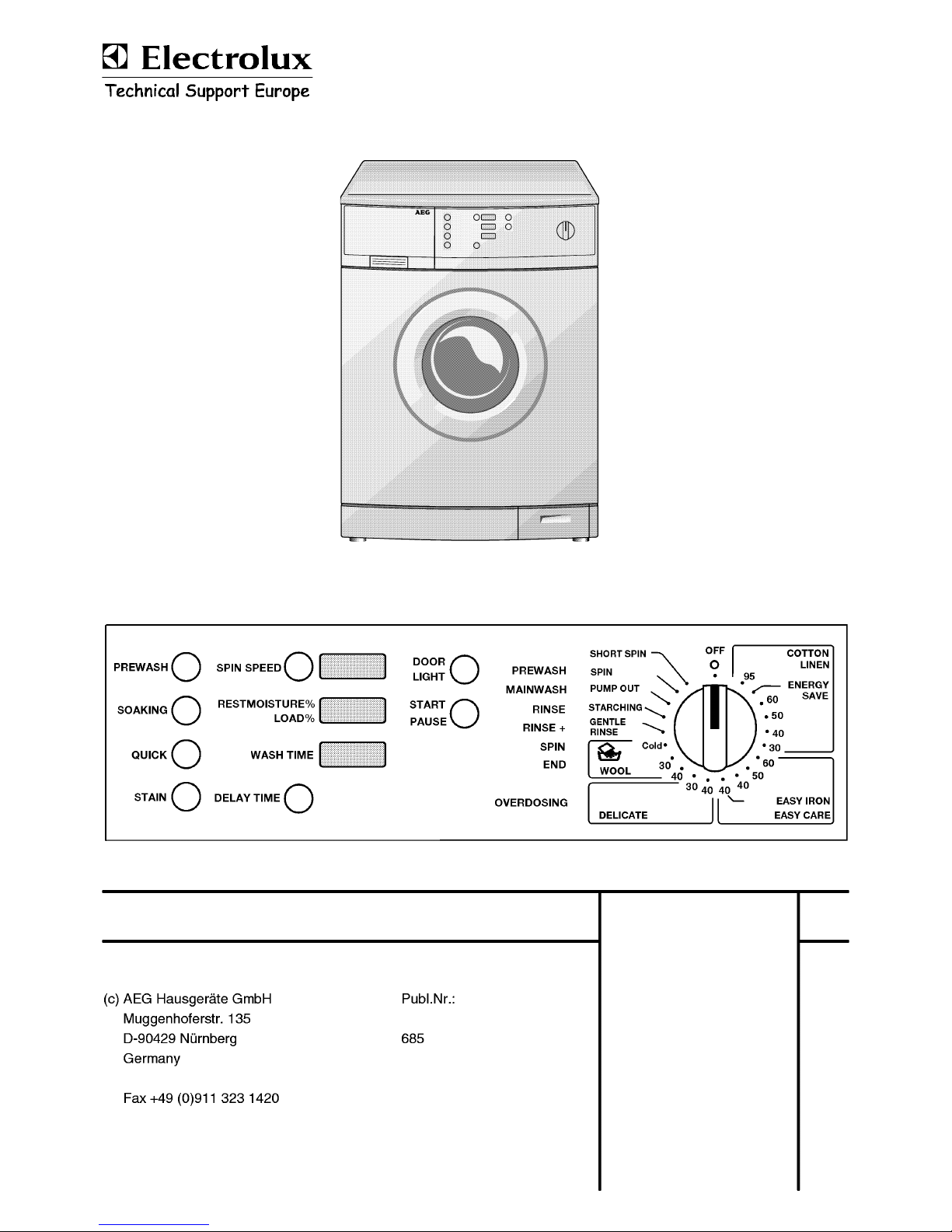

1. Operating elements / panel
1.1 One button - Input philosophy
Every washing programe with its temperature can be adjusted
with the program selection switch.

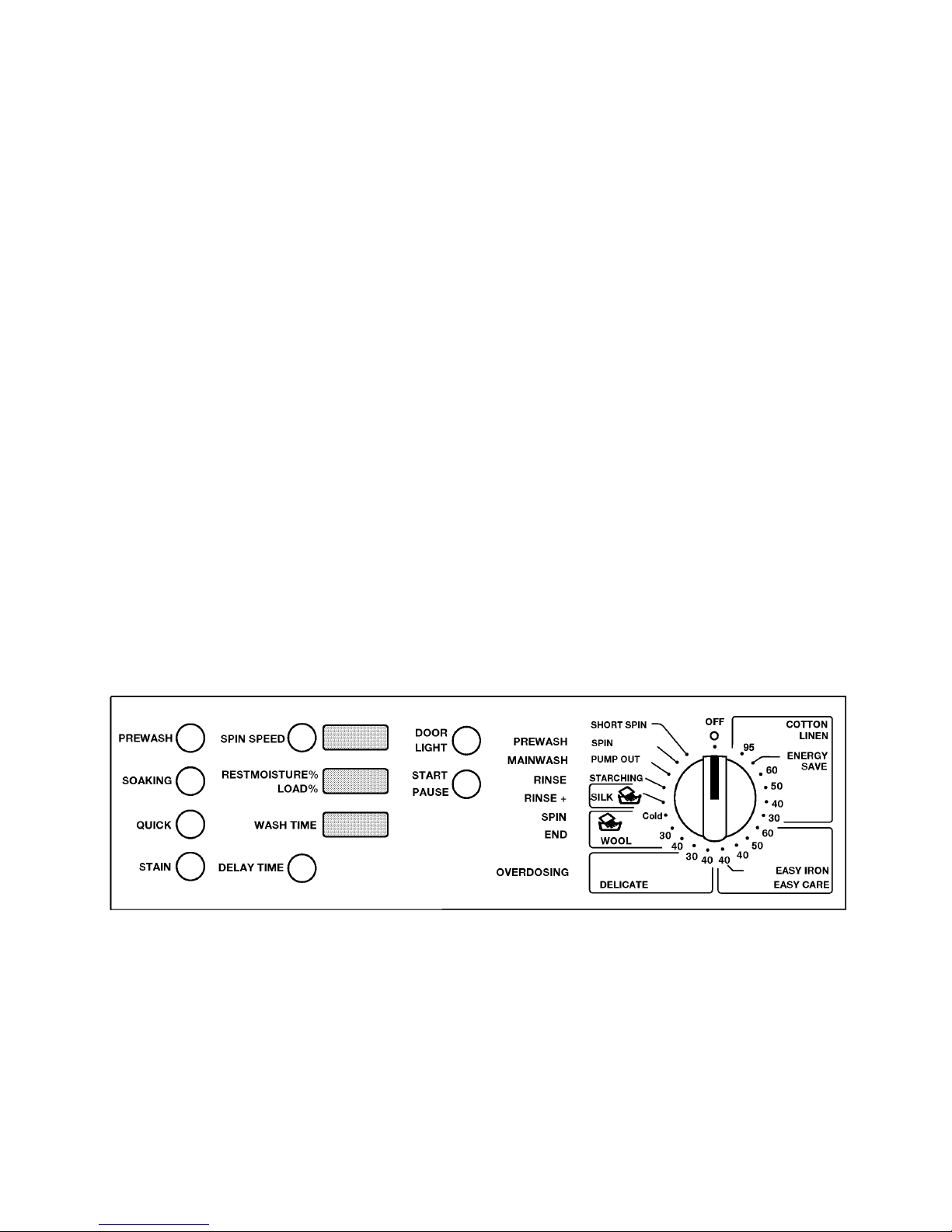

1.2 The panel
1.2.1 Machine class 8xx3x / background illuminated
- 3 Multidisplays
Spinspeed adjustment
Rest moisture in % / Load in %
Time of duration
- Display for the programe cycle is background illuminated
- Function of the buttons are background illuminated
1.2.2 Machine class 8xx3x / LED version
- 1 Multidisplay
Time of duration
- LED´s for the program cycle
- LED´s for option buttons
1.3 The programe selection switch - 15 basic programes
- 4 program blocks
Þotton / Linen
Energy saving
ÞEasy care
Easy Iron
ÞDelicate wash
ÞHandlaundry program / Wool
- 5 additional programes
- On / Off - switch integrated in
programe selector
- Quick programe correction possible
Option buttons Spin speed
Restmoisture
Load
Multidisplay
Door / light
Start / Pause
Program cycle Program adjusting

- 8 -
Spares Operation 07.02 C.D. 599 50 07-52/2
2. Additional programes
2.1 Gentle spin
Select with program selection switch
Gentle spin: (page 40)
almost same as handlaundry - final spin
2.2 Spining
Select with program selection switch
Spining: (additional final spin page 40 )
almost the same as boiled / colored final spin with 2 Pre - Spinning phases
2.3 Fast unbalance control sstem FUCS
ommon function:
The FU S system has 4 phases:
1. Start phase
2. Distribution phase
3. Time out phase
4. Measuring phase
1. Start phase:
In this phase the drumspeed is increased up to 80 1/min.
2. Distribution phase:
During this phase the laundry should be distributed well balanced by regulating the drumspeed.
This phase ends, if 120 1/min are reached or the time of 120s ( at woll 60s ) is expired.
If the time is expired its called Time out (Tout).
3. Time out phase:
This phase is excecuted, if the distribution phase has ended in cause of a time out.
This step is neccessary because the drumspeed has to be increased up to 120 1/min.
4. Measuring phase:
During this phase a unbalanced load detection is excecuted like known before.
The spinning cycle is excecuted, depending on the amount of unbalanced load.
An forced acceleration happens if the unbalanced load is to high.
Forced acceleration: Small unbalanced load 1023 1/min
Big unbalanced load 700 1/min

- 9 -
Spares Operation 07.02 C.D. 599 50 07-52/2

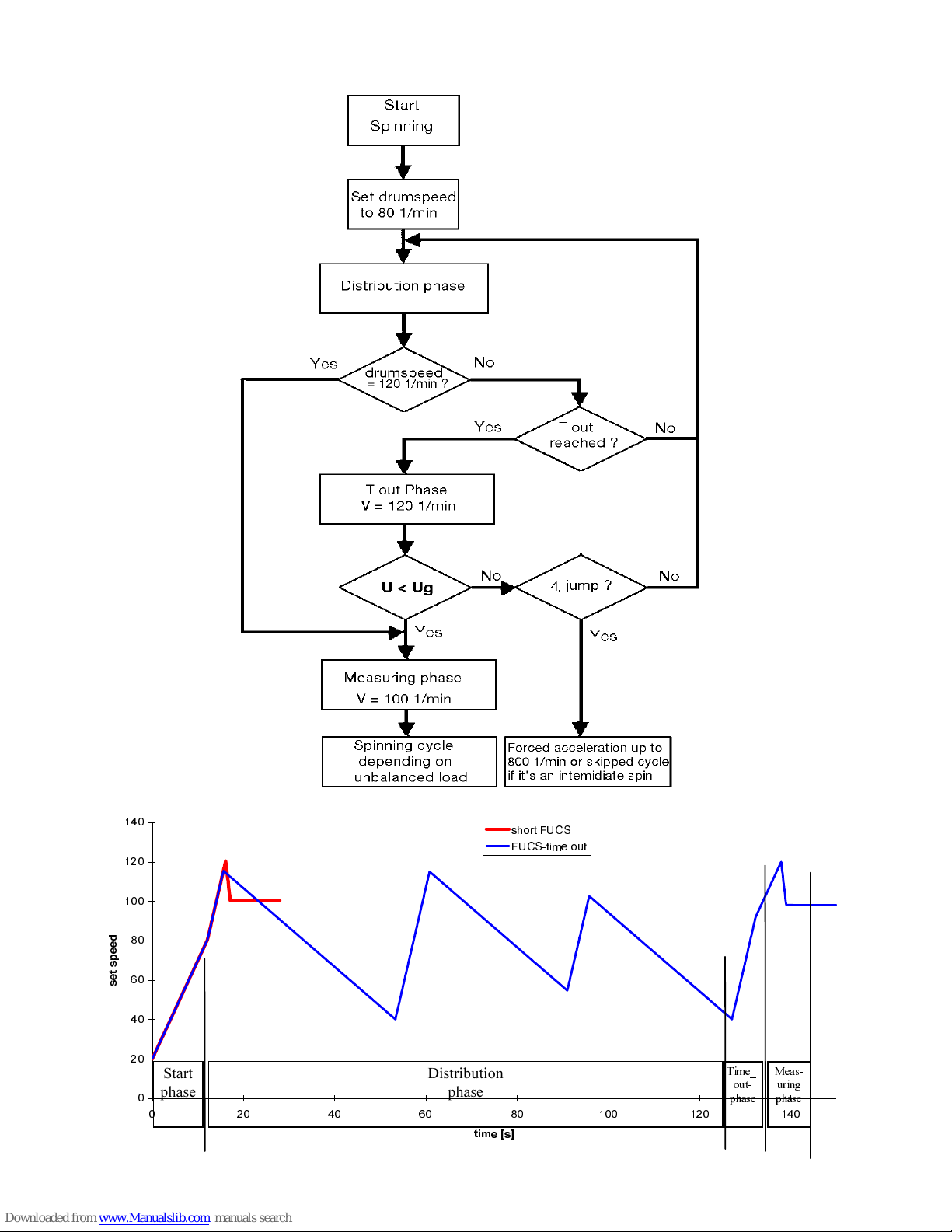

2.3.1 Fast unbalanced control sstem FUCS








 
WLPH>V@
V
H
W

V
S
H
H
G
VKRUW)8&6
)8&6WLPHRXW
'LVWULEXWLRQ
SKDVH
0HDV
XULQJ
SKDVH
6WDUW
SKDVH
7LPHB
RXW
SKDVH

- 10 -
Spares Operation 07.02 C.D. 599 50 07-52/2
2.4 Pumping
Select with program selection switch position pumping.
Pumping until switching point of the pressure switch (Foam niveau)
additional 30 sec. fixed pumping time
2.5 Starching
Select with program selection switch position starching.
It's the same rinse as the 3. rinse from boiled / colored
FFilling to washing level (ca. 5,4 l) chamber 1,
Fafter that filling over softener chamber (2,5 l - 1 min. mechanic - 2,5 l) + circulation pump,
Fthen 3,4min. reversing 70% mech. 53 1/min + circulation pump
Final spin (page 40 )
2.6 Delicate rinse
Select with program selection switch position delicate rinse.
Variants with silk program do not have that position but if you chose starching
and the option quick the delicate rinse will be excecuted.
It's the same as 2 rinsing cycles from handlaundry
FFilling on the handlaundry level, after that 3,4 min. rinsing handlaundry mechanic 27 1/min,
Fthen pumping
FFilling on handlaundry level after that water intake
Fafter that filling over softener chamber (2,5 l - 1 min. mechanic - 2,5 l), then 3,9 min.
reversing 27 1/min, continuing with pumping
and final spin ( page 41 )
2.7 Silk program
Select with program selection switch position silk (Stellg. Seide)
FTemperature 30° ; Load 1Kg
FThe mainwash:
Filling up to fH high Level
Mechanical movement: 422° OFF 27 sec 27 1/min
Mechanical movement for 5 min during mainwash 324° OFF 10 sec 27 1/min
F3 rinse cycles:
No intermediate spin
Mechanical movement: 422° OFF 27 sec 27 1/min
Fontinuing with pumping and final spin ( page 41 )

- 11 -
Spares Operation 07.02 C.D. 599 50 07-52/2
- No prewash can be chosen, rinse stop out of function
- soaking with a temperature max. 40° possible
- Different washmechanics. They depend on the chosen main program
(Stoptime: 0,5 h.)
Soaking time (Stoptime) can be adjusted with the pre select starting time
(Stoptime overall: 0,5 / 1,5 / 2,5 .... and so on in 1 h steps)
- 1,25% mechanic during soaking time
- shortest possible soaking time ca. 60 minutes
- after the soaking the drain pump will start working and the main
program is startet
a) For all programmes
- Load according to the chosen program (max. 5 kg)
- shorter Enzymphase*
- shorter washing time
b) Additional for boiled/colored and easy care
- shorter rinse
- Final spin ( page 39 )
* = Fuzzy-Enzymphase depending on the laundry
and temperature (only for boiled / colored, easy care)
ant be chosen if the main program is energy saveing
3.2 Soaking
3.3 Quick
- an be started infront of each main program.
- If you chose wool with prewash it is not possible
because this function is locked.
- Prewash is generaly cold
- Different wash mechanics
They depend on the chosen main program
- It takes about 25 min.
- 5 min circulation pump on
- After the prewash the main program is automatically started
3. Option buttons / display
3.1 Prewash

- 12 -
Spares Operation 07.02 C.D. 599 50 07-52/2
a) Standard variante
For boiled/colored, easy care and delicate wash:
- the time after the main wash and the additional heating steps
are depending on the program
- delayed bleaching powder intake after the bio-phase.
b) Only in operation manual / there is no Intensiv printed on the panel
Select with option button Stain
- This possibility is only shown in the operation manual
- Intensiv / Spots is the same program
Not active if energy saveing is chosen
Machine with multidisplay or LED's
- If you reduce spin speed you only influence the speed
of the final spin. Intermediate spin with fixed spin speed.
- Selected with push button funktion.
- Depending on the program a spin speed is suggested.
This spin speed can be alternated.
- At boiled/colored the maximum spin speed is suggested.
- At easy care, delicate wash and wool the final spin speed of
1000 1/minis suggested.
The maximum revolution is 1200 1/min.
- You can choose rinse stop for all programes.

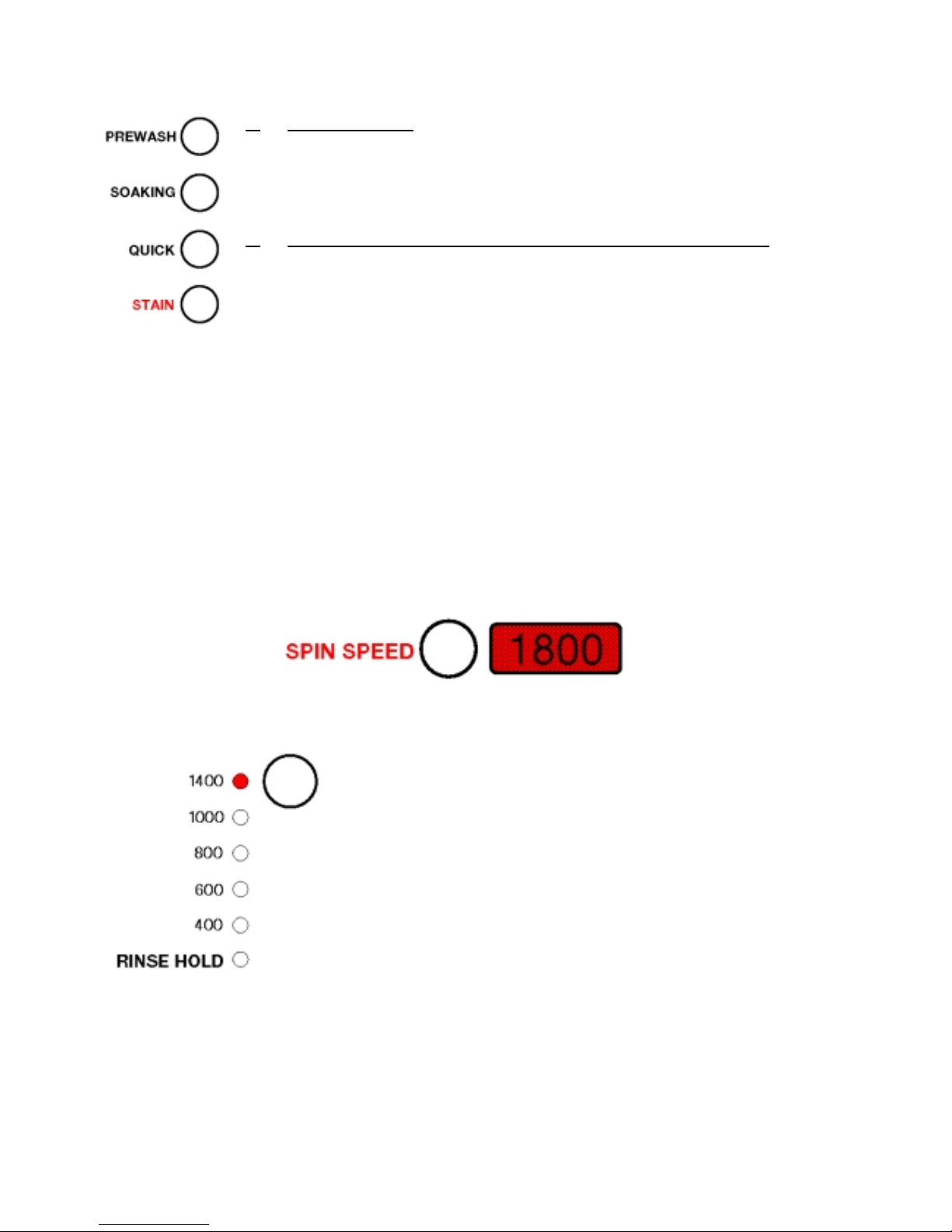

3.5 Alternating spin speed
3.4 Spots ( Intensiv )

- 13 -
Spares Operation 07.02 C.D. 599 50 07-52/2
- indicates pre-selected start time (up to 19h)
- adjustable in 1h steps
- after the start time is chosen the start button must be pushed to activate the pre-selected
start time.
- If you press the break button during the pre-selected start time the door can be opened.
- indicates the additional soaking time
- once programe has started, indicates the estimated duration of program / remaining
duration in minutes
- indicates faults ( for example 1)
- update IR - Interface

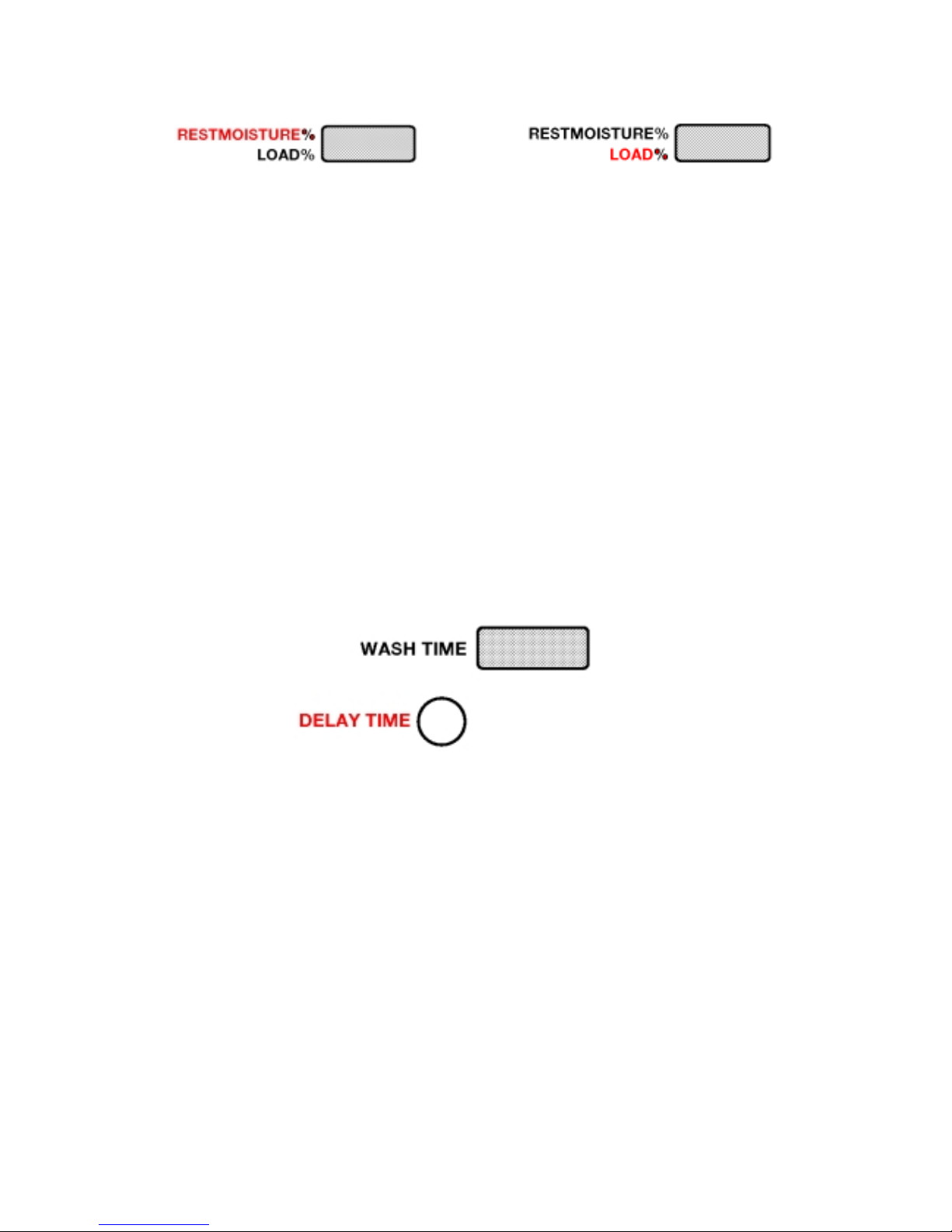

3.6 Rest moisture / Load
- without button, only multy display
- Only 80030 range with bachground illumination has the display
- If the load is defently recognized ( after approx. 10 min. ), the rest moisture is displayed.
They are alternating displayed in a 1min. rhytm in %
If wool / delicate wash or additional programes are chosen the display is out of function.
The load is displayed in 10 % steps.
2,5 kg load boiled / colored display 50%
2,5 Kg load easy care display 100%
5,0 Kg load boiled / colored display 100%
If the load is 20 % or more, higher than the maximum load of the program, the multi display
shows in any case 120 %. This measurement shows the customer a tendency of load.
3.7 The Multi displa

- 14 -
Spares Operation 07.02 C.D. 599 50 07-52/2
- before programe start, it indicates the estimated programe time.
The estimated programe time can be corrected automatically.
The times of prewash, mainwash,rinse and spinning will be added and corrected.
- indicates estimated duration of programe / remaining duration in minutes. The duration in
minutes can be corrected because of the sensorlogic Fuzzy - Logic and UKS.
- indicates the end of programe
- After the program and the options are chosen you start the machine with the start button.
After that moment you can only change the spinspeed.
- Break: Programe stops in any position.
ÞDuring the breaktime the change of the programe isn't possible.
- If you turn the selection switch during the program you must restart the machine.
3.10 The electronic program c cle displa
PRE WAS
MAINWAS
RINSE OLD
SPIN
END
OVER DOSING
RINSE
- indicates the selected program steps
- indicates the actual steps during the program
- indicates the end of program
- indicates at the end of program "Overdosage", that means to much detergent is used.
Its active in the programes Boiled/ olored and Easy care.
- indicates fault codes
- In the customer service program it also indicates waterlevels
Displayed with LED's or backround illumination
RINSE+
3.8 Duration displa
3.9 Start - Break button

- 15 -
Spares Operation 07.02 C.D. 599 50 07-52/2
- Electrical - magnetic door lock ; To open the door you have to use the button on the panal
- If you want to open the door the machine must have power
- Emergency opening with the knob on the base panel.
Displayed with LED's or backround illumination
3.12 Door locking conditions
1. Niveau ³ fN2
2. water temperature ³ 60°
3. nist ³ 60 1/min drum
4. nsoll ³ 120 1/min drum at the end of spinning
5. NT short circuit
6. Broken tacho generator
7. Since the first heating the door must be locked
3.11 The intelligent door lock
#FGPSFTUBSUEPPSJTPQFO 3FE%PPSJTPQFO
3FEGMBTIJOH4UBSUCVUUPOJTQSFTTFEXIJMF
UIFEPPSJTPQFO
#FGPSFTUBSUEPPSJTDMPTFE (SFFO%PPSDBOCFPQFOFE
"GUFSTUBSUEPPSJTDMPTFE (SFFO%PPSXJMMCFMPDLFE-&%TUBZTPO
(SFFOBTMPOHBTOPMPDLJOH
DPOEJUJPOTBSFGVMGJMMFE BMTPJGUIF
CSFBLCVUUPOJTQVTIFE
0GG*TOPUJMMVNJOBUFEJGUIFUIFEPPSJT
MPDLFE-PDLJOHDPOEJUJPOT
"GUFSFOEPGQSPHSBNF (SFFO5IFEPPSJTOPUMPDLFEBOEDBOCF
PQFOFE
3FE5IFEPPSJTPQFOFE

- 16 -
Spares Operation 07.02 C.D. 599 50 07-52/2
4. Additional features
4.1 Stand - By - Operation
Only machines with background illumination have got this feature!
1. During the pre - selected start time
3 min. after the last operation all displays exept the multi display are shut down.
Any kind of operation (press a button) stops the stand - by - modus and starts all
the according displays.
2. After the end of program
3 min. after the end of program without any operation all displays are shut down exept
the LED "END" or perhaps a displayed fault code.
You stop this standby like shown in point 1.
Use : Less energy consumption.
4.2 Trum light
The trum light is activated....
.... if the machine is switched on and the door is opened,
.... or the user opens the door
.... or the user presses the door / light button if the machine isn't in the stand-by-modus.
The trum light is switched off ....
.... if the fixed time of 3 min. has run out,
.... or the user closes the door
.... or the machine starts the stand-by-modus.
The halogen lamp is lowered in small brightness steps.
If the trum light is switched on, the user is able to lenghten the fixed illumination time, when he
presses the door / light button.
4.3 More water switch
The function of the more water switch must now be programed with the in/output
electronic . This has to be done before a program is started.
1RWSURJUDPPHG 1RLQIOXHQFHRQWKHSURJUDPPH
&RROGRZQLVSURJUDPPHG &RWWRQOLQHQDQGHDV\FDUHZLWKFRROGRZQLI
J!&
5LQVHDGGLWLRQDOULQVH
LVSURJUDPPHG
&RWWRQOLQHQDQGHDV\FDUH
0RUHZDWHULQWKHILUVWULQVHÃDGGLWLRQDOULQVH
'HOLFDWHZDVKRQO\DQH[WUDULQVH

- 17 -
Spares Operation 07.02 C.D. 599 50 07-52/2
4.3.1 Activating the cool down
Program it before the start of a program
- Selection switch in the position "short spin"

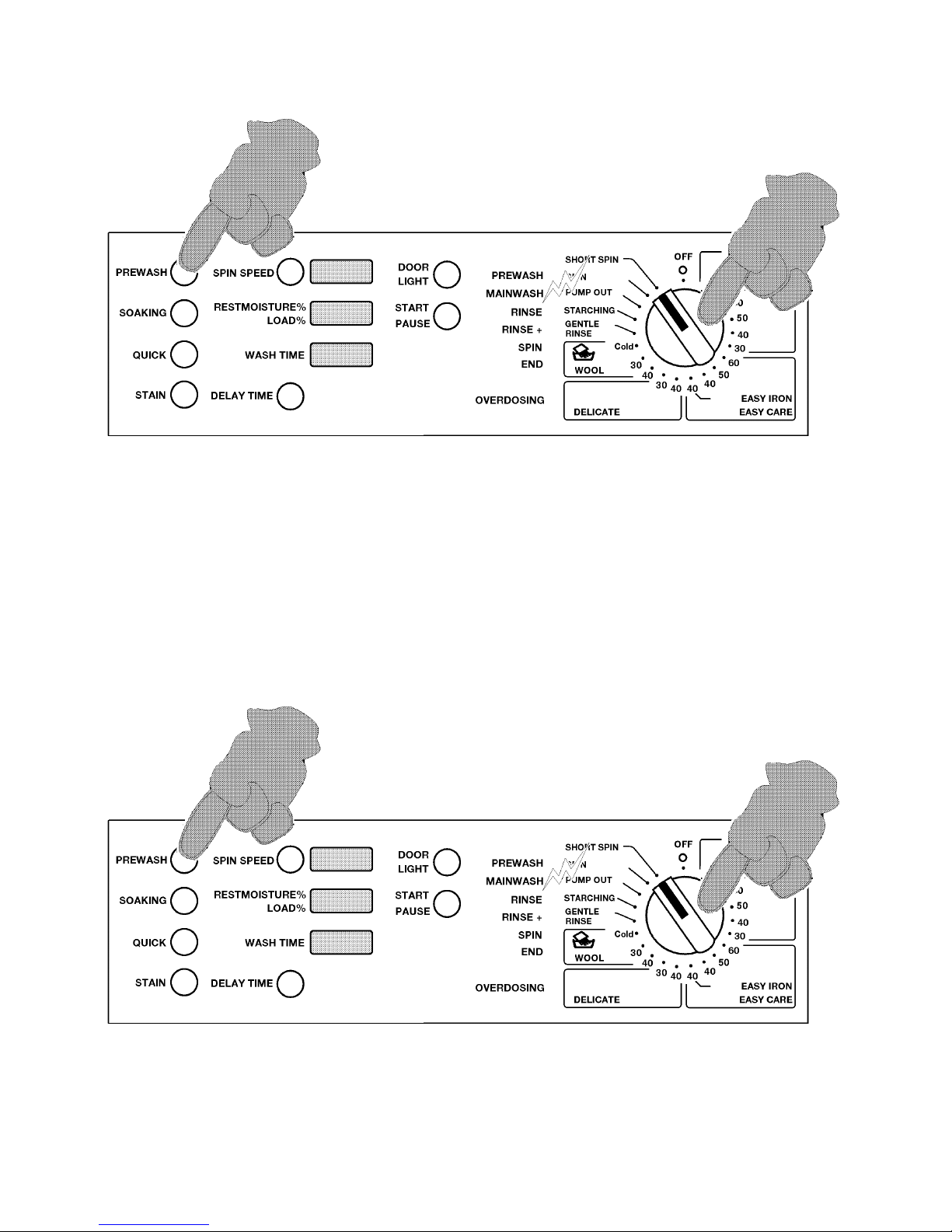

- Press the pre-wash button for a time of 5 sec.
- As a confirmation the LED mainwash is blinking
4.3.2 Deactivating the cool down
Programe it before the start of a program
- Selection switch in the position "short spin"
- Press the pre-wash button for a time of 5 sec.
- As a confirmation the LED mainwash is illuminated for a time of 5 Sek.

- 18 -
Spares Operation 07.02 C.D. 599 50 07-52/2
4.3.3 Activating the extra rinse
Programe it before the start of a program
- Selection switch in the position "short spin"
- Press the soaking button for a time of 5 sec.
- As a confirmation the LED "rinse +" is blinking
4.3.4 Deactivating the extra rinse
Programe it before the start of a program
- Selection switch in the position "short spin"
- Press the soaking button for a time of 5 sec.
- As a confirmation the LED "rinse +" is illuminated for a time of 5 Sek.

- 19 -
Spares Operation 07.02 C.D. 599 50 07-52/2
- You can find the program easy iron in the program block easy care.
- Temperature 40° ; Load 1Kg
- The mainwash is the same as easy care,
with a mechanic (12sec ON/4 sek OFF 53 1/min)
- The rinse cycles are the same as by delicate wash
No intermediate spin
with a mechanic (12sec ON/4 sek OFF 53 1/min)
- Automatic cool down
- Final spin as in the program easy care ( short variomatic)
An anticreasing mechanic ( 422° movement OFF 237 sec 27 1/min ) is excecuted.
- Additional options: quick and prewash
4.4 Eas iron

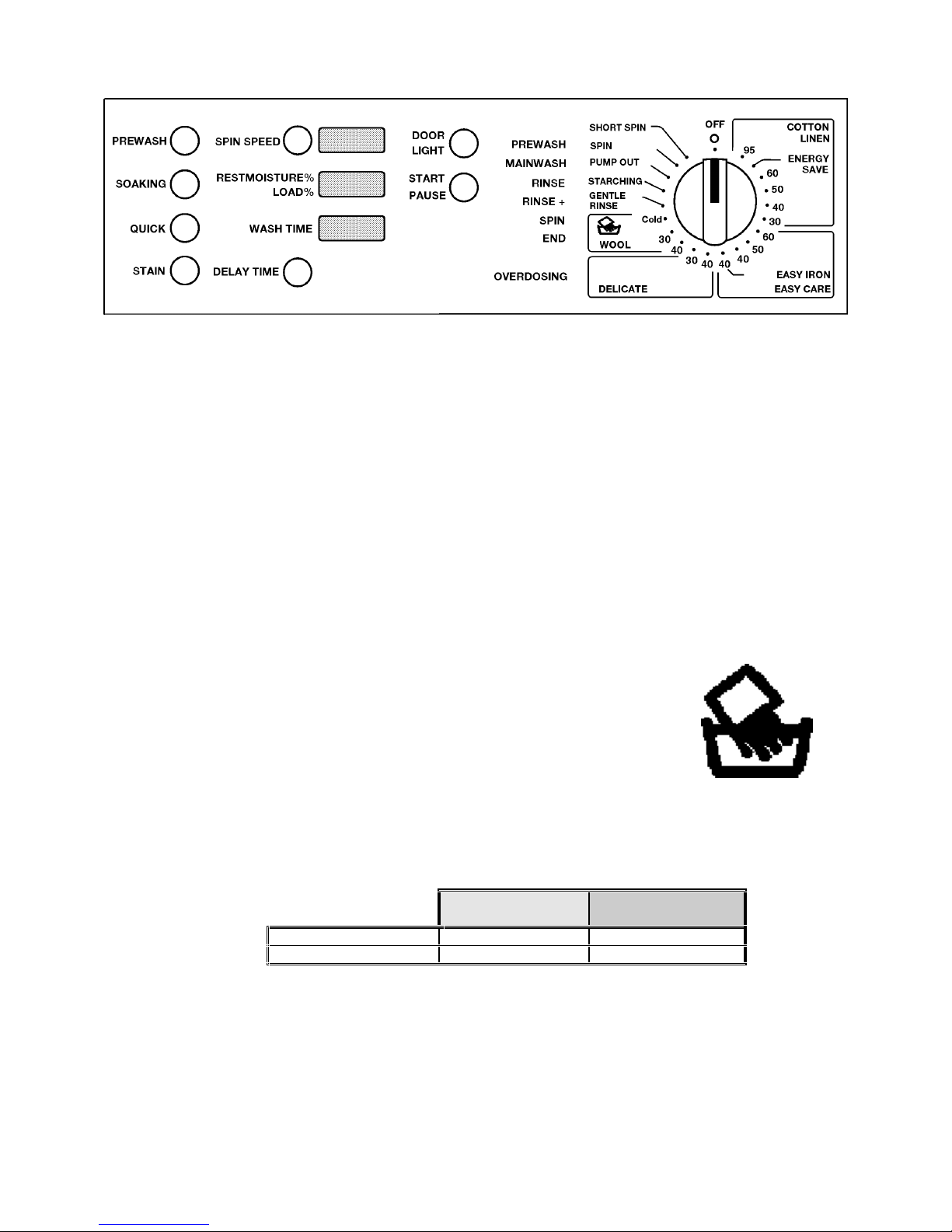

4.5 The hand-laundry program
Every piece of laundry with the sign " only suited for hand-laundry "
can now be washed with the appliance.
The machine wash has an advantage regarding the hand wash.
This proves an expert's report of the Wfk-Institute.
F less shrink
F the laundry is less felted Þ The surface is more even and fleecy
F less bleaching of colours
F less formation of crease
4.5.1 Differences to the wool program
The program is suitable for a load of 2 Kg
Mechanical movement: 324° OFF 58 sec 27 1/min
No intermediate spin
F about 60 % less shrink
F Water consumption (42L at 30° ), decreased for about 25%
F The wash and rinse results are the same as previous results.
F Programme duration (37 min at 30° ), decreased for about 25%
F Energy consumption (0,13 kWh at 30° ), decreased for about 10%
F The final spin speed of 1200 1/min is possible
8PPM )BOEMBVOESZ
QSPHSBNNF
%SVNNPWFNFOU  
1BVTF TFL TFL

- 20 -
Spares Operation 07.02 C.D. 599 50 07-52/2

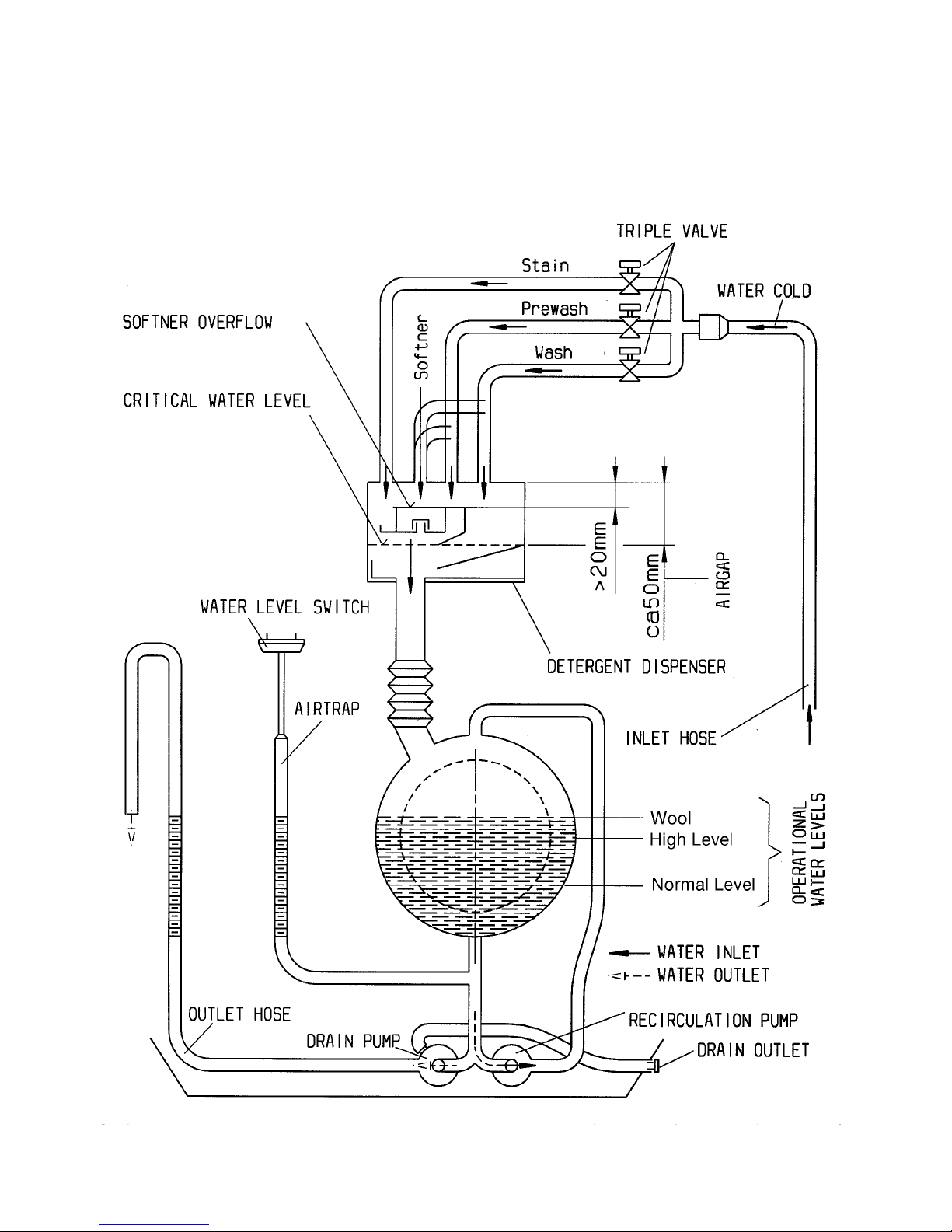

5. Water intake system
5.1 Waterdistributer + Valve
- 4 detergent chambers; recirculation pump and drain pump
- 4 - Way Waterdistributer mechanically moved
- 3 - Valves
