Electrolux U28190 User manual

t^pefkd=j^`efkb=
EWF 12108W
EWF 14108W
fkpqor`qflk _llhibq
NQTNMPNPN
New_12108_14108.qxp 12/12/2005 5:41 PM Page 1

2
Installation
• This appliance is heavy. Care should be taken
when moving it.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• All packing and transit bolts must be removed
before use. Serious damage can occur to the
product and to property if this is not adhered to.
See relevant section in instructions.
• Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
Child Safety
• This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
• Pets and children have been known to climb into
washing machines. Please check your drum before
use.
• The glass door becomes very hot during the
washing cycle. Keep children away from the vicinity
of the appliance whilst it is in operation.
•Keep all packaging well away from children.
•Keep all detergents in a safe place out of children’s
reach.
Use
• Always unplug the appliance and turn off the water
supply after use.
• Do not overload the appliance. See relevant
section in the instruction book.
• Only wash fabrics which are designed to be
machine washed. If in doubt, consult the care label
on the clothes.
• Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as
paint, ink, rust, and grass before washing.
Underwired bras must NOT be machine washed.
• Any objects such as coins, safety pins, nails,
screws, stones or any other hard, sharp material
can cause extensive damage and must not be
placed into the machine.
• Garments which have been in contact with volatile
petroleum products should not be machine
washed. If volatile cleaning fluids are used, care
should be taken to ensure that the fluid is removed
from the garment before placing in the machine.
• Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is
possible for such items to slip down between the
tub and the inner drum.
• Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill.
Refer to the manufacturer’s recommendations of
quantities.
• As some duvets and eiderdowns should be washed
in large commercial machines because of their
bulk, please check with the manufacturer of the
item before washing in a domestic machine.
• Leave the porthole door slightly ajar between
washes to preserve the door seal.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre. Always insist on genuine Electrolux spare
parts.
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is supplied with the appliance in order that the
new owner can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 2

3
Contents
For the User
Important Safety Information 2
Child safety 2
use 2
Your New Washing Machine 4
Description of the Appliance 5
Detergent dispenser drawer 5
The Control Panel 6-9
Programme information 9
Operating Sequence 10-12
Place the laundry in the drum 10
Measure out the detergent 10
Measure out the additive 10
Switch the machine ON and OFF 10
Select the required programme 10
Select the temperature 10
Select the spin speed or Rinse Hold Option 11
Select the desired option 11
Select the Delay Button 11
Start the Programme 11
How to chnage a programme during its cycle 11
How to interupt a programme during its cycle 11
Cancelling a programme 12
How to open the door during the cycle programme 12
End of the programme 12
Washing Hints 13-14
Which detergent?.... 14
And in which form? 14
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
Wash Care Symbols 15
Programme table 16-17
Maintenance and Cleaning 18-19
Descaling 18
After each wash 18
Maintenance Wash 18
External cleaning 18
Cleaning the dispenser drawer 18
Cleaning the drawer recess 18
Cleaning the pump 18-19
Cleaning the water inlet filter 19
The dangers of freezing 19
Emergency emptying out 19
Something Not Working 20-21
Service and Spare Parts 22
Customer Care 22
Guarantee Conditions 23
For the Installer
Installation Instructions 24
Technical Specifications 24
Unpacking 25
Positioning 25
Water inlet 26
Water drainage 26-27
Levelling 27
Special conditions 27
In the interest of the environment 27
Electrical connection 28
Permanent connection 28
New_12108_14108.qxp 12/12/2005 5:41 PM Page 3

4
Your New Washing Machine
Your new washing machine meets all modern requirements for effective treatment of laundry with low water,
energy and detergent consumption.
• The programme selector dial combines the function
of programme and temperature selection, making it
easier to set the programme.

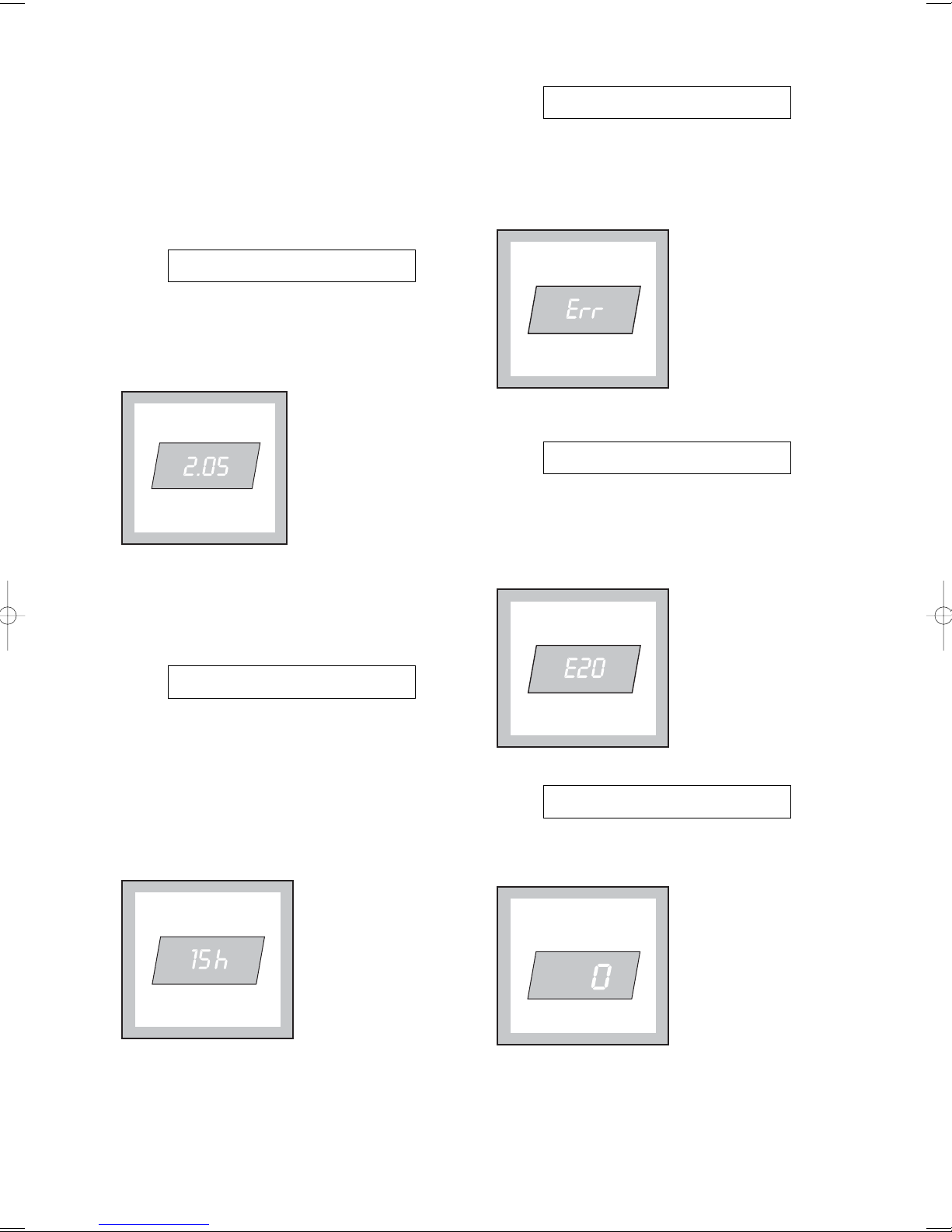

• The programme progress display shows the delay
start, the functioning of the machine and the end of
the programme .
• The special wool programme with its new delicate
wash system treats your woollens with extreme
care.
• The Eco valve allows total use of detergent and
reduces water consumption so saving energy.
• The special Handwash programme with its new
delicate wash system treats your delicate items
with extreme care.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
• Adjust the quantity of detergent according to the
hardness of your water supply, the amount of
laundry and the degree of soiling.
• A programme without prewash is sufficient for
normally soiled laundry.
• The machine works more economically if it is fully
loaded.
• With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature, so saving energy.
In the interest
of the environment
• Materials marked with the symbol are
recyclable.
• Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
• When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.
• Help to keep your country tidy - use authorised
disposal sites for your old appliance.
• The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detail
information about recycling of this product, please
contact your local city office, your household waste
disposal service or the shop where you purchased
the product.
How do we help to protect the environment? We
use recycled paper!
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not
evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to
redistribute the wash load manually and select a spin programme. For more detailed information see the section
headed "Something Not Working".
New_12108_14108.qxp 12/12/2005 5:41 PM Page 4

5
1. Detergent dispenser drawer
2. Control panel
3. Door handle
4. Drain pump
5. Adjustable feet
6. Door lock Indicator
Detergent dispenser drawer
Pre-wash
Main wash
Fabric softener, starch
6
Description of the appliance
New_12108_14108.qxp 12/12/2005 5:41 PM Page 5

6
Use

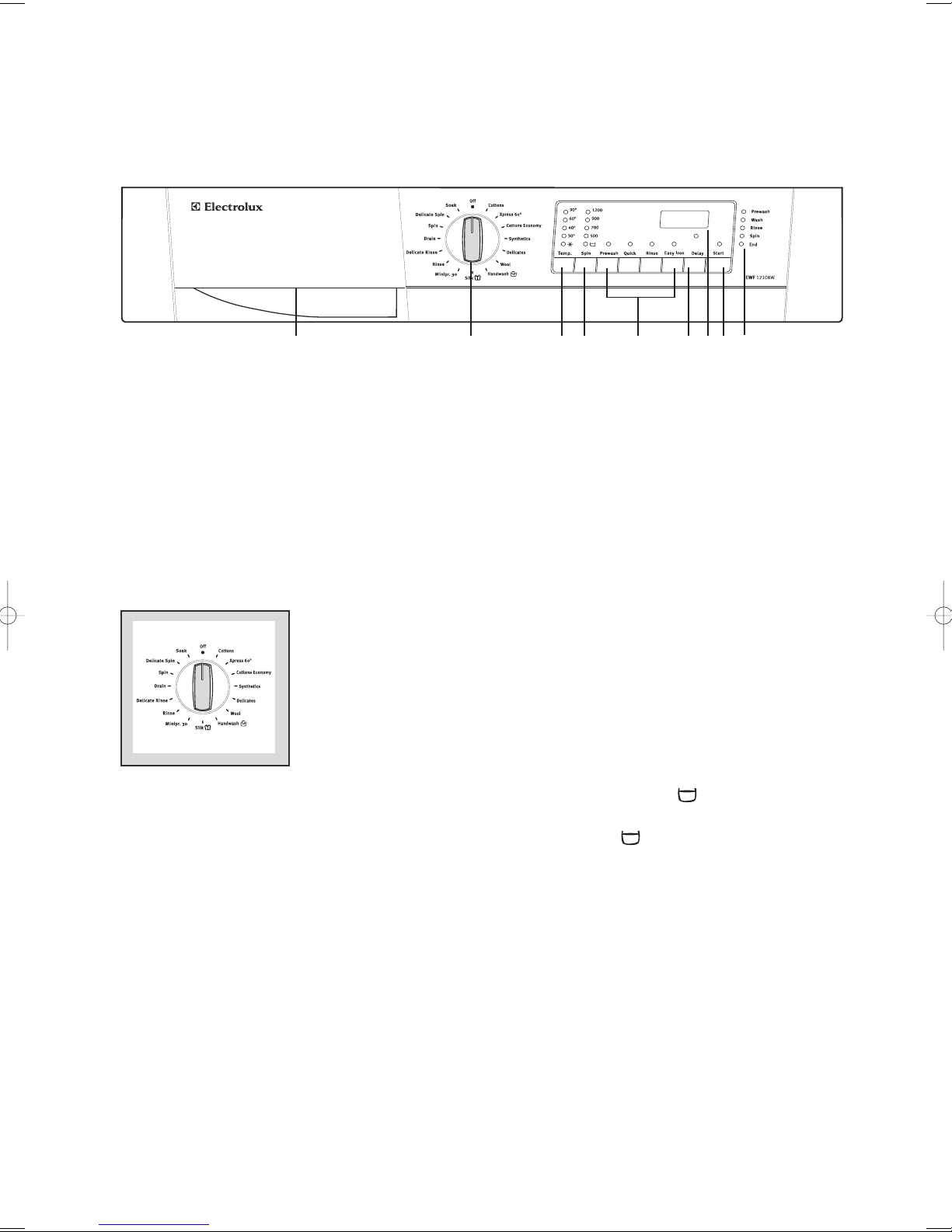

Control panel
1. Detergent Dispenser Drawer
2. Programme selector dial
The programme selector dial is divided into three
sections :
1. Cotton,Xpress60,Cottons Economy (Blue section)
2. Synthetics (Green section)
3. Delicates, Wool, Handwash, Silk, Minipr.30,
Rinse, Delicate Rinse, Drain, Spin, Delicate
Spin, Soak.(Grey section)
The selector dial can be turned either clockwise or
anti-clockwise. Position “Cottons Economy”
corresponds to an energy saving programme for
cotton. At the end of programme, the selector dial
must be turned to position “Off” to switch the
machine OFF.
3 Temperature button “Temp.”
Press this button repeatedly to increase or decrease
the temperature, if you want your laundry to be
washed at a temperature different from the one
proposed by the washing machine.
Maximum temperatures are 90°C for cotton, 60°C for
synthetic fabrics, 40°C for delicate fabrics, wool and
fabrics to be hand-washed, 30°C for silk and Mini
programme.
123456897

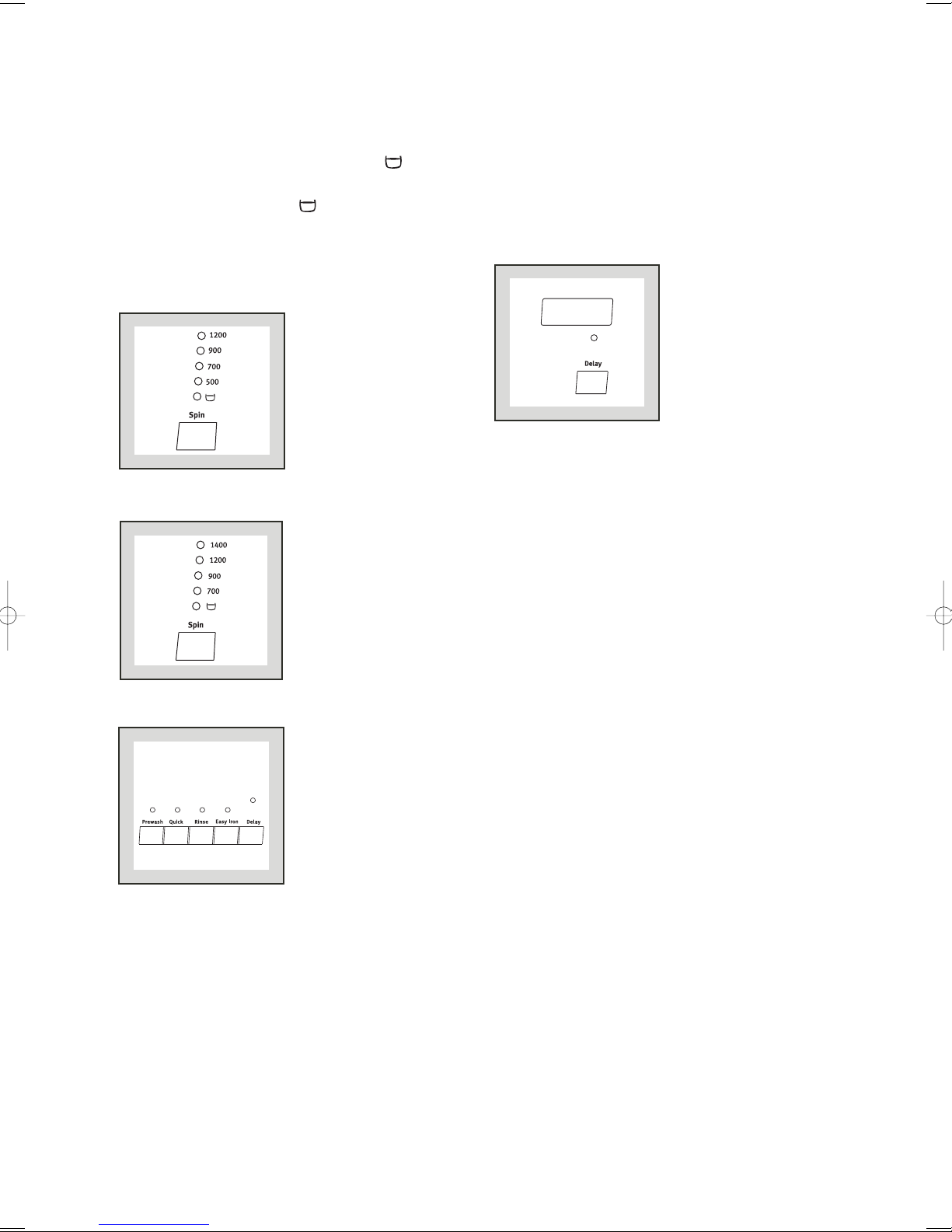

4. Spin Speed button “Spin”
Press this button repeatedly to change the spin
speed, if you want your laundry to be spun at a
speed different from the one proposed by the
washing machine and the relevent LED will light up.
Maximum speeds for EWF 12108W are:
for cotton: 1200 rpm
for wool, synthetic & handwashed fabrics 900 rpm.
for delicate, silk fabrics & mini programme:700 rpm
Maximum speeds for EWF 14108W are:
for cotton: 1400 rpm
for wool, synthetic and handwashed fabrics 900 rpm.
for delicate, silk fabrics and mini programme:700 rpm
By pressing the Spin speed button you can also
choose Rinse Hold option
Rinse hold option : when you choose this option,
the machine will not drain the water of the last rinse,
so as not to wrinkle the laundry.
At the end of cycle, the light of “Start” button goes off,
the light corresponding to rinse hold option and “End”
pilot light remain lit. A flashing zero appears on the
display to indicate that the water must be drained.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 6

7
There are two possibilities to drain out the water.
• Select the programme “Drain”
The water is drained out without spinning
• Select programme “Spin” or “Delicate Spin”
Select the spin speed by means of the relevent
button and press the “Start” button. The water is
emptied out and the laundry is spun at the
selected speed.
Attention: Before selecting “Drain”, “Spin” or
“Delicate spin” programme, the selector dial has to
be positioned on “Off”.
5. Options Button
Depending on the programme, different functions can
be combined. These must be selected after choosing
the desired programme and before pressing the “Start”
button.
When these buttons are pressed, the corresponding
LED will light up. When they are pressed again, the
corresponding LED goes out.
If an incorrect option is selected, the LED flashes for
about 2 seconds and the message Err is displayed.
Press these buttons to select the following options:
1.Prewash: Select this option if you wish your laundry
to be prewashed before the main wash (not
available for wool, handwash, mini programme and
silk programmes.
The Prewash ends with a short spin at 650 rpm in
programmes for cotton and synthetic fabrics,
whereas in the programme for delicate fabrics the
water is only drained.
2.Quick: This option can be used for lightly soiled (not
for wool, hand wash, silk and miniprogramme) in
order to obtain a good washing programme in a
short time. The washing time will be reduced
according to the type of fabric and the selected
temperature.
3.Rinse: This option can be selected with all
programmes, except the wool and handwash
programme. The machine will add 2 rinses for
cottons and 1 rinse for synthetics, delicates and silk
programme. This option is recommended for people
who are allergic to detergents, and in areas where
the water is very soft.
4.Easy Iron: Selecting this option the laundry is
gently washed and spun to avoid any creasing in
this way ironing is easier.
6. Delay start Button
The wash programme can be delayed from 30 min -
60 min - 90 min, 2 hours and then by 1 hour up to a
maximum of 23 hours by means of this button.
Selecting the Delay Start
• Select the programme and the required options.
• Select the delay start.
• Press “Start” button: the machine starts its hourly
countdown.
The programme will start after the selected delay has
expired.
Delay Start cannot be used with “Drain”, “Spin” or
“Delicate spin”.
Cancelling the delayed start
• Press “Start” button.
• Press “Start” button until “0’” is displayed.
• Press “Start” button again.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 7

8
7. Display
The display shows the following information:
Duration of the programme - Delayed start -
Incorrect option selection - Alarm code - End of
programme.
After selecting a programme, the duration is
displayed in hours and minutes ( for example 2.05).
The duration is calculated automatically on the basis of
the maximum recommended load for each type of fabric.
After the programme has started, the time remaining
is updated every minute
The selected delay (23 hours max) set by means of
the relevant button appears on the display for 3
seconds, then the duration of the previously selected
programme is displayed.
The countdown is updated every hour and for the last
2 hours it is updated for each 30 min.
Delayed start
Duration of the selected programme
If an option which is not compatible with the set wash
programme is selected, the message Err is displayed
for 2 seconds.
In the event of operating problems, some alarm
codes can be displayed, for example E20 (see
paragraph “Something not working”).
When the programme has finished a flashing zero is
displayed.
End of programme
Alarm codes
Incorrect option selection
New_12108_14108.qxp 12/12/2005 5:41 PM Page 8

9
8. Start Button
This button has two functions: Start / Pause.
Start:
After having selected the required programme, press
this button to start the machine; the corresponding
LED stops flashing.
If you have selected the delayed start, the machine
begins its countdown. The duration of the
programme or the delay appears on the display.
Pause:
To interrupt a programme which is running, press the
“Start” button: the corresponding LED starts to flash.
To restart the programme from the point at which it
was interrupted, press the “Start” button again
9. Programme Phase indicator
Light
By selecting the wash programme, the LED
corresponding to the various phases making up the
programme lights.
After you have started the programme, only the LED
relevant to the phase that is currently being carried
out will remain lit.
At the end of the programme the “End” LED
illuminates.
The “End” LED flashes in the event of operating
problems. And the relative alarm code appears on
the display.
E10 = the machine does not fill
E20 = the machine does not empty
E40 = the door has not been closed
To eliminate the problem, see paragraph “Something
not working”.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 9

10

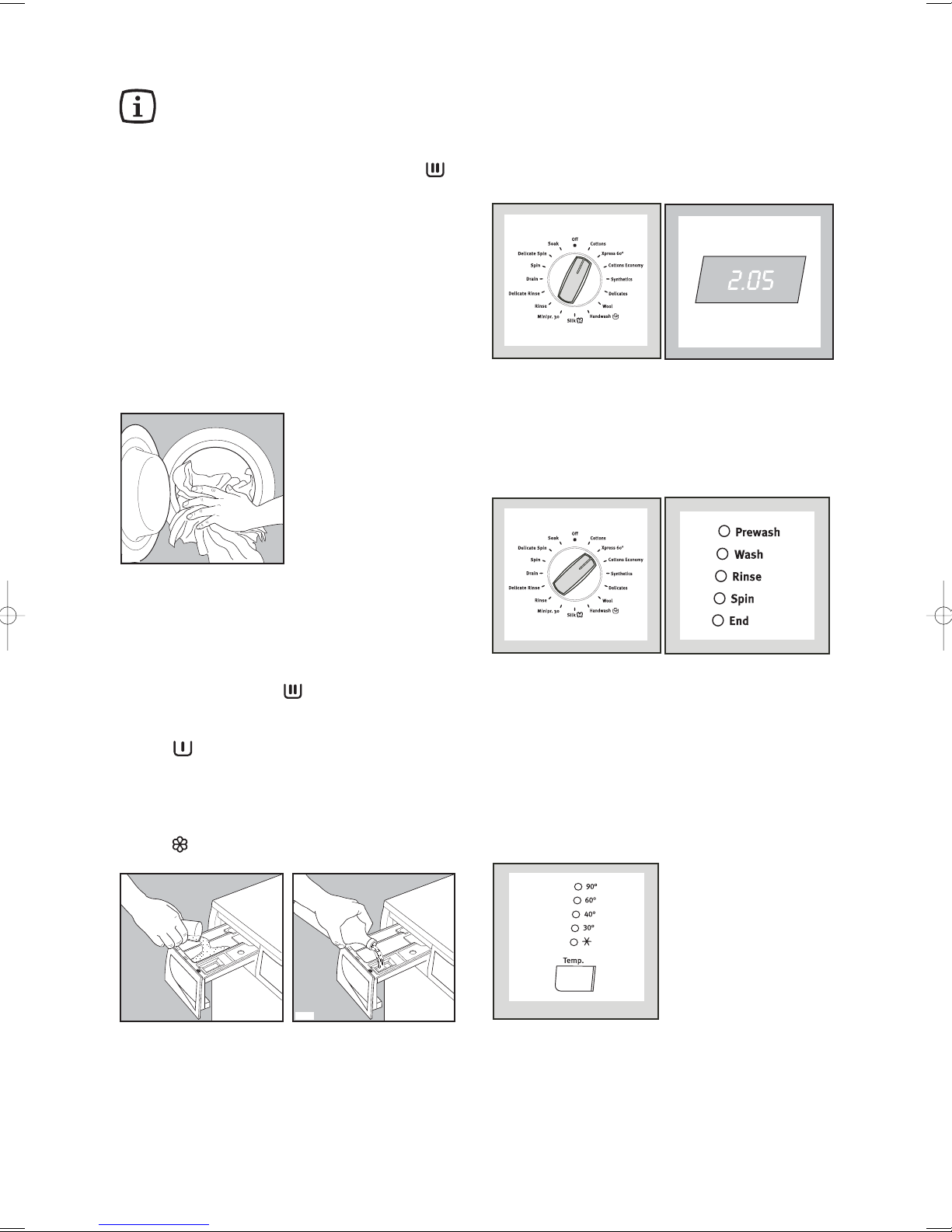

Operating sequence
Before the first wash we recommend that you pour 2
litres of water into the main wash compartment
of the detergent drawer. Then run a cotton
cycle at 60°C, with the machine empty, in order to
remove any manufacturing residue from the drum
and tub.
Pour half a measure of detergent into the main wash
compartment and start up the machine.
1. Place the laundry in the drum
Open the door.Place the laundry in the drum, one
item at a time, shaking them out as much as
possible.Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops. Measure
out the amount of detergent recommended by the
manufacturer in a graduated cup and pour it into the
main wash compartment .
If you wish to carry out the prewash or soak phase,
pour detergent into the appropriate compartment
marked .
3. Measure out the additive
If required, pour fabric softener into the compartment
marked , without exceeding the «MAX» mark.
C0065
C0064
P0004
4.Switch the machine ON and OFF
Turn the selector dial to the desired programme to the
switch appliance on.To switch the appliance off turn
it to “Off”.
5.Select the desired programme
Turn the selector dial to the desired position: the LED
corresponding to the different phases making up the
selected programme illuminate.
The duration of the programme appears in the display.
6.Select the temperature
Press the “Temp.” button if you wish to select a
temperature value different from the one proposed by
the washing machine. The relevant LED will light up.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 10

11
7.Select the spin speed or Rinse
Hold Option
Press the “Spin” button repeatedly, in order to select
the desired spin speed or the Rinse Hold option.
The relevant LED will light up.
If you select the Rinse Hold option, the machine
will stop at the end of the programme with the water
still in the tub.
EWF 12108W
EWF 14108W
8.Select the desired option
Press the relevent button to select the required
options. Depending on the selected programm, only
certain options are available and shown during the
selection phase.
Note: Not all the options are compatible with
eachother. For the options that are not compatible,
the icons will disappear.
9.Select the Delay Button
Before you start the programme if you wish the
starting to be delayed, press the DELAY button. The
figures corresponding to the selected delay will be
displayed for about 3 seconds, after which the
duration of the selected programme will appear on
the display.
During this period it is possible to load other laundry:
• Press “Start” button;
• load the laundry;
• close the door and press “Start” button again.
10.Start the Programme
Press the “Start” button. The relevant LED will stop
flashing. and only the LED relevant to the phase that
is in progress will remain lit.
If you have chosen a delayed start, the washing
machine will begin the countdown.
The display will show the duration of the programme
or the selected delay.
11.How to change a programme
during its cycle
You can alter the programme before it starts.
When the programme has started, you can only reset
it by turning the programme selector dial to «Off»
position and then you can select the new
programme. Start it by pressing the “Start” button.
12.How to interrupt a programme
during its cycle
Press the “Start” button to interrupt a programme
which is running, the corresponding LED starts to
flash. Press the same button again to restart the
programme.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 11

12
13. Cancelling a programme
Turn the selector dial to position «Off» to cancel a
programme which is running. Now you can select a
new programme.
14.How to open the door during
the cycle of a programme
You can open the door, after having set the washing
machine to PAUSE phase, by pressing “Start” button
provided the following conditions exist:
1) the washing machine is not in the heating phase
beyond 55°C
2) the level of the water is not high;
3) the drum is not turning.
After approximately 3 minutes, you can open the
door.
Pay attention to the level and temperature of the
water in the washing machine!
15. End of programme
The washing machine stops automatically at the end
of the programme giving an audible signal.
If the Rinse hold option has been selected, the
LED of the “Start” button goes off, the LED and the
“End” LED remain lit to indicate that the water must
be drained before opening the door. The display
shows a flashing zero.
To empty out the water you can select programme
“Drain”, the water is emptied out without spinning or
select programme “Spin” or “Delicate Spin”. Select the
spin speed by means of the relevant button and then
press the “Start” button.The water is emptied out and
the laundry is spun at the selected spin speed.
Turn the programme selector dial to position «Off» to
switch the machine off.
Remove the laundry from the washing machine.
Check whether the drum is completely empty, by
rotating it with your hand. The purpose of this is to
prevent any items of laundry from remaining
accidentally in the drum, where they might get
damaged in a subsequent wash (e.g. by shrinking) or
bleed colour into another load of laundry.We advise
you to close the water supply tap and disconnect the
plug from the socket.Leave the door ajar in order to
air the washing machine.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 12

13
Washing Hints
Do NOT overload the machine. Weigh the laundry
the first few times you use the appliance.
The average weights of the most common items are
listed below as a guide:
1000g = 1 kg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man’s shirt 200-300 g
Apron 150-200 g
• Load the laundry loosely alternating large items
with small ones.
• Sort the laundry according to the type of fabric,
colour-fastness and how dirty it is.
• Avoid washing unhemmed or torn items as they
may unravel.
• Before washing, empty all pockets of small objects
which may have been left inside (coins, keys,
screws etc.) as these could damage the drain
pump.
• When washing curtains, remove the hooks.
• Close poppers and zips and fasten loose buttons.
• It is essential to wash new coloured items
separately when washing for the first time.
• When washing fabrics requiring different wash
temperatures together, always select the lowest
temperature.
• White items should not be washed with coloured
items.
• Very small items (handkerchiefs, ribbons, socks
etc) should be washed in a washing bag or a pillow
case.
• Use a good quality detergent suitable for automatic
washing machines.
• Use the correct quantities of detergent.
• For wool, use gentle detergent only in small
quantities.
• Bleach is very corrosive; it should be used with
care and kept out of reach of children.
• Some stains such as fruit, wine, grass, rust etc. are
difficult to remove and should be treated before
washing with specific products, which can be found
in most household shops. In some cases it may
help to soak the stain before washing with a special
pre-soak product or biological detergent.
• Only wool marked “Pure New Wool - washable,
preshrunk” can be washed in the machine using
the wool programme; other types of wool should be
washed in Handwash programme.
• If you have used the machine to wash, rinse or spin
only non-colour fast garments, there may be dye
left in the sump. To ensure any subsequent wash is
not contaminated with the dye, select and carry out
a rinse and spin programme, without any garments,
to ensure that any dye is removed from the sump.
• Once you have finished using the machine, you are
advised to unplug it and turn off the water tap.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 13

14
And in which form?
Not only are there different types of detergent, but
they are also available in different forms. Whether
you chose a powder or liquid in traditional or
compact form is your own personal choice.
TRADITIONAL POWDERS
Pour the powder directly into the dispenser drawer.
Do not sprinkle powder onto clothes in the machine
drum.
TRADITIONAL LIQUIDS
Liquid can be placed in the main wash compartment
of the detergent drawer marked with the symbol ,
start the machine immediately upon placing the
detergent in the dispenser drawer.
Alternatively the detergent is measured into the
specially designed dosing device* which should be
placed on top of the laundry, and at the back of the
machine drum.
COMPACT POWDERS AND LIQUIDS
Compact detergents (or concentrates as they are
also known) are available in liquid or powder form,
and generally require a smaller dosage. Follow the
manufacturer’s instructions to ensure the most
economical usage. Pour the detergent directly into
the dispenser drawer, or alternatively measure the
detergent into the specially designed dosing device*
which should be placed on top of the laundry, and at
the back of the machine drum.
* If you use a dosing device in a washer dryer,
please ensure the dosing device/ball is
removed before carrying out a drying
programme.
FABRIC CONDITIONERS
These are ideal for improving ‘softness’, and also
reduce static cling on synthetics and make ironing
easier. They are available in two types:
For example Lenor liquid fabric
softener, for use in the washing
machine/washer dryer. The
liquid fabric softener should be
poured into the compartment
marked with the symbol .
Follow the manufacturer’s dosage
instructions and never exceed the
MAX level.
Bounce conditioning sheets for use in a
tumble dryer. We recommendthe
conditioning sheets are pinned(using a
safety pin) to an articleof laundry and
placed in the tumble dryer.

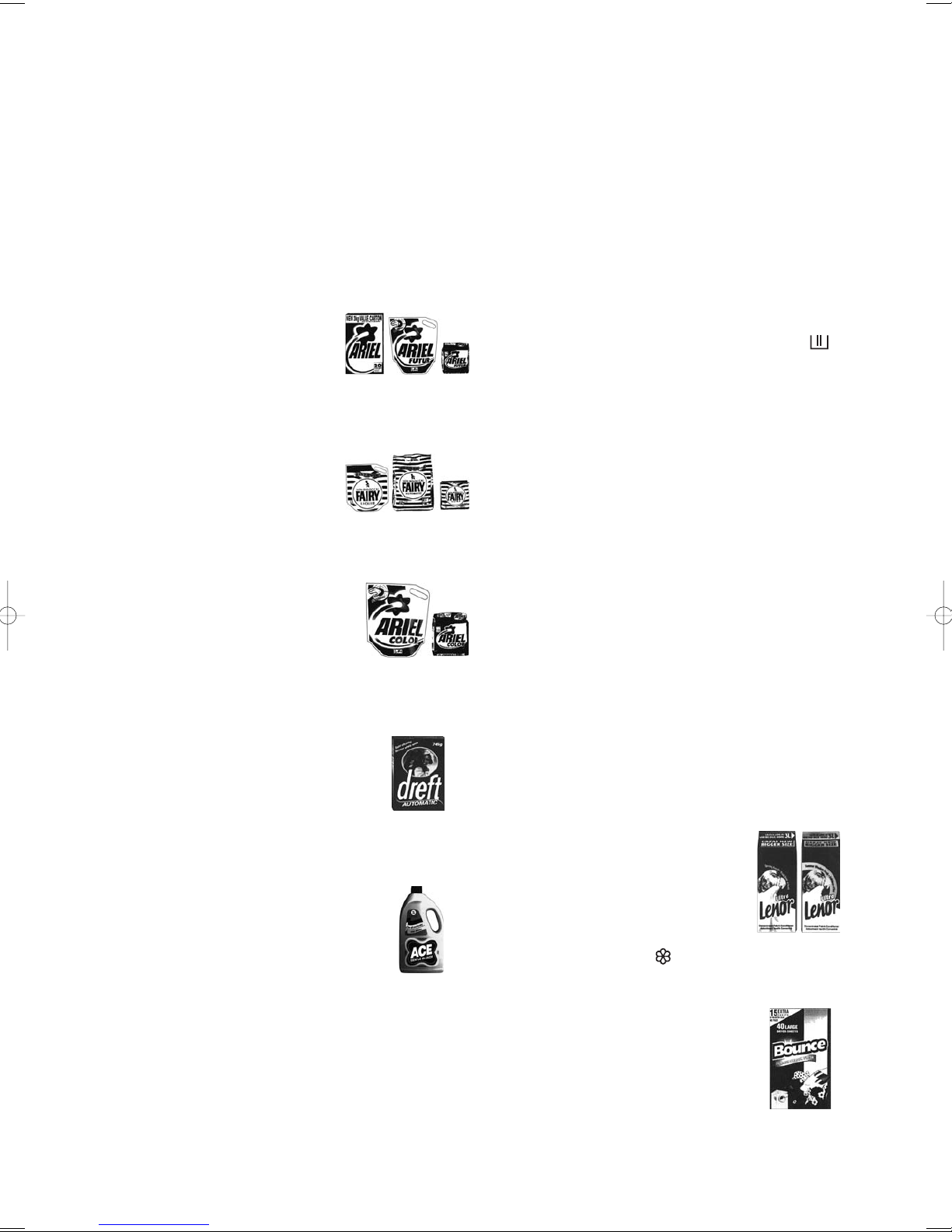

Which detergent?....
To ensure you obtain the best wash results from
your appliance, it is important to use the right
detergent in your everyday wash, and only
detergents recommended for use in automatic
machines.
To maintain the appearance of your clothes and
household textiles and to make them last longer you
should use different types of detergent for different
washes, whether for whites, colours or delicates.
WHITES
We recommend the Ariel product
range which is biological and
designed to provide excellent
cleaning and stain removal even
at low temperatures.
NON BIOLOGICAL
If you prefer to use a non
biological detergent, which does
not contain enzymes we
recommend Fairy. Fairy provides
good cleaning and stain removal.
COLOUREDS
For coloured items you should use a
detergent which is designed to clean
while maintaining the original colour.
Ariel Color does not contain bleach
and therefore helps to preserve
colours.
DELICATE ITEMS
When washing delicates such as
woollens, you should use a product
which is specially designed to care for
fine fabrics.
Dreft Automatic is suitable for woollens and other
delicates.
LAUNDRY BLEACH
For additional stain removal you may
wish to use a product such as Ace
Gentle Bleach which is used in
addition to your chosen detergent.
Ace is suitable for all washable
fabrics including silks, woollens and coloureds.
New_12108_14108.qxp 12/12/2005 5:41 PM Page 14

15
Wash Care Symbols
Wash care labels inside garments recommend how to launder your clothes with the best results. The care
labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select
the correct programme on your washing machine.
WASHING SYMBOL
BLEACHING
IRONING
DRY CLEANING
TUMBLE DRYING
WASH ACTION FABRIC
Hot iron
Warm iron
Cool iron
Cotton, Linen, Viscose
Polyester mixtures, Wool
Acrylic, Nylon, Polyester
Important Notes
For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by
pushing it in gently. This is particularly important if
you are using fabric conditioner to avoid the
conditioner entering the machine prematurely.
When using liquid detergent and a prewash
programme, place the detergent into the correct
compartment in the dispenser drawer, after the
prewash has finished.
95
60
50
40
40
40
Chlorine bleach may be used
May be tumble dried
with high heat setting
with low heat setting
A cross through any symbol means «DO NOT»
May be dry cleaned. Other letters and/or a bar beneath the circle will
indicate the required process to the dry cleaner.
Normal (Maximum)
Normal (Maximum)
White Cotton or Linen
without Special Finishes
Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60°C.
Reduced (Medium)
Normal (Maximum)
Reduced (Medium)
Much Reduced (Minimum)
Hand wash only
Nylon, Polyester/Cotton, Viscose
with Special Finishes,
Cotton/Acrylic Mix.
Cotton, Linen or Viscose
Colourfast at 40°C but not 60°C.
Acrylics, Acetate, Triacetate, Wool
mixes, Polyester/wool blends.
Wool, wool mixtures, Silks
Do not machine wash
X
New_12108_14108.qxp 12/12/2005 5:41 PM Page 15

16
Wash programmes
Fabrics
Type of Laundry Description of
Programme
Availble options Max. Load
*This programme at 60°c is the reference program for the energy label according to EEC directive 92/75
Programme table
Washing Programmes
Cottons
Xpress60°
Cotton
Economy*
Synthetics
Delicates
Wool
Handwash
Silk
Minipr.30
White and coloured
cotton e.g Sheets,
tablecloths,
household linen
Coloured cotton
e.g. shirts, blouses,
towels and
undergarments
Economy wash for
whites or fast
coloured cotton or
linen fabircs,
normally soiled shirts
Coloured cotton or
linen fabric,
normally soiled
shirts, blouses
Wool and
Delicates
Clothes labelled
“Purenew wool,
non-shrink machine
washable” and silk
fabric
Delicate fabrices,
Silk to be
handwashed
Main wash at -
-90°C
3 rinses
Long spin
Main wash at
30°C
3 rinses
Short spin
8 kg
4.5 kg
4.5 kg
3.5 kg
3.5kg
2 kg
2kg
1kg
4.5kg
Rinse
Rinse Hold
Prewash
Rinse
Easy Iron
Rinse Hold
Main wash at
60°C
3 rinses
Long spin
Main wash at
40°C-60°C
3 rinses
Long spin
Main wash at
-60°C
3 rinses
Long spin
Prewash
Quick
Rinse
Easy Iron
Rinse Hold
Main wash at
-40°C
3 rinses
Short spin
Rinse Hold
Main wash at
-40°C
3 rinses
Short spin
Rinse Hold
Special Programme
for extremly delicate
items.
Main wash at
30°C
3 rinses
Short spin
Rinse Hold
Rinse
Rinse Hold
Synthetics or
mixed fabrice e.g
lingerie, coloured
garments
Main wash at
-40°C
3 rinses
Short spin
Prewash
Quick
Rinse Hold
Rinse
Prewash
Quick
Rinse
Easy Iron
Rinse Hold
New_12108_14108.qxp 12/12/2005 5:41 PM Page 16

17
Wash programmes
Fabrics
Type of Laundry Description of
Programme
Availble options Max. Load
Programme table
Special Programmes
Seperate rinse cycle
for handwashed cotton
or linen items
Seperate Spin for
Cottons
Rinse
Delicate Rinse
Drain
Spin
Delicate Spin
Soak
Silk fabrics
Special Programme
for extremly delicate
items
Seperate spin for
delicate items
Seperate Soak
programme for
heavily soiled items
3 Rinses with liquid
additives if required
Long Spin at
maximum speed
Draining of water
Drain and Spin at
maximum speed
8 kg
8 kg
8 kg
8 kg
Rinse Hold
Rinse
Easy iron
3 Rinses with liquid
additives if required
Long Spin at
maximum speed
Rinse Hold
Easy Iron
Rinse
Drain and Spin at
maximum speed 3.5kg
Soak
3.5 kg
New_12108_14108.qxp 12/12/2005 5:41 PM Page 17

18
Maintenance and Cleaning
Before any maintenance or cleaning is carried out
you must DISCONNECT the appliance from the
electricity supply.
Descaling
The water we use normally contains lime. It is a good
idea to periodically use a water softening powder in
the machine. Do this separately from any laundry
washing, and according to the softening powder
manufacturer's instructions. This will help to prevent
the formation of lime deposits.
After each wash
Leave the door open for a while. This helps to
prevent mould and stagnant smells forming inside
the appliance. Keeping the door open after a wash
will also help to preserve the door seal.
Maintenance Wash
With the use of low temperature washes it is possible
to get a build up of residues inside the drum.
We recommend that a maintenance wash be
performed on a regular basis.
To run a maintenance wash:
• The drum should be empty of laundry.
• Select the hottest cotton wash programme.
• Use a normal measure of detergent, must be a
powder (such as Ariel Futur).
External cleaning
Clean the exterior cabinet of the appliance with mild
washing up liquid and water only, and then dry
thoroughly.

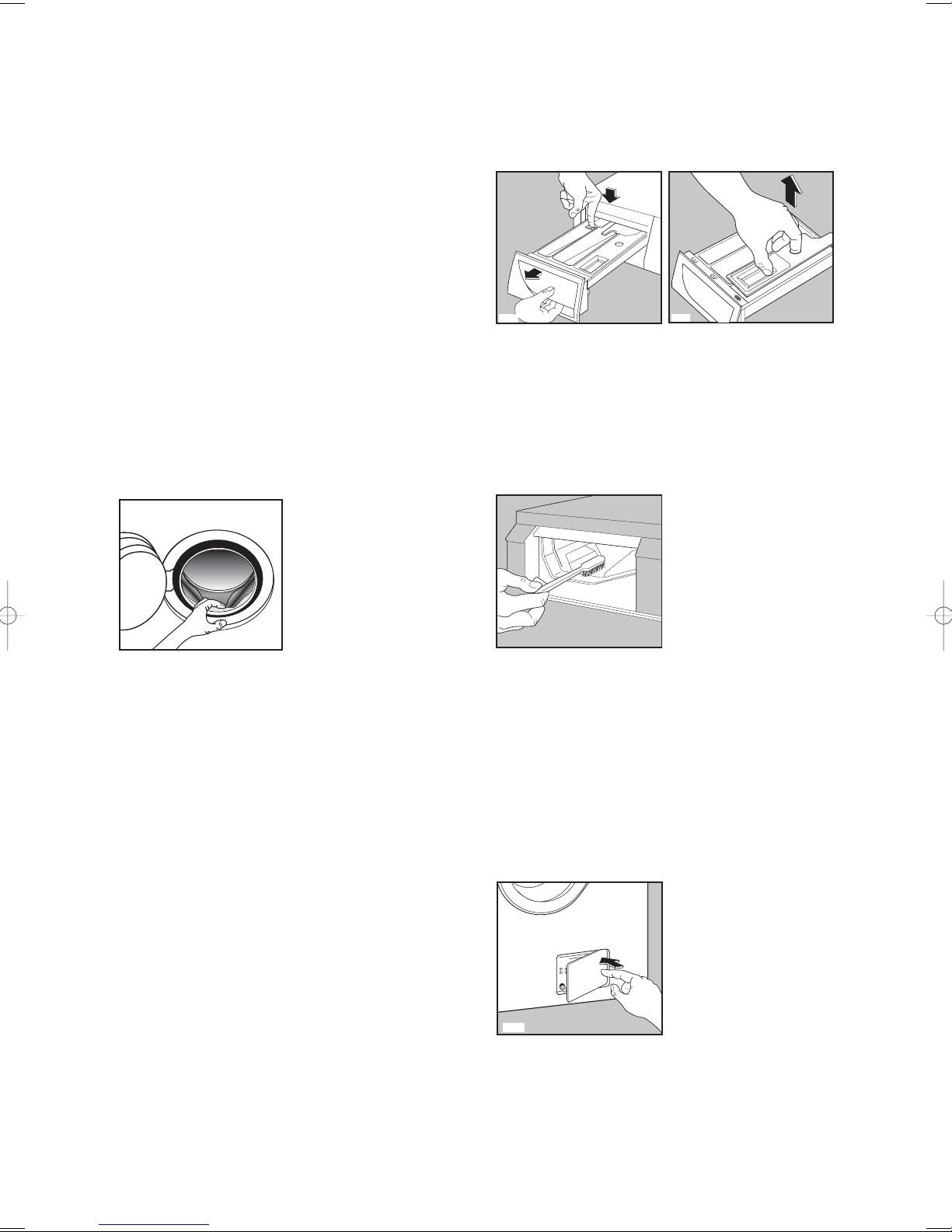

Cleaning the dispenser drawer
The washing powder and additive dispenser drawer
should be cleaned regularly.
Remove the drawer by pressing the catch
downwards and by pulling it out. Flush it out under a
tap, to remove any traces of accumulated powder.
To aid cleaning, the top part of the additive
compartment should be removed.
P1050
Cleaning the drawer recess
Having removed the drawer, use a small brush to
clean the recess, ensuring that all washing powder
residue is removed from the upper and lower part of
the recess.
Replace the drawer and run the rinse programme
without any clothes in the drum.
Cleaning the pump
The pump should be inspected regularly if
• the machine does not empty and/or spin
• the machine makes an unusual noise during
draining due to objects such as safety pins, coins
etc. blocking the pump.
Proceed as follows:
• Disconnect the appliance.
• If necessary wait until the water has cooled down.
• Open the pump door.
• Place a container close to the pump to collect any
spillage.
• Pull out the emergency emptying hose, place it in
the container and remove its cap.
P1114
P0038
C0067
C0066
New_12108_14108.qxp 12/12/2005 5:41 PM Page 18

19

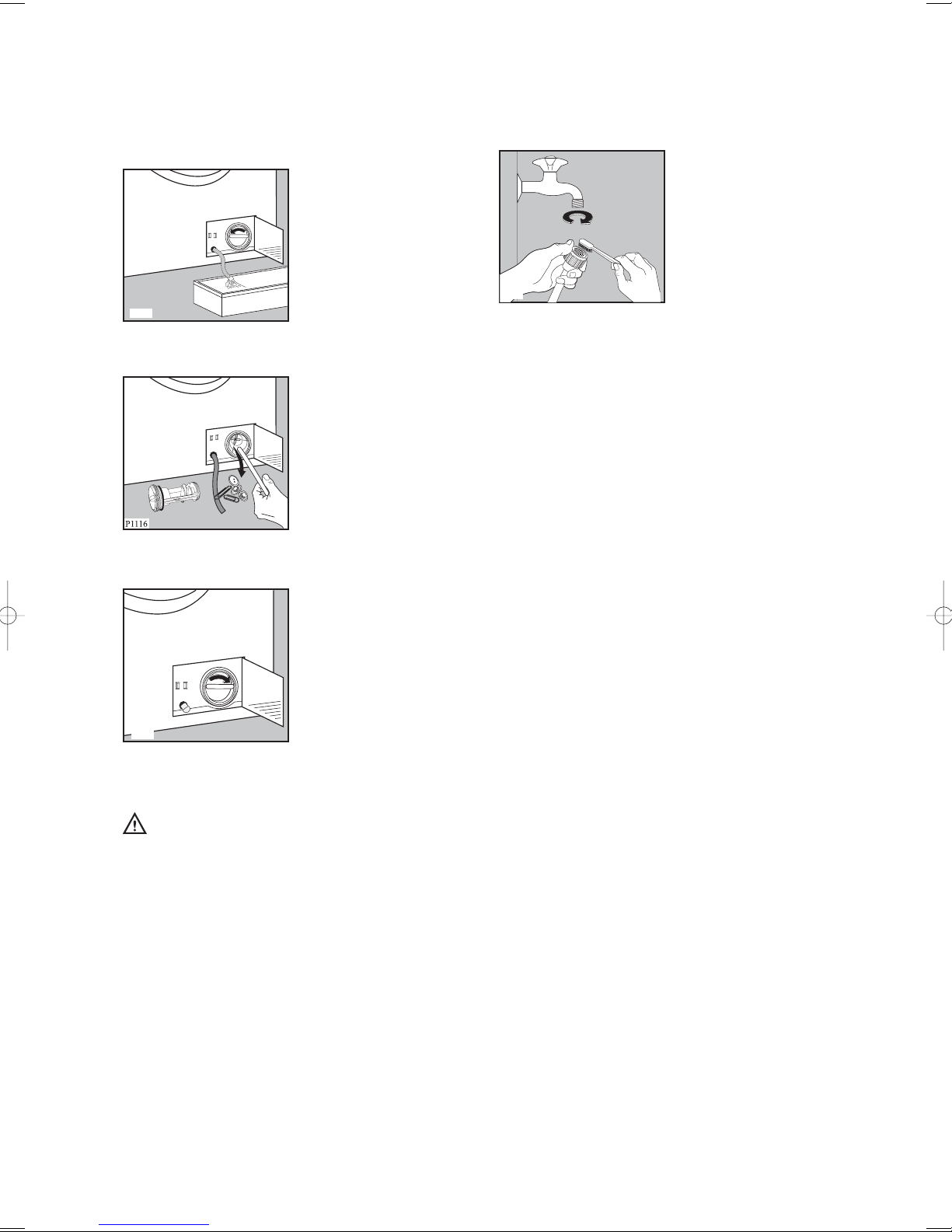

• When no more water comes out, unscrew the
pump cover and remove it. Always keep a rag
nearby to dry up spillage of water when removing
the cover.
• Remove any objects from the pump impeller by
rotating it.
• Put the cap back on the emergency emptying hose
and place the latter back in its seat.
• Screw the pump cover fully in.
• Close the pump door.
Warning
When the appliance is in use and depending on the
programme selected there can be hot water in the
pump. Never remove the pump cover during a wash
cycle, always wait until the appliance has finished the
cycle, and is empty. When replacing the cover,
ensure it is securely retightened so as to stop leaks
and young children being able to remove it.
Cleaning the water inlet filter
If your water is very hard or contains traces of lime
deposit, the water inlet filter may become clogged.
It is therefore a good idea to clean it from time to
time.
P1117
P1115
Turn off the water tap. Unscrew the water inlet hose.
Clean the filter using a hard bristle brush. Tighten up
the inlet hose.
The dangers of freezing
If the machine is exposed to temperatures below
0°C, certain precautions should be taken.
• Turn off the water tap.
• Unscrew the inlet hose.
• Place the end of the emergency emptying hose
and that of the inlet hose in a bowl placed on the
floor and let water drain out.
• Screw the water inlet hose back on and reposition
the emergency emptying hose after having put the
cap on again.
• When you intend to start the machine again, make
sure that the room temperature is above 0°C.
Important!
Every time you drain the water through the emergency
emptying hose you must pour 2 litres of water into the
main wash compartment of the detergent drawer and
then run the drain programme. This will activate the
ECO valve and avoid the detergent remains being
wasted.
Emergency emptying out
If the water is not discharged, proceed as follows to
empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the pump door;
• place a bowl on the floor and place the end of the
emergency emptying hose into the bowl. Remove
its cap. The water should drain by gravity into the
bowl. When the bowl is full, put the cap back on the
hose. Empty the bowl. Repeat the procedure until
water stops flowing out;
• clean the pump if necessary as previously
described;
• replace the emergency emptying hose in its seat
after having plugged it;
• screw the pump cover again and close the door.
P1090
New_12108_14108.qxp 12/12/2005 5:41 PM Page 19

20
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily
without calling out an engineer. Before contacting your local Service Force Centre, please carry out the
checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect
use or installation, a charge will be made even if the appliance is under guarantee.
During machine operation it is possible that one od the following alarm codes appears on the display and the
“End” light starts to flash:
-E10 : problem with the water supply
-E20 : problem with water draining
-E40 : door open
Once the problem has been eliminated, press the START button to restart the programme. If after all checks,
the problem persists, contact your local Service Force Centre.
Something not working?
The machine does not
start
• The door has not been closed. (E40)
• The plug is not properly inserted in the power socket.
• There is no supply at the socket.
• The main fuse or the fuse in the plug has blown.
• The Start button has not been pressed.
• The DELAY has been selected.
The machine does not
fill
• The water tap is closed. (E10 )
• The filter in the inlet hose is blocked. (E10 )
• The inlet hose may be squashed or kinked. (E10 )
• The door has not been closed. (E40)
The machine fills then
empties immediately
• The end of the drain hose is too low.
• The end of the drain hose is submerged in water.
• There is no vent in the end of the drain hose.
The machine does not
empty and/or does not
spin
• The drain hose may be squashed or kinked. (E20)
• The option has been selected.
• The drain pump may be blocked. (E20)
• The drain hose extension, if fitted, is not correct. Follow the
instructions for connecting to the waste.
• The drainage system pipes are blocked.
• The wash load is unbalanced: redistribute the clothes inside the
drum to allow the machine to spin.
There is water on the
floor
• Too much detergent or unsuitable detergent has been used
(creates too much foam).
• Check whether there are any leaks from the inlet hose fittings. It is
not always easy to see this as the water runs down the hose; check
to see if it is damp.
• The drain hose may be damaged or not securely positioned.
• The detergent dispenser drawer or recess is clogged.
• The drainage system pipes are blocked.
•The cap on the emergency emptying hose has not been replaced
after cleaning the pump.
Possible causes
Problem
New_12108_14108.qxp 12/12/2005 5:41 PM Page 20
