Electrolux W4400H User manual

438 9211-81/EN
2011.01.31
Installation manual
Washer extractors
W4400H, W4600H, W4850H, W41100H
Type W4.H.
Clarus Control
Installation manual in original language

3
Contents
Contents
Safety Precautions.....................................................................................5
Technical data............................................................................................7
Installation................................................................................................11
Location and surface...........................................................................11
Mechanical installation ........................................................................11
Machine equipped with weight measurement ....................................11
Connecting the water supply ..............................................................16
Steam supply.......................................................................................17
Compressed air connection ................................................................18
Drain ....................................................................................................20
Ventilation............................................................................................20
Detergent dispenser, non-liquid detergents........................................21
Installation of equipment for external liquid supply.............................21
Electrical installation............................................................................22
Tilt function (optional equipment) ............................................................26
The manufacturer reserves the right to make changes to design and
component specifications.

5
Safety Precautions
All external equipment which is connected to the machine must be CE/EMC-approved
and connected using an approved shielded cable.
Safety Precautions
The machine is only intended for water-wash use.
Do not allow minors to use the machine.
Do not hose down the machine with water.
The machine's door lock must under no circumstances be bypassed.
If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
The machine is not intended to be used by people (including minors) with reduced
physical or mental capacity or lack of experience and knowledge. Such people must
be instructed in the use of the machine by a person who has responsibility for their
safety. Minors must be supervised to ensure that they do not play with the machine.
In order to prevent damage to the electronics (and other parts) that may occur as the
result of condensation, the machine should be placed in room temperature for 24 hours
before being used for the first time.

7
W4400H W4600H W4850H W41100H
400 600 850 1100
920 980 1220 1220
37 36 42 42
825 800 720 663
36 36 or 54 – –
x x x x
x x x x
350 350 350 300
1095-1450* 1380-1480 2200-2300* 2300-2400*
75 76 73 73
W4400H W4600H W4850H W41100H
32 32 40 40
1 1/4" 1 1/4" 1 1/2" 1 1/2"
200-600 200-600 200-600 200-600
50-1000 50-1000 50-1000 50-1000
150 150 200 200
110 110 110 110
400 400 400 400
20 20 32 32
3/4" 3/4" 1 1/4" 1 1/4"
300-600 300-600 300-600 300-600
50-800 50-800 50-800 50-800
6 6 6 6
1/8" 1/8" 1/8" 1/8"
500-700 500-700 500-700 500-700
20 20 20 20
Water valves DN
connection BSP
Rec. water pressure kPa
Functioning limits
for water valve kPa
Capacity at
300 kPa l/min
Drain valve
outer Ø mm
Draining capacity l/min
Steam valve DN
connection BSP
Rec. steam pressure kPa
Functioning limits for
steam valve kPa
Compressed air DN
connection BSP
Rec. air pressure kPa
Consumption l/h
Innerdrum
volume litres
diameter mm
Drum speed
wash rpm
extraction rpm
Heating
electricity kW
steam
hot water
G-factor
Weight, net kg
Sound pressure level
dB (A)
Technical data
Technical data
Connections
* Precise weight depends on accessories fitted.

8
W4400H
A B C D E F G H I K L M N O P R S T U V
1325 1450 2015 910 300 1865 270 660 525 425 895 1425 420 435 2205 1140 2235 950 345 370
W4600H
A B C D E F G H I K L M N O P R S T U V
1390 1585 2015 910 300 1865 270 660 525 425 960 1425 420 435 2200 1120 2225 935 300 325
Technical data
Dimensions

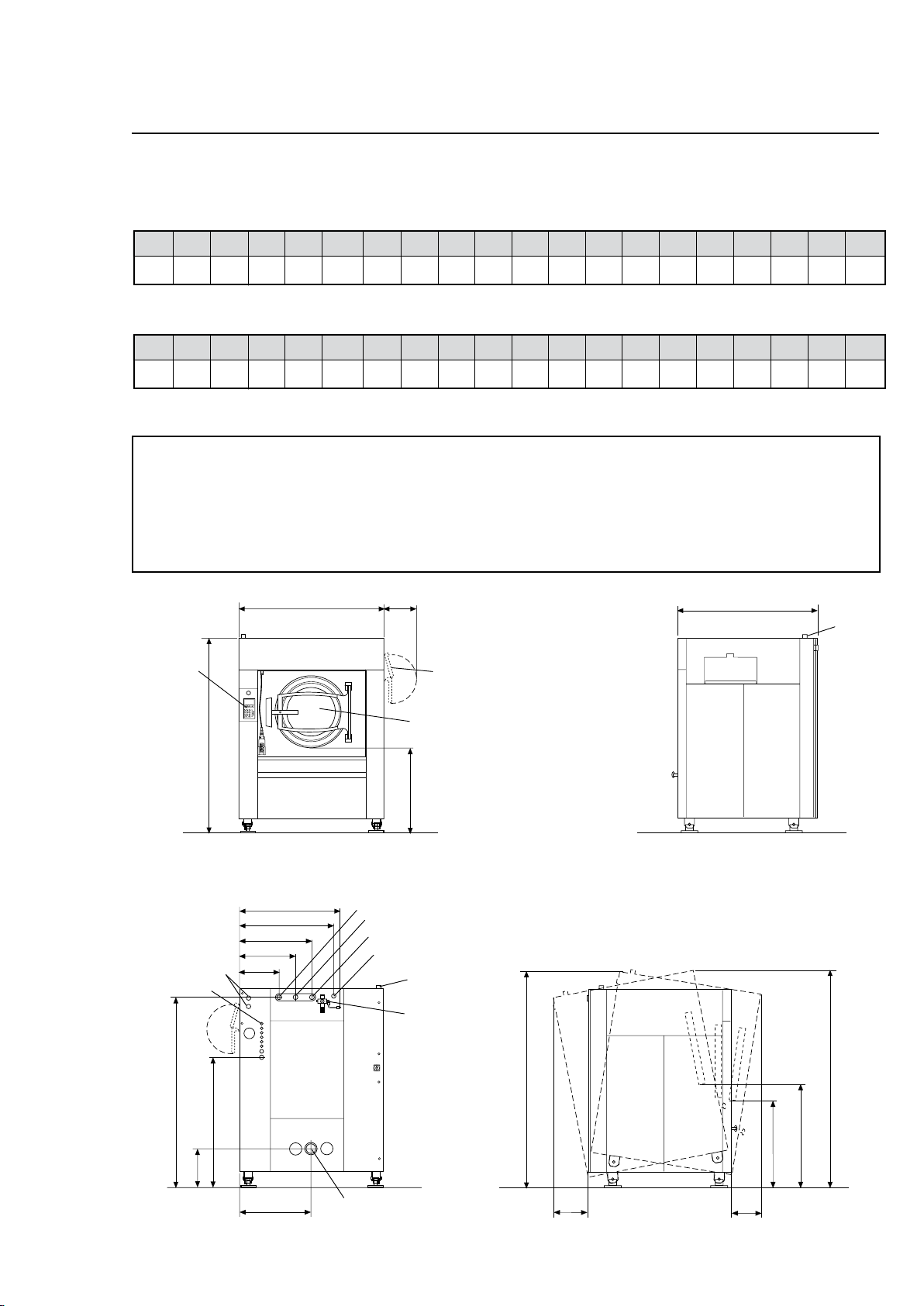

1 Control panel
2 Door opening ø 535
3 Soap supply injector, powder
(optional)
4 Cold water connection
5 Hot water connection
6 Third water connection (optional)
7 Steam connection
8 Drain
9 Electrical connection
10 Compressed air
11 External liquid supply,
6 pcs ø 10, 1 pc ø 16 and 1 pc ø 20
12 Water connection, soap supply injector (optional)
The movement
when tilting
Front Right side
Rear side
EA
C
D
6695
3
2
1
B
9
6696 A
L
H
I
K
G
M
F
N
O
4
5
6
7
12
11
8
9
10
6697 A
P
R
T
V
U
S
6698

9
W4400H
A B C D E F G H I K L M N O P R S T U V
1325 1450 2015 910 300 1865 270 660 525 425 895 1425 420 435 2205 1140 2235 950 345 370
W4600H
A B C D E F G H I K L M N O P R S T U V
1390 1585 2015 910 300 1865 270 660 525 425 960 1425 420 435 2200 1120 2225 935 300 325
W4850H
A B C D E F G H I K L M N O P R S T U V
1640 1635 2230 995 380 2135 1070 830 635 445 1140 1660 435 820 2410 1175 2480 960 285 400
W41100H
A B C D E F G H I K L M N O P R S T U V
1640 1850 2230 995 380 2135 1070 830 635 445 1140 1660 435 820 2400 1160 2480 955 240 335
1 Control panel
2 Door opening ø 700 mm / 27 9/16"
3 Soap supply injector, powder
(optional)
4 Cold water connection
5 Hot water connection
6 Third water connection (optional)
7 Steam connection
8 Drain
9 Electrical connection
10 Compressed air
11 External liquid supply, 6 pcs ø 10 mm / 3/8",
1 pc ø 16 mm / 5/8" and 1 pc ø 20 mm / 13/16"
12 Water connection, soap supply injector (optional)
Dimensions
The movement
when tilting
Front Right side
Rear side
EA
C
D
6695
3
2
1
B
9
6696 B
L
G
H
I
K
M
F
N
O
4
5
6
7
12
11
8
9
10
6697 B
P
R
T
V
U
S
6698
Technical data

10 Technical data
W4400H W4600H W4850H W41100H
13.8 12.7 12.0 11.1
15.8 ± 1.2 15.9 ± 6.4 22 ± 7.3 24 ± 7.3
Frequency of the
dynamic force Hz
Max floor load
at extraction kN
Technical data
5.5 6 6.7 6.8
Sound levels
Airborne sound level
dB (A) re 2x10-5 Pa
With insulation
Motor
Power consumption kW
75 76 73 73
< 70 < 70 < 70 < 70

11
Installation
For the installation of machines with optio-
nal equipment (such as the tilt function),
see also the section ”Optional equipment”
at the end of this manual.
The washer extractor is supplied bolted in place
on a pallet and packaged in a delivery crate. In
some cases the machine may be supplied in wa-
terproof/dustproof packaging. The direction from
which the machine must be lifted and the machi-
ne centre of gravity are shown on the packaging.
Location and surface
The machine must not be sited over an open
floor drain. Check that the floor has an even
surface and is level. The floor must be capable of
withstanding the following: See "Technical data".
The following clearances are recommended:
• atleast1000mmbetweenthemachineand
any wall behind it.
• atleast500mmateachside,betweenthe
side of the machine and a wall, or between
machines where these are side by side.
Mechanical installation
• Removethepackagingmaterial.Removethe
machine’s rear cover, side panels and lower
front panel.
• Removetheeightboltssecuringthe
machine’s outer- and innerframe onto the
pallet.
Machine equipped with weight measurement
The load cells, which are fitted by the machine’s
feet, are sensitive to knocks and impacts.
1
2
3
Installation
1
5541
3
5543
2
5542
 
1000 mm 500 mm

12 Installation
4
5

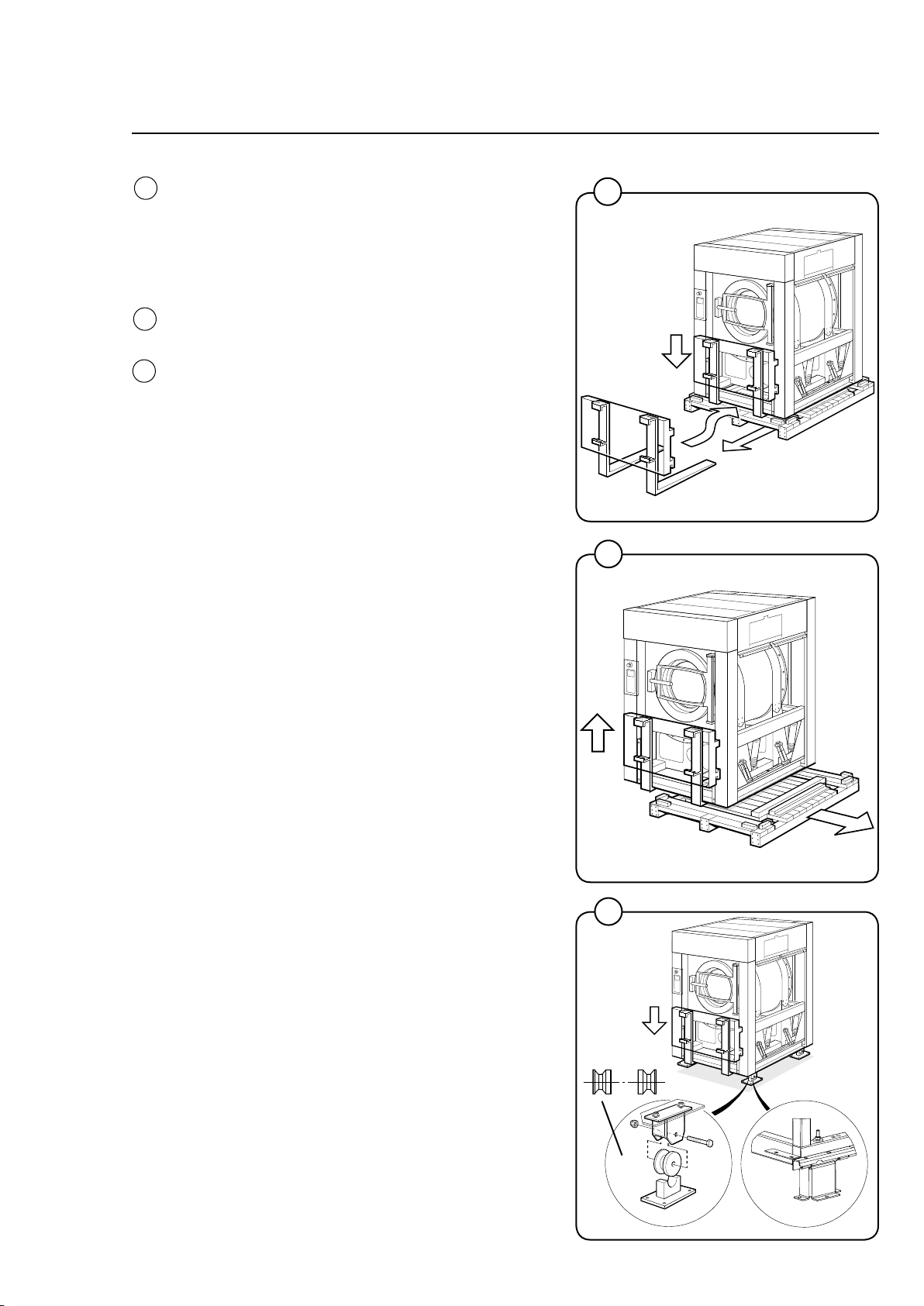

• Useafork-lifttrucktoliftthemachine.
• Positionthefourblocksofwoodsupplied,
one beneath each machine foot (on the outer
frame), within the recesses in the pallet.
7222
5
4
5545

13
6
7
8
Installation
• Lowerthemachine(A)andwithdrawthetruck
forks (B). The machine should now be stan-
ding on the four blocks, and the pallet will be
on the floor, clear of the machine. The next
step is to insert the truck forks very carefully
between machine and pallet (C).
• Liftthemachineandremovepalletand
blocks.
• Thefeetcanbeoftwotypes:xedfeetor
rotating feet if the machine is to be fitted with
tilt or weighing function. For machines with tilt
or weighing function: screw on the machine’s
feet.
• Ifthemachineistohavethetiltfunction,this
is a suitable time to install the corner posts
which hold the protective plates, and also,
where applicable, the position sensors (see
the section ”Tilt function (optional equip-
ment)”).
• Itisimportantthatthewheelsareinstal-
led with the wider side facing in towards the
machine in order for the tilt protection to fit.
6
8
7
5547
5548
7223




14 Installation
9
10
For machines with tilt or weighing function
W4400H W4600H W4850H W41100H
A1325 1390 1640 1640
B1445 1605 1635 1850
C1170 1325 1380 1600
D200 200 200 200
E50 45 45 45
F1340 1400 1640 1640
G140 140 140 140
H-10 -10 0 0
K275 275 270 270
L715 870 925 1140
M665 695 820 820
N 335 335 335 335
O 335 335 335 335
PTilting devices

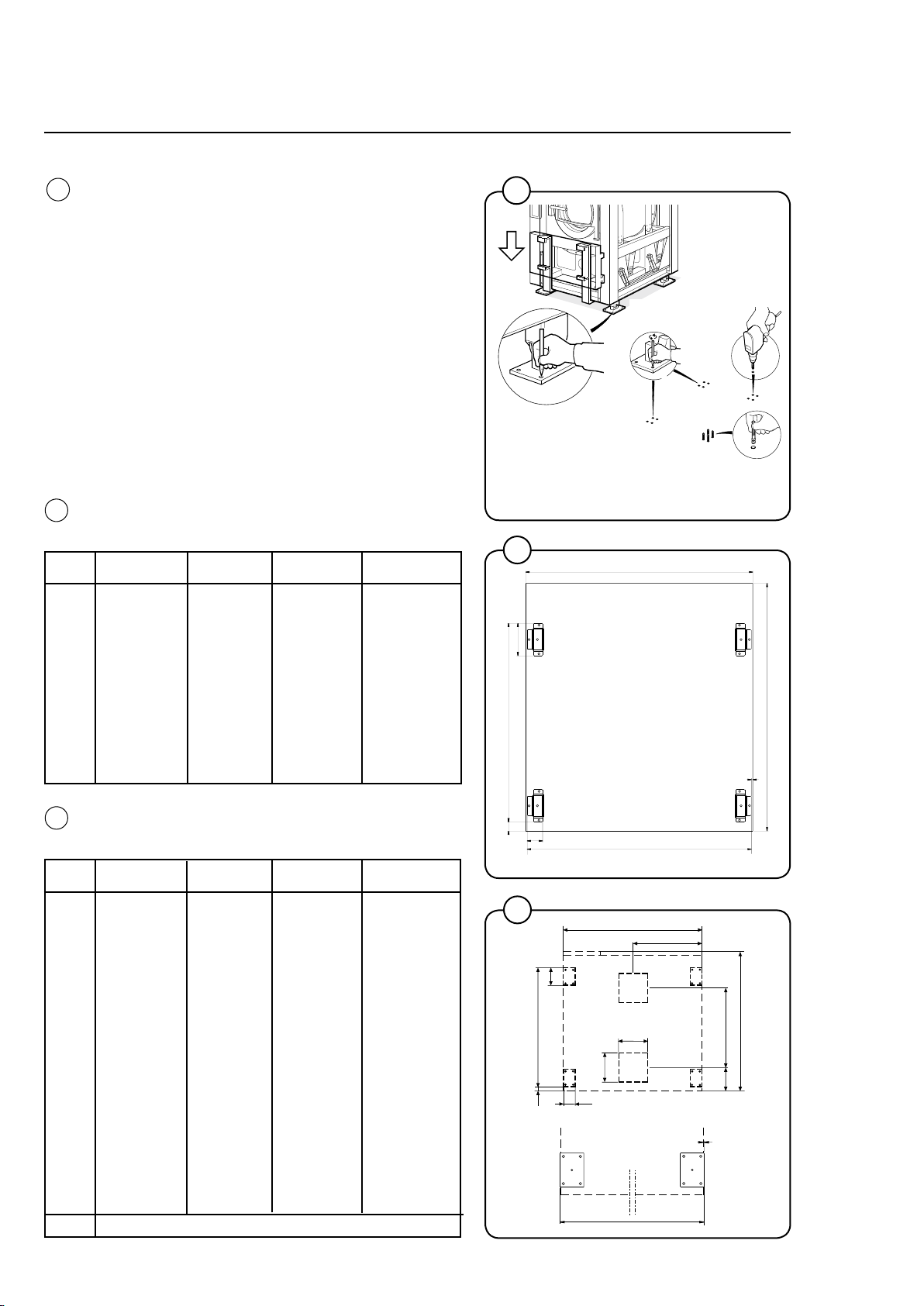

• Putthemachineinplace.Markoutanddrill
the holes for fixing the feet. Hole diameter:
15 mm.
9
5550, 6056
10
W00258
FRONT



For standard machines
W4400H W4600H W4850H W41100H
A1325 1390 1640 1640
B1445 1605 1635 1850
C1160 1315 1370 1585
D190 190 190 190
E50 50 50 50
F1310 1370 1610 1610
G90 90 90 90
H 10 10 15 15
11
A
C
D
E
F
G
H
M
L
K
B
O
N
P
P
5868A
FRONT
A
B
C
F
G
E
D
H
11

15

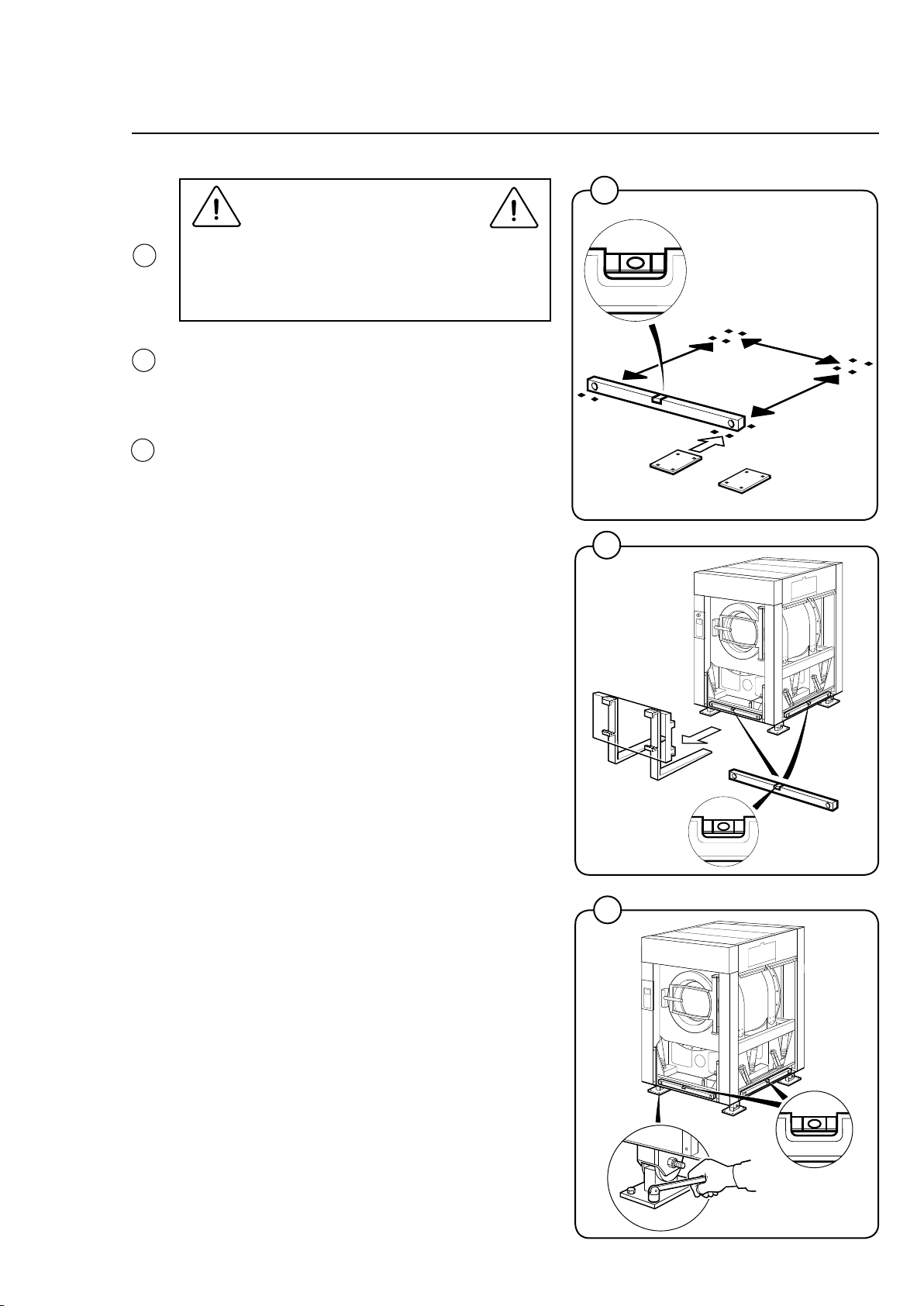

• Putthemachineinplace.Useaspiritlevelon
suitable surfaces of the outer frame to check
that the machine is level. Check too that the
machine is resting firmly on all four feet.
• Boltthemachinefeettotheoor.Thencheck
again that the machine is resting firmly (without
movement) and is level.
Use a spirit level and, where necessary,
the ”washers” (or rectangular metal plates)
supplied, to ensure that the floor mountings
are level.
12
Installation
13
14
12
3742
13
5551
14
5552

16
15
Installation
Connecting the water supply
The supply pipes to the machine should be fitted
with manual shut-off valves to facilitate installa-
tion and service. Fit filters to the manual shut-off
valves. Refer to local utilities regulations when
fitting non-return valves.
The hoses should be rated for high pressure and
for 2.5 MPa.
The following values apply to water pressure:
• recommended: 300-600kPa
• limitingvalues, min:50kPa
max: 1 MPa
The hoses should be flushed through before
being connected to the machine.
The hoses should hang in gradual arcs. This is
particularly important if the machine is fitted with
a tilting function. Connections with pipes directly
to the machine are not allowed.

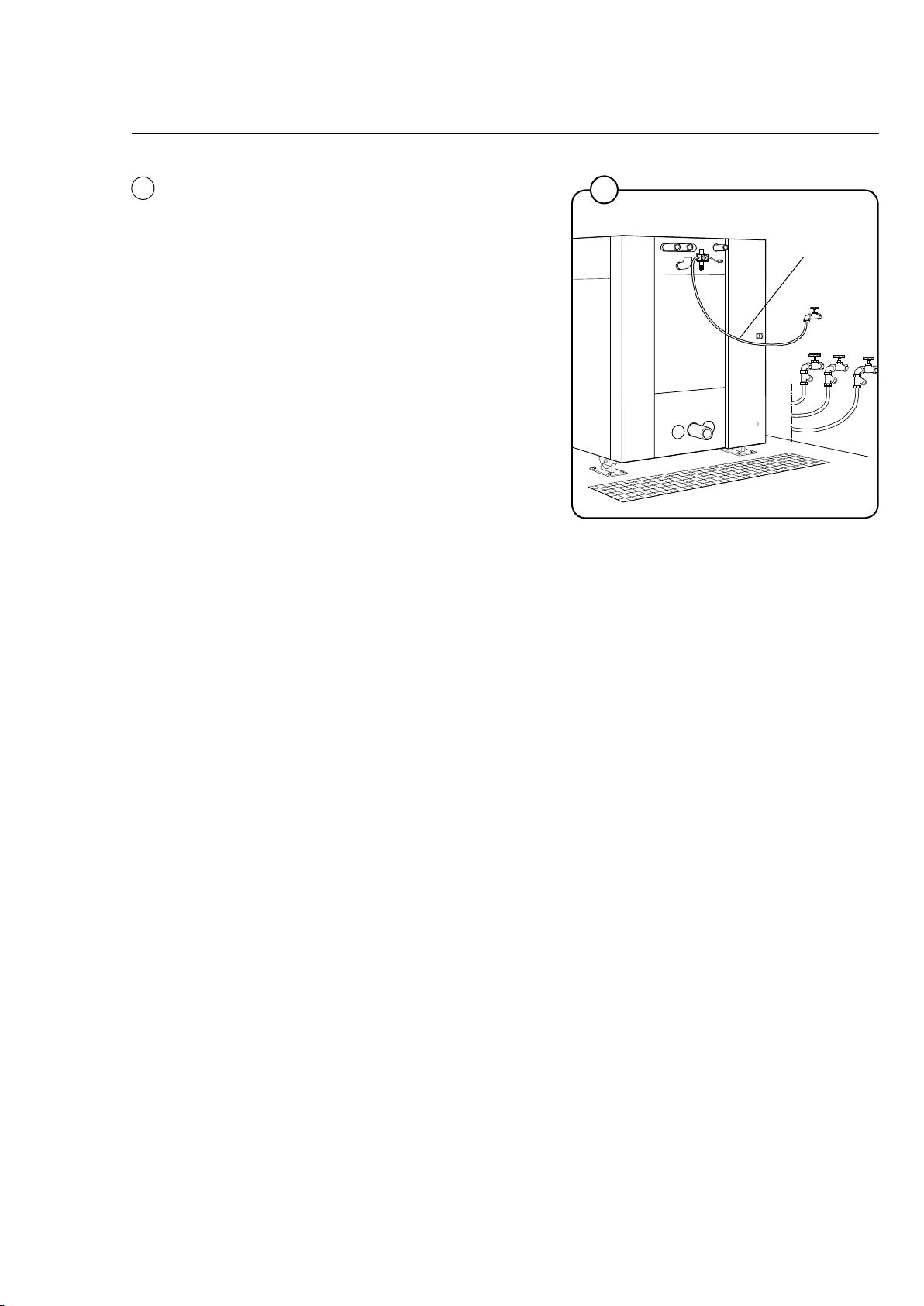

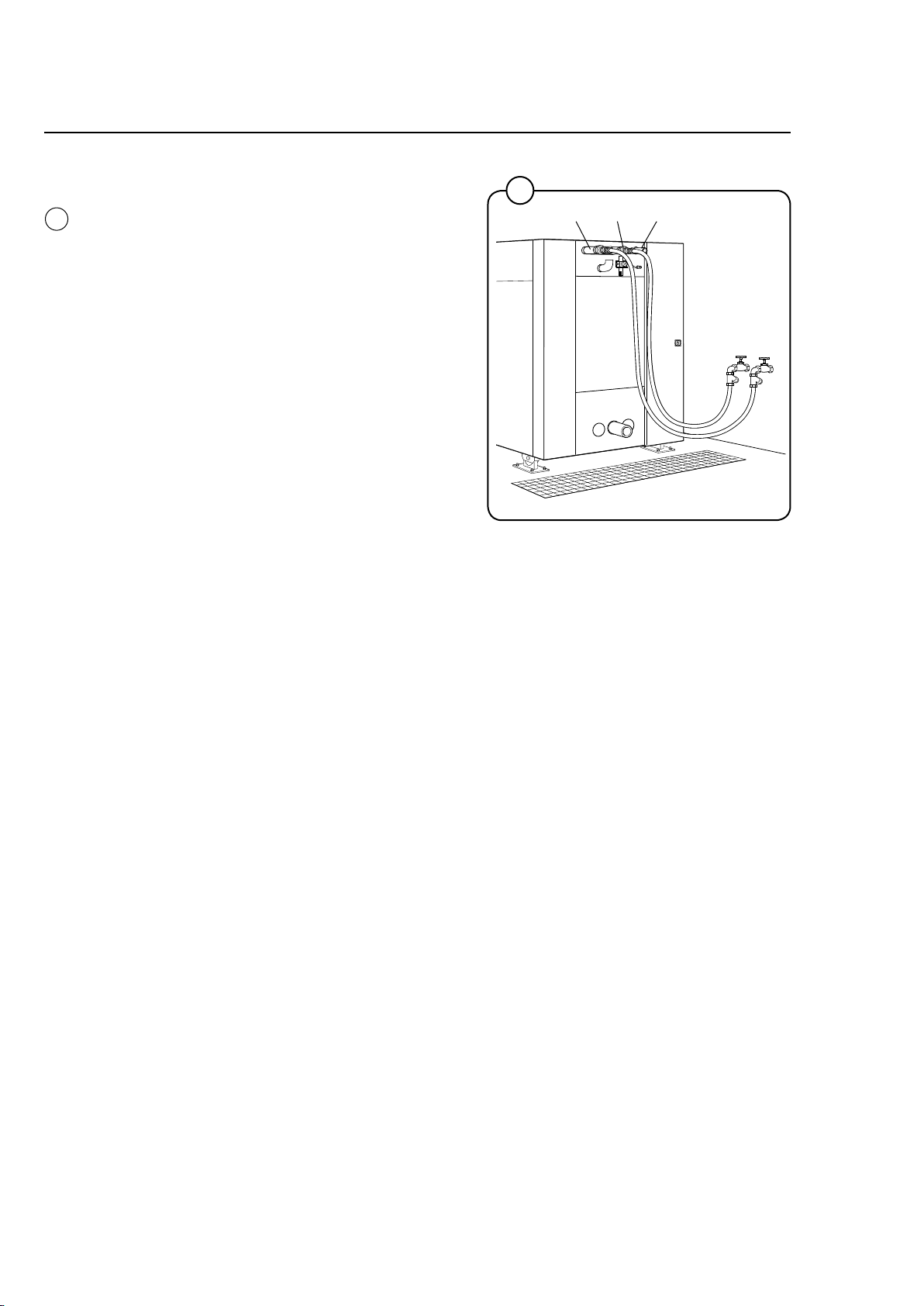

Connect the hoses as follows:
• coldwaterto(A)
• hotwaterto(B)
• (ifusingathirdwatersupply:)thethirdwater
hose to (C).
W4400H, W4600H
Sizes of A, B and C: DN 25 (1" BSP).
W4850H, W41100H
Sizes of A, B and C: DN 32 (1 1/4" BSP).
15
5869
A B C

17
Installation
16
Steam supply
The supply hose (A) must have a manual shut-off
valve to make installation and servicing easier.
Fit filter to the manual shut-off valve. Connec-
tions with pipes directly to the machine are not
allowed.
Connect an approved hose between filter and
machine. The following values apply to steam
pressure:
• recommended: 300-600kPa
• limitingvalues, min:50kPa
max: 800 kPa
The hose should hang in a gradual arc. This is
particularly important if the machine is fitted with
a tilting function.
W4400H, W4600H
Connection size: DN 20 (3/4" BSP).
W4850H, W41100H
Connection size: DN 32 (1 1/4" BSP).
16
A
4138
W4400H, W4600H
A
5870
W4850H, W41100H

18
Compressed air connection
A pressure regulator complete with water sepa-
ration device is to be installed on the machine.
When the machine is supplied, the angled coup-
ling (1), hose (2) and bracket (3) for the pressure
regulator will already be installed.
Install the quick-connector for the hose and a
bushing (for the hose from the compressed air
supply) on the pressure regulator.
Install the regulator on the bracket using two
screws. Connect the compressed air hose using
the quick-connector. Screw on the pressure
gauge (1).
Installation
17
18
19
17
18
5873
3968
19
5874
3
2
1
1
Bushing
Quick connector

19
Installation
20 Connect the hose from the compressed air
supply to the bushing on the pressure regulator.
Connect the hose so it hangs in a gentle arc.
This is particularly important if the machine has
the tilt function.
The connecting hose must be rated for a
pressure of at least 1 MPa.
The following values apply to the compressed air
supply:
• Recommendedpressure:500-700kPa
20
5871
A

20 Installation
21
22
Drain
The connector for the machine discharge (A) has
an external diameter of 110 mm. The distance
between the machine and the floor gully or drai-
nage channel should be at least 250 mm.
Connect a hose or a pipe to the drain connec-
tion. Avoid acute angles or kinks which could im-
pede the flow. The hose or pipe should open into
a floor gully, drainage channel or similar waste
outlet. Make sure that the hose’s function is un-
affected by the tilting function if the machine has
this feature.
If the machine has a second discharge, B and C
must also be connected to the floor drain.
Ventilation
The vent (A) from the washing machine drum is
at the back of the machine. If bleach or other
additives are used, the pipe should be extended
and connected to a ventilation system.
21
5577
250 mm
A
B
22
5572
A
C
