Electrolux WA GL2 T 201 User manual

WA GL2 T 201
................................................ .............................................
EN WASHING MACHINE USER MANUAL

Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Safety instructions 3
Product description 5
Accessories 5
Control panel 6
Washing programmes 8
Before first use 11
Using the appliance 11
Helpful hints and tips 14
Care and cleaning 15
Troubleshooting 17
Technical information 19
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and dam-
ages. Always keep the instructions with the appliance for fu-
ture reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the haz-
ards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when
it is open.
• If the appliance has a child safety device, we recommend
you activate it.
• Cleaning and user maintenance shall not be made by chil-
dren without supervision.
2 electrolux

GENERAL SAFETY
• Before maintenance, deactivate the appliance and discon-
nect the mains plug from the mains socket.
• Do not change the specification of this appliance.
• Obey the maximum load volume of 6 kg (refer to the “Pro-
gramme chart” chapter).
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
• The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
SAFETY INSTRUCTIONS
INSTALLATION
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Do not install or use a damaged appli-
ance.
•Donotinstalloruse the appliance where
the temperature is less than 0 °C or
where it is exposed to the weather.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the floor where you install
the appliance is flat, stable, heat resistant
and clean.
• Do not install the appliance where the ap-
pliance door can not be fully opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure that there is air circulation be-
tween the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply cable
need to be replaced, this must be carried
out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
electrolux 3

• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to the
water mains using the new supplied
hose-sets. Old hose sets must not be
reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time,
let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
USE
Warning! Risk of injury, electrical
shock, fire, burns or damage to the
appliance.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Obey the safety instructions on the deter-
gent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Make sure that you remove all metal ob-
jects from the laundry.
• Do not put a container to collect possible
water leakage under the appliance. Con-
tact the Service to ensure which acces-
sories can be used.
CARE AND CLEANING
Warning! Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the ap-
pliance and disconnect the mains plug
from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the appli-
ance.
4 electrolux

PRODUCT DESCRIPTION
2
3
1
5
4
6
98
10
11
7
12
1Control panel
2Lid
3Lid button
4Filter access door
5Lever to move the appliance
6Adjustable feet
7Rating plate
8Mains cable
9Water inlet valve
10 Water drain hose
11 Transit bolts
12 Feet for the appliance level
ACCESSORIES
1 2 3
1Plastic cap
To close the hole on the rear side of
the cabinet, after the removal of the
transit bolt.
2Plastic hose guide
To connect the drain hose on the edge
of a sink.
3Anti-flood inlet hose
To prevent possible leakage.
electrolux 5

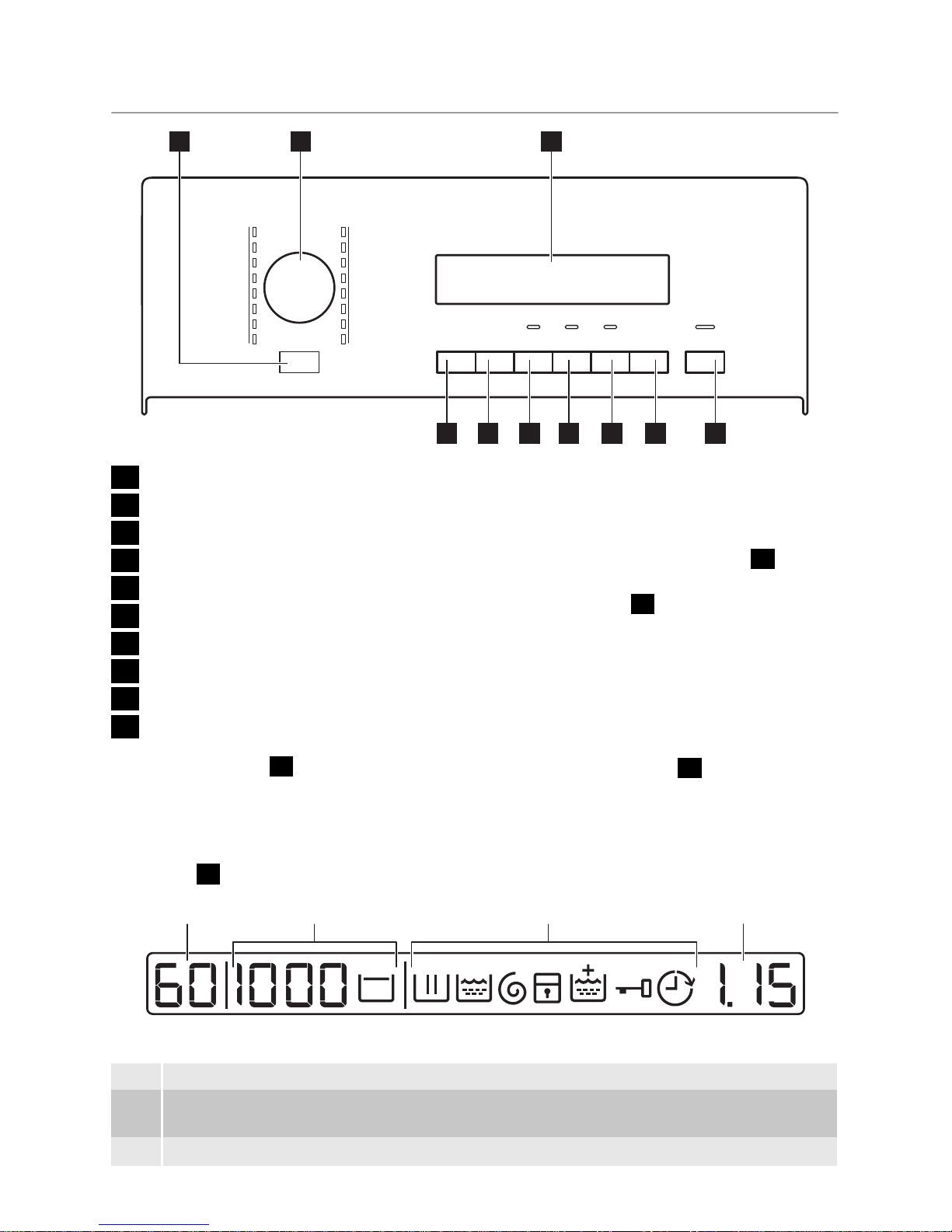

CONTROL PANEL
1 2 3
45678910
1On/Off button
2Programme knob
3Display
4Start/Pause button
5Delay start button
6Time saving button
7Liquid detergent button
8Stain button
9Spin button
10 Temperature button
ON OFF BUTTON 1
Press this button to activate or deactivate
the appliance. A tune sounds when the ap-
pliance is activated.
The AUTO Stand-by function automatically
deactivates the appliance to decrease the
energy consumption when:
• You do not use the appliance for 5 mi-
nutes before you press button
4
.
– All settings are cancelled.
–Press button
1
to activate the appli-
ance again.
– Set again the washing programme and
all possible options.
• After 5 minutes from the end of the
washing programme. Refer to 'At the end
of programme'.
PROGRAMME KNOB 2
Turn this knob to set a programme. The re-
lated programme indicator comes on.
DISPLAY 3
A B C D
The display shows:
A• The maximum temperature of the programme.
B• The default spin speed of the programme.
•'No Spin'
1)
and 'Rinse Hold' symbols.
C•The display symbols.
2)
6 electrolux

Symbols Description
Washing phase
Rinse phases
Spin phase
Child lock
Extra rinse
You cannot open the appliance door when the symbol is on.
You can open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• There is water in the drum.
• The 'Rinse Hold' function is on.
Delay start
D• The programme time
When the programme starts, the time decreases with steps of 1 minute.
•Thedelaystart
When you press the delay start button, the display shows the delay start time.
•Alarmcodes
If the appliance has a malfunction, the display shows alarm codes. Refer to 'Troubleshoot-
ing' chapter.
•Err
The display shows this message for some seconds if:
– You set a function that is not applicable for the programme.
– You change the programme while it operates.
The indicator of the Start/Pause button
4
flashes.
•
When the programme is completed.
1) Only available for Spin/Drain programme.
2) The symbols appear on the display when the related phase or function is set.
START/PAUSE BUTTON 4
Press button
4
to start or interrupt a pro-
gramme.
DELAY START BUTTON 5
Press button
5
to delay the start of a pro-
gramme from 30 minutes to 20 hours.
TIME SAVE BUTTON 6
Press the button
6
to decrease the pro-
gramme duration.
• Press one time to set 'Shortened dura-
tion' for items with daily soil.
• Press two times to set 'Extra Quick' for
items with almost no soil.
Some programmes accept only one of
the two functions.
LIQUID DETERGENT BUTTON 7
Press button
7
to adapt the cycle if you
use a liquid detergent.
STAIN BUTTON 8
Press button
8
to add the stain phase to a
programme.
Use this function for laundry with hard
stains to remove.
When you set this function, put the stain re-
mover into compartment .
electrolux 7

This function increases the programme
duration.
This function is not available with a
temperature lower than 40° C.
SPIN BUTTON 9
Press this button to:
• Decrease the maximum speed of the
spin phase when you set a programme.
The display shows only the spin
speeds available with the set pro-
gramme.
• Deactivate the spin phase.
• Activate the 'Rinse Hold' function. Set
this function to prevent fabric creases.
The appliance does not drain the water
when the programme is completed.
Spin phase is off.
'Rinse Hold' function is on.
TEMPERATURE BUTTON 10
Press button
10
to change the default tem-
perature.
- - = cold water
ACOUSTIC SIGNALS FUNCTION
You can hear the acoustic signals when:
• You activate the appliance.
• You deactivate the appliance.
•Youpressthe buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic sig-
nals, press button
5
and button
6
at the
same time for 6 seconds.
If you deactivate the acoustic signals,
they continue operate only when you
press the buttons and when a malfunc-
tion occurs.
CHILD LOCK FUNCTION
This function prevents children to play with
the control panel.
•To activate the function, press button
9
and button
10
at the same time until the
display shows the symbol .
• To deactivate the function, press button
9
and button
10
at the same time until
the symbol goes off.
You can activate the function:
• Before you press the Start/Pause button
4
: the appliance cannot start.
• After you press the Start/Pause button
4
, all the buttons and the programme
knob are deactivated.
PERMANENT EXTRA RINSE FUNCTION
With this function you can keep the extra
rinse function permanently on when you set
a new programme.
•To activate the function press button
7
and button
8
at the same time until the
indicator is on.
• To deactivate the function press button
7
and button
8
at the same time until
the indicator is off.
WASHING PROGRAMMES
Programme
Temperature
Type of load
max. weight of load
Cycle
description
Functions
Cottons
(Koch/Bunt / Blanc/
Couleurs)
95° - Cold
White and coloured cotton
with normal soil.
max. 6 kg
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
1)
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
8 electrolux

Programme
Temperature
Type of load
max. weight of load
Cycle
description
Functions
Cottons + Prewash
(+ Vorwäsche / +
Prélavage)
95° - Cold
White and coloured cotton
with heavy soil.
max. 6 kg
Prewash
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
Extra Silent
(Extra Leise / Extra
Silence)
95° - Cold
White and coloured cotton
with normal soil.
max. 6 kg
Wash
Rinses
Stop with water in the
drum
STAIN
1)
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
Synthetics
(Pflegeleicht / Syn-
thétiques)
60° - Cold
Synthetic or mixed fabric
items with normal level of
soil.
max. 3 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN
1)
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
Easy Iron
(Leichtbügeln / Re-
passage Facile)
3)
60° - Cold
Synthetic fabric items with
normal soil.
max. 1 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
Delicates
(Feinwäsche / Déli-
cats)
40° - Cold
Delicate fabrics as acrylics,
viscose, polyester items
with normal soil.
max. 3 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN
1)
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
Wool/Silk
(Wolle/Seide / Laine/
Soie)
40° - Cold
Machine washable wool.
Hand washable wool and
delicate fabrics with «hand
washing» care symbol.
max. 1 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
LIQUID DETERGENT
Pillows
(Daunen / Couette)
60° - 30°
One synthetic blanket, du-
vet, bedspread and so on.
max. 2,5 kg
Wash
Rinses
Short spin
SPIN REDUCTION
LIQUID DETERGENT
Spin/Drain
(Schleudern/Pump-
en / Essorage/Vi-
dange)
4)
All fabrics
The maximum load of the
laundry is related to the
type of laundry.
Drainage of the water
Spin phase at the
maximum speed.
SPIN REDUCTION
NO SPIN
Rinse
(Spülen / Rinçage)
All fabrics. One rinse with addi-
tive spin phase
SPIN REDUCTION
RINSE HOLD
LIQUID DETERGENT
EXTRA RINSE
5)
Jeans
60° - Cold
All items in jeans. Jersey
made items with hi-tech
materials.
max.3 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
20 Min. - 3 kg
40° - 30°
Cotton and synthetic items
with light soil or worn only
one time.
Wash
Rinses
Short spin
SPIN REDUCTION
LIQUID DETERGENT
electrolux 9

Programme
Temperature
Type of load
max. weight of load
Cycle
description
Functions
Super Eco
6)
Cold
Mixed fabrics (cotton and
synthetic items).
max. 3 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
LIQUID DETERGENT
EXTRA RINSE
Cottons Eco
(Baumwolle Eco/
Coton Eco)
7)
60° - 40°
White and fast coloured
cotton with normal soil.
max. 6 kg
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
LIQUID DETERGENT
EXTRA RINSE
TIME SAVE
2)
1) The STAIN function is not available with a temperature lower than 40°C.
2) if you press the button 6 two times (Extra Quick duration), we recommend that you decrease the quantity of the
load. It is possible to load fully the appliance, however the washing results are reduced.
3) The wash and spin phase is soft to prevent the creases of the laundry. The appliance adds some rinses.
4) The default phase of the spin speed is related to cotton items. Set the spin speed. Make sure that it agrees with
the laundry. To select the DRAIN programme only, set the function NO SPIN.
5) Press EXTRA RINSE button to add rinses. With a low spin speed the appliance performs delicate rinses and a
short spin.
6) Set this programme to decrease the time and the consumption of energy and water.
7) Standard programmes for the Energy Label consumption values] according to regulation 1061/2010, the
“Baumwolle Eco/ Coton Eco 60° C” and “Baumwolle Eco/ Coton Eco 40° C” are respectively the “standard 60° C
cotton programme” and the “standard 40° C cotton programme”. They are the most efficient programmes in
terms of combined energy and water consumption for washing normally soiled cotton laundry.
Set this programme to have a good washing results and decrease the energy consumption. The time of the
washing programme is extended. For cotton economy programmes you can set only the Extra Quick duration.
STEAM PROGRAMMES
Programme
1)
Type of load Max. load
Steam Refresh
(Dampf Auffrischen / Rafraîchir Vapeur)
This cycle removes odours from the
laundry.
Steam does not remove animal
odours.
Cotton and synthetic items.
Do not set the Steam programme for
this type of clothes:
• Clothes which is not specified on
the care label as being suitable for
tumble-drying.
• Clothes with inclusion of plastic,
metal, wooden parts or alike.
up to 1 Kg
Steam Dewrinkle
(Dampf Glätten / Défroissage Vapeur)
This programme helps to dewrinkle
the laundry.
up to 1 Kg
Steam can be used for dried, washed or worn once laundry. These programmes can reduce
creases and odours and make your laundry more smooth.
Do not use any detergent. If necessary, remove stains by washing or using localized stain re-
moval.
Steam programmes do not perform any hygienic cycle.
1) If you set a Steam programme with dried laundry, at the end of the cycle the laundry feels humid. It is better to
expose clothes to the fresh air for about 10 minutes to let the humidity dry. Laundry should be removed from the
drum as quick as possible. After a steam cycle, clothes may to be ironed anyway, but with less effort!
CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the data: the
quantity and type of laundry, the water and ambient temperature.
10 electrolux

Programmes Load
(Kg)
Energy con-
sumption
(kWh)
Water con-
sumption (li-
tre)
Approximate
programme
duration (mi-
nutes)
Remaining
moisture
(%)
1)
Cottons 60 °C 61.10 56 180 52
Cottons 40 °C 60.60 54 170 52
Synthetics 40 °C 30.45 45 105 35
Delicates 40 °C 30.51 46 85 35
Wool/Hand wash
30 °C 10.33 46 60 30
Standard cotton programmes
Standard 60 °C
cotton 60.83 44 182 52
Standard 60 °C
cotton 30.55 33 145 52
Standard 40 °C
cotton 30.42 33 129 52
1) At the end of spin phase.
Off Mode (W) Left On Mode (W)
0.48 0.48
The information given in the charts above are in compliance with the EU Commission regulation
1015/2010 implementing directive 2009/125/EC.
BEFORE FIRST USE
Put a small quantity of detergent in the
main wash compartment of the detergent
dispenser. Set and start a programme for
cotton at the highest temperature without
laundry. This removes all possible dirt from
the drum and the tub.
USING THE APPLIANCE
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
3. Press button
1
to activate the appli-
ance.
4. Put the laundry in the appliance.
5. Use the correct quantity of detergent
and additives.
6. Set and start the correct programme
for the type of laundry and soil.
LOADING THE LAUNDRY
A
1. Open the lid of the appliance.
2. Push the button A (depending on mod-
el). The drum opens automatically.
3. Put the laundry. Make sure to not put
too much laundry into the drum.
4. Close the drum and the lid of your
washing machine.
electrolux 11

Important! Before you close the lid of your
appliance, make sure that you close the
drum correctly.

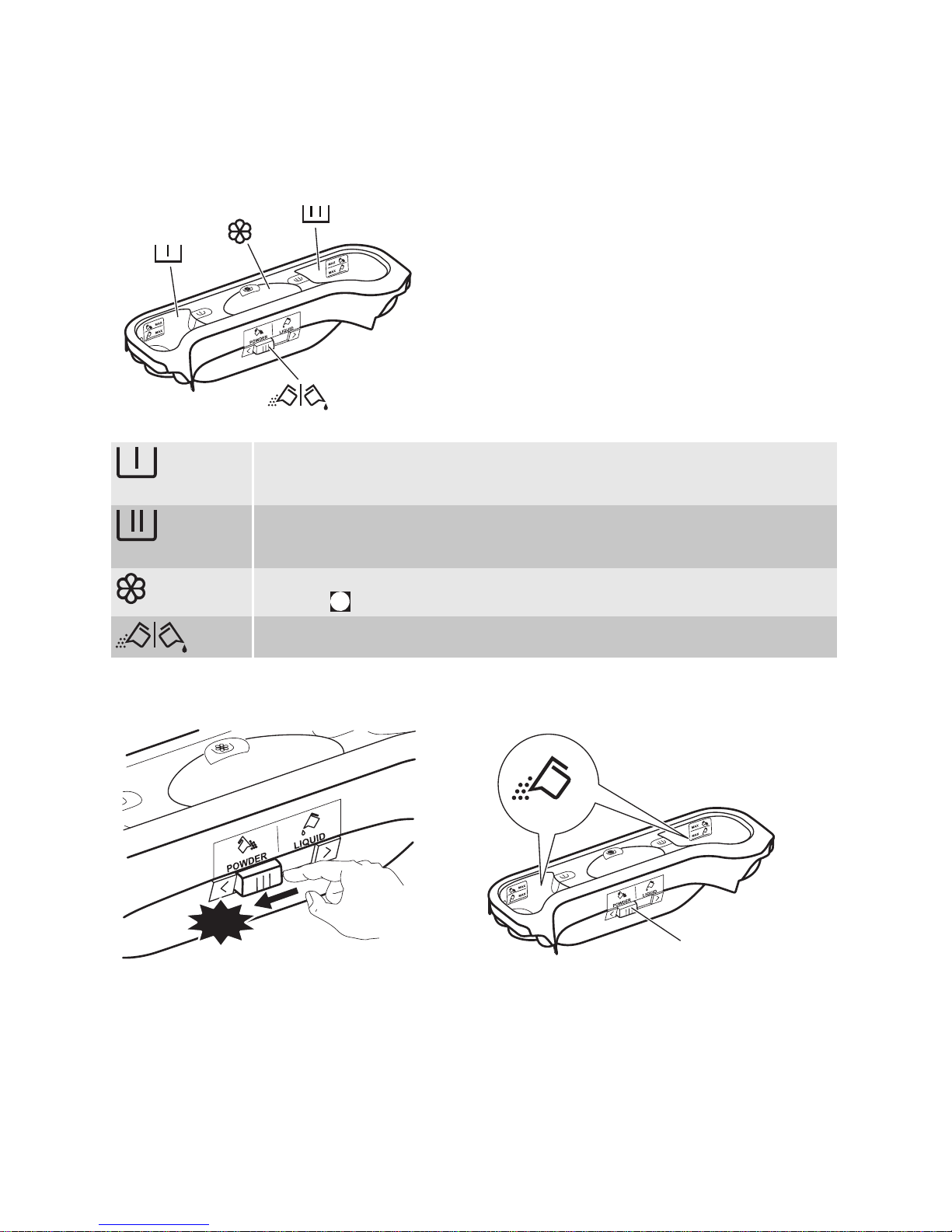

USING DETERGENT AND ADDITIVES
• Measure out the detergent and the fabric
conditioner.
Detergent compartment for prewash phase.
The marks MAX are the maximum levels for the quantity of detergent (powder
or liquid).
Detergent compartment for washing phase.
The marks MAX are the maximum levels for the quantity of detergent (powder
or liquid).
Compartment for liquid additives (fabric conditioner, starch).
The mark
M
is the maximum level for the quantity liquid additives.
Flap for powder or liquid detergent.
Liquid or powder detergent
1.
CLICK
2.
A
12 electrolux

3.
CLICK
4.
B
• Position Afor powder detergent (factory setting).
• Position Bfor liquid detergent.
When you use the liquid detergent:
– Do not use gelatinous or thick liquid detergents.
– Do not put more liquid then the maximum level.
SETTING AND STARTING A
PROGRAMME
SETTING AND STARTING A
PROGRAMME
1. Turn the programme knob. The related
programme indicator comes on.
2. The indicator of button
4
flashes with
red colour.
3. The display shows the default tempera-
ture and spin speed. To change the
temperature and/or the spin speed,
press the related buttons.
4. Set the available functions. The indica-
tor of the set function comes on or the
display shows the related symbol.
5. Press button
4
to start the pro-
gramme. The indicator of button
4
is
on.
The drain pump can operate for a short
time when the appliance fills water.
INTERRUPT A PROGRAMME
1. Press button
4
. The indicator flashes.
2. Press button
4
again. The washing
programme continues.
CANCEL A PROGRAMME
1. Press button
1
to cancel the pro-
gramme and to deactivate the appli-
ance.
2. Press button
1
again to activate the
appliance. Now, you can set a new
washing programme.
The appliance does not drain the wa-
ter.
CHANGE A FUNCTION
You can change only some functions be-
fore they operate.
1. Press button
4
. The indicator flashes.
2. Change the function set.
SET THE DELAY START
1. Press button
5
again and again until
the display shows the number of mi-
nutes or hours. The related symbols
comes on.
2. Press button
4
, the appliance starts
the countdown of the delay start.
When the countdown is completed, the
programme starts automatically.
Before you press button
4
to start the
appliance, you can cancel or change
the set of the delay start.
You cannot set the delay start with the
Steam programme.
CANCEL THE DELAY START
1. Press button
4
. The related indicator
flashes.
electrolux 13

2. Press button
5
again and again until
the display shows 0’.
3. Press button
4
. The programme
starts.
OPEN THE LID
While a programme or the delay start oper-
ates, the lid is locked.
To open the lid:
1. Press button
4
. You can open the lid
2 minutes after the appliance stops.
The door lock symbol in the display
goes off.
2. Open the lid.
3. Close the lid and press button
4
. The
programme or the delay start contin-
ues.
If the temperature and level of the wa-
ter in the drum are too high, the door
lock symbol stays on and you cannot
open the lid . If necessary, do the fol-
lowing procedure to open the lid.
1. Deactivate the appliance.
2. Wait for some minutes.
3. Make sure that there is no water in
the drum.
Important! If you deactivate the appliance,
it is necessary to set the programme again.
AT THE END OF PROGRAMME
• The appliance stops automatically.
• The acoustic signals operate.
•In the display comes on.
• The indicator of the Start/Pause button
4
goes off.
• You can open the lid 2 minutes after the
appliance stops. The door lock symbol
goes off.
•Press button
1
to deactivate the appli-
ance. After five minutes from the end of
the programme, the AUTO OFF function
automatically deactivates the appliance.
When you activate the appliance again,
the display shows the end of the last
set programme. Turn the programme
knob to set a new cycle.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Keep the door ajar, to prevent mildew
and odours.
• Close the water tap.
The washing programme is completed,
but the 'Rinse Hold' function is on:
– The drum turns regularly to prevent the
creases in the laundry.
– The door stays locked.
– You must drain the water to open the
door.
To drain the water:
1. If necessary, decrease the spin speed.
2. Press the Start/Pause button
4
. The
appliance drains the water and spins.
3. When the programme is completed
and the door lock symbol goes off, you
can open the door
4. Deactivate the appliance.
The appliance drains and spins auto-
matically after approximately 18 hours.
HELPFUL HINTS AND TIPS
THE LAUNDRY LOAD
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on
the laundry care labels.
• Do not wash together white and coloured
items.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn inside out multilayered fabrics, wool
and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy soil
stains.
• Be careful with the curtains. Remove the
hooks or put the curtains in a washing
bag or pillowcase.
• Do not wash in the appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
14 electrolux

• A very small load can cause balance
problems with the spin phase. If this oc-
curs, adjust manually the items in the tub
and start the spin phase again.
STUBBORN STAINS
For some stains, water and detergent is not
sufficient.
We recommend that you remove these
stains before you put the items in the appli-
ance.
Special stain removers are available. Use
the special stain remover that is applicable
to the type of stain and fabric.
DETERGENTS AND ADDITIVES
• Only use detergents and additives spe-
cially made for washing machines.
• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of deter-
gent.
• Obey the instructions that you find on the
on packaging of these products.
• Use the correct products for the type and
colour of the fabric, the programme tem-
perature and the level of soil.
WATER HARDNESS
If the water hardness in your area is high or
moderate, we recommend that you use a
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on the
packaging of the products.
Equivalent scales measure the water hard-
ness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - interna-
tional unit for the hardness of water).
• Clarke degrees.
Water hardness table
Level Type Water hardness
°dH °T.H. mmol/l Clarke
1soft 0-7 0-15 0-1.5 0-9
2medium 8-14 16-25 1.6-2.5 10-16
3hard 15-21 26-37 2.6-3.7 17-25
4very hard > 21 > 37 >3.7 >25
CARE AND CLEANING
Warning!
Disconnect the appliance from the mains
supply before you clean it.
DESCALING
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry wash.
EXTERNAL CLEANING
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
Caution! Do not use alcohol, solvents
or chemical products.
MAINTENANCE WASH
With the low temperature programmes it is
possible that some detergent stays in the
drum. Make regularly a maintenance wash.
To do this:
• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder deter-
gent with biological properties.
After each wash, keep the door open for a
while to prevent mould and to let unpleas-
ant smells go out.
electrolux 15

DETERGENT DISPENSER
To clean the dispenser:
1. Remove the detergent dispenser and
disconnect the two parts.
2. Clean all the parts with water.
3. Assemble the two parts of the deter-
gent dispenser.
4. Put back the detergent dispenser.
DRAIN FILTER
Regularly examine the drain filter and
make sure that it is clean.
Warning!
• Disconnect the mains plug from the
mains socket.
• Do not remove the filter while the ap-
pliance operates. Do not clean the
drain filter if the water in the appli-
ance is hot. The water must be cold
before you clean the drain filter.

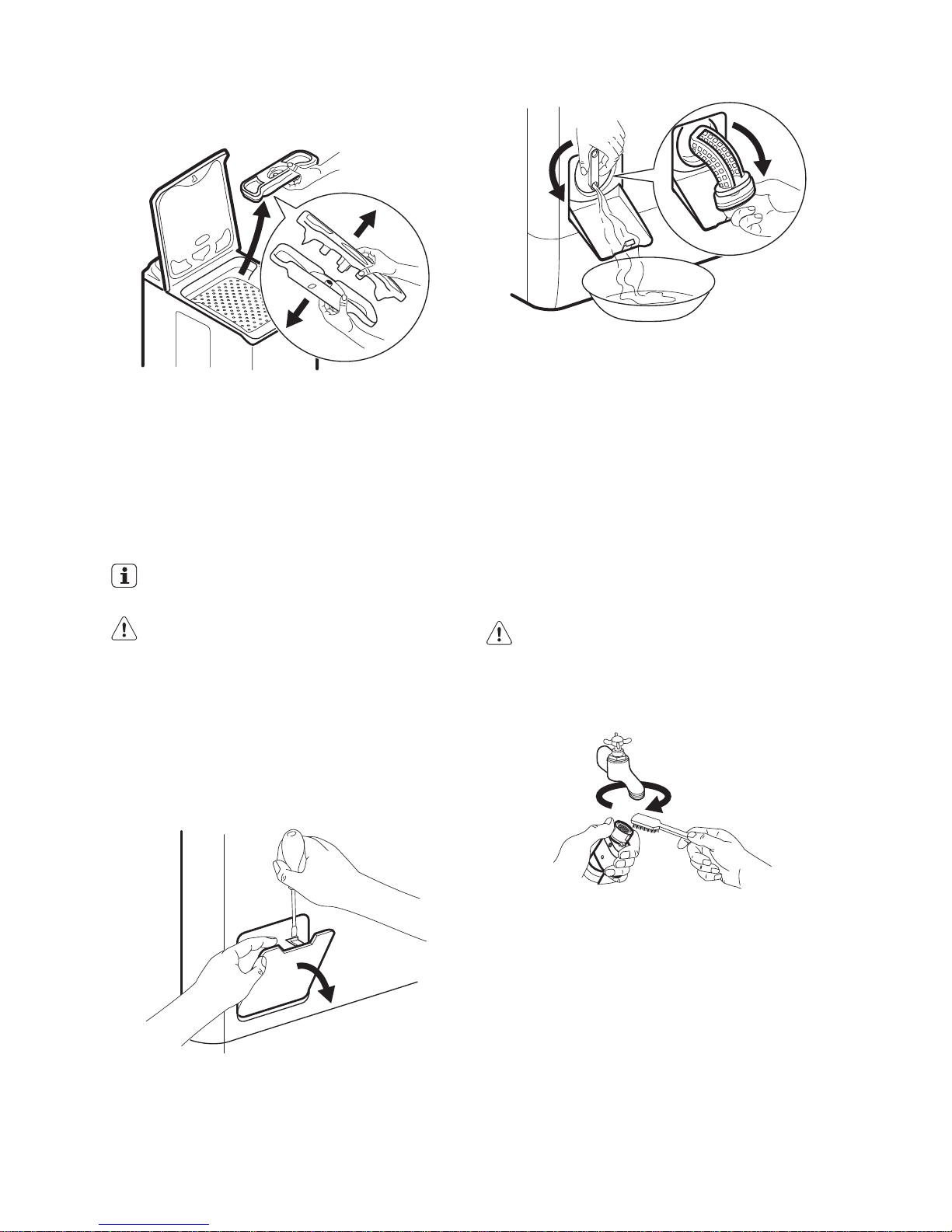

To clean the drain filter:
1. Open the drain filter door.
2. Put a container below the recess of the
drain filter to collect the water that flows
out. Turn the filter until it is vertical.
3. Turn the filter fully and remove it.
4. Remove fluff and objects.
5. Clean the filter with water.
6. Put it back and screw it in.
7. Make sure that you tighten correctly the
filter to prevent leakages.
8. Close the drain filter door.
THE INLET HOSE FILTER AND THE
VALVE FILTER
Warning!
• Disconnect the mains plug from the
mains socket.
To clean the water inlet filters:
1. Close the water tap.
2. Remove the water inlet hose from the
water tap.
3. Clean the filter in the inlet hose with a
stiff brush.
16 electrolux

4. Remove the inlet hose behind the appli-
ance.
5. Clean the filter in the valve with a stiff
brush or a towel.
90˚
6. Install again the inlet hose. Make sure
that the couplings are tight to prevent
leakages.
7. Open the water tap.

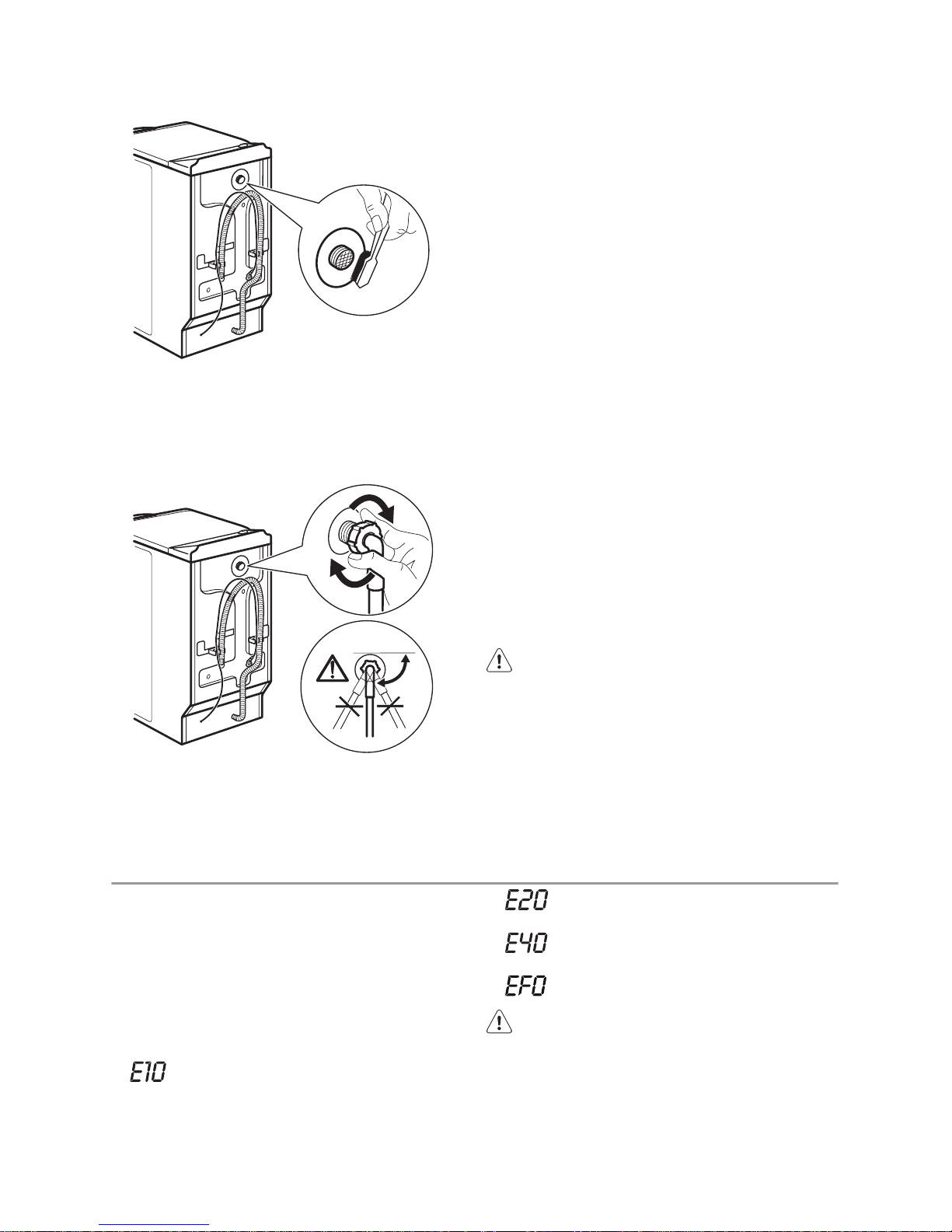

EMERGENCY DRAIN
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (3) of 'To
clean the drain filter'.
If necessary, clean the filter.
Put the drainage duct back and close the
drain filter flap.
FROST PRECAUTIONS
If the appliance is installed in an area where
the temperature can be less than 0 °C, re-
move the remaining water from the inlet
hose and the drain pump.
1. Close the water tap and disconnect the
inlet hose.
2. Put the end of the inlet hose in a con-
tainer and let the water flow out of the
hose.
3. Do the Drain programme and let it op-
erate until the end of the cycle.
4. Turn the programme knob to Stop to
disconnect the appliance from the
power supply.
5. Disconnect the appliance.
Warning! Make sure that the
temperature is more than 0 °C before
you use the appliance again.
The manufacturer is not responsible for
damages caused by low temperatures.
TROUBLESHOOTING
The start of the appliance does not occur or
it stops during operation.
First try to find a solution to the problem (re-
fer to the table). If not, contact the service
centre.
With some problems, the acoustic
signals operate and the display shows
an alarm code:
•- The appliance does not fill with
water.
•- The appliance does not drain the
water.
•- The appliance door is open or not
closed correctly.
•- The anti-flood device is on.
Warning! Deactivate the appliance
before you do the checks.
electrolux 17

Problem Possible cause Possible solution
The appliance does not
fill with water.
The water tap is closed. Open the water tap.
The water inlet hose is dam-
aged.
Make sure that the water inlet hose has
no damages.
The filters in the water inlet
hose is blocked .
Clean the filters. Refer to 'Care and
cleaning'.
The water tap is blocked or is
furred with limescale.
Clean the water tap.
The connection of the water
inlet hose is not correct.
Make sure that the connection is cor-
rect.
The water pressure is too low. Contact your local water authority.
The appliance does not
drain the water.
The water drain hose is dam-
aged.
Make sure that the water drain hose has
no damages.
The filter of the drain pump is
blocked.
Clean the filter of the drain pump. Refer
to 'Care and cleaning'.
The connection of the water
drain hose is not correct.
Make sure that the connection is cor-
rect.
A washing programme without
the drain phase is set.
Set the drain programme.
The function Rinse & Hold is
on.
Set the drain programme.
The appliance door is
open or not closed
correctly.
Close the door correctly.
The anti-flood device is
on.
• Disconnect the appliance.
• Close the water tap.
• Contact the service centre.
The spin phase does
not operate.
The spin phase is off. Set the spin programme.
The filter of the drain pump is
blocked.
Clean the filter of the drain pump. Refer
to 'Care and cleaning'.
Balance problems with the
laundry load.
Adjust manually the items in the tub and
start the spin phase again.
The programme does
not start.
The mains plug is not connec-
ted in the mains socket.
Put in the mains plug.
Blow out fuse in the household
fuse box.
Replace the fuse.
You did not press button
4
. Press button
4
.
The delay start is set. To start immediately the programme,
cancel the delay start.
The Child Lock function is acti-
vated.
Deactivate the Child Lock function.
There is water on the
floor.
Leakages from the couplings
of the water hoses.
Make sure that the couplings are tight.
Leakages from the drain
pump.
Make sure that the drain pump filter is
tight.
18 electrolux

Problem Possible cause Possible solution
The water drain hose is dam-
aged.
Make sure that the water inlet hose has
no damages.
You cannot open the
appliance door.
The washing programme is in
operation.
Let the washing programme end.
There is water in the drum. Set the drain or the spin programme.
The appliance makes
an unusual noise.
Incorrect level of the appli-
ance.
Adjust the level of the appliance. Refer
to 'Installation'.
You did not remove the pack-
aging and/or the transit bolts.
Remove the packaging and/or the trans-
it bolts. Refer to 'Installation'.
The load is very small. Add more laundry in the drum.
The appliance fills with
water and drain imme-
diately.
The end of the drain hose is
too low.
Make sure that the drain hose is in the
correct position.
The washing results
are not satisfactory.
The detergent you used was
not sufficient or correct.
Increase the detergent quantity or use a
different one.
You did not remove the stub-
born stains before you wash
the laundry.
Use special products to remove the
stubborn stains.
Incorrect temperature was set. Make sure that you set the correct tem-
perature.
Too much laundry load. Decrease the laundry load.
After the check, activate the appliance. The
programme continues from the point of in-
terruption.
If the problem occurs again, contact the
service centre.
If the display shows other alarm codes,
contact the service centre.
TECHNICAL INFORMATION
Dimensions Width / Height / Depth 400 / 890 / 600 mm
Total depth 600 mm
Electrical connection: Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles and moisture
ensured by the protective cover, except where the low voltage
equipment has no protection against moisture
IPX4
Water supply pressure Minimum 0,5 bar (0,05 MPa)
Maximum 8 bar (0,8 MPa)
Water supply
1)
Cold water
Maximum load Cotton 6 kg
Spin speed Maximum 1400 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
electrolux 19

www.electrolux.com/shop 108801500-A-422012
