Electrolux WA GL4 E 201 User manual

WA GL4 E 201
WA GL6 E 201
................................................ .............................................
EN WASHING MACHINE USER MANUAL 2
DE WASCHMASCHINE BENUTZERINFORMATION 26

Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information 2
Safety instructions 3
Environment concerns 4
Technical information 5
Product description 5
Control panel 6
Programmes 9
Consumption values 11
Before first use 12
Daily use 12
Helpful hints and tips 15
Care and cleaning 16
Troubleshooting 19
Installation 21
Subject to change without notice.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
if an incorrect installation and use causes injuries and dam-
ages. Always keep the instructions with the appliance for fu-
ture reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the haz-
ards involved.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when
it is open.
• If the appliance has a child safety device, we recommend
you activate it.
• Cleaning and user maintenance shall not be made by chil-
dren without supervision.
2 electrolux

GENERAL SAFETY
• Before maintenance, deactivate the appliance and discon-
nect the mains plug from the mains socket.
• Do not change the specification of this appliance.
• Obey the maximum load volume of 8 kg (refer to the “Pro-
gramme chart” chapter).
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
• The operating water pressure (minimum and maximum)
must be between 0,5 bar (0,05 MPa) and 8 bar (0,8 MPa)
• The ventilation openings in the base (if applicable) must not
be obstructed by a carpet.
• The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
SAFETY INSTRUCTIONS
INSTALLATION
• Remove all the packaging and the transit
bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Do not install or use a damaged appli-
ance.
•Donotinstalloruse the appliance where
the temperature is less than 0 °C or
where it is exposed to the weather.
• Obey the installation instruction supplied
with the appliance.
• Make sure that the floor where you install
the appliance is flat, stable, heat resistant
and clean.
• Do not install the appliance where the ap-
pliance door can not be fully opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure that there is air circulation be-
tween the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
Electrical connection
Warning! Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply cable
need to be replaced, this must be carried
out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
electrolux 3

• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to the
water mains using the new supplied
hose-sets. Old hose sets must not be
reused.
• Before you connect the appliance to new
pipes or pipes not used for a long time,
let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
USE
Warning! Risk of injury, electrical
shock, fire, burns or damage to the
appliance.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Obey the safety instructions on the deter-
gent packaging.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not touch the glass of the door while
a programme operates. The glass can be
hot.
• Make sure that you remove all metal ob-
jects from the laundry.
• Do not put a container to collect possible
water leakage under the appliance. Con-
tact the Service to ensure which acces-
sories can be used.
CARE AND CLEANING
Warning! Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the ap-
pliance and disconnect the mains plug
from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal objects.
DISPOSAL
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the appli-
ance.
ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it.
Help protect the environment and human
health and to recycle waste of electrical and
electronic appliances. Do not dispose
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
PACKAGING MATERIALS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it.
ECOLOGICAL HINTS
To help the environment, use less water
and energy, obey these instructions:
• Set a programme without the prewash
phase to wash laundry with normal soil.
• Always start a washing programme with
the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low temper-
ature.
• To use the correct quantity of the deter-
gent, check the water hardness of your
domestic system
4 electrolux

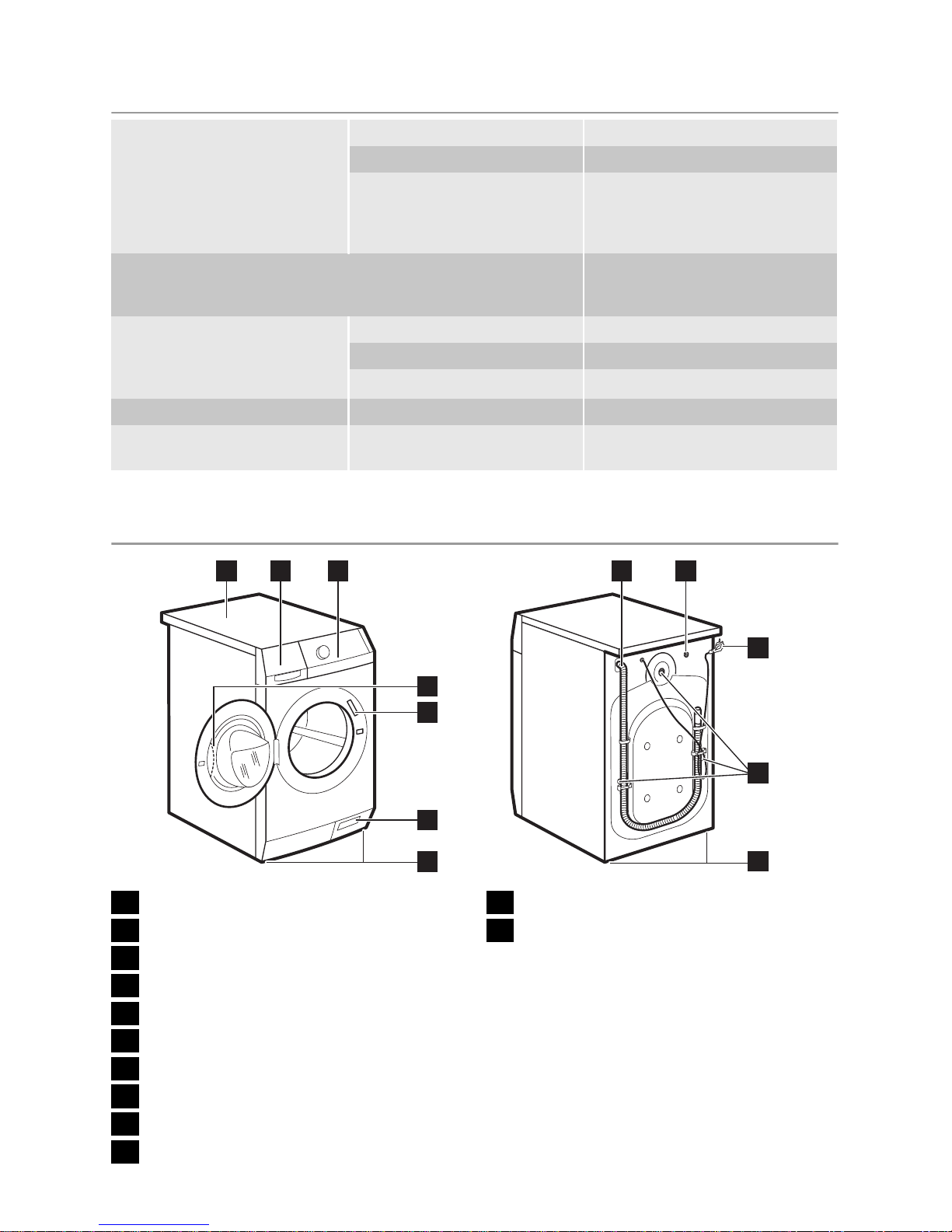

TECHNICAL INFORMATION
Dimensions Width / Height / Depth 605 / 850 / 605 mm
Total depth 640 mm
Electrical connection: Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles and mois-
ture ensured by the protective cover, except where the low volt-
age equipment has no protection against moisture
IPX4
Water supply pressure Minimum 0,5 bar (0,05 MPa)
Maximum 8 bar (0,8 MPa)
Water supply
1)
Cold water
Maximum load Cotton 8 kg
Spin speed Maximum 1400 rpm (WA GL4 E 201)
1600 rpm (WA GL6 E 201)
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
PRODUCT DESCRIPTION
1 2 3 8 9
5
6
7
4
1
0
1
1
1
2
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump
7Feet for the appliance level
8Water drain hose
9Water inlet valve
10 Mains cable
11 Transit bolts
12 Feet for the appliance level
electrolux 5

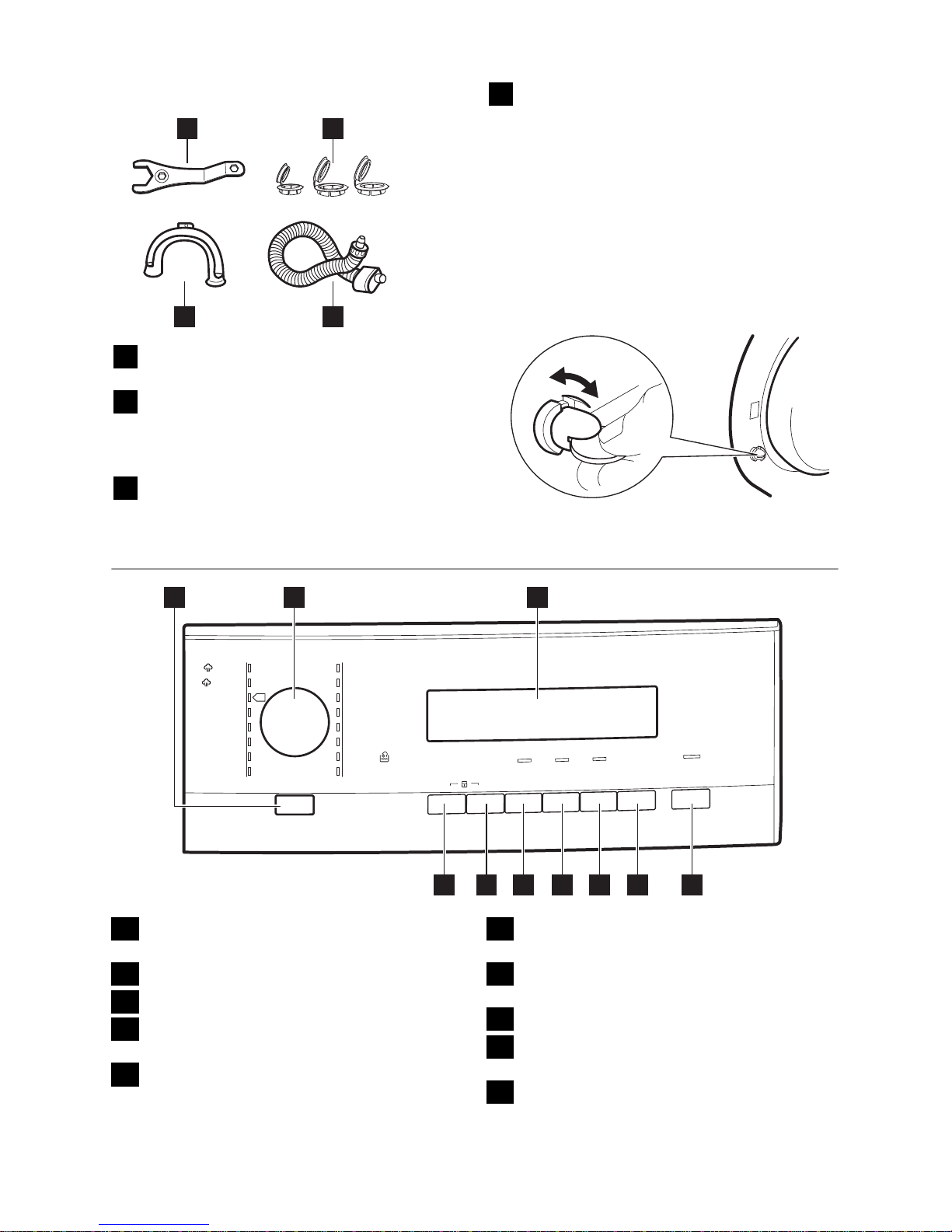

ACCESSORIES
1 2
34
1Spanner
To remove the transit bolts.
2Plastic caps
To close the holes on the rear side of
the cabinet after the removal of the
transit bolts.
3Anti-flood inlet hose
To prevent possible leakage
4Plastic hose guide
To connect the drain hose on the edge
of a sink.
CHILD SAFETY DEVICE
• When you activate this device, you can-
not close the door. This prevents children
or pets to be closed in the drum. To acti-
vate the device, turn it clockwise, until the
groove is horizontal. To deactivate the
device, turn it counterclockwise, until the
groove is vertical.
CONTROL PANEL
Start/Pause
Départ/Pause
Zeitvorwahl
Départ Différé
Zeit Sparen
Court
Spülen +
Rinçage +
Flecken
Taches
Temp.
Schleudern
Essorage
Koch/Bunt
Blanc/Couleurs
+ Vorwäsche
+ Prélavage
Extra Leise
Extra Silence
Pflegeleicht
Synthétiques
Leichtbügeln
Repassage Facile
Feinwäsche
Délicats
Wolle/Seide
Laine/Soie
Daunen
Couette
Schleudern/Pumpen
Essorage/Vidange
Spülen
Rinçage
Outdoor
Blousons
Auffrischen
Rafraîchir
Super Eco
Glätten
Défroissage
20 min 3 kg
Baumwolle Eco
Coton Eco
Marche/Arrêt
Ein/Aus
1 2 3
45678910
1On/Off button (Ein/Aus — Marche/
Arrêt)
2Programme knob
3Display
4Start Pause button (Start/Pause —
Départ/Pause)
5Delay start button (Zeitvorwahl — Dé-
part Différé)
6Time saving button (Zeit Sparen —
Court)
7Extra rinse button (Spülen + — Rin-
çage+)
8Stain button (Flecken — Taches)
9Spin reduction button (Schleudern —
Essorage)
10 Temperature button (Temp.)
6 electrolux

ON OFF BUTTON 1
Press this button to activate or deactivate
the appliance. A tune sounds when the ap-
pliance is activated.
The AUTO Stand-by function automatically
deactivates the appliance to decrease the
energy consumption when:
• You do not use the appliance for 5 mi-
nutes before you press button
4
.
– All settings are cancelled.
–Press button
1
to activate the appli-
ance again.
– Set again the washing programme and
all possible options.
• After 5 minutes from the end of the
washing programme. Refer to 'At the end
of programme'.
PROGRAMME KNOB 2
Turn this knob to set a programme. The re-
lated programme indicator comes on.

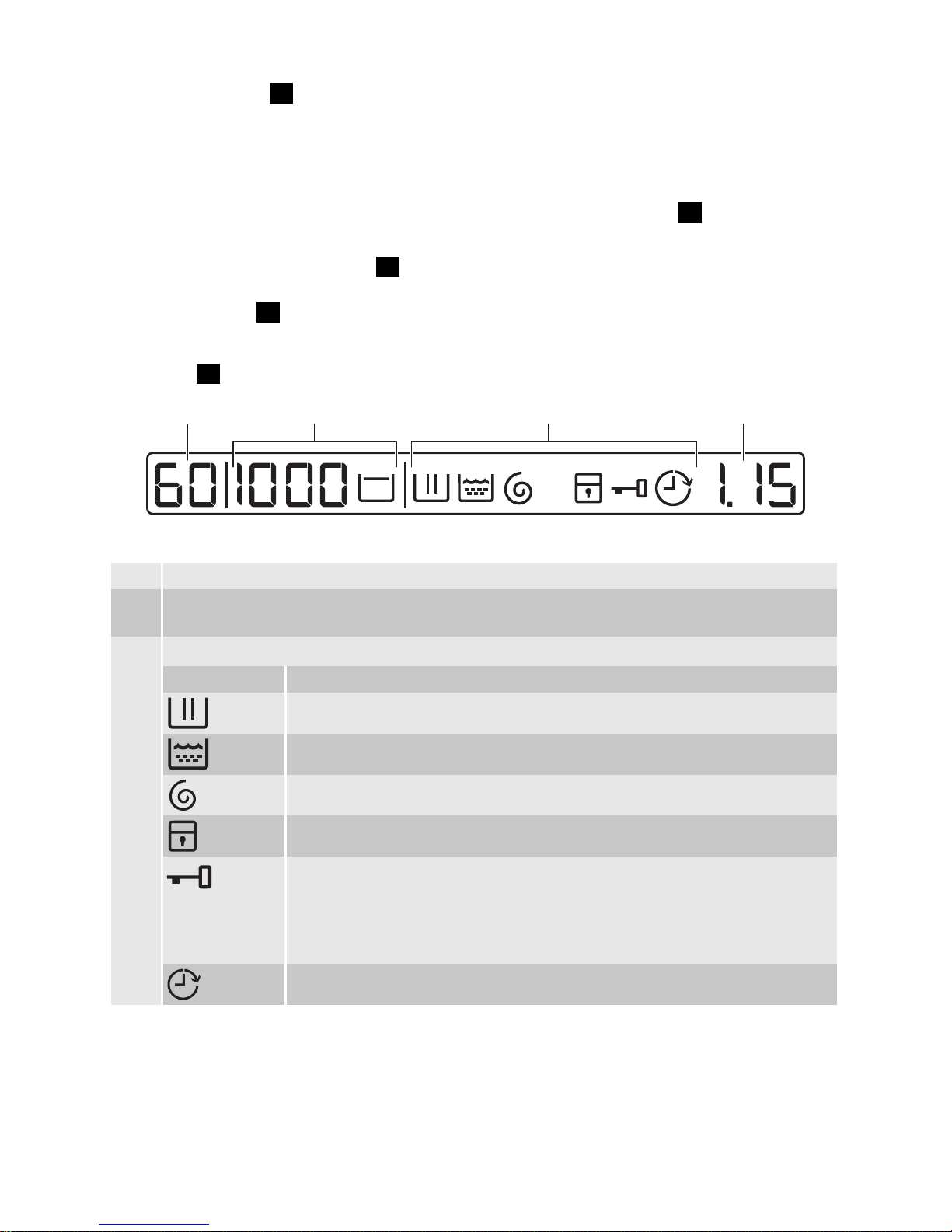

DISPLAY 3
A B C D
The display shows:
A• The maximum temperature of the programme.
B• The default spin speed of the programme.
•'No Spin'
1)
and 'Rinse Hold' symbols.
C•The display symbols.
2)
Symbols Description
Washing phase
Rinse phases
Spin phase
Child lock
You cannot open the appliance door when the symbol is on.
You can open the door only when the symbol goes off.
If the programme is completed but the symbol stays on:
• There is water in the drum.
• The 'Rinse Hold' function is on.
Delay start
electrolux 7

D• The programme time
When the programme starts, the time decreases with steps of 1 minute.
•Thedelaystart
When you press the delay start button, the display shows the delay start time.
•Alarmcodes
If the appliance has a malfunction, the display shows alarm codes. Refer to 'Troubleshoot-
ing' chapter.
•Err
The display shows this message for some seconds if:
– You set a function that is not applicable for the programme.
– You change the programme while it operates.
The indicator of the Start/Pause button
4
flashes.
•
When the programme is completed.
1) Only available for Spin/Drain programme.
2) The symbols appear on the display when the related phase or function is set.
START/PAUSE BUTTON 4
Press button
4
to start or interrupt a pro-
gramme.
DELAY START BUTTON 5
Press button
5
to delay the start of a pro-
gramme from 30 minutes to 20 hours.
TIME SAVE BUTTON 6
Press the button
6
to decrease the pro-
gramme duration.
• Press one time to set 'Shortened dura-
tion' for items with daily soil.
• Press two times to set 'Extra Quick' for
items with almost no soil.
Some programmes accept only one of
the two functions.
EXTRA RINSE BUTTON 7
Press button
7
to add rinsing phases to a
programme.
Use this function for persons allergic to de-
tergents and in areas where the water is
soft.
STAIN BUTTON 8
Press button
8
to add the stain phase to a
programme.
Use this function for laundry with hard
stains to remove.

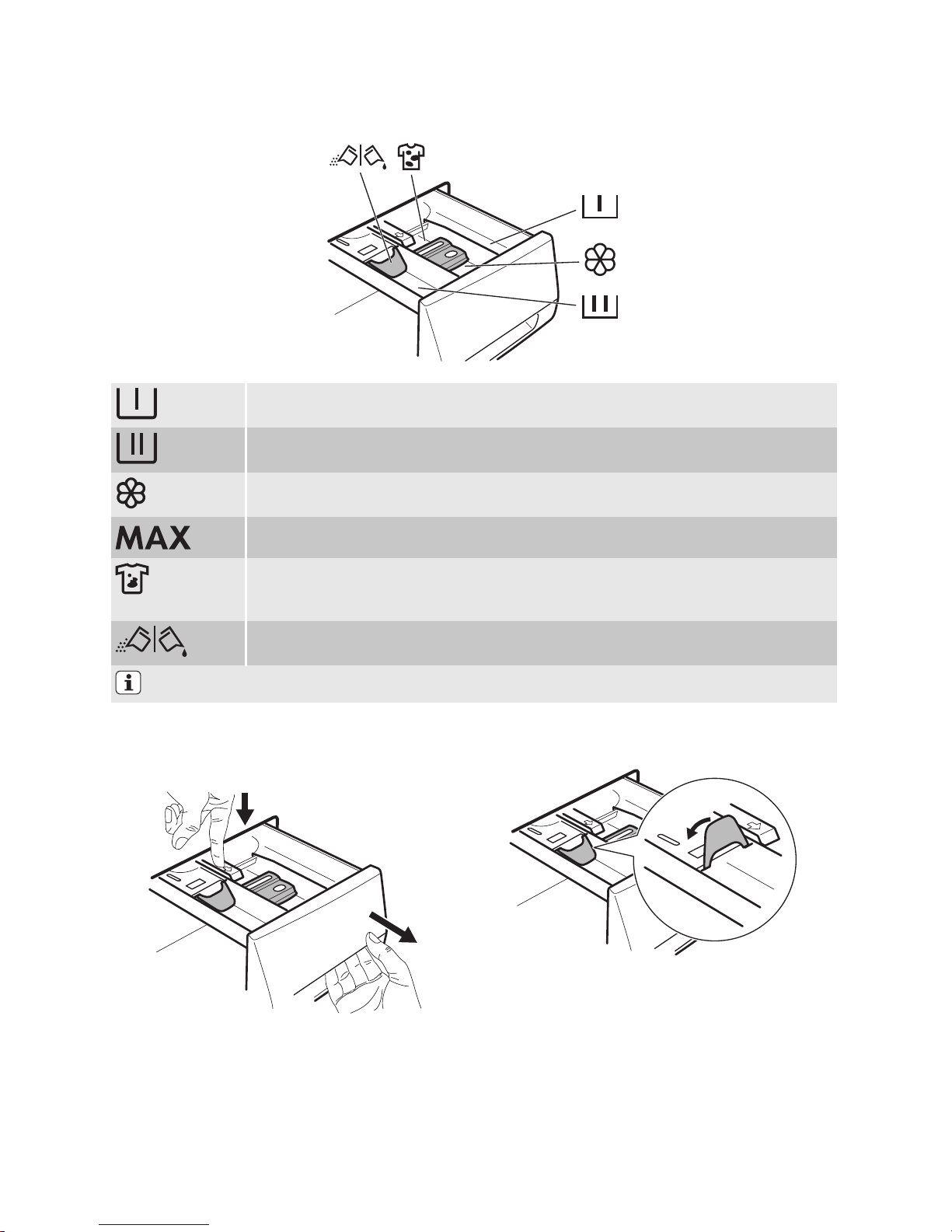

When you set this function, put the stain re-
mover into compartment .
This function increases the programme
duration.
This function is not available with a
temperature lower than 40° C.
SPIN BUTTON 9
Press this button to:
• Decrease the maximum speed of the
spin phase when you set a programme.
The display shows only the spin
speeds available with the set pro-
gramme.
• Deactivate the spin phase.
• Activate the 'Rinse Hold' function. Set
this function to prevent fabric creases.
The appliance does not drain the water
when the programme is completed.
Spin phase is off.
'Rinse Hold' function is on.
TEMPERATURE BUTTON 10
Press button
10
to change the default tem-
perature.
- - = cold water
ACOUSTIC SIGNALS FUNCTION
You can hear the acoustic signals when:
• You activate the appliance.
• You deactivate the appliance.
• You press the buttons.
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic sig-
nals, press button
8
and button
7
at the
same time for 6 seconds.
8 electrolux

If you deactivate the acoustic signals,
they continue operate only when you
press the buttons and when a malfunc-
tion occurs.
CHILD LOCK FUNCTION
This function prevents children to play with
the control panel.
•To activate the function, press button
10
and button
9
at the same time until the
display shows the symbol .
• To deactivate the function, press button
10
and button
9
at the same time until
the symbol goes off.
You can activate the function:
• Before you press the Start/Pause button
4
: the appliance cannot start.
• After you press the Start/Pause button
4
, all the buttons and the programme
knob are deactivated.
PERMANENT EXTRA RINSE FUNCTION
With this function you can keep the extra
rinse function permanently on when you set
a new programme.
•To activate the function press button
6
and button
5
at the same time until the
indicator of button
7
is on.
• To deactivate the function press button
6
and button
5
at the same time until
the indicator of button
7
is off.
PROGRAMMES
Programme
Temperature Type of load max. weight of load Cycle description Functions
Koch/Bunt - Blanc/
Couleurs
Cottons
95° - Cold
White and coloured cot-
ton with normal soil.
max. 8 kg
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE
1)
Koch/Bunt + Vorwä-
sche - Blanc/Couleurs
+ Prélavage
Cottons with Prewash
95° - Cold
White and coloured cot-
ton with heavy soil.
max. 8 kg
Prewash
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE
1)
Extra Leise - Extra Si-
lence
Extra Silent
95° - Cold
White and coloured cot-
ton with normal soil.
max. 8 kg
Wash
Rinses
Stop with water in the
drum
STAIN
EXTRA RINSE
TIME SAVE
1)
Pflegeleicht - Synthé-
tiques
Synthetics
60° - Cold
Synthetic or mixed fabric
items with normal level of
soil.
max. 4 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE
1)
Leichtbügeln - Repas-
sage Facile
2)
Easy Iron
60° - Cold
Synthetic fabric items
with normal soil.
max. 4 kg
Wash
Rinses
Short spin
RINSE HOLD
EXTRA RINSE
TIME SAVE
1)
Feinwäsche - Délicats
Delicates
40° - Cold
Delicate fabrics as acryl-
ics, viscose, polyester
items with normal soil.
max. 4 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
STAIN
EXTRA RINSE
TIME SAVE
1)
electrolux 9

Programme
Temperature Type of load max. weight of load Cycle description Functions
Wolle/Seide - Laine/
Soie
Wool/Silk
40° - Cold
Machine washable wool.
Hand washable wool and
delicate fabrics with
«hand washing» care
symbol.
max. 2 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
Daunen - Couette
Duvets
60° - 30°
One synthetic blanket,
duvet, bedspread and so
on.
max. 3 kg
Wash
Rinses
Short spin
SPIN REDUCTION
Schleudern/Pumpen -
Essorage/Vidange
3)
Spin/Drain
All fabrics
The maximum load of
the laundry is related to
the type of laundry.
Drainage of the water
Spin phase at the maxi-
mum speed.
SPIN REDUCTION
NO SPIN
Spülen - Rinçage
Rinse Hand washed items. Rinses Long spin SPIN REDUCTION RINSE HOLD
EXTRA RINSE
Träningskläder
Outdoor
40° - Cold
Waterproof, sports and
outdoor clothing. Do not
use any fabric softener!
max. 2.5 kg
Wash
Rinses
Short spin
SPIN REDUCTION
RINSE HOLD
EXTRA SPÜLEN
20 Min. - 3 kg
40° - 30° Cotton and synthetic items with light soil or
worn only one time.
Wash
Rinses
Short spin
SPIN REDUCTION
Super Eco
4)
Cold
Mixed fabrics (cotton and
synthetic items).
max. 3 kg
Wash
Rinses
Long spin
SPIN REDUCTION
RINSE HOLD
EXTRA RINSE
Baumwolle Eco - Co-
ton Eco
5)
60° - 40°
White and fast coloured
cotton with normal soil.
max. 8 kg
Wash
Rinses
Long spin
SPIN REDUCTION
NO SPIN
RINSE HOLD
STAIN
EXTRA RINSE
1) If you press the button 6 two times (Super Quick function set), we recommend you to decrease the quantity of the
load. It is possible to keep the full load but the washing results are not good.
2) The wash and spin phase of this programme is soft to prevent the creases of the laundry. The appliance adds
some rinses.
3) Set the spin speed. Make sure that it agrees with the laundry. To select the DRAIN programme only, set the
function NO SPIN.
4) Set this programme to decrease the time and the consumption of energy and water.
5) Standard programmes for the Energy Label consumption values.
According to regulation 1061/2010, the «Baumwolle Eco - Coton Eco 60° C» and «Baumwolle Eco - Coton Eco
40° C» are respectively the «standard 60° C cotton programme» and the «standard 40° C cotton programme».
They are the most efficient programmes in terms of combined energy and water consumptions for washing
normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature declared for the selected pro-
gramme.
STEAM PROGRAMMES
10 electrolux

Programme
1)
Type of load Max. load
Auffrischen - Rafraîchir
This cycle removes odours from the
laundry.
Steam does not remove animal
odours.
Cotton and synthetic items.
Do not set the Steam programme for
this type of clothes:
• Clothes which is not specified on
the care label as being suitable for
tumble-drying.
• Clothes with inclusion of plastic,
metal, wooden parts or alike.
up to 1.5 Kg
Glätten - Défroissage
This programme helps to dewrinkle
the laundry.
up to 1.5 Kg
Steam can be used for dried, washed or worn once laundry. These programmes can reduce
creases and odours and make your laundry more smooth.
Do not use any detergent. If necessary, remove stains by washing or using localized stain re-
moval.
Steam programmes do not perform any hygienic cycle.
1) If you set a Steam programme with dried laundry, at the end of the cycle the laundry feels humid. It is better to
expose clothes to the fresh air for about 10 minutes to let the humidity dry. Laundry should be removed from the
drum as quick as possible. After a steam cycle, clothes may to be ironed anyway, but with less effort!
WOOLMARK CERTIFICATE
The wool wash cycle of this machine has
been approved by The Woolmark Company
for the washing of machine washable Wool-
mark product provided that the garments
are washed according to the instructions on
the garment label and those issued by the
manufacturer of this washing machine.
M1027
In UK, Eire, Hong Kong and India the Wool-
mark symbol is a certification trademark.
CONSUMPTION VALUES
At programme start the display shows the duration programme for the maximum
load capacity.
During the washing phase the programme duration is automatically calculated and
can greatly be reduced if the laundry load is lower than the maximum load capacity
(e.g. Cotton 60°C, maximum load capacity 8 kg, the programme duration exceeds 2
hours; real load 1 kg, the programme duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot blinks in the
display.
The data of this table are approximate. Different causes can change the data: the
quantity and type of laundry, the water and ambient temperature.
Programmes Load
(kg) Energy con- sumption
(kWh)
Water
consump-
tion (litre)
Approxi-
mate pro-
gramme
duration
(minutes)
Remain-
ing mois-
ture (%)
1)
WA GL4
E 201
Remain-
ing mois-
ture (%)
1)
WA GL6
E 201
Cottons 60 °C 81.6 72 168 52 43
Cottons 40 °C 81.0 72 164 52 43
Synthetics 40 °C 40.6 50 110 35 35
Delicates 40 °C 40.7 60 91 35 35
electrolux 11

Programmes Load
(kg) Energy con- sumption
(kWh)
Water
consump-
tion (litre)
Approxi-
mate pro-
gramme
duration
(minutes)
Remain-
ing mois-
ture (%)
1)
WA GL4
E 201
Remain-
ing mois-
ture (%)
1)
WA GL6
E 201

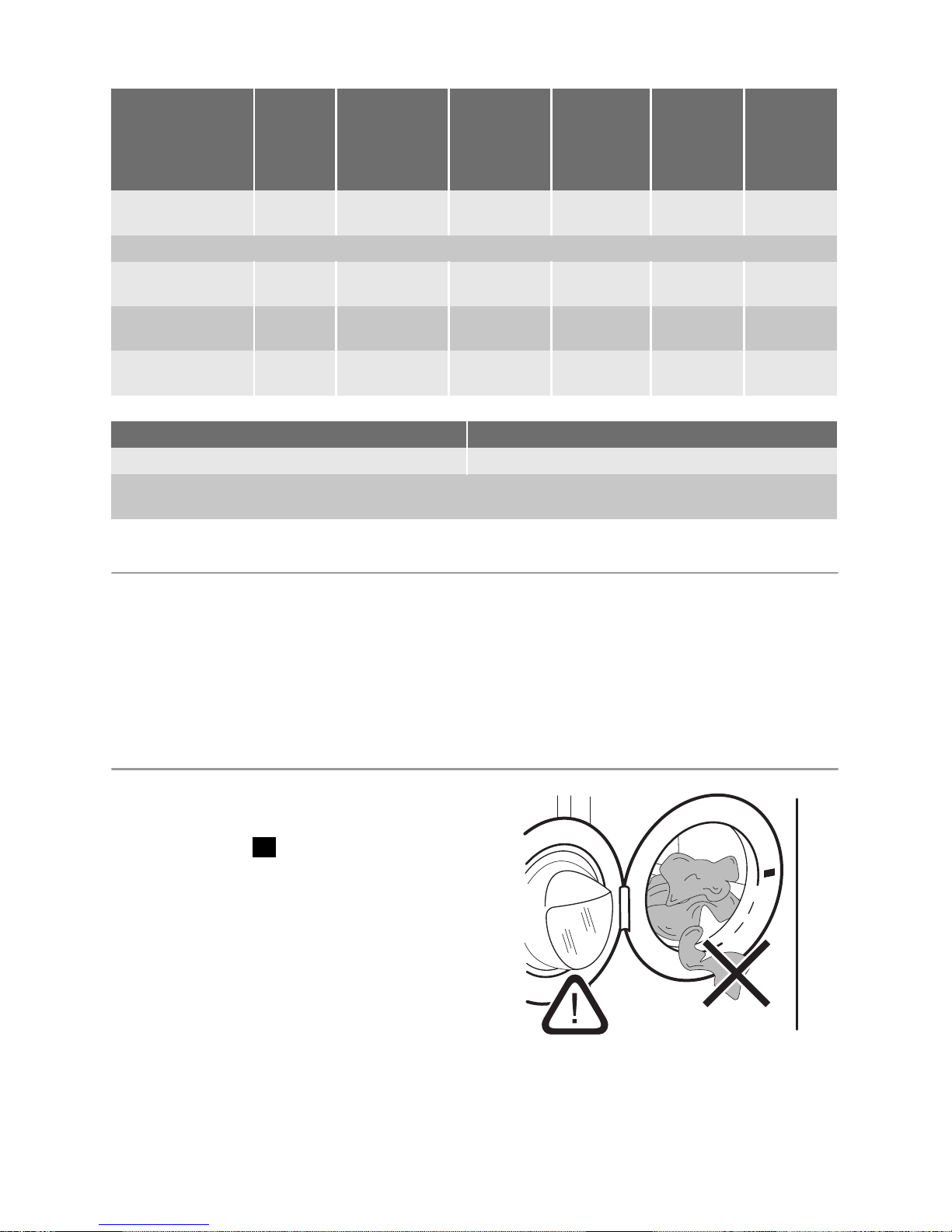

Wool/Hand wash
30 °C 20.35 57 58 30 30
Standard cotton programmes
Standard 60 °C
cotton 80.9 58 208 52 43
Standard 60 °C
cotton 40.65 45 156 52 43
Standard 40 °C
cotton 40.49 45 156 52 43
1) At the end of spin phase.
Off Mode (W) Left-On Mode (W)
0.48 0.48
The information given in the charts above are in compliance with the EU Commission regulation
1015/2010 implementing directive 2009/125/EC.
BEFORE FIRST USE
1. To activate the drain system, put 2 litre
of water in the main wash compartment
of the detergent dispenser.
2. Put a small quantity of detergent in the
main wash compartment of the deter-
gent dispenser. Set and start a pro-
gramme for cotton at the highest tem-
perature without laundry. This removes
all possible dirt from the drum and the
tub.
DAILY USE
1. Open the water tap.
2. Connect the mains plug to the mains
socket.
3. Press button
1
to activate the appli-
ance.
4. Put the laundry in the appliance.
5. Use the correct quantity of detergent
and additives.
6. Set and start the correct programme
for the type of laundry and soil.
LOADING THE LAUNDRY
1. Open the appliance door.
2. Put the laundry in the drum, one item at
a time. Shake the items before you put
them in the appliance. Make sure not to
put too much laundry in the drum.
3. Close the door.
Make sure that no laundry stays between
the seal and the door. There is a risk of wa-
ter leakage or damage to the laundry.
12 electrolux

USING THE DETERGENT AND ADDITIVES
The detergent compartment for the prewash phase and the soak programme.
Add the detergent for prewash and soak before the start of the programme.
The detergent compartment for the washing phase.
If you use a liquid detergent, put it immediately before you start the programme.
Liquid additives compartment (fabric conditioner, starch).
Put the product in the compartment before you start the programme.
This is the maximum level for the quantity of liquid additives.
The compartment for the stain remover.
Put the product in the compartment and set the stain function before you start
the programme.
Flap for powder or liquid detergent
Turn it (up or down) in the correct position to use powder or liquid detergent.
Always obey the instructions that you find on the packaging of the detergent products.
Check the position of the flap
1. Pull out the detergent dispenser until it
stops.
2. Press the lever down to remove the
dispenser.

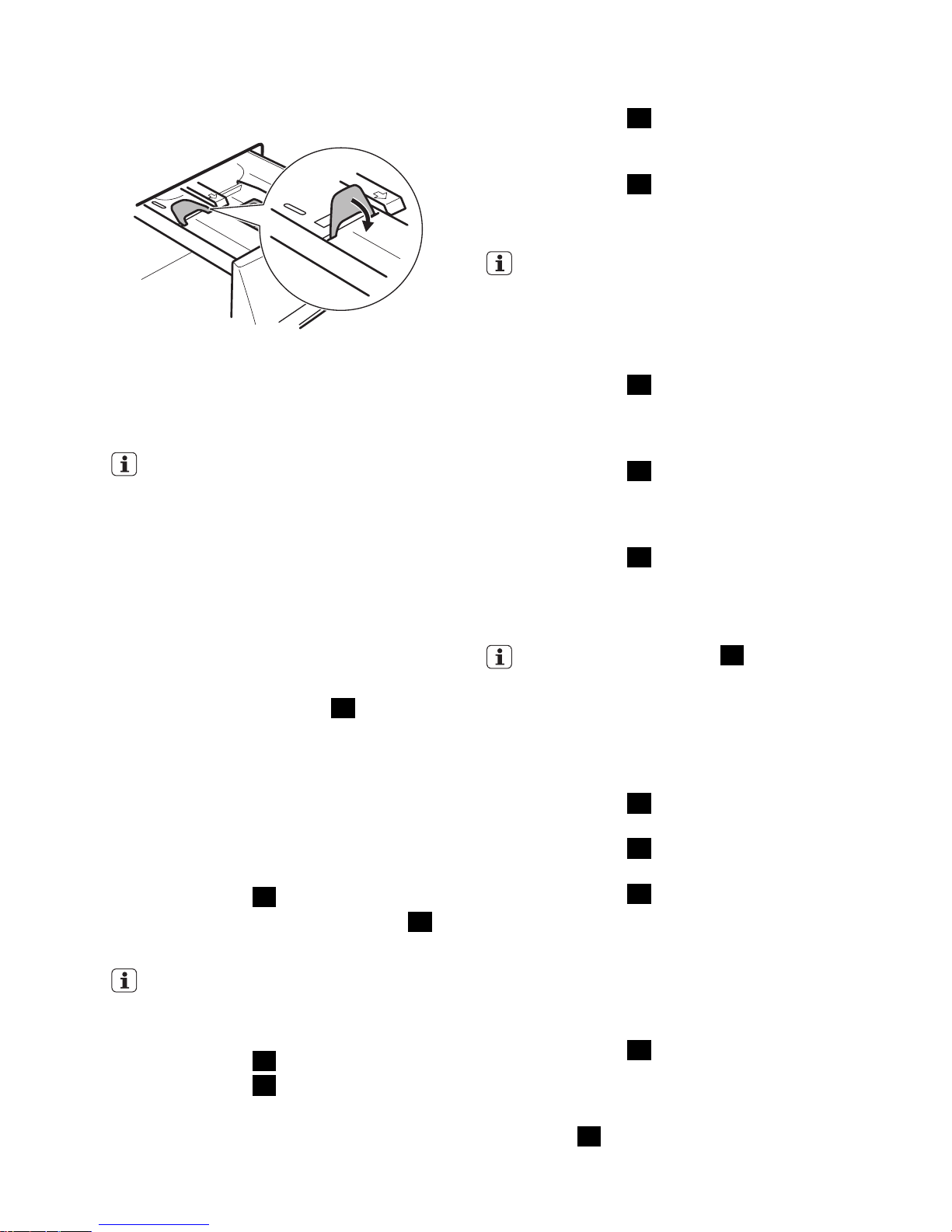

3. To use powder detergent, turn the flap
up.
electrolux 13

4. To use liquid detergent, turn the flap
down.
5. Measure out the detergent and the fab-
ric conditioner.
6. Carefully close the detergent dispenser.
Make sure that the flap does not cause
a blockage when you close the drawer.
With the flap in the position DOWN:
– Do not use gelatinous or thick liquid
detergents.
– Do not put more liquid detergent
than the limit showed in the flap.
– Do not set the prewash phase.
– Do not set the delay start function.
SETTING AND STARTING A
PROGRAMME
1. Turn the programme knob. The related
programme indicator comes on.
2. The indicator of button
4
flashes with
red colour.
3. The display shows the default tempera-
ture and spin speed. To change the
temperature and/or the spin speed,
press the related buttons.
4. Set the available functions. The indica-
tor of the set function comes on or the
display shows the related symbol.
5. Press button
4
to start the pro-
gramme. The indicator of button
4
is
on.
The drain pump can operate for a short
time when the appliance fills water.
INTERRUPT A PROGRAMME
1. Press button
4
. The indicator flashes.
2. Press button
4
again. The washing
programme continues.
CANCEL A PROGRAMME
1. Press button
1
to cancel the pro-
gramme and to deactivate the appli-
ance.
2. Press button
1
again to activate the
appliance. Now, you can set a new
washing programme.
The appliance does not drain the wa-
ter.
CHANGE A FUNCTION
You can change only some functions be-
fore they operate.
1. Press button
4
. The indicator flashes.
2. Change the function set.
SET THE DELAY START
1. Press button
5
again and again until
the display shows the number of mi-
nutes or hours. The related symbols
comes on.
2. Press button
4
, the appliance starts
the countdown of the delay start.
When the countdown is completed, the
programme starts automatically.
Before you press button
4
to start the
appliance, you can cancel or change
the set of the delay start.
You cannot set the delay start with the
Steam programme.
CANCEL THE DELAY START
1. Press button
4
. The related indicator
flashes.
2. Press button
5
again and again until
the display shows 0’.
3. Press button
4
. The programme
starts.
OPEN THE DOOR
While a programme or the delay start oper-
ates, the appliance door is locked.
To open the appliance door:
1. Press button
4
. The door lock sym-
bol in the display goes off.
2. Open the appliance door.
3. Close the appliance door and press
button
4
. The programme or the de-
lay start continues.
14 electrolux

If the temperature and level of the wa-
ter in the drum are too high, the door
lock symbol stays on and you cannot
open the door. To open the door do
the steps that follow:
1. Deactivate the appliance.
2. Wait for some minutes.
3. Make sure that no water is in the
drum.
Important! If you deactivate the appliance,
it is necessary to set the programme again.
AT THE END OF THE PROGRAMME
• The appliance stops automatically.
• The acoustic signals operate.
•In the display comes on.
• The indicator of the Start/Pause button
4
goes off.
• The door lock symbol goes off.
•Press button
1
to deactivate the appli-
ance. After five minutes from the end of
the programme, the energy saving func-
tion automatically deactivates the appli-
ance.
When you activate the appliance again,
the display show the end of the last set
programme. Turn the programme knob
to set a new cycle.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Keep the door ajar, to prevent mildew
and odours.
• Close the water tap.
The washing programme is completed,
but there is water in the drum:
– The drum turns regularly to prevent the
creases in the laundry.
– The door stays locked.
– You must drain the water to open the
door.
To drain the water:
1. If necessary, decrease the spin speed.
2. Press the Start/Pause button
4
. The
appliance drain the water and spin.
3. When the programme is completed
and the door lock symbol goes off, you
can open the door
4. Deactivate the appliance.
The appliance drain and spin automati-
cally after approximately 18 hours.
HELPFUL HINTS AND TIPS
THE LAUNDRY LOAD
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are on
the laundry care labels.
• Do not wash together white and coloured
items.
• Some coloured items can discolour with
the first wash. We recommend that you
wash them separately for the first times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the items.
• Turn inside out multilayered fabrics, wool
and items with painted illustrations.
• Remove hard stains.
• Wash with a special detergent heavy soil
stains.
• Be careful with the curtains. Remove the
hooks or put the curtains in a washing
bag or pillowcase.
•Donotwashinthe appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this oc-
curs, adjust manually the items in the tub
and start the spin phase again.
STUBBORN STAINS
For some stains, water and detergent is not
sufficient.
We recommend that you remove these
stains before you put the items in the appli-
ance.
Special stain removers are available. Use
the special stain remover that is applicable
to the type of stain and fabric.
DETERGENTS AND ADDITIVES
• Only use detergents and additives spe-
cially made for washing machines.
electrolux 15

• Do not mix different types of detergents.
• To help the environment, do not use
more than the correct quantity of deter-
gent.
• Obey the instructions that you find on the
on packaging of these products.
• Use the correct products for the type and
colour of the fabric, the programme tem-
perature and the level of soil.
• If you use liquid detergents, do not set
the prewash phase.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball.
WATER HARDNESS
If the water hardness in your area is high or
moderate, we recommend that you use a
water softener for washing machines. In
areas where the water hardness is soft it is
not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Obey the instructions that you find on the
packaging of the products.
Equivalent scales measure the water hard-
ness:
• German degrees (°dH).
• French degrees (°TH).
• mmol/l (millimol for each litre - interna-
tional unit for the hardness of water).
• Clarke degrees.
Water hardness table
Level Type Water hardness
°dH °T.H. mmol/l Clarke
1soft 0-7 0-15 0-1.5 0-9
2medium 8-14 16-25 1.6-2.5 10-16
3hard 15-21 26-37 2.6-3.7 17-25
4very hard > 21 > 37 >3.7 >25
CARE AND CLEANING
Warning!
Disconnect the appliance from the mains
supply before you clean it.
DESCALING
The water we use contains limescale. If it
becomes necessary, use a water softener
to remove limescales.
Use a special product made for washing
machines. Obey the instructions that you
find on the packaging of the manufacturer.
Do this separately from the laundry wash.
EXTERNAL CLEANING
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
Caution! Do not use alcohol, solvents
or chemical products.
MAINTENANCE WASH
With the low temperature programmes it is
possible that some detergent stays in the
drum. Make regularly a maintenance wash.
To do this:
• Empty the laundry from the drum.
• Set the hottest cotton wash programme
• Use a correct quantity of powder deter-
gent with biological properties.
After each wash, keep the door open for a
while to prevent mould and to let unpleas-
ant smells go out.

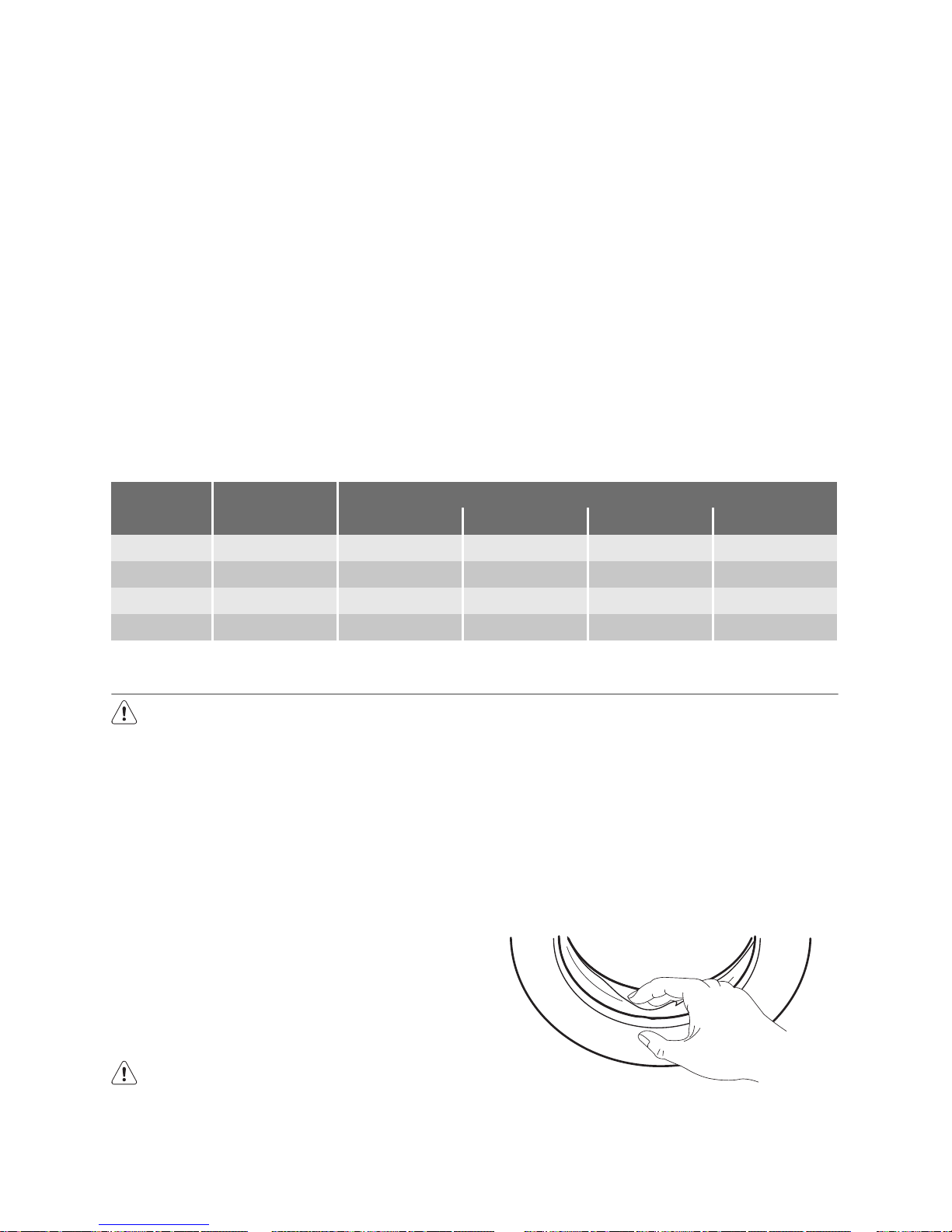

DOOR SEAL
Regularly examine the seal and remove all
objects from the inner part.
16 electrolux

DRUM
Regularly examine the drum to prevent
limescale and rust particles.
Only use special products to remove rust
particles from the drum.
To do this:
• Clean the drum with special product for
stainless steel.
• Start a short programme for cotton at the
maximum temperature with a small quan-
tity of detergent.

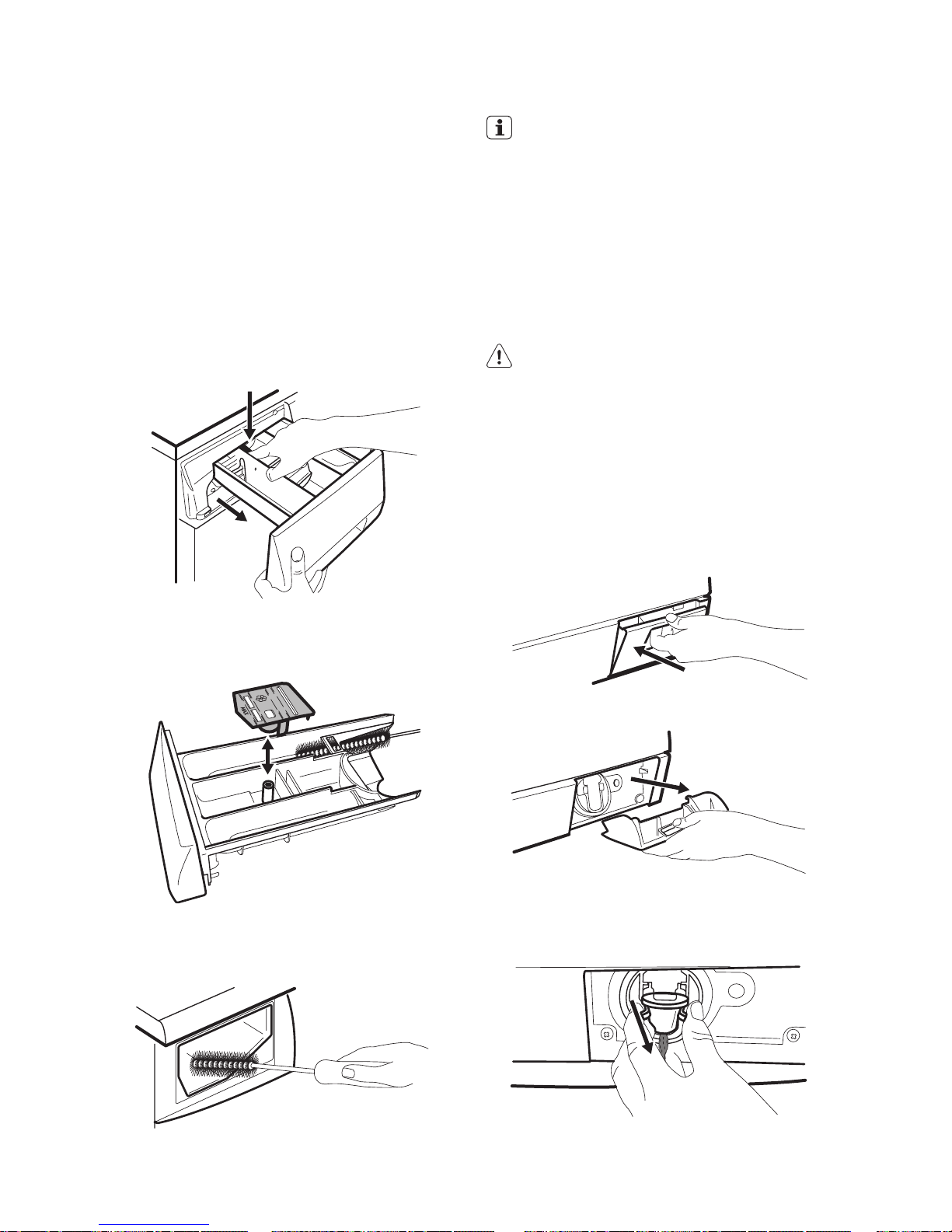

DETERGENT DISPENSER
1. Press the lever.
1
2
2. Pull the dispenser out.
3. Remove the top part of the liquid addi-
tive compartment.
4. Clean all the parts with water.
5. Clean the dispenser recess with a
brush.
6. Put back the dispenser in the recess.
DRAIN PUMP
Regularly examine the drain pump and
make sure that it is clean.
Clean the pump if:
• The appliance does not drain the water.
• The drum cannot turn.
• The appliance makes an unusual noise
because of the blockage of the drain
pump.
• The display shows an alarm code be-
cause of the problem with water drain.
Warning!
• Disconnect the mains plug from the
mains socket.
• Do not remove the filter while the ap-
pliance operates. Do not clean the
drain pump if the water in the appli-
ance is hot. The water must be cold
before you clean the drain pump.

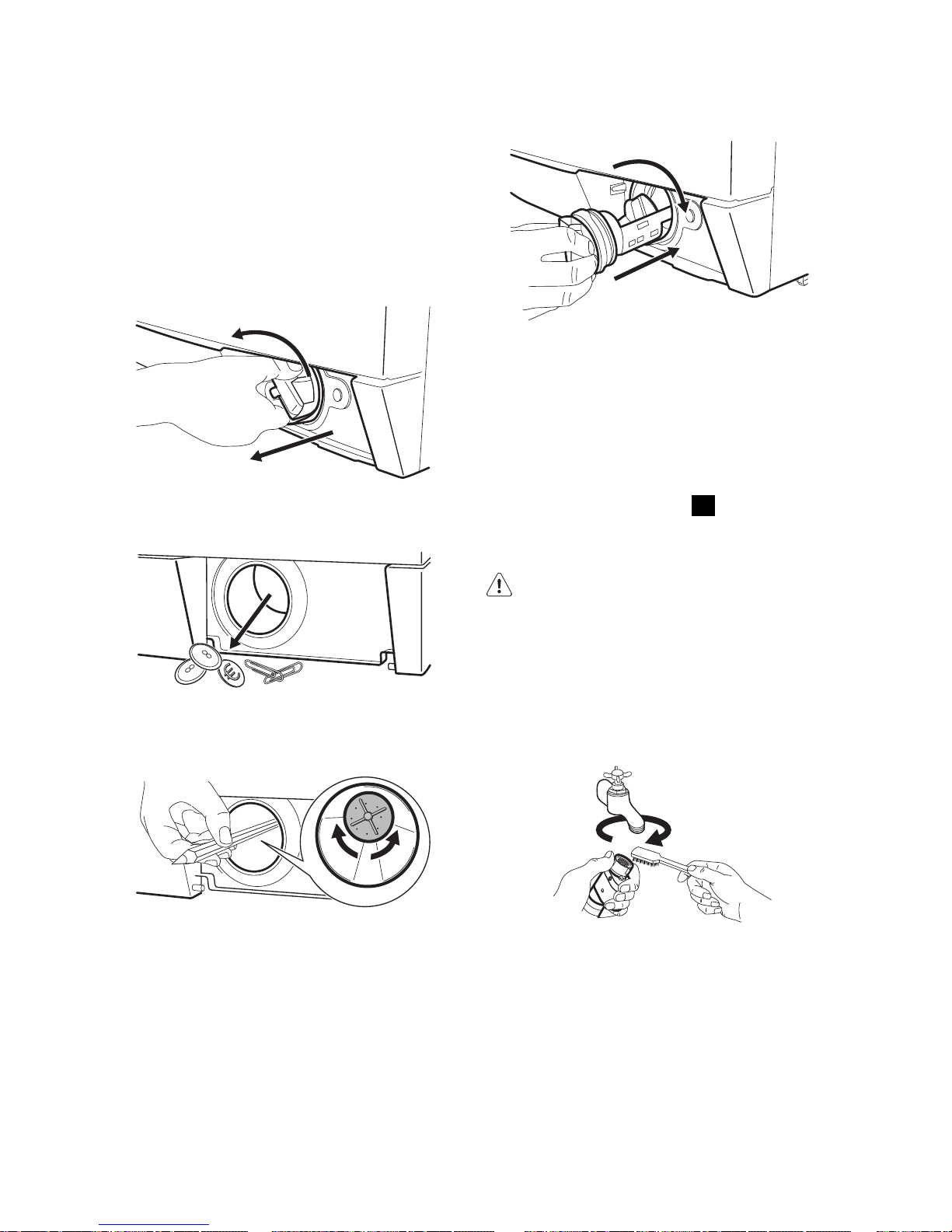

Cleaning the drain pump:
1. Open the drain pump door.
2. Pull the flap out to remove it.
3. Put a container below the recess of the
drain pump to collect the water that
flows out.
electrolux 17

4. Press the two levers and pull forward
the drainage duct to let the water flow
out.
5. When the container is full of water, put
the drainage duct back again and emp-
ty the container. Do steps 4 and 5
again and again until no more water
flows out from the drain pump.
6. Pull back the drainage duct and turn
the filter to remove it.
1
2
7. Remove fluff and objects from the
pump.
8. Make sure that the impeller of the
pump can turn. If this does not occur,
contact the service centre.
9. Clean the filter under the water tap and
put it back in the pump into the special
guides.
10. Make sure that you tighten correctly the
filter to prevent leakages.
11. Put the flap back and close the drain
pump door.
1
2
THE INLET HOSE FILTER AND THE
VALVE FILTER
It could be necessary to clean the filters
when:
• The appliance does not fill with water.
• The appliance fills with the water for a
long time.
•The indicator of button
4
flashes and
the display shows the related alarm. Re-
fer to 'Troubleshooting'.
Warning! Disconnect the mains plug
from the mains socket.
Cleaning the water inlet filters:
1. Close the water tap.
2. Remove the water inlet hose from the
water tap.
3. Clean the filter in the inlet hose with a
stiff brush.
4. Remove the inlet hose behind the appli-
ance.
18 electrolux

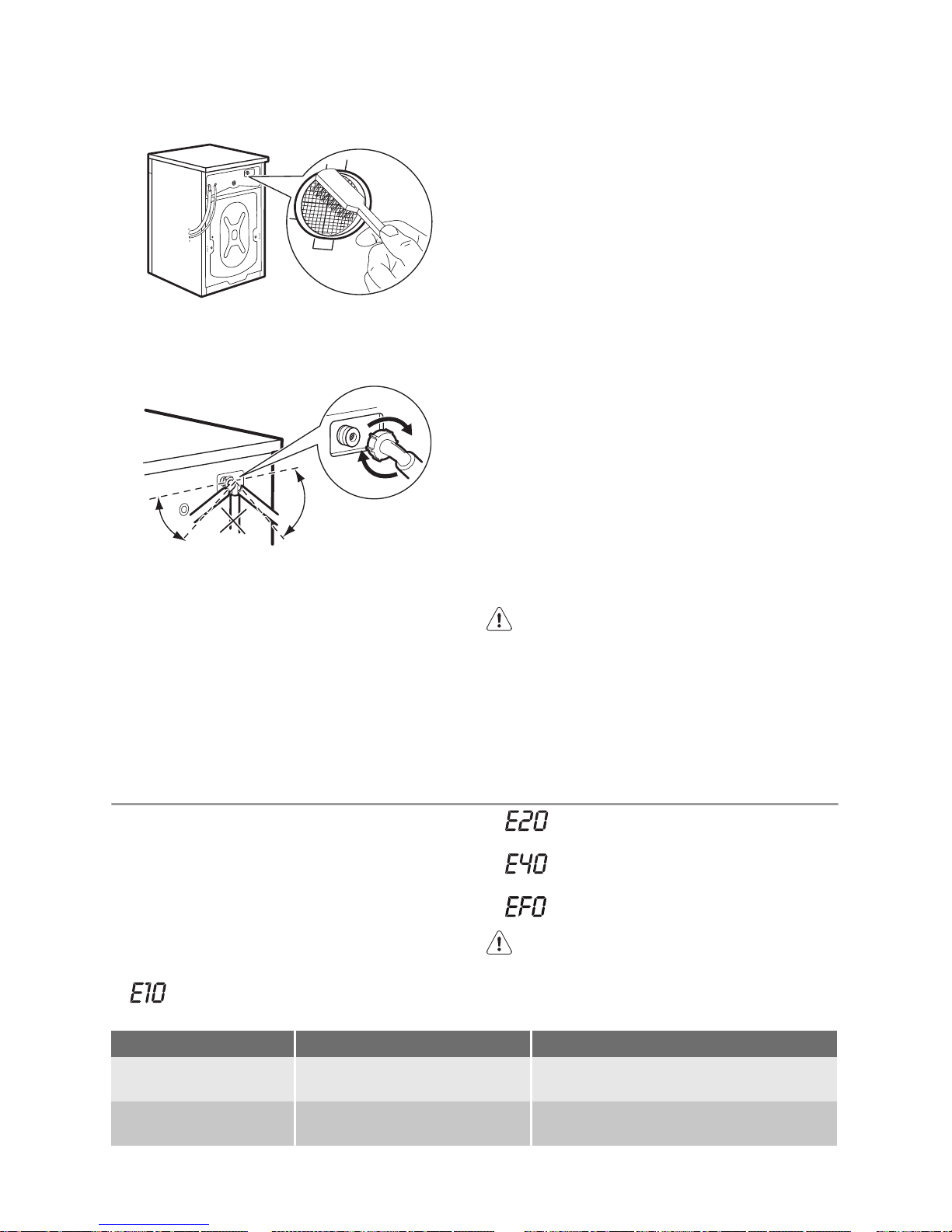

5. Clean the filter in the valve with a stiff
brush or a towel.
6. Install again the inlet hose. Make sure
that the couplings are tight to prevent
leakages.
45°
20°
7. Open the water tap.
EMERGENCY DRAIN
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (6) of 'To
clean the drain pump'.
If necessary, clean the pump.
Put the drainage duct back and close the
drain pump flap.
When you drain the water with the emer-
gency drain procedure, you must activate
again the drain system:
1. Put 2 litres of water in the main wash
compartment of the detergent dispens-
er.
2. Start the programme to drain the wa-
ter.
FROST PRECAUTIONS
If the appliance is installed in an area where
the temperature can be less than 0 °C, re-
move the remaining water from the inlet
hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Remove the water inlet hose
4. Put the two ends of the inlet hose in a
container and let the water flow out of
the hose.
5. Empty the drain pump. Refer to the
emergency drain procedure
6. When the drain pump is empty, install
the inlet hose again.
Warning! Make sure that the
temperature is more than 0 °C before
you use the appliance again.
The manufacturer is not responsible for
damages caused by low temperatures.
TROUBLESHOOTING
The start of the appliance does not occur or
it stops during operation.
First try to find a solution to the problem (re-
fer to the table). If not, contact the service
centre.
With some problems, the acoustic
signals operate and the display shows
an alarm code:
•- The appliance does not fill with
water.
•- The appliance does not drain the
water.
•- The appliance door is open or not
closed correctly.
•- The anti-flood device is on.
Warning! Deactivate the appliance
before you do the checks.
Problem Possible cause Possible solution
The appliance does not
fill with water. The water tap is closed. Open the water tap.
The water inlet hose is dam-
aged. Make sure that the water inlet hose has no damages.
electrolux 19

Problem Possible cause Possible solution
The filters in the water inlet
hose is blocked . Clean the filters. Refer to 'Care and cleaning'.
The water tap is blocked or is
furred with limescale. Clean the water tap.
The connection of the water
inlet hose is not correct. Make sure that the connection is cor- rect.
The water pressure is too low. Contact your local water authority.
The appliance does not
drain the water. The water drain hose is dam- aged. Make sure that the water drain hose has no damages.
The filter of the drain pump is
blocked. Clean the filter of the drain pump. Refer to 'Care and cleaning'.
The connection of the water
drain hose is not correct. Make sure that the connection is cor- rect.
A washing programme without
the drain phase is set. Set the drain programme.
The function Rinse & Hold is
on. Set the drain programme.
The appliance door is
open or not closed
correctly.
Close the door correctly.
The anti-flood device is
on. • Disconnect the appliance. • Close the water tap.
• Contact the service centre.
The spin phase does
not operate. The spin phase is off. Set the spin programme.
The filter of the drain pump is
blocked. Clean the filter of the drain pump. Refer to 'Care and cleaning'.
Balance problems with the
laundry load. Adjust manually the items in the tub and start the spin phase again.
The programme does
not start. The mains plug is not connec- ted in the mains socket. Put in the mains plug.
Blow out fuse in the household
fuse box. Replace the fuse.
You did not press button
4
. Press button
4
.
The delay start is set. To start immediately the programme,
cancel the delay start.
The Child Lock function is acti-
vated. Deactivate the Child Lock function.
There is water on the
floor. Leakages from the couplings of the water hoses. Make sure that the couplings are tight.
Leakages from the drain
pump. Make sure that the drain pump filter is tight.
The water drain hose is dam-
aged. Make sure that the water inlet hose has no damages.
You cannot open the
appliance door. The washing programme is in operation. Let the washing programme end.
There is water in the drum. Set the drain or the spin programme.
20 electrolux
