Element RC Utron SE Operating instructions

AE is a Registered Trademark of Associated Electrics, Inc.
TEAM ASSOCIATED is a Registered Trademark of Associated Electrics, Inc.
REEDY is a Registered Trademark of Associated Electrics, Inc.
FACTORY TEAM is a Registered Trademark of Associated Electrics, Inc.
ELEMENT ™is a Trademark of Associated Electrics, Inc.
AREA 51 is a Registered Trademark of Associated Electrics, Inc.
STEALTH is a Registered Trademark of Associated Electrics, Inc.
GREEN SLIME is a Registered Trademark of Associated Electrics, Inc.
02 33.657120,-117.701139
FEATURES
• Front injection molded inner
fenders
• New IFS2 SUSPENSION
• 1.9” bead lock wheels
• 1.9” x 4.19” PinSeeker Tires
• High clearance front and rear
bumpers
• 12.8” wheelbase
• 1-piece polycarbonate UTRON SE
body
• Adjustable front and rear bumper
mounts with integrated winch line
routing
• Adjustable width rock sliders
IFS2 FEATURES:
• 0 bumper steer suspension design
• Increased suspension travel
• Linear / slider steering rack
• Improved clearance and approach
angles on front suspension arms
and skid plates
• Scale upper and lower control
arms
• Suspension arms are symmetric
left to right
• Lower pivot ball mounting has
been fl ipped for increased ground
clearance
• More traditional steering servo
mounting location
• Servo winch mount location
• Steel servo horn
• Heavy duty steel suspension balls
• Metal ring and pinion gears
• 12mm wheel hexes
• Universal front drive axles
• Larger 5x12x4mm input bearing /
bushing cavity
• 45º steering throw
ADDITIONALFEATURES:
• 90mm shock length
• Stamped steel high clearance frame
rails
• Enclosed receiver box
• ESC tray for cleaner wiring
• Two battery boxes
• Aluminum motor plate
• Adjustable body posts
• Optimized ball cups and links for
more fl uid axle articulation
• POM-fi lled injection molded pivot
balls
• Adjustable rear shock mount
positions for tuning wheelbase and
shock angles
• Telescopic driveshafts front and
rear
• One-piece rear axle design
• Plastic StealthXF upper
transmission gears
• Machined steel top shaft
UPDATED AXLES: New axles with
larger input bushings (upgradable
to bearings) handle higher loads.
New diff covers feature the ability
to add weights on the inside to
maintain a scale look, and faux disk
brakes with calipers add even more
scale details.
THREADED SHOCK BODIES AND
MINI SPRINGS: Just as smooth
and reliable as our aluminum
shocks, these durable plastic
shocks feature caps with a bleeder
screw for easy airless bleeding
and mini springs for a more scale
appearance and to keep the weight
low..
STEALTH® XF GEARBOX WITH
FORWARD MOTOR MOUNT:
At the heart of the Enduro is our
all-new Stealth® XF gearbox. The
new design moves the motor
forward to help keep the weight
over the front wheels. This new
design comes stock with a one-
to-one ratio, but still maintains the
ability to adjust the rear drive ratio
independently from the front with
the use of our optional Factory
Team gears. Sold separately, these
gears allow the transmission to
overdrive the front a mild 5.7% or
a more aggressive 11.83%.
INTRODUCTION
Thank you for purchasing this Element RC product. This assembly manual contains instructions and tips for building
and maintaining your new Enduro chassis. Please take a moment to read through this manual to help familiarize
yourself with these steps. We are continually changing and improving our designs; therefore, actual parts may appear
slightly different than in the illustrations. New parts will be noted on supplementary sheets located in the appropriate
parts bags.
Associated Electrics, Inc.
21062 Bake Parkway
Lake Forest, CA 92630
Customer Service
Tel: [phone]
Fax: [phone]
Follow Us On Social Media
www.ElementRC.com
ElementRC @Element_RC
ITEMS NEEDED
OTHER HELPFUL ITEMS
The following items aren’t required, but will
aid in the building and maintaining of your
Enduro Trail Truck.
• Threadlock (#1596)
• Green Slime (#1105)
• Black Grease (#6588)
The following items are required to build
or maintain your Enduro Trail Truck.
• 1.5mm Allen Wrench (#1500)
• 2mm Allen Wrench (#1501)
• 2.5mm Allen Wrench (#1503)
• Pliers
• Long Nose Pliers
• 5.5mm Nut Driver (#1507)
• 7mm Nut Driver (#1508)

03 33.657120, -117.701139
HARDWARE USED WITH OPTIONAL REPLACEMENT PART NUMBERS
HARDWARE 1:1 SCALE VIEW
4x8x3mm (91568)
5x10x4mm (91560)
5x12x4mm (91567)
7x14x3.5mm (91479)
10x15x4mm (91563)
2.5x10mm (31350)
2.5x14mm (41077)
3x6mm (31541)
3x8mm (25201)
3x10mm (25202)
3x12mm (25203)
3x14mm (89208)
2x3mm (31509)
2.6x10mm, Self Tapping (41088)
3x4mm (91158)
3x5mm (31530)
3x6mm (31531)
3x8mm (31532)
3x10mm (25211)
3x12mm (89202)
3x14mm (25187)
3x16mm (89203)
3x18mm (2308)
3x20mm (25188)
3x22mm (25189)
3x24mm (89204)
3x26mm (89205)
3x28mm (41078)
Pivot Ball, Short (42041)
Pivot Ball, Long, Upper Shock (42041)
3x3mm (25225)
3x16mm (4689)
4x16mm (4677)
M3 Locknuts (25215)
Aluminum (31550)
M4 Locknut W/Flange (25391)
FLAT HEAD SCREWS (FHCS) SOCKET HEAD SCREWS (SHCS)
SET SCREWS
PIVOT BALLS
LOCK NUTS
BEARINGS
BUTTON HEAD SCREWS (BHCS)
2x5mm (31511)
2x8mm (7187)
2.5x6mm (41079)
2.5x10mm (41087)
2.5x14mm (71032)
2.5x16mm (41086)
2.6x10mm (42332)
3x6mm (41089)
MISC. SCREWS
Shoulder Screw 3x4x10mm (42070)
Screw Pin (42022)
Pin 2x9mm (31872)
Pin 2x11mm (42019)
LP SOCKET HEAD SCREWS (LP SHCS)
3x6mm (41089)
3x10mm (41090)
3x16mm (41092)
3x20mm (41091)
SHIMS AND WASHERS
3x7mmx1mm (42260)
3x7mmx2mm (42260)
3x7x3mm (42260)
3x7x5mm (42260)
3x7x7mm (42260)
Drive Gear Shim (42027)

04 33.657120, -117.701139
TABLE OF CONTENTS
USING THIS MANUAL
There is a 1:1 hardware foldout page in the front of the manual. To
check the size of a part, line up your hardware with the correct
drawing until you fi nd the exact size. Each part in the foldout has a
number assigned to it for ordering replacement parts.
This symbol indicates a special note or
instruction in the manual.
This symbol indicates the order within
a step to assemble parts.
This symbol indicates there are
optional FT parts available
This symbol indicates
where Black Grease
should be applied.
This symbol indicates
where Thread Lock
Adhesive should be
applied. *not included
This symbol indicates
where Shock Fluid
should be applied.
This symbol indicates
where Green Slime can
be applied. *not included
This symbol indicates the number of
the same part that is required.
This symbol indicates a Trail Tip.
2
x2
BLACK GREASE
#6588
GREEN SLIME
#1105
THREAD LOCK
#1596
01
COVER
02
INTRODUCTION
03
1:1 HARDWARE “FOLD OUT”
04
TABLE OF CONTENTS
05
Stealth XF BUILD
06
Chassis BUILD
11
REAR AXLES BUILD
12
LINKS BUILD
12
DRIVESHAFTS BUILD
13
SHOCKS BUILD
14
BUMPERS BUILD
15
WHEELS/TIRES BUILD
15
BODY BUILD
16

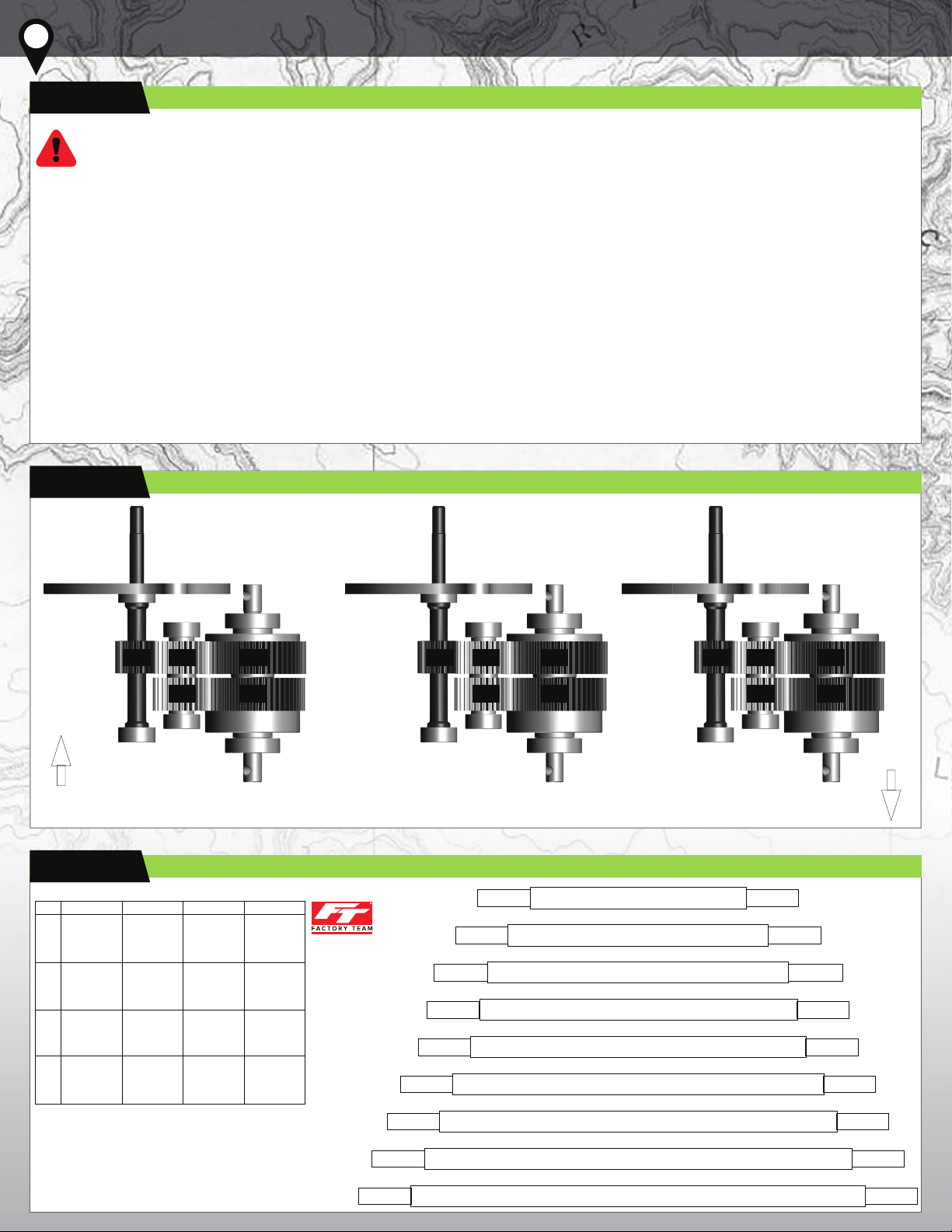

OPTIONAL GEARBOX BUILD
17
TRAIL TIPS
18
BACK COVER
4/17/2023
SHOCK FLUID
#5422

YOUR BUILD BEGINS HERE.
STEALTH XF BUILD:
GATE 01
STEALTH XF BUILD:
GATE 02
STEALTH XF BUILD:
GATE 03
05
x1 42315
Stealth XF
Case
x4
x6
x6
x3
x2
x2
x2
x1
x1 x1
x1
x1
x1
x1
x1
x1 42315
Stealth XF
Case
42315
Stealth XF
Case
42315
Stealth XF
Case
42315
Stealth XF
Case
42316
Stealth XF
Drive Gear, 52T
31350
2.5x10mm
FHCS
42332
2.6x10mm
SHCS, Silver
42332
2.6x10mm
SHCS, Silver
42318
Conical
Washer
42318
Stealth XF
Slipper Pad
42321
5x10x4mm
Bushing
42321
5x10x4mm
Bushing
91560
5x10x4mm
Bearing
91560
5x10x4mm
Bearing
42320
Stealth XF
42025
Idler Shaft Pin
2x9mm
42319
Top Shaft
42025
Idler Shaft
BLACK GREASE
#6588
x2
x3
41078
3x28mm
BHCS
31350
2.5x10mm
FHCS
x1 42316
Stealth XF
Idler Gear, 28T
x2 42321
10x15x4mm
Bushing
91563
10x15x4mm
Bearing
x3 89202
3x12mm
BHCS
x1
x2
x1
25391
FT M4
Locknut
42318
Stealth XF
Slipper Plate
42316
Stealth XF
Spur Gear, 50T
Plastic
NOTE: Do not
overtighten the
3x28mm BHCS
42333
FT Slipper
Lockout

STEALTH XF BUILD:
GATE 04

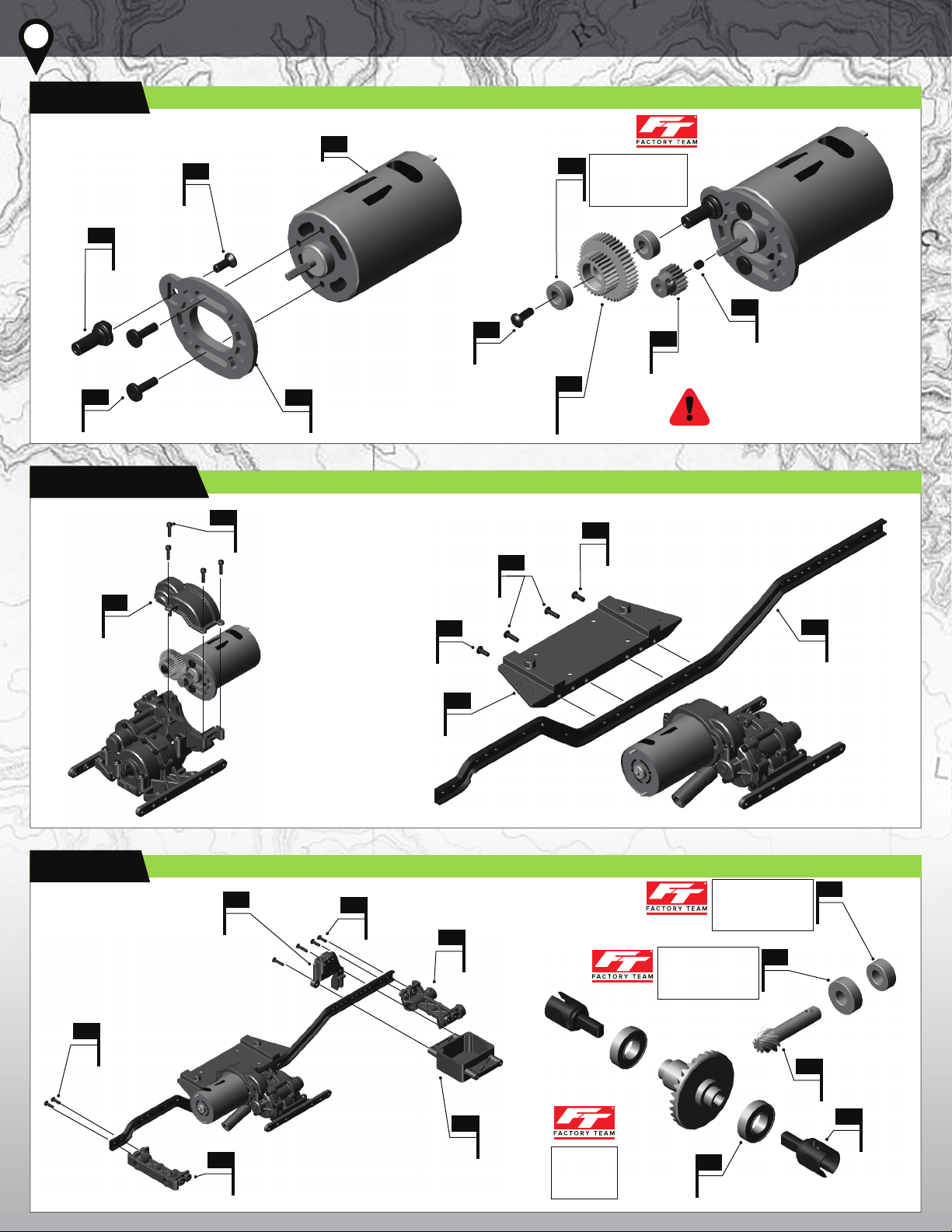

STEALTH XF BUILD: / CHASSIS BUILD:
GATE 05 / 01
CHASSIS BUILD:
GATE 02
06
x2
x1
x1
41090
3x10mm
LP SHCS
25201
3x8mm
FHCS
31531
3x6mm
BHCS
x1
Motor
x1
x1
x1
NOTE: Make sure the gear mesh
between the running gear and
pinion has a slight amount of
movement between the two gears.
x1
x1
1336
Pinion Gear
18T
42316
Stealth XF
Running Gear
45T/27T
25225
3x3mm
Set Screw
42317
Stealth XF
Motor Plate
42317
Stealth XF
Running Gear Shaft
x2 42321
5x10x4mm
Bushing
91560
5x10x4mm
Bearing
x1
42315
Stealth XF
Case
x4 42332
2.6x10mm
SHCS, Silver
x1
x1
x1
x2
x1 x2
x1
x1
x1
x1
x2
x1
31532
3x8mm
BHCS
42305
Floor
Board
25211
3x10mm
BHCS
42304
Shock Mount,
Right Rear
31532
3x8mm
BHCS
42300
Bumper Mount
Rear
42300
Bumper Mount
Front
25211
3x10mm
BHCS
42301
Fuel Cell,
Bottom
42226
Outdrives
42235
Pinion, 8T
42257
Chassis Rail
Right
x2 25211
3x10mm
BHCS
91560
5x10x4mm
Bearing
91567
5x12x4mm
Bearing
x1
x1
x2
42321
5x10x4mm
Bushing
42321
5x12x4mm
Bushing
42336
FT Ring/Pinion
Option
91479
7x14x3.5mm
Bearing

CHASSIS BUILD:
GATE 03
CHASSIS BUILD:
GATE 04
07
33.657120, -117.701139
x4
x2
x1
x1
89210
3x20mm
FHCS
42216
Ballstud
42216
Ballstud
42345
Upper Arm
Mount
x1
x1
x1
x1
x1
x2
x1 x4
x2
x1
31532
3x8mm
BHCS
42346
Steering
Plate
42345
Diff Case,
Top
42346
Steering
Rack
42345
Diff Case,
Bottom
42344
Links,
48mm
42348
Shim,
2mm
89202
3x12mm
BHCS
31510
2x4mm
BHCS
42345
Steering
Rack Cover
x2
x2
x2
x2
x2
31532
3x8mm
BHCS
31532
3x8mm
BHCS
42346
Hat
Bushing
42346
Bushing
42346
Bushing
THREAD LOCK
#1596
THREAD LOCK
#1596
BLACK GREASE
#6588

CHASSIS BUILD:
GATE 05
CHASSIS BUILD:
GATE 06
CHASSIS BUILD:
GATE 07
08
x4 x4
x1
x1
x1
x1
41090
3x10mm
LP SHCS
25202
3x10mm
FHCS
42344
Link,
44mm
42216
Ballstud
42348
Shim,
4mm
42215
Servo Horn
x1
x1
x1
Servo
31532
3x8mm
BHCS
42345
Servo
Plate
THREAD LOCK
#1596
x1
x1
x1
x1
x1x1
x1
x2
x1
42321
10x15x4mm
Bushing
42348
Shim,
2mm
42342
Steering
Block
42341
Upper Arm
42341
Lower Arm
42341
Lower
Hinge Pin
31510
2x4mm
BHCS
4675
2.5x6mm
FHCS 42343
Center Skid
Plate
91563
10x15x4mm
Bearing
91560
5x10x4mm
Bearing
x1
x1
42310
Wheel Hex,
6mm
42076
FT Enduro
Wheel Hexes,
6 mm, steel
42019
Wheel Hex
Pin, 2x11mm
NOTE: Install left and
right side wheel hexes
x1
x1
x1
x2
x1
x1
x1 x2
x2
x1
42227
Universal
42321
5x10x4mm
Bushing
25215
M3
Locknut
42216
Ballstud
42216
Ballstud,
Shouldered
42341
Upper
Hinge Pin
42310
Brake
Rotor
25202
3x10mm
FHCS
25187
3x14mm
BHCS
42343
Front Skid
Plate
NOTE: Install left
and right side steering
blocks and universals
NOTE: Build left
and right side
NOTE: Build left
and right side

CHASSIS BUILD:
GATE 08
CHASSIS BUILD:
GATE 09
CHASSIS BUILD:
GATE 10
09
33.657120, -117.701139
x2 x1 x2
x1
x1
x1
x2
x2
x2
42021
Drive Shaft,
Male, CVA
42021
Pin,
2x11mm
42314
Drive Shaft, Female
(33mm, 42mm)
31532
3x8mm
BHCS
42314
Drive Shaft, Male
(46mm, 60mm)
42314
Pin Retainer,
Short
42020
Pin Retainer,
Long
42021
Drive Shaft,
Female, CVA
42021
Drive Shaft
Barrel
Rear (mm)
33
42
60
Front (mm)
33
33
46
Female 1
Female 2
Male
Drive Shaft Lengths
42020
Gearbox Side
42020
Axle Side
NOTE: Build a front
and rear drive shaft
THREAD LOCK
#1596
THREAD LOCK
#1596
NOTE: Install the
front drive shaft
NOTE:
Install the
x2
x1
x1
25211
3x10mm
BHCS
42257
Chassis Rail
Left
42022
Screw Pin
x1
x2 42305
Floor
Board
25211
3x10mm
BHCS
x2
x1
x1
x1
25211
3x10mm
BHCS
31532
3x8mm
BHCS
4689
3x16mm
Set Screw 31532
3x8mm
BHCS
x1 42314
Drive Shaft, Male
(46mm, 60mm)
x1
42022
Screw Pin
x1
x2
25203
3x12mm
FHCS
42304
Shock Mount
(Right, Front)

CHASSIS BUILD:
GATE 11
CHASSIS BUILD:
GATE 12
CHASSIS BUILD:
GATE 13
10
NOTE: Install Left and
Right side Fenders
x2
x1
31532
3x8mm
BHCS
Battery
x1
x1
25188
3x20mm
BHCS
42303
Front Fender
(Left, Right)
NOTE: Install Left and
Right side Rock Sliders
x2
71050
Hook and
Loop Straps
x2 89202
3x12mm
BHCS
x1 42325
SE Rock
Slider
x4
x1
x1
25211
3x10mm
BHCS
42302
Battery
Brace
42301
Fuel Cell,
Top
x1
42302
Battery Box,
Shorty Pack
x6
25202
3x10mm
FHCS
x1
x4
x1
x1
x1
x1
ESC
42305
Receiver Box
Lid
6338
Antenna Tube
and Cap
25225
3x3mm
Set Screw
25202
3x10mm
FHCS
42007
Receiver Box
Grommet
x1
6727
Servo Tape
x1
x1
x1
x1
x1
x1
42007
Receiver Grommet
Plug
42305
ESC Tray
42305
Receiver Box
Bottom
42007
Receiver
Grommet
6727
Servo Tape
Receiver
x4
25201
3x8mm
FHCS
x4 25202
3x10mm
FHCS

CHASSIS BUILD:
GATE 14
REAR AXLE BUILD:
REAR AXLE BUILD:
GATE 02
GATE 01
11
33.657120, -117.701139
NOTE: Install left and
right side drive shafts
NOTE: Install left and right side
axle mounts and wheel hexes
x1
42321
5x10x4mm
Bushing x1
42310
Brake
Rotor
x1 42019
Pin,
2x11mm
x1
x2
42068
Drive Shaft,
Rear
25201
3x8mm
FHCS
x1 42308
Lower 4-Link
Mount
x2
71032
2.5x14mm
SHCS
91560
5x10x4mm
Bearing x1
42310
Wheel Hex,
6mm
42076
FT Enduro
Wheel Hexes,
6 mm, steel
x1
x1
x1
42307
Axle Housing,
Rear
42335
Pinion Gear,
8T
42308
Axle Housing
Diff Cover
x2
x2
x2
42321
5x12x4mm
Bushing
4673
2.5x4mm
BHCS
91479
7x14x3.5mm
Bearing
91567
5x12x4mm
Bearing
x1
42335
Ring Gear,
30T
x2 42321
5x10x4mm
Bushing
91560
5x10x4mm
Bearing
x4
41086
2.5x16mm
SHCS
BLACK GREASE
#6588
x1
x1
42304
Shock Mount
(Left, Rear)
42304
Shock Mount
(Left, Front)
x4 25203
3x12mm
FHCS
42336
FT Ring/Pinion
Option

12
LINKS BUILD:
GATE 01
REAR DRIVESHAFT BUILD:
LINKS BUILD:
GATE 01
GATE 02
x1 42344
Link,
152mm
NOTE: Check the rod end
angles before installation
x2 42041
Pivot Ball,
6mm
152.00mm
NOTE: Build and install
two rear lower links
NOTE: Make sure the screw
pins are aligned with each
female CVA during assembly
NOTE: Make sure the phasing of the drive shafts is correct when installing
them to the axles and gearbox.
Correct Phasing
Incorrect Phasing
x4
42022
Screw Pin
33
42
46
60
33
33
FRONT
REAR
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
x1
4689
3x16mm
Set Screw
NOTE: Install the
rear drive shaft
x1 42344
Link,
146mm
NOTE: Check the rod end
angles before installation
x2 42041
Pivot Ball,
6mm
146.00mm
NOTE: Build and install
two rear upper links
x1 25188
3x20mm,
BHCS
x2
x1
25215
M3 Locknut,
Black
41078
3x28mm
BHCS

SHOCK BUILD:
GATE 01
SHOCK BUILD:
GATE 02
SHOCK BUILD:
GATE 03
13
33.657120, -117.701139
x1 x1
42311
Shock Cap,
Enduro
31510
2x5mm
BHCS
Shock Bleeding Steps:
1. Pull shock shaft down.
2. Fill shock body 3/4 full with silicone fluid.
3. Slowly move the shock shaft up and down to remove air from
under piston.
4. Wait for bubbles to come to surface.
5. Fill shock body to top with silicone fluid.
6. Place a drop of oil in the cap and on cap threads.
7. Install cap and tighten completely.
8. Slowly compress shaft all the way to the top. If there is
pressure at the top of the stroke, there is too much oil or air.
You must bleed it out.
9. Slowly pull shaft out.
10. Unscrew the cap 3/4 turn and tilt the shock at a slight angle.
11. Slowly compress the shaft to push out excess oil and air.
You should see bubbles coming out from under the cap.
12. With the shaft compressed, tighten the cap and re-check for
pressure at the top of the stroke. If there is still pressure,
repeat steps 9 thru11. Step 8-12Step 1-3 Step 3-4 Step 5-6 Step 7
NOTE: Build 4
complete shocks
x2
x1
x1
x1
x1
x2
x1
x1
x1
x1
x1
2661
E-Clip
42311
Shock
Piston
42348
Enduro
Rod Ends
42083
Shock Shaft,
3x30mm
42312
Shock Body,
10x32mm
5407
O-Ring,
Red
42311
Shock O-Ring
Spacer
42311
Shock Bottom
Cap
31865
O-Ring, Small,
Shock Cap
42311
Shock Spring
Cup
42313
Shock Spring
NOTE: Build 4
complete shocks
NOTE: Build 4
complete shocks
Pro Tip:
Use #1105 Green
Slime on O-Rings
GREEN SLIME
#1105
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
Shock Fluid CST
Front
Rear
1,000
350
Shock Eyelet (mm)
Rear
Front
+0
+3
+6
Rear Spring
Front Spring
Green
White
Gray
Blue
Yellow
Red
Orange
Purple
Springs
#42313
Soft
#42347
Hard

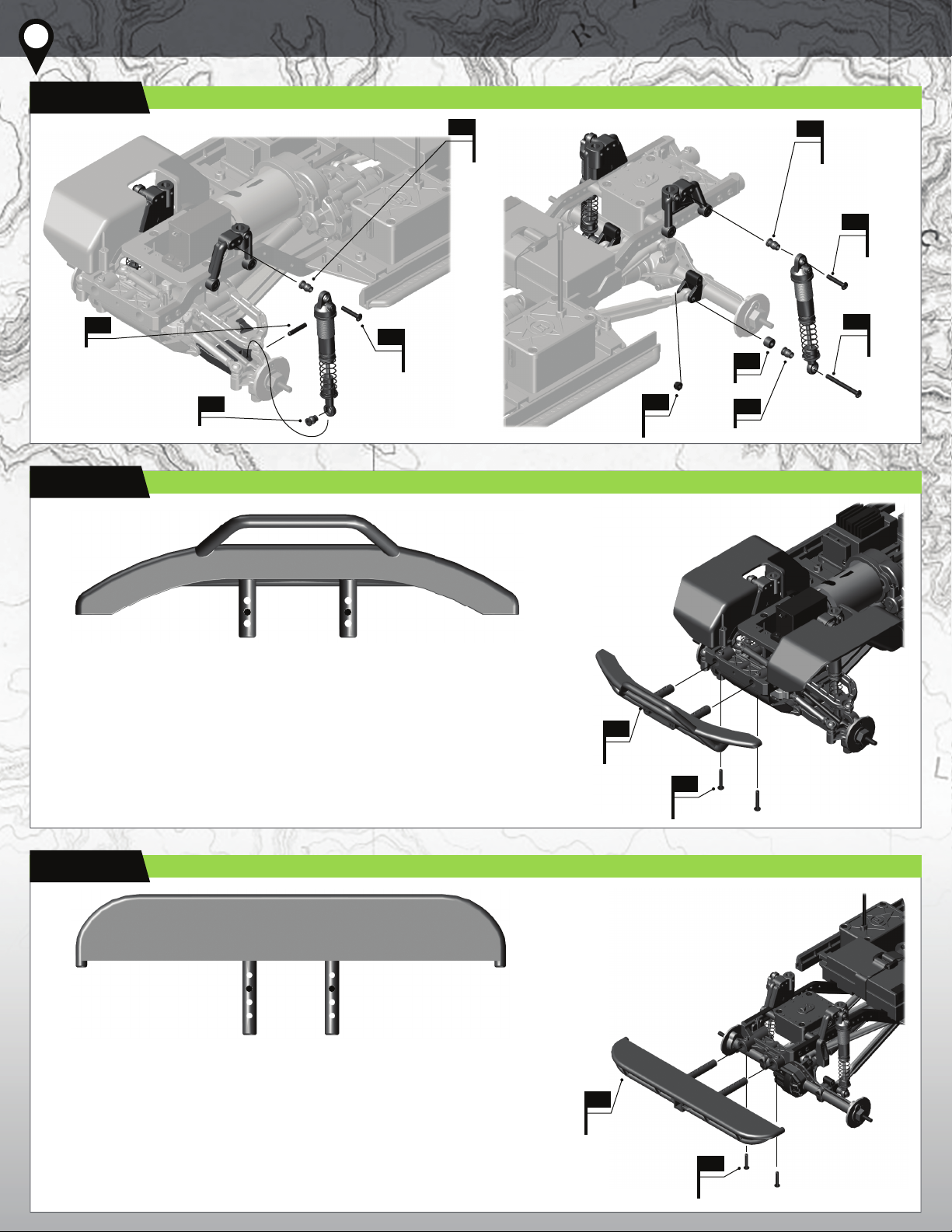

SHOCK BUILD:
GATE 04
BUMPER BUILD:
GATE 01
BUMPER BUILD
GATE 02
14
x2
x2
x1
x1
2308
3x18mm
BHCS
89203
3x16mm
BHCS
42353
Front
Bumper
42353
Rear
Bumper
x1
x1
x1 x1
x1
x1
x1
x1
x1
x1
42041
Pivot Ball
4689
3x16mm
Set Screw
42041
Pivot Ball
42308
5mm Shim
25215
M3
Locknut
91478
3x30mm
BHCS
89203
3x16mm
BHCS
42041
Pivot Ball,
Upper Shock
42041
Pivot Ball,
Upper Shock
89203
3x16mm
BHCS

WHEEL/TIRE BUILD
GATE 01
WHEEL/TIRE BUILD
GATE 02
BODY BUILD:
GATE 01
15
33.657120, -117.701139
Front Post Rear Post
NOTE: Install 4
body mounts
x2
x2
42009
Body Mount,
Short Pin
42022
Screw Pin
NOTE: Install 4 wheels/tires
x2 x2
42328
Nut Cap, Black 25391
FT M4 Locknut,
Blue
x4
x1
6332
Body Clips
42352
Utron Body
NOTE: Build 4 wheels/tires
NOTE: Install #41088 screws in
a crossing pattern
2
3
45
6
1
x6
x1
42332
2.6x10mm
SHCS, Silver
42328
Hex Adapter,
Black
x1
x1
x1
x1
x1
42328
Outer Wheel, Black
42349
Pinseeker
Tire 42329
Tire, Insert
42328
Ring, Black
42328
Inner Wheel, Black 42103 Aluminum
42104 Brass
*Optional
Hex Adapters
42351 RTR - Painted
42352 Clear
Bodies
x2
x2
x2
x2
x1
x1
31531
3x6mm
BHCS
31531
3x6mm
BHCS
42352
Utron Rear
Brake Light
42352
Utron Rear
Brake Light
Bracket
42352
Front Grill
Bracket
42352
Front Grill

STEALTH XF: BUILD CONFIGURATION:
GATE 01
STEALTH X: BUILD CONFIGURATION: MOTOR MOUNT FACING REAR (STOCK)
GATE 02
LINKS: WHEELBASE CHART - PARTS NEEDED
GATE 03
16
20T 20T 20T28T 28T 28T52T 52T 52T
52T 53T 54T28T 27T 26T
OVERDRIVE:
Overdrive is a scenario where the front and rear wheels do not rotate at the same speed. The Stealth XF gearbox is designed to
allow the front wheels to spin faster than the rear wheels. Overdrive is advantageouse when climbing up rock faces because the
front tires will want to pull the vehicle up the rock. On desents, the rear tires rotating slower than the front tires will help keep
the chassis more stable and keep the rear tires planted on the ground.
Stealth XF:
The Stealth XF gearbox comes factory assembled with no overdrive (1:1).
With additional parts, the Stealth XF gearbox allows the driver to change the front to rear drive ratios with 3 separate ratio
adjustments to the rear drive shaft.
Items Needed for OVERDRIVE:
#42025, #42027, #91563, #42026 -OR- #42031, #42028 -OR- #42032
Please Note:
The 20T top shaft, 28T idler gear, and 52T drive gear will always be meshed together in all 3 gearbox confi gurations.
1:1 Over Drive Option 1 Over Drive Option 2
Front Of
Vehicle
Rear Of
Vehicle
73mm
83mm
93mm
96mm
100mm
108mm
114mm
121mm
127mm
Items Needed for Links:
#42040 - Rod Ends
Panhard Links [CMS]:
Panhard - #42183
Steering Input - #42182
Steering Link - #42180
Servo on Axle Links
[SOA]:
Links - #42323
Steering Link - #42180
WHEELBASE CHART
11.8”
12.0”
12.3”
12.8”
FRONT UPPER
93mm
#42184
93mm
#42184
93mm
#42184
93mm
#42184
FRONT LOWER
100mm
#42185
#42186
100mm
#42185
#42186
100mm
#42185
#42186
100mm
#42185
#42186
REAR UPPER
93mm
#42184
100mm
#42185
108mm
#42187
121mm
#42191
REAR LOWER
100mm
#42185
#42186
108mm
#42187
#42188
114mm
#42189
#42190
127mm
#42192
#42193
WB

TRAIL TIPS AND CHECKLIST
17
33.657120, -117.701139
PREPARING TO HIT THE TRAIL:
When preparing to hit the trail, it’s a good idea to have a checklist to make sure you have everything and don’t end up having to
head back early.We’ve compiled a checklist of the things we think you’ll need on the trail.We’ve also left some space for you to
add your specifi c items to the list. Keep in mind these are suggestions and every person will require different items. Weather and
altitude will also dictate how much food and water a person will require. Do a little research fi rst before heading out for a full day
on the trail.
�Truck with Charged Battery
�1-2 spare Charged Batteries for your rig
�Radio with Charged Batteries
�Spare radio batteries
�Check all nuts and screws and tighten them. Including Wheel nuts!
�Spare parts (Nuts, Screws, Body Clips, and anything that may wear or break)
�Backpack
�Water (2 liters per person minimum)
�Snacks (protein bars, trailmix, etc.)
�Sturdy shoes (Hiking boots preferably or something with grip and ankle support)
�Element Hat or Beanie
�Element Hoodie or Jacket
�Sunscreen
�Bug Spray
�Lip Balm
�Nut Drivers (Factory Team Nut Drivers #1507, 1508)
�Allen wrenches (Factory Team Hex Driver set #1655)
�Cell phone and charger
�Headlight or fl ashlight with spare batteries
�Compact action camera
�Camera
�Tripod
�___________________
�___________________
�___________________
�___________________
�___________________
�___________________
TREAD LIGHTLY:
Remember, when driving your rig out on the trails, it’s important to tread lightly.We all know that the best place to enjoy our
hobby is out in nature, and that means we need to preserve it for future hobbyist so we all have a place to enjoy. Here are a few
tips to remember when out on the trail.
• Pack In/Pack Out:
Don’t leave anything behind.Whether it’s trash, parts, or food. If you brought it, take it with you.
• National and Public Parks:
If visiting a national park, leave the RC cars at home. It is illegal to drive any radio control vehicle within national park boundaries.
Public parks are slightly different, some may allow radio control cars and others may not. Check with your local offi cials before
driving in a public park.
• Be Considerate:
Where ever you drive your radio control car, always be considerate of others. Hikers, bicyclists, and animals should always be
given the right of way.
• Keep It Quiet:
If you’re sharing an area with other people, try to keep the noise to a minimum. If you come across animals or anglers, please be
considerate and give them space.
• Give A Hoot, Don’t Pollute:
When enjoying the outdoors take your trash with you. Not only is it bad for the environment, it’s unsightly. If you see trash, pick
it up, even if it isn’t yours. If we all do our part we can work together to keep our planet beautiful for future generations.
• OnlyYou Can Prevent Wild Fires:
Some of us like to mix camping with RC cars. This is great! Just remember to follow all safety precautions and put out any camp
fi res before calling it a night. Also, be sure to unplug and store all LiPo batteries in LiPo sacks and a fi re resistant storage
device.
