Element Enduro KNIGHTWALKER OFF-ROAD 4X4 Manual

AE is a Registered Trademark of Associated Electrics, Inc.
TEAM ASSOCIATED is a Registered Trademark of Associated Electrics, Inc.
REEDY is a Registered Trademark of Associated Electrics, Inc.
FACTORY TEAM is a Registered Trademark of Associated Electrics, Inc.
ELEMENT ™is a Trademark of Associated Electrics, Inc.
AREA 51 is a Registered Trademark of Associated Electrics, Inc.
STEALTH is a Registered Trademark of Associated Electrics, Inc.
GREEN SLIME is a Registered Trademark of Associated Electrics, Inc.
02 33.657120,-117.701139
FEATURES
• Stealth X Gearbox with adjustable
overdrive gears
• BTA steering [Behind the Axle]
• CMS [Chassis Mounted Servo]
• Integrated servo winch mount
• Adjustable front track bar
• Universal front drive axles
• Stamped steel C-Channel frame
rails
• Enclosed receiver box
• 12mm wheel hexes
• Adjustable front and rear bumper
mounts
• Adjustable width rock sliders
• Two battery boxes (Shorty and
regular size!)
• Threaded aluminum shock bodies
• Aluminum steering plates
• Aluminum motor plate
• Adjustable body posts
• Optimized rod ends for more fl uid
axle articulation
• Adjustable rear shock mount
positions
• Telescopic driveshaft’s front and
rear
• Extruded aluminum driveshaft
splines
• One-piece rear axle design
• Splined front axle with adjustable
caster
• Machined input pinion gear
• Metal ring gear
• Machined steel top shaft
• Metal idler gears
• Heavy duty 5mm diameter steel
links
• Precision metal ball bearings
included
• Steel servo horn
• Licensed 1.9”x4.19” General
Grabber A/TX tires
ELECTRONICS:
• Water resistant 2S-3S LiPo
compatible Fly Sky 2.4GHz multi-
channel combo electronic speed
control and receiver
• Smooth and powerful Reedy
Crawler 16T 5-slot brushed motor
• Reedy high-torque metal gear
servo
BODY FEATURES:
• Body thermoformed in high-
strength polycarbonate
• One-piece cab and bed design
• Clear windows
• Molded grill
• Replaceable headlight / taillight
lenses
• Side mirrors
• Headlights / taillights are LED
compatible
• Adjustable front bumper
INTRODUCTION
Thank you for purchasing this Element RC product. This assembly manual contains instructions and tips for building
and maintaining your new Enduro chassis. Please take a moment to read through this manual to help familiarize
yourself with these steps. We are continually changing and improving our designs; therefore, actual parts may appear
slightly different than in the illustrations. New parts will be noted on supplementary sheets located in the appropriate
parts bags.
ENDURO TRAIL TRUCK
A performance rig built to endure. When hitting the trail, you want to do it with confi dence and the answer is
the all new Enduro Trail Truck!
At the heart of the Enduro is our revolutionary Stealth® X gearbox. Although the exterior appears to have a conven-
tional 3-gear transmission look, the inside is far from conventional.The Stealth® X features the ability to adjust the
rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7% (installed in
RTR), option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front
end 11.83% (included with RTR).
Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal
front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will
not be an issue.
We relocated the steering link assembly from the conventional location, to behind the axle (BTA).This feature greatly
improves approach angle and front end clearance, making rough terrain much easier to handle.
The Enduro Trail Truck comes ready for adventure right out of the box. It comes equiped with a Reedy Power
high-torque metal gear servo. The all-new, ultra-smooth and powerful, 16-turn 5-slot brushed crawler motor and
Fly Sky 2.4GHz multi-channel ESC / receiver combo supply ample power to this tough rig.
With all this packed in one box, we know the Enduro Trail Truck is ready for the trail...Are you?
Associated Electrics, Inc.
21062 Bake Parkway
Lake Forest, CA 92630
Customer Service
Tel: [phone]
Fax: [phone]
Follow Us On Social Media
www.ElementRC.com
ElementRC @Element_RC
ITEMS NEEDED
OTHER HELPFUL ITEMS
The following items aren’t required, but will
aid in the building and maintaining of your
Enduro Trail Truck.
• Threadlock (#1596)
• Green Slime (#1105)
The following items are required to build
or maintain your Enduro Trail Truck.
• 1.5mm Allen Wrench (#1500)
• 2mm Allen Wrench (#1501)
• 2.5mm Allen Wrench (#1503)
• Pliers
• Long Nose Pliers
• 5.5mm Nut Driver (#1507)
• 7mm Nut Driver (#1508)

03 33.657120, -117.701139
5x10x4mm (91560)
7x14x3.5mm (91474)
10x15x4mm (91563)
2.5x10mm (41088)
3x5mm (31530)
3x6mm (31531)
3x8mm (31532)
3x10mm (25211)
3x12mm (89202)
3x14mm (25187)
3x16mm (89203)
3x18mm (2308)
3x20mm (25188)
3x22mm (25189)
3x24mm (89204)
3x28mm (41078)
Pivot Ball, 6mm (42041)
FT Pivot Ball, 6mm (42056)
Pivot Ball, Upper Shock (42041)
FT Pivot Ball, Upper Shock (42055)
3x3mm (25225)
3x16mm (4689)
M3 Nuts (91477)
M3 Locknuts (25215)
Aluminum (31550)
M4 Locknut W/Flange (25391)
HARDWARE USED WITH OPTIONAL REPLACEMENT PART NUMBERS
HARDWARE 1:1 SCALE VIEW
FLAT HEAD SCREWS (FHCS)
SOCKET HEAD SCREWS (SHCS)
LP SOCKET HEAD SCREWS (LP SHCS)
SHIMS AND WASHERS
SET SCREWS
PIVOT BALLS
LOCK NUTS
BEARINGS
BUTTON HEAD SCREWS (BHCS)
2.5x10mm (31350)
2.5x14mm (41077)
3x8mm (25201)
3x10mm (25202)
3x12mm (25203)
3x14mm (89208)
3x20mm (89210)
3x24mm (89233)
2x5mm (31511)
2x8mm (7187)
2.5x6mm (41079)
2.5x8 (89222)
2.5x10 (41087)
2.5x14 (71032)
2.5x16 (41086)
3x6mm (41089)
3x10mm (41090)
3x20mm (41091)
Servo Horn Spacer (42041)
3x7mmx1mm (42260)
3x7mmx2mm (42260)
3x7x3mm (42260)
3x7x5mm (42260)
3x7x7mm (42260)
Drive Gear Shim (42027)
LINKS
73mm
83mm
93mm96mm
100mm
108mm
114mm
MISC. SCREWS
Shoulder Screw 3x4x10mm (42070)
Screw Pin (42022)
Pin 2x11mm (42019)

04 33.657120, -117.701139
TABLE OF CONTENTS
USING THIS MANUAL
There is a 1:1 hardware foldout page in the front of the manual. To
check the size of a part, line up your hardware with the correct
drawing until you fi nd the exact size. Each part in the foldout has a
number assigned to it for ordering replacement parts.
This symbol indicates a special note or
instruction in the manual.
This symbol indicates the order within
a step to assemble parts.
This symbol indicates
where Black Grease
should be applied.
This symbol indicates
where Thread Lock
Adhesive should be
applied. *not included
This symbol indicates
where Shock Fluid
should be applied.
This symbol indicates
where Green Slime can
be applied. *not included
This symbol indicates the number of
the same part that is required.
This symbol indicates a Trail Tip.
2
x2
BLACK GREASE
#6588
GREEN SLIME
#1105
THREAD LOCK
#1596
SHOCK FLUID
#5422
01
COVER
02
INTRODUCTION
03
1:1 HARDWARE “FOLD OUT”
04
TABLE OF CONTENTS
05
CHASSIS BUILD (BAG 1, 2)
06
ELECTRONIC MOUNTS BUILD (BAG 3)
07
GEARBOX BUILD (BAG 4)
08
FRONT AXLES BUILD (BAG 5)
09
REAR AXLES BUILD (BAG 6)
09
LINKS BUILD (BAG 7)
12
DRIVESHAFTS BUILD (BAG 8)
13
SHOCKS BUILD (BAG 9)
14
BUMPERS BUILD (BAG 10)
14
WHEELS/TIRES BUILD
15

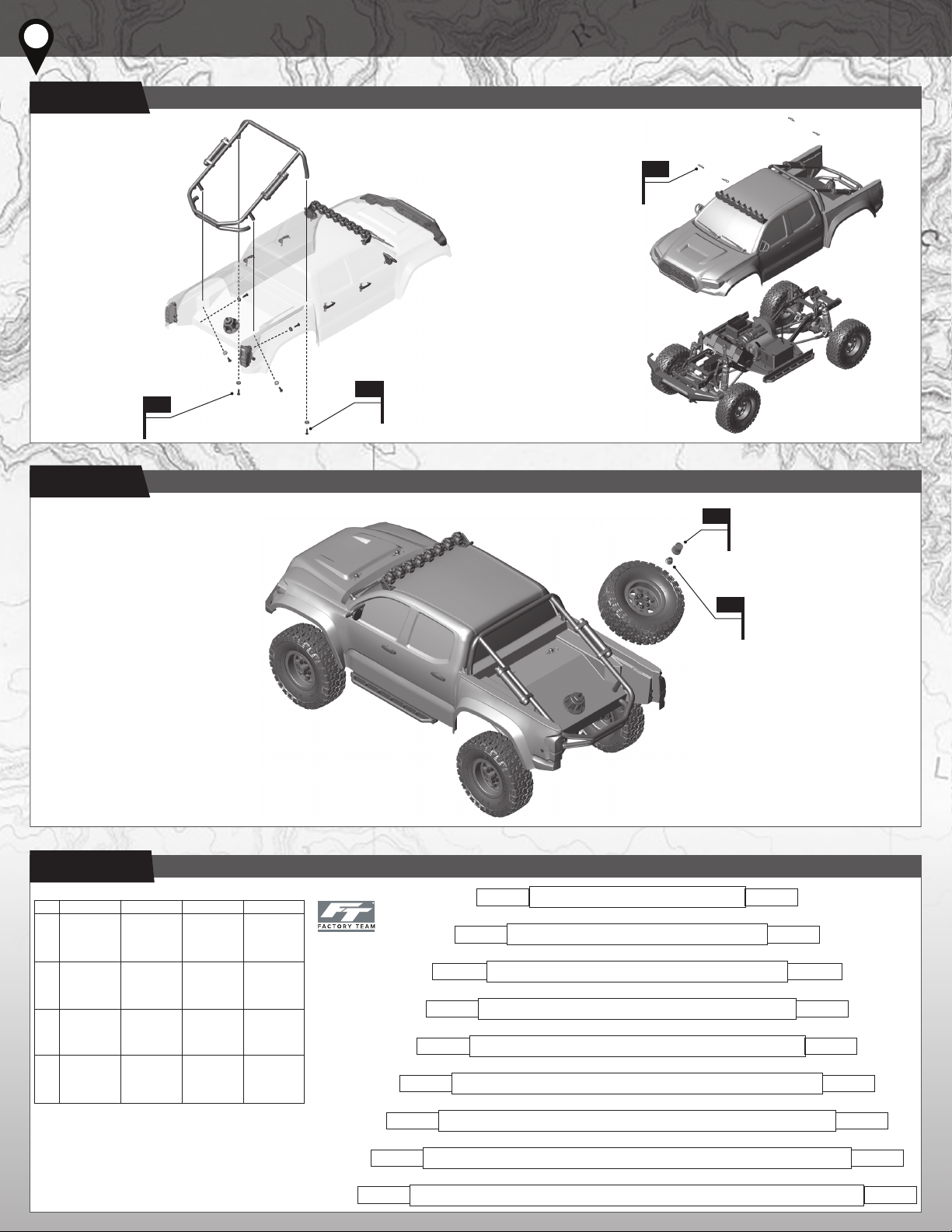

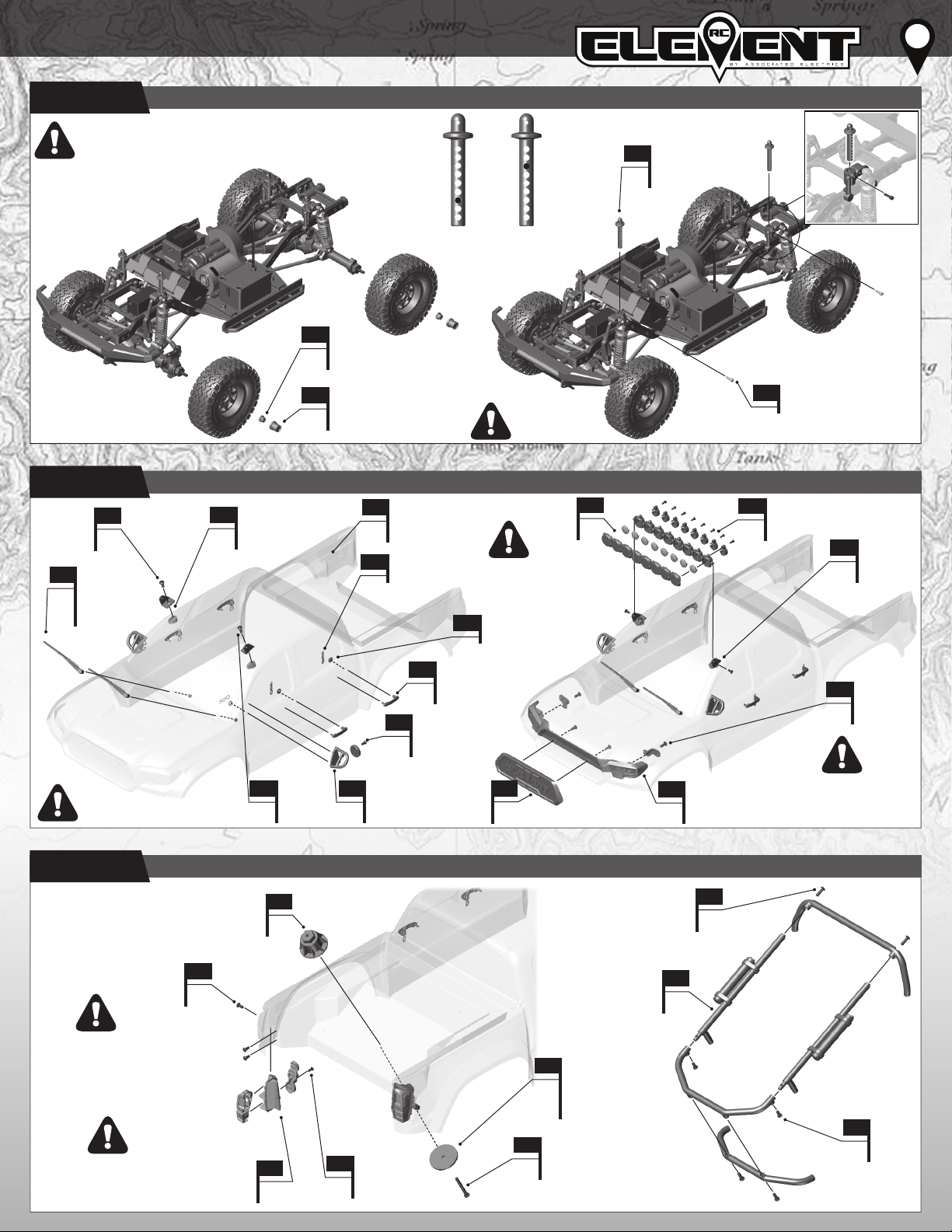

BODY BUILD (BAG 11)
16
WHEELBASE CHART
17
OPTIONAL GEARBOX BUILD
18
BACK COVER
7/17/2023

YOUR BUILD BEGINS HERE.

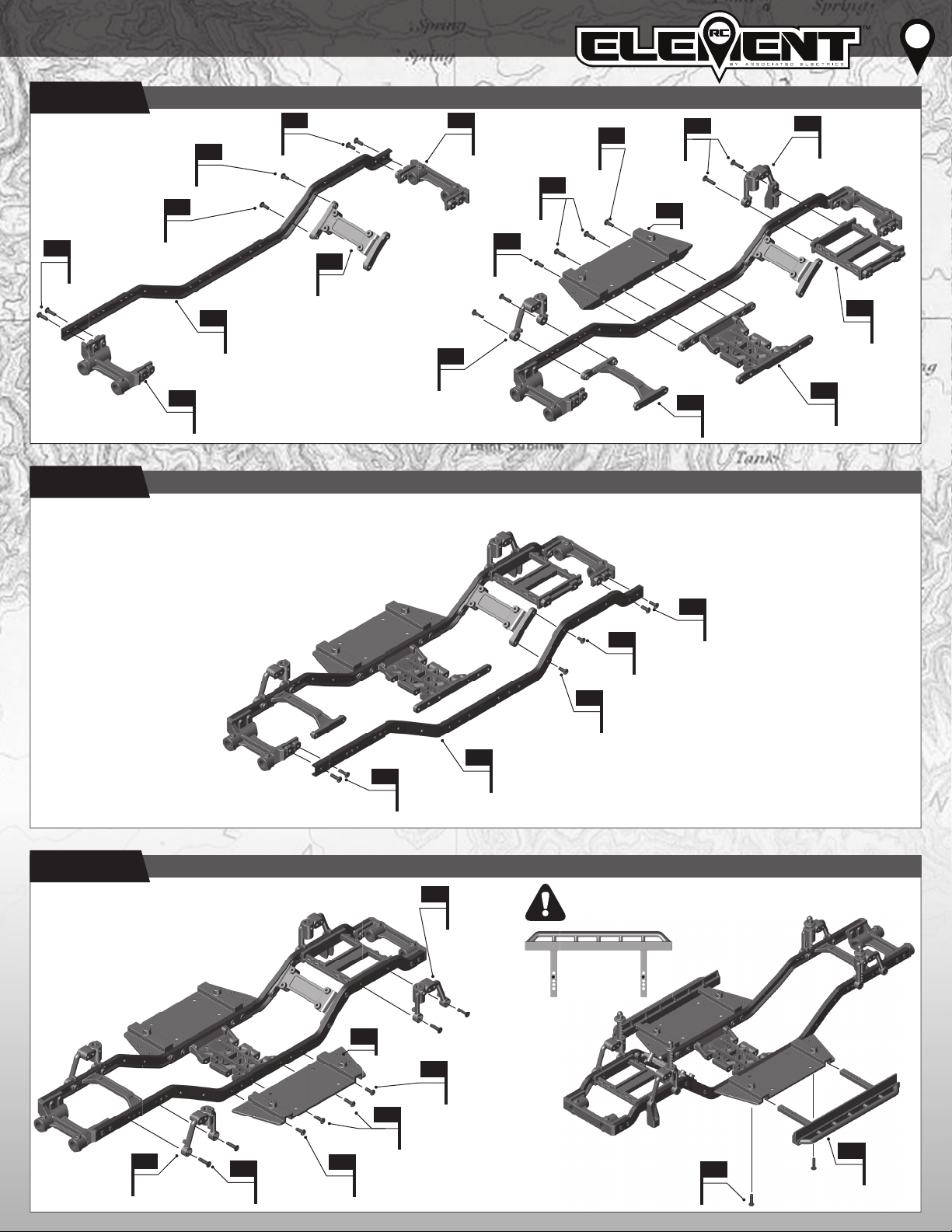

CHASSIS BUILD: BAG 1, 2
GATE 01
CHASSIS BUILD: BAG 1, 2
GATE 02
CHASSIS BUILD: BAG 1, 2
GATE 03
05
x2
x2
x2
x4
x2
x1
x1
x1
x1
x1
x1 x1
x1
x1
x1
x1
x1
x1
x1
x1
x1
x1
x2
x4
x1
x1
x2
x1
x1
x1
31532
3x8mm
BHCS
31532
3x8mm
BHCS
25211
3x10mm
BHCS
89208
3x14mm
FHCS
42005
Shock Mount
(Left, Rear)
42005
Shock Mount
(Right, Rear)
25211
3x10mm
BHCS
31531
3x6mm
BHCS
31532
3x8mm
BHCS
42002
Battery
Mount
25211
3x10mm
BHCS
25211
3x10mm
BHCS
25211
3x10mm
BHCS
89208
3x14mm
FHCS
25211
3x10mm
BHCS
31532
3x8mm
BHCS
31532
3x8mm
BHCS
31531
3x6mm
BHCS
31532
3x8mm
BHCS
42001
Bumper Mount
Rear
42001
Bumper Mount
Front
42005
Shock Mount
(Left, Front)
42005
Shock Mount
(Right, Front)
42004
Servo
Mount
42004
Gearbox
Mount
42002
Chassis Brace
Rear
42006
Floor Board
42006
Floor Board
42000
Chassis Rail
Left
42000
Chassis Rail
Right
x1 42245
Trailrunner
Rock Slider
x2
89202
3x12mm
BHCS
NOTE: Install Left and
Right side Rock Sliders

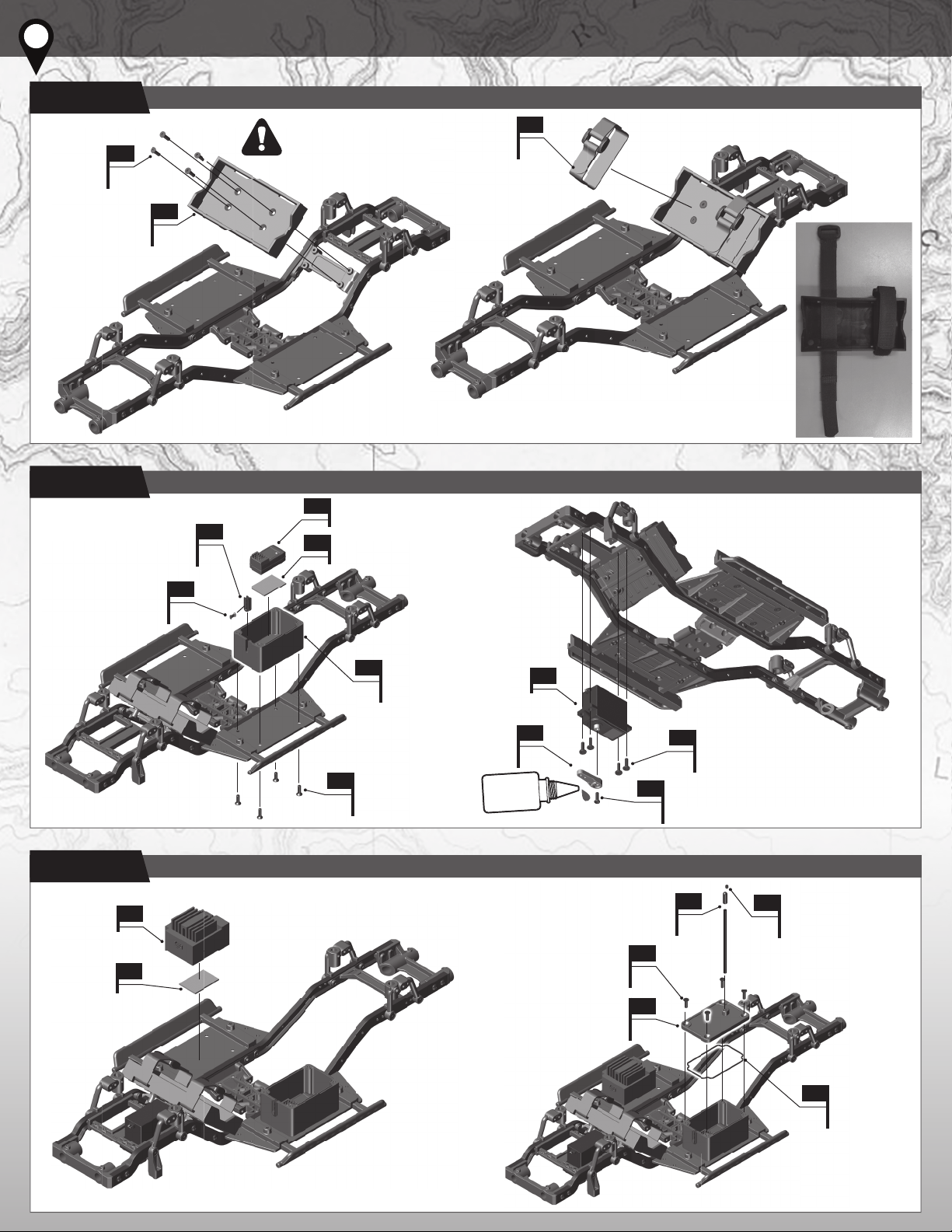

ELECTRONIC MOUNTS BUILD: BAG 3
GATE 01
ELECTRONIC MOUNTS BUILD: BAG 3
GATE 02
ELECTRONIC MOUNTS BUILD: BAG 3
GATE 03
06
x4
x1
x1
x1
x1
x1
x1
x1
x1
x4
x1
x1
x2
42007
Receiver Grommet
Plug
42007
Receiver
Grommet
ESC
25202
3x10mm
FHCS
42006
Receiver Box
Lid
6338
Antenna Tube
and Cap
71050
Hook and
Loop Straps
25202
3x10mm
FHCS
25225
3x3mm
Set Screw
42007
Receiver Box
Grommet
42006
Receiver Box
Bottom
6727
Servo Tape
Receiver
x1
6727
Servo Tape
NOTE: There is an optional
“standard pack” sized battery
tray included!
x4
x1
25203
3x12mm
FHCS
42003
Battery Box,
Shorty Pack
x4
x1
x1
x1
THREAD LOCK
#1596
Servo
42215
Servo Horn
25T
41090
3x10mm
LP SHCS
25211
3x10mm
BHCS

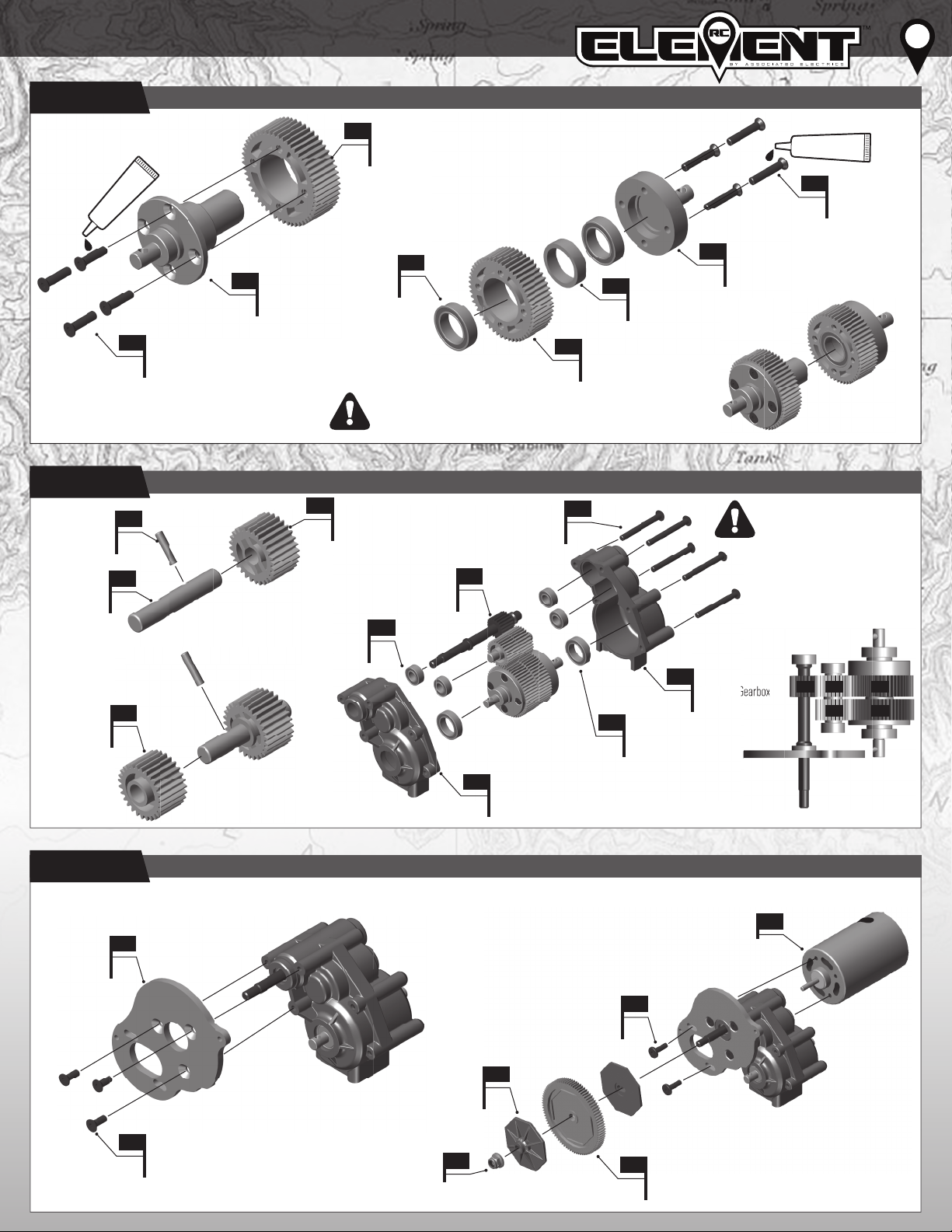

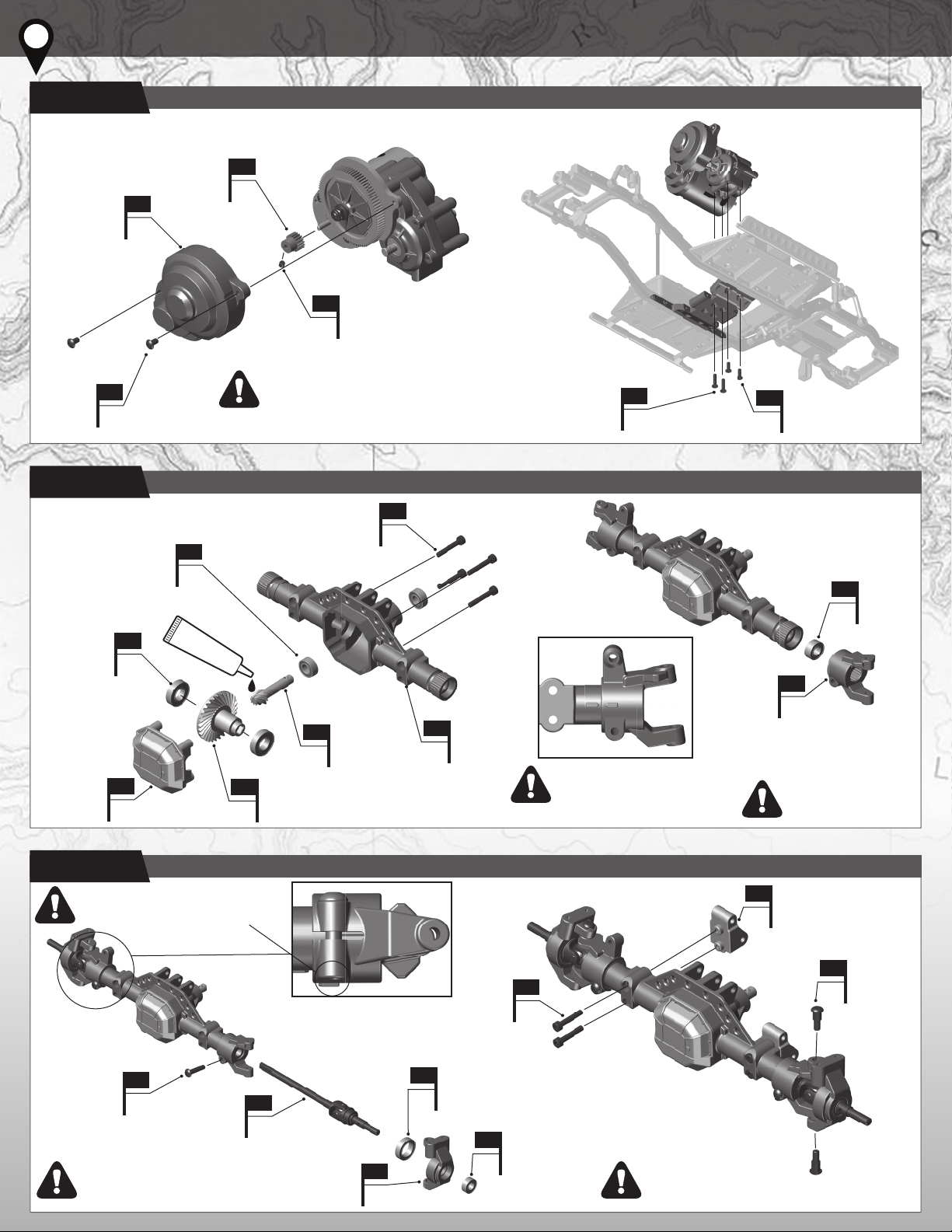

GEARBOX BUILD: BAG 4
GATE 01
GEARBOX BUILD: BAG 4
GATE 02
GEARBOX BUILD: BAG 4
GATE 03
07
33.657120, -117.701139
x4
x3
x1
x1
x1
x2
x4
x1
x1
x1
x1
x1
x1
NOTE: There are optional
gearbox builds on page 24
x1
x1
x2
x2
x1
x1
x4
x5
x2
x1
x2
42026
Stealth X Gearbox
Idler Gear, 27T
42029
Stealth X Gearbox
Motor Plate
42023
Stealth X Gearbox
Spur Gear Hub
41090
3x10mm
LP SHCS
25391
FT M4 Locknut
42030
Stealth X Gearbox
Top Shaft, Rear
91560
5x10x4mm
Bearing
41078
3x28mm
BHCS
42025
Idler Shaft Pin
2x9mm
42025
Stealth X Gearbox
Idler Shaft
91563
10x15x4mm
Bearing
31350
2.5x10mm
FHCS
25201
3x8mm
FHCS 9654
Spur Gear
48P, 87T
42023
Stealth X Gearbox
Case
42023
Stealth X Gearbox
Case
91563
10x15x4mm
Bearing
41077
2.5x14mm
FHCS
42027
Stealth X Gearbox
Outdrive, Long
42027
Stealth X Gearbox
Outdrive, Short
42027
Stealth X Gearbox
Drive Gear Shim
42028
Stealth X Gearbox
Drive Gear, 52T
42026
Stealth X Gearbox
Idler Gear, 28T
42028
Stealth X Gearbox
Drive Gear, 53T
x1
Motor
Stealth X Gearbox
Stealth X Gearbox
20T 28T
27T
52T
53T

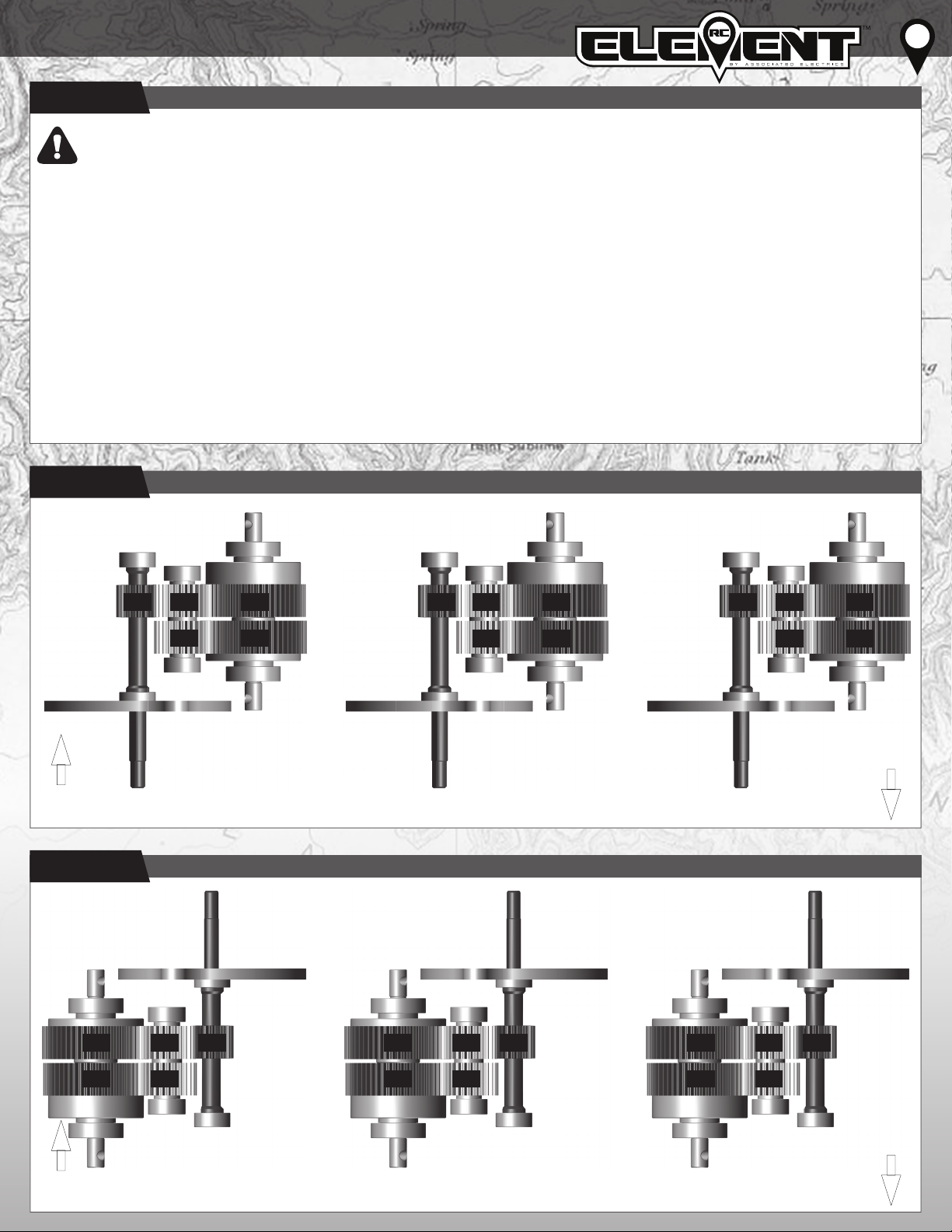

Over Drive Option 1 (Stock)
BLACK GREASE
#6588
BLACK GREASE
#6588
NOTE: Make sure the
10x15x4mm bearing is completely
seated in the short outdrive

GEARBOX BUILD: BAG 4
GATE 04

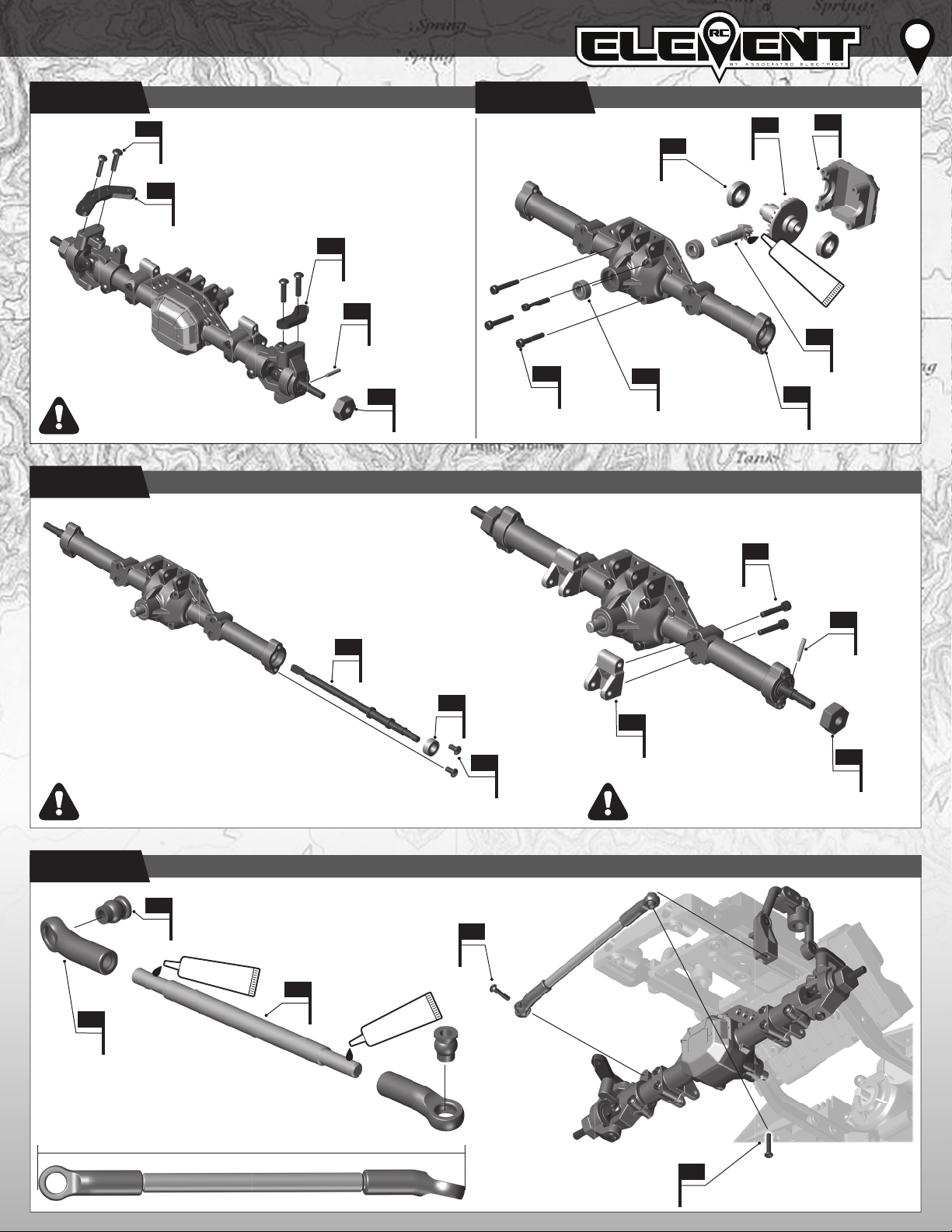

FRONT AXLE BUILD: BAG 5
GATE 01
FRONT AXLE BUILD: BAG 5
GATE 02
08
x1
x1
x2
x1
x1
x1 x1
x1
x1
x2
NOTE: Make sure the gear mesh
between the spur gear and pinion
has a slight amount of movement
between the two gears.
x1
x2
x1
x1
x1
x2
x2
x4
x1
x1
x2 x2
x1
25187
3x14mm
BHCS
71032
2.5x14mm
SHCS
42067
Universal
42062
Steering
Block
42060
Axle Housing
Differential Cover
91479
7x14x3.5mm
Bearing
91560
5x10x4mm
Bearing
41086
2.5x16mm
SHCS
42062
Caster Block,
Left
42023
Stealth X Gearbox
Gear Cover
31530
3x5mm
BHCS
89208
3x14mm
FHCS
1336
Pinion Gear
18T
91563
10x15x4mm
Bearing
42060
Lower 4-Link
Mount
42070
3x4x10mm
Shoulder Screw
91560
5x10x4mm
Bearing
42065
Ring Gear,
30T
42066
Pinion Gear,
8T
42061
Axle Housing,
Front
91560
5x10x4mm
Bearing
25225
3x3mm
Set Screw
25201
3x8mm
FHCS
NOTE: Install Left and
right side caster blocks
and bearings
NOTE: Install left
and right side steering
blocks and universals
NOTE: Tighten the caster block clamp
until the screw is fl ush with the end!
NOTE: Install left and
right side axle mounts
and shoulder screws
NOTE: Align the two
arrows when installing
the caster block!
BLACK GREASE
#6588

FRONT AXLE BUILD: BAG 5 REAR AXLE BUILD: BAG 6
GATE 03 GATE 01
REAR AXLE BUILD: BAG 6
GATE 02
LINKS BUILD: BAG 7
GATE 01
09
33.657120, -117.701139
x1
x4 x2
x1
x1
x4
x1
x1
BLACK GREASE
#6588
BLACK GREASE
#6588
42069
Wheel Hex,
6mm
41086
2.5x16mm,
SHCS
91560
5x10x4mm
Bearing
42019
Wheel Hex
Pin, 2x11mm
42019
Pin,
2x11mm
25211
3x10mm
BHCS
42064
Steering Block Arm,
BTA, Right
42064
Steering Block Arm,
BTA, Left
NOTE: Install left and
right side wheel hexes
NOTE: Install left and
right side drive shafts
NOTE: Install left and right side
axle mounts and wheel hexes
x1
x1
x1
x2
x1
91479
7x14x3.5mm
Bearing
42065
Ring Gear,
30T
42066
Pinion Gear,
8T
42061
Axle Housing,
Rear
42060
Axle Housing,
Differential Cover
x1
x1
x2
x2
91560
5x10x4mm
Bearing
42068
Drive Shaft,
Rear
41089
3x6mm
LP SHCS
42041
Pivot Ball,
6mm
x1
x2
x1
x1
42069
Wheel Hex,
6mm
42040
Rod End,
Curved
42043
Link,
83mm
112.50mm
42060
Lower 4-Link
Mount
x2
x1
x1
71032
2.5x14mm
SHCS
25187
3x14mm
BHCS
89203
3x16mm
BHCS
BLACK GREASE
#6588

LINKS BUILD: BAG 7
GATE 02
LINKS BUILD: BAG 7
GATE 03
LINKS BUILD: BAG 7
GATE 04
10
x2
x2
x2
x1
42041
Pivot Ball,
6mm
42041
Pivot Ball,
6mm
42041
Pivot Ball,
6mm
42041
Pivot Ball,
6mm
x2
x2
x2
x1
x1
x1
x1
42040
Rod End,
Curved
42040
Rod End,
Curved
42040
Rod End,
Straight
42043
Link,
83mm
42043
Link,
93mm
42043
Link,
42260
3x7mm
Spacer
102.20mm
122.00mm
154.50mm
x1
x1
x2
x2
x1
x2
x1
x1
25187
3x14mm
BHCS
25215
M3 Locknut,
Black
25215
M3 Locknut,
Black
25215
M3 Locknut,
Black
25188
3x20mm,
BHCS
25187
3x14mm,
BHCS
41078
3x28mm,
BHCS
2308
3x18mm
BHCS
NOTE: Install servo link
screw #2308 in outermost
hole in servo horn.

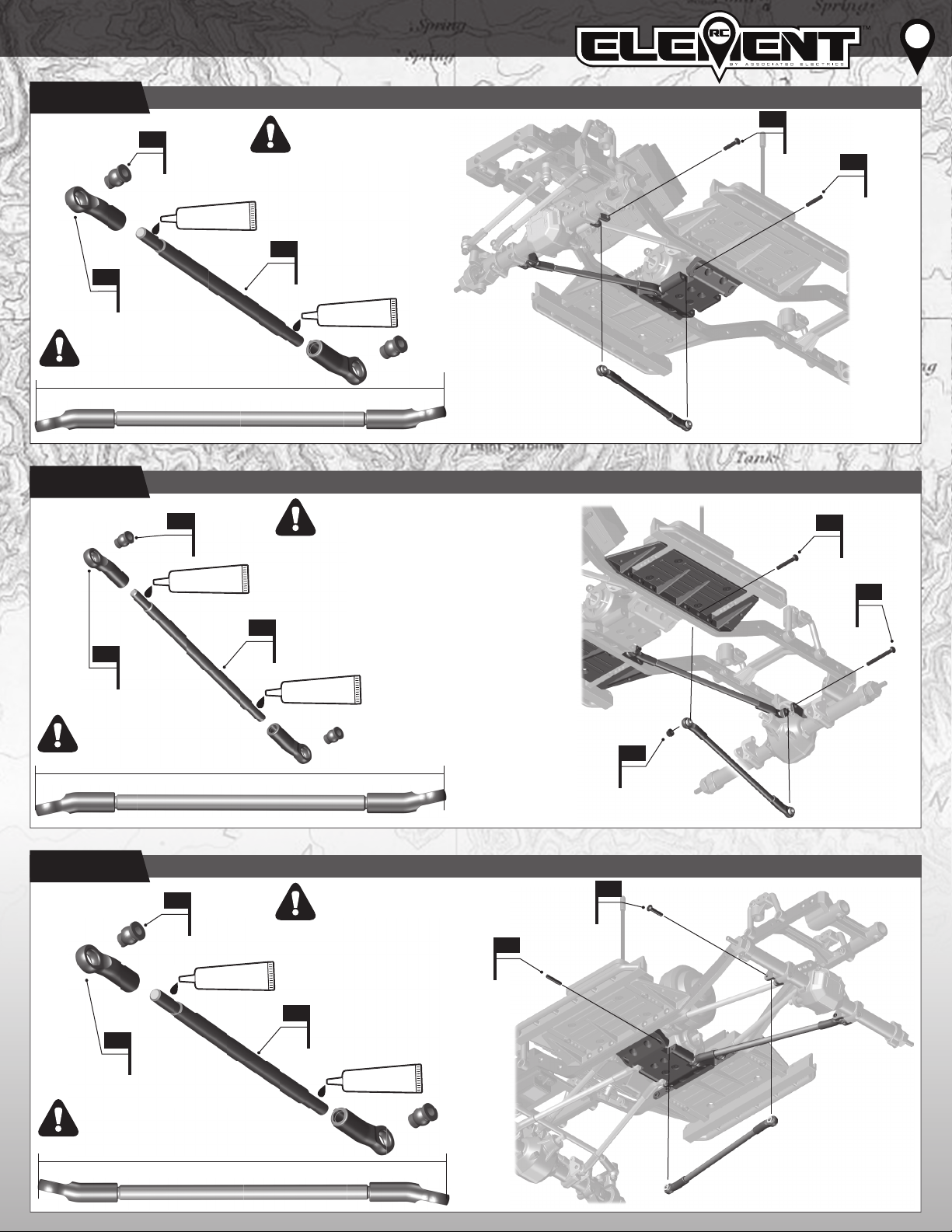

NOTE: Check the rod end
angles before installation
NOTE: Check the rod end
angles before installation
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588

LINKS BUILD: BAG 7
GATE 05
LINKS BUILD: BAG 7
GATE 06
LINKS BUILD: BAG 7
GATE 07
11
33.657120, -117.701139
x2
x2
42041
Pivot Ball,
6mm
42041
Pivot Ball,
6mm
x2
x2
x1
x1
42040
Rod End,
Curved
42040
Rod End,
Curved
42044
Link,
114mm
42043
Link,
100mm
156.00mm
129.50mm
NOTE: Build and install
two front lower links
NOTE: Build and install
two rear lower links
NOTE: Check the rod end
angles before installation
NOTE: Check the rod end
angles before installation
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588
x2 42041
Pivot Ball,
6mm
x2
x1
42040
Rod End,
Curved
42044
Link,
108mm
150.00mm
NOTE: Build and install
two rear upper links
NOTE: Check the rod end
angles before installation
BLACK GREASE
#6588
BLACK GREASE
#6588
x1 25188
3x20mm,
BHCS
x2
x1
25215
M3 Locknut,
Black
41078
3x28mm
BHCS
x1
x1
4689
3x16mm,
Set Screw
25187
3x14mm
BHCS
x1
x1
25187
3x14mm,
BHCS 4689
3x16mm,
Set Screw

DRIVE SHAFT BUILD: BAG 8
GATE 01
DRIVESHAFT BUILD: BAG 8
GATE 02
DRIVESHAFT BUILD: BAG 8
GATE 03
12
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
x2 x1 x2
x1
x1
x1
x2
x2
x4
x2
42022
Screw Pin
42021
Drive Shaft,
Male, CVA
42021
Pin,
2x11mm
42020
Drive Shaft, Female
(33mm, 42mm)
31532
3x8mm
BHCS
42020
Drive Shaft, Male
(48mm, 60mm)
42020
Pin Retainer,
Short
42020
Pin Retainer,
Long
42021
Drive Shaft,
Female, CVA
42021
Drive Shaft
Barrel
Rear (mm)
33
42
60
Front (mm)
33
33
48
Female 1
Female 2
Male
Drive Shaft Lengths
42020
Gearbox Side
42020
Axle Side
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
THREAD LOCK
#1596
33
42
48
60
33
33
NOTE: Make sure the screw
pins are aligned with each
female CVA during assembly
NOTE: Make sure the phasing of the drive shafts is correct when installing
them to the axles and gearbox.
NOTE: Build a front
and rear drive shaft
NOTE: Install the
front drive shaft
FRONT REAR
NOTE: Install the
rear drive shaft
Correct Phasing
Incorrect Phasing

SHOCK BUILD: BAG 9
GATE 01
SHOCK BUILD: BAG 9
GATE 02
SHOCK BUILD: BAG 9
GATE 03
13
33.657120, -117.701139
x2
x1
x1
x1
x1
x2
x1
x1
x1
x1
x1
x1
x1
x1
6299
E-Clip
42081
Shock
Piston
42040
Enduro
Rod Ends
42083
Shock Shaft,
3x30mm
42082
Shock Body,
10x32mm
5407
O-Ring,
Red
42081
Shock O-Ring
Spacer
42080
Shock Bottom
Cap
42080
Shock Cap,
Enduro
Shock Bleeding Steps:
1. Pull shock shaft down.
2. Fill shock body 3/4 full with silicone fluid.
3. Slowly move the shock shaft up and down to remove air from
under piston.
4. Wait for bubbles to come to surface.
5. Fill shock body to top with silicone fluid.
6. Place a drop of oil in the cap and on cap threads.
7. Install cap and tighten completely.
8. Slowly compress shaft all the way to the top. If there is
pressure at the top of the stroke, there is too much oil or air.
You must bleed it out.
9. Slowly pull shaft out.
10. Unscrew the cap 3/4 turn and tilt the shock at a slight angle.
11. Slowly compress the shaft to push out excess oil and air.
You should see bubbles coming out from under the cap.
12. With the shaft compressed, tighten the cap and re-check for
pressure at the top of the stroke. If there is still pressure,
repeat steps 9 thru11.
42081
O-Ring, Small,
Shock Cap
42081
O-Ring, Large,
Shock Collar
42079
Shock Collar,
Black, Aluminum
42080
Shock Spring
Cup
3mm
42089
Shock Spring,
Gray, 1.49 lb/in, 63mm
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
SHOCK FLUID
#5422
Step 8-12Step 1-3 Step 3-4 Step 5-6 Step 7
NOTE: Build 4
complete shocks
NOTE: Seat O-Ring into
the groove on the inside
of the shock collar
NOTE: Build 4
complete shocks
Pro Tip:
Use #1105 Green
Slime on O-Rings
NOTE: Build 4
complete shocks
SHOCK CAP
O-RING
SHOCK COLLAR
O-RING

SHOCK BUILD: BAG 9
GATE 04
BUMPER BUILD: BAG 10
GATE 01
WHEEL/TIRE BUILD
GATE 01
14
x1 x1
x1
x1
x1 x1
x1
x1
x1 x1
42041
Pivot Ball 42041
Pivot Ball
25187
3x14mm
BHCS
25187
3x14mm
BHCS
89203
3x16mm
BHCS
42260
3x1mm
Spacer
42041
Pivot Ball,
Upper Shock
42041
Pivot Ball,
Upper Shock
42260
3x1mm
Spacer
89203
3x16mm
BHCS
NOTE: Build 5 wheels/tires
NOTE: Four 5mm LED’s can
fi t in the front bumper
NOTE: Install #41088 screws in
a crossing pattern
2
3
45
6
1
x2 89203
3x16mm
BHCS
x6 41088
2.6x10mm
BHCS
x1 42100
Method 701, 1.9”
Hex Adapter, Bronze
x1
x1
x1
x1
x1
42100
Method 701, 1.9”
Outer Wheel, Bronze
42275
Tire, General
Grabber A/TX 42275
Tire, Insert
42100
Method 701, 1.9”
Ring, Bronze
42100
Method 701, 1.9”
Inner Wheel, Bronze
x4
x2
x4
x1
x1
42279
Knight Walker
LED Lense
42279
LED
Mounts
31531
3x6mm
BHCS 31520
2.5x6mm
BHCS
42279
Knight Walker
Bumper, Front

WHEEL/TIRE BUILD
GATE 02
BODY BUILD: BAG 11
GATE 01
BODY BUILD: BAG 11
GATE 02
15
33.657120, -117.701139
NOTE: Install
4 wheels/tires
x2
x2
42100
Method 701, 1.9”
Nut Cap, Bronze
25391
FT M4 Locknut,
Blue
NOTE: Install
4 body mounts
x2
x2
42009
Body Mount,
Short Pin
42022
Screw Pin
Front Post Rear Post
x6
x6
x1
x2
x2 x1
x6
x2
x2
x8
x2
x4
x2
x1
x2
21173
Body Clip,
Small
5407
O-Ring
42276
Knight Walker
Body, Red
42277
Knight Walker
Windshield
Wiper Blade
42277
Knight Walker
Side Mirror
42277
Knight Walker
Headlights
31532
3x8mm
BHCS
31532
3x8mm
BHCS
42277
Roof Light
LED Mount
42277
2x6mm
BHCS
4675
2.5x6mm
FHCS
42277
Knight Walker
Door Handle
42277
Knight Walker
LED Mount
91478
3x30mm
BHCS
31532
3x8mm
BHCS
NOTE: Install body clip
and o-ring inside the body
NOTE: Install light
buckets and hardware
inside the body
x2 x1
31509
2x3mm
BHCS
42277
Roof Light,
Set
x1 42277
Knight Walker
Spare Tire Mount,
Washer
x1
x1
42277
Knight Walker
Spare Tire Mount
42277
Knight Walker
Rear Light Buckets
x2 42277
2x6mm
BHCS
x6 x1
x4
31531
3x6mm
BHCS
42278
Knight Walker
Roll Cage
25211
3x10mm
BHCS
NOTE: Eight 5mm LED’s
can fi t in the Roof Light Set
NOTE: Two 5mm LED’s and
two 3mm LED’s can fi t in the
front grill
x1
42277
Knight Walker
Headlights
NOTE: Four 5mm LED’s
and two 3mm LED’s can fi t
in the rear taillights

GATE 05
BODY BUILD: BAG 11
BODY BUILD: BAG 11
GATE 03
GATE 04
16
73mm
83mm
93mm
96mm
100mm
108mm
114mm
121mm
127mm
Items Needed for Links:
#42040 - Rod Ends
Panhard Links [CMS]:
Panhard - #42183
Steering Input - #42182
Steering Link - #42180
Servo on Axle Links
[SOA]:
Links - #42323
Steering Link - #42180
WHEELBASE CHART
11.8”
12.0”
12.3”
12.8”
FRONT UPPER
93mm
#42184
93mm
#42184
93mm
#42184
93mm
#42184
FRONT LOWER
100mm
#42185
#42186
100mm
#42185
#42186
100mm
#42185
#42186
100mm
#42185
#42186
REAR UPPER
93mm
#42184
100mm
#42185
108mm
#42187
121mm
#42191
REAR LOWER
100mm
#42185
#42186
108mm
#42187
#42188
114mm
#42189
#42190
127mm
#42192
#42193
WB
x4
6332
Body Clips
x6
42278
Knight Walker Roll
Cage Washers
x6 25211
3x10mm
BHCS
x2
x2
42100
Method 701, 1.9”
Nut Cap, Bronze
25391
FT M4 Locknut,
Blue

STEALTH X: BUILD CONFIGURATION: MOTOR MOUNT FACING REAR (STOCK)
GATE 01
STEALTH X: BUILD CONFIGURATION: MOTOR MOUNT FACING REAR (STOCK)
GATE 02
STEALTH X: BUILD CONFIGURATION: MOTOR MOUNT FACING FRONT (OPTIONAL - REQUIRES #42024 - TOP SHAFT )
GATE 03
17
33.657120, -117.701139
20T
20T 20T 20T
20T 20T28T
28T 28T 28T
28T 28T
27T 26T
52T
52T 52T 52T
52T 52T
53T 54T
52T
52T 53T 54T
28T
28T 27T 26T
OVERDRIVE:
Overdrive is a scenario where the front and rear wheels do not rotate at the same speed. The Stealth X gearbox is designed to
allow the front wheels to spin faster than the rear wheels. Overdrive is advantageouse when climbing up rock faces because the
front tires will want to pull the vehicle up the rock. On desents, the rear tires rotating slower than the front tires will help keep
the chassis more stable and keep the rear tires planted on the ground.
Stealth X:
The Stealth X gearbox allows the driver to change the front to rear drive ratios with 3 separate ratio adjustments to the rear
drive shaft. The driver has the option to fl ip the gearbox direction (motor mount facing the front) the optional inverse top shaft
(#42024) is required.
Please Note:
The 20T top shaft, 28T idler gear, and 52T drive gear will always be meshed together in all 6 gearbox confi gurations.
1:1 (No Over Drive)
1:1 (No Over Drive)
Over Drive Option 1 (Stock)
Over Drive Option 1 (Stock)
Over Drive Option 2
Over Drive Option 2
Front Of
Vehicle
Front Of
Vehicle
Rear Of
Vehicle
Rear Of
Vehicle
