ELEMENTI OCK45-NG01-DE User manual

Manual No.: ENGE4501-DE-A0
Natural Gas Conversion Kit
OCK45-NG01-DE
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to the appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or
fire department.
Failure to follow these instructions could result in
fire or explosion,which could cause property
damage, personal injury, or death.
!
WARNING
!
IMPORTANT
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
!
Contact Elementi for Technical Support.
EN
This conversion kit shall be installed by a
qualified service agency in accordance with
the manufacturer’s instructions and all
applicable codes and requirements of the
Authority Having Jurisdiction. If the
information in these instructions is not
followed exactly, a fire, explosion or
production of carbon monoxide may
result causing property damage, personal
injury or loss of life. The qualified service
agency is responsible for the proper
installation of this kit. The installation is not
proper and complete until the operation of
the converted appliance is checked as
specified in the manufacturer’s instructions
supplied with the kit.
OFG101 OFG103 OFG104 OFG105 OFG110 OFG121
OFG126 OFG127 OFG128 OFG139 OFG145 OFG147

Conversion Warning ----------------------------------------------------------------------------------2
Specification --------------------------------------------------------------------------------------------3
Important Safety Information -----------------------------------------------------------------------4
Parts List ------------------------------------------------------------------------------------------------5
Natural Gas Conversion Instruction-------------------------------------------------------------- 6
Lighting Instructions ---------------------------------------------------------------------------------16
TABLE OF CONTENTS
2 / 36
CONVERSION WARNING
This appliance was converted on_______________________________ (DD/MM/YY)
to Natural gas by ____________________________________________________
(Name and address of organization making this conversion)
which accepts the responsibility that this conversion has been properly made.
After converting this fire table, this tag must be hung from the center of the control
panel with the provided cable.
WARNING
!
- Only the manufacturer’s conversion kit can be used.
- This conversion kit shall be installed by a qualified service agency
in accordance with the manufacturer’s instructions and all applicable
codes and requirements of the Authority Having Jurisdiction.
- Please follow the manufacturer’s instruction strictly.
- Do not attempt to convert or modify this applicance by your own.

3 / 36
Conversion Kit
Model No.: Serial Number:
Manufacturer ELEMENTI INDUSTRIAL (XIAMEN) CO., LTD.
Appliance Category
Gas type/Gas Pressure
Heat Imput
Injector Size
Destination Countries
Gas Connection Size
BE, BG, CY, CZ,
DK,EE, FI, FR,
GB, GR, HR,HU,
IT, LT, LU,LV,MT,
NL, NO, RO, SE,
SI, SK, TR
AT, CH, CZ, DE,
LU, SK
BE, CH, CY, CZ, ES, FR, GB, GR, IE,
IT, LT, LU, LV, PT, SI, SK, TR
AT,BG,CH,CY,CZ,
DK,EE,ES,FI,FR,
GB,GR,IE,IT,LT,
LV,NO,PT,RO,SE,
SI,SK
1.77mm
I3B/P(30) I3B/P(50) I3+(28-30/37) I2H
G30 Butane and
G31 Propane at
30mbar
G30 Butane and
G31 Propane at
50mbar
G30 Butane
at 28-30mbar
G31 Propane
at 37mbar
G20 Natural gas
at 20mbar
13.2KW(G30:960.0g/h;G31:943.3g/h)
1.53mm 1.77mm 2.96mm
RP 1/2” Other:
1. The use of this appliance in enclosed areas is
DANGEROUS and is PROHIBITED
2. For use outdoors or in amply venlated areas.
3. An amply venlated area must have a minimum
of 25 % of the surface area open.
4. The surface area is the sum of the walls surface.
SPECIFICATION
OCK45-NG01-DE

IMPORTANT SAFETY INFORMATION
!WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY
IF YOU SMELL GAS
• Shut off gas supply to the fire table.
• Extinguish any open fame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a qualified service person. More frequent cleaning may
be required as necessary. It is imperative that the control compartment, burners, and circulating air
passageways of the appliance are kept clean.
• WARNING: Installation and service must be performed by a qualified installer, service agency or gas
supplier.
• WARNING: Failure to follow with the safety warnings and precautions in this manual may result in
serious bodily injury or death, a fire or an explosion causing damage to property.
• IMPORTANT NOTICE: Read and understand all warnings and precautions prior to assembly and
use your gas fire table. Improper installation, adjustment, alteration, service or maintenance can
cause injury or property damage.
4 / 36
!This conversion kit is for chnging a propane / butane / LPG fire table into a Natural Gas
Fire Table.

PARTS LIST
5 / 36
No. Description & Quantity No. Description & Quantity
NG Valve & Brass Fitting A 1 set NG Orifice Spud 2.96 1 pc
Hexagon screwdriver( for knob use) 1 pc
Gas pressure and orifice plaque 1 pc
Warning plaque 1 pc
Natural gas lighting instruction 1 pc
Screws M4x10mm ( for valve use) 2 pcs
Conversion Kit Manual 1 pc
Brass Fitting B 1 pc
1 2
3 4
5 6
7 8
Brass Fitting A
NG Valve
Kette 1 Stck

NATURAL GAS CONVERSION INSTRUCTION
1ENSURE THE UNIT IS OFF AND COMPLETELY COOL, AND THE GAS
SUPPLY TO THE UNIT IS TURNED OFF.
!WARNING
Disconnecting the Gas Tank
Make sure the valve on the gas tank is OFF.
2Remove lava rock from burner pan area carefully.
Fire Table
3
Fire
Table
Lay down blanket or cardboard to avoid
damaging the finish, carefully tilt unit on
its side.
Blanket or cardboard
6 / 36

NATURAL GAS CONVERSION INSTRUCTION
4
7 / 36
A) Find out the hole to the left of the knob, insert it with the hexagon wrench
which provided in the conversion kit, rotate counterclockwise to loosen the
knob from the LP safety valve.
B) Then hold the knob with your hand, pull it forward, and remove the knob.
C) Remove the screws on both sides of the knob with a screwdriver and
take good care of them to avoid losing. (in case of losing, we have provided
additional spare screws in the accessory package).
Screws

NATURAL GAS CONVERSION INSTRUCTION
5
8 / 36
Remove the LP safety valve from the control panel, and disconnect the
thermocouple and both 2 sides of bellows from the LP safety valve.
BEFORE
AFTER
Thermocouple
Bellows
Brass Fitting A
Bellows
LP Safety Valve

NATURAL GAS CONVERSION INSTRUCTION
9 / 36
6
A) Find the NG safety valve from the conversion kit( which is labeled with
"NATURAL GAS VALVE"). The brass fitting A has assembled on the NG
safety valve. see FIG. A
Labeled “Natural Gas Valve”
Brass fitting A
FIG. A
Natural Gas Valve
B) Reconnect the bellows to the NG safety valve, and lock tightly.
C) Reconnect the thermocouple to the NG safety valve (After hand
tightening, use the wrench to force 90°. Do not over tighten).
There are 2 arrows on the NG safety valve, one is for gas inlet (connect
with the bellows in the direction of the Gas Supply), the other one is
for gas outlet (connect with bellows in the direction of the burner).
Failure to follow the instructions could result in fire or explosion,
which could cause property damage, personal injury, or death.
IMPORTANT
!
Gas inlet
Gas outlet
NG Valve
Bellows
Brass fitting A
Bellows
Connect to
gas supply
Gas inlet
Gas outlet
Brass fitting A
Thermocouple

NATURAL GAS CONVERSION INSTRUCTION
10 / 36
AFTER
BEFORE
Thermocouple
Bellows
Brass Fitting A
Bellows
LP Safety Valve
When connecting the bellows, please ONLY clockwise the brass joint on the bellows.
Do not rotate the stainless steel tube.
Excessive rotation of the stainless steel tube will cause the gas pipe to twist or break,
causeing gas leaks.
WARNING
Brass joint
SS tube
Brass joint
!

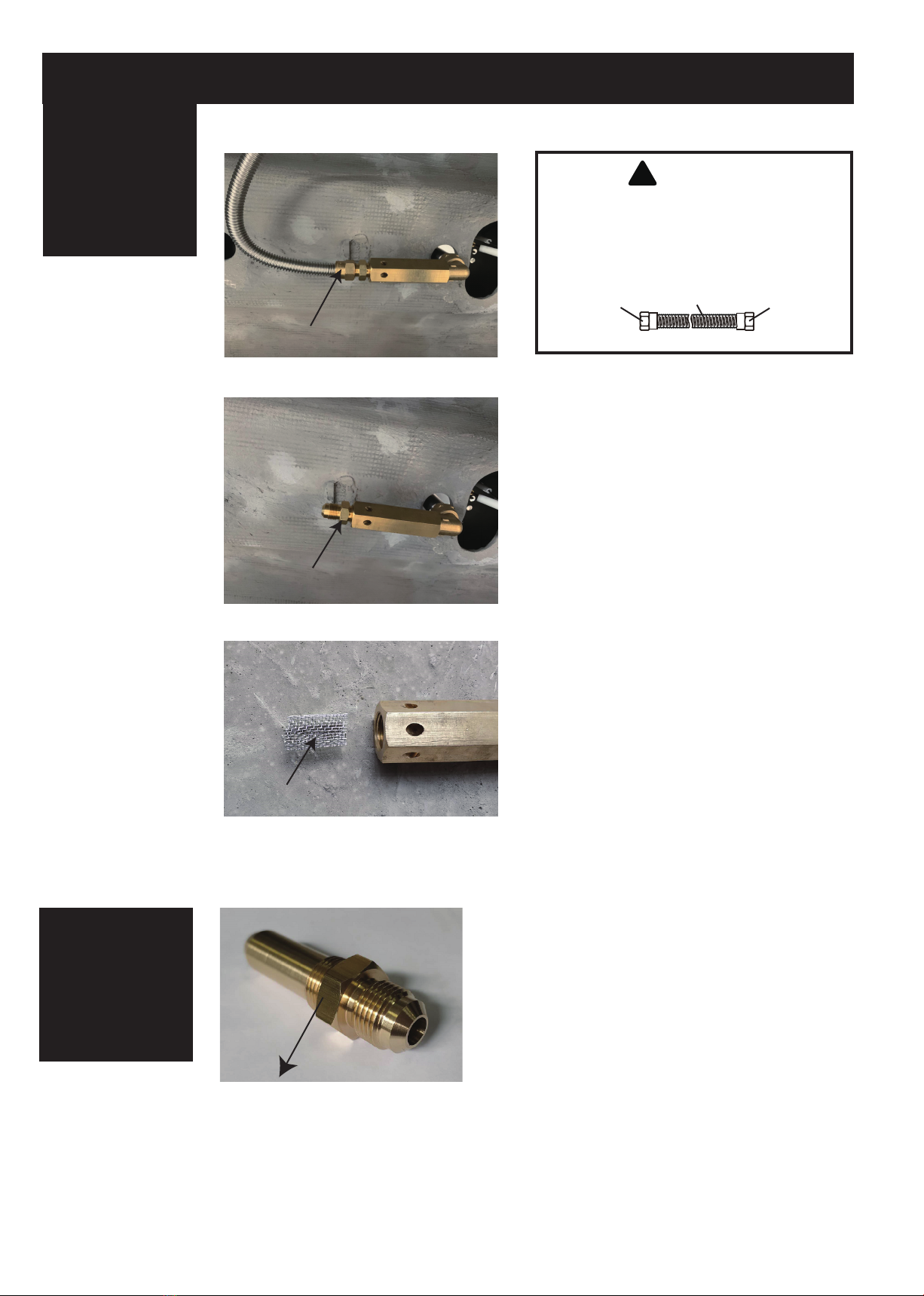

7A) Counterclockwise the brass joint to remove the bellows, see FIG. B
NATURAL GAS CONVERSION INSTRUCTION
11 / 36
ONLY counterclockwise the brass joint on the bellows
when remove it.
DO NOT rotate the stainless steel tube. Excessive
rotation of the stainless steel tube will cause the gas
pipe to twist or break, causeing gas leaks.
!WARNING
Brass joint
SS tube
Brass joint
FIG. B
Brass Joint
B) Remove the brass orifice holder and
orifice. (Orifice is mounted in the orifice
holder）, see FIG. C
C) Pull out the stainless steel net from
the Venturi tube(Air mixer).Make sure
no spider nets or other debris in the tube.,
see FIG. D
FIG. C
Brass Orifice Holder
FIG. D
Stainless steel net
8A) Find the new NG orifice spud from the
conversion kit, verify it is the correct size,
the sign 2.96 should be on the side of the
orifice spud.
sign 2.96

NATURAL GAS CONVERSION INSTRUCTION
12/ 36
A) Assemble the NG safety
valve to the control panel,
lock tightly with the screws.
Screws
B) Assemble the knob to the
NG safety valve, lock tightly
with hexagonal screwdriver,
please pay attention that the
white indicator line should be
aimed at “OFF”.
9
B) Screw the new NG orifice spud into the Venturi tube(Air mixer)
C) Re-attach bellows to the NG orifice spud.
FIG. E
FIG. F

NATURAL GAS CONVERSION INSTRUCTION
13 / 36
10
11
Disconnect the red hose and the regulator.
Find the brass fitting B from the conversion kit and attach it to the red hose.
Brass fitting B.

NATURAL GAS CONVERSION INSTRUCTION
12
14 / 36
Attach the natural gas hose (not included) to the brass fitting B.
Natural gas hose

NATURAL GAS CONVERSION INSTRUCTION
13
14
After installing the conversion kit, verify the location of the Thermocouple and
Igniter Pin using the illustration below.
Thermocouple
Igniter Pin
5mm /
0.196”
Note to installation technicians.
Using a digital manometer verify that the pressure before the orifice is 20 mbar.
Also verify that the orifice spud has the 2.96 marked. This will allow you to verify
that the input rating of the appliance is correct.
Installing at Altitude
!
For installations at elevations above 2000 ft. (610 m) contact your local dealer or gas
supplier before installing as input rating should be reduced approximately 4% for each
1000 ft.(305 m) above sea level. Refer to the National Fuel Gas Code.
Contact the ELEMENTI for more information.
15 / 36

NATURAL GAS CONVERSION INSTRUCTION
15 WARNING
!
Before using this outdoor fire table, make sure
you have read, understand and are following all information provided in the
Important Safety Information section of this manual. Failure to follow those
instructions can cause death, serious injury or property damage.
Checking for Leaks
Make a leak check solution by mixing 1-part dishwashing
soap with 3 parts water in a spray bottle.
Make sure control knob is “OFF.” Then, turn natural gas on
at its source.
Spray leak solution on valve connections paying particular
attention to the areas indicated by arrows.
If any bubbles appear turn natural gas off, reconnectand
re-test. If you continue to see bubbles after several attempts,
disconnect natural gas source and contact ELEMENTI
Distributor at 905-761-8930 for assistance.
If no bubbles appear after one-minute turn source OFF, wipe
away solution and proceed. Check for leaks at these locations
Natural Gas Hose
(Not include)
16 Remove the original plaque and attach the new plaque(Natural gas) to the
fire table using the included chain kit.
LP Gas specification
LP Lighting
Instruction
NG Lighting
Instruction
NG Gas
Specification.
16 / 36

LIGHTING INSTRUCTIONS
Using the Ignitor
1. Read instructions before lighting.
2. Burner control knob must be in the “OFF” position.
3. Connect natural gas source.
4. Open the natural gas supply to the unit.
5. Push and hold igniter but t urn to create sparks.
6. While holding the igniter button with one hand, use your other hand to push and turn the control knob
to the “LOW” position to light the burner.
7. If ignition does not occur in 5 seconds, push and turn the Control Knob to “OFF”, wait 5 mimutes and
allow gas to dissipate.
8. Once the burner is lit, continue to hold the knob in for another 20 seconds and release.
9. Observe flame, make sure all burner ports are lit. Flame height should be no higher than 13 inches tall.
10. Adjust flame to desired flame with the control knob.
Using a Long Match or Lighter
1. Prior to lighting, use a shovel to move lava rocks for access to
the burner.
2. Wearing heat resistant gloves, position the burning long match
or burning butane lighter near the side of the burner. DO NOT lean
over the fire table while lighting!
3. Turn control knob counterclockwise to “LOW”.
4. Remove long match/long butane lighter.
5.After lighting, use a shovel and heat resistant gloves to carefully
move the lava rocks back into their proper position.
6. Observe flame, make sure all burner ports are lit. Flame height
should be no higher than 13 inches tall.
7. Adjust the flame to the desired height with the control knob.
Keep the lava rock covered and make sure it is dry before igniting.
!
When using this method to light your fire table use heat resistant gloves and follow the step by
step instructions.Failure to do so could result in severe injury.
WARNING
!
WARNING
!
If burner fame goes out during operation, immediately turn the control knob “OFF” and let the gas
clear a minimum of 5 minutes before attempting to re-light the fire table.
TURNING OFF
1.Push and turn the control knob clockwise to the “OFF”position.
2.Shut off gas supply at the shut-off valve and disconnect the quick disconnect socket from the main
gas supply.
LOW
(BAS)
HIGH
(HAUT)
OFF(ARRET)
17/ 36

Manual No.: OCK45CE-NG01-DE-A0
Erdgas-Umwandlungskit
OCK45-NG01-DE
ACHTUNG
BRAND- ODER EXPLOSIONSGEFAHR
Wenn Sie Gas riechen:
• Stellen Sie das Gas zum Gerät ab.
• Löschen Sie alle offenen Flammen.
•
Wenn der Geruch anhält, verlassen Sie den Bereich
sofort.
• Rufen Sie nach Verlassen des Bereichs Ihren
Gasversorger oder Ihre Feuerwehr an.
Die Nichtbeachtung dieser Anweisungen kann zu
Bränden oder Explosionen führen, die zu Sachschäden,
Verletzungen oder zum Tod führen können.
!
WARNUNG
!
WICHTIG
INSTALLATEUR:
Lassen Sie dieses Handbuch mit dem Gerät.
VERBRAUCHER:
Bewahren Sie dieses Handbuch zum späteren
Nachschlagen auf.
!
Wenden Sie sich an Elementi, um technischen
Support zu erhalten.
Dieses Umrüstkit muss von einer qualifizierten
Servicestelle gemäß den Anweisungen des
Herstellers und allen geltenden Codes und
Anforderungen der zuständigen Behörde
installiert werden. Wenn die Informationen in
diesen Anweisungen nicht genau befolgt
werden, kann ein Brand, eine Explosion oder
die Bildung von Kohlenmonoxid zu
Sachschäden, Personenschäden oder zum
Tod führen. Die qualifizierte Serviceagentur
ist für die ordnungsgemäße Installation dieses
Kits verantwortlich. Die Installation ist nicht
ordnungsgemäß und vollständig, bis der
Betrieb des umgebauten Geräts gemäß den
Anweisungen des Herstellers überprüft wurde,
die mit dem Kit geliefert wurden.
DE
OFG101 OFG103 OFG104 OFG105 OFG110 OFG121
OFG126 OFG127 OFG128 OFG139 OFG145 OFG147

Konvertierungswarnung ------------------------------------------------------------------------------19
Spezifikation ---------------------------------------------------------------------------------------------20
Wichtige Sicherheitshinweise ---------------------------------------------------------------------- 21
Liste der Einzelteile ----------------------------------------------------------------------------------- 22
Anleitung zur Erdgasumwandlung ---------------------------------------------------------------- 23
Beleuchtungsanleitung ------------------------------------------------------------------------------- 33
INHALTSVERZEICHNIS
19 / 36
KONVERTIERUNG WARNUNG
Diese Appliance wurde am __________________________ (TT / MM / JJ) konvertiert.
zu Erdgas durch ____________________________________________________
(Name und Adresse der Organisation, die diese Konvertierung vornimmt)
die die Verantwortung dafür übernimmt, dass diese Konvertierung ordnungsgemäß
durchgeführt wurde.Nach dem Konvertieren dieser Feuertabelle muss dieses Etikett in
der Mitte der Steuerung aufgehängt werden Panel mit dem mitgelieferten Kabel.
WARNUNG
!
- Es kann nur das Umrüstkit des Herstellers verwendet werden.
- Dieses Umrüstkit muss von einer qualifizierten Servicestelle gemäß
den Anweisungen des Herstellers und allen geltenden Codes und
Anforderungen der zuständigen Behörde installiert werden.
- Bitte befolgen Sie die Anweisungen des Herstellers genau.
- Versuchen Sie nicht, diese Anwendung selbst zu konvertieren oder
zu ändern.

20 / 36
Umbausatz
Modell Nr.: Seriennummer:
Hersteller ELEMENTI INDUSTRIAL (XIAMEN) CO., LTD.
Appliance-Kategorie
Gastyp/Gasdruck
Hitze-Imput
Injektorgröße
Zielländer
Gasanschlussgröße
BE, BG, CY, CZ,
DK,EE, FI, FR,
GB, GR, HR,HU,
IT, LT, LU,LV,MT,
NL, NO, RO, SE,
SI, SK, TR
AT, CH, CZ, DE,
LU, SK
BE, CH, CY, CZ, ES, FR, GB, GR, IE,
IT, LT, LU, LV, PT, SI, SK, TR
AT,BG,CH,CY,CZ,
DK,EE,ES,FI,FR,
GB,GR,IE,IT,LT,
LV,NO,PT,RO,SE,
SI,SK
1.77mm
I3B/P(30) I3B/P(50) I3+(28-30/37) I2H
G30 Butan und
G31 Propan bei
30mbar
G30 Butan und
G31 Propan bei
50mbar
G30 Butan
bei 28-30mbar
G31 Propan
bei 37mbar
G20 Erdgas
bei 20mbar
13.2KW(G30:960.0g/h;G31:943.3g/h)
1.53mm 1.77mm 2.96mm
RP 1/2” Andere:
1. Die Verwendung dieses Geräts in geschlossenen Räumen ist
GEFÄHRLICH und VERBOTEN
2. Für den Einsatz im Freien oder in ausreichend belüeten Bereichen.
3. In einem ausreichend belüeten Bereich müssen mindestens 25%
der Oberfläche offen sein.
4. Die Oberfläche ist die Summe der Wandoberfläche.
SPEZIFIKATION
OCK45-NG01-DE
