Miles Industries Vogue 1300IRN Manual

VOGUE
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: If the information in these
instructions is not followed exactly, a  re
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the  re department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certi ed kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Manufactured by
MILES INDUSTRIES LTD.
British Columbia, Canada
www.valor replaces.com
Installation & Operating Instructions
Do not store or use gasoline or other
 ammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a quali ed installer, service agency or the
gas supplier.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS
APPLIANCE.
4001746-02
©2008, Miles Industries Ltd.
Direct Vent Zero Clearance Fireplace
1300IRN (NG) & 1300IRP (LPG)
Massachusetts: The piping and  nal
gas connection must be performed by a
licensed plumber or gas  tter in the State of
Massachusetts. Also, see Carbon Monoxide
Detector requirements under “Safety and
Warning Information” on page 5.

2
Designed and Manufactured by
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver B.C, CANADA. V7H 3B1
Tel. [phone] Fax [phone]
www.valorreplaces.com
© Copyright Miles Industries Ltd., 2008
We recommend that our gas
hearth products be installed and
serviced by professionals who
are certied in the United States
by NFI (National Fireplace
Institute®).
CAUTION—HOT! HOT! HOT!
This appliance is a HEATING appliance and it becomes very hot when in operation.
UNDER ANY CIRCUMSTANCES, DO NOT PLACE any object, furniture, draperies or other
item LESS THAN 36” (0.9 m) IN FRONT OF THE FIREPLACE.
CHILDREN and PETS
Radiant heat can heat surfaces such as the hearth in front of the replace to temperatures
that, although approved safe, can be quite uncomfortable to touch or step on—particularly
for children and pets. Children and pets should always be supervised when in the room
where the appliance is located. Remote control handset should be kept out of reach of
children. In the presence of children, we STRONGLY RECOMMEND that you install in front
of the replace: a re screen or, to protect young toddlers, a “hearth gate”—see Options on
page 36.
HOT SURFACES
Be aware that, although safe, some combustible materials and nishes, even though
installed at listed clearances may, over time, discolor, warp or show cracks. The 1300IR
requires the installation of the cement board provided with the engine.
Convective heat will exit the unit and travel up the wall surface if not impeded. Protruding
mantels and projections can help direct the heat away from the wall. AVOID PLACING heat
sensitive items such as televisions, paintings, decorations, etc. above replaces or near the
edge of protrusions unless appropriate.
The information contained in this installation manual is believed to be correct at the time of printing.
Miles Industries Ltd. reserves the right to change or modify any information or specications without
notice. Miles Industries Ltd. grants no warranty, implied or stated, for the installation or maintenance
of your heater, and assumes no responsibility for any consequential damage(s).

3
Safety and Warning Information...................................................................4
Specications ................................................................................................7
Overview.........................................................................................................8
Dimensions ....................................................................................................9
Location..........................................................................................................9

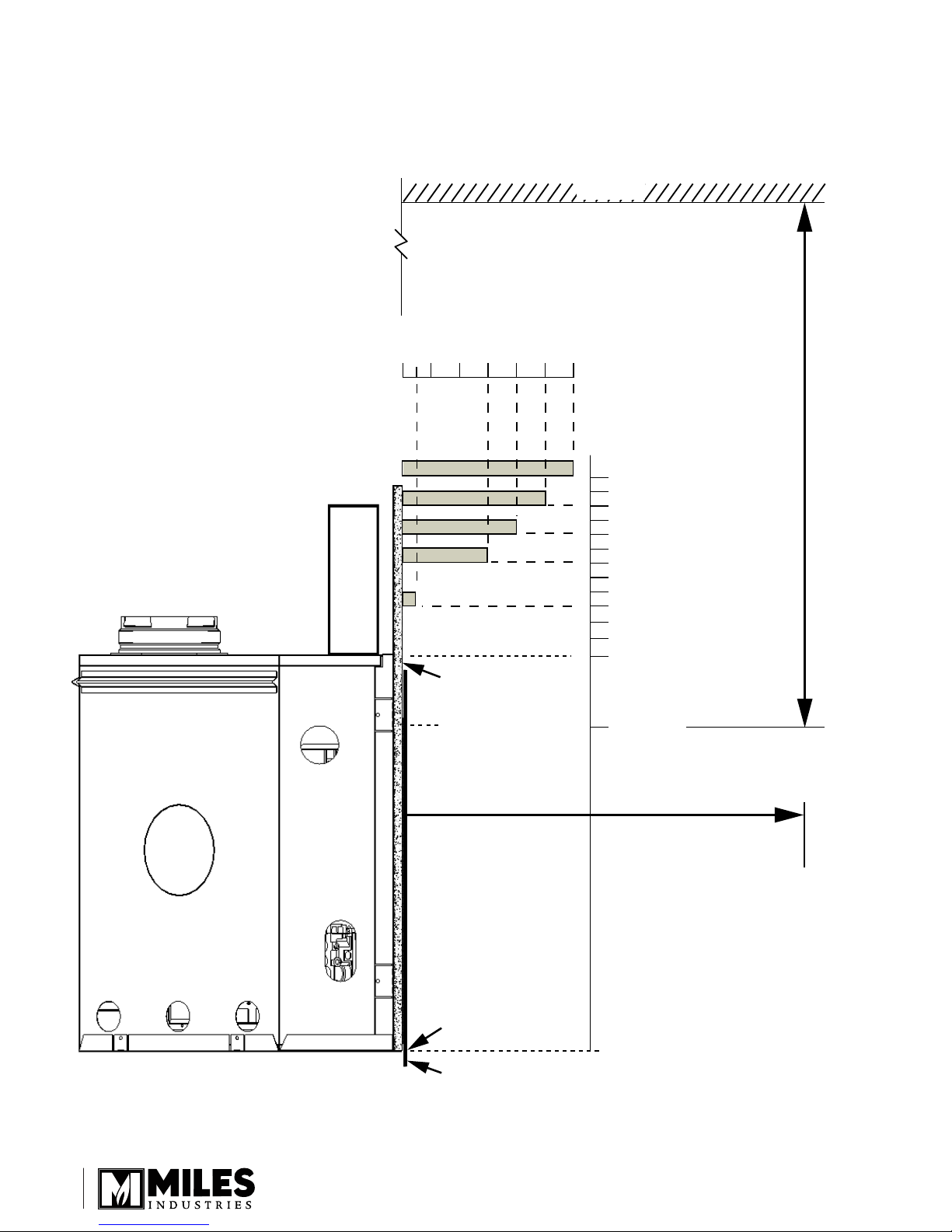

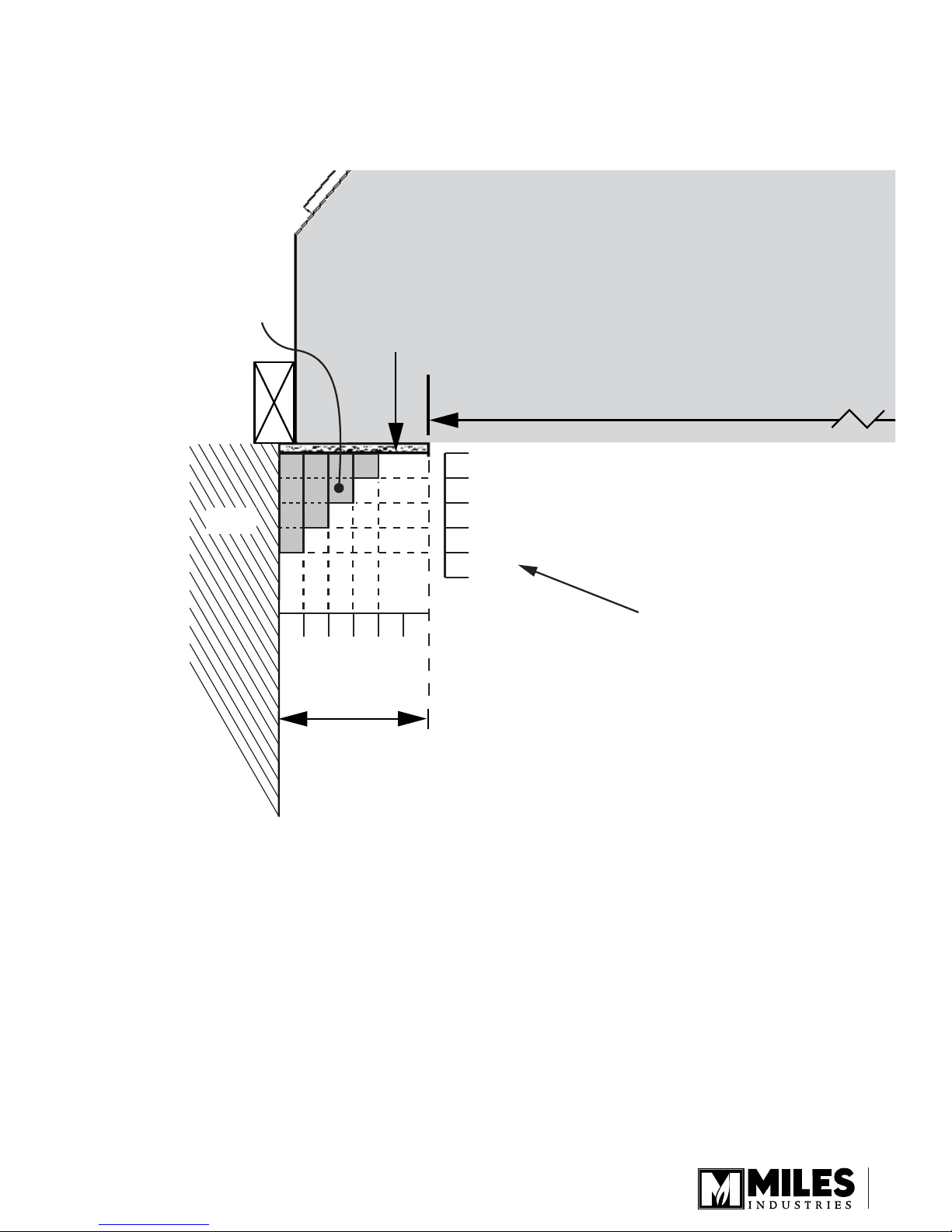

Mantel Clearances .......................................................................................10

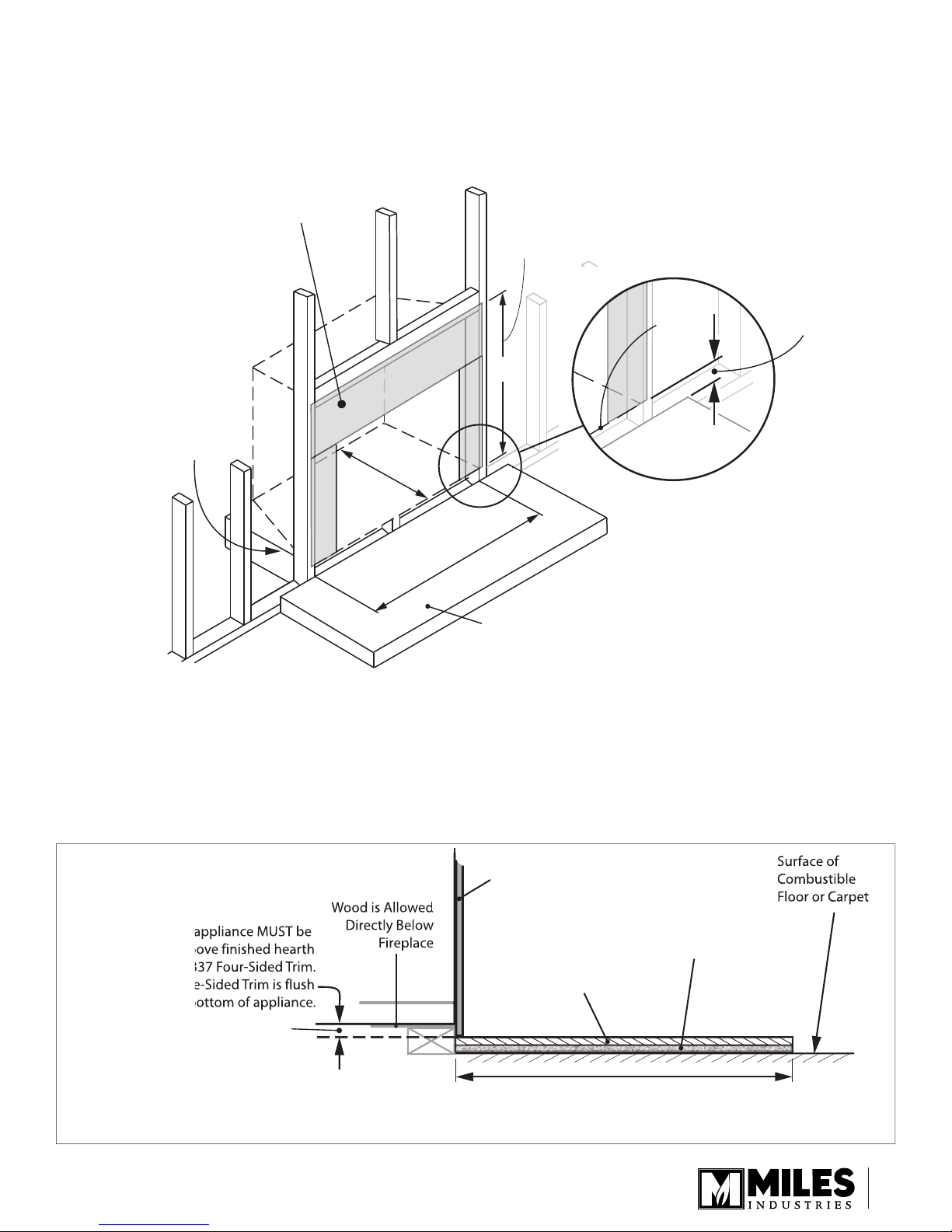

Framing & Hearth Requirements................................................................12
Venting..........................................................................................................14
Co-Axial Venting ..........................................................................................15
Co-Linear Venting ........................................................................................19
Installation Planning....................................................................................20
Appliance Preparation.................................................................................21
Supply Gas ...................................................................................................22
Ceramic Liners.............................................................................................24
Fuel Bed Install ............................................................................................25
Ceramic Rocks.............................................................................................26
Window Retting ........................................................................................27
Initial Remote Control Set-up ....................................................................27
Operation Check & Aeration Settings Adjustment ...................................28
Remote Control Handset Wall Holder Installation....................................28
Owner’s Information....................................................................................29
Lighting Instructions ...................................................................................35
Wiring Diagram ............................................................................................36
Options .........................................................................................................37
Warranty .......................................................................................................38
Spare Parts...................................................................................................39
Table of Contents

4
Safety and Warning Information
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition. Young children should
be CAREFULLY SUPERVISED when they are in the
same room as the appliance.
DO NOT place furniture or any other combustible
household objects within 36” of the replace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible re
hazard and will void the warranty.
Prior to the rst ring of the replace, READ the Owner’s
Information Section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualied service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualied service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive lint
from carpeting, bedding, etc. It is IMPERATIVE that the
unit’s control compartment, burners, and circulating air
passageways BE KEPT CLEAN to provide for adequate
combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
NEVER OBSTRUCT the ow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of trafc areas and away from furniture
and draperies. Clothing or ammable material SHOULD
NOT BE PLACED on or near the appliance.
This unit MUST be used with a vent system as described
in this installation manual. NO OTHER vent system or
component MAY BE USED.
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris is interfering with the air ow.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualied
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced as a
complete unit, as supplied by the replace manufacturer.
NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
TURN OFF THE GAS BEFORE servicing this appliance.
It is recommended that a qualied service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen or guard removed for servicing MUST
BE REPLACED before operating this appliance.
HOT SURFACES. Be aware that, although safe, some combustible materials and nishes, even though installed at
listed clearances may, over time, discolor, warp or show cracks. The 1300IR requires the installation of the cement
board provided with the engine.
Convective heat will exit the unit and travel up the wall surface if not impeded. Protruding mantels and projections
can help direct the heat away from the wall. AVOID PLACING heat sensitive items such as televisions, paintings,
decorations, etc. above replaces or near the edge of protrusions unless appropriate.
Radiant heat can heat surfaces such as the hearth in front of the replace to temperatures that, although approved
safe, can be quite uncomfortable to touch or step on—particularly for children and pets. Accessory screens and
guards will reduce the radiant heat on these surfaces.

5
Fuels used in gas, wood-burning or oil red appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where
the side wall exhaust vent termination is less than seven
(7) feet above nished grade in the area of the venting,
including but not limited to decks and porches, the
following requirements shall be satised:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing
plumber or gas tter shall observe that a hard wired
carbon monoxide detector with an alarm and battery
back-up is installed on the oor level where the gas
equipment is to be installed. In addition, the installing
plumber or gas tter shall observe that a battery operated
or hard wired carbon monoxide detector with an alarm is
installed on each additional level of the dwelling, building
or structure served by the side wall horizontal vented
gas fueled equipment. It shall be the responsibility of
the property owner to secure the services of qualied
licensed professionals for the installation of hard wired
carbon monoxide detectors.
a. In the event that the side wall horizontally vented gas
fueled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
oor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days to
comply with the above requirements; provided, however,
that during said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall be
installed.
Safety and Warning Information
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and be ANSI/UL 2034 listed and IAS
certied.
3. SIGNAGE. A metal or plastic identication plate shall
be permanently mounted to the exterior of the building at
a minimum height of eight (8) feet above grade directly
in line with the exhaust vent terminal for the horizontally
vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2)
inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of the
side wall horizontally vented gas fueled equipment shall
not approve the installation unless, upon inspection,
the inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of
248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA 54 as adopted by the Board; and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or structure
separate from the dwelling, building or structure used in
whole or in part for residential purposes.
State of California. Proposition 65 Warning.
State of Massachusetts Carbon Monoxide Detector/Vent Terminal Signage Requirements

6
(c) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED. When the
manufacturer of Product Approved side wall horizontally
vented gas equipment provides a venting system design
or venting system components with the equipment, the
instructions provided by the manufacturer for installation
of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does not
provide the parts for venting the ue gases, but identies
“special venting systems”, the following requirements
shall be satised by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists for
venting instructions, and/or all venting design instructions
shall remain with the appliance or equipment at the
completion of the installation.
Safety and Warning Information

7

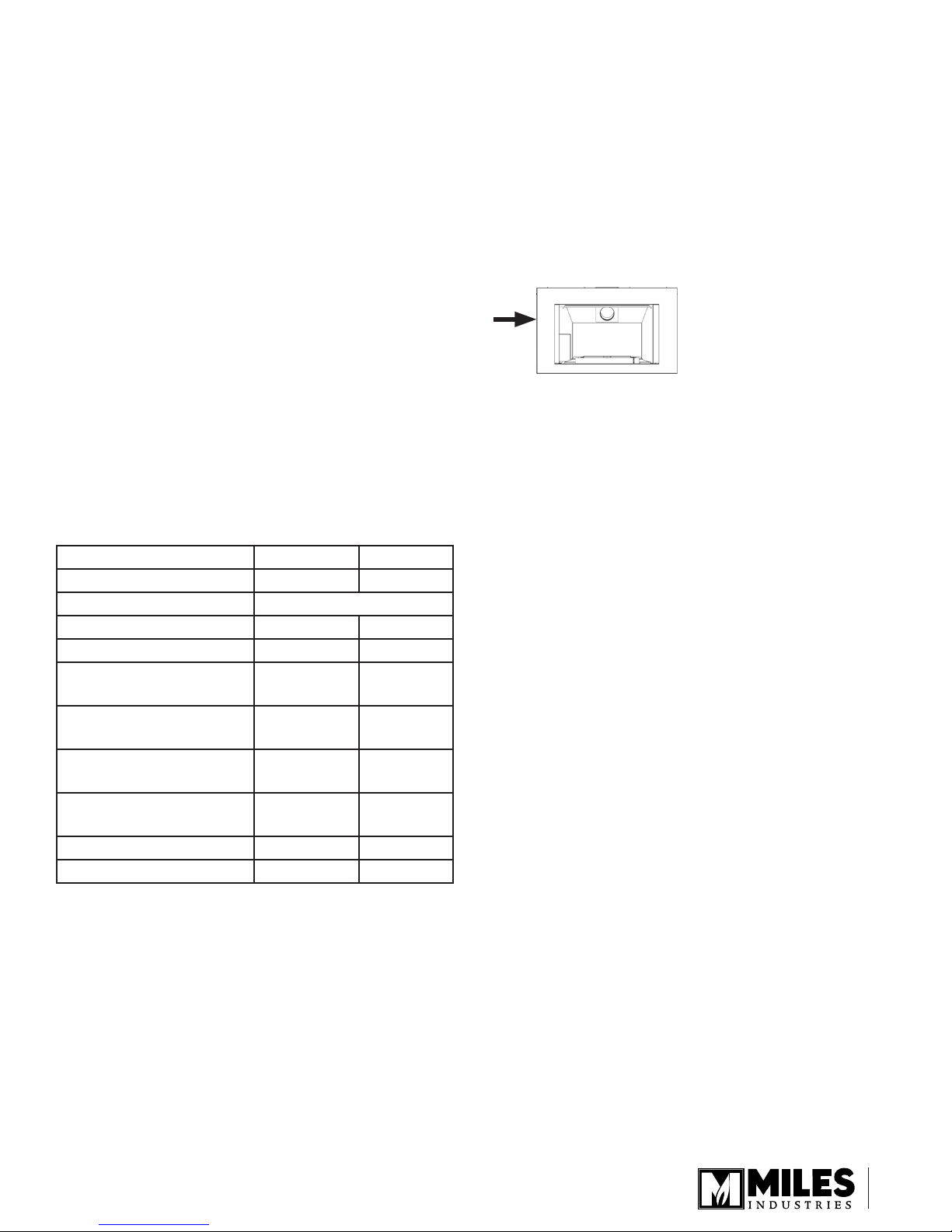

Ratings
Model N P
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 28,000
Input Minimum (Btu/h) 6,500 14,500
Manifold Pressure (in
w.c.)
3.7” 10.5”
Minimum Supply
Pressure (in w.c.)
5” 11”
Maximum Supply
Pressure (in w.c.)
10” 14”
Main Burner Injector
Marking
Cat #
82-850
Cat #
92-300
Pilot Injector Marking #62 #30
Min. Rate By-Pass Screw #125 #125
*High Altitude Installations
Input ratings are shown in BTU per hour and are certied
without deration for elevations up to 4,500 feet (1,370 m)
above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current ANSI
Z223.1 and/or local codes having jurisdiction. Heating
value of gas in some areas is reduced to compensate
for elevation—consult your local gas utility to conrm.
For installations at elevations above 4,500 feet (1,370 m)
in Canada, please consult provincial and/or local
authorities having jurisdiction.
Specications
Approval & Codes
This appliance is certied to ANSI Z21.88b-2008 / CSA
2.33b-2008 Vented Gas Fireplace Heater standard for
use in Canada and USA, and to CGA 2.17-91 High
Altitude Standard in Canada. This appliance is for direct
vent installations.
This appliance complies with CGA P.4.1 Testing method
for measuring annual replace efciencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1 or the Natural Gas and Propane Installation
Code CAN/CGA-B149. Only qualied licensed or trained
personnel should install this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Supply Gas
Heater engine 1300IRN is used with natural gas.
Heater engine 1300IRP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection is 3/8” NPT female and located
on the left hand side of the rebox.
Conversion Kits
The 1300 Vogue is supplied as natural gas or propane
gas and is eld convertible between fuels. See
instructions packaged with the conversion kit for further
information.
Electrical
The 1300 does not require an electrical power source
to operate as a heater. However, it requires electrical
power to operate optional 1355LHK Lighting Harness
Kit or 1270RBK Remote Blower Kit.
X

8
Overview
Fire On/Off
Wall Switch
(optional)
Mantel—See Mantel Clearances
Non-combustible Hearth,
if used—See Framing &
Hearth Requirements for
clearance
Optional
Decorative
Light Dimmer
Switch—not
provided, see
your electrician
Required #1337
Four-Sided Trim
(shown) or #1335
Three-Sided Trim
(both sold separately)
1300IR
Combustible Floor
Framing—See Framing & Hearth Requirements
Cement Board
Remote
Handset
Wall Holder
Wall Finish
1/2” Insulation Board
if required
Combustible Framing Allowed
Beneath Fireplace. When the
appliance is installed directly on
carpeting, tile or other combustible
material other than wood  ooring,
the appliance shall be installed on
a metal or wood panel extending
the full width and depth of the
appliance.

9
Dimensions
Location
Center
Center
Line
Line
x
x
6-5/8”dia.Venting
21-5/8”
43”
32-1/2”
26”
21-1/8”
21”
6-3/8”
7-1/2”
37-1/2” to top of cement board
36” to underside of header
Electrical
(for optional
ambient
light only)
Electrical
(for optional
ambient
light only)
Zero Clearance
to Stand-Offs
at Top
Gas
63-3/4”
45”
45”
Zero Clearance to Stand-offs
Zero Clearance to Stand-offs
at Back and Sides
at Back and Sides

10
Combustible Mantel—Left Side View
Mantel Clearances
Bottom of Unit
Face of
Cement Board
Four-Sided Trim, if used - extends
1”below bottom of unit
0 2” 4” 6” 8” 10” 12”
38”
36”
34”
32”
29”
26”
21-1/8”
36”Min.
to combustibles
Mantel Projection
(from Face of Cement Board)
Mantel
Height
(from
Bottom
of Unit)
Fireplace
Opening
Firebox Height
Ceiling
36”Min. to Ceiling
Left Side View

11
2” 1”
4”5” 3”
2”
1”
4”
5”
3”
32-1/2”
Fireplace Opening
Wall
Min. 6”
between edge
of opening
and wall
Face of
Cement
Board
Note
Right Side Clearances
are the same
Shading denotes
allowable location
for combustible
mantel legs
Combustible Sidewall / Mantel Leg—Top View
Mantel Clearances
FIREPLACE
Top View

12
SAFETY WARNING! The Vogue is a very effective radiant heater. The hearth/ oor in front of the
heater can get very hot. Locating the unit raised above the hearth/ oor or a generic freestanding
screen in front of the unit can greatly reduce hearth temperatures. Any hearth less than 2” from
the base of the heater must be constructed of non-combustible materials (see diagrams in the
following pages). Note that some materials, although safe can degrade due to heat—take this into
consideration when choosing materials.
Rules
Any hearth/ oor in front of  replace less than 2” from bottom of unit must be non-combustible and project a
minimum distance of 9”. The hearth/ oor must have a non-combustible  nish applied over the 1/2” insulation
board provided with the engine. This insulation board acts as a thermal break.
Combustible baseboards (1” thick or less) located on wall within 2” of base of unit are acceptable provided they
are located below the base of the raised  replace.
Unit will need to be raised in every case to accommodate 1337 Four-Sided Trim and any combustible  oor. Non-
combustible hearth required if bottom of  replace is less than 2” from combustible  oor in front.
1.
2.
3.
Framing & Hearth Requirements
Framing Dimensions, unit raised on wall, without hearth
21”
36”
43-1/2”
1/2”thick cement board
required above and on
each side of engine
(supplied w/engine)
FRAMING DIMENSIONS without hearth
Between underside
of header and bottom
of firebox
Combustible
framing allowed
beneath fireplace.
When the appliance is
installed directly on
carpeting, tile or other
combustible material
other than wood
flooring, the appliance
shall be installed on a
metal or wood panel
extending the
full width and depth
of the appliance

13
Framing & Hearth Requirements
Framing Dimensions with Hearth
Surface of
Combustible
Floor or Carpet
Bottom of appliance MUST be
Min. 1”above finished hearth
if using #1337 Four-Sided Trim.
#1335 Three-Sided Trim is flush
with bottom of appliance.
Wood is Allowed
Directly Below
Fireplace
Surface of
Combustible
Floor or Carpet
Bottom of appliance MUST be
Min. 1”above finished hearth
if using #1337 Four-Sided Trim.
#1335 Three-Sided Trim is flush
with bottom of appliance.
Wood is Allowed
Directly Below
Fireplace
Non-Combustible
Finish
#1337 Four-Sided
Trim if used
1/2”Insulation
Board supplied
with fireplace
(excess may be cut off
or run below fireplace)
Min. 9”of hearth protection required if bottom
of heater is less than 2”above combustible floor
Min. 1”
Non-combustible substrate construction detail
21”
36”
43-1/2”
1/2”thick cement board
required above and on
each side of engine
(supplied w/engine)
FRAMING DIMENSIONS with HEARTH
Between underside
of header and bottom
of firebox
Any surface directly in front of
the unit which is at a height of
less than 2” from the bottom of
the unit must be non-combustible
extending a minimum of 9”and have
a 1/2”insulation board (supplied) beneath.
See Non-combustible substrate construction
details diagram below.
Combustible framing
allowed beneath fireplace.
When the appliance is
installed directly on
carpeting, tile or other
combustible material
other than wood
flooring, the appliance
shall be installed on a
metal or wood panel
extending the
full width and depth
of the appliance
Hearth
Bottom of
firebox
Cement
Board
Min. 1” between top of
finished hearth and
bottom of firebox if using
#1337 Four-Sided Trim

14
Venting
Vent Material
This unit is approved for installation using 4” x 6-5/8” co-
axial direct vent pipe and accessories manufactured by
Simpson Dura-Vent. Follow the installation instructions
supplied with the individual venting accessories.
This unit may also be converted to co-linear (2 x 3”)
venting for use in solid-fuel burning replaces and
chimneys using adapters and accessories—see list
below.
Wall Thickness
The appliance vent is suitable for penetrating a
combustible wall assembly up to 8” (20 cm) in thickness.
A non-combustible wall can be of any thickness up to
the maximum horizontal run of vent pipe allowed for the
particular installation.

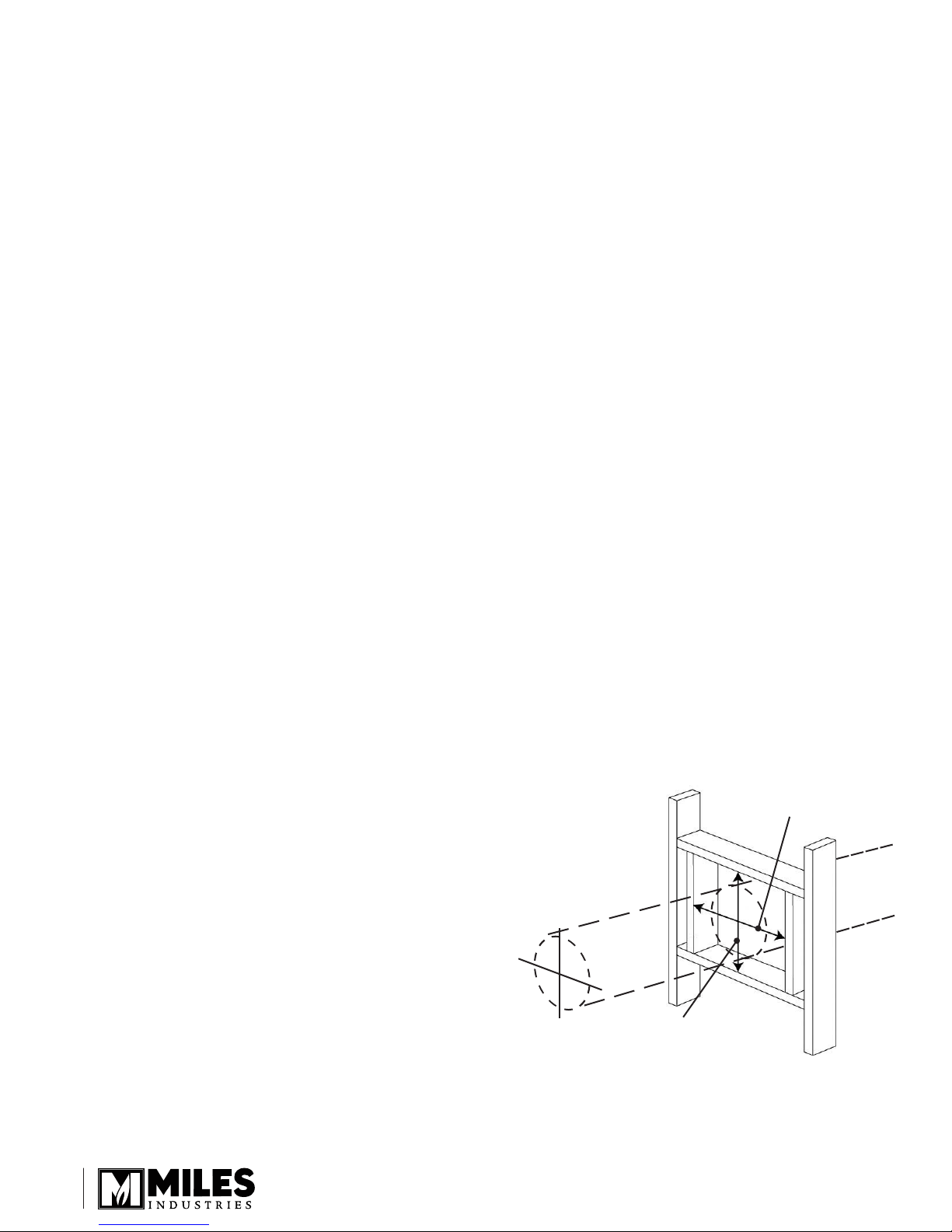

Framing Vent in Combustible Walls &
Ceilings
When penetrating through combustible walls and
ceilings, frame a minimum of 10 in x 10 in opening and
ensure that the insulation is kept clear of the vent pipe
using either a wall thimble or an attic insulation shield.
Follow the installation instructions supplied with the
individual venting components.
10” (254mm)
10” (254mm)
Align the vent
center to the
center of the
frame
Approved Venting Accessories—Simpson
Dura-Vent DV unless otherwise specied
Termination Caps
46DVA-HC—Standard Co-axial Horizontal
46DVA-VC—Standard Co-axial Vertical
46DVA-VCH—High Wind Co-axial Vertical
46DVA-VCE—Extended Co-axial Vertical
46DVA-SNK14—Snorkel, 14” Rise
46DVA-SNK36—Snorkel, 36” Rise
559CLT—Co-linear Terminal (Valor)
DV 45º Elbows
46DVA-E45—Galvanized
46DVA-E45B—Black
DV 90º Elbows
46DVA-E90—Galvanized
46DVA-E90B—Black
Pipes 4” x 6-5/8”
46DVA-06—Galvanized, 6” long
46DVA-06B—Black, 6” long
46DVA-09—Galvanized, 9” long
46DVA-09B—Black, 9” long
46DVA-12—Galvanized, 12” long
46DVA-12B—Black, 12” long
46DVA-18—Galvanized, 18” long
46DVA-18B—Black, 18” long
46DVA-24—Galvanized, 24” long
46DVA-24B—Black, 24” long
46DVA-36—Galvanized, 36” long
46DVA-36B—Black, 36” long
46DVA-48—Galvanized, 48” long
46DVA-48B—Black, 48” long
Flashing
46DVA-F6—Roof 0/12–6/12
46DVA-F12—Roof 7/12–12/12
46DVA-FF—Flat roof
559FSK—Flashing (Valor)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Other accessories
46DVA-GCL—Co-axial to Co-linear Adapter
46DVA-GK—Co-linear to Co-axial Adapter
46DVA-WT—Wall Thimble
46DVA-SC—Storm Collar
46DVA-DC—Decorative Plate
46DVA-CS—Cathedral Ceiling Support
46DVA-FS—Ceiling Firestop / Floor Support
46DVA-WS—Wall Strap
46DVA-VSS—Vinyl Siding Standoff
46DVA-ES—Elbow Strap
46DVA-WG—Terminal Guard
2280—2-ply liner approved to CAN/ULC S635
suitable for venting gas appliances
•
•
•
•
•
•
•
•
•
•
•
•

15
Co-Axial Venting
HORIZONTAL
TERMINATION
2-PIECE
WALL
THIMBLE
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH
PIPE
LENGTH
90˚ ELBOW
CEILING
FIRESTOP
ATTIC
FIRESTOP
ATTIC
INSULATION
SHIELD
FLASHING
STORM
COLLAR
VERTICAL
TERMINATION
Important Installer Notice – Weather Sealing &
Vapor Barriers
It is the installer’s responsibility to ensure that vent installations
through exterior walls are caulked and weatherproofed in such
a manner as to:
Prevent rain water from entering the wall from the weather
side by adequately caulking the outer vent plate to the exterior
wall surface.
Prevent moisture inside the home from penetrating into the
wall structure by ensuring the inside wall plate is adequately
sealed to the inside vapor barrier.
Prevent rain water and moisture from entering the walls by
sealing the joints between the outer vent tube and the inner
and outer wall plates.
We recommend the use of a high quality polyurethane sealant.
•
•
•
Typical Co-axial Venting Components

16
How to Read the Venting Chart
The chart below applies to co-axial roof or wall
termination.
The total length of the vent pipe cannot exceed 40’
(12.2m).
The minimum vertical height with roof termination is
6’ (1.83 m).
Any combination of rise and run can be used as long
as they are within the allowable limits shown on the
chart below.
A maximum of 4 x 90° elbows—or equivalent (2 x
45° = 90°)—can be used.
1.
2.
3.
4.
Each 90° elbow installed on the horizontal plane is
equivalent to a 3’ horizontal pipe; therefore, 3’ must
be subtracted from allowable horizontal run. (45°
elbow is equivalent to 18” horizontal pipe.)
All horizontal pipe runs must be graded 1/4” per foot
upwards in the direction of the exhaust  ow. The
 nal pipe length, when terminating through the wall
may be graded downwards slightly to prevent water
migration.
A restrictor is required for all installations—see next
section.
5.
6.
7.
2 4 6 810 12 14 16 18 20
Example 1
V Value = V1 (6’) + V2 (6’) + V3 (2’)= 14’
H Value = H1 (3’) + H2 (3’) = 6’
#2 Restrictor position required
VERTICAL RISE (ft)
HORIZONTAL RUN (ft)
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
Venting Chart
4 x 90º ELBOWS
MAXIMUM (or equivalent)
#4 Restrictor
Example 1
NO INSTALLATION
NO INSTALLATION
V1
V2
V3
H1
H2
#3 Restrictor
#2 Restrictor
#1 Restrictor
Max. 24” pipe if
min. vertical rise
is used
Min. 12”
pipe
Max. 6” pipe
if min. vertical
rise is used
45º elbow
directly on
 ue collar
Min. 2’
before
elbow
Allowable Co-Axial
Vent Con gurations
All around
vertical
pipe
Top of
horizontal
pipe
Bottom & sides
of horizontal pipe
1”
3”
1”
MINIMUM
VERTICAL
RISE: 2’
Co-Axial Venting

17

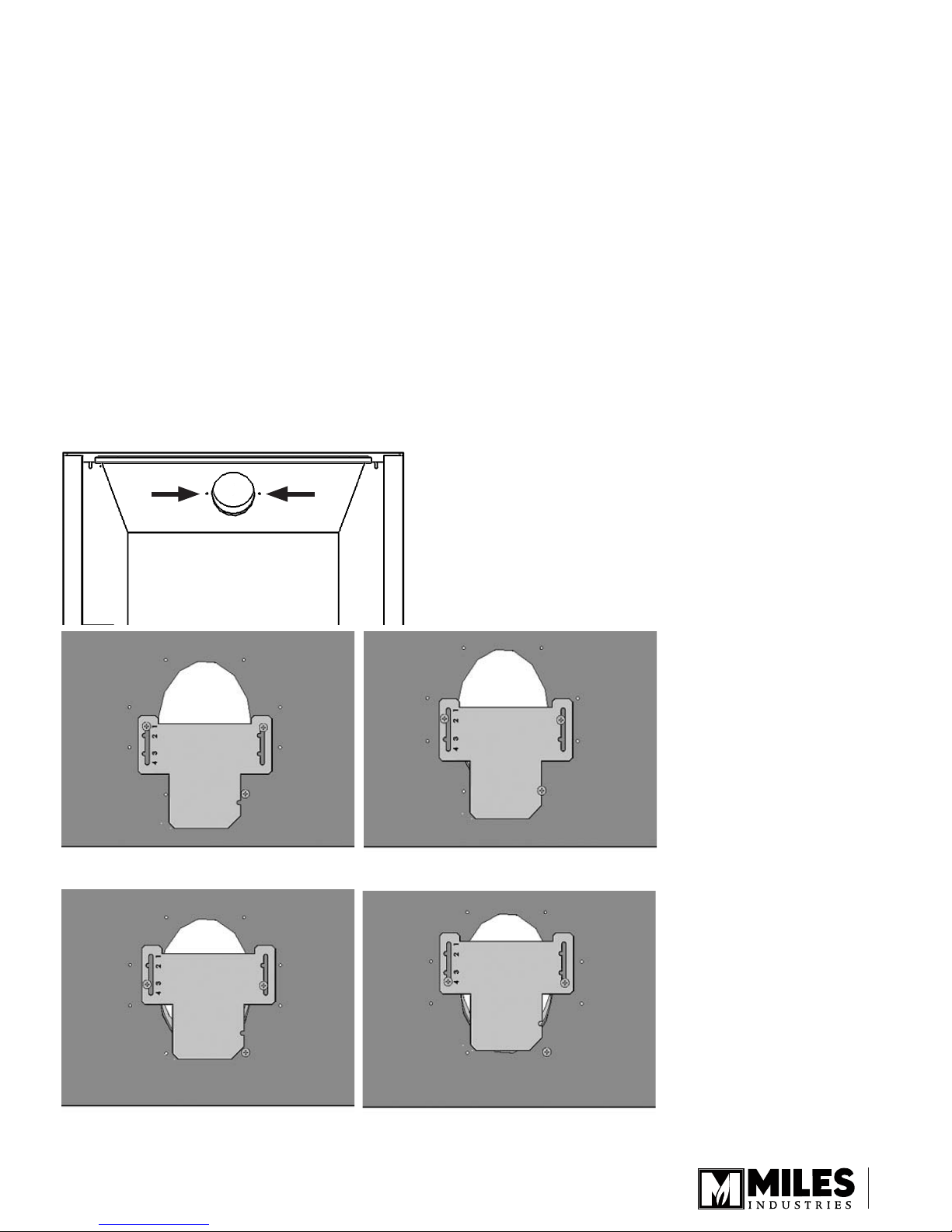

Restrictor
ALL INSTALLATIONS REQUIRE A RESTRICTOR for
improved ame picture and performance. This unit is
supplied with a pre-tted restrictor having four different
positions or settings. The level of restriction required
depends on the vertical rise in the venting system and,
to a lesser degree, the horizontal run and number of
elbows.
The amount of restriction is based on laboratory tests.
The ideal restrictor position may vary slightly, especially
when the vent pipe length is near the limits of the
acceptable congurations for each type of restrictor.
The chart on the previous page shows the vent restrictor
required relative to the length of the vent pipe.
To set the restrictor position:
Establish the required position of the restrictor looking
up the venting table on the previous page.
Release the screws (2) on each side of the restrictor
already installed.
Slide the restrictor in the required position.
Tighten the screws.
1.
2.
3.
4.
Position #1 Position #2
Position #3 Position #4
Co-Axial Venting

18

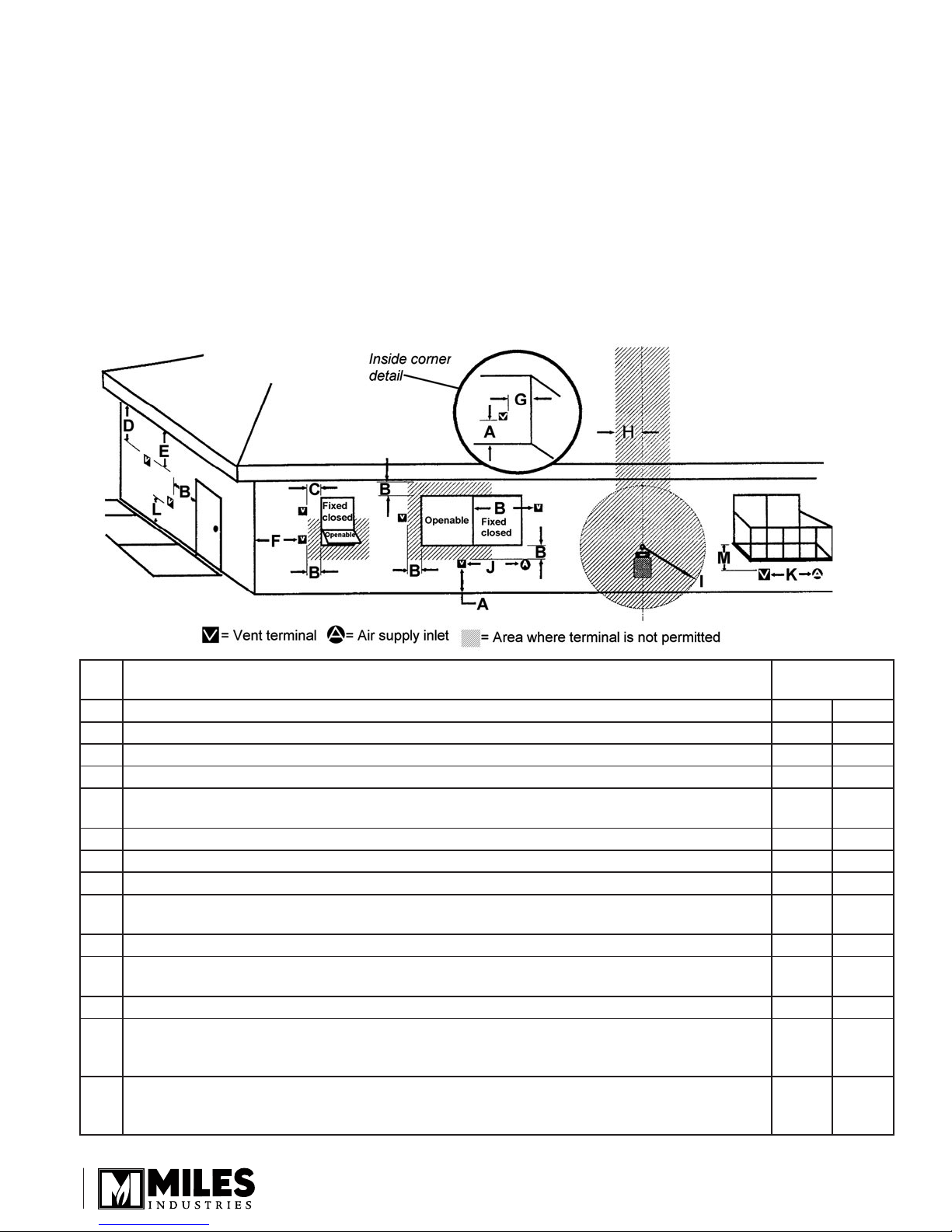

Vent Termination
The vent terminal must be located on an outside wall
or through the roof.
This direct vent appliance is designed to operate
when an undisturbed airow hits the outside vent
terminal from any direction.
The minimum clearances from this terminal that must
be maintained when located on an outside wall are
shown in the gure below. Any reduction in these
•
•
•
clearances could result in a disruption of the airow
or a safety hazard. Local codes or regulations may
require greater clearances.
The vent terminal must not be recessed into a wall
or siding.
The vent terminal should be positioned where it will
not be covered by snowdrifts.
Sidewall vent terminations within 7’ of grade require
a terminal guard.
•
•
•
Co-Axial Venting
KEY VENT TERMINAL LOCATIONS - MINIMUM DISTANCES MINIMUM
CLEARANCE
Inches Cm
AClearance above grade, verandah, porch, deck or balcony 12 30
BClearance to window or door that may be opened 12 30
CClearance to permanently closed window (recommended to prevent condensation on window) 12 30
DVertical clearance to ventilated soft located above the terminal within a horizontal distance of
2 feet (60 cm) from the center-line of the terminal
18 46
E Clearance to unventilated soft 12 30
F Clearance to outside corner 12 30
GClearance to inside corner 12 30
H Horizontal clearance to center-line of meter/regulator assembly located within 15 feet (4,6 m)
below the terminal
36 90
IClearance to service regulator vent outlet 36 90
JClearance to non-mechanical air supply inlet to the building or the combustion air inlet to any
other appliance
12 30
KClearance to a mechanical air supply inlet 72 180
LClearance above paved sidewalk or a paved driveway located on public property
Note: A vent must not terminate directly above a sidewalk or paved driveway, which is located
between two single-family dwellings and serves both dwellings
84 210
MClearance under a verandah, porch, deck or balcony
Only permitted if veranda, porch, deck or balcony is fully open on a minimum of 2 sides
beneath the oor
12 30
Note: Local codes and regulations may require different clearances.

19
Co-Axial Venting
10-1/2”
(267 mm)
3”
(76 mm)
7-1/2”
(191 mm)
7-1/8”
(181 mm)

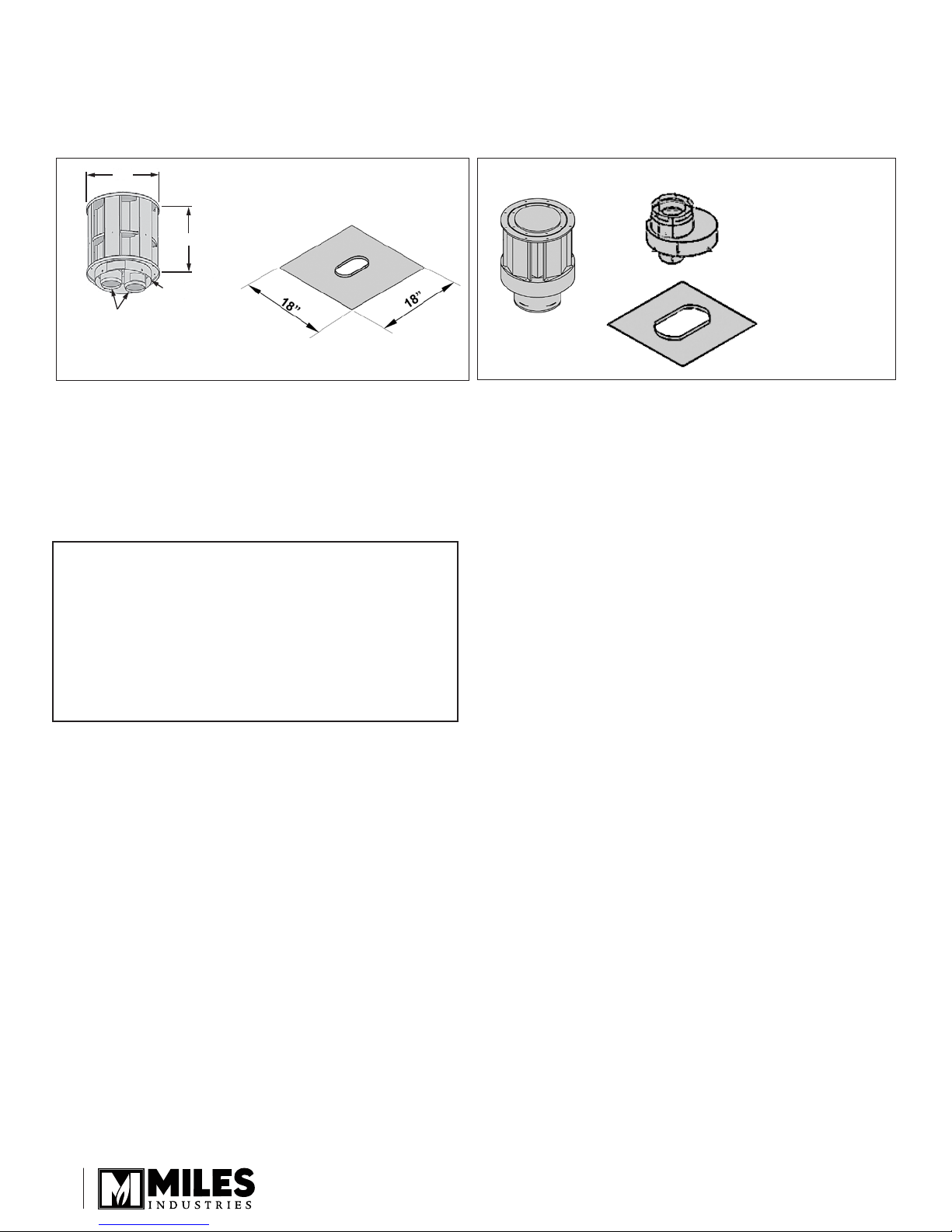

Conversion to Co-Linear Liners using generic Co-Linear Adapters
Co-linear portion of vent system may only be installed within a solid-fuel burning replace and chimney.
The appliance must not be connected to a chimney ue serving a separate solid-fuel burning appliance.
Requires a Co-Axial to Co-Linear appliance Adapter, two
lengths of 2-ply 3” dia. exible chimney liner approved for
venting gas appliances, a co-linear termination kit and
ashing or a co-linear to co-axial adapter and either a
high wind vertical vent terminal cap or a low prole vertical
termination. Firebox top zero clearance stand-offs supplied
with the heater are not required for this application.
Rules for Co-Linear Venting
Maximum 40 feet vertical pipe
Minimum 10’ vertical
Maximum offset 8’ with liners at minimum 45˚ from
horizontal plane
Restrictor: Use #4 position for all co-linear installations—
refer to page 17 for restrictor positioning.
•
•
•
•
Flashing
2 x 3”
liners
3”min.
bend radius
Co-linear
adapter
2 x 3”
liners
Co-linear
adapter
Vogue
engine
Approved co-linear
termination or approved
co-linear adapter
and approved
co-axial
termination
Co-Linear Venting
Dura-Vent #46DVA-GCK
Co-Axial to Co-Linear Adapter
Vogue with co-linear adapter Co-Linear installation into existing F/P
Roof
Pitch
Minimum
"H" (feet)
Flat to 7/12 1'
Over 7/12 to
8/12 1.5'
Over 8/12 to
9/12 2’
Over 9/12 to
10/12 2.5’
Over 10/12 to
11/12 3.25’
Over 11/12 to
12/12 4’
Over 12/12 to
14/12 5’
Vertical Vent Termination

20
Installation Planning
Installer—READ THIS FIRST
YOU NEED TO KNOW FROM THE
HOMEOWNER:
- The height of the oor or hearth nish;
- The thickness and type of the wall nish
around the rebox opening;
- What accessories (Four-Sided trim, decorative
lighting, remote control wall switch, etc.) will be
installed with this replace;
- The venting conguration.
Unpack the appliance.
Check that you have everything.
Finish framing.
Fit appliance into framing.
Install venting system.
Position restrictor.
Connect and test gas supply.
Install ceramic liners, fuel bed and rocks.
Ret window.
Connect electrical wiring for optional decorative light
if used.
Install optional wall switch if required.
Put batteries in receiver and remote control
handset.
Initialize the remote control system.
Verify operation and adjust aeration settings.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
Tools and supplies required
Packing knife
Claw hammer
Screwdriver set
Metric socket set
Pliers
Adjustable Wrench
Sealant
Dish soap/water solution
Gloves
Eye Protection
Electrical outlet box, wire, wire clamp and switch if
installing optional decorative light
•
•
•
•
•
•
•
•
•
•
•
Install the remote control handset wall holder.
Instruct the homeowner on the operation and
maintenance of the replace.
Install the Trim Kit.
Finish the wall around the replace.
16.
17.
18.
19.
10”
10”
3” Inlet & Exhaust
Collars
7-5/8” dia.
collar
559FSK Flashing Kit559CLT Co-Linear Terminal
Alternate to 559CLT/559FSK Conversion
Terminal Cap
Co-Linear to Co-Axial
Adapter
Co-Linear Venting
Flashing
Co-linear terminal congurations
