Jøtul Jotul GI 535 DV IPI New Harbor User manual

1
139775_R03 GI 535 DV IPI June 2016
28 ⁄”
718 mm
40”
1016 mm
Installation and
Operation Instructions
Jøtul GI 535 DV IPI
New Harbor
Direct Vent Fireplace Insert
– Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
– Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
– In the Commonwealth of Massachusetts,
a carbon monoxide (CO) detector shall
be installed in the same room as the
appliance.
WARNING:
FIRE OR EXPLOSION HAZARD. Failure to follow
safety warnings exactly could result in serious
injury, death, or property damage.
This appliance may be installed in an aftermarket,
permanently located,manufactured home or
mobile home,where not prohibited by local codes.
This appliance is only for use with the types of gas
indicated on the rating plate. A conversion kit is
supplied with the appliance.
INSTALLER:Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.













2
139775_R03_GI 535 DV IPI June 2016
66.96%
Natural Gas
Jøtul GI 535 DV IPI
�
We recommend that
our gas products be
installed and serviced by
professionals who are
certified in the U.S. by
the National Fireplace
Institute® (NFI) as NFI
Gas Specialists.
Installation Requirements
for the Commonwealth of
Massachusetts
THIS PRODUCT MUST BE INSTALLED BY
A LICENSED MASTER OR JOURNEYMAN
PLUMBER OR GAS-FITTER WHEN
INSTALLED IN THE COMMONWEALTH OF
MASSACHUSETTS.
1. If there is not one already present,
on each floor level where there are
bedroom(s), a carbon monoxide
detector and alarm shall be placed in
the living area outside the bedroom(s).
The carbon monoxide detector shall
comply with NFPA 720 (2012 Edition).
2. A carbon monoxide detector shall:
a) Be located in the room that houses
the appliance or equipment;
b) Be either hard-wired or battery
powered or both; and
c) Shall comply with NFPA 720 (2012
Edition).
3. A Product-approved vent terminal must
be used, and if applicable, a Product-
approved air intake must be used.
Installation shall be in strict compliance
with the manufacturer’s instructions.
A copy of the installation instructions
must remain with the appliance or
equipment at the completion of the
installation.
THIS OWNER’S MANUAL PROVIDES INFORMATION TO
ENSURE SAFE INSTALLATION AND EFFICIENT, DEPENDABLE
OPERATION OF YOUR FIREPLACE INSERT. PLEASE READ
THESE INSTRUCTIONS IN THEIR ENTIRETY AND MAKE THEM
AVAILABLE TO ANYONE USING OR SERVICING THIS GAS
INSERT.
DO NOT ATTEMPT TO ALTER OR MODIFY THE CONSTRUCTION
OF THIS APPLIANCE OR ITS COMPONENTS. ANY
MODIFICATION OR ALTERATION WILL VOID THE WARRANTY,
CERTIFICATION AND LISTING OF THIS APPLIANCE.
THIS HEATER MUST BE INSTALLED AND MAINTAINED BY A
QUALIFIED SERVICE AGENCY.
67.84%
Propane
PLEASE NOTE:
It is normal for smoke and odor to occur during
the initial stages of operation, depending upon
temperatures generated over time. This “curing”
condition can be alleviated by promoting fresh
air circulation within the immediate vicinity of
the appliance.
Suggested Tools for Installation and Service

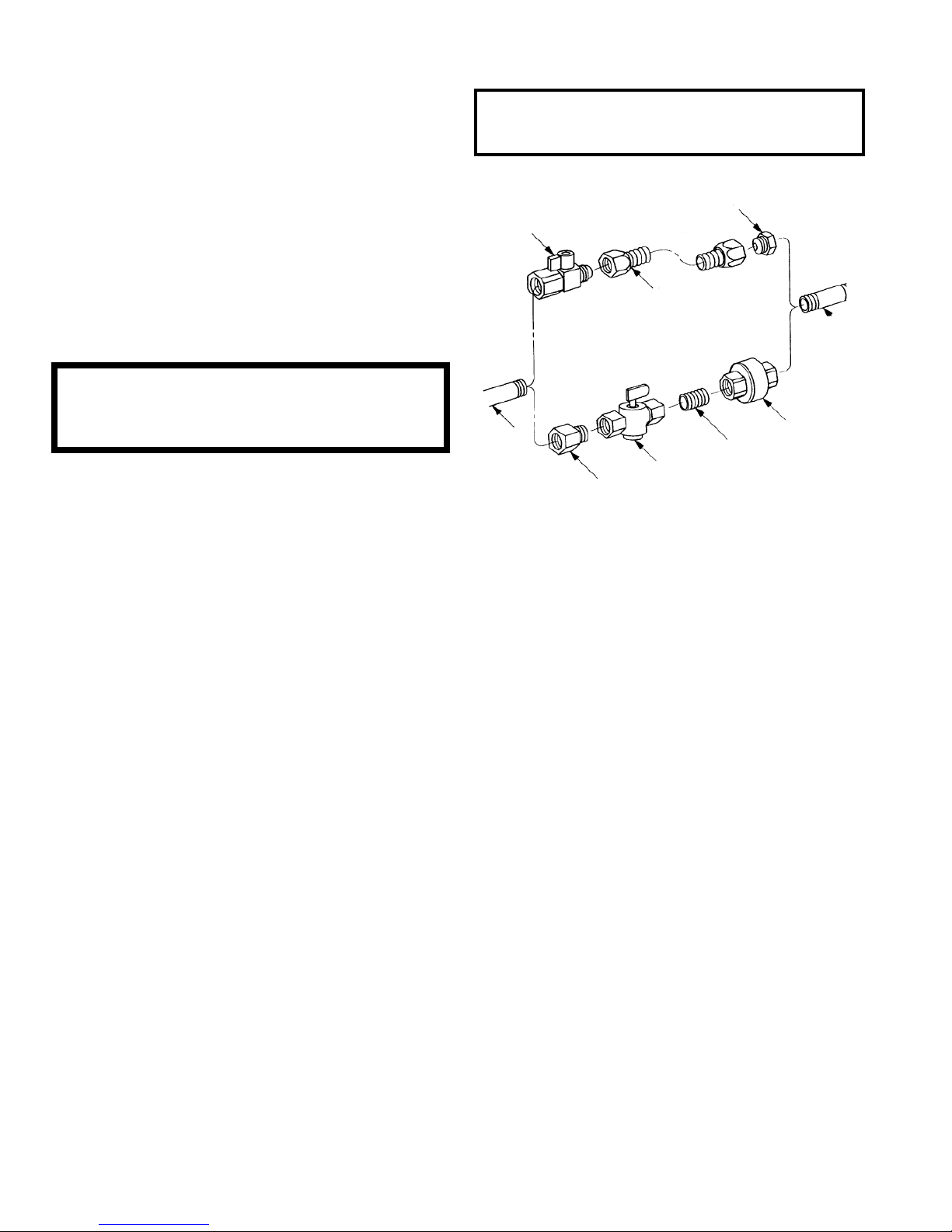

• External regulator (for Propane only)
• Piping which complies with local code
• A manual shut-off valve is included with this appliance,
however, an additional T-Handle valve may be required in
Massachusetts
• Sediment trap - if required by code
• Tee joint
• Pipe wrench
• Pipe sealant
• 10 mm open end wrench
• 1/2”, 7/16” open end wrench
• Phillips head screwdriver
• Flat head screwdriver
• 1/4” nut driver
• Work Gloves
• Safety glasses
• Torx T-20 screwdriver
• Tin snips
• Glass Latch Tool
- included with appliance.
Retain and store as shown in fig. 7.3.
Based on CSA P.4.1-15

3
139775_R03 GI 535 DV IPI June 2016
Table of Contents
1. Unpacking the Fireplace ......................... 3
2. Specifications .............................................4
3. General Information................................. 5
4. Safety Information ..................................6
5. Installation............................................ 7

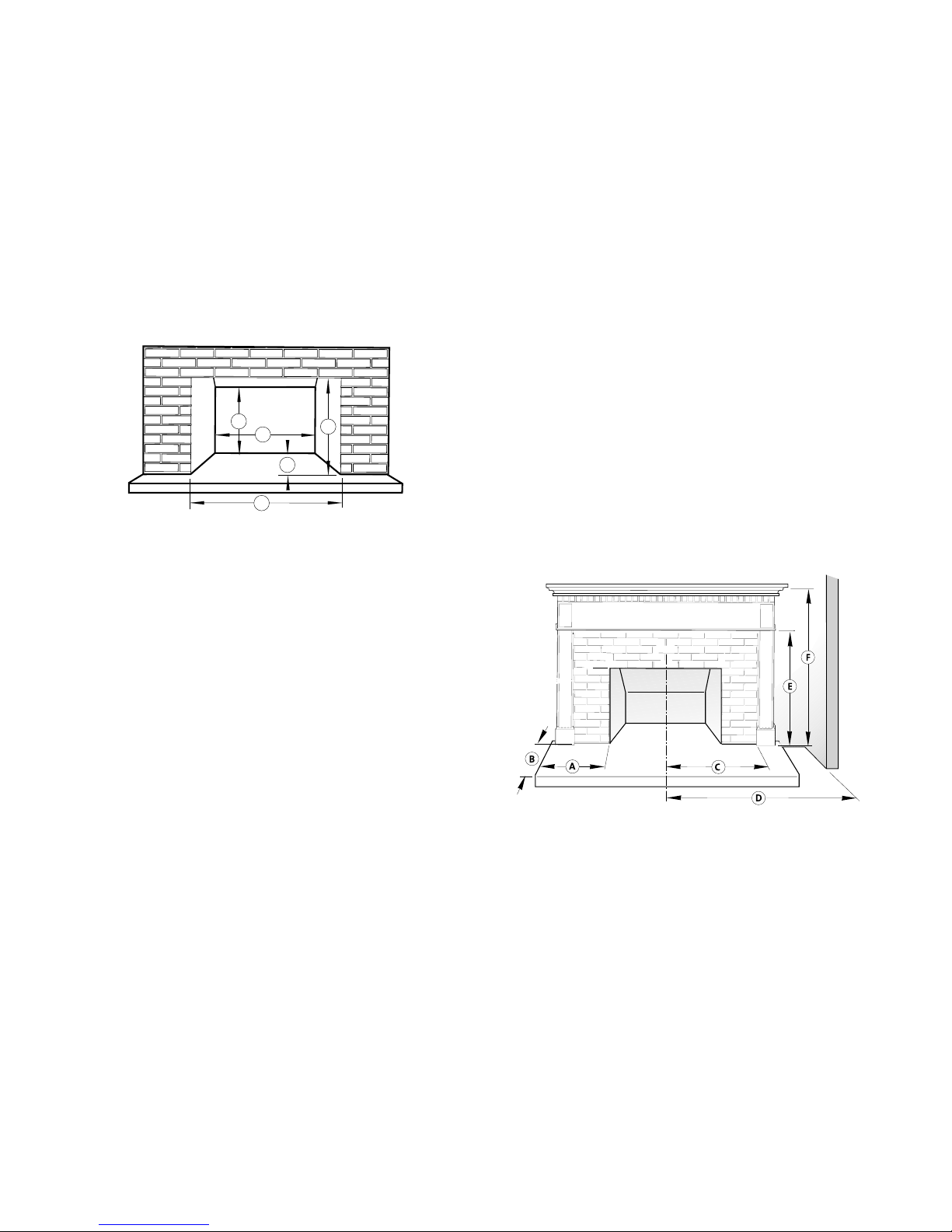

5.1 Fireplace Requirements...................... 8
5.2 Hearth and Clearance Protection .....8

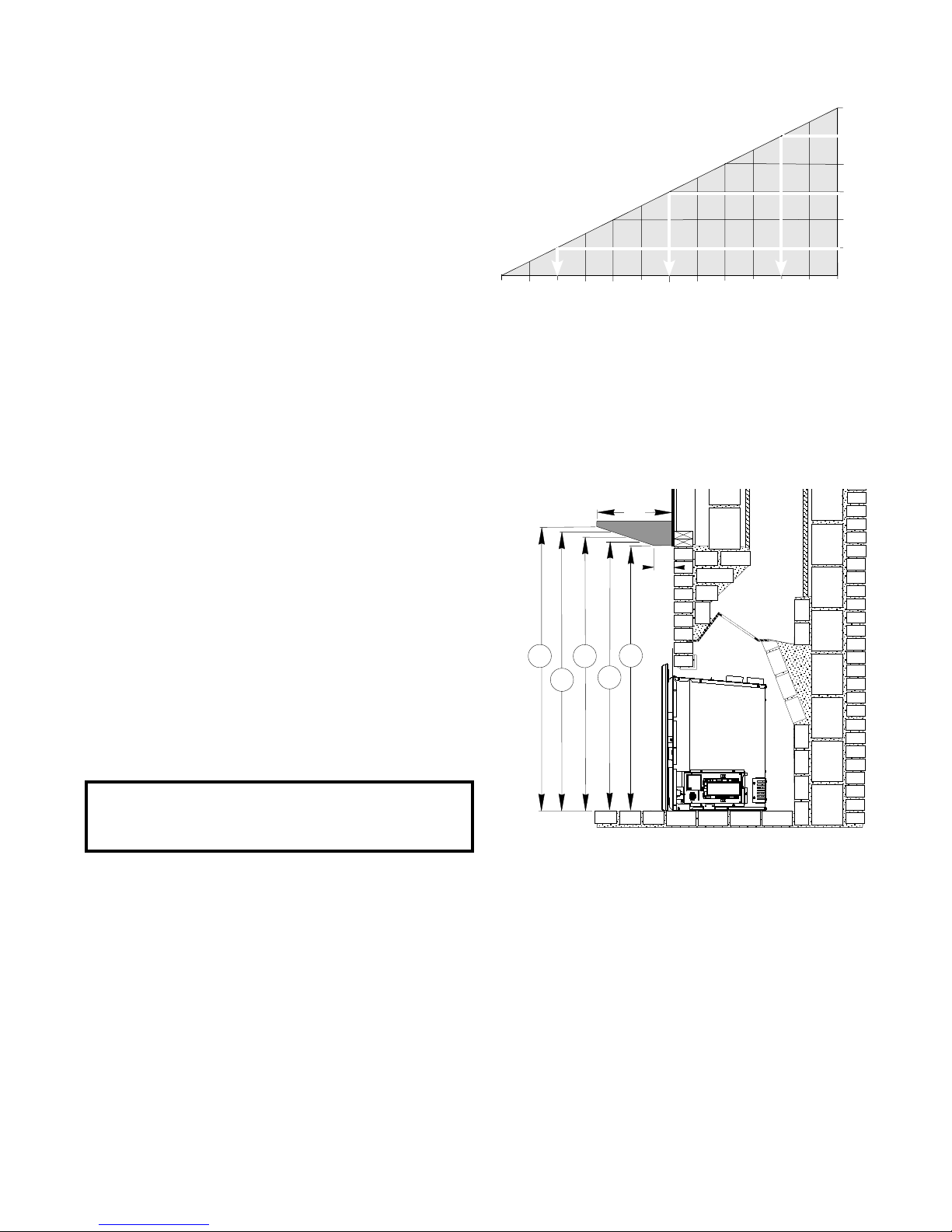

5.3 Clearances...............................................9
6. Vent Guidelines ................................. 10
6.1 Masonry Fireplaces ............................ 11
6.2 Factory-built Fireplaces ......................12
6.3 Vent Connection .................................13
7. Fireplace Assembly ..............................14
7.1 Gas Connection.................................... 14
7.2 Gas Pressure Test ................................ 14
7.3 Fuel Conversion................................... 16
7.4 High Altitude Adjustment ............... 18
7.5 Final Positioning.................................. 19

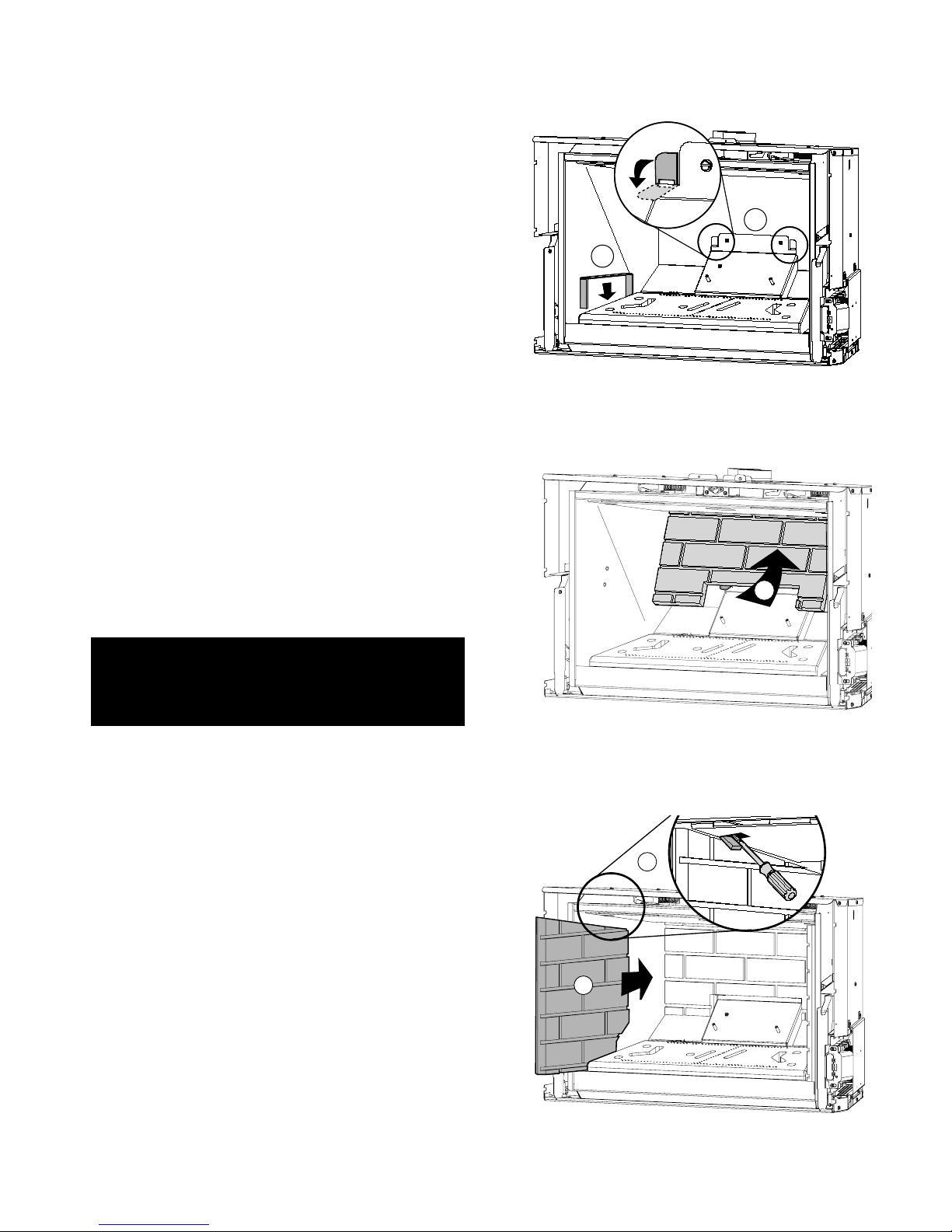

7.6 Brick Panel Kits.................................... 19

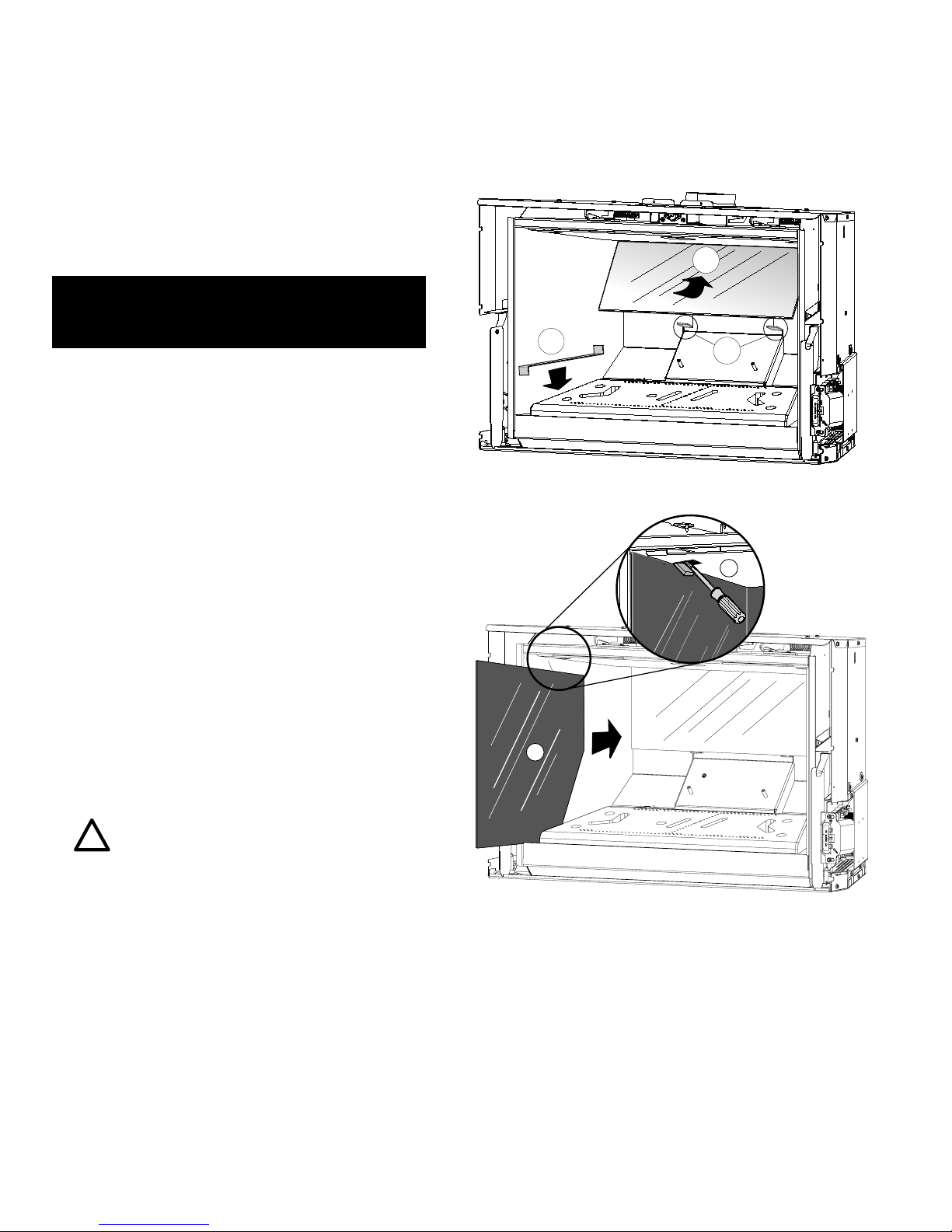

7.7 Reflective Glass Panel Kit................. 20
7.8 Log Set Installation .............................21
7.9 Backer Plate Installation................... 23
7.10 Trimable Backer Plate Install........... 23
7.11 Hidden Hanger Bracket ...................24
7.12 Front Cast Iron Overlay .....................24
8. Operation............................................ 25
8.1 Initial System Check...........................25
8.2 Fireplace Operation .......................... 27
8.3 Remote Control Functions ...............28
9. Maintenance ...................................... 32
9.1 General and Annual Cleaning.......... 32
9.2 Accent Lamp Bulb Replacement .... 32
9.3 Battery Replacement ........................ 32
9.4 Glass Care and Replacement........... 33
10. Illustrated Part Breakdowns...............34
11. Appendix A ........................................ 39
11.1 Approved Vent Manufacturers ......39
11.2 Burner Re-installation ......................39
11.3 Proflame 2 Wiring Diagram .......... 40
11.4 Warranty Statement ........................ 41
12. Lighting Instructions.............................43
1.0 Unpacking the Fireplace Insert
1. Thoroughly inspect the appliance for shipping damage and
immediately contact the dealer if any is found.
2. A Miscellaneous Hardware Kit is packed within the firebox
crate with this manual. Confirm these contents:
• Fuel Conversion Kit, LP
• Fireplace Conversion Notice Plate
• Rock Wool Ember Fibers
• Remote Transmitter
• Transmitter Wall Bracket
• Four, 1.5 v AA IFC Back-up Batteries
• Three, 1.5 v AAA Remote Transmitter Batteries
• Safety Screen Barrier Guidelines
3. Detach the firebox from the pallet with removal of the
attachment bracket screws at each side of the firebox base.
4. Remove the Latch Tool from the shipping pallet. Use it to
disengage the two spring latches from the glass frame
as shown in fig. 1. Engage the tool prong with the Latch
receiver hole and pull the latch hook forward and up to
detach it from the glass frame slot. Pivot the top of the
frame forward to disengage it from the bottom corners of
the firebox. Set the glass frame out of the way.
5. The Log Set is inside the firebox. Remove and set it out of
the way until you are ready to install it.
6. PRE-INSTALLATION FIT UP: Leveling bolts are located at
each corner of the firebox base to allow a maximum
1/2” adjustment to correct hearth irregularities. Before
assembly, locate the firebox in its final position within the
fireplace and adjust the leveling bolts as necessary to level
and plumb the unit. Front bolts are accessible in each side
compartment through the fireplace front. Tip the firebox
forward to adjust the rear bolts out of the base.
Pull the unit back out of the fireplace and read the
installation requirements in this manual before proceeding
with assembly and installation.
7. The remote control IFC and hand-held Transmitter have
been synchronized at the factory before the batteries are
removed for shipping. See Sect. 8.1, page 25, for complete
installation instructions.

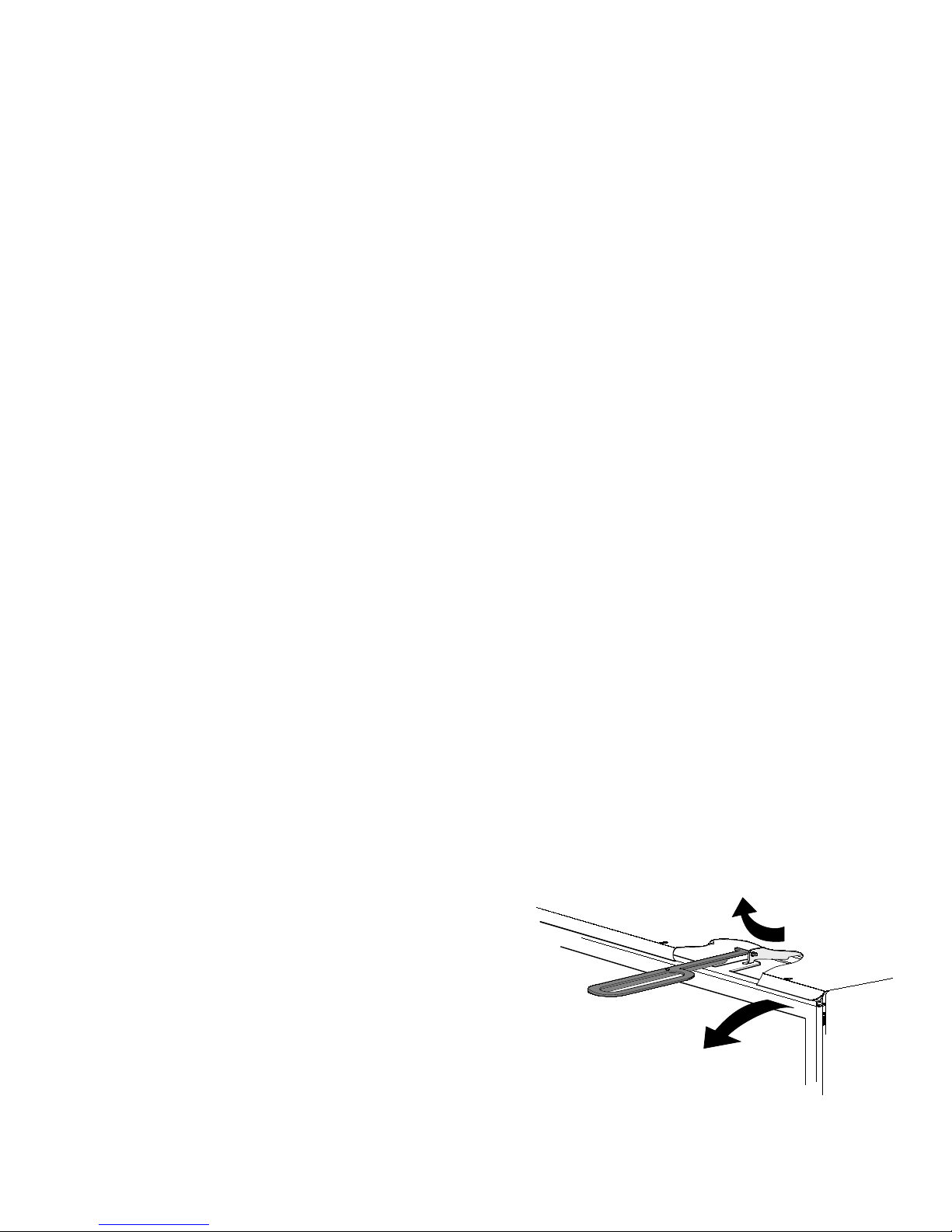

Figure 1.1
Pull each Spring Latch OUT and UP to
disengage it from the Glass Frame. Swing
the glass frame down.

4
139775_R03_GI 535 DV IPI June 2016

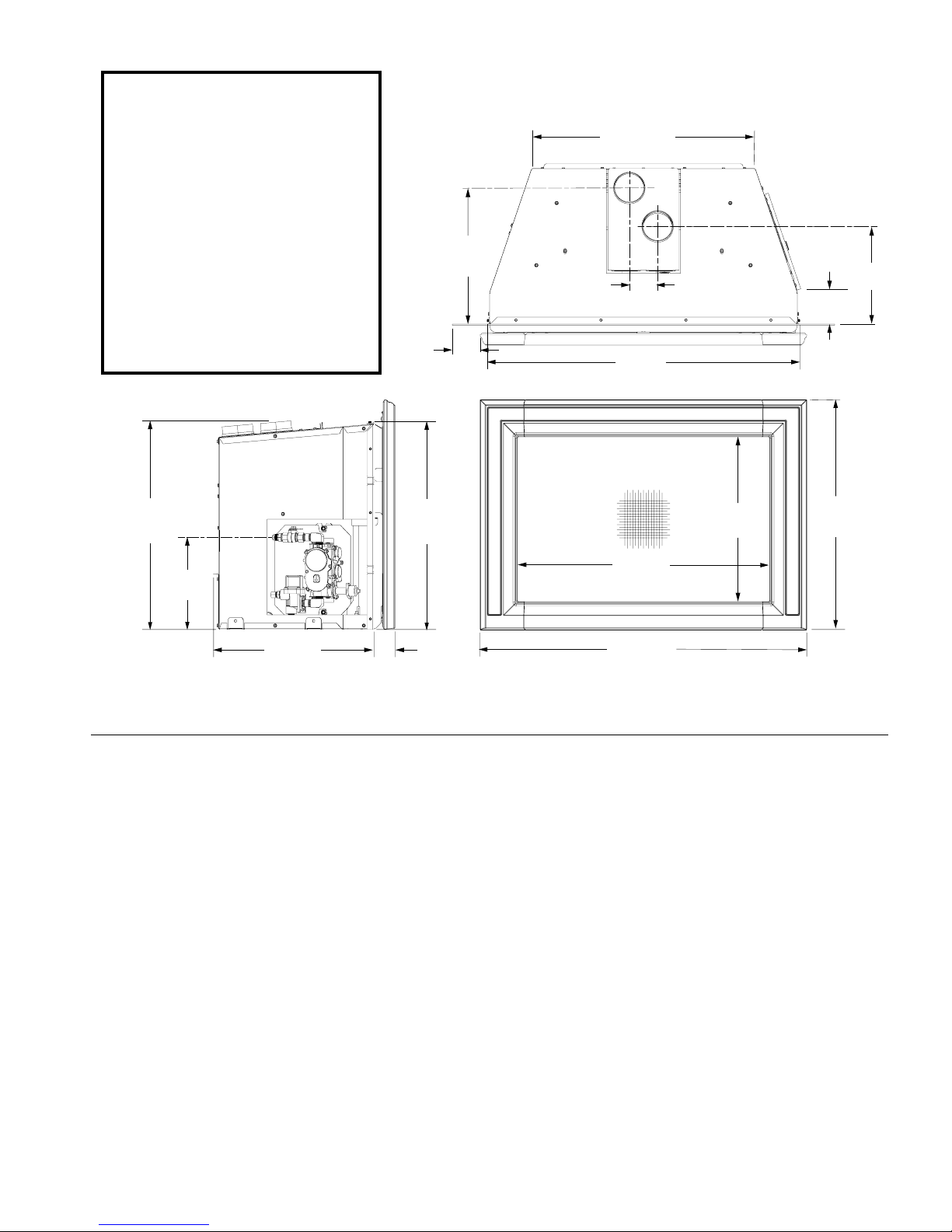

2.0 Specifications
Input Rates:
Natural Gas
32,000 BTU/hr. maximum input
11,500 BTU/hr. minimum input
Propane
31,500 BTU/hr. maximum input
11,000 BTU/hr. minimum input
Inlet Pressure: MIN. MAX.
Natural Gas: 5.0 WC (1.00 kPa) 7.0 WC (1.74 kPa)
Propane: 11.0 WC (3.00 kPa) 14.0 WC (3.48 kPa)
Manifold Pressure: MIN . MAX.
Natural Gas: 1.6 WC (0.27 kPa) 3.5 WC (0.95 kPa)
Propane: 2.9 WC (0.72 kPa) 10.0 WC (2.74 kPa)
Orifice Sizes:
Altitude: 0 - 2000 ft. (0-610 m) NG LP
Left: 1.95 mm 3/64”
Right: #48 #56
Altitude: 2000 - 4500 ft. (610-1370 m)
Left: #48 #56
Right: #49 #57
NG LP
Steady State Efficiency: 70.52% 72.37%
A.F.U.E. Efficiency: 70.03% 72.00%
CSA P4.1-02 Fireplace Efficiency: 66.96% 67.84%
Electronic Ignition (IPI) or Continuous Pilot (CPI)
Jøtul GI 535 DV IPI Direct Vent
Gas Fireplace Insert
Manufactured and Distributed by:
Jøtul North America
Gorham, Maine USA
Jøtul AS
Fredrikstad, Norway
Test Standards
This appliance complies with National Safety
standards and is tested and listed by Intertek Testing
Services NA Inc. of Middleton, Wisconsin.
In addition, the Jøtul GI 535 DV IPI gas fireplace
insert has been tested and listed as a direct vent gas
fireplace heater and listed to ANSI z21.88-2014 •
CSA 2.33-2014 “Standard for Vented Gas Fireplace
Heaters”, CAN/CSA 2.17-M91“Standard for Gas-Fired
Appliances for use at High Altitudes”, and
CSA P.4.1-15 “Standard for Measuring Annual Fireplace
Efficiency”.
Accessories
• Traditional Red Brick Panel Kit............................................... #157877
• Brownstone Brick Panel Kit....................................................#157878
• Reflective Glass Panel Kit .......................................................#157879
• Cast Iron Overlay, Matte Black ............................................. #157899
• Cast Iron Overlay, Brown Majolica Enamel ......................#157900
• Fuel Conversion Kit - NG to LP (included) ..........................#157784
• Fuel Conversion Kit - LP to NG............................................... #157785
• High Altitude Adjustment Kit - LP....................................... #157886
• High Altitude Adjustment Kit- NG.......................................#157887
• Hidden Hanger Bracket Kit ....................................................#157888
Required if no Backer Plate is used
Four-sided Trimmable Backer Plate
• 46”W x 34” H (116.8 x 86.4 cm) .......................................... #157893
Three-sided Backer Plate
• 36”W x 24 1/4”H (91.4 x 61.6 cm) ........................................#157889
• 38”W x 28”H (96.5 x 71.1 cm)...............................................#157890
• 40”W x 30”H (101.6 x 76.2 cm)............................................#157891
Three-sided Trimmable Backer Plate
• 46”W x 34” H (116.8 x 86.4 cm) .......................................... #157892
Backer Plate Options
All Backer Plates include Hanger Brackets for the Cast
Iron Overlay
6 7/16” (16.3 cm)
•

5
139775_R03 GI 535 DV IPI June 2016
Four-sided Trimmable Backer Plate
• 46”W x 34” H (116.8 x 86.4 cm) .......................................... #157893
3.0 General Information
IMPORTANT: SAVE THESE INSTRUCTIONS.
1. The installation and repair of this appliance must be
done by a qualified service person. Failure to properly
install and maintain this heater could result in an
unsafe or hazardous installation, which may result in
a fire, explosion, property damage, personal injury or
loss of life.
2. This appliance should be inspected before use and
at least annually. More frequent cleaning may be
required due to excessive lint from carpeting, bedding
material, pet hair, dander, etc. It is imperative that
control compartments, burners and circulating air
passageways of the appliance be kept clean.
3. This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type(s) of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a certified
kit is used.
4. The installation must conform to local codes. Your
local Jøtul authorized dealer can assist you in
determining what is required in your area for a safe
and legal installation. Some areas require a permit
to install a gas burning appliance. Always consult
your local building inspector or authority having
jurisdiction to determine what regulations apply in
your area.
In the absence of local codes, the installation
requirements must comply with the current National
codes. In the U.S., these requirements are established
in the National Fuel Code, ANSI-Z223.1.(NFPA 54). In
Canada, the codes have been established in CAN/CGA
B149 Fuel Installation Code.
5. Do not operate this fireplace if any part of it has been
under water.
Immediately call a qualified service technician to
inspect the heater and to replace any part of the
control system and any gas control which has been
under water.
6. Do not operate the fireplace with the glass front
removed, cracked, scratched, or broken. Replacement
of the glass should be done by a licensed or qualified
service person. Only remove glass for routine service.
Always handle glass carefully.
7. Notify your insurance company before proceeding with
installation of this fireplace.
8. It is normal that burner ignition and extinction be
accompanied by a muffled “woof” or “thud” noise at
ignition and extinction. Discontinue use and call a
qualified service technician if these functions become
unusually loud or disturbing.
THIS HEATER MUST BE INSTALLED AND
MAINTAINED BY A QUALIFIED SERVICE AGENCY.
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THIS APPLIANCE
OR ITS COMPONENTS. ANY MODIFICATION
OR ALTERATION WILL VOID THE WARRANTY,
CERTIFICATION AND LISTING OF THIS APPLIANCE.
Your fireplace insert has a unique serial number
stamped on the rating plate which is located in the
right side compartment. Please record the serial
number in the space below. You may also wish to
attach your purchase receipt to this page for future
reference.
MODEL NAME: Jøtul GI 535 DV IPI Gas Fireplace Insert
SERIAL NUMBER:_______________________________
DATE OF PURCHASE:____________________________
AUTHORIZED DEALER:___________________________
ADDRESS ____________________________________
PHONE: _____________________________________
INSTALLER:_____________________ DATE:________
FUEL TYPE:____________________________________
FUEL CONVERSION: NO _______ YES_____
NOTES:________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________
______________________________________________

6
139775_R03_GI 535 DV IPI June 2016
Electrical Hazards
Be aware of electrical wiring locations
when cutting holes in walls and
ceilings for termination.
The blower must be electrically
grounded in accordance with local
codes or, in the absence of local
codes, with the current ANSI/NFPA 70,
National Electrical Code or CSA C22.1-
Canadian Electrical Code.
The blower is supplied with a three-
prong (grounding) plug for protection
against shock hazard and should
be plugged directly into a properly
grounded three-prong receptacle.
DO NOT CUT OR REMOVE THE
GROUNDING PRONG FROM THE PLUG.
Always disconnect the power supply
when performing any service on
the fireplace, including battery
replacement.
4.0 Safety Information
Due to the high operating temperatures this appliance
should be located out of traffic and away from
furniture, draperies, etc. Maintain proper clearance to
combustible mantels and fireplace trim.
Children and adults should be alerted to the hazards
of high surface temperatures and should stay away to
avoid burns or clothing ignition.
Young children should be supervised while they are
in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns. A physical barrier, such as a child
guard, is recommended to be used if there are at-risk
individuals in the house. To restrict access to a fireplace
or stove, install an adjustable safety gate to keep
toddlers, young children and other at-risk individuals
out of the room and away from hot surfaces.
A safety barrier is provided with this appliance
designed to reduce the risk of burns from the hot
viewing glass and shall be installed for the protection
of children and other at-risk individuals.
If the barrier becomes damaged, the barrier shall
be replaced only with the Jøtul barrier part number
225731.
Any safety screen, glass panel, guard, or barrier
removed for servicing an appliance must be replaced
prior to operating the appliance.
Clothing or other flammable materials should not be
placed on or near the fireplace.
Never allow anyone to use the fireplace if they are
unfamiliar with its operation.
NEVER store or use gasoline or any other flammable
vapors or liquids in the vicinity of the fireplace.
Never burn any solid materials (wood, cardboard,
paper, coal, etc.) in this gas fireplace. Use with natural
gas or propane fuel ONLY.
Do not slam or strike the glass panel.
This appliance is NOT for use with aftermarket glass
doors. This appliance is approved for use only with the
surround panel options listed on page 4 of this manual.
Wear gloves and safety glasses while installing or
performing maintenance procedures on this appliance.
This fireplace insert is specifically designed for use with
3” diameter Listed flexible gas liners.
Power Requirement
This appliance requires 120 VAC power to operate the
blower, accent lamp, and electronic ignition.
Four, AA batteries provide back-up power to
operate the burner in case of a power outage.The
blower and accent lamp will not function with loss of
power.

7
139775_R03 GI 535 DV IPI June 2016
5.0 Installation
Requirements
This insert can be installed in most solid fuel burning
fireplaces of either masonry construction or a
prefabricated factory built fireplace.
Prior to any installation, the existing chimney flue
must be thoroughly cleaned and given a NFPA 211, Level
II inspection by a qualified chimney sweep or fireplace
service person.
Do not install this appliance into a chimney that is
damaged or contains combustible construction materials.
Any repairs must be made prior to installing the insert.
The chimney and fireplace must be in good working order.
Chimney cleanouts must be accessible and fit properly.
If you are unsure of the condition of your fireplace and
chimney, contact a professional fireplace technician
or your local authorized Jøtul dealer for professional
assistance.
Figure 5.1. Firebox dimensions.
Leg Leveling Note:
This appliance is equipped with
four leveling bolts; the front two
are adjusted from inside the
firebox, and the rear bolts are
adjusted by tipping the firebox
and unscrewing them from the
base.
Also note that use of the
leveling bolts will affect
required minimum clearance to
combustible top trim and mantle
construction. See the figures and
tables on pages 8 and 9.
DO NOT REMOVE BRICKS OR MORTAR FROM THE
FIREPLACE OR CHIMNEY STRUCTURE. However, masonry
or steel may be removed from the smoke shelf and
adjacent damper frame area to accommodate installation
of a chimney liner, provided that their removal will not
weaken the structure of the fireplace or chimney, and will
not reduce protection for combustible materials.
If the fireplace has been modified to accommodate
installation, use anchors or masonry nails to attach the
metal Fireplace Conversion Notice Plate to the back wall
of the masonry fireplace firebox where it will be readily
seen should the insert be removed.
THIS APPLIANCE MUST NOT BE CONNECTED TO A
CHIMNEY OR FLUE SERVING ANY OTHER APPLIANCE
OF ANY KIND. All venting components must be
installed in accordance with the terms of their listing
and manufacturer’s instructions. Refer to the pipe
manufacturer’s instructions for proper pipe clearances.
Cast Iron Overlay
20 3/4”
527 mm
12 7/8”
327 mm
2 5/8”
67 mm 29 1/2”
750 mm
2 3/4”
68 mm
9 1/4”
235 mm
3 1/2”
90 mm
30 3/4”
781 mm
23 3/4”
603 mm
15 1/2”
394 mm
21 5/8”
549 mm
19 3/4”
502 mm
2”
51 mm
15 1/8”
383 mm
19 5/8”
499 mm
8 3/4”
222 mm
Air Inlet
C
L
Exhaust Outlet
C
L
Gas Inlet
C
L

8
139775_R03_GI 535 DV IPI June 2016
5.1 Fireplace Requirements
This appliance is approved for installation into a solid
fuel-burning, factory-built fireplace, or a code-approved,
solid fuel-burning masonry fireplace with a tile flue
liner. An acceptable fireplace cavity must have the
minimum dimensions specified in fig. 5.2.
Do not modify or alter the construction of the gas
insert or any of its components to enable it to fit into a
fireplace. Any modification of the insert will void the
warranty, certifications and approvals of the unit and
could be dangerous.
Minimum Fireplace Dimensions
A - Inside Height = 20” (50.8 cm)
B - Inside Width = 21” (53.3 cm)(at 16 1/2” of depth)
C - Inside Depth = 15 3/8” (39 cm)
D - Opening Height = 20” (50.8 cm)
E - Opening Width = 30” (76.2 cm)
B
E
D
C
A
Figure 5.2.
Maximum Fireplace Opening
Cast Iron Overlay:
Will cover a maximum fireplace opening
21 3/8” high x 30 1/2” wide resulting in a 1/4” overlay.
NOTE: If a Backer Plate will not be used, Hidden Hanger
Bracket Kit 157888 must be installed on the insert firebox in
order to attach the Cast Iron Overlay assembly.
Backer Plate Options
The Backer Plate functions to neatly cover the fireplace
opening between the insert shell and the fireplace walls.
Standard Backer Plates are fabricated of 12 gauge,
aluminized steel, finished in high-temperature Matte Black
powder coating.
Trimmable Backer Plates are fabricated of 22 ga. aluminized
steel finished in Matte Black paint.
Choose an overall size that is at least 1 inch larger than your
fireplace opening.
157889 3-Sided Backer Plate -36”W x 24 1/4”H
157890 3-Sided Backer Plate - 38”W x 28” H
157891 3-Sided Backer Plate - 40”W x 30”H
157892 3-Sided Trimmable Backer Plate - 46”W x 34”H
157893 4-Sided Trimmable Backer Plate - 46”W x 34”W
Intended for flush-faced fireplace installations.
Figure 5.3. Hearth,Trim and Wall clearances.
5.3 Hearth Protection
Hearth protection in front of the GI 535 DV IPI must
be composed of masonry material extending at least
3 1/8” (10.5 cm) to each side of the fireplace opening
and 12” (30.5 cm) forward from the fireplace facing
material.
A: Hearth Protection Width:
• Unit flush or raised: Min. 3 1/8” (8 cm)
from fireplace opening
B: Hearth Protection Depth:
• Unit flush with hearth: 12” (30.5 cm)
• Unit raised minimum 6” off floor: 0”
C: Side Trim Clearance:
• Up to 6” (15.2c m) depth,from fireplace center line:
17 7/8” (45.4 cm)
D: Side Room Wall Clearance:
• From the fireplace center line: 20 3/8” (51.7 cm)
E: Top Trim Clearance from hearth: 36 1/2” (92.7 cm)
F: Mantel Clearance from hearth: See fig. 5.5.
5.2 Clearance Requirements
The following clearances and hearth specifications are
the minimum requirements for installing this appliance
into a solid fuel-burning fireplace. See figs. 5.3-5.5.
A combustible surface is anything that can burn (i.e.
sheet rock, wallpaper, wood, fabrics etc.). These surfaces
are not limited to those that are visible and also include
materials that are behind non-combustibles.
If you are not sure of the combustible nature of a
material, consult your local fire officials. Remember,“Fire
Resistant” materials are considered combustible; they
are difficult to ignite, but will burn. Also,“fire-rated”
sheet rock is considered combustible.
Always maintain the proper clearances to allow for
the flow of ventilation air around the insert.

9
139775_R03 GI 535 DV IPI June 2016
Fireplace Floor Elevation / Inches
1
2
3
4
5
6
1
2
34567
8
9
101112

Figure 5.4. Hearth reduction slope.
Figure 5.5. Baseline Mantel and Trim clearance
requirements.







NOTE - Raised Hearth: Forward hearth protection may
be reduced by two inches (5.08 cm) for every inch of
fireplace floor elevation. Fig. 5.4.
5.4 Mantel and Ceiling Clearances
Measure clearances from the finished floor of the fireplace
opening. See fig. 5.5.
Mantel Projection Clearance from Hearth
A: 12” (30.5 cm) 39 1/4” (99.7 cm)
B: 10” (25.4 cm) 38 9/16” (97.9 cm)
C: 8” (20.3 cm) 37 7/8” (96.2 cm)
D: 6” (15.2 cm) 37 3/16” (94.5 cm)
E: 4” (10.2 cm) 36 1/2” ``(92.7 cm)
Minimum Ceiling Height from fireplace floor:
55 1/2” (141 cm)
NOTE: For raised hearths, add the fireplace
elevation to the baseline clearance data specified
above.

10
139775_R03_GI 535 DV IPI June 2016
Vent Installation Procedure
This appliance must be vented through the chimney
by a pair of 3 inch flexible aluminum liners listed for
use with gas appliances. One duct is attached to the
exhaust port on the top of the unit and will carry
the exhaust gases to the outside of the house. This
exhaust liner must run the full length of the chimney
and be directly connected to the chimney termination
cap. See figures 6.1 - 6.2.
The other 3 inch liner will be attached to the air
intake port and will provide fresh air for combustion to
the unit. This liner must extend through the damper
area of the fireplace and at least into the first tile liner
of the chimney. (U.S. ONLY). This liner can also extend
the full length of the chimney and connect to the
termination cap. SEE NOTICES BELOW. See also figures
6.1-6.2.
NOTICE
If the intake flex does not extend the full length
of the chimney and connect to the unit and the
termination cap - A NONCOMBUSTIBLE BLOCK OFF
PLATE MUST BE CONSTRUCTED AND INSTALLED ABOVE
THE UNIT BELOW THE END OF THE INTAKE DUCT
(normally at the damper area). See figure 6.1.
To avoid cross venting the insert, label the duct to
be used for the exhaust conduit at both the top and
bottom ends. This ensures that the exhaust duct will
be attached to the correct collar on the insert and on
the chimney termination kit.
CANADA NOTE: Both Intake and Exhaust ducts
must extend the full length of the chimney and be
connected to both the unit and the termination kit.
NOTICE
THE USE OF AN EXISTING CHIMNEY AS AN AIR
INTAKE IS NOT COVERED UNDER THE ANSI Z21.88-
2014-CSA 2.33-M04 TEST METHODS AND RESULTING
ITS/WHI PRODUCT CERTIFICATION. THE CODE
AUTHORITY HAVING JURISDICTION MUST BE
CONSULTED PRIOR TO PROCEEDING WITH THIS
INSTALLATION METHOD.
6.0 Vent Guidelines
• All vent components must be installed in accordance
with the terms of their listing and manufacturer’s
instructions. See the Appendix on page 39 for a
listing of approved vent manufacturers.
• The minimum height of termination cap from the
top of the unit shall be no less than 10 ft.(3.05 m),
and the maximum height shall be no more than 35 ft.
(10.67 m). See figures 6.1 - 6.2.
• Steep roofs, nearby trees, or predominantly windy
conditions can promote weak draft or occasional
downdrafts. In such cases, increasing the height of
the vent or installation of high wind termination
caps may alleviate the condition.
• HORIZONTAL RUNS are not permitted anywhere in
the venting system.
• Venting liners CANNOT be less than 3” in diameter,
nor greater than 3” in diameter.
• Any unused flue or masonry enclosure can be used
as a passageway for venting PROVIDED the flue is
relined using 3” Listed Flexible Gas Liner.
• The remaining space around the liner in a masonry or
factory-built flue CANNOT be used to vent any other
appliance.
• Listed Flexible Gas Liners may not be exposed to any
living space.
• Installation of any components not manufactured
or approved by Jøtul or failure to meet all clearance
requirements will void all warranties and could result
in property damage, bodily injury, or loss of life.
• Never modify any venting component, or use any
damaged venting product.
• THE GAS APPLIANCE AND VENT SYSTEM MUST BE
VENTED DIRECTLY TO THE OUTSIDE OF THE BUILDING,
AND NEVER ATTACHED TO A CHIMNEY SERVING A
SOLID FUEL OR GAS BURNING APPLIANCE.
• The minimum vent height above the roof or adjacent
walls is specified by building codes. A general guide
to follow is the Gas Vent Rule below.
GAS VENT RULE
Flat to 6/12 1’0” 0.3M
Over 7/12 to 9/12 2’0” 0.6M
Over 10/12 to 12/12 4’0” 1.2M
Over 13/12 to 16/12 6’0” 1.8M
Over 17/12 to 21/12 8’0” 2.4M
Minimum Height
From Roof
ROOF SLOPE

11
139775_R03 GI 535 DV IPI June 2016
6.1 Masonry Fireplace
1. Measure height of the chimney to fireplace opening.
Determine if both the intake and exhaust will be
extended to the top of the chimney. In Canada, both
liners must extend the full length of the chimney and
be connected to both the unit and the termination kit.
2. Cut the appropriate lengths of flex duct for both the
intake and exhaust. Label both ends of the Exhaust
duct to ease identification inside the house.
3. Follow the manufacturer’s instructions to attach the
ends of the duct(s) to the chimney termination kit as
appropriate.
4. Drop the liners down the chimney from the top and
rest the termination kit atop the chimney.
5. Seal the chimney termination kit to the top of the
chimney flue with high temperature sealant.
6. Secure the appropriate direct vent cap to the
termination kit.
7. Inside the fireplace, fully extend the duct and trim any
excess so that the ends hang approximately 15” from
the floor of the fireplace.
8. If the Intake duct is not attached to the chimney
termination kit:
A. Install a length of flex duct that extends at least into
the first flue tile.
B. The fireplace chimney flue must be permanently
sealed-off from the room.
C. A direct vent cap is required to allow fresh air into
the chimney flue and ultimately into the intake duct to
the insert.
D. Attach the Fireplace Conversion Notice to the back
of the fireplace if appropriate.

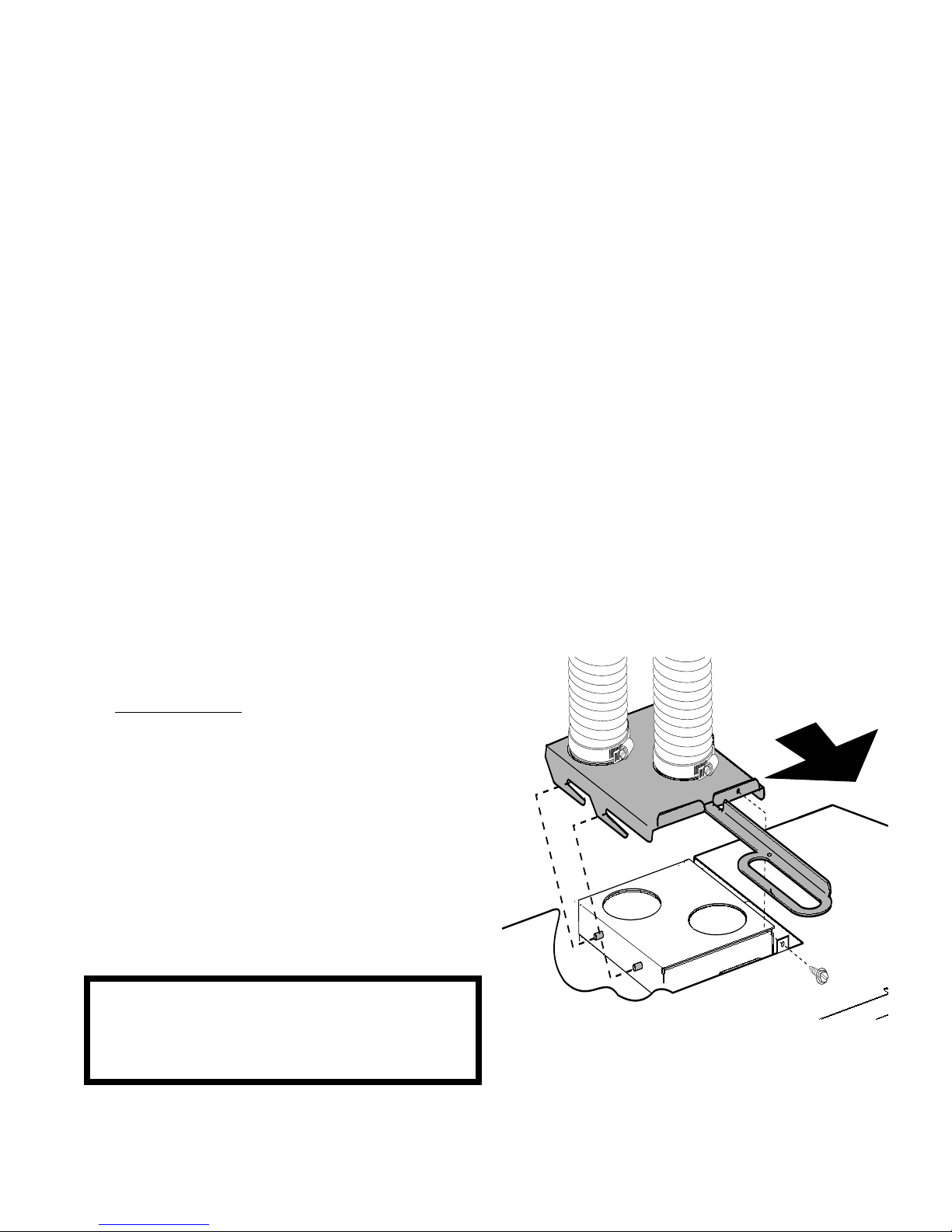

9. Remove the Vent Adaptor from the unit by pushing
it to the rear. Connect both ducts to the appropriate
collars.
10. Position the insert without Backer Plate half-way
inside the fireplace and start the Vent Adaptor onto the
top of the firebox. As you face the front of the insert,
the Intake collar is on the left and the Exhaust is on the
right.
11. Secure the ducts to the appropriate collars on the Vent
Adaptor with sheet metal screws or duct clamps. No
sealant is required. See Vent Connection instructions on
page 13.
WARNING: FAILURE TO POSITION THE PARTS IN
ACCORDANCE WITH THIS DIAGRAM OR FAILURE TO
USE ONLY PARTS SPECIFICALLY APPROVED WITH THIS
APPLIANCE MAY RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
Figure 6.1. Masonry Fireplace Venting Configuration.
IN CANADA: Air intake must connect to chimney cap.
Listed, Standard
or High-Wind
Termination Cap
Maintain proper
clearance to Mantel
and Trim.
See pages 8-9.
Sealed Chimney
Cap Anchor Plate
In the U.S., the Air
Intake pipe must
extend through the
damper and into
the first chimney
flue.
Exhaust
Air
Intake
The flue must be per-
manently sealed from
the living area if the
Air Intake pipe does
not connect directly to
a Direct Vent Termina-
tion at the top of the
chimney.
Listed Flexible
Gas Liners
Max. Height 35 ft.
Min. Height 10 ft.
IMPORTANT NOTICE:
INSTALLATION OF A HIGH-WIND TERMINATION CAP
IS RECOMMENDED FOR ALL IPI APPLIANCES TO HELP
INCREASE PERFORMANCE.
We Recommend:
• ICC EXCEL DIRECT - Use TM-CT3 with TM-CTS Cap Shield
• M&G Duravent - Use Wind Screen #46DVA-VWG.

12
139775_R03_GI 535 DV IPI June 2016
6.2 Factory-built Fireplace
IMPORTANT:
BEFORE STARTING THIS INSTALLATION, MAKE SURE THAT
A GAS LINE CAN BE INSTALLED OR IS INSTALLED TO THE
FIREBOX. THIS SHOULD ONLY BE DONE BY A QUALIFIED
OR LICENSED PLUMBER OR GAS FITTER.
A factory-built fireplace will require modification prior
to installation of the insert.
Modification
1. Remove any factory-built glass doors, screen rails,
screen mesh, fuel grates and other components
attached to the firebox. Smoke shelves, shields,
fuel grates and baffles may be removed if attached
by mechanical fasteners.These should be kept for
potential future re-installation.
Do not cut out any sheet metal parts of the fireplace
into which the insert will be installed.
If the factory-built fireplace has no gas access
hole(s) provided, an access hole of 1 1/2” (37.5 mm)
or less may be drilled trough the lower sides or
bottom of the firebox in a proper workmanship-
like manner. This access hole must be sealed with
noncombustible insulation after the gas supply has
been installed.
2. Remove the damper assembly. This includes the
damper blade, handle and any linkage. Two 3” liners
must be able to pass through the damper area.
3. Remove any fire screen or door assembly. This is
usually accomplished with removal of a support rod
on the inside of the fireplace frame.
4. Remove the metal ash lip, if appropriate, to allow
the insert to sit flat within the fireplace. Be sure to
reinstall any screws removed.
5. Attach the fireplace conversion notice to the back of
the factory-built fireplace.
IMPORTANT NOTICE:
THE USE OF AN EXISTING CHIMNEY AS AN AIR
INTAKE IS NOT COVERED UNDER THE ANSI Z21.88-
1999-CSA 2.33-M04 TEST METHODS AND RESULTING
ITS/WHI PRODUCT CERTIFICATION. THE CODE
AUTHORITY HAVING JURISDICTION MUST BE
CONSULTED PRIOR TO PROCEEDING WITH THIS
INSTALLATION METHOD.
Figure 6.2. Venting through prefabricated fireplace chimney.


Listed Flexible
Gas Liners
Max. Height 35 ft.
Min. Height 10 ft.
Listed Direct Vent
Standard or High-wind
Termination Cap
Minimum UL
127 Listed Solid
Fuel
Chimney
within wood
framed chase.
DO NOT BLOCK OFF
DOUBLE OR TRIPLE WALL
CHIMNEY AIR FLOW.
A metal block-off
plate is required
to seal flue from
the living area if
the Air Intake pipe
does not connect
directly to a
termination cap.
Exhaust
Gas
Intake Air
Storm Collar
Clearance to
combustible materials
must be maintained
in accordance with the
fireplace manufacturer’s
listing.
Hearth protection
must be maintained
in accordance
with the fireplace
manufacturer’s
listing.
VENT NOTICE:
If the intake flex does not extend the full length
of the chimney and connect to the unit and the
termination cap - A METAL BLOCK OFF PLATE MUST
BE CONSTRUCTED AND INSTALLED ABOVE THE UNIT
BELOW THE END OF THE INTAKE DUCT (normally at the
damper area). See fig. 6.2.
To avoid cross venting the insert, label the duct to
be used for the exhaust conduit at both the top and
bottom ends. This ensures that the exhaust duct will
be attached to the correct collar on the insert and on
the chimney termination kit.
CANADA NOTE: Both Intake and Exhaust ducts
must extend the full length of the chimney and be
connected to both the unit and the termination kit.
IMPORTANT NOTICE:
INSTALLATION OF A HIGH-WIND TERMINATION CAP
IS RECOMMENDED FOR ALL IPI APPLIANCES TO HELP
INCREASE PERFORMANCE.
We Recommend:
• ICC EXCEL DIRECT - Use TM-CT3 with TM-CTS Cap Shield
• M&G Duravent - Use Wind Screen #46DVA-VWG.

13
139775_R03 GI 535 DV IPI June 2016
Prefabricated Fireplace Vent Procedure
1. Measure height of the chimney to fireplace
opening. Determine if both the intake and
exhaust will be extended to the top of the
chimney.
2. Cut the appropriate lengths of flex for both the
intake and exhaust.
3. If the intake flex will be attached to the chimney
termination kit: Attach the appropriate ends of
the flex to the chimney termination kit.
CAUTION: AVOID CROSS-VENTING THE FLEX
PIPE. Label the end of the exhaust pipe to ease
identification inside the house.
4. Drop the liners down the chimney from the top
and rest the termination kit atop the chimney.
5. Seal the chimney termination kit to the top of the
chimney pipe with high temperature sealant.
6. Secure the appropriate DIRECT VENT CAP to the
termination kit.
7. Inside the fireplace, fully extend the flex duct
and cut off any excess so that the liners extend
approximately 15” from the floor of the fireplace.
8. If the intake flex is NOT attached to the chimney
termination kit: See VENT NOTICE on page 12.
A. It is necessary to install a minimum 6 foot
length of flex pipe into the flue for the intake air.
B. A METAL damper block off plate must be
constructed and installed in the damper area to
completely seal off the flue from the room. Cut
holes for both the intake and exhaust liners in the
block off plate.
C. A direct vent cap is still required to allow fresh
air into the chimney flue and ultimately into the
intake flex and insert.
D. Attach the Fireplace Conversion Notice to the
back of the fireplace if appropriate.
9. Backer Plates or the Cast Iron Overlay panel must
not block or seal any ventilation openings on the
prefabricated fireplace.
WARNING: FAILURE TO POSITION THE PARTS IN
ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO
USE ONLY PARTS SPECIFICALLY APPROVED WITH THIS
APPLIANCE MAY RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
6.3 Vent Connection
Wear Safety Gloves!
Test fit the firebox in its final position to confirm it is
level and plumb before connection to the vent system.
A leveling bolt is located at each corner in the base of
the firebox to allow a maximum 1/2” adjustment for
hearth irregularities. Front bolts are accessible in each
side compartment through the fireplace front. Tip
the firebox forward to adjust the rear bolts out of the
base.
1. Refer to fig. 6.3. Remove the Lock Screw from the
Vent Adaptor Panel and detach the panel from the
firebox. Retain the screw for reinstallation.
2. Attach the ends of the flex liners to the appropriate
collars on the Vent Panel and secure each with
screws or duct clamps. Sealant is unnecessary.
3. Position the firebox under the vent collar panel and
use the Latch Tool to engage the panel with the
associated pins on the firebox Vent Manifold.
4. Reinstall the Lock Screw to secure the adaptor
panel to the firebox.
5. Push the insert firebox fully into the final position.
Do not install the Backer Plate or Overlay Frame
until all other assembly and system checks are
completed.
Exhaust
Outlet
Air
Intake
Dual, 3” Listed Vent Liners
Vent
Manifold
Vent Panel
Latch Tool
Figure 6.3. Vent connection.
Lock Screw

14
139775_R03_GI 535 DV IPI June 2016
7.1 Gas Supply Connection
The gas supply line connection is made to the valve on
the left side of the unit facing the front. The gas supply
line should be a minimum of 3/8” in diameter, or the
appropriate size to provide sufficient gas pressure to the
valve regardless of the input setting. See fig. 7.1-7.2.
The GI 535 DV IPI is shipped with a 36” length of
3/8” flexible gas line to ease installation and service.
However, for those areas where flexible gas lines are
not permitted, use of a 3/8” iron nipple and union is
recommended. See fig. 7.1.
The use of Flexible Gas Appliance Connectors is
acceptable in many areas in the U.S., however, Canadian
methods vary depending on local code.
ALL INSTALLATIONS MUST COMPLY WITH LOCAL
CODE OR IN THE ABSENCE OF LOCAL CODE, MUST
COMPLY WITH THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR
CAN-B149.
An integrated gas cock is built into the fuel supply
line just upstream of the valve. This feature conforms
to building codes requiring a shut-off valve be located
within the same room as the appliance. The gas cock
allows for the disconnection of the insert for servicing
and maintenance. See figs. 7.2.
Secure all joints tightly using appropriate tools
and sealing compounds (for propane units, be sure to
use compounds that are propane resistant). Turn on
gas supply and test for gas leaks using a soapy water
solution or electronic gas sensor. Never use an open
flame to check for leaks. Tighten or reconnect the
leaking joint and retest for any gas leaks.
INSTALLATION OF A T-HANDLE GAS COCK IS
REQUIRED IN MASSACHUSETTS IN COMPLIANCE
WITH CODE 248 CMR.
Figure 7.1. External gas connection components.













7.0 Fireplace Assembly
Before beginning final assembly, push the insert into
the fireplace and adjust the leveling bolts located at
each corner as appropriate to achieve a level and plumb
installation.
Complete the assembly procedures in this order:
1. Gas Connection and Leak Test
2. Gas Pressure Test
3. Fuel Conversion
4. High Altitude Adjustment
5. Brick Panel or Reflective Glass Panel Kits
6. Log Set
7. Air Shutter Adjustment
7.2 Gas Pressure Test
Correct gas pressure is essential for efficient and
safe operation of the gas insert. It is important that
the correct pressure is established at the time of the
installation.
The appliance must be isolated from the gas supply
line by closing its internal manual gas shut-off valve (gas
cock) during any pressure testing of the gas supply piping
system that is equal to or exceeds pressures
of 1/2 psig (3.5kPa).
1. Use the Glass Frame Latch Tool to open and close the
internal gas cock located on the supply line in the
valve compartment. See fig. 7.3.
2. Connect a manometer to the Inlet and Manifold
test connection points located on the face of the
Control Valve. See fig. 7.4. Adjust the pressure to
the appropriate specifications indicated in the chart
below.
INLET or supply pressure (the amount of gas coming to
the valve.) Indicated by the arrow embossed on the
valve.
OUT - for manifold pressure (the amount of gas that is
coming out of the valve to the burner.)
NOTE: IN ORDER EASE ACCESS TO COMPONENTS,
COMPLETE PROCEDURES 1-4 ABOVE BEFORE
PLACING THE INSERT WITHIN THE FIREPLACE.

15
139775_R03 GI 535 DV IPI June 2016


REQUIRED INLET GAS PRESSURES (inches water column)
MIN MAX
NATURAL GAS 5.0 WC 7.0 WC
PROPANE 11.0 WC 14.0 WC
REQUIRED MANIFOLD PRESSURES
(inches water column)
MIN MAX
NATURAL GAS 1.6 WC 3.5 WC
PROPANE 6.4 WC 10.0 WC
ALWAYS TEST PRESSURE WITH THE VALVE REGULATOR
ADJUSTED TO THE HIGHEST SETTING.
WARNING
DO NOT ALLOW THE INLET GAS PRESSURE TO
EXCEED 14.0”WC (OR 1/2 PSIG) AS SERIOUS
DAMAGE TO THE VALVE MAY RESULT.
Symptoms of incorrect gas pressure include:
Insufficient gas pressure:
• Small pilot flame which can result in poor pilot
rectification and/or frequent burner outages.
• Little variation in flame picture between HI and
LO regulator settings.
• Insufficient gas to support more than one
appliance causing nuisance outages or gas
surges.
Excessive gas pressure:
• Permanent damage to valve causing complete
appliance shut down.
• Too large a pilot flame resulting in overheating
of the flame sensor and consequent shut down.
• Sooting due to impingement and/or incorrect
fuel to air mix.

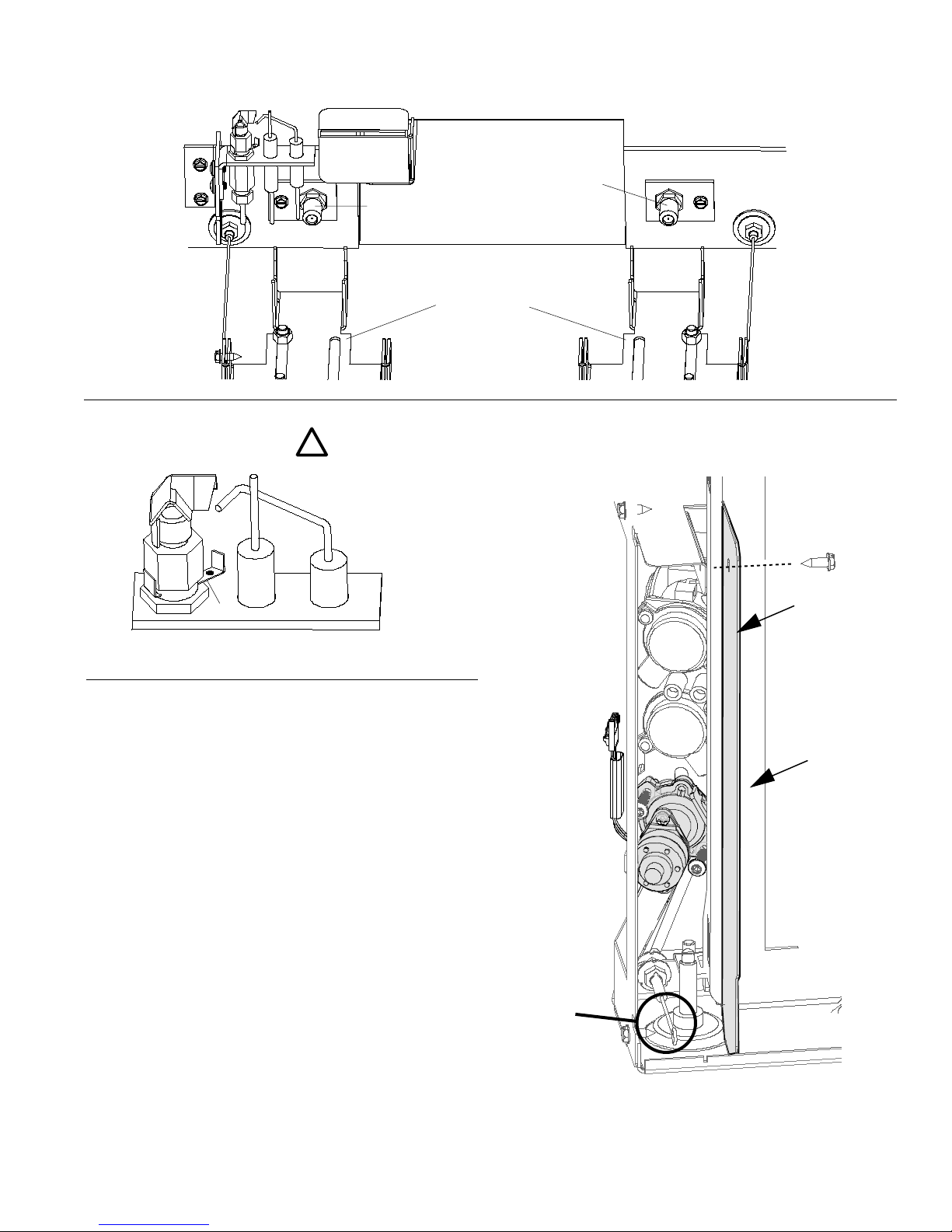

Figure 7.4.
Pressure test points.
ManifoldInlet
Pilot
Adjustment
OUT
Figure 7.2.
Insert the Latch Tool into the receiver hole in the gas cock.



Figure 7.3.
Pull the tool forward toward you to open the gas cock.
Push it back to close the gas cock.
Store the Latch Tool in the valve compartment for future use.
Latch Tool
Shelf

16
139775_R03_GI 535 DV IPI June 2016
7.3 Fuel Conversion
The Jøtul GI 535 DV IPI is shipped from the factory
equipped to burn Natural gas. Propane Fuel Conversion
Kit 157784 is included with this appliance. Use Fuel
Conversion Kit 157785 to convert back to Natural Gas.
The kits contain all the necessary components, including
labels that must be applied to the insert.
WARNING:
THE CONVERSION KIT IS TO BE INSTALLED BY
AN AUTHORIZED JØTUL SERVICE TECHNICIAN
IN ACCORDANCE WITH THE MANUFACTURER’S
INSTRUCTION AND ALL CODES AND REQUIREMENTS
OF THE AUTHORITY HAVING JURISDICTION. FAILURE
TO FOLLOW THESE INSTRUCTIONS COULD RESULT
IN SERIOUS INJURY OR PROPERTY DAMAGE. THE
QUALIFIED AGENCY PERFORMING THIS WORK ASSUMES
RESPONSIBILITY FOR THIS CONVERSION.
IN CANADA:
THE CONVERSION SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING JURISDICTION AND
IN ACCORDANCE WITH THE REQUIREMENTS OF THE
CAN1-B149.1 AND .2 INSTALLATION CODE.
LP Conversion Kit
Tools required:
• 1/2”or 13 mm open end wrench or deep-well socket
• Torx T20 driver
• 1/4” nut driver
• 7/16”open end wrench
LP Conversion Kit Contents:
• 1 Regulator Motor labeled for the appropriate fuel
• 2 Regulator Torx screws
• 1 Left Injector - 3/64”
• 1 Right Injector - #56
• Label A - to be completed and applied to the base
of the valve compartment
• Label B - apply to the rating plate in the space
indicated on the plate.
• Small valve label - apply to valve body
• Conversion instructions
SIT Proflame 885 Valve BTU/hr.
Rating Specifications: NG LP
Min. Input Rate, 0 - 2000 ft. 11,500 11,000
Max. Input Rate, 0 - 2000 ft. 32,000 31,500
Max. Input Rate, up to 4500 ft. 31,000 30,500
See High Altitude specifications, Sect. 7.4, pg. 18.
5. CHANGE THE BURNER INJECTORS: Use a 1/2” open end
wrench or deep-well socket to remove the burner injectors
from the brass fittings at the rear of the firebox. See fig.
7.6. Install the injectors from this conversion kit into the
appropriate left and right locations and tighten securely.
6. CHANGE THE INTEGRATED DUAL-FUEL PILOT ORIFICE:
Use the 7/16” wrench to just loosen the pilot head
enough to push in the orifice lever. See fig. 7.7.
LP : push lever to the Right to expose the red indicator.
NG: push lever to the Left.
Retighten the pilot base nut, but do not over-tighten. Be
certain the pilot hood directs flame to the flame sensor.
7. CHANGE THE VARIABLE REGULATOR TOWER on the gas
control valve. See fig. 7.8.
• Remove the heat shield from the valve compartment
to access the Regulator Tower.
• Disconnect the IFC lead from the regulator lead.
• Remove the two Torx screws to remove the original
regulator tower, rubber diaphragm and spring.
• Install the new regulator tower from the kit using the
screws previously removed. Tighten screws securely.
Reconnect the Regulator lead to the IFC lead.
• Replace the regulator heat shield and screw.
NOTE: IN ORDER TO ACCESS THE STEPPER MOTOR
COMPONENTS, COMPLETE THE FUEL CONVERSION
PROCEDURE BEFORE PLACING THE INSERT WITHIN
THE FIREPLACE OR INSTALLING SURROUND PLATES.
Figure 7.5. Burner removal.
CAUTION: WEAR SAFETY GLOVES WHILE
WORKING WITHIN THE FIREBOX.

7.3.1 Fuel Conversion Procedure
1. Turn off the gas supply and disconnect electrical power to
the appliance.
2. REMOVE THE GLASS FRAME using the Latch Tool. See fig. 1.1.
3. RETRACT THE AIR SHUTTERS: Two Air Shutter cables are located
on the floor in each side compartment - push them fully in.
This action retracts the shutters and allows the burner to be
disengaged from the firebox. See figs. 7.6, 7.8, and 8.1.
4. REMOVE THE BURNER:
First lift out the two steel support shelves (A) located at
each side of the burner. Grasp the burner assembly at
the two large ports. Lift it straight up, tilting it back to
disengage it from the injectors and front locator studs (B).
Pull the assembly out of the firebox.
A
A
B
B

17
139775_R03 GI 535 DV IPI June 2016




Figure 7.6. Fuel Conversion Components.
Figure 7.7. Pilot Conversion to Propane.
8. Apply the conversion notice labels included in the kit to
the appliance where they will be visible to any person
who may be servicing the unit.
• Label “A”: Apply to the right side compartment adjacent to
the Rating Plate.
• Label “B”: Apply to the Rating Plate.
• Small valve sticker: Apply to valve body.
9. REINSTALL THE BURNER ASSEMBLY.
Refer to the illustration and text in the Appendix, Sect.
11.2 on page 39.
10. GAS LEAK CHECK: Use an electronic gas detector or soap
solution to test for leaks at the pilot head and all gas
line joints.
NEVER USE AN OPEN FLAMETO CHECK FOR GAS LEAKS.
11. PRESSURE TEST: Conduct a pressure test of the valve
following the guidelines on pages 14-15 of this manual.
12. BURNER CONFIRMATION: Follow Steps 1 -5 under Initial
System Check on page 25 before final assembly of
accessory, log set, and surround components.
Pilot Assembly
Front Burner
Injector
Rear Burner
Injector
Front Burner Air
Shutter Cable
Air Shutter
Adjustor Trays
Rear Burner Air
Shutter Cable
Figure 7.8. Replace the Regulator Tower.
Regulator Lead
to IFC Lead
Regulator
Tower
Remove
Screw
and Heat
Shield
Front Burner
Air Shutter
Cable
PILOT HOOD MUST
BE ORIENTED TO
PROJECT FLAME
DIRECTLY FORWARD
TO BURNER PORTS

NOTE: PREVENT GLASS
FRAME DAMAGE.
REMOVE GLASS FRAME
BEFORE REMOVING THE
HEAT SHIELD.

18
139775_R03_GI 535 DV IPI June 2016
7.4 High Altitude Adjustment
When installing this appliance at altitude above 2000
feet, it is necessary to compensate for the thinner air
(less volume of air per cubic foot). Higher altitudes affect
the atmospheric pressure and heat value of gaseous
fuels. The lower oxygen content in the air and the lower
gas viscosity require the use of a different orifice to
achieve efficient, clean combustion at the burner.
In the U.S.
THE DERATING KIT MUST BE INSTALLED BY AN
AUTHORIZED SERVICE TECHNICIAN IN ACCORDANCE
WITH THE MANUFACTURER’S INSTRUCTIONS AND
ALL CODES AND REQUIREMENTS OF THE AUTHORITY
HAVING JURISDICTION. THE INFORMATION STICKER
MUST BE FILLED OUT BY THE INSTALLER AND APPLIED TO
THE APPLIANCE AT THE TIME OF THE CONVERSION. THE
QUALIFIED SERVICE AGENCY PERFORMING THIS WORK
ASSUMES RESPONSIBILITY FOR THIS DE-RATING.
In Canada
This unit has been tested for installation at high
altitudes in accordance with Canadian test standard
CAN/CGA-2.17. THE DERATING SHALL BE CARRIED OUT
IN ACCORDANCE WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING JURISDICTION AND
IN ACCORDANCE WITH THE REQUIREMENTS OF THE
CAN1-B-149.1 AND .2 INSTALLATION CODE.
High Altitude Installations:
2000 ft. to 4500 ft. installations (or 610 m - 1370 m)
See Table 1.
For high altitude installations consult the local gas
distributor or the authority having jurisdiction for proper
rating methods. If the installer must convert the unit
to adjust for varying altitudes, the information label
must be completed by the installer and applied to the
appliance at the time of the conversion. See fig. 7.9.
Derating procedure
1. Install the appropriate orifice as specified in the High
Altitude Chart, Table 1 above.
2. Follow the burner removal procedure detailed on
page 16 of this manual.
3. Use a 1/2” deep well socket or open end wrench to
remove the orifices and replace with the appropriate
ones from the high altitude adjustment kit.
4. Attach the high altitude conversion sticker provided
to the rating plate on the appliance. See figure 7.9.
5. Follow the burner re-installation procedure detailed
in Appendix Sect. 11.2 on page 39 of this manual.
6 It may be necessary to adjust the air shutters. See
the Flame Picture / Air Shutter Adjustment on the
page 26 for more details.
Figure 7.9 High Altitude Conversion Notice Label
THIS APPLIANCE HAS BEEN CONVERTED FOR USE
AT AN ALTITUDE OF ______________________
Orifice Size: _______ Manifold Press: ________
Input, BTU/Hr: ________ Fuel Type: _________
Date of Conversion: ______ / _______ / ______
Table 1. High Altitude Orifice Chart.
GAS
2001’- 4500’
(611 - 1170 m)
2001’- 4500’
(611 - 1170 m)
JØTUL
PART NO.
ELEVATION
ORIFICE
SIZE
PROPANE
NATURAL
GAS
#48 - Left
#49 - Right
#56 - Left
#57 - Right
129407 - Left
129411 - Right
129466 - Left
220977 - Right
CAUTION: WEAR SAFETY GLOVES WHILE
WORKING WITHIN THE FIREBOX.


19
139775_R03 GI 535 DV IPI June 2016
7.5 Final Positioning
1. Clean the Fireplace.
Use a vacuum to thoroughly clean all debris from the
firebox. This will eliminate the potential for the insert
fans to blow dust and debris back into the room.
2. Blower Power Cord:
Extend the blower power cord out forward of the
fireplace, routing it to the nearest power source.
The cord can extend approximately 8 feet (244 cm) to
the right or 4 feet (122 cm) to the left. A compatible
10 foot extension cord is available from your dealer,
Jøtul PN 223253.
3. Backer Plate Options:
Follow the procedures for installation of the various
backer plates detailed on pages 23-24.
RETAINER RAIL
RETAINER RAIL



7.6 Install Optional Brick Panels
! CAUTION !
THE PANELS ARE VERY FRAGILE. HANDLE GINGERLY,
BEING CAREFUL TO AVOID CHIPPING THE EDGES OR
CORNERS BY CONTACT WITH OTHER PARTS OF THE
FIREPLACE.
Tools Required
Flat Head Screwdriver
Pliers
Safety Glasses
157877 Traditional Red
• Rear Panel - 225723
• Left Side Panel - 225724
• Right Side Panel - 225721
157878 Brownstone
• Rear Panel - 225893
• Left Side Panel - 225891
• Right Side Panel - 225892
1. Position each Panel Support Shelf (Fig. 7.10, A) on the
firebox floor against the side walls.
Use pliers to bend the Rear Panel support tabs (B)
down, perpendicular to the rear wall.
2. Install the Rear Panel (C) up against the back wall,
resting on the support tabs. Fig. 7.11.
3. Slide each Side Panel (D) into position flat against the
firebox side, resting the bottom edge on the support
shelf. Fig. 7.12.
Locate the panel retainer tab at the top of the firebox
(E) and use the screwdriver to bend it down just enough
to secure the panel in place.


Fig. 7.12
Fig. 7.11
Fig. 7.10

20
139775_R03_GI 535 DV IPI June 2016
7.7 Install Optional Reflective
Glass Panels
157879 Reflective Glass Kit
• Left Panel - 225908
• Right Panel - 225909
• Rear Panel - 225910
• Side Panel Shelf, (2) - 225929
• Cotton Gloves
1. Carefully unpack the panels and set each on carpet or
other protective material. The panels will be installed
with the textured surface facing against the firebox
walls.
2. Use pliers to bend the perforated tabs (A) to support
the Rear Glass Panel as shown in fig. 7.13. Set the tabs
at enough of an angle to keep the panel (B) lying back
against the rear wall.
Place each Side Panel Shelf, (C) oriented as shown, on
top of the steel spacer brackets between the burner
and the side walls.
3. Slide each Side Panel (D) into position flat against the
firebox side, resting the bottom edge on the support
shelf, fig. 7.14. Push each side panel back against the
rear panel.
Locate the retainer tabs at the top of the firebox (E)
and use the screwdriver to pry each down enough to
secure the side panels in place.
Tools Required
Flat Head Screwdriver
Pliers
Safety Glasses



SKIN OIL IS DIFFICULT TO REMOVE FROM THE
GLASS SURFACES. USE THE GLOVES PROVIDED TO
PROTECT THE PANELS FROM FINGERPRINTS.


Fig. 7.13
Fig. 7.14
DO NOT OVER-BEND THE TABS AS
GLASS BREAKAGE COULD OCCUR.
BEND TABS ONLY ENOUGH TO KEEP
THE PANELS FROM FALLING FORWARD.
