INSTRUCTION MANUAL
Cordless Vacuum Cleaner
ELIGENS –Model VCC-12A
BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE
INSTRUCTIONS.
BEFORE OPERATING THIS PRODUCT, PLEASE READ, UNDERSTAND AND FOLLOW THESE
INSTRUCTIONS.

www.eligens.de
2
1. IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution should always READ ALL
INSTRUCTIONS BEFORE USING (THIS APPLIANCE)
1. The vacuum cleaner is an electric appliance. It must be used in accordance with
the operating conditions of the instructions. The instructions should be kept
properly for future reference.
2. Check and confirm that the vacuum cleaner voltage must be consistent with the
supply voltage.
3. It is strictly forbidden to inhale the following objects, otherwise it may damage
the vacuum cleaner or cause fire.
A. Heating objects. Such as carbon fire, etc.
B. Large cuts of sharp fragments, such as glass, etc.
C. Harmful substances or water and liquids (solvents, corrosives, etc.);
D. Flammable and explosive goods, such as gasoline or alcohol products;
4. When cleaning, repairing or temporarily not use the vacuum cleaner, the power
supply must be cut off. When the power supply is cut off, pull the power cord
and pull the plug out by holding the plastic part of the plug by hand.
5. Remember do not immerse the main vacuum cleaner in water, avoid
approaching to heating equipment or exposure to the sun to avoid fire.
6. Don't let children play with vacuum cleaners to avoid accidents.
7. If there is a drop and obvious damage or abnormal operation, please do not
continue to use the vacuum cleaner, and promptly send it to the maintenance
department designated by our company for repair.
8. Avoid running for a long time in the condition of the suction inlet is blocked, to
avoid damage to the motor and heat generation of the vacuum cleaner.
9. To avoid danger, if the adapter is damaged, you must purchase the factory-
specified charging adapter.
10. When the vacuum cleaner does not use for a long time, it is recommended to
charge it once every three months. Before the product is scrapped, the battery
must be taken out and safely recycled. Do not discard it.
WARNING:
Only allow to use a dedicated adapter. During charging, it needs to be ventilated and
heat-dissipated. It is strictly prohibited to be placed in a high temperature environment
above 50 degrees. It is strictly forbidden to rely on fire source to avoid explosion. The
battery pack cannot be detachable.

www.eligens.de
3

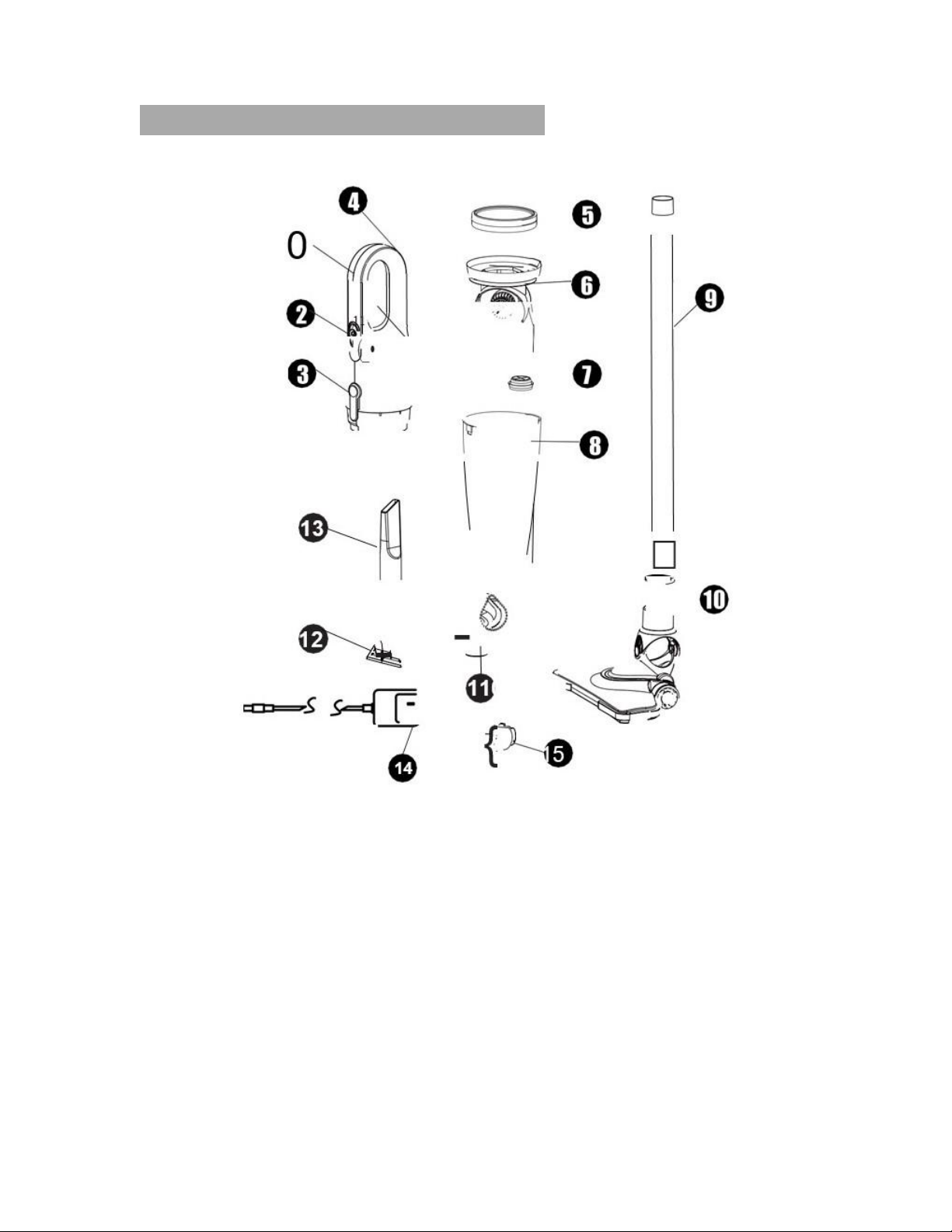

2. Part name of operation instruction
1. Main body
2.On/off button
3.Dust cup release button
4. Charging port
5. Filter net
6. Cyclone separator
7. Suction inlet seal rubber
8. Dust cup
9. Metal tube
10.Floor brush
11. Sofa brush
12.Accessories hanger
13.Crevice nozzle
14. Charging adapter
15. Wall hook

www.eligens.de
4

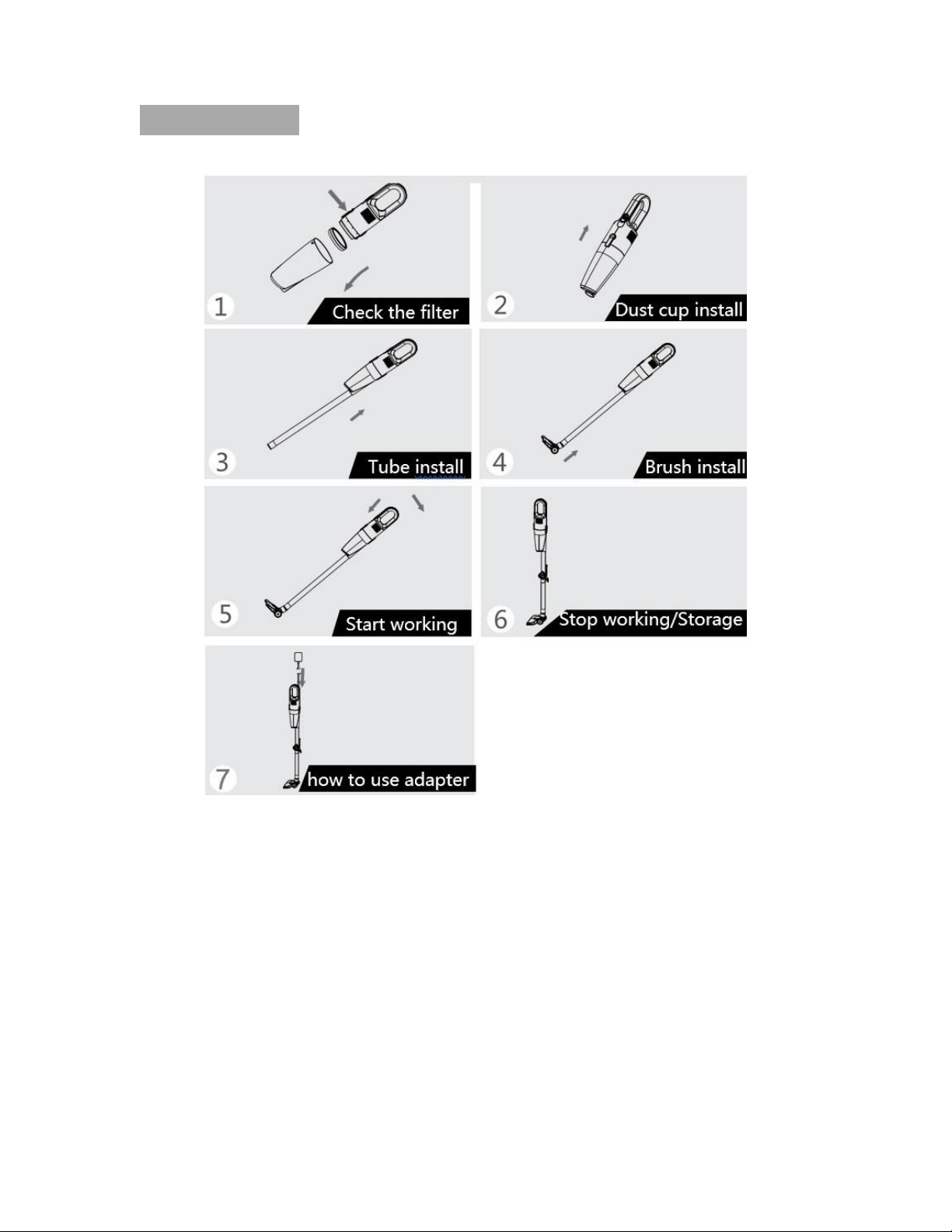

3. How To use
1. As an upright vacuum cleaner
(1) Please ensure that there is a filter in the dust box, all parts are connected together
fasten and the power switch is OFF before use this vacuum cleaner.
(2) Install the dust cup in a correct position.
(3) Insert the small head of the metal tube into the dust cup suction hole and fix it.
(4) Insert the connection head of the floor brush forcefully into the big head of the
metal tube and fix it.
(5) Turn on the switch in the direction of the arrow, vacuum cleaner starts to work.
(6) Pull the switch back to off position, the vacuum cleaner stops working, then store the
vacuum cleaner uprightly, insert the sofa brush and crevice nozzle into the hanger.
(7) Ensure the vacuum cleaner is not working and in the upright stand position, connect
the adapter to the socket, and then insert the adapter into the charging port on the
vacuum cleaner. If the blue light is flashing, it starts charging.

www.eligens.de
5
2. As a Compact vacuum cleaner
(1) Pull out the tube from the suction inlet of the dust cup.
(2) Insert the crevice nozzle into the suction inlet of the dust cup.
(3) Push the start button switch to the arrow direction and the vacuum cleaner start to
work.
(4) Push back the on/off button switch and vacuum cleaner stop working.
(5) Press the button of the dust cup and remove the dust cup.
(6) Remove the filter from the dust cup for cleaning.
(7) Remove the separator from the dust cup and pour the dust from the dust cup into
the garbage can.

www.eligens.de
6
Indicator description:
1. Normal operation: The blue indicator light is always on.
2. Turn off the power: the blue light is off.
3. The battery is low: the blue indicator light flashes.
4. Fully charged: The blue indicator light is always on.
5. When charging continuously: the blue indicator light flashes.
Maintenance
(1) Main unit and tube can be washed by a soft cloth with water. Dust box and floor
nozzle can be washed with water. Noted: Don’t wash your cleaner with alcohol or
gasoline.
(2) Filter: don’t wash the filter with wash-machine. If it is very dirty or suction power
reduces, you must get rid of the dust on it. Wash it with water and dry it
completely.
(3) Note: After emptying the dust cup, please remember to put the filter and cyclone
separator back into the dust cup. (Refer to Fig 7)
Any other servicing should be performed by an authorized service representative.
4. Troubleshooting.
Please check following before send your product to service center.
Trouble
Possible reasons
Settlement
Suction power reduce or
there is a abnormal
noise
Motor is over heating
Stop working
Brush or filter block
Check if the air inlet is blocked by dust.
Check if the dust box if full of dust.
Check if the filter is blocked.
Clean the dust.
Empty the dust box.
Clean the filter.
Machine does not work
suddenly
Check if the battery is out of power
Charge the battery clean the
filter than re-start the machine

www.eligens.de
7
5. Specifications.
Rated Voltage
18.5V
Battery capacity
2600mAh
Charging time
4-5 hrs
Working time
20 mins
Charger output
voltage
24V-0.5A
Charger input voltage
100-240V~50/60Hz 0.4MAX
Rated power
120W
Max suction
≥10Kpa
Noise
<75dB
Capacity of dust box
1.2L
6. Circuit diagram
S E R V I CI N G O F D O U B L E - I N S U L A TE D A PP L I A N C E S
A double-insulated appliance is marked with one or more of the following: The
words “DOUBLE INSULATION” or “DOUBLE INSULATED” or the double insulation
symbol.
In a double-insulated appliance, two systems of insulation are provided instead of
grounding. No grounding means is provided on a double-insulated appliance, nor
should a means for grounding be added to the appliance. Servicing a double-
insulated appliance required extreme care and knowledge of the system, and should
be done only by qualified service personnel. Replacement parts for a double-
insulated appliance must be identical to the parts they replace.
Polarization instructions.
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is
wider than the order). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a
qualified electrician to install the proper outlet. Do not change the plug in any way.
