DESCRIPTION
MILLE
AMPLIFIER
MILLE is an uncompromising construc-
tion that consists of a preampilier and
two monoblocks with power ampliers.
Despite the division of the amplier ele-
ments into two separate chassis, the am-
plier should be treated as an integral
whole, therefore it is impossible to pur-
chase the preamplier or the power am-
pliers separately. Such approach ensu-
res full control over the nal sound effect,
which for us is a priority.
BASIC FEATURES
of the preamplier
- input impedance 10 KΩ
- non-linear distortion below 0,01 %
- bandwidth 10 Hz - 150 kHz ± 0 dB
- volume adjustment with a 41 position step-
ped attenuator
- hybrid power supply
(mains - or battery power)
BASIC FEATURES
of the power amplier
- transistor - based construction, working
in class ”D” (ICEpower Bang&Olufsen)
- 1000 W power with 4 Ohm load
- 500 W power with 8 Ohm load
- full power bandwidth range 10 Hz - 40 kHz
- dynamic range 118 dB
- Damping Factor ≥ 1000
- THD+N distortion with 1 W = 0,007 %

©2013 ELINS AUDIO MANUFACTUREMILLE USER MANUALPAGE 4
CONTENT
OF PACKAGES
The set is delivered in two packages, de-
signed especially for MILLE, that feature
an inside layer of protective foam. We
advise against discarding the packages
and their interior.
Packages 1 includes:
- the preamplier
- power supply cord (1 pc)
- RCA signal cord (2 pcs)
IMPORTANT
INFORMATION
- When the packages have been removed, the devices must remain in room temperature at least for an
hour.
- All actions related to connection (sound sources, loudspeakers, power supply cords, connections
cords, loudspeaker cords) must be undertaken before the devices are plugged into the power supply
(230 V - 50 Hz) or (100-120 V - 50/60 Hz).
- Phase plecement in the power supply cord must be veried. Phase cord in the preamplier and power
ampliers are indicated with a red spot on rear panels.
- Proper connection guarantees the correct quality of sound.
- Each new set is tested and ”warmed up” for at least 500 hours before it reaches the customer.
- MILLE set reaches optimum working conditions after at least 45 minutes from switching on.
- The product has got 6- year producer warranty.
- The chassis must not be opened. Repairs and adjustments must not be undertaken by the customer
himself, as such actions might result in health damage due to electric shock.
- Should there be any questions, please do not hesitate to contact the producer or the autorized dealer.
Packages 2 includes:
- the monoblocks / power ampliers (2 pcs)
- power supply (2 pcs)
INPUTS VOLUME

©2013 ELINS AUDIO MANUFACTURE MILLE USER MANUAL PAGE 5
PREAMPLIFIER
FRONT PANEL
- input selector /inputs/
- volume adjustment knob /volume/
- light - imitting diode /LED/
THE DEVICE HAS GOT 6 RCA INPUTS,
WHICH ARE INDICATED ON THE REAR
PANEL WITH DIGITS FROM 1 TO 6.
Inputs no. 1 is chosen when the indicator on
the input selector points at 12 o’clock; the
remaining inputs (2, 3, 4, 5, 6) are chosen
by turning the selector counter - clockwise.
Volume can be adjustment by turning the
knob clockwise. Minimum volume level is
reached, when the indicator has been tur-
ned lef maximally.
LED indicates the state of the preamplier:
LED glows - ON (I)
LED does not glow - OFF (0)
The preamplier is equipped with power
delay soft start system.
Initially LED glows only slightly.
After 5 seconds LED glow intensively, and
the preamplier is operational.
INPUTS VOLUME
1 2 3 4 5 6
OUTPUT
L
I
N
P
U
T
S
R
manufacture
preamplifier
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
made in Poland
serial number
AC POWER
220-240V
50-/60Hz
I
O
! !

©2013 ELINS AUDIO MANUFACTUREMILLE USER MANUALPAGE 6
PREAMPLIFIER

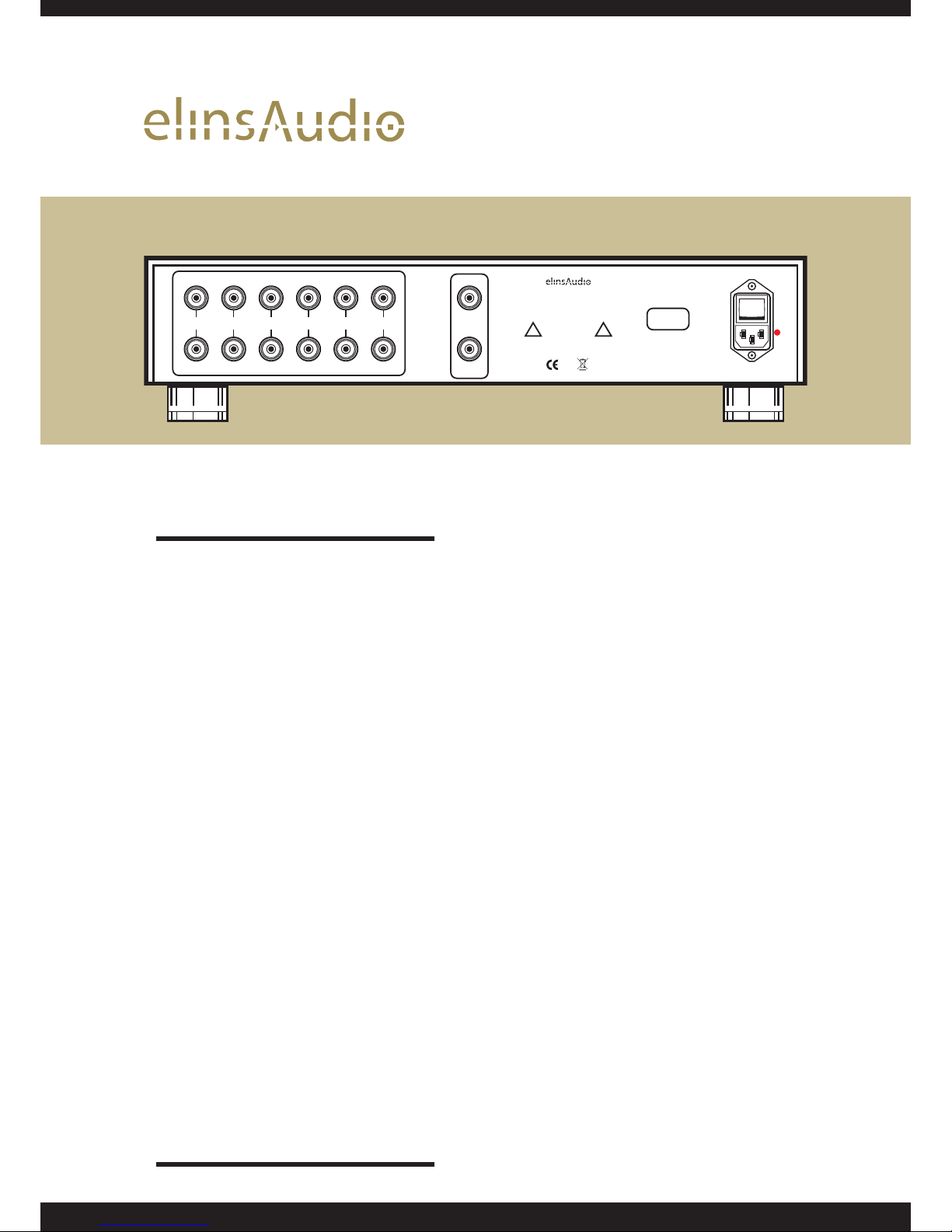

REAR PANEL
INPUTS
- six pairs of input sockets (RCA)
numbered from 1 to 6
OUTPUT
- a pair of output sockets (RCA)
- ”L” and ”R” symbols apply to the input
sockets and the output
POWER SUPPLY SOCKET
WITH AN OFF-SWITCH
”0” symbol indocates that the device is off
(diode on the front panel does not glow)
”I” symbol indicates that the device is on
(diode on front panel emits amber light)
(phase cord indicated with a red spot)
Technical specications
(according to the manufacturer):
Amplication: 6 dB
Bandwidth: 10 Hz - 150 kHz ±0 dB
Input impedance: 10 kohm
Dimensions: 450 x 350 x 110 mm
Weight: 19 kg
INPUTS VOLUME
1 2 3 4 5 6
OUTPUT
L
I
N
P
U
T
S
R
manufacture
preamplifier
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
made in Poland
serial number
AC POWER
220-240V
50-/60Hz
I
O
! !

©2013 ELINS AUDIO MANUFACTURE MILLE USER MANUAL PAGE 7
POWER AMPLIFIER

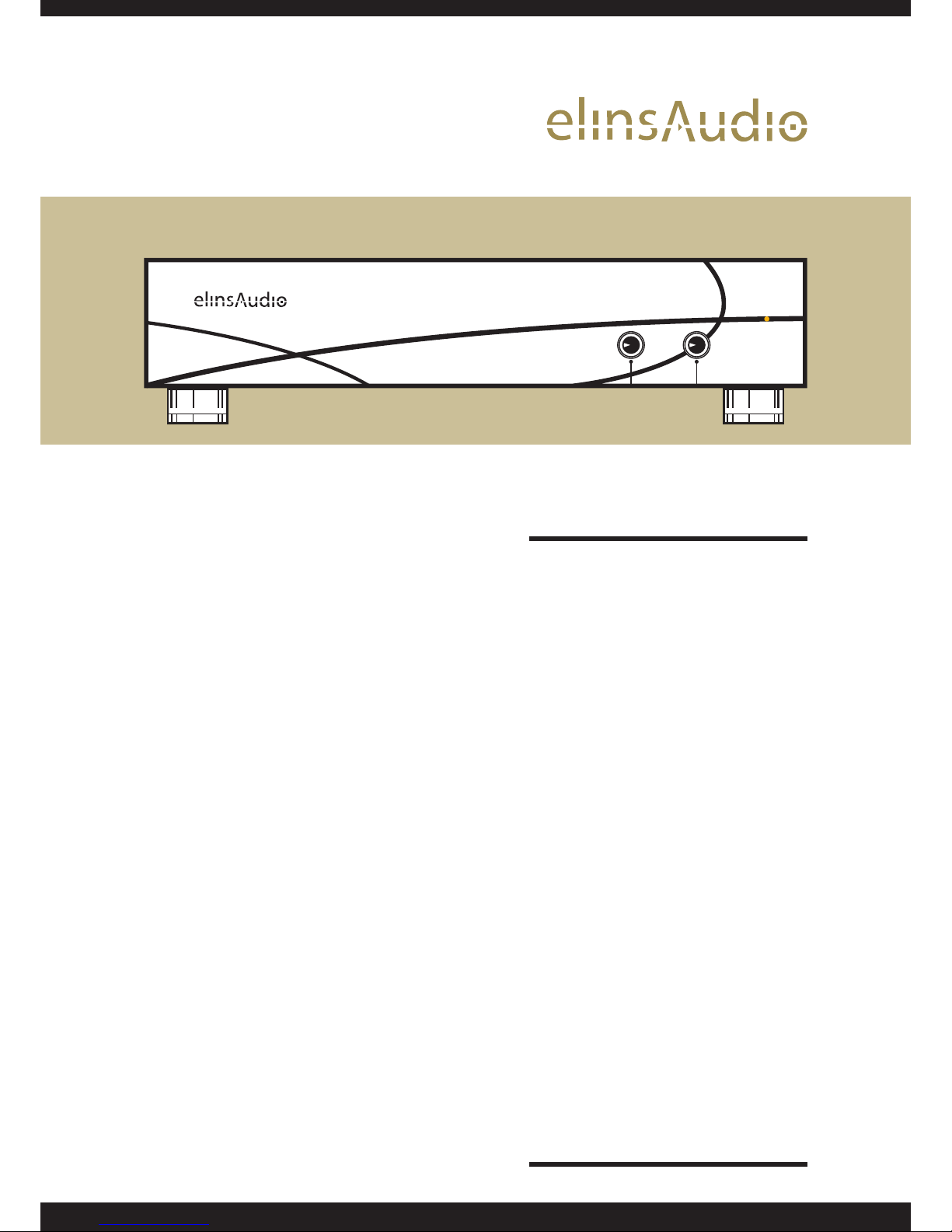

FRONT PANEL
- diode indicating whether the device is on
or off (respectively: diode emits amber
light or does emit any light)
POWER AMPLIFIER
REAR PANEL
- power supply socket with an off - switch
(identical as in the preamplier)
(phase cord indicated by a red spot)
- technical specications according to the
manufacturer
OUTPUT
- a pair of output loudspeaker socket
indicated respectively ”+” and ”-”
INPUTS
- input sockets
- upper symmetrical XLR
- lower unsymmetrical RCA
- switch to choose betwen inputs - up (XLR)
and down (RCA)
Power: 1000 W (RMS) at 4 ohm / 500 W (RMS) at 8 ohm / Maximum autput current: 50 A /
Frequency response: 20 Hz - 40 kHz throughout the power range / Dynamic range: 118 dB
Damping Factor ≥ 1000 / THD+N distortion at 1 W: 0,007 % / THD+N distortion at 1000 W: 0,01 %
/ Weight: 11 kg/1 pc / Dimensions: 225 x 360 x 110 mm /
