Elinz VCHSG10 User manual
WARNING
IMPORTANT: Please read the following safety warning before using this product and take
safety protection measures to avoid malfunctions caused by accidental operation of the
instructions.
I. This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction by a responsible person concerning use of the appliance to ensure that they can use it safety.
2. Suitable for dry locations only, do not use or store outdoors with wet surfaces. Do not handle any part
of the plug or appliance with wet hands.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children. Children
should be supervised to ensure that they do not play with the appliance.
3. Do not use a damaged cable or plug. If the device or charger does not work properly, dropped,
damaged, missed or dropped into water, please contact Elinz after sales team to avoid hazard.
4. Do not vacuum flammable or combustible liquids, such as patrol, or use in areas where liquids may
be present.
5. Turn off the power switch before plug or unplug the adopter.
6. Do not vacuum anything that is burning or smoking, such as cigarettes, matches or hot ashes.
7. Do not use without filters or dirt cups to avoid damaging the motor and contaminating the air.
Wash your hands after using the vacuum cleaner.
8. FIRE WARNING-Do not place this product on or near a cooker or any other hot surface and do not
incinerate this appliance even if it is severely damaged. The battery might catch fire or explode.
9. Unplug the charger from the power outlet before performing routine cleaning or maintenance.
II. Battery leaks may occur under extreme conditions. If any liquid gets on your skin, wash quickly
with soap and water. If liquid gets into your eyes, rinse with water for at least 15 minutes immediately.
Seek medical attention immediately.
12. Charge the unit with the charger we provided.
13. Avoid using this product to vacuum hard, sharp objects, as this may cause damage.
14. Store properly in a dry place indoors. Do not expose the machine to freezing temperatures.
Note: The vacuum cleaner adopted thermal protection technology to prevent overheating, will stop
working when the item is over-heated.
2. Package Content & Assembly
2.1 Package List
Part name
Quantity
Main Body
1
Foldable Aluminum Alloy Tube
1
Electric Brush Head
1
Crevice Nozzle
1
2 in 1 Brush Tool
1
Wall Mount
1
Charger
1
Dust Bin Cleaning Tool
1
User Manual
1
2.2 Accessories Introduction
Dust Box Release Button
Dust Box
Tube Release Button
Main Body Release Button
Switch ON/OFF
Suction Mode Switch
Battery Power Indicator
Battery Release Button
Detachable Battery
Charging Spot
2.3 Product Assembly Diagram
3. Charging
3.1 Charging
BFOD Charging, low charged
3.2 Power Indicator
■■■ fully charged
Attention: Please ensure that it is fully charged when
using it for the first time. Please run out the battery
power before first charge to extend the product life.
Charging, medium charged
Charging, near fully charged

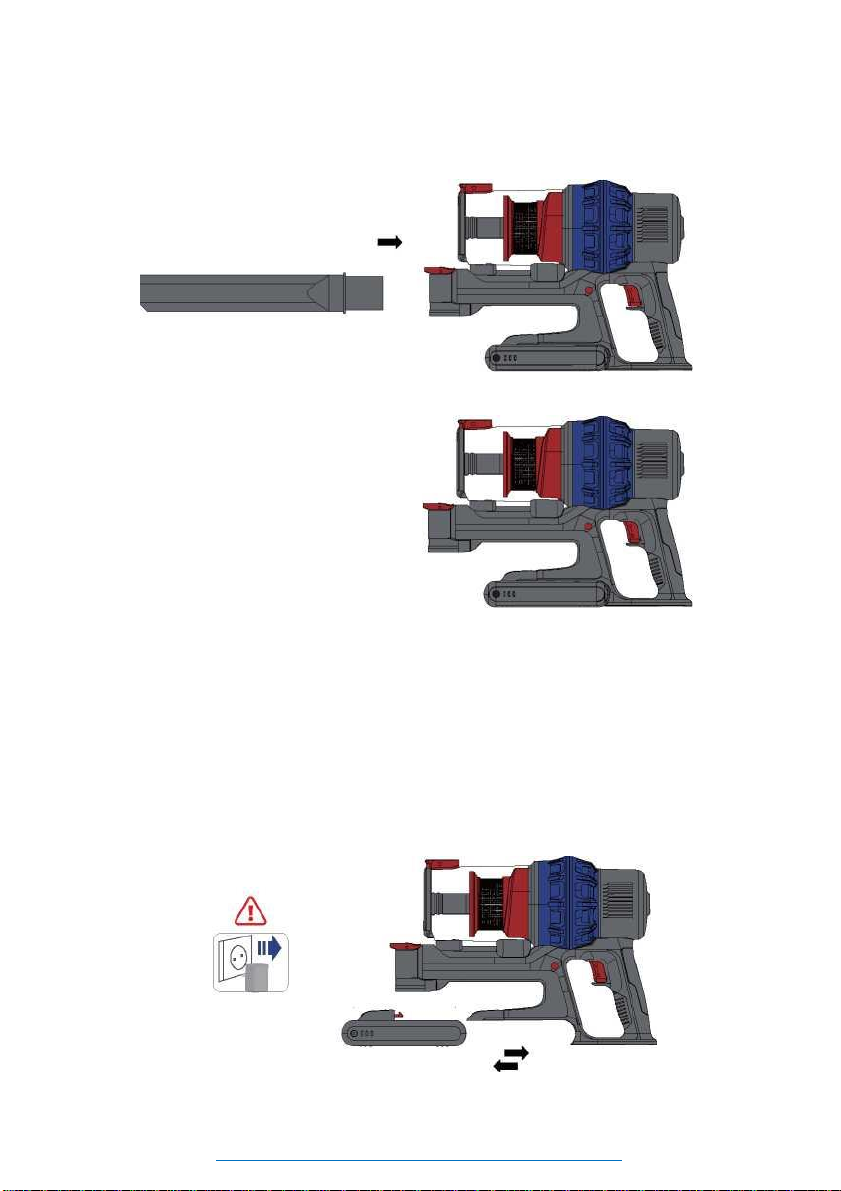

4. Product Overview
4.1 Brush Introduction
①Crevice Nozzle Tool
Remove dust on hard-to-reach area like window gap, bed feet, gaps between tables and chairs, etc.
②2-in-1 Brush Tool
Remove dust and hair on carpets and fleece.
4.2 How to Use
4.2.1 Preparing
Please confirm if the vacuum is fully charged before using. Please charge it for more than 5 hours before
the first use to ensure the normal operation of the product. Then select the appropriate brush head
according to the area need to be cleaned, (check the "Brush Instructions")
4.2.2 Battery Installation and Removal
Press the release button and drag the battery to remove it. Press the release button and push the battery
to install it.
5. Maintenance
Please clean it regularly to prolong the service life of the vacuum cleaner. Wash the filter unit with cold
water at least every month.
5.1 Main Body (hand-held, non-washable parts) Cleaning:
(1) Turn off the power before cleaning the body
(2) Please use a neutral detergent, wipe the body with half-wet cloth,
(3) Please avoid sun exposure and store in a cool and dry place.

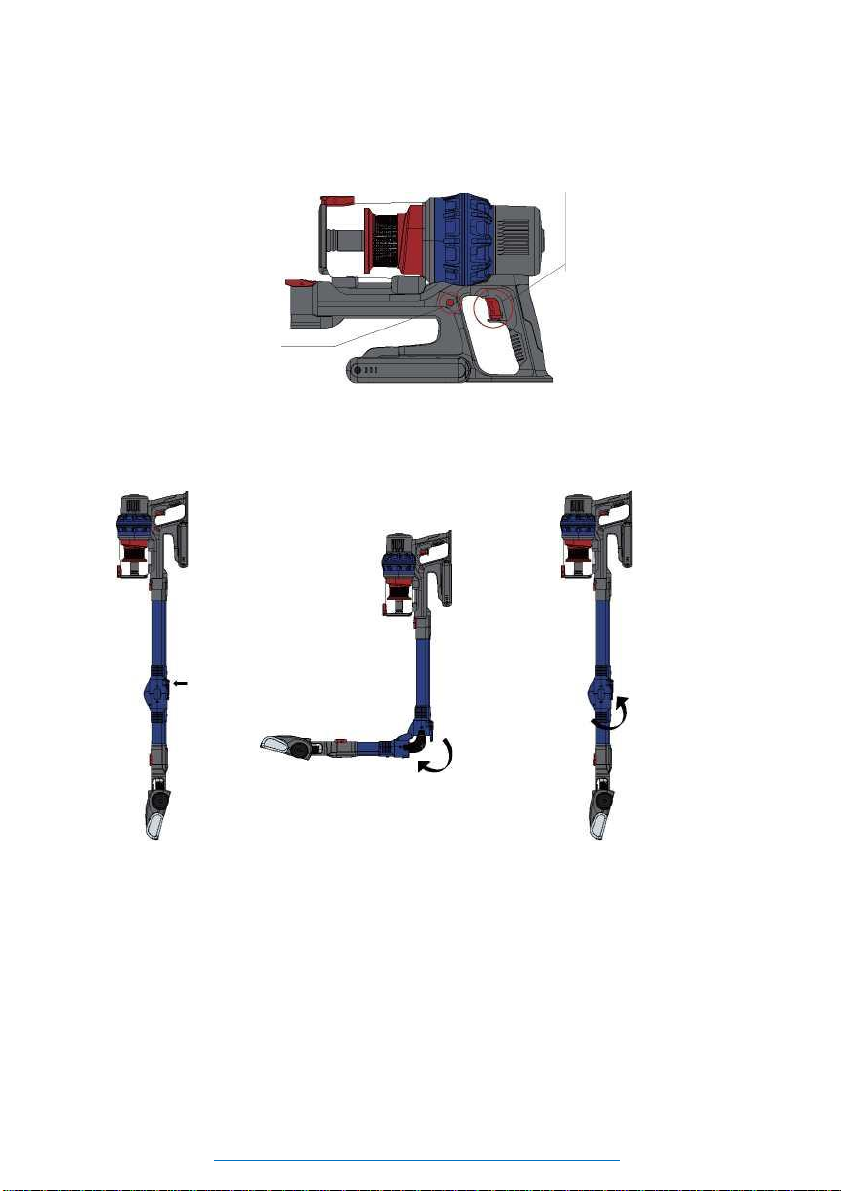

4.2.3 Operating
Switch On/Off and Change Suction Mode
4.2.4 Foldable Aluminum Alloy Tube
Press the button to fold the tube.
Bend the tube back to make it stand upright.
press the suction mode switch to switch
suction mode.
Press the switch ON/OFF to turn on, the
machine will start to operate in standard
suction mode.
Press the switch ON/OFF again to turn off
the vacuum.
C. Twist the dust box anticlockwise to remove the dust box and take out the filter.

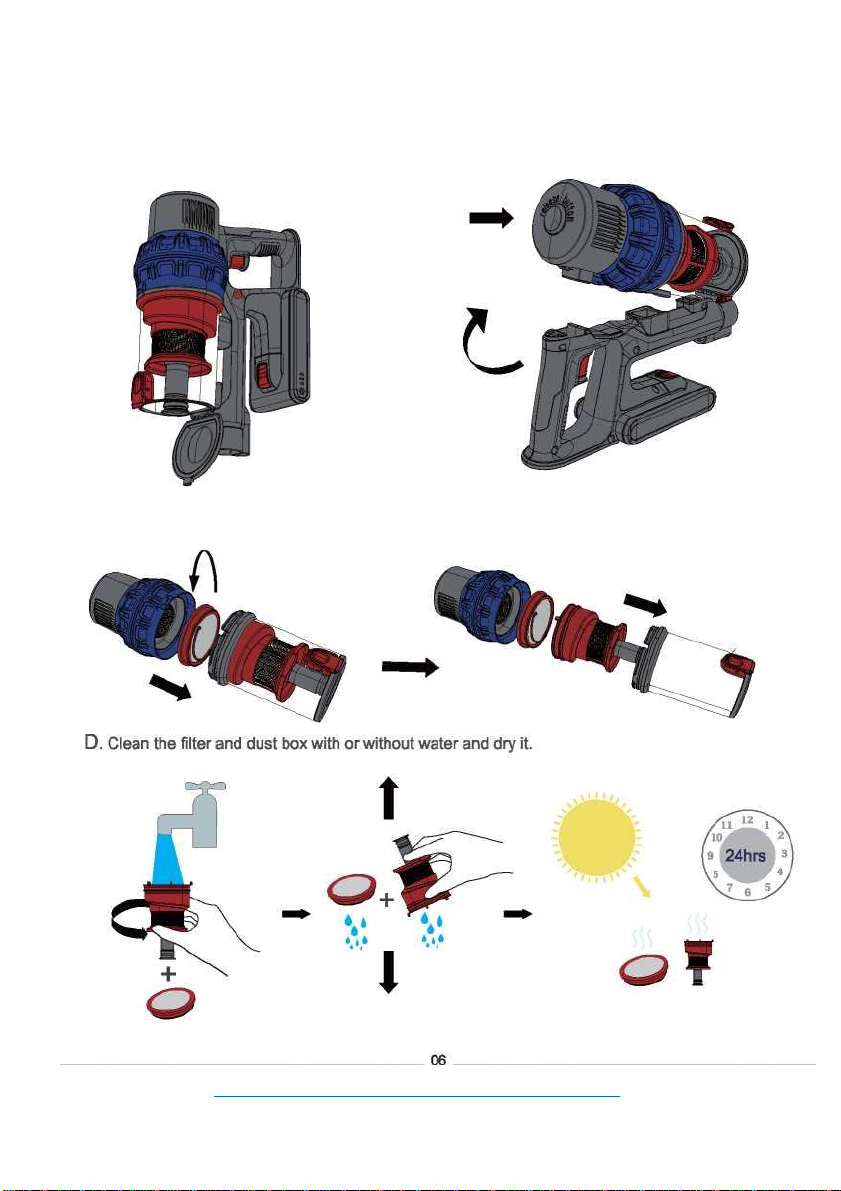

5.2 Dust Box Cleaning
A. Press the release button to open the dust
box lid, dump out the trash (as shown below
in the picture)
B. Press the main body release button to
remove the main body.
E. Install the filter in correct direction, make
the buckles in right place and twist to fix it.
F. Install the main body. Put the hook into
the hole, push the rear part and stop until
hearing the sound of locking.
Ensure the appliance is disconnected from the charger before removing the brush roller. Be careful not
to pull the ON trigger.
(1) Twist the button counterclockwise and pull out the brush roller.
(2) Tilt and shake to pour out the roller, use the brush cleaning tool to sweep away the trash on the
roller.
(3) The brush roller is washable. Before replacing, check that the brush roller is completely dry.
(4) Push in and twist the button clockwise to install the brush roller.
6. Troubleshooting
Common trouble possible causes and solutions
Main unit not working
Low battery power
Charge the unit before use
Suction inlet blocked
Remove blockage in suction inlet
Weak suction
Dust bin or filters blocked
with dust
Remove the dust inside the bin or
filters
Rolling brushed is jammed
with hair or long straps
Remove hair or long straps from
rolling brush
