Elite Acoustics Engineering D6-8 PRO User manual

WHAT IS IN THE BOX
Your D6-8 PRO package contains the following:
Elite Acoustics Engineering
D6-8 PRO Acoustic Guitar Amplier with
6 Channels, Digital Mixer & Effects, and
Bluetooth®
Quick Guide Handbook version v1.02
(1) Speaker
(1) AC power cord
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Designs, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specications are subject to
change without notice. All weights and measures are approximate.
For a copy of the complete User’s Manual, please visit: www.eliteacoustics.com - June 28, 2020

QUICK START MIC AND ACOUSTIC GUITAR
In this example we connect an acoustic guitar to Chan 1, and a
Mic to Chan 2.
1. Connect Power cord.
2. With “Speaker Volume” turned down, Turn “Power Switch” to
“On” position.
3. Connect the Line Level Output of your acoustic guitar into
Chan 1, Line or INSTR 1/4” input jack. Note: Chan 1 Source
is set to “Mic/Line.” or “INSTR”
4. Connect your Mic to Chan 2, XLR input jack. Note: Chan 2
Source is set to “Mic/Line.”
5. Set input levels. Press “System”; the LCD shows a level bar
graph for each channel. Adjust rear panel “Gain” control until
the display shows -12dB for Guitar and Mic.
5A. Press “Main MIX” adjust Chan 1 and chan 2 encoder to
0db.12 o’clock.
5B. Adjust Master Volume for desired output level.
Voice or Guitar can be heard now.
6. Set Mic Mix, EQ, and Reverb.
6A. Press Chan 1 or 2 Encoder: LCD shows EQ parameters for
Chan 1 or 2. Adjust 5 encoders as necessary to set your
EQ.
For our example we’ll set “LowC” to 180 Hz, “Low” to +4.0,
“Mid” to +5, “MidF” to 2.0k and “Hi” to +2.0.
6B. Press “Reverb” adjust Chan 1 or 2 encoder for EFX level.
7. Repeat step 5A and 6 for other Channels (acoustic guitar)
Mix, EQ, and Reverb.
8. Start with master EQ, Low, Mid, and High set at (detent
To Avoid Distortion:
1. Make sure NOT to clip the input Signals.
2. Set input levels. Press “System”; the LCD shows a lev-
el bar graph for each channel. Adjust rear panel “Gain”
control until the display shows -12dB for Guitar and Mic.
inputs.

Main
Pan
Ch1
Ch2 Ch3 Ch4
Ch56
Chorus
Reverb
Delay
System
Aux
Main
LCD FUNCTIONS
Main
Main
Mix
Ch1
Ch2 Ch3 Ch4
Ch56
Main
Pan
Ch1
Ch2 Ch3 Ch4
Ch56
Aux
Mix
Ch1
Ch2 Ch3 Ch4
Ch56
Aux
Pan
Ch1
Ch2 Ch3 Ch4
Ch56
“Main” Page 1: “Main Mix”
Adjust the level of each of the
5 channels.
“Aux” : “Aux Mix” Adjust the level of each of the 5
channels sent to the Aux Outputs.
“Aux” : “Aux Pan” Adjust the panning between
“Aux Send 1” and “Aux Send 2” for each of the 5
channels.
“Main” Page 2: “Main Pan”
Adjust the stereo panning for each of
the 5 channels.
Aux
Menu Buttons with LCD:
Press any of the 6 menu buttons(black button located to the
left and right of LCD) or 5 encoders(blue knobs located around
LCD) to access and adjust features and settings. Most menus
have several pages of options, which are adjusted by turning the
corresponding encoder.

System
“System” : “Input Levels”
Displays a bar graph for each
channel’s input level. Adjust the
channel’s “Gain” pot to set desired
level.
“System” : “Routing”
Assign “Pre” or “Post” fader i.e., “Main
Mix” Channel 1 through Channel 6,
signals to the Aux Sends. You can also
select either “Main” mix or “Aux” mix as
the source for the XLR outputs.
“Reverb” : “Reverb Sends”
Adjust the Reverb level of each
of the 5 channels.
“Delay” : “Delay Param”
Adjust “Modulation,” “Feedback,”
“Time Offset,” “BPM” Delay Time, and
“Level” of the delay.
“Chorus” : “Chorus Sends”
Adjust the Chorus level of each of
the 5 channels.
“Chorus” : “Chorus Param”
Adjust the Depth of the Chorus for
each of the 5 channels.
“System” : “Scenes”
Save and Recall up to 10 mixes i.e.,
scenes.
“Reverb” : “Reverb Param”
Adjust the Decay and Tone of the
Reverb.
“Reverb” : “Delay Routes”
Assign a channel to the delay. Note
that this is an “insert” type effect and
is intended for a selectable single
channel. It precedes the Reverb and
Chorus effects.
Reverb
Reverb
Sends
Ch1
Ch2 Ch3 Ch4
Ch56
Delay
Delay
Param
Mod
Fbck TimX BPM
Lvl
1 120
Delay
Route
Chan
1
Chorus
Chorus
Sends
Ch1
Ch2 Ch3 Ch4
Ch56
Xlr Out
Eq Hi
LowM idF
Mid
LCut
“System” : “XLR out EQ”
Setting for EQ for the XLR outputs
when it is SET on “MAIN outputs”

“Encoder Select” (press to enable):
“Ch 1 EQ”
Adjust the EQ settings for which ever
channel is selected. (Chan 1- 5/6)
“Encoder Select” (press to enable):
“Ch 1 Insert”
Adjust the Insert settings for the
selected channel (Ch.1-4). Note: this
includes Gain and Threshold settings
as well as an independent Noise Gate.
“Encoder Select” (press to enable):
“Ch 5/6 Insert”
Adjust the Insert settings for Channel
5/6. Note: this includes Gain and
Threshold settings as well as an
independent Noise Gate.
Ch 1
Insert Gain
Gate Cmp
Ch 1
Util V dB
V Hz
Pol
=
“Encoder Select” (press to enable):
“Ch 1 UTIL
Adjust Phase and Notch Filter level/
Freq. settings for channel selected.
(CHAN 1 to CHAN 4)
Reference Diagram
Aux In
01 0
+48V
Chorus
Reverb
Delay
System
Aux
Main
Pair : Quick Tap
Monitor
01 0
Peak
Signal Mono
On/Off : Hold
ELITE ACOUSTIC S
Low
-15 +15
Mid
-15 +15
High
-15 +15

BLUETOOTH® FUNCTION
• To turn ON/OFF Bluetooth® function
PRESS/HOLD down MODE button for
approximately 5 seconds
Both LEDs will ash at the
same time
• To pair device to the speaker system
Bluetooth® needs to be turned ON
QUICK TAP the MODE button once
+48V LED [2]: Indicates Phantom Power is on
Monitor Output Controls
Speaker Volume [3]: Control speakers’ volume level
Mono [4]: Changes speaker output to Mono sound
Equalizer [5]: Adjust High, Mid, and Low Frequency response
Peak LED [6]: RED indicate Signal Clip
Signal LED [7]: GREEN indicate Signal Present
Aux Input/Level [8]: Connect audio source with 1/8” jack from MP3/CD player
On/Off : Hold
Pair : Quick Tap
Aux In
01 0
Monitor
01 0
Mono
Signal
Peak
+48V
High
-15+ 15
Mid
-15+ 15
Low
-15+ 15

REFERENCE DIAGRAM
MIDI
On
Off
Power
In Out
Serial Number
www.EliteAcoustics.com
Designed, Assembled, & Tested
in California, USA.
D6-8 PRO - Acoustic Amplifier with Six Channels,
Digital Mixer & Effects, and Bluetooth®
ELITE ACOUSTIC S
100 - 240 VAC (50/60 HZ)
100W
USE T3A-L 250V FUSE ONLY
AUX INPUT +48V
CHAN 1C HAN 2 CHAN 3 CHAN 4 CHAN 5/6
Output Source
Main Outputs
CHAN 1/2
Direct Output
Balanced
Left
Right
001010
GND
GND
LIFT
Outputs
Level
Line Line Line Line
PAD
Mic
Instrument
PAD
Mic
Instrument
PAD
Mic
Gain 305010-10
PAD
Mic
Gain 305010-10 Level
01 0
Left
(Mono)
Right
2
Aux Send
Mic/Line
Instrument
Mic/Line
Instrument
Gain 60501020
INSTR
Gain 60501020
INSTR
Mute MuteMuteMute
Monitor
Right
Output
1

Channel 1
Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce
input level
Source[12]: Select Mic/Line or
Instrument input
Instrument In [13]: 1/4” TRS inputs
Line In [14]: 1/4” TRS inputs
Mic In [15]: XLR for Microphone Input
Channel 2
Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce
input level
Source[12]: Select Mic/Line or
Instrument input
Instrument In [13]: 1/4” TRS inputs
Line In [14]: 1/4” TRS inputs
Channel 3
Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce
input level
Line In [14]: 1/4” TRS inputs
Mic In [15]: XLR for Microphone Input
Channel 4
Gain [9]: Gain level control
Mute [10]: Mute Channel
PAD [11]: Fixed attenuation to reduce
input level
Line In [14]: 1/4” TRS inputs
Mic In [15]: XLR for Microphone Input
CHAN 1 CHAN 2
PAD
Mic
Line
Instrument
PAD
Mic
Line
Instrument
Mic/Line
Instrument
Mic/Line
Instrument
Gain 60501020
INSTR
Gain 60501020
INSTR
Mute Mute
CHAN 3 CHAN 4
PAD
Mic
Line
Gain 305010-10
PAD
Mic
Line
Gain 305010-10
MuteMute

MIDI: MIDI IN/OUT [24]: 5 PIN DIN
connectors for MIDI controllers
MIDI
In Out
Aux Mix send 1/2
Aux Send 1 [19]: 1/4” TS output
Aux Send 2 [20]: 1/4” TS output
Channel 5/6
Level [26]: Level control
Left (Mono) [16]: 1/4” balance
TRS input
Right [17]: 1/4” balance TRS
input
CHAN 5/6
Level
01 0
Left
(Mono)
Right
Monitor Output: Connect with
extra speakers/monitors
Monitor Right Output [21]:
Connect to another speaker using
1/4” TRS

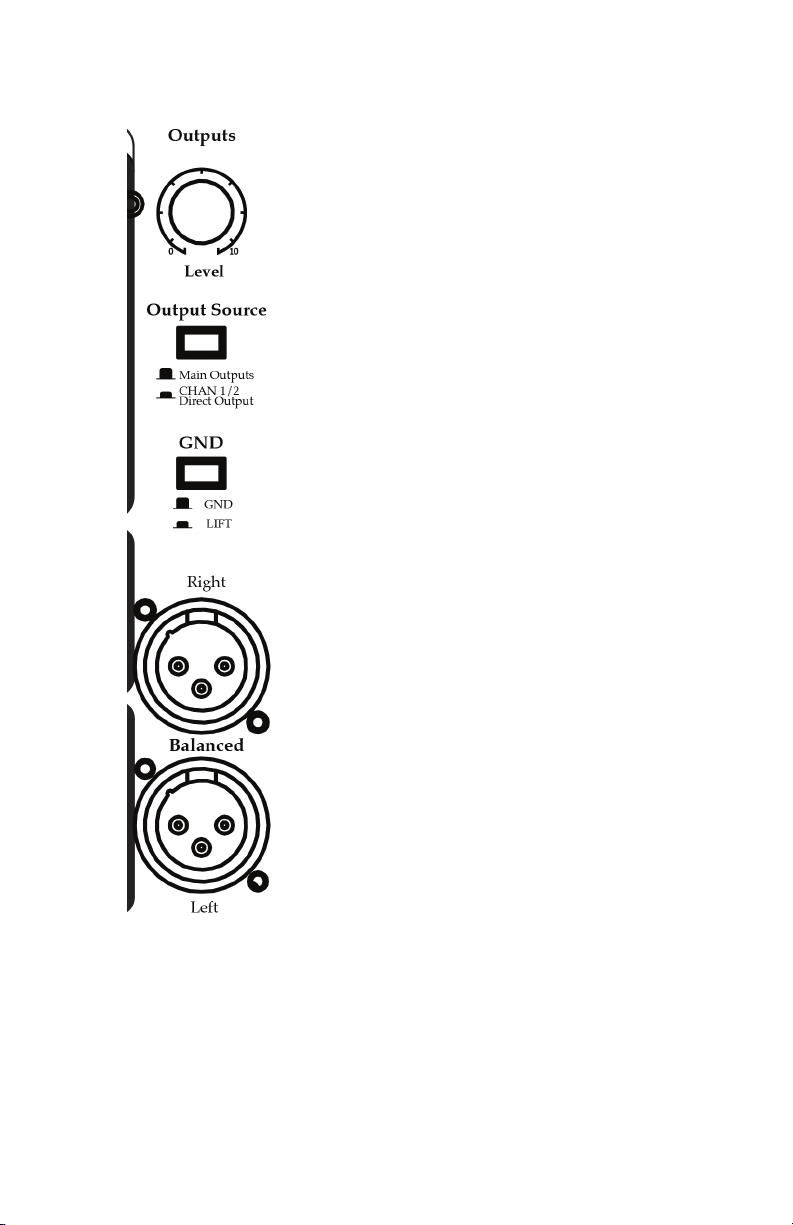

XLR output Level
XLR output source
[22]: Select either Main Mix
or Direct Output for Chan
1 & 2
GND LIFT
OMain Output [23]:
XLR Right/Left Output
Balanced

SYSTEM SPECIFICATIONS
• System Architecture : Ultra high-speed high-capacity DSP with lossless A/D and D/A
conversion. Integrated Digital Mixer supports routing and seamless signal-level management
for ve fully congurable audio channels. Color Graphic LCD presents a highly intuitive GUI for
settings, save & recall, and MIDI functionality.
• Digital Effects and Controls: Channel Parametric EQ, Notch Filter, Compressor, Noise Gate,
Main and Aux panning, Reverb, Chorus, Delay, Real-Time Chan-Level Bar Graphs, Save & Recall
Programs.
• Analog Master controls: Master Volume, Mono Switch, Equalizer (Low, Mid, High)
• Speakers: 8” Woofer; 1” Silk-dome Tweeters
• Amplier: 80W Class D bi-Ampliers
• Nominal output levels (1 kHz): Right Channel Link out: -10 dBu Main/Direct Output: +4dBu
• Stereo Inputs: 1/4” Left/Right input jacks
• Phantom Power: +48V
• Aux in control: Level knob
• Displays: Color Graphic LCD; signal, peak, phantom power and MUTE LEDs.
• Connectors: CH1 & 2: Input jacks (mic XLR, 1/4” Line, 1/4” Instrument ), CH3/4: (mic XLR, 1/4”
Line), CH5/6: Left/Right stereo input (1/4” TRS), AUX in: (1/8” jack), Right channel output (1/4”),
AUX Mix outputs - 1/4” TS Jack, AC inlet jack
*XLR MAIN/DIRECT outputs
*GND Lift switch - XLR MAIN/DIRECT outputs
• Power Switch
• Power Supply - 110VAC - 240VAC
• Other features:
Playback from Bluetooth device
Optimized front ports for extended low-frequency response
Built-in pole-mount, 35mm receptacle on bottom of unit
• Accessories: AC cord
• Dimensions: 12.13”WX11.13”Hx10.55”D
• Weight: 18 lbs
For a copy of the complete and most updated User’s Manual, please visit: www.eliteacoustics.com

WARRANTY (USA ONLY)
Contact the Distributor in your area for service and warranty info.
Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding
battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants
the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the
original retail purchaser. To be protected by this warranty, the purchaser must complete and return the enclosed
warranty card within 14 days of purchase. During the warranty period EAE shall, as its sole and absolute option,
either repair or replace, free of charge, any product that proves to be defective on inspection by EAE or its authorized
service representative. To obtain warranty service, contact Elite Acoustics Engineering Technical Support via email:
[email protected]. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT
TO AN ELITE ACOUSTIC ENGINEERING SERVICE CENTER. All inquires must be accompanied by a description
of the problem. All authorized returns must be sent to the EAE repair facility postage prepaid, insured and properly
packaged. EAE reserves the right to update any unit returned for repair. EAE reserves the right to change or
improve the design of the product at any time without prior notice. This warranty does not cover claims for damage
due to abuse, neglect, alteration, or attempted repair by unauthorized personnel and is limited to failures arising
during normal use that are due to defects in material or workmanship in the product. Any implied warranties,
including implied warranties of merchantability and tness for a particular purpose, are limited in duration to the
length of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, therefore
above limitation may not apply to you. In no event will EAE be liable for incidental, consequential, or other damages
resulting from the breach of any express or implied warranty, including among other things, damage to property,
damage based on inconvenience or on loss of use of the product, and, to the extent permitted by law, damages
for personal injury. Some states do not allow the exclusion of limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights, which vary from state to state. This warranty only applies to products sold and used in
the United States of America. For warranty information in all other countries please refer to your local distributor.
©Elite Acoustics Engineering Inc.
Legal Notice: CALIFORNIA PROPOSITION 65 WARNING
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
