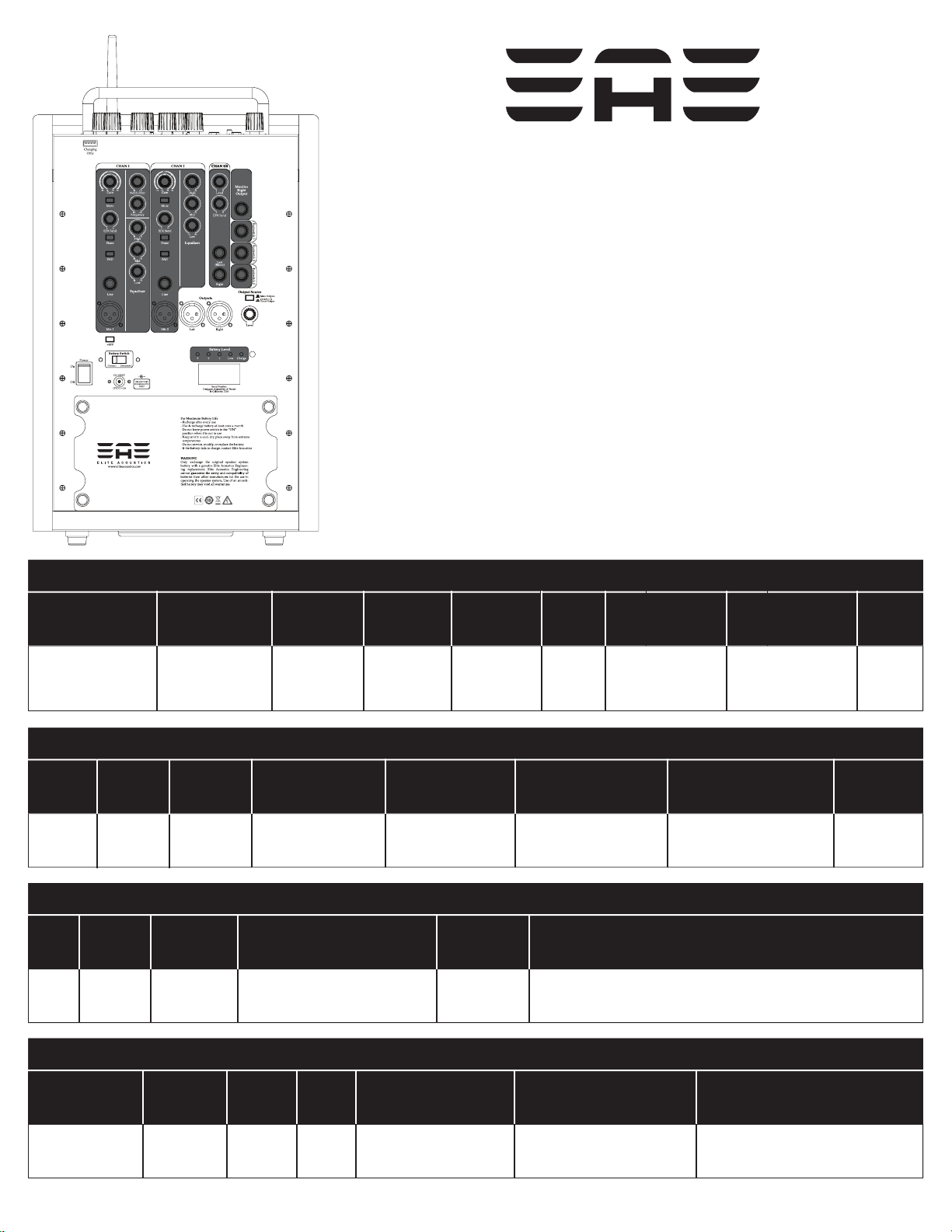

Elite Acoustics A4BR8 User manual

A4BR8
Rechargeable
Battery w/ Meter
Up to 15 Hours
Play Time
Battery
Switch
Circuit
Breaker
Front Ports
Optimized For Extended
Low-Frequency Response
Magnetic Shielding
Eliminates Interference With
Other Electronic Equipment
Accessories
AC Cord, AC Adaptor,
DC Cord For The Car, Owner's Manual
Bluetooth
Yes
USB
Charging
Only
One XLR Type,
One 1/4" TRS
Phone Type
Two 1/4" TRS
Phone Type
Other Features
Power
Switch
Yes
Channel 1 & Channel 2
Gain, Mute, EFX Send Level, PAD
EQ, Phase, Notch Filter*
,Frequency*
Channel 3/4
Level Knob &
EFX Send Level
Master
Volume Knob & Equalizer (Low Frequency Knob, Mid Frequency
Knob, High Frequency Knob), Effect Mix, Decay/Rate, Effects
Master
Indicators
Signal Clip
and Power
Auxiliary In
Level Knob
Controls
Woofer
8”
Power Supply
DC 12V
Current Draw
2000 mA
Built-In
Pole-Mount
35mm Receptacle
On Bottom Of Unit
Dimension
10.90”L x 10.25”W x
16.40”H
Weight
28 lbs.
Tweeter
1”
Amplifier
Class D
Bi-AMP
Specifications
Channel 1 & 2
Nominal Input
Level (1kHz)
CH. 1 & 2 : -60dBu
CH. 3/4 : -20dBu
Auxiliary in : -10dBu
Stereo Inputs
1
/
4” Left/Right
Input
Nominal Output
Level (1kHz) Channel 3/4
Right Channel
Link Out : -10 dBu
Input & Output Connectors
Auxiliary
In Jack
1
/8 ”
Power
DC Jack In
Main &
Direct Outputs EFX Bypass &
CHAN 1/2 Mute
1
/
4
” TRSOne
Two XLR(Left/Right)
One 1
/
4” TRS
One 1
/
4” TRS
4 Channel Mini PA with Effects,
Rechargeable Battery & Bluetooth®
www.EliteAcoustics.com |Los Angeles, CA |[email protected]
*Not Included on Channel 2.
**Due to continous development & improvements of our products, features
specifications are subject to change without notice. All weights & measures are approximate.
Elite Acoustics' A4BR8 Portable, Rechargeable, Guitar Amp features:
4 channel input with 16 effects and a 8 inch woofer that is paired with a 1 inch tweeter to provide
maximum clarity. The cabinet is constructed with MDF for high fidelity sound. This Class D bi-amp
speaker can also be powered and charged from the car (charger included) and once fully charged,
the speaker can get over 6 hours of play time. Other features included are mounted POTs/Jacks,
metals chassis for durability, microphone/instrument/line input with pan/level control, two 1/4"
stereo (left/right) input jacks, and one AUX input with level control. In addition, the A4BR8 includes
a 3-band Master EQ, Effects/Mix level control, Master volume control, built-in handle, integrated
35mm pole-receptacle, switchable direct out or line-level monitor output to daisy chain additional
powered speakers for larger areas, and a built-in overcharge/over-drain protection for a longer
battery life. It is convenient to carry to a tailgate or a small party at the park. The A4BR8 is a speaker
that is an amplifier and mixer, all in a portable design that doesn't compromise on sound.
Designed and assembled in USA.
ELITE ACO U STIC S

DIR OUT/MAIN Right OUTPUT
Left / Right Input
AUX
Mic In
INSTR/LINE IN
EFFECTS
1 Bright Cavern
2 Dark Cavern
3 Bright Hall
4 Dark Hall
5 Bright Room
6 Dark Room
7 Bright Plate
8 Dark Plate
9 Ambience1
10 Ambience2
11 Echo
12 Repeat Echo
13 Echo/Rev1
14 Echo/Rev2
15 Chorus
16 Flange
E L I T E A C O U S T I C S
Foot
Switch
4-Channel Portable Mini PA with Effects,
Bluetooth® & Built-In Rechargeable Baery
A4BR8
