Dear Users,
Congratulations on your purchase of one the leading
electric vehicles in cutting edge design and environmental
friendliness. Elite Electric Vehicles combine the advanced
technologies of Europe, Asia, and The United States. Our vehicles
boast innovative design, luxury, and structural integrity. Each
vehicle has a high strength steel frame, professional grade paint,
and top of line Toyota controller. Combining light weight,
speed, strong climbing ability, free of pollution, minimal
noise, on-board charging, superior braking performance, and
affordable pricing, our vehicles are the top of the market.
In order for your Elite Electric Vehicle to operate at it's
highest potential please read, understand, and follow the contents
made available in your owner's manual. If you have any questions
please visit www.eliteelectrivheicle.com or contact your local
authorized dealer.
Here at Elite Electric Vehicles we are always in improving our
products. If the manual doesn’t match your product, the read
product is the standard.
Preface
WARNING
W A R N I N G
IMPORTANT MANUAL INFORMATION
Particularly important information
is distingui s hed b y using the
following symbols and notes :
THE SAFETY ALERT SYMBOL
ATTENTION ! BE ALERT ! YOUR
SAFETY IS INVOLVED!
Failure to follow WARNING
instructions could result in
severe injury or death to the
vehicle passengers, bystanders,
or the person driving the vehicle.
NOTE：
Elite Electric Vehicles c o n
t i n u a l l y s e e k s improvement
in product quality. Even though
this manual contains the latest
product information available at
the time of printing, there may be
minor discrepancies between your
vehicle and this manual. If you
have any question concerning this
manual please contact your Elite
Electric Vehicle dealer and we will
work it out .This manual should be
considered as a permanent part of
your vehicle and should stay with
the vehicle when the vehicle is
resold.
This message describes special
precausions that must be taken so as
to avoid damage to the car .
NOTE：
T h i s m e s s a g e p r o v i d e s
additional main information.
Read and understand the
manual completely before
operating your vehicle.

1
2-4
5-11
12-13
14-16
17-26
27
28-29
30
Content
Important Labels
Operational Safety
Whole Vehicle Structure and Parameter
Operation and Control
Preparation Before Operating
Maintenance
Storage
After-sale Service
1266、1268 Trouble Shooting Chart

2
When operating:
SAFETY OPERATION
Before operating：
1.Read this manual and all the other operations or labels marked on the vehicle
body before operating.
2.Only authorized people should drive the vehicle only in the designated area do
not OVERLOAD.
4.Do not drive the car if drinking any alcohol or have any drugs which could
distract the driver's vision and judgment.
1. Keep your entire body in the vehicle and remain seated when the vehicle starts
moving.
2. Do not start the car until all passengers are seated.
3. Keep your hands on the steering wheel and your eyes on the path ahead.
4. Be especially careful when backing the car in crowded areas. Please keep
watching back and roll back slowly.
5. Avoid sudden start and brake.
6. Please accelerate or decelerate the vehicle according to the ground condition.
7. Do not turn the steering wheel sharply at high speed.
8. Do not overload or make any modification without authorized dealer consultation.
WARNI N G
EXP LOSIV E GASES SUL FURIC
ACI D
in ba tteri es will
bur n skin, e yes,
and c lothi ng. Do
not t ip batt eries .
Kee p vent ca ps
tig ht and le vel.
In ev ent of in jury,
flu sh with p hysic ian
imm edia tel y.
WA RNI NG /AVER TI SSMEN T
ELE CTRIC AL
SHO RTS
can r esult
in bu rns.
Do no t make
con nect ion
bet ween
pos itive a nd
neg ativ e
bat tery
terminals.
W A R N I N G
Wi n dsh ield s do no t
pr o vid e prot ect i on
fr o m oth er fly ing
ob j ect s.
WARNI N G
OPERATION INSTRUCTION
1
34
IMPORTANT LABELS
S A F E T Y A N D
I N S T R U C T I O N
LABELS
Please read the attached
labels carefully before
driving the vehicle, and
promptly replace any
label that is damaged or
removed .
●Read the manual and safety instruction labels on the vehicle before
driving.
●Be sure that passengers are seated stably.
●Select “ forward “ or “ reverse “ key.
●Tread the accelerator to start moving; and tread the parking pedal
to stop .
●Please drive safely according to the terrain ,visibility and driving
experience; please drive carefully in the crowded and slippery places .
●When parking, please tread the parking pedal and draw up the
handle of hand brake. When starting the car, please release the
handle.
2
a r e r e l e a s e d
w h e n b a t t e r i e s
a r e c h a r g e d o r
d is ch a rg ed . K e ep
w e ll v e nt i l a t ed .
K e e p s p a r k s ,
f l a m e s a n d
c i ga r e tt e s a w a y.
S h i e l d e y e s
w h e n w o r k i n g
nea r batte ries
●Please read the safety and instruction labels on the steering wheel before operating.
●No extra passengers can be allowed.
●Do not start the vehicles until all passengers are seated well.
●Drive slow when turning.
●Tread the parking pedal before leaving the car.
●Pull the main switch and turn the key off when not using the vehicle.
●The passengers should be seated stably and hold the armrest tight.
●Keep hands and feet inside the vehicles.
1
GO
PARK
STOP
parking pedal Accelerator pedal
Brake pedal

4
5
Whole structure：
STRUCTURE & SPECIFICATIONS
5
6
9
10
1 1
1 2
1 3
14
15
16
17
18
19
20
21
22
23
24
OPERATIONAL SAFETY
1. Keep your hands on the steering
wheel and your eyes on the path
ahead.
2. Be especially careful when
backing the vehicle in
crowded places. Please keep
watching back and roll back slowly.
3. Avoid sudden and strong braking
of the vehicle and change to the
proper speed according to the
ground condition.
4. Do not turn the steering wheel
sharply when at high speed.
5. Keep driving slowly straight up
or straight down, not at one same
angle.
Left Head Light
Side Panel Body
Steering Wheel
Steering Column
Switch
Power Indicator
Brake Pedal Key
Switch Forward/
Reverse Switch
1 Top
2 Sand Box 3
Cooler
4 Rear Fender
Side Mirror
Windshield
7 Front Strut
8 Right Head Light
Front Bumper
Front Cowl
1
2
3
4
5
6
7
8
9
10 11 12 13
14
15
16
18
21
17
19
20
22
23
24 2625 27
28
29
25
26
27
28
29
Accelerator Pedal
Armrest
Front Wheel/Tire
Rear Wheel/Tire
Left Taillight
Rear Bumper
Right Taillight
Golf Bag Holder
Ball Washer

6
STRUCTURE & SPECIFICATIONS
Bullet (2 Passenger.) Whole car specifications (standard) : detailed
specification refers to actual contract
Electronic system
controller Toyota Controller
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y con f i g u r a t i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
2400*1200*1800mm
1650mm
470kg
150kg
22-24km/h
80-100km/h(level road)
2.9m
25%
100mm
front900mm/rear 1000mm
＜6m
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
2 persons ( including driver)
7
STRUCTURE & SPECIFICATIONS
Journeyman (4 Passenger.) Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Toyota Contoller
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y c o n f i gu r a t i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
2760*1200*1800mm
1650mm
550kg
300kg
22-24km/h
80-90km/h(level road)
2.9m
25%
100mm
front900mm/rear 1000mm
＜6m
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
4 persons ( including driver)

8
STRUCTURE & SPECIFICATIONS
Rambler (Forward Facing 4 Passenger) Whole car specifications
(standard) : detailed specification refers to actual contract
Electronic system
controller Toyota Controller
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y con f i g u r a t i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
3160*1200*1800mm
2410mm
510kg
300kg
22-24km/h
70-90km/h(level road)
4m
25%
100mm
＜6m
front900mm/rear 1000mm
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
4 persons ( including driver)
9
STRUCTURE & SPECIFICATIONS
Presidential (6 Passenger) Whole car specifications (standard) :
detailed specification refers to actual contract
Electronic system
controller Toyota Contoller
battery Lead acid battery 8V x 6pcs 140AH 5Hr Rate
Motor High efficient Sepex ADC 3.7 KW motor
charger Intelligent charger48V,20A
Accelerator
Electrical accelerator 48V input, Hall output 0-5V
Bo d y c o n f i gu r a t i o n
Wind shield Organic glass Top roof
ABS plastic vacuum forming
Seat Leather Floor
Rubber sliding proof mat
Side mirror L & R side mirrors
Steering
system
Two way gear steering system,automatically backlash
compensation
Light&signal
48V/12-300W Front light, turning light, rear combo lights, horn, reverse buzz
Body PP plastic injection chassis High tensile steel welding structure, electrophoresis
treatment for anti-rust
Dash board PP plastic injection, power indicator, head light switch, turning light switch, key switch, F/R switch
Brake rear drum + combo brake pedal parking
Front Suspension
Spring+hydraulic shock absorber, independent suspension
Rear suspension
Wheel & tire
Loading staff
1.1dimension:L*W*H
1.2 wheelbase
1.3weight(including batter)
1.4load capacity
1.5max speed
1.6mileage
1.7min turning radius
1.8max climbing ability
1.9min clearance
1.10brake distance
1.11tread
2.battery specification
2.1battery type
2.2volume
2.3 voltage
3.motor specification
3.1motor type
3.2rated power
3.3rated rotating speed
3.4 rated voltage
3.5rated currency
3.6ration
1. specification
3520*1200*1800mm
2410mm
590kg
450kg
22-24km/h
70-80km/h(level road)
4m
20%
100mm
＜6m
front900mm/rear 1000mm
lead acid battery
140Ah
48V
DC series motor
3.7kw
2500r/min
48V
105A
15min
Excellent transaxle, gear ratio 12.31:1, half independent suspension + hydraulic shock absorber
Steel wheel 18*8.50-8+tire (452mm)
6 persons ( including driver)

12

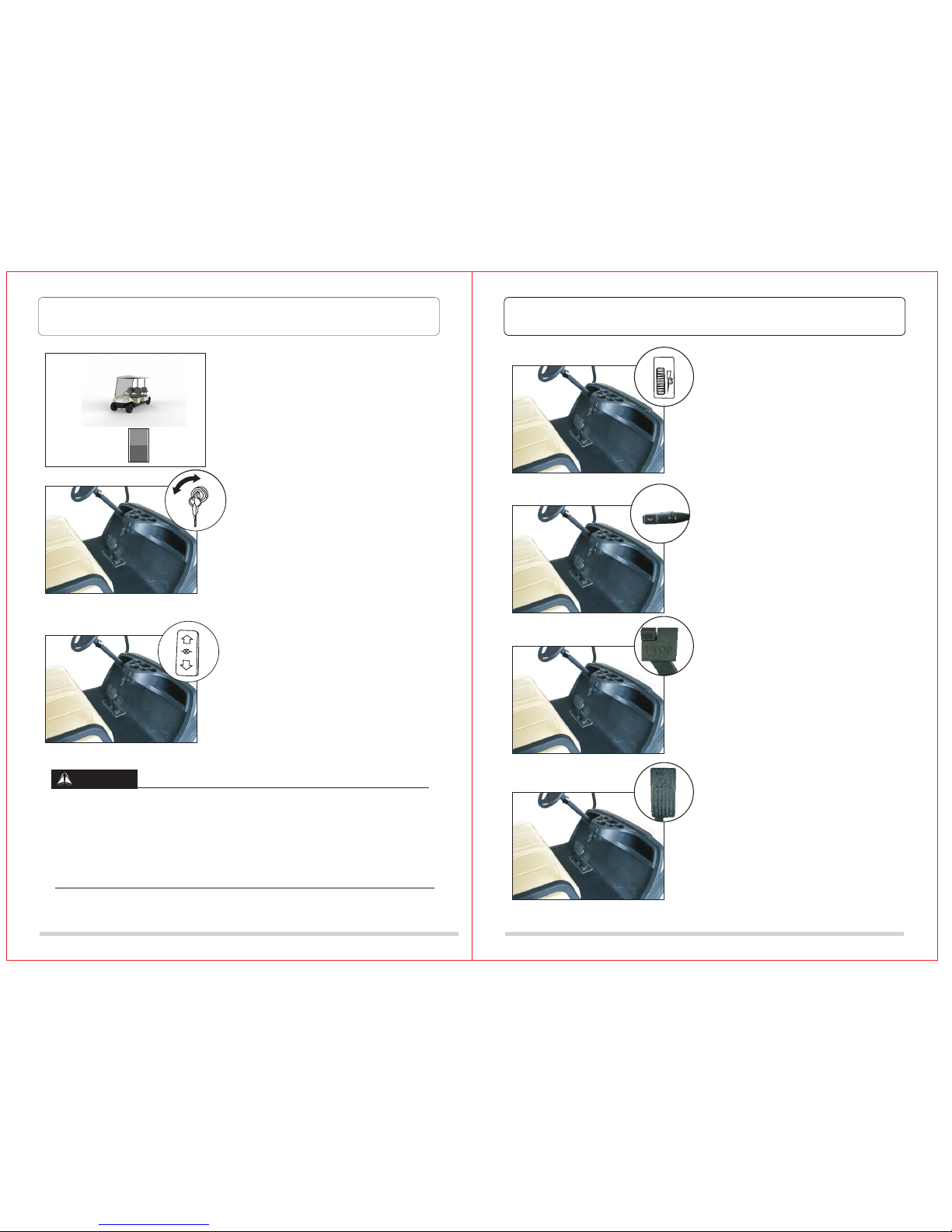

OPERATION AND CONTROL
WARNING
Turning On Main Switch
1.Shifting the switch to RUN position
allows power supply to the vehicle.
2.Shifting the switch to OFF position
shuts off power supply to the vehicle.
Key Switch
1.Insert key and turn right to set vehicle
to run. (Note: Shift the F/R switch to the
middle position before turning on main
switch).
2.Turn key left to turn vehicle off. Key
can only be removed in the off position.
Forward/Reverse Switch
The Forward/Reverse switch is used to
shift vehicle from to forward to reverse
and neutral. Place switch in top position
for forward, bottom position for reverse,
and in the middle for neutral. Buzzer will
sound while in reverse position.
1. C o m p l e t e l y s t o p vehicle b e f o r e s h i f t i n g
F / R switch. When shifting from forward to reverse or
vice versa please leave switch in middle position for 2
seconds. Shifting F/R switch quickly may result in
sensor malfunction and render it useless.
R U N
OFF
Off
Run
13
OPERATION AND CONTROL
48V
1
0
Voltage Indicator
Voltage Indicator displays how
many volts left in battery pack.
When indicator reads low the vehicle
needs to be charged.
Head Light Switch & Turn
Signal
Brake Pedal/Parking Brake
Accelerator Pedal

PRE OPERATION
14
WARNING
Pr-operation checks should be
made each time you use your vehicle.
Get in the habit of performing the
following checks in the same way so
that they become second nature.
Be sure that the main switch key is
set to off before performing the per-
operating checks to prevent
accidental starting, and apply the
parking brake to keep the
vehicle from moving.
PRE-OPERATION CHECKLIST
Before each use, please check the
following
√Batteries
√Tire condition
√Steering system
√Back-up buzzer
√Pedal operation
√Body and chassis
Tire pressure
25PSI
PRE OPERATION
15
BATTERY
Charge batteries before every
use. See charging steps in chapter 6.
Check that the batteries are held
securely in place to prevent the
batteries from vibration or jarring.
Check the battery terminals for
corrosion.

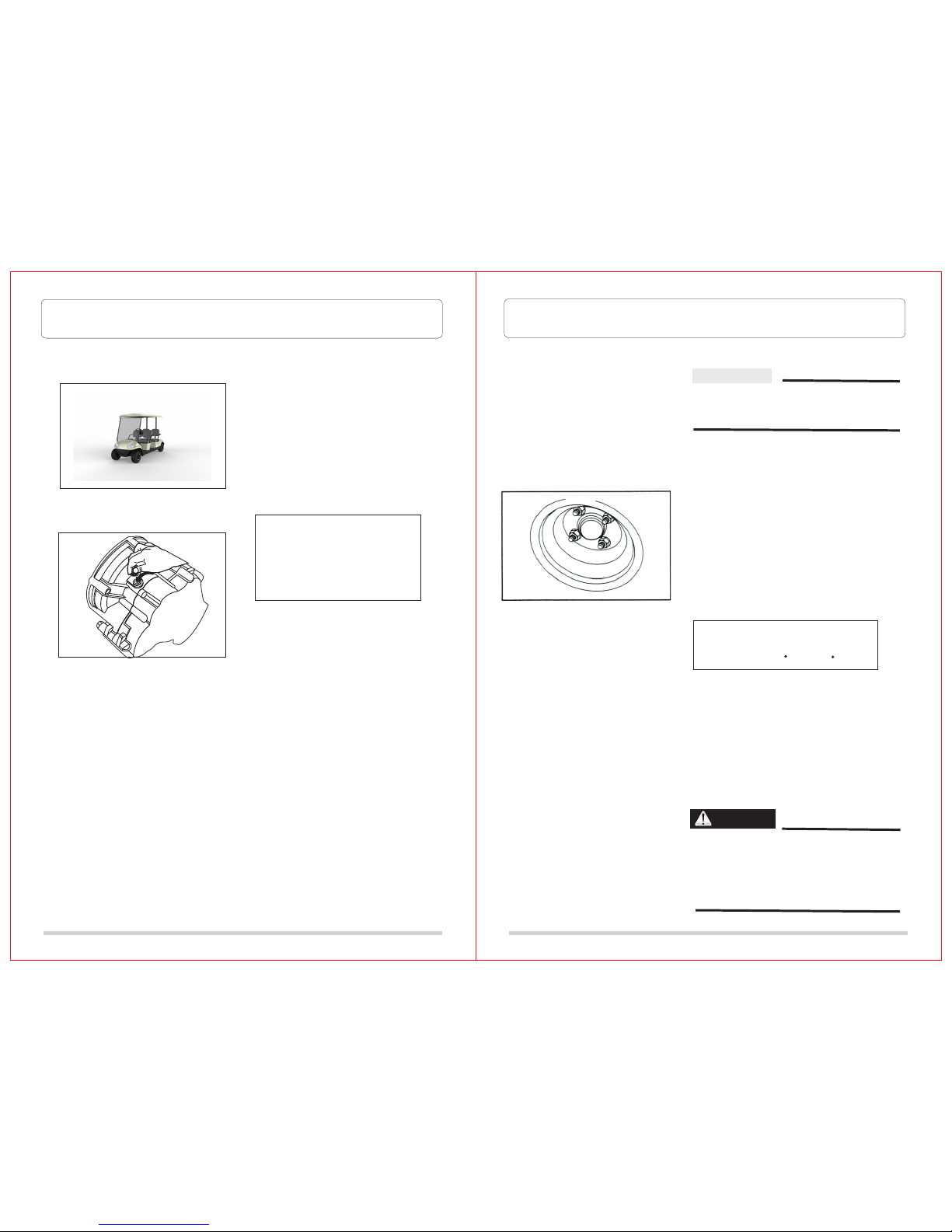

TIRE CONDITION
Check the tire air pressure before the
operation of vehicle.
Tire Wear Limit
C h e c k t h e t i r e s u r f a c e f o r
damage, cracks or
embedded objects. When tire
tread wears down to 0.04(1mm),
replace the tire.
AWear limit

W A R N I N G
16
BAccelerator pedal
17
Steering system
Check to make sure steering isn't too
tight or loose. Listen for noise.
a. Turn wheel back and forth.
If you find too much empty steering or
hear noise, it means something is wrong
please contact dealer immediately.
Reverse alarm
Turn the F/R switch to “R” to
check reverse buzzer
Pedal operation
Check the pedals operation, if it’s
abnormal, contact dealer immediately.
A Brake pedal
PRE OPERATION

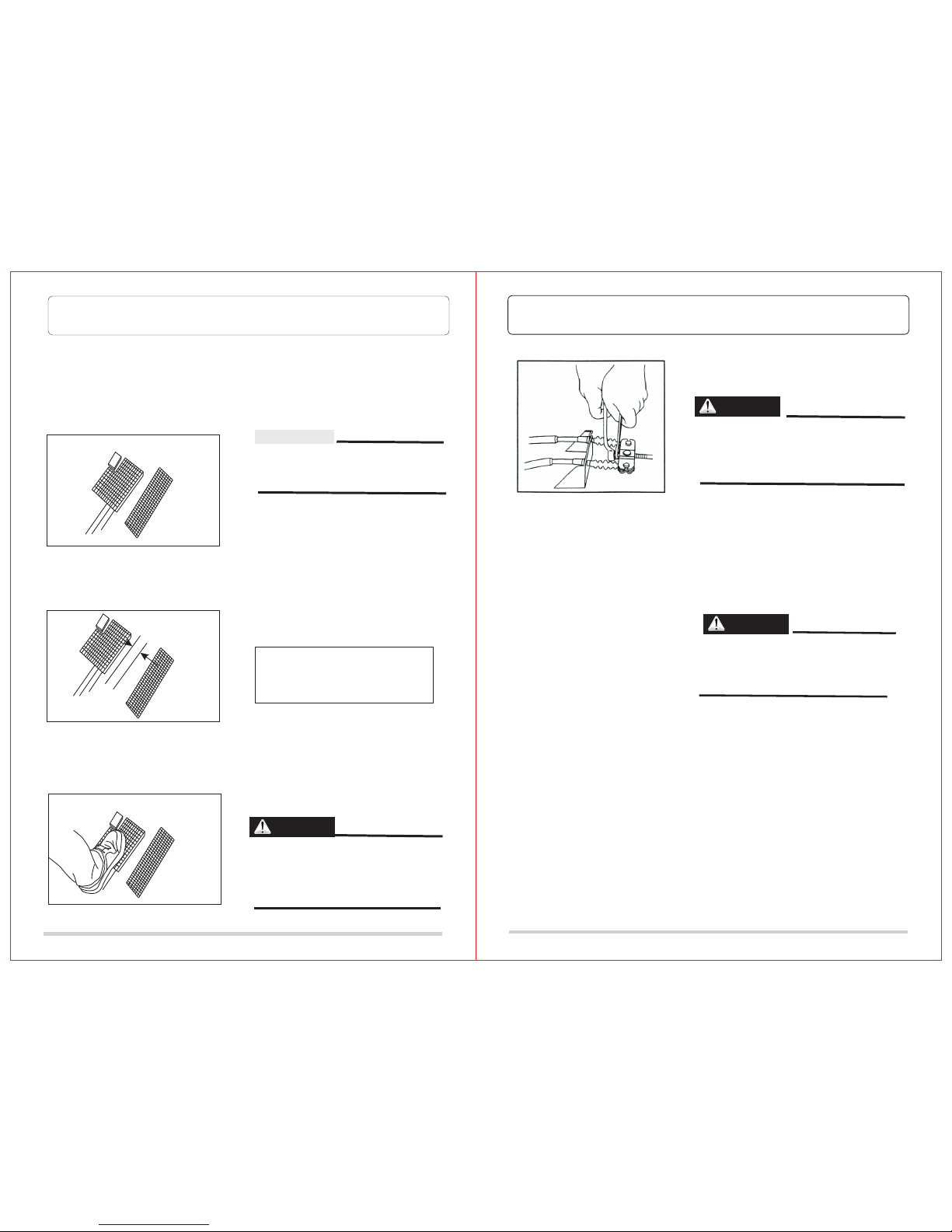

Accelerator pedal
Check the flexibility and reliability
of pedal, it returns to original
position after you step down.
Before checking the accelerator
pedal, make sure to turn off the
main switch
Battery Care
WARNI N G
WARNI N G
Keep out reach of children.
CAUTION
MAINTENANCE
Do not allow cleaning material to
enter battery cells.
Battery electrolyte is poisonous and
dangerous, may cause severe burns, etc.
It contains sulfuric acid. Avoid
contacting with skin, eyes and clothes. If
accidental contact or ingestion occurs.
EXTERNAL: Flush with water
INTERNAL: Drink large quantities of
water or milk. Follow with milk of
magnesia, beaten egg, or vegetable oil.
Call physician immediately.
EYES: Flush with water for 15 minutes
and get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames and cigarettes away.
Make sure it is ventilated when charging
or using in enclosed space. Always shield
eyes when working near batteries.
Batteries provide power for your electric car and must be
properly maintained and recharged for maximum
performance and service life. The ways to maintain
your batteries.
1. Clean the top of the batteries with soda water if necessary
to remove corrosion.
2. Check the fluid level before and after charging.
A
B

18
19
BATTERY CHARGING
WARNI N G
WARNI N G
MAINTENANCE
R e a d a n d u n d e r s t a n d t h
e manual provided with your
vehicle’s battery charger before
charging batteries.
Explosive hydrogen gas is produced
while batteries are being charged.
Only charge batte r i e s in well
ventilated areas(A minimum of 5 air
changes per hour is recommended)
Follow the instructions contained in
your battery charger’s owner’s manual
to charge the batteries in your vehicle.
The following is a summary of the
charging steps. Do not attempt to
recharge your vehicle’s batteries
without thoroughly reading and
understanding the manual.
Connect the charger properly with the
plug case(see charger’s owner’s
manual).Do not insert the AC output
plug into the car directly.
CAUTION
Use battery chargers that are only
used for this vehicle. Thoroughly
read and understand the manual.
WARNI N G
WARNING
MAINTENANCE
Do not disconnect the DC output
cord from the battery receptacle
when the charger is on because
that may cause an explosion.
3. The charger will turn off
automatically when the batteries reach a
full charge.
4. After the charger has turned off
disconnect the DC output plug from
the vehicle receptacle by grasping the
plug body and pulling the plug
straight out of the receptacle.
BATTERY INSTALLATION
When installing the batteries,do
not put the wrenches or other
metal objects across the battery
terminala.An arc occure causing
explosion of the batteries.

21
A 2
20
MAINTENANCE
Before charging:
Only add distilled water. If fluid is
below the top of the plates, add just
enough to cover plates.
After charging:
Check that the fluid level is appropriately
1/4 to 1/2 inch above the plates and 1/4 to
3/8 inch below the level is low. Add
distilled water carefully. Adding distilled
water after charging helps prevent boiling
over
A Battery cap
B Plates
C Maximum fluid level
D Minimum fluid level
Normal tap water contains minerals
w h i c h a r e h a r m f u l t o a
battery; therefore, refill only with
distilled water.
3.Using a hydrometer, check the
specific gravity of the battery fluid in
each cell against the readings on
the chart below. Consult a Elite Electric
Vehicles dealer if any low readings are
found.
Temperature S a t i s f a c t o r y
Hydrometer Reading
WARNI N G
2.Link the cables as the picture
MAINTENANCE
When installing the batteries:
1.Please carefully place the cables and push them
down, making sure the cables do not crossover the vent caps
2.Always remove the negative(-)cable from the motor
controller first, and install it at last.
3.Do not over-tighten the battery nuts,because too much force would
damage the battery case.

18 1 9
Gearbox Oil
Check the oil level in the gearbox
1.Place the vehicle on a horizontal
level
2.Lift the cushion
3.Remove the oil plug
4.Pour in the gear oil slowly until
it reaches the opening
recommended oil：
SAE 90 gearoil
Gearcase capacity：
MAINTENANCE
5.It’s fine for oil overflowing。
Make it stop when it flows
o u t , a l i e n m a t e r i a l s a r e
forbidden from getting into the
gearbox.
CAUTION
About removing or installing a tire:
Tire Replacement
WARNI N G
wheel nut tightening torque:
105N M- 1 2 0N M
Braking Adjustment
MAINTENANCE
Be sure the main switch is in the
“off” position, before you check the
wheel or braking system.
1. Take out the wheel nuts, after the car
is totally still. Anything will be fine
to prevent it moving.
2. Elevate the car with a jack and take out
the tire and the screw bolt.
3. Use the steps above conversely, when
installing the tire
The brake of this vehicle can be
adjusted by yourself.
Please use your foot to press the
braking pedal, making sure it has been
functioning properly
Consult your Elite Electric Vehicles
dealer before using the vehicle, if
you have any issue with the
brake. Serious accident would be
caused in case of brake failure.

P
24
85-95MM
25
Periodic Maintenance Chart
W A R N I N G
P
P
WARNING
Brake system:
free adjustment
To adjust the brake distance :
Brake pedal forwarding distance :
85-95mm ( 3.35-3.74 inch)
CAUT ION
WARNING
MAINTENANCE
Before adjusting the brake, tread
the brake pedal several times to
adjust the brakes .
1. Remove the cover of the dash board
2. Check the brake pedal by pressing
with two fingers with proper force and
measuring the forwarding distance of
the pedal untill resistance is felt .
Do not loosen the brake cables
because of air leakage, which
will a l s o a f f e c t t h e b r a k e
adjustment and result in the
braking function .
MAINTENANCE
Do not adjust brake cable too tight
as this will make the brake adjust not
work correctly, and therefore effect
the brake performance.
I t i t n e c e s s a r y t o c h e c k
p e r i o d i c a l l y f o r b e s t
performance and safe operation.
Before maintenance, make sure that
main switch is off and hand brake is
on.

27
26
C=Check CA=Check Adjust R=Replace S=Service
CL=Clean and Lubricate L=Lubricate
MAINTENANCE
Remarks
Pre-
Operation
20 rounds
20 hours
20 hours
160kms(
Every
Month)
125
rounds
125 hours
600 miles
1000kms (
Every 6
250 rounds
250 hours
1200 miles
1000kms(
Every
Years)
500 rounds
500 hours
2500 miles
4000kms(
Every 2
Years)
1000
rounds
1000 hours
5000 miles
8000kms
(Every 4
Page
Charge
Clean Ba t t er y to p s ,f or
tightness of hold-down screws
and terminals
Check brake pedal freeplay and
adjust if necessary
Check steering operation
Check tire pressure tread
depth tire surface for damage
Check bod e and chassis ,f or damage
Check tight ne ss of all bo lts,nuts and
screw
Check reverse buzzer
Pre-Operation Every month
Check electrolyte level
C h e c k f o r l o o s e o r b r o k e n
connect ionsw
C l e a n L u b e P e d a l
control area
Check all wire insulation for crack
and/or worn spots
Check shock absorbers for oil
leaks and damaged springs
Perform a discharge test
protectant
Check shoe lining thickness
and rear axle beating play
C h e c k s t e e r in g k n uc kl e
bushing freeplay/Adjust wheel
alighment
Ch eck wheel not ti ghtness
front wheel bearing play
Check gear box oil level and
leakage
C h e c k f o r g r e a s e
lea kage ;adj ust gear box if
Replace gear box oil
Check ope ration an d ad just peda l
stop if nec essary
Every 6 month Every year Every 4 month
Items without a page number reference should be serviced by approved
agent or qualified technician.
This manual doesn't contain these procedures. They are contained in the
Service Manual
STORAGE
C A U T I O N
Perform the following preparations
when leaving your vehicle unused for a
long time:
NOTE:
Turn the main switch key to the
“OFF” position , remove the key , and
put it in a safe place .
CHASSIS PREPARATION
1. Verify the air pressure of the tire is
25psi ( 3 kgf/cm3);
2. Clean the outside of the vehicle with
anti-rust oil;
3. Cover the vehicle and store it in a dry
and well-ventilated place.
BATTERY PREPARATION
1.Recharge the batteries and
check the fluid levels at least once
a month .
2.Disconnect cables in case of long
storage
Cleaning products are forbidden to
put into battery cells
3. Clean the top of the batteries with
baking soda and water so to avoid
corrosion.

1.1HW FAIL SAF E
1.2THROT TLE F AUL T1
1.3SPEED S ENS OR FA ULT
1.4HPD
1.5MOTOR S TAL L
2.1LOW BAT TER Y VOL TAG E
2.2OVER VO LTA GE
2.3THEMA L CUT BAC K
2.4MAIN DR IVE R ON
2.5AUX COI L FAU LT
3.1MAIN DR IVE R OFF
3.2MAIN WE LDE D
3.3PRECH ARG E FAU LT
3.4FILED M ISS ING
3.5AUX DRI VER O FF
4.1CURRE NT SE NSO R FAU LT
4.2DRIVE R OVE R CUR REN T
4.3— SHORT TED
4.4AUX REL AY DN C
4.5WELDE D AUX R ELA Y
5.1KEY SWI TCH S RO
5.2MAIN CO IL OP EN
5.3AUX DRI VER O N
5.4CIRCU IT BR KR OP EN
5.5MAIN DR OPO UT
30
TROUBLE SHOOTING CHART

Elite EV
1548 SR 44 Leesburg, Fl. 34748
Limited Vehicle Warranty
Elite EV, a brand of Southeast International Resources LLC, and here after known as Elite or Elite
EV, warrants as described herein the ELITE product to the original retail purchaser, providing
the product was purchased from an ELITE authorized dealer and the purchase is registered
within 30 days of sale.
Elite golf carts will be warranted for a period of TWO years from the date of purchase to be free
of any defective manufacturer parts or workmanship, excluding the following:
•Painted Tops and Bodies
•Cracked body panels
•Batteries (warrantied by manufacture)
•Tires (warrantied by manufacture)
•Burnt motors are NOT covered under warranty
SPECIFIC EXCLUSIONS: Specific exclusions from this warranty shall include, but not limited to
normal wear to tires, wheel bearings, light bulbs, brake shoes and brake system, seat covers,
painted tops and any adjustment parts. Elite EV will not cover under warranty any damages
that occur during transportation to include tops and windshields. All vehicles used in a rental
fleet are covered by a (12) month limited warranty and MUST be registered as rental vehicles
from date of delivery.
The warranty covers labor at our normal labor rate schedule and is subject to change without
notice. The warranty period begins from the date of purchase and registration to the end user.
Elite EV does not cover battery warranty. The battery manufacturer of the battery will be
responsible for all battery warranty issues. Specific battery warranty information can be
obtained by contacting battery manufacture in question.
This warranty is effective for all Elite vehicle models sold through SIR.
Specifically excluded from Elite EV warranty are adjustments or repairs made due to normal
wear, routine maintenance items, cosmetic deterioration, weather deterioration and electrical
components which are susceptible to current fluctuations, power surges or Acts of God for
which Elite EV has no control over. Any parts removed and replaced with new parts covered
under warranty shall become the property of and returned to Elite EV unless released and

acknowledged in writing or email by Elite EV. Any parts replaced under this warranty shall have
the remainder of the original warranty. Tires and batteries are not included in this warranty and
are warranted by respective manufacturer.
The sole remedy under this warranty and Elite EV is the obligation to repair or replace parts, at
its sole discretion, that are considered manufacturer defects. This remedy precludes all other
remedies including any lawsuits, claims or other proceedings alleging strict liability, negligence
of contract or any cause of action. Elite EV reserves the right to change, modify or improve any
part or design to any Elite EV vehicle without assuming any responsibility to modify previous
vehicles.
WARRANTY DETAILS: All warranty claims shall be filed via fax or email to Elite EV on a warranty
claim form available on our web site. Pictures will be needed when requested and all receipts
prior to authorization to complete warranty repairs. A return material authorization form,
which is available on our web site, may also be requested prior to any work being performed by
an AUTHORIZED DEALER.
All warranty parts must be paid for in advance and a credit will be issued at the time Elite EV
has authorized the warranty claim and received the defective part(s). It is Elite EV decision as to
whether the parts need to be returned or not. All parts required to be returned to Elite EV
should be returned in a timely manner. Dealers(s) will be responsible for all freight/shipping
cost to Elite EV. If part(s) is found to not be defective, Dealer will not be refunded shipping cost.
Elite EV will be responsible for all shipping cost for the warranty part(s), to and from Dealer
location, once the warranty claim has been approved. NO OVER NIGHT shipping unless paid for
and requested by Dealer.
DISCLAIMER: This warranty is made in lieu of all other warranties, implied or expressed. Elite EV
further disclaims all liability for incidental, punitive, consequential or exemplary damages. To
include, but not limited to personal injury or property damage arising from any defect in Elite
EV vehicle.
No agent, employee or representative of Elite EV has the authority to bind Elite EV, a subsidiary
of Southeast International Resources LLC, to any other agreement, representation or warranty
concerning this warranty. Some states do not allow limitation on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitations may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights, which vary from state to state.
Products supplied to dealer by Elite EV are warranted only in accordance with Elite EV written
warranty to consumers, which is supplied to dealer for Distribution to Dealers and Customers
and which may be amended or altered by Elite EV without notice, at its discretion. Elite EV
disclaims any other warranty expressed or implied, except as required by law, including but not
by way of limitation, the warrantied of merchantability and fitness for any particular purpose.
Elite EV disclaims any liability for incidental, special or consequential damages or commercial

losses suffered by dealer, its customers or any third party, except as provided under state law.
This warranty expressly excludes any and products which has been altered by dealer or
customer in any form after product has been delivered to dealer by Elite EV. Dealer must show
and make available to customers any applicable warranty of Elite EV products at the time of
sale. Dealers shall not give, or purport to give any additional warranty to consumers on behalf
of Elite EV, other than the written warranty for Elite EV products.
Dealer acknowledges the importance of their service department in providing to owners of the
products prompt and skilled warranty service and the need to comply with all laws relating to
warranty service. Dealer shall give immediate service to such warranty requests, being mindful
of the fact that the customer is the greatest asset to success. Dealer shall submit complete
claims to Elite EV for reimbursement on their account for parts and labor used in performing
the warranty service on claim forms made available on website. Dealer shall keep and maintain
complete and accurate records to support the claim.
ASSISTANCE AND PROTECTION: Should any warranty claim arise the dealer is unable to
perform, Elite EV should be notified of the details of the warranty claim and Elite EV will make
every reasonable effort to resolve the issue. Elite EV will have service technicians to consult
with the dealer in resolving the warranty issue. Training videos will be made available to the
dealers to assist in training of technicians. Elite EV is relying on dealers to have capable and
qualified service techs to perform service and warranty on the vehicle. Elite EV is not a service
department for the dealers and therefore not responsible for any failure of the dealer to
perform proper service. Dealer agrees to protect Elite EV from any such liabilities under
applicable law.
VOIDING OF WARRANTY: Warranty shall be void if: (1) the vehicle or battery charger is abused
or otherwise not used in its intended manner. (2) if the vehicle is in an accident or collision. (3)
it shows any indication that the speed setting has been altered allowing the vehicle to operate
at a higher speed than Elite EV recommends or any alterations to vehicle not authorized by Elite
EV.
WARNING: ANY modification to vehicle that adversely affect the safe operation of the vehicle
will VOID this warranty.
