HOMCOM 370-166V70 User manual

ASSEMBLY INSTRUCTION
INfac015V02_UK
370-166V70
CHILDREN’S ELECTRONIC TOY BEACH CAR
• Suitable for 3+ Years
• Maximum user weight: 30 kg
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important
information. Before first time use, charge the battery for at least 4-6
hours, but no more than 10hours.
WARNING: Must be assembled by an adult.

A
1
On the purchase of your new Ride-On.
This ride-on car will provide your child with many miles of riding of enjoyment. To help
assure you and your rider a safe ride we ask you to please read this manual carefully, and
keep it for future reference.
Follow the recommendations in this manual, they are designed to improve the safety and
operation of your ride-on car and its rider.
Suitable age:
Charge time:
Load capacity:
Size of car:
Speed:
About Your New Vehicle
3+ Years
8~12 hours
Under 30 kg
720 x 400 x 455 mm
2.8-4.6 km/h
Specification
Battery
Charger
input
Motor
6V4.5AH X1
6V500mA
390-9000~12000
6V7AH X1
6V700MA-1000MA
390-9000~12000
Depend on local voltage
2020625

2
B
1
3
4
4
4
4
\
1
4
1
1
1
1
2
1
1
3
4
4
4
\
4
1
4
1
1
1
1
2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NO. PART NAME
Q’TY (PCS)
Configuration 1 Configuration 2 REMARK
Vehicle body
Ø10 washer
Wheel
Ø8 washer
Lock nut
Wheel cover
Hubcap
Front axle lingage
Ø4x16 screw
Steering column
Handle bar
M5x30 machine screw
Ø5 nut
Spanner
Charger
Parts List
Optional
Optional

3
3
1
7
11 10 12
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
6
6
6
8
9
13
14
C
Configuration 2 Configuration 1
Configuration 2
Configuration 1
HINT: Some parts shown are assembled on both sides of vehicle

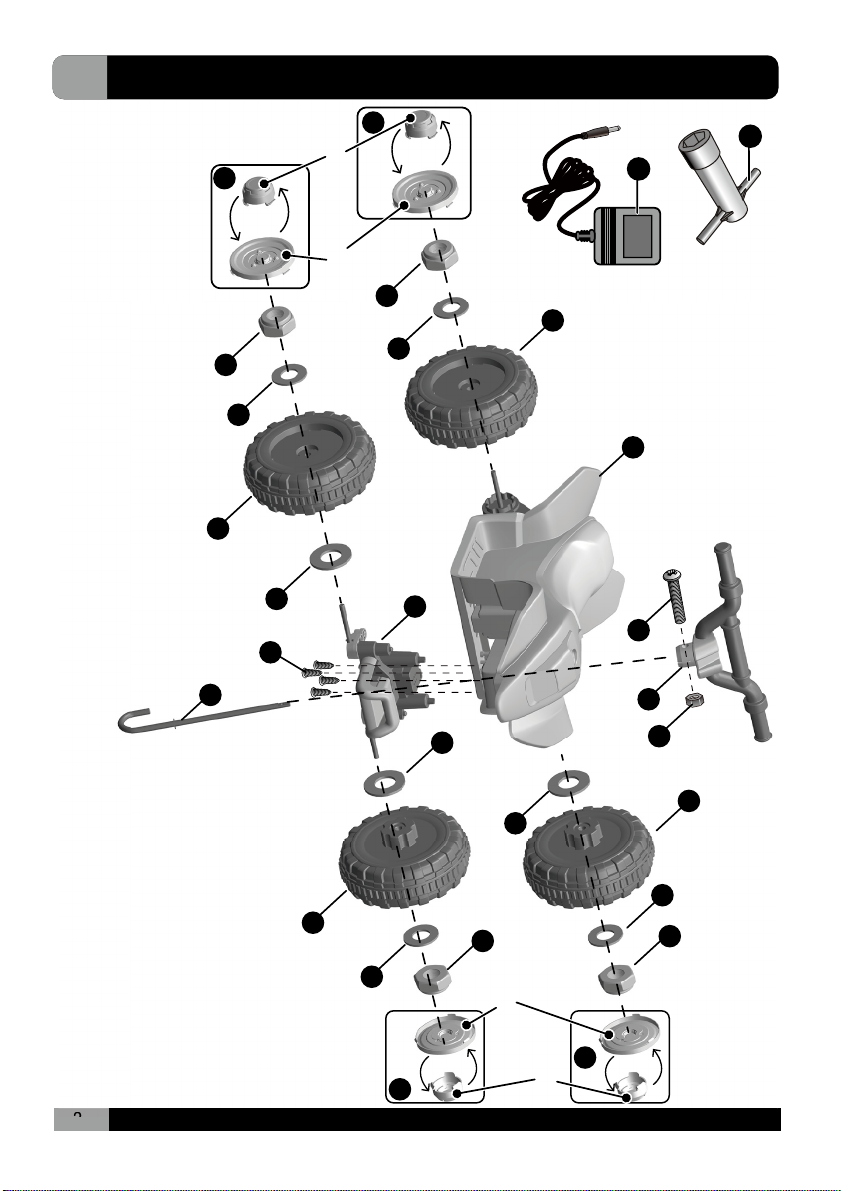

Parts Diagram

4
D
WARNING:
• CHOKING HAZARD! Not suitable for children under 36 months.
• Must be assembled by an adult.
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep
child in view when child is in vehicle.
Rules for Safe Riding
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt before
using, guarantee the security.
• Keep Children within Safe Riding Areas:
- Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps,
swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident.
Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
• This toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, or on near steep inclines or steps, swimming pools or
other bodies of water.
• Always wear shoes, always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user
weight is 30 kg.
• This toy has no brake.
Safety

5
E
4
2
3
1
Fit the Front Axle Linkage
• Gently turn the vehicle body upside down.
1. Fit the front axle linkage to the vehicle
body.
2. Insert four Ø4x16 screws through the front
axle linkage and into the vehicle body,
tighten with a screwdriver.
• Turn the vehicle body on its side.
3. Insert the straight end of the steering
column into the hole on the vehicle
body and out through the hole on the
top of the vehicle body.
4. Insert the bent end of the steering
column into the hole on the front axle
linkage.

6
E
1
5
3
4
2

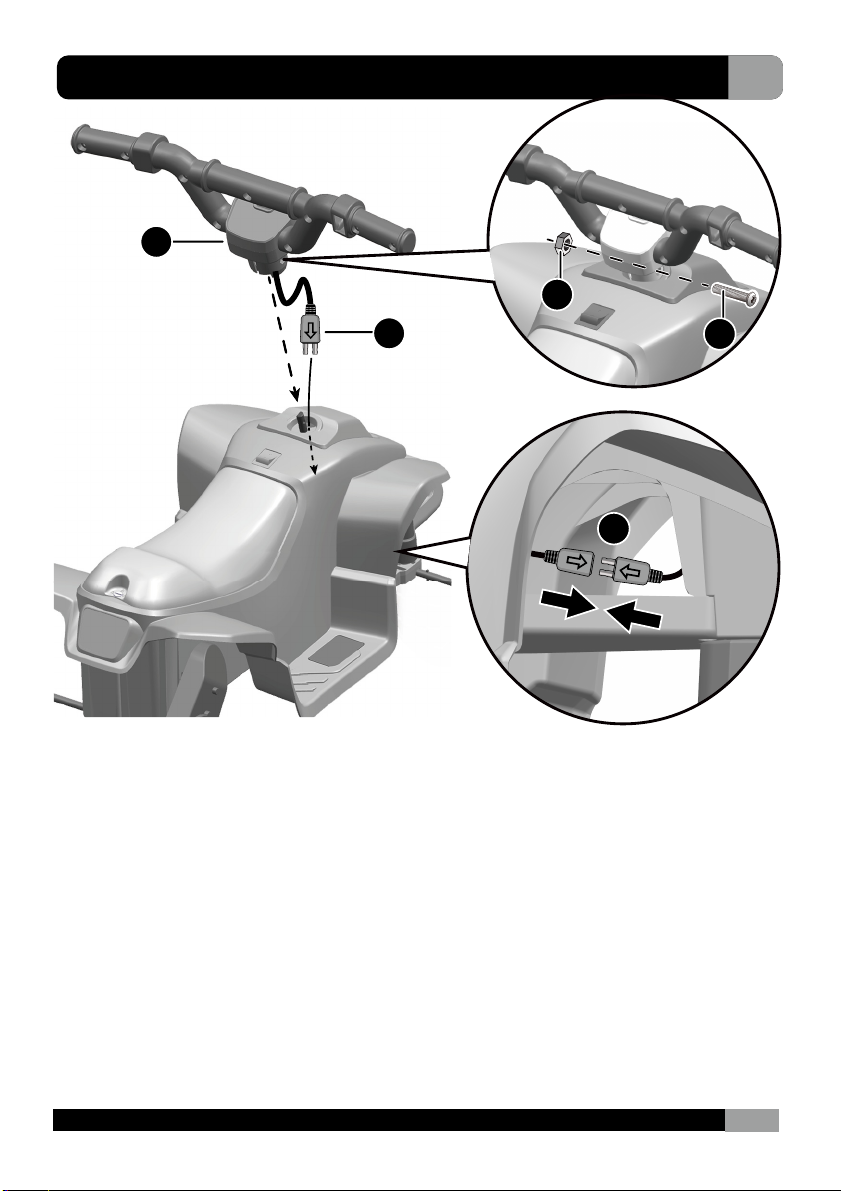

Attach the Handle Bar
• Turn the vehicle body over.
1. Insert the power unit connector into the hole the vehicle body.
2. Fit the handle bar onto the end of the steering column.
3&4. Line up the holes on the steering wheel with the holes on the steering
column, insert the M5x30 machine screw. Fasten a nut on the opposite end of
the screw. Using a long nose pliers to hold the nut while tightening the screw
on the other side with a screwdriver.
5. Plug the power unit connector into the connector on the vehicle body.

7
E
1
5
6
7
8
9
23
4

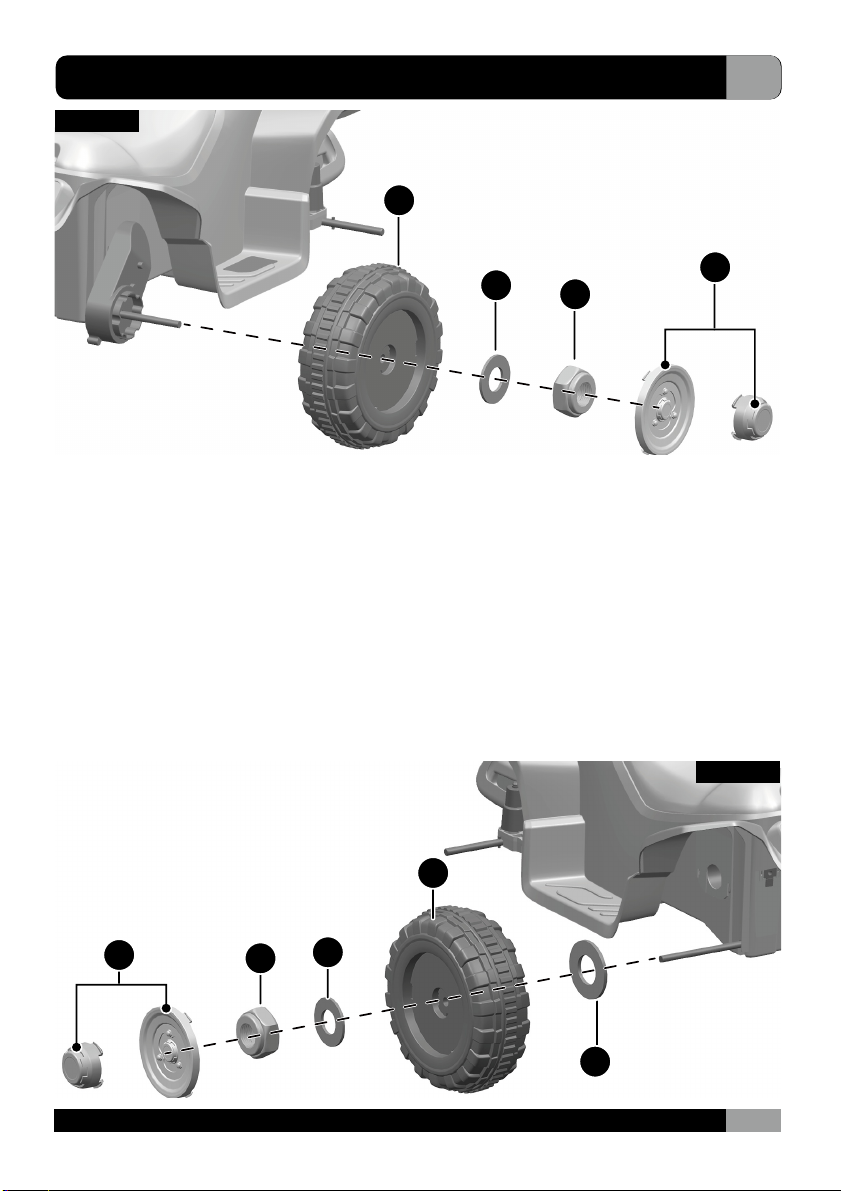

Attach the Rear Wheels
1. Slide a wheel onto the rear axle from the right side. Ensure the wheel match
up with the gear box.
2. Slide a Φ8 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.
4. Insert the tabs on the wheel cover (or hubcap) into the grooves on the wheel.
5. Slide a Φ10 washer onto the rear axle from the left side.
6. Slide a wheel onto the rear axle.
7. Slide a Φ8 washer onto the rear axle.
8. Tighten a lock nut to the end of the rear axle with a spanner.
9. Insert the tabs on the wheel cover (or hubcap) into the grooves on the wheel.
Rear view
Rear view

8
E
1
2
34
5
Attach the Front Wheels
1. Slide a Φ10 washer onto the front axle from the left side.
2. Slide a wheel onto the front axle.
3. Slide a Φ8 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner.
5. Insert the tabs on the wheel cover (or hubcap) into the grooves on the wheel.
Front view

9
E
1

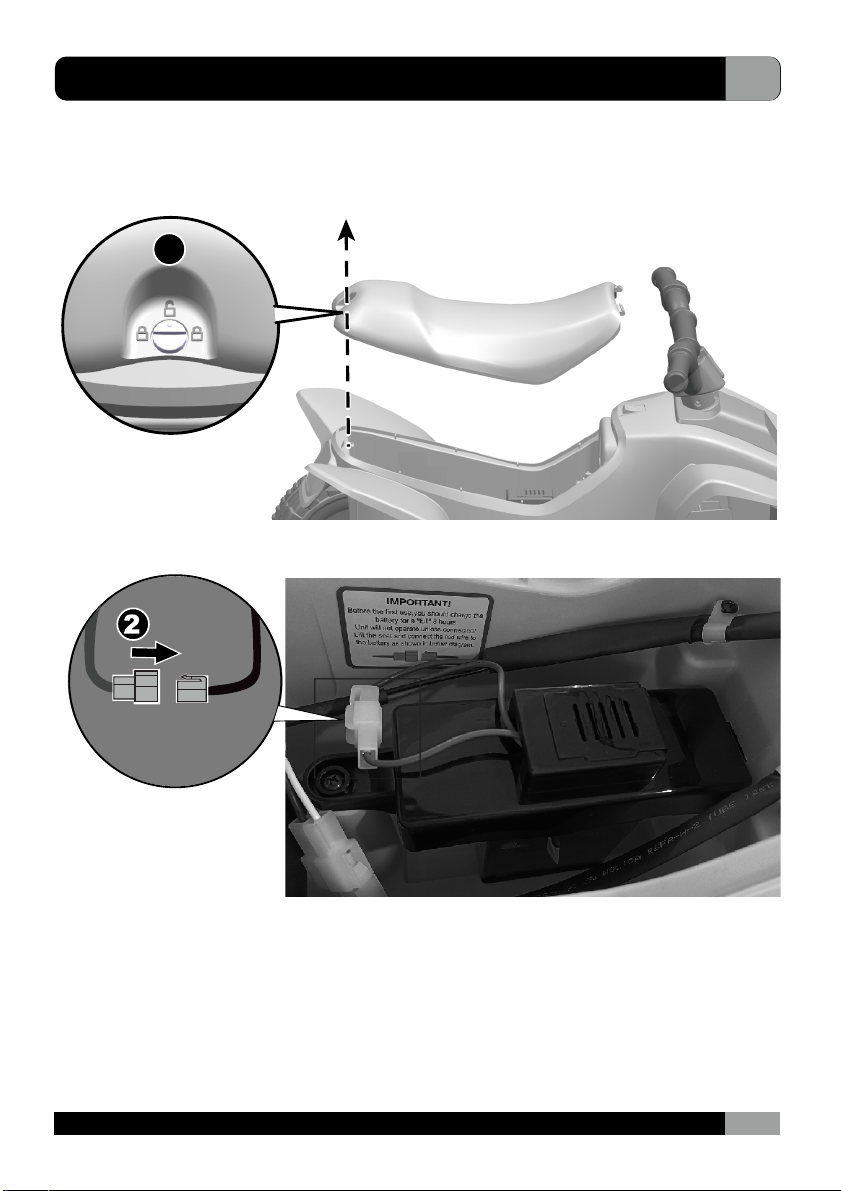

External charging type : Connect the Power Supply
If your product was External Charging type, follow the steps on this page.
1. Using a slotted screwdriver(not included) or coin to turn the seat lock, and
remove the seat.
2. Pulg the battery connector into the terminal on battery.
3. Replace the seat.

10
E
1
2
3
1. Power button:
● To move the product, press the button.
● To stop or slow down, release the button.
2. Forward/stop/reverse switch:
Changes the direction that the product moves from forward to reverse.
● To move the product forward, press the switch to top position.
● To move the vehicle reverse, press the switch to down position
3. (If equipped) Music/horn button
Press for music/horn playing.
Use your New Ride-on
Style I
Always stop vehicle when changing the
speed or direction to avoid damage the
gears and motor.
IMPORTANT!

11
F
1
2

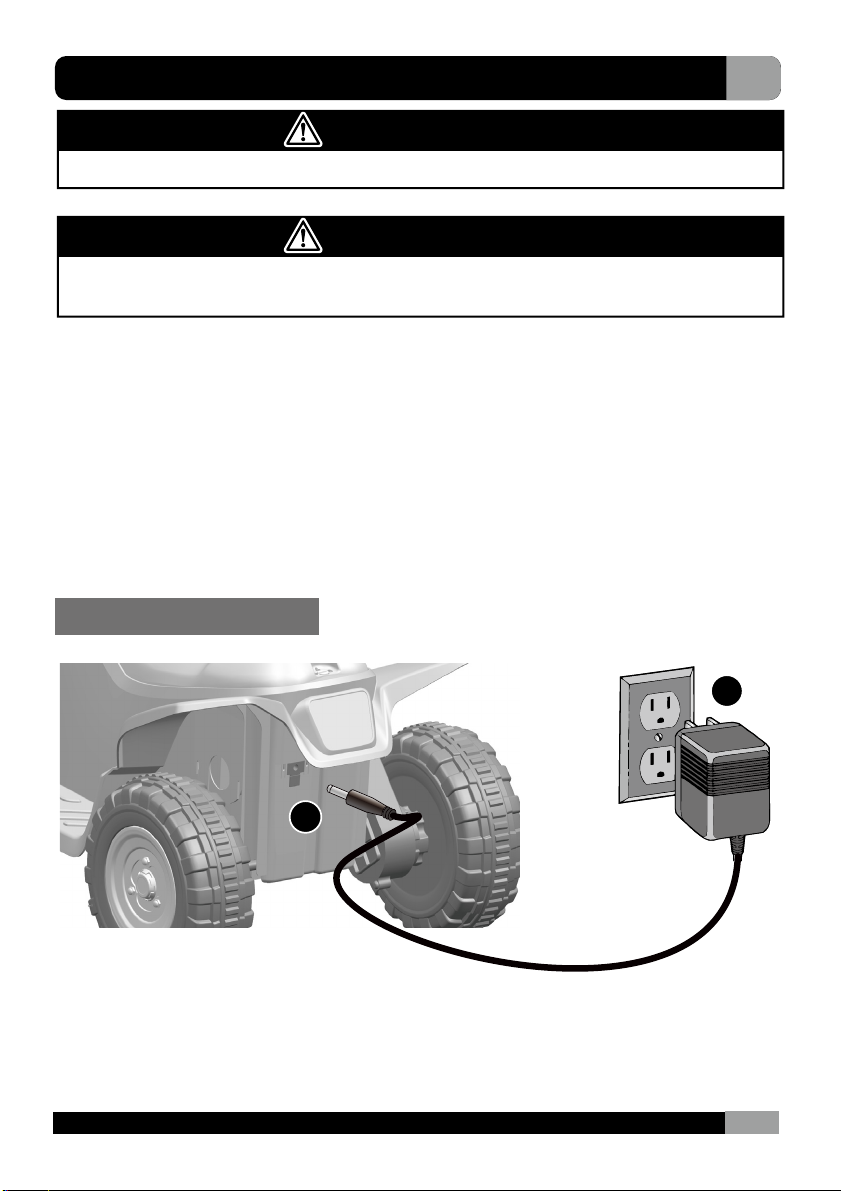

Charging
1. Plug the charger port into the input socket. (the socket in on the back of the
vehicle body)
2. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
WARNING!
This product with Charging Protection: when charging, all functions will be cut
off! Only an adult can charge and recharge the battery!
1. External charging type
• When the vehicle begins to run slowly, recharge the battery.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the
battery for more than 10 hours to avoid overheating the charger.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20
hours at most.
• Use the only rechargeable battery and charger supplied with your vehicle. NEVER
substitute the battery or the charger with another brand. Using another battery or charger
may cause a fire or explosion.
• Do not use the battery or charger for any other product.

D
C
A B
12
F
Charing
Charger connector
A. Using a slotted screwdriver(not included) or coin to turn the seat lock
counterclockwise to the end, and remove the seat.
B. Unpulg the battery connector with the vehicle connector.
C. Plug the charger connector into the battery connector.
D. Plug the charger plug into a wall outlet. The battery will begin charging.
1. Battery charing type

13
G
Troubleshooting Guide
.
Problem Possible Cause Solution
Vehicle does not run
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
Connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery.
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
contact your distributor please.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Attempting to shift while the
vehicle is motion
Completely stop the vehicle and shift, see <Use Your
New Vehicle>
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle.
Avoid using vehicle in harsh conditions ,see <Safety>.
Recharge battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Completely read through this manual and the troubleshooting guide table before calling. If you
still need help resolving the problem Contact your distributor please.

14
HMaintaining
Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
Disposal Of Battery
● Your sealed lead-acid battery must be recycled or disposed of in an environ-
mentally sound manner.
● Do not dispose of your lead-acid battery in a fire. The battery may explode or
leak.
● Do not dispose of a lead-acid battery in your regular, household trash. The
incineration, land filling or mixing of sealed lead-acid batteries with household
trash is prohibited by law.
• It is parents' responsibility to check main parts of the toy before using, must
regularly examine for potential hazard, such as the battery, charge,cable or cord,
plug, screws are fastening enclosure of other parts and that in the event of such
damage, the toy must not be used until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic
parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery.
Recharge the battery at least once a month when the vehicle Raider is not being
used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and
water. Do not drive the vehicle in rainy or snowy weather. Water will damage the
motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a
non-wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the
moving parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power
switch and disconnect the battery connection.
