ELK-800
Audio Amplifier
FEATURES:
•Small, Compact Public Address Amplifier.
•AlarmAnnunciationAmplifier.
•ExpandedTelephoneSystemPaging.
•Amplified Telephone Ringer Where Speaker
ToneSignalingIsAvailable.
•Eliminates Large Bulky Amplifiers.
•NoNeedFor70VoltLineTransformers.
•UsesInexpensive22-24AWGWire.
•DrivesOrdinaryHornOrConeSpeakers.
•Built-in Volume Control & Gain Select.
SPECIFICATIONS:
•Operating Voltage: 12 to 24V A.C. or D.C.
•InputImpedance:1000OhmsNominal.
•Audio Input Level: -15 dBm to +10 dBm.
•Rated Output: 10 Watts.
•Output Speaker Load: 2 to 16 Ohms.
•CurrentAt24VDC:350mANominal,800mA
Maximum.
•Temperature: 0 to 130°F.
• Humidity: 0 to 95% Non-Precipitating.
Features and Specifications subject to change without notice.
05/02
AudioAmplifier
ELK-800
APPLICATION:
A compact low cost audio amplifier ideal for
paging, and alarm annunciation. The ELK-800
can be centrally or remotely installed and saves
money by requiring only 22-24 gauge telco or
alarmtype wire. Itoperateson 12to24VoltsA.C.
or D.C. and has a built-in volume adjust. The
output is short circuit protected is capable driving
multiple speakers.
ELK-800 Installation
Wiring Connections
Terminal 1 & 2 - 12 to 24 volts A.C. or D.C. power input. No polarity need be observed.
Terminal 3 & 4 - Audio Input(limited to -15 dbm to + 10 dbm), or Telephone audio paging line.
For weak audio input signals, Set Jumper to Preamp for +18 dbm extra gain.
Terminal 5 & 6 - Speaker output. Two (2) ohm maximum load. Speakers may be series/
parallelwired formultiple speakercombinations upto 16speakers.
Power Supply Wire Run
Speakers Per Wire Length (ft)
Power Run 24AWG 22AWG
16 25 40
850 80
4 100 160
2 200 320
1 400 640
Audio Input Wire Run
When using a remote power supply and 24 AWG wire, the length of the audio wire should be
limitedto5000 feetwithamaximum offour(4) ELK-800amplifiersconnected.Standard telephone
twisted pair wire is a good choice for the audio wire run.
Speaker Spacing & Connections
Sound Level Location Speaker Spacing
Quiet 50 to 65db,offices 120feet(14,400sq.feet)
Moderate 65to 80db,lightmanufacturing 90feet(8,100 sq.feet)
Noisy 80to90db,heavymanufacturing 60feet (3,600sq.feet)
Very Noisy Greaterthan90db 40feet(1,600 sq.feet)
Volume Control
Turnthe volumecontrolclockwise (CW)to increasevolume. Adjustto acomfortable level.
Audio Input Gain Control
Iftheaudio input signal is toolow for proper amplification, switchJumper to Preamp position foran
additionalaudioinputgain of+18dbm(8 Xgain)

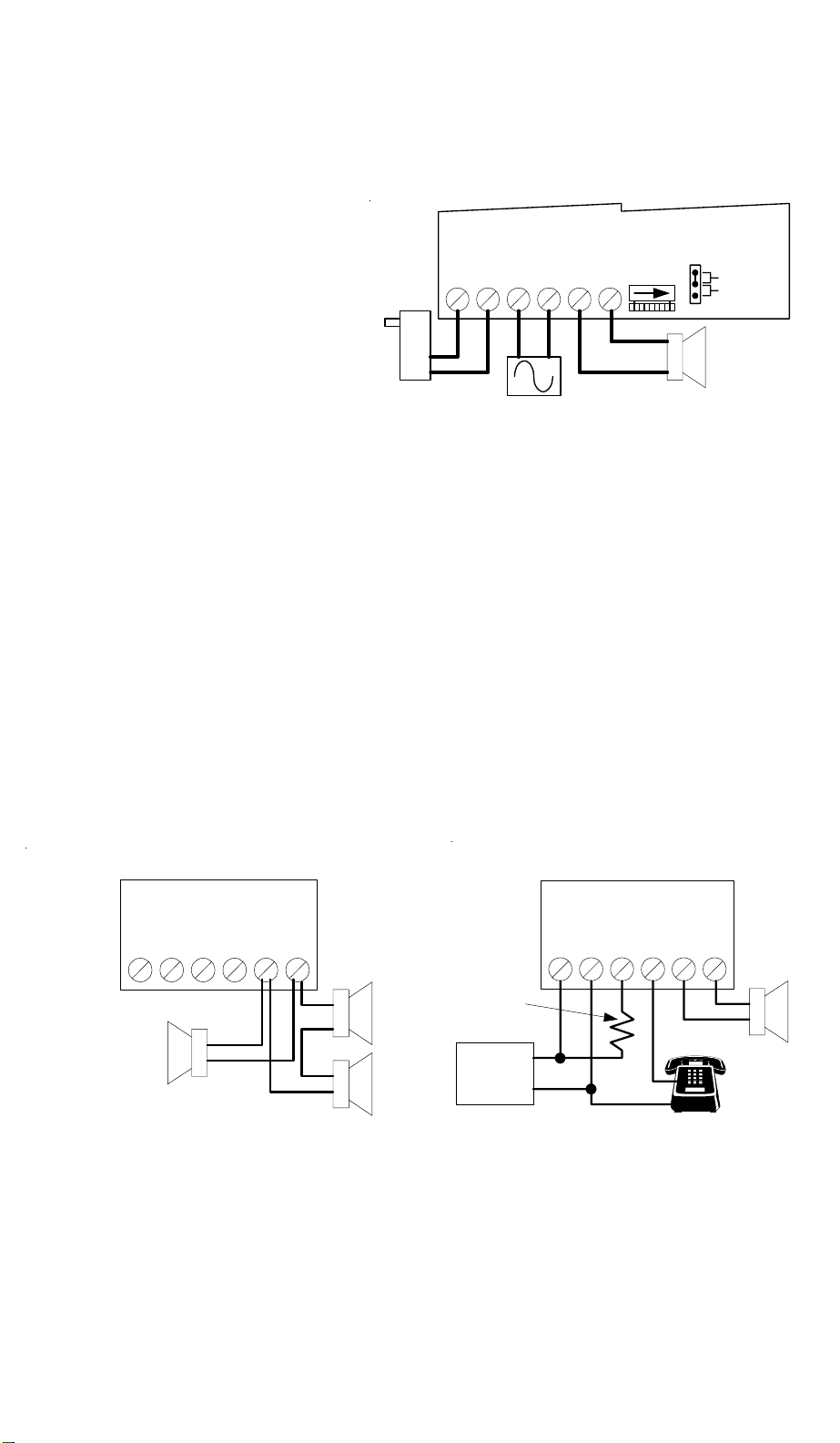

ELK-800
123456
12VDC
Power
Supply
+
-
SPEAKER
STAND
ALONE
PHONE
1000 ohm
1/2 watt
Resistor
How to use an ELK-800 as a simple paging system
Note: DO NOT connect to phone company lines
RED
GREEN
ELK-800
123456
Example: Three Speakers on an ELK-800
Total Resistance = 6 OHMS
THREE
8 OHM
SPEAKER
S
2 SPEAKERS in SERIES
1 in PARALLEL
123456
Audio Line Input
-15dbm to +10dbm
Power Supply
12 to 24 VDC
or VAC
8 ohm Speaker
2 ohm max load
Volume
Increase NO PREAMP
PREAMP
ELK-800
JUMPER
