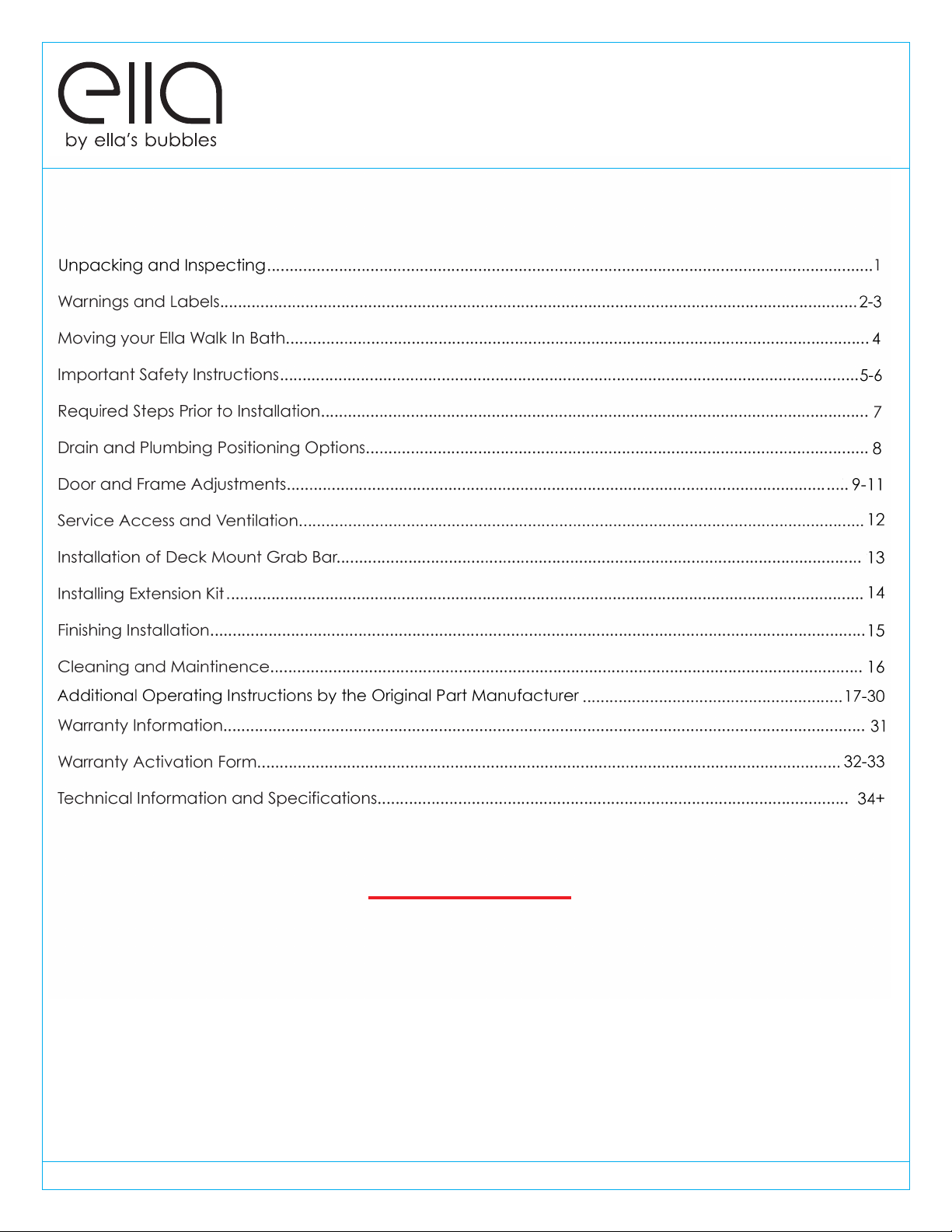

Table of Contents
www.ellasbubbles.com
IMPORTANT
Warranty Activation Form MUST be completed for both the Owner and Installer to validate
the warranty.
Failure to complete both pages (p.18 and p.19) will void the warranty on this bathtub.
Completed Ella Warranty Activation Forms can be emailed to [e-mail],
faxed to 312.666.3551, OR mailed to 2101 S. Carpenter St., Chicago, IL 60608

NOTE: Returns are only accepted in original packaging used for shipping. Use caution so as
not to damage cardboard crate or its wooden pallet. Do not dispose of shipping material
until installation is complete. Please visit our website, www.ellasbubbles.com for complete
details of return/exchange policy.
Unpacking andInspecting
www.ellasbubbles.com 03/18
Inspect the carton for
damage: Take a picture if
possible.
CAREFULLY RECORD ALL
PERCEIVED DAMAGE
DO NOT LIFT THE TUB BY THE
PLUMBING. Doing so can
result in leaks, for which the
installer is responsible. All
Walk-In Tubs are water tested
before they leave our
factory and the bath tub you
have purchased has passed
inspection.
Inspect the plumbing for any
fittings that may have
loosened in transit.
You must follow all the instructions in this manual.
FAILURE TO READ AND COMPLY WITH ALL INSTRUCTIONS CAN RESULT IN PRODUCT
DAMAGE OR INJURY TO BOTH INSTALLER AND HOMEOWNER. IT WILL ALSO RESULT IN
ASSUMPTION OF ALL LIABILITY BY SAID INSTALLER

Warnings and Labels
Your Ella's bathtub comes with several warning label stickers throughout and are as follows:
www.ellasbubbles.com 03/18
Details on Page 12
Details on Page 3
Push Control
Acrylic Shell
Back nut
Air hose

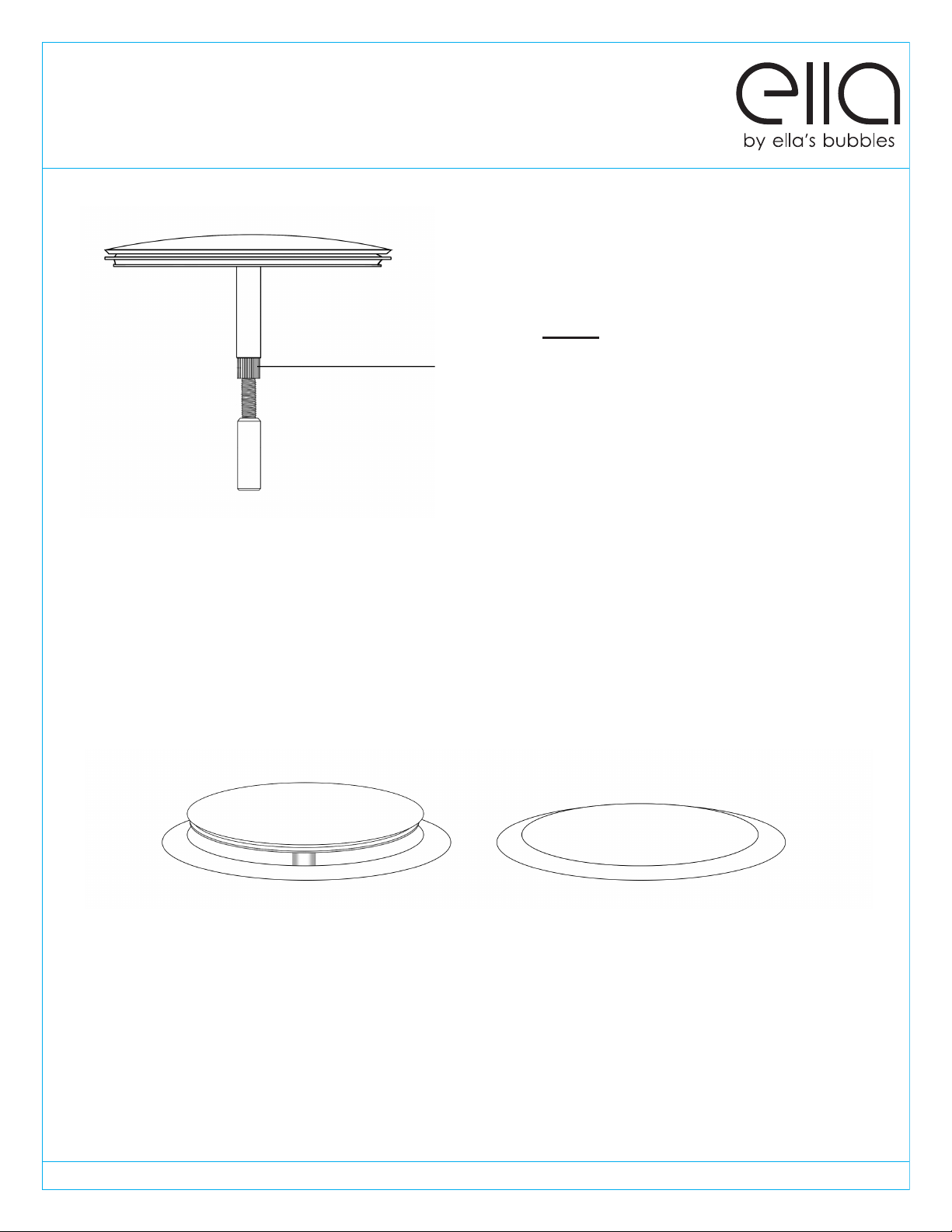

Warnings and Labels continued
www.ellasbubbles.com 03/18
Backnut MUST be securely tightened.
Failure to do so will cause loosening
over time resulting in it coming apart
and falling down the drain.
Drain open
all the way
Drain closed
completely
Drain must open completely to drain
properly and close completely to avoid
unnecessary drainage.

WARNING!
PLEASE READ BEFORE BEGINNING INSTALLATION
WARNING: Do not attach the hand held shower to the wall unless you have an extension
hose with a barrel protection. This may cause water to leak behind your walk in tub.
Water from the hose can drip down
into the hand shower base and get
behind your tub without the barrel
protection.
TO INSTALL BARREL EXTENSION HOSE:
1)) Star by unscrewing your shower head
mixer from the hose.
2) Next take your stainless steel barrel and
screw it on the end of the hose.
3)) Take your extension hose and screw t
end to the opposite side of the barrel.
4)) Place th barrel in the shower base to
plug the hole.
5) Finally, screw on the shower head mixer to
the other end of the extension hose.
www.ellasbubbles.com 03/18

Please heed all warnings listed in the
previous pages to avoid potential issues

Large Access Panel (1)
Small Access Panel (2) End Access Panel (4)
White Screw Caps
Toe Kick Access (3)
- Access to parts
- Option to lower the Threshold
•Remove all four (4) access panels before
moving the tub
•Take off the screw caps
•Unscrew the screws with a
Philips head screwdriver
•Remove the end access panel
Screw Washer Cap
WARNING: Do not carry the walk in tub by the panels. Be careful when carrying
the tub, avoid front panel contact with the floor or stairs to prevent damages.
Make sure no loose parts are hanging down. Remove all four (4)access panels
before carrying the tub to prevent them from falling out and breaking.
Slide On Brackets
Deck
Frame
Access Panel
Screw-On
Support Brackets
Water Supply Lines
End Access
Panel
WARNING: Lift and carry the tub only by the frame. Protect the bottom of the
tub to avoid breaking the air jets positioned on the bottom of the tub.
Moving your Ella Walk in Bath
www.ellasbubbles.com 03/18

WARNING:
***Read through the entire manual completely before beginning installation.***
Contract a licensed plumber and electrician for installation. Be sure you and your
contractor are aware and follow all local plumbing and electrical codes. Your Ella Walk
in Bath is not intended for outdoor use. Install the tub in accordance with the instructions
in the manual. Use ONLY the parts and accessories provided or as recommended by the
manufacturer.
CAUTION:
When using this product, basic precautions should always be followed. Read and follow
all instructions pertaining to risk of re, electric shock and injury. Make sure and have your
licensed electrician test all connections to the dedicated line, including the GFCI.
Risk of electric shock; Do not permit electric appliances within 3 feet (1.5m) of the tub. i.e.:
hair dryers, lamps, phones, radios, televisions, etc.
To reduce the risk of injury, do not permit children or persons with disabilities to use this
product unless they are supervised by an able-bodied adult at all times. Never drop or
insert any objects into any openings.
Do not turn on the Hydro jets without water reaching the waterline. The waterline is the point
where all jets are covered with water.
DANGER:
Temperature in excess of 100.4 Fahrenheit (38 Celsius) may be harmful to your health. Check
and adjust the temperature before use. Consult your physician before using your Ella Walk in
Bath if you have a heart condition or other health issues. People using medications, herbal
remedies, sleep aids, and/or having adverse medical history should consult a physician
before using this product.
Pregnant women should NOT use this product before consulting their physician. Avoid the
use of alcohol, drugs or other medications while using your walk in bath.
Be aware, hyperthermia is a risk when raising body temperature. Do no keep body
submerged in heated bath for extended periods of time. The symptoms of hyperthermia
include an increase in body temperature which can cause dizziness, lethargy, drowsiness
and fainting. Avoid using the heated bath after strenuous activity.
Exercise caution while entering and exiting your Ella Walk in Bath.
Important Safety Instructions
www.ellasbubbles.com 03/18

WARNING:
***USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO INJURY OR DEATH***
Important Safety Instructions
www.ellasbubbles.com 03/18

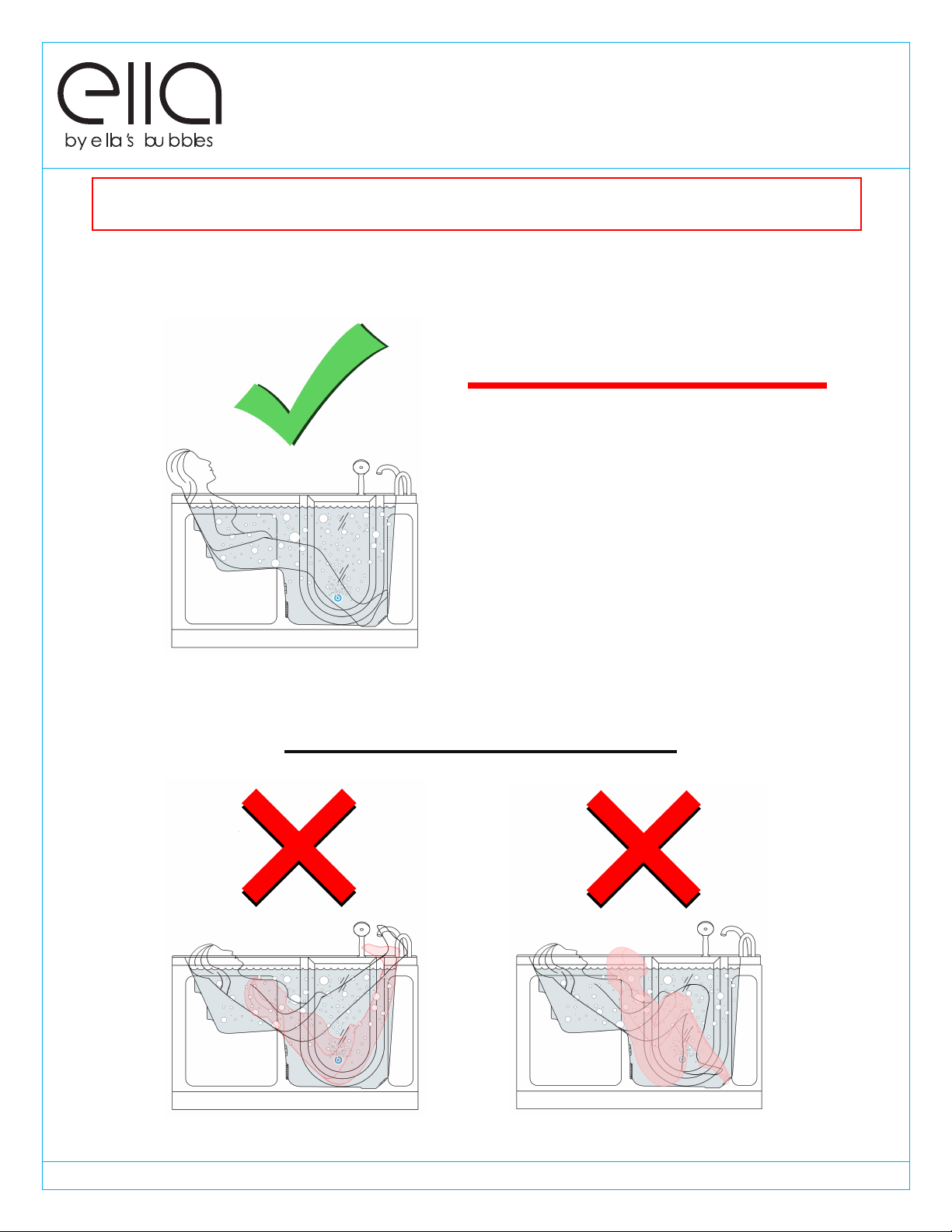

BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO
THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE
BACKREST. DO NOT ATTEMPT TO SLOUCH OR LIE
DOWN IN THE FOOT WELL AREA! DO NOT ATTEMPT
TO PUT YOUR FEET UP ON OPPOSITE SIDE OF TUB!
In the case of bathers who do not have all
functioning limbs or are paralyzed, bather must
be attended by caregiver at all times and use an
installed safety belt at all times.
CORRECT
WRONG POSITIONING
WARNING

Required Steps Prior to Installation
www.ellasbubbles.com 03/18
Place the tub on a completely flat surface in an area where it may be drained after
testing.
Using a clean rag and warm water wipe down seal to insure it is free of debris.
Seal the drains (this can be done with tape) and fill the tub to at least three inches
above the highest jet, or to the bottom of the grab bar if no jets are present.
Allow the water to stand in tub for 30 minutes and then inspect all plumbing and seals for
leaks.
Using appropriately rated three-prong extension cords, all plugged in to separate outlets,
operate all electrical components (air blower, water pump, and heater if applicable) for
another 30 minutes and inspect for leaks again. Inspect the unions around the pump and
heater.
If a leak persists at a union after tightening, it may have been over-tightened or might
have a displaced O-ring. Disassemble it and make sure the O-ring was seated properly.
Do the same if a leak persists at the heater. Verify that the heater threads match the
pipe threads.
Protecting the Bath
Cover and protect the bath shell and fixtures from scratches or other damages during the
installation and tests. Remove the access panels when moving the Walk in Bath and
always lift the bathtub from the frame.
Electrical
The unit MUST be connected to a circuit protected by a ground fault circuit interrupter
(GFCI) provided and installed by a licensed electrician and tested periodically (refer to
instructions provided by GFCI manufacturer). Electrical requirements vary based on
package; please refer to package diagrams included in the specifications. A licensed
electrician for your area is required to install and test the electrical installation process. DO
NOT use any kind of extension cords to power the unit.
Operating the pumps without first filling the bath to above the jets can cause permanent
damage to your equipment.
Push the GFCI “test” button into “reset” mode. If the GFCI fails to operate in this manner,
there is a ground current flow or a device malfunction, indicating the possibility of electrical
shock. If this occurs, turn OFF the power and do not use the bathtub until the source of the
problem has been identified and corrected.
Water Test
It is important to test that the Hydro and Air Pumps are functioning properly before final in-
wall installation to avoid unnecessary repairs or removal.
A.
B.
C.
D.
E.
F.

Drain and Plumbing
www.ellasbubbles.com
There are 2 types of drains used for Ella's Bubbles
Walk-In Tubs. 2" Brass or PVC T-type. Please refer to
the drain delivered with your Walk-In Tub.
v
Brass Drain Setup: The 2" Brass Drain
setup will have a 90 PVC elbow
o
connected to each of the drains. If
you see the 90 PVC elbow, that is
how you determine if it is a Brass
Drain setup as shown in the diagram
to the right.
o
To P Trap
Below Floor
Two 2" Drains
12"
Ella’s Elbow Drain

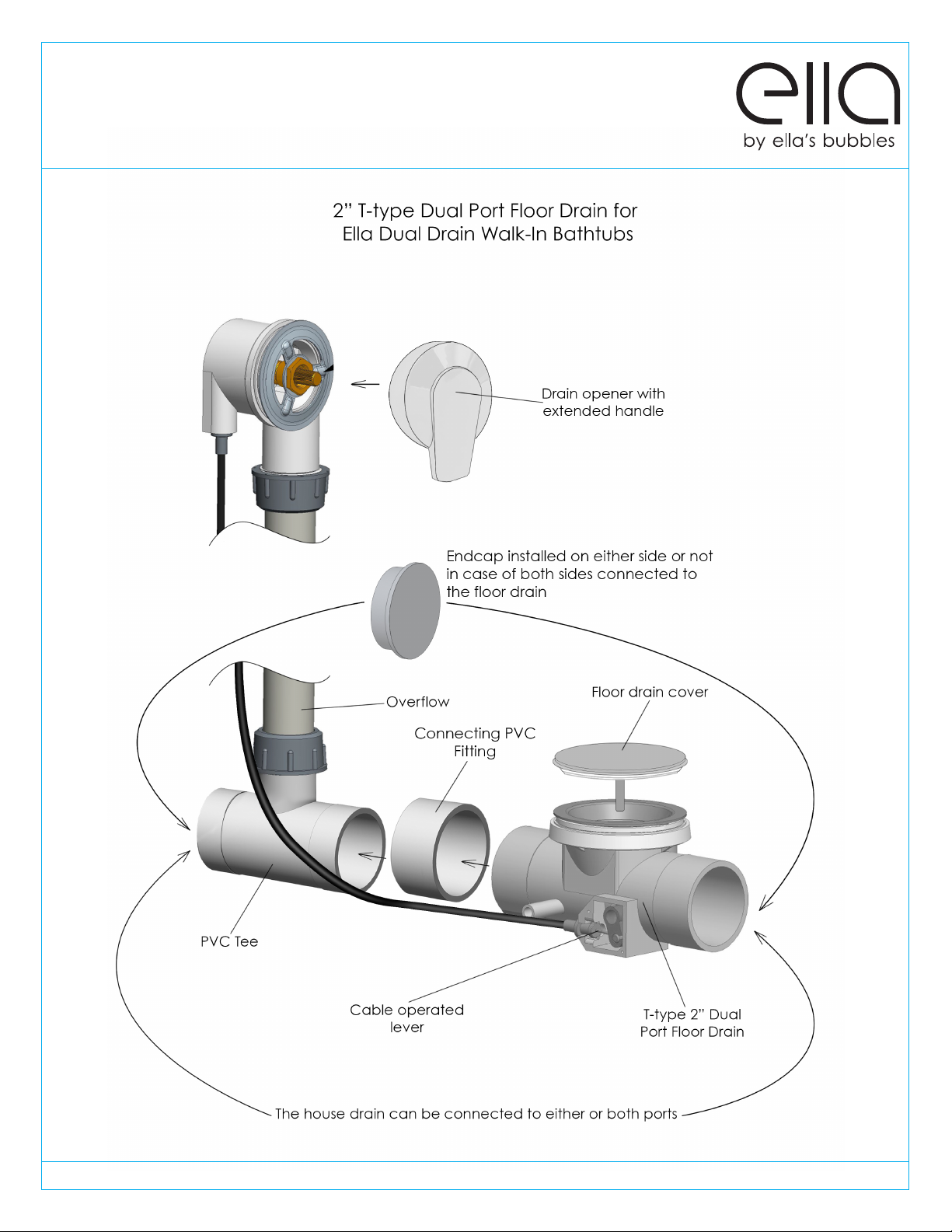

PVC T-Type Drain Setup: The PVC T-
Type Drain setup will have a T-Type
PVC connected to each of the
drains. If you see the T-Type PVC
connection, that is how you
determine that it is a T-Type Drain
setup as shown in the diagram on
the left.
2" Brass Drain System
2" PVC T-Type Drain System

Disclaimer:
In an effort to continually improve our product, speci�cations and con�gurations are subject to change without notice. Before ordering or installing,
consider future access to essential equipment.
Drain and Plumbing Positioning Options
for 2" Brass Drain Systems

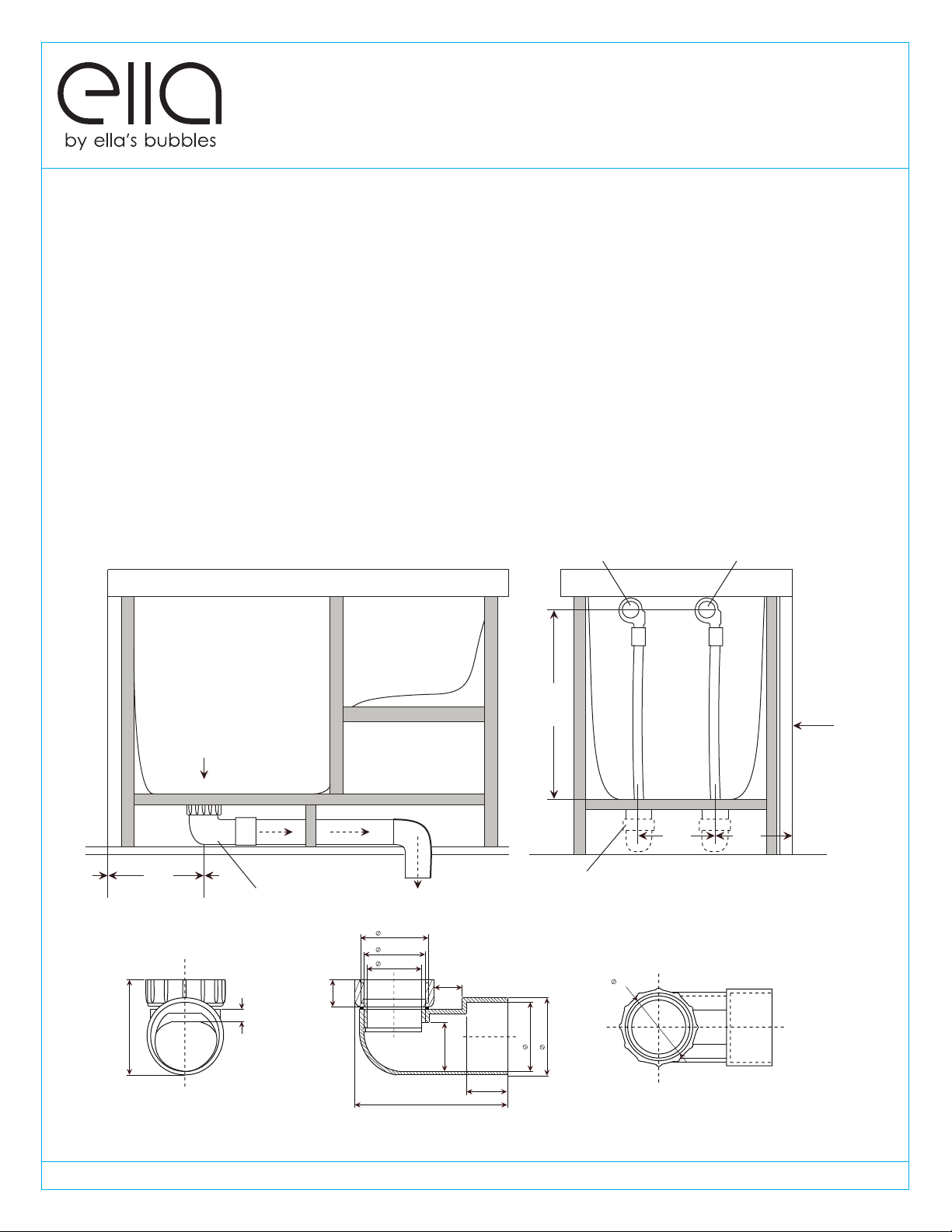

Make sure that the drain rough in has been placed at the proper location. The
specications and drawings shown below and on page #7 are for the Ella Deluxe (each
model comes with separate specications, please refer each model's specication).
The dual drain can be connected with a “T” or “Y” connection into existing house drain.
Proper materials must be used based on local plumbing code requirements.
NOTE: Flexible drains are not permitted in some areas. The customer and their contractor
are responsible for using the appropriate solution to meet the current local construction
and plumbing code requirements, proper drainage, and rodding access to the drain. The
contractor and customer is responsible for testing the house drain prior the installation of
the walk-in bathtub to assure proper drainage of the bathtub. The drainage time varies due
to condition of the house drain. The stated drainage time of 80 seconds only applies under
ideal plumbing conditions.
Drain Elbow Options
Two Drain Openers with Overflows
To P Trap
Below Floor
NOTE: Deluxe Model Shown
Specifications vary by model, please refer to the
drawing that matches the model being installed.
Front
Two 2" Drains
12" 2 1/4" Threaded Connection of 2" Drain for
Elbow or Drain Pipe Connection
28 3/4"
9 1/2" 8 1/2"
Ella’s Elbow Drain
3-1/4"
7/16"
2-3/8"
2-5/16"
2-3/16"
1-7/8"
1-1/2"
1"
5-1/2"
1-1/4"
2-3/8"
2-5/8"
1-11/16"
www.ellasbubbles.com

Drain and Plumbing Positioning Options
for 2" T Type Dual Port Drain Systems
www.ellasbubbles.com 03/18

www.ellasbubbles.com

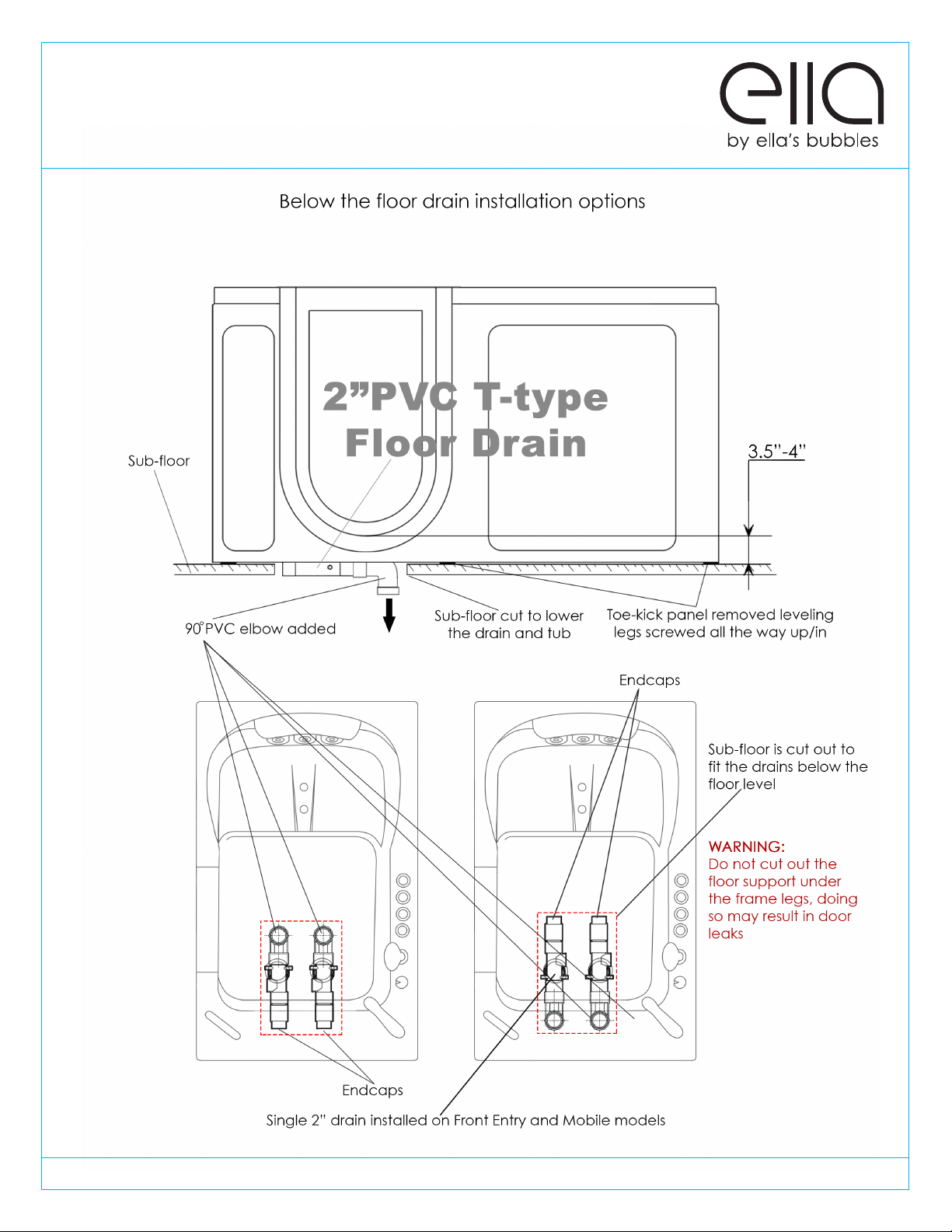

Drain and Plumbing Positioning Options
for 2" T Type Dual Port Drain Systems

www.ellasbubbles.com
Drain and Plumbing Positioning Options
for 2" T Type Dual Port Drain Systems

Door and Frame Adjustments

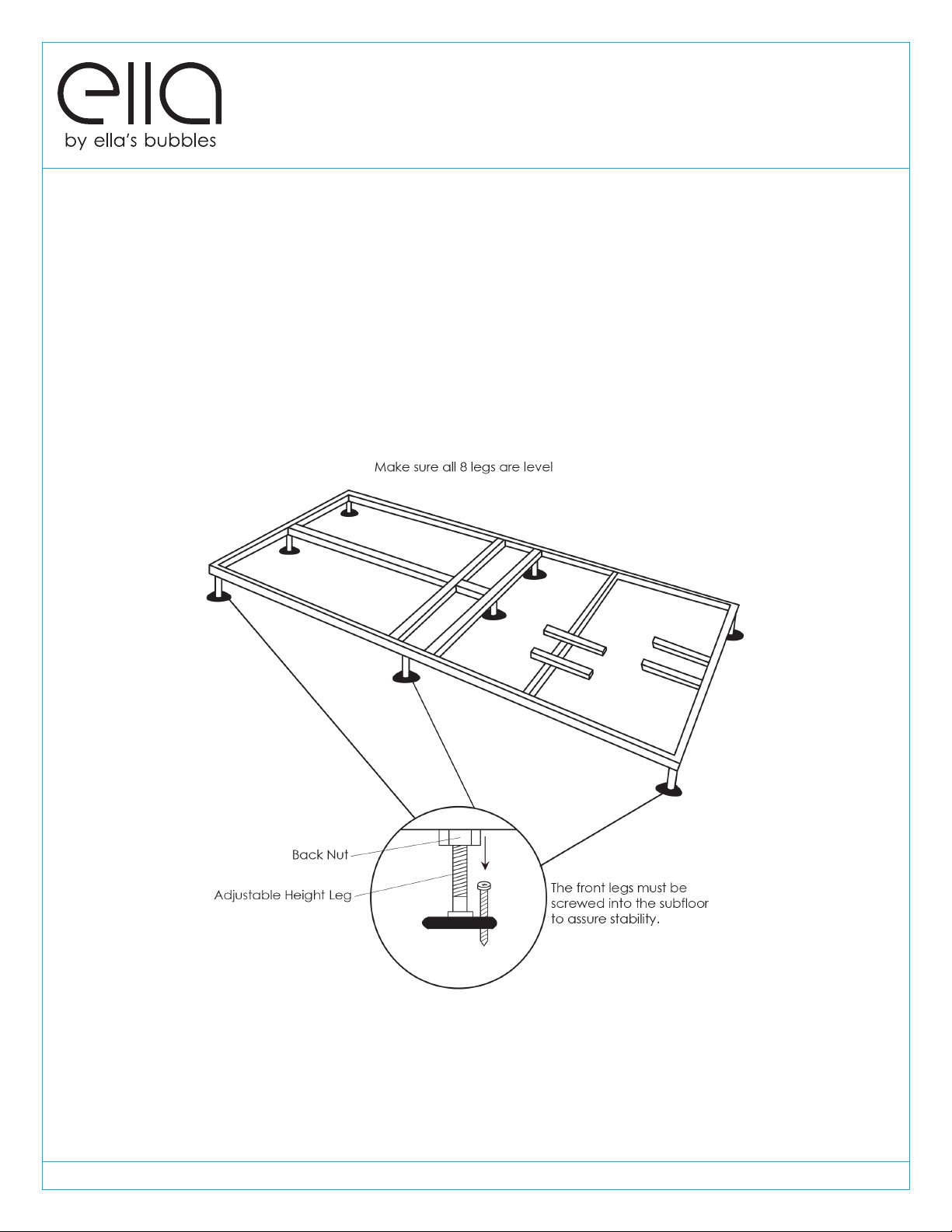

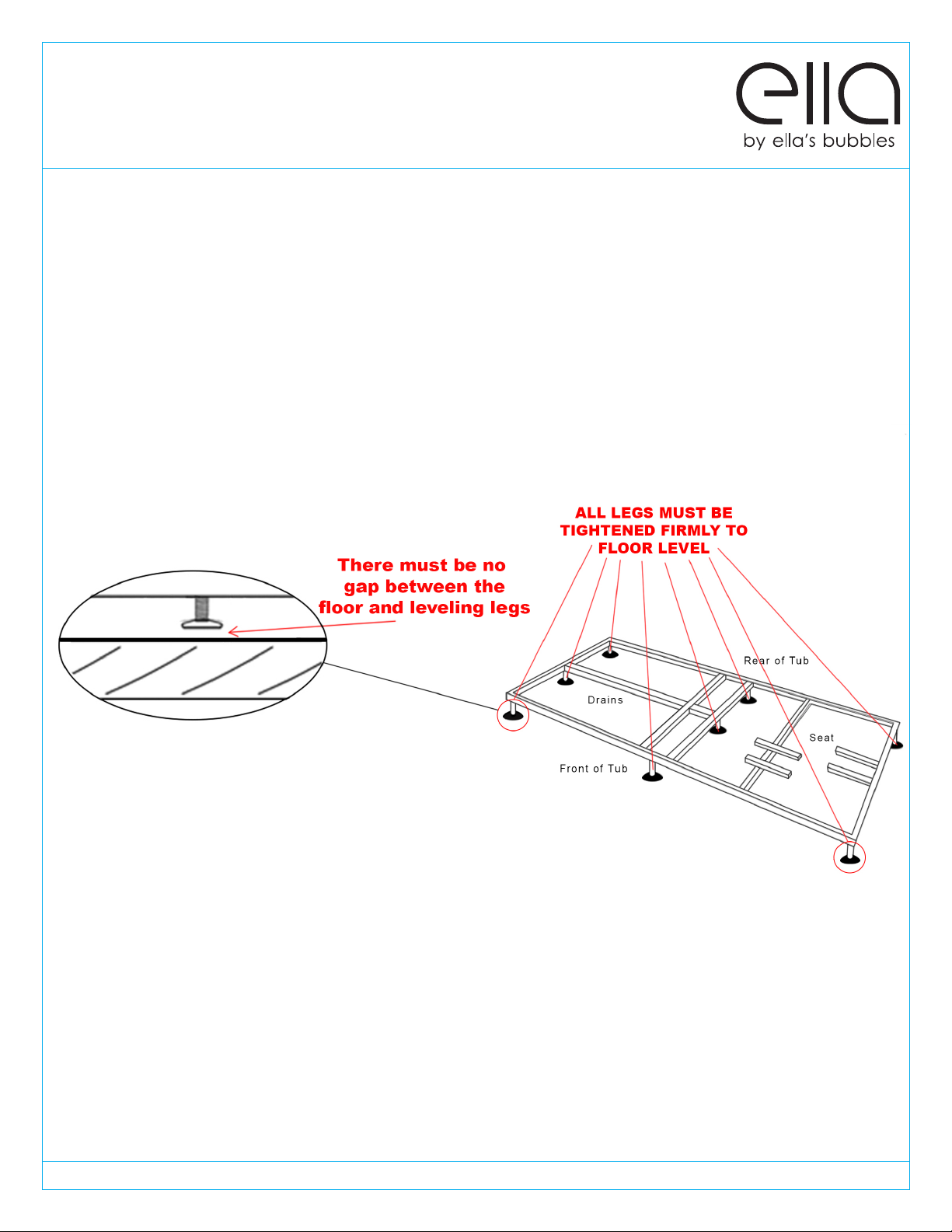

Prepare the sub-floor for the drain and ensure that the area is level. The supporting sub-floor
must be able to support the total weight of the bathtub, bather and water and must meet
local construction code requirements.
Use a level and make sure that the sub-floor below the tub is leveled. If the floor is not
perfectly level, adjust the appropriate leveling legs to re-align the tub to perfect level. It is
important that all of the leveling legs are completely supporting the tub (touching the floor
with equal weight distribution) and the tub is leveled for the door seal to work properly. If the
tub is not perfectly leveled, it may cause frame and shell warping which can cause
changes in door alignment resulting in water leakage and void the warranty.
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub-
floor does not support the total weight of the bath, bather and the water, it can result in
warping of the shell, misalignment of the door and/or create leaks and could lead to
damage of your home.
www.ellasbubbles.com 03/18

Door and Frame Adjustments
Your walk in bathtub has been tested and leveled properly before leaving our facility. Our
walk in bathtubs have been set on a perfectly level surface to ensure no leaks and proper
door closing. It is up to your installer to test and make any adjustments necessary to ensure
that all leveling legs support the tub frame and that the door is aligned correctly to prevent
any leaks. The door must close smoothly to create a water tight seal.
Extending or shortening the legs will help correct any alignment issues to close the gap
between the door and the frame. Please call us immediately if any issues arise or if you
have any concerns. 1-800-480-6850.
www.ellasbubbles.com 03/18
DISCLAIMER: The frame specifications and configuration vary based on model. If the sub-
floor does not support the total weight of the bath, bather and the water, it can result in
warping of the shell, misalignment of the door and/or create leaks and could lead to
damage of your home.

WARNING: Failure to level the tub correctly WILL RESULT IN MISALIGNMENT! The drawings
below illustrate some examples of what types of frame warping will occur if the legs are
not level with the floor.
Door and Frame Adjustments
www.ellasbubbles.com

It is the responsibility of the installer or owner to provide access for service required, per
code. Ella is not responsible for any costs related to obtaining access for repair. The owner
shall assume responsibility for such costs, and if appropriate, must seek recovery from the
installer.
Do not insulate around the tub equipment. The tub, frame and all parts have been
engineered to provide the proper ventilation. Any obstructions may cause the pumps or
other electrical components to overheat.
Door Seal
Please keep in mind that the door has been closed for an extended period of time
throughout shipping and the bathtub has been stored in various temperatures. It is possible
for the silicone seal to stick to the frame when stored for extended periods of time. When
the bathtub is received, the door seal should be checked for deformations from shipping

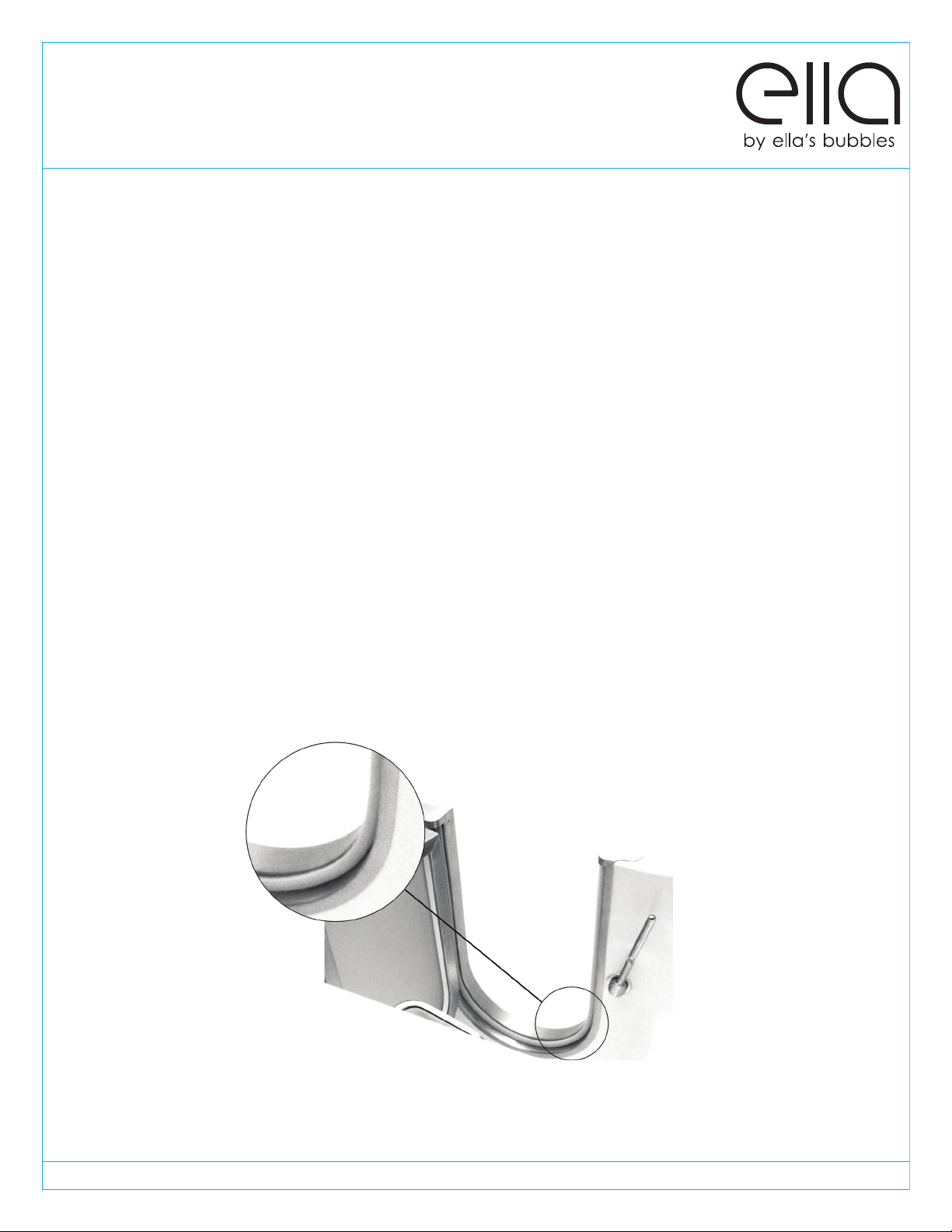

and re-formed and adjusted where necessary. To restore the door seal, the seal must be
released and allowed to relax with the door open. This is done by squeezing the seal with
your nger tips and pulling it away from the door frame to regain its exibility and original
form. It is recommended that the door be kept open when not in use to increase the lifetime
of the door seal and maintain its exibility.
Service Access and Ventilation
www.ellasbubbles.com
