SAFETY INSTRUCTIONS 4
INSTALLATION
BATH ON DECK 5
ELECTRICAL INSTALLATION • TURBINE
TURBINE WITH GEYSAIRTM 6
TURBINE WITH GEYSAIRTM & AROMACLOUDTM 7 - 8
TURBINE WITHOUT GEYSAIRTM,AND WITH AROMACLOUDTM 9
ELECTRICAL INSTALLATION • THERMASENSTM 10 -11
CONTROLS • INSTALLATION
DOT CONTROLS 12
AROMACLOUDTM 13
USER GUIDE
DOT CONTROLS 14
AROMACLOUDTM 15
TROUBLESHOOTING 16
WARRANTY 17
DRILLING TEMPLATE
AROMACLOUDTM 19

4 Supersedes page 4 of Owner’s Manual
TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | SAFETY INSTRUCTIONS
InstRUctIons PeRtaInInG to a RIsK of fIRe,
electRocUtIon, oR PeRsonal InJURY
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
• Risk of hyperthermia; people using medication and/or having an adverse medical history should consult a physician before using a
Hydro-thermo massage® bathtub equipped with a heater or a ThermaSensTM bath equipped with the WarmTouchShellTM technology.
• Risk of hyperthermia and possible drowning: do not use a Hydro-thermo massage® bathtub equipped with heater or a ThermaSensTM
bath equipped with the WarmTouchShellTM technology immediately following strenuous exercise.
• Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before using a Hydro-thermo massage® bathtub
equipped with a heater, or a ThermaSensTM bath equipped with the WarmTouchShellTM technology.
• Risk of accidental injury or drowning; do not use drugs or alcohol before or during the use of a Hydro-thermo massage® bathtub
equipped with a heater or a ThermaSensTM bath equipped with the WarmTouchShellTM technology.
• Use this unit only for its intended purposes or as described in this manual. Use only attachments recommended by the manufacturer.
• Risk of hyperthermia and possible drowning. water temperature in excess of 100ºF (38ºC) may be injurious to your health.
Check and adjust temperature before use.
• To reduce the risk of injury, as with any other conventional bath, do not allow children or physically impaired people to use this unit
unless they are closely supervised at all times.
• To avoid injury, exercise care when entering or exiting the Thermomasseur® or the ThermaSensTM.
• The GeysairTM (option) should always be connected to the hot water intake. If it is not the case, then, the Geysair option should be
deactivated via the bath control.
RISK OF ELECTRICAL SHOCK
• Disconnect electric power before servicing.
• Do not permit electrical appliances (hair dryer, lamp, telephone, radio, television, etc.) within 5’ (1.5 m) of the Thermomasseur®
or the ThermaSensTM.
• Before using the Thermomasseur® or the ThermaSensTM, its exterior construction (podium or skirting) should be finished so that
a bather cannot accidentally come in contact with electrical components (turbine and power module).
• For indoor use only.
ELECTRICAL CONNECTIONS:
• Never drop or insert objects into any openings.
• The Thermomasseur® must be connected only to a supply circuit that is protected by A 15 amp class A ground fault circuit interrupter
(GFCI) and/or 20 amps, depending on the type of Thermomasseur® and options selected. BainUltra ThermaSensTM must be connected
to a circuit protected by a Class A 15 amp ground fault circuit interrupter (GFCI). This interrupter is supplied by a certified electrician
and must be tested on a regular basis in accordance with manufacturer’s instructions. The GFCI ground must be connected.
If defective, do not use the bathtub. Disconnect immediately and call a certified electrician.
• Use 12 AWG (or greater) copper conductors that resist temperatures of at least 194ºF (90ºC).
• Canada only: for permanently connected units. A green-colored terminal (or a wire connector marked g, gr, ground or grounding) is
provided within the terminal compartment (not applicable if unit supplied with an electric plug). To reduce the risk of electrocution,
connect this terminal or connector to the grounding terminal of your electric service or supply panel with conductor equivalent in size
to the circuit conductors supplying the equipment and be 12 AWG or more.
• All electrical connections must be carried out by a certified electrician and must respect federal, provincial/state, and localbuilding
codes and regulations.
• Install in accordance with manufacturer’s installation instructions.
• For Geysair-equipped baths using remote turbine installation (not mounted on the bath), grounding continuity must be tested
between the bath grounding terminal and the bath power supply. Failure to perform the grounding continuity test could
result in serious personal injury.
WARNING
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100169
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.

THERMOMASSEUR® | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © September 2012 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 11 of Owner’s Manual 5
bath on decK
PLUMBING INSTALLATION
IMPORTANT • Bath must be completely supported by the floor making sure the edge rests entirely on the structure.
• Bath must be levelled.
• Bath is molded with a slope toward drain. If bath is levelled in respect to the deck, the water will
drain completely.
1. INSTALLATION
* See specification sheet of bath for exceptions.
1-1 Prepare the site to connect the plumbing
and turbine.
1-2 Build the (2” x 3”) wooden structure taking
into account the thickness of the ceramic
tiles and the plywood as well as the height
of the bath.
NOTE: Plan air intake for turbine.
1-3 Secure plywood into place with screws
around and above structure.
1-4 Cut inside 1 1/2” of the outside dimensions
of the tub.
1-5 Ensure bath is levelled and that it fits properly
in cutout.
NOTE: Protect turbine and accessories
as you insert bath.
1-6 Install desired finishing materials (ceramic
tiles, granit, marble or other) and top
surface and siding of the deck.
1-7 Set bath back into place and conduct
plumbing and turbine connection.
Edge of bath
Ceramic, marble,
granit or other
Plywood
2” x 3”
structure
1 1/2" [3.8 cm]

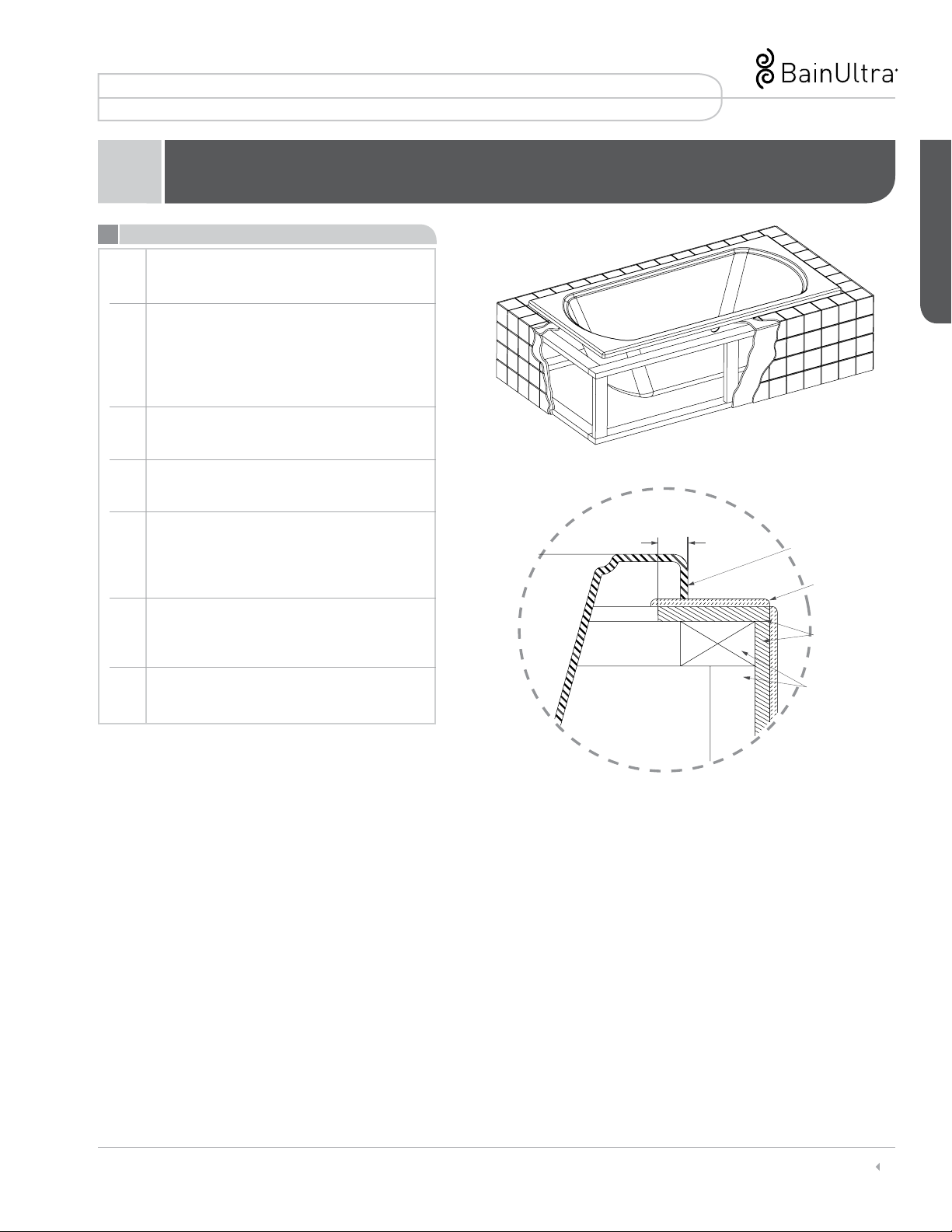

BATH ON DECK - PLUMBING INSTALLATION
NOTE • Baths with AromaCloudTM factory installed by BainUltra may require an additional cutout on the
podium for the AromaCloud housing. This extra cutout is required when the housing is less than
1.5 inch from the edge of the bath.

TURBINE
TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | TURBINE
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
6 Supersedes page 27 of Owner’s Manual

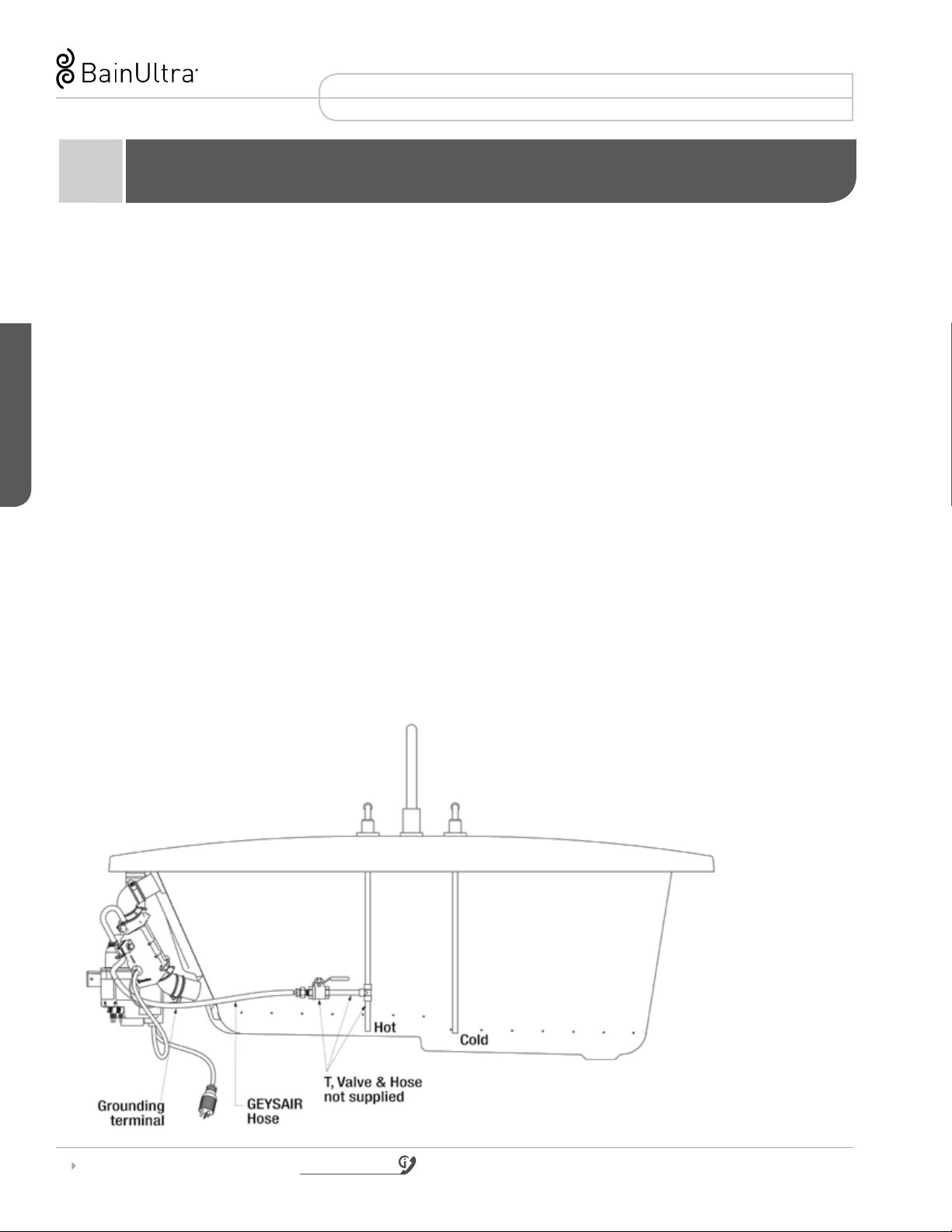

TURBINE WITH GEYSAIR - ELECTRICAL INSTALLATION & PLUMBING
tURbIne WIth GeYsaIR
ELECTRICAL INSTALLATION & PLUMBING
The turbine is connected to a 120V circuit.
All electrical connections must be carried out by
a certified electrician in accordance with local
electrical requirements and codes. Special attention
must be given to installation of bath’s power circuit,
and more particularly to the following points:
The electrical system must be connected to an
independent circuit protected by a new 20 AMP
Class A ground fault circuit interrupter (GFCI)
and another one of 15 AMP for additonal options.
This electrical circuit must imperatively be grounded.
CANADA ONLY: for permanently connected
units.
A green-colored terminal (or a wire connector marked g,
gr, ground or grounding) is provided within the terminal
compartment (not applicable if unit supplied with an elec-
tric plug). To reduce the risk of electrocution, connect this
terminal or connector to the grounding terminal of your
electric service or supply panel with conductor equivalent in
size to the circuit conductors supplying the equipment and
be 12 AWG or more. INSTALL THIS UNIT IN ACCORDANCE
WITH THE CANADIAN ELECTRICAL CODE, PART 1.
A service access is necessary. Minimum dimensions
are: 22” x 18” (55 cm x 46 cm) to properly reach all
electrical components of the system.
GROUNDING
ACCESS
CONNECTIONS
PLUMBING
The modules of the electronic controls and the turbine must be
easily accessible at all times. Make all connections as indicated on
diagram below. Ensure that power circuit is disabled before pro-
ceeding with any electrical connections. Electrical cable feeding
bath must be at least N° 12 AWG caliber. Turbine must be con-
nected to its own circuit, which, in turn must be connected
directly in breaker panel without any interrupters or dimmer
switches. Canada only: the junction box must be attached to the
wall at the height of at least 1 1/2” (3.8 cm) from the ground.
The Geysair hose must be connected to the hot water supply
by a qualified plumber and according to the local plumbing code.
A 3/8 inch male or 1/2 inch NPT hose bibb is supplied. For
optimal performance, keep hose length to a minimum. Set
temperature on hot water heater no higher than 140°F/60°C.
For all the houses having to deal with special water condi-
tions (hard, rust, sulfur, etc) the homeowner should already
be aware of the specific measures that should be taken for
all his other appliances using water. The Geysair does not
need other measures than that.

TURBINE
TURBINE | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
In addition to page 28 of Owner’s Manual 7
MIAPLUS®, MIAMULTI®
CONNECTIONS CONTROLS FOR THERMOMASSEURS®
• Electrical outlet must be installed by a certified electrician. Installation must be conducted in
accordance with all local, provincial/state, and federal building/electrical codes and regulations.
Connect electrical power supply only after all low voltage wiring is properly installed on turbine.
If you did not follow this last step, shut off and then restart your home’s circuit breaker. Turbine
and air pipe should be clear of building materials and wiring.
WARNING
tURbIne WIth GeYsaIR & aRomacloUd
ELECTRICAL INSTALLATION
TURBINE WITH GEYSAIRTM & AROMACLOUDTM - ELECTRICAL INSTALLATION

TURBINE
TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | TURBINE
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
8 Supersedes page 29 of Owner’s Manual

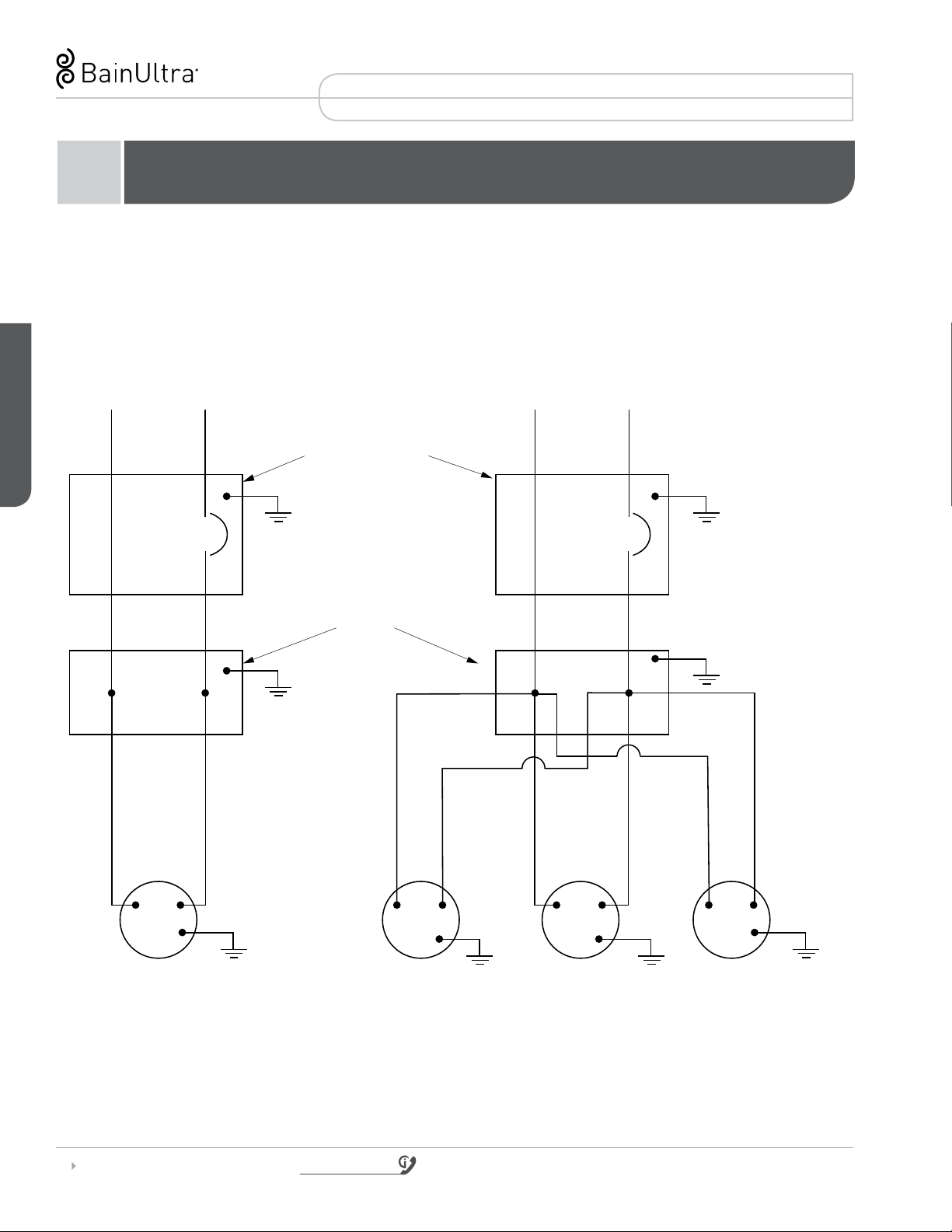

ELECTRICAL DIAGRAM
TURBINE WITH GEYSAIRTM & AROMACLOUDTM
Electrical connections for Canada only.
TURBINE WITH GEYSAIRTM & AROMACLOUDT M - ELECTRICAL INSTALLATION
15ACIRCUIT
20ACIRCUIT
NEUTRALN LLOAD NEUTRALN LLOAD
GROUNDFAULT
CIRCUITINTERRUPTERS
JUNCTION
BOX
AIRSTREME
(HEATEDBACKREST
A&HEADREST)
TURBINEWITHGEYSAIR
(FORMIA®,MIAPLUS®,
MIAMULTI®)
INMIXMODULE
(CHROMATHERAPY)
AROMACLOUDTM
N LN L N LN L
tURbIne WITH GeYsaIRtm & aRomacloUdtm
ELECTRICAL INSTALLATION

TURBINE
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 29 of Owner’s Manual 9
TURBINE | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
ELECTRICAL DIAGRAM
TURBINE WITHOUT GEYSAIRTM, & WITH AROMACLOUDTM
Electrical connections for Canada only.
15ACIRCUIT
(OR20AIFAMMAw.DOUBLEHEATEDBACKREST)
N LN L N LN L
15ACIRCUIT
NEUTRALN LLOAD NEUTRALN LLOAD
GROUNDFAULT
CIRCUITINTERRUPTERS
JUNCTION
BOX
AIRSTREME
(HEATEDBACKREST
&HEADREST)
TURBINEWITHGEYSAIR
(FORMIA®,MIAPLUS®,
MIAMULTI®)
INMIXMODULE
(CHROMATHERAPY)
AROMACLOUDTM
TURBINE WITHOUT GEYSAIRTM WITH AROMACLOUDTM - ELECTRICAL INSTALLATION
tURbIne WITHOUT GeYsaIRtm , AND WITH aRomacloUdtm
ELECTRICAL INSTALLATION

TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | TURBINE
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
10 Supersedes page 28 of Owner’s Manual
• Electrical outlet must be installed by a certified electrician. Installation must be conducted in
accordance with all local, provincial/state, and federal building/electrical codes and regulations.
Connect electrical power supply only after all low voltage wiring is properly installed on turbine.
If you did not follow this last step, shut off and then restart your home’s circuit breaker. Turbine
and air pipe should be clear of building materials and wiring.
WARNING
THERMASENS - ELECTRICAL INSTALLATION
CONNECTIONS FOR DOT CONTROLS ON THERMASENSTM BATHS
theRmasenstm
ELECTRICAL INSTALLATION

TURBINE | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 29 of Owner’s Manual 11
TURBINE WITH GEYSAIR - ELECTRICAL INSTALLATION
ELECTRICAL DIAGRAM - THERMASENSTM
Electrical connections for Canada only.
15ACIRCUIT
AIRSTREME
(WARMTOUCHSHELLTM)
AROMACLOUDTM
N LN L N L
NEUTRALN LLOAD
GROUNDFAULT
CIRCUITINTERRUPTER
JUNCTION
BOX
INMIXMODULE
(CHROMATHERAPY)
theRmasenstm
ELECTRICAL INSTALLATION

TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | CONTROLS
CONTROLS
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
12 In addition to page 54
of Owner’s Manual
THERMASENS DOT CONTROLS
theRmasenstm dot contRols

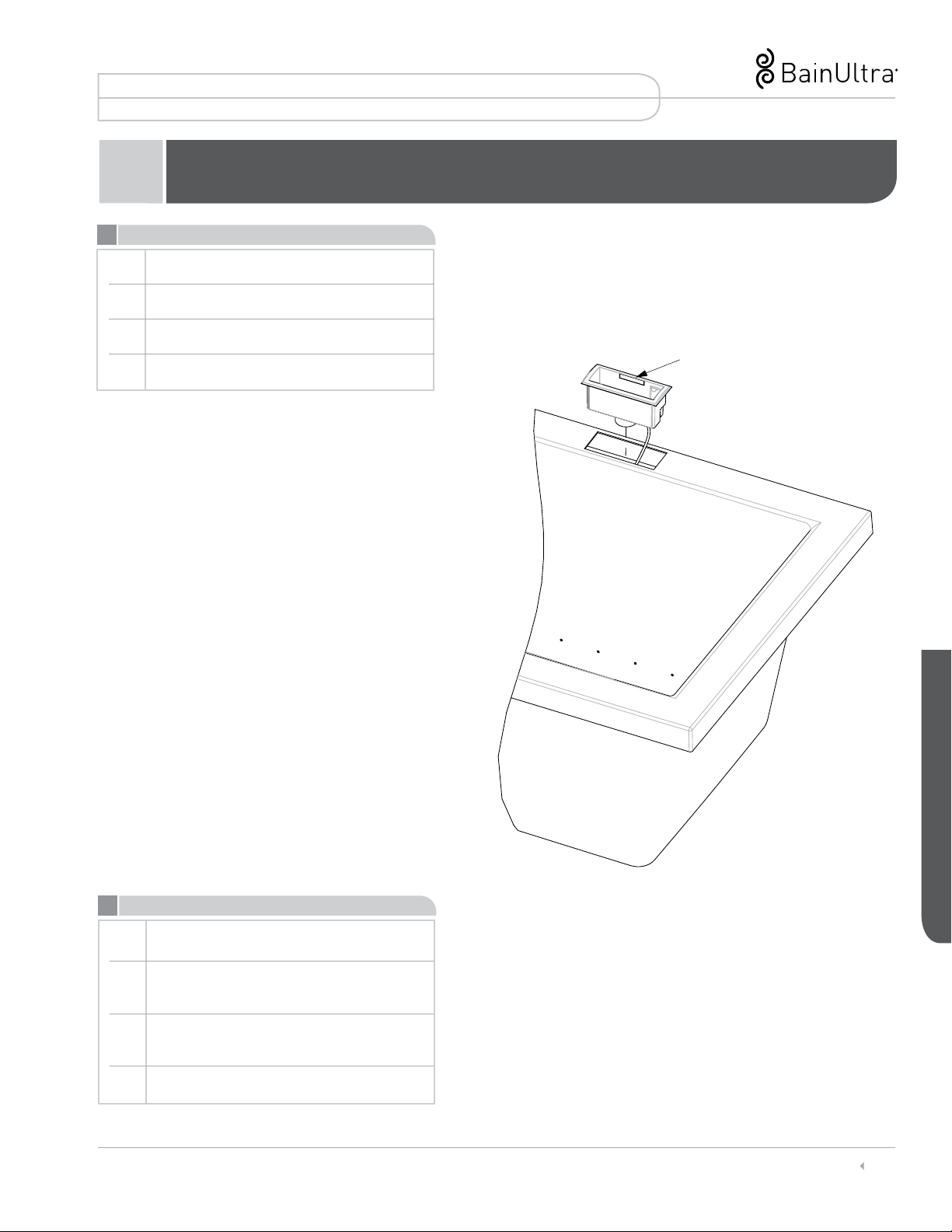

INSTALLATION
1 7/8 in. Hole Saw
2 Drill
WarmTouchShell DOT Chromatherapy DOT
Determine the most convenient location, on either
the wall or the deck, to install the control module
or consult the specifications sheet for the suggested
location. To avoid drilling in an electric component,
always check under the deck before drilling. If you
have to install the control to the wall, remove the
protective film of sticker behind the control. You
can add a silicone bead to secure it.
LOCATION
INSTALLING THE TOUCHPAD
REQUIRED TOOLS
1 Push wiring through drilled holes.
2 Remove protective film from watertight
seal.
3 Secure touchpad into place on either
the podium or the wall by using the nut
supplied.
4 Tighten sufficiently to insure seal is airtight.
• If control is not factory installed, you will find it attached on the turbine, or to the
electronic controls modules.
WARNING

CONTROLS
CONTROLS | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
aRomacloUdtm
INSTALLATION
AROMACLOUDTM
If performing a home installation of AromaCloud
instead of a BainUltra factory installation, consider
the following points when selecting the installation
position:
• AromaCloud must be installed on bath decking;
no other position is acceptable.
• The Bainultra recommended position.
• The position of controls, if applicable.
• The position of fittings.
• The position of tiling flange and bath skirt if present.
• The desired direction with respect to the bath and
the room entrance.
• The possibility that the podium will require an ad-
ditional cutout to house AromaCloud.
Note that factory installation by BainUltra will always
be performed for freestanding baths whose decking
has been modified to house AromaCloud.
LOCATION
1 Push wiring through drilled holes.
2 Connect the AromaCloud to the
transformer underneath the bath.
3 Remove protective film from watertight
seal.
4 Fix on the bath deck.
AromaCloudTM Water Level
Sticker on the Exterior Side.
1 Jigsaw with finishing blade.
2 Drill.
3 1/4 in Bit.
4 Adhesive masking tape.
INSTALLING THE AROMACLOUD
REQUIRED TOOLS

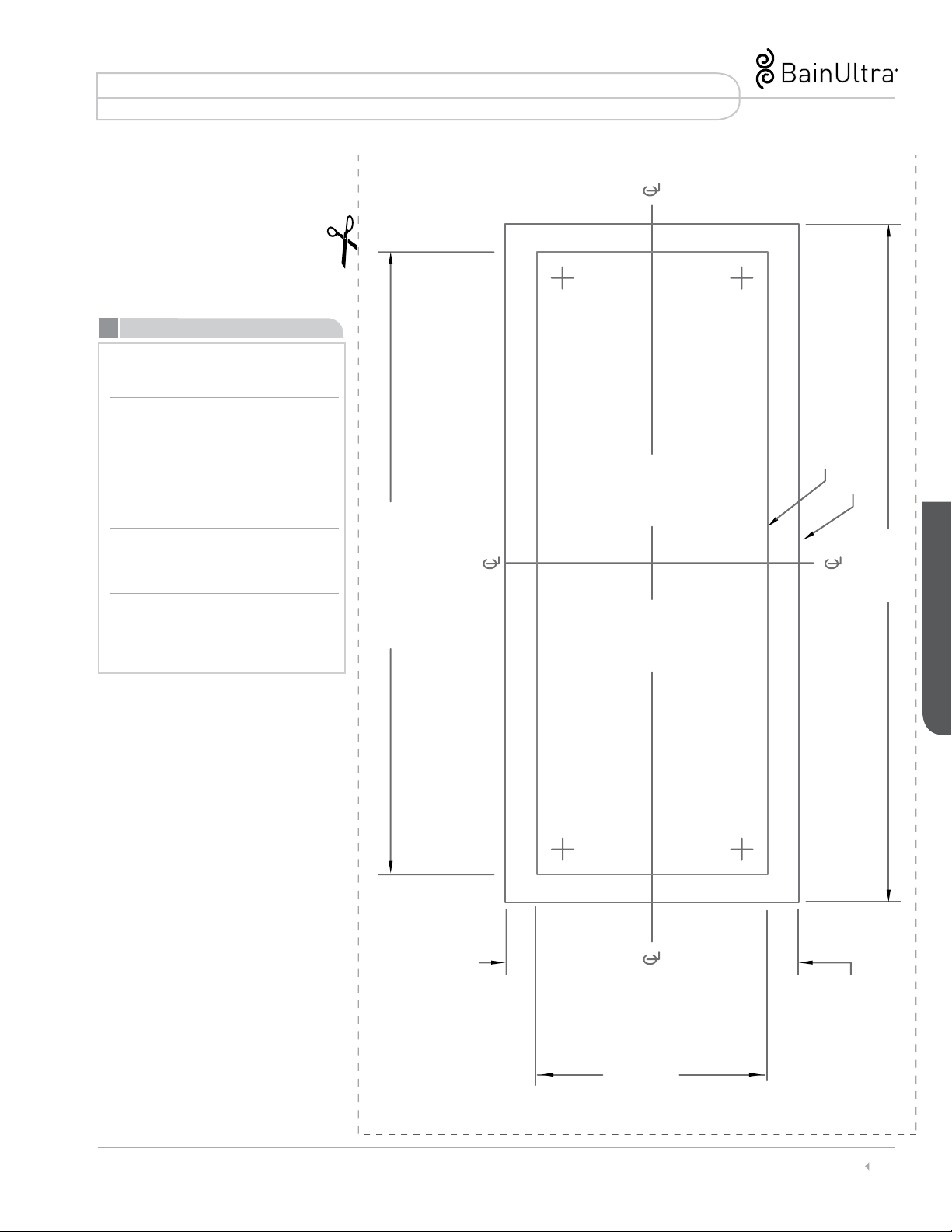

Refer to the drilling template on the last page for the
location and diameter of the hole.
After drilling, verify that there is a 1/16 inch gap
between the hole and the AromaCloud housing.
DRILLING
In addition to p. 54 13
of Owner’s Manual

TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | CONTROLS
CONTROLS
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
14 In addition to pp. 55 to 65
of Owner’s Manual
aRomacloUdtm
USER GUIDE
MAINTENANCE / RECOMMENDATIONS
WATER LEVEL
AROMACLOUDTM -USER GUIDE
AromaCloud technology transforms liquid into vapor
made up of microdroplets that travel through the air.
It is thus crucial to use only quality water and essential
oils. Hard, rusty, sulfurous or otherwise impure water
may compromise AromaCloud performance and thera-
peutic benefits.
Essential oils must always be mixed with water in
the AromaCloud housing.
One or two droplets are enough for a 30 minute ses-
sion. If essential oil droplets are spilled directly onto the
acrylic of your bath or the AromaCloud lid or housing,
wipe off immediately.
When stored correctly, quality essential oils have a
shelf life of several years without losing their proper-
ties. Always store essential oils in a cool, dark place to
prevent oxidation.
Once your aromatherapy session is complete, soak up
the water remaining in the housing using the sponge
supplied with AromaCloud, to prevent it from eventu-
ally stagnating. Never use this sponge to clean
the bath or on any other surface. The sponge should
not be used to fill up your AromaCloud.
AROMACLOUDTM ON/OFF
To turn on AromaCloud, lift the lid, pour water into
the housing until it reaches the recommended level,
add one or two drops of essential oils. Read carefully
the recommendations below. Give the lid a half turn
and then lower it again.
To turn AromaCloud off, give the lid a half turn.
SECURITY / PREVENTION
AromaCloud
TM
Turned On
(Lid Open)
AromaCloudTM
Turned Off
(Lid Closed)
• If the seal is broken, do not use product.
• Do not drink essential oils.
• Always keep essential oils out of reach of children.
• Do not expose the nose, eyes, or anal or genital mucous
membranes.
• If an allergic reaction occurs, discontinue use.
• Avoid contact with eyes. If accidental contact occurs, care-
fully apply vegetable oil with a cotton swab. Do not rinse
with water. Consult a physician immediately.
WARNINGS • Essential oils contain active ingredients with high concentrations. Please consult an aromatherapist
or a health specialist before using a new essential oil.
• Some essential oils may damage permanently the AromaCloud plastic. Avoid using dermocaustic
essential oils (cloves, thyme, oregano, etc.), citrus based essential oils, and colored essential oils.

CONTROLS
CONTROLS | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
In addition to pp. 55 to 65 15
of Owner’s Manual
Wtstm & chRomatheRaPY dot contRols
USER GUIDE

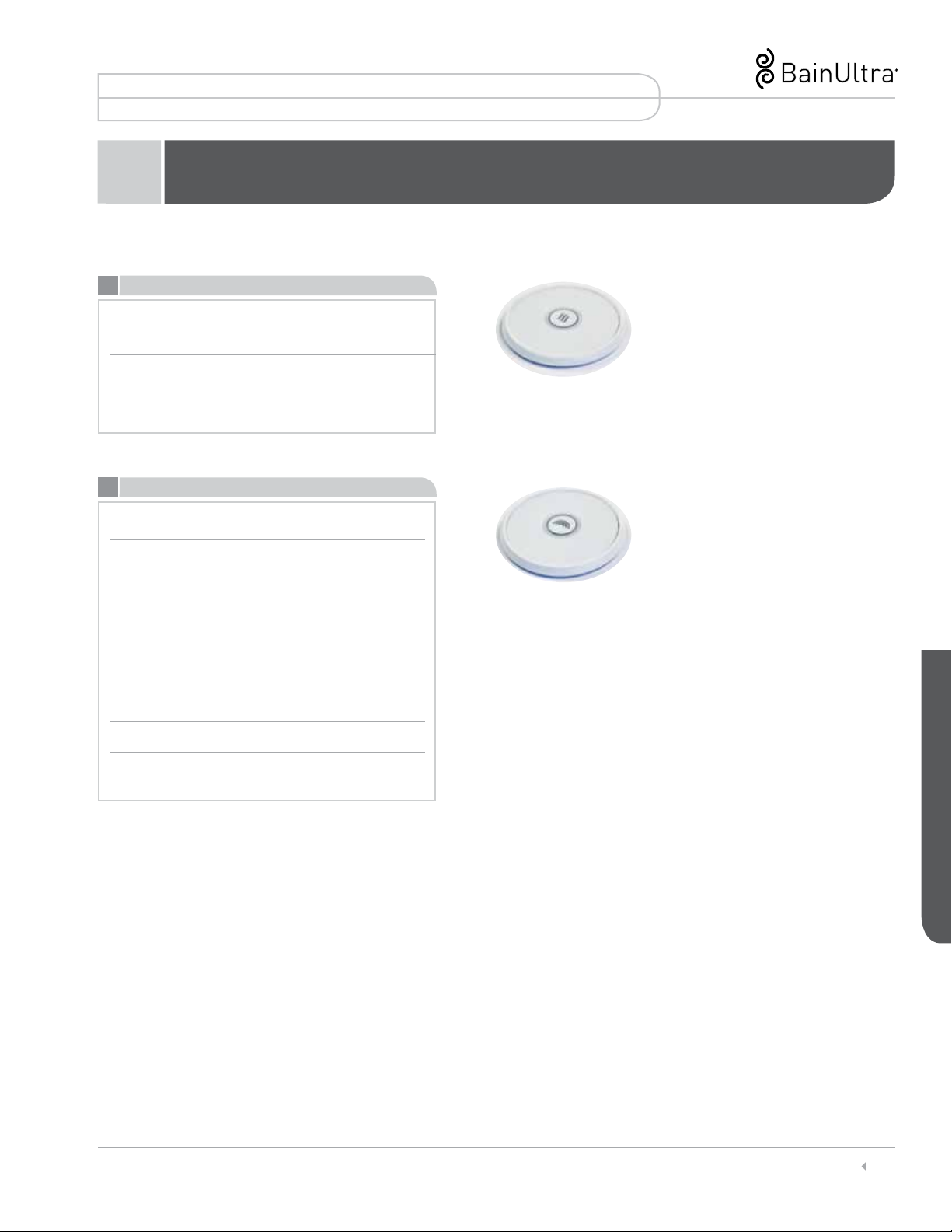

WarmTouchShell (WTS) DOT
Chromatherapy DOT
WARMTOUCHSHELLTM (WTSTM)
DOT CONTROLS- USER GUIDE
OPERATING DOT WTS
• Press this button to START/STOP the
WarmTouchShellTM
• Therapy lasts 30 minutes.
• A LED light appears on DOT control when
WarmTouchShell is in function.
CHROMATHERAPY
OPERATING DOT CHROMO
• 1st Pressure : Start (Violet color appears).
• Successive pressures :
– Blue
– Green
– Yellow
– Orange
– Red
– SCAN mode (Scans through
colors continuously)
– PAUSE (Stops on a selected color
during the SCAN mode).
• Press and hold for 2 to 3 seconds – TURN OFF.
• No LED light appears on DOT control when
Chromatherapy is in function.

TROUBLESHOOTING
TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL | TROUBLESHOOTING
1 800 463.2187 From 8 a.m. to 8 p.m. Monday to Thursday (EST) From 8 a.m. to 5 p.m. on Friday (EST)
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
16 In addition to pp. 55 to 65
of Owner’s Manual
SITUATION SOLUTIONS
• Check that keypad light is working.
• Make sure breaker is “on.”
• Shut “off” and restart breaker.
• Check connections in the bath junction box (Canada only).
• Check that there is water in the unit, and it is filled
to the recommended level.
• Make sure the water is clean, and free of suspended particles
(limestone, rust, etc.)
• Check that the lid is correctly positionned on the housing.
• Make sure breaker is “on.”
• Shut “off” and restart breaker.
• Check connections in the bath junction box (Canada only).
WarmTouchShellTM is not working
AromaCloudTM is not working
THERMASENSTM

WARRANTY | TMU & TMSUTM ADDENDUM TO THE OWNER’S MANUAL
WARRANTYWARRANTYWARRANTY
WARRANTY
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
Supersedes page 71 of Owner’s Manual 17
the baInUltRa® lImIted WaRRantY
LIMITED WARRANTY
This limited warranty is extended only to the original purchaser of the unit under warranty and is valid only when bought
through and registered by an authorized BainUltra® retailer. BainUltra® products are designed for residential use only. BainUltra®
products used for commercial or display applications will be limited to a two-(2) year warranty against defaults in materials and
workmanship regardless of the various defective components of the products. BainUltra® products sold outside of NorthAmerica
will be limited to a parts-only warranty through the dealer of the sale. Our service department will help diagnose the problem
and will provide parts only for repairs or replacements covered by the warranty. All parts will be shipped to the dealer in North
America. BainUltra® will not be responsible for cost of shipping or servicing outside of North America.
Your BainUltra® ThermoMasseur®, ThermaSensTM, or soaking bath is covered by the best warranty in the industry. BainUltra
Inc. guarantees the acrylic and motor turbine of your bath for a twenty-(20) year period from the original purchase date against
defects in materials and workmanship. In the case of the electronic components of the ThermoMasseur®, ThermaSensTM, the
Vedana® or the Temazkal® and the massage table for the Ayoura®, as well as the GeysairTM, BainUltra Inc. guarantees against
defects in materials and workmanship for a five-(5) year period from the original purchase date.
For wooden parts of certain models and for MyBodyRestTM kit, BainUltra Inc. guarantees that in their original manufacturing
form, these parts are free of any manufacturing, dimensional or strongly apparent natural defects for a one-(1) year period
from the original purchase date.
EXCLUSIONS
The above-stated limited warranty applies as long as damage is not caused by an accident, abuse, misuse, fire, insects, use of
abrasive products, force majeure or an act of God. Transport, handling or installation damages are also excluded. Any part that
must be changed during the warranty period will be covered by the original warranty or for a two-(2) year period following
replacement, according to the first contingency.
Because of their organic nature, wood components will expand and contract with seasonal changes and normal heating
variations. With time, normal exposure to sunlight will slightly alter the wood tint. These changes are not covered by the warranty.
The vinyl surface and the sheet of Ayoura®’s optional massage table are not covered by this warranty.
Moreover, this warranty is void if your BainUltra® ThermoMasseur® or ThermaSensTM bath, your Vedana® or your Temazkal®,
or any other BainUltra® product is installed by anyone but a licensed contractor.
This warranty is also void if your BainUltra® bath, your Vedana®, your Temazkal®, or any other BainUltra® product or part thereof
has been modified or if any repairs have been attempted by anyone other than BainUltra Inc., an authorized dealer or representative
of BainUltra Inc. Any and all components that are not provided by BainUltra Inc., as well as any items attached or installed on
your BainUltra® ThermoMasseur® or ThermaSensTM, your Vedana® or your Temazkal®, or on any other BainUltra® product after
the date of manufacture are expressly excluded from this limited warranty.
For the AromaCloud technology, BainUltra doesn’t guarantee acrylic decoloration or surface defaults due to the use
of essential oils or other liquid products.
Certain considerations arise when AromaCloudTM technology is not factory installed by BainUltra®. Homeowners who choose
to install the technology themselves must fill out the release form (2013 Price List, p 181) and return it to BainUltra.
The warranty is void if the unit is installed outdoors, or has not been installed in accordance with the manufacturer’s instructions
and/or in compliance with local codes and ordinances.

DRILLING TEMPLATES | TMU & TMSUT M ADDENDUM TO THE OWNER’S MANUAL
www.bainultra.com
Printed in Canada. Copyright © January 2013 BainUltra Inc. All rights reserved. 45100572
Some products, specifications, and services mentioned in this manual are described
in pending patent applications or are protected by patents.
19
5.562”
[14.1 cm]
2.062”
[5.2 cm]
6,062”
[15.4 cm]
2.625”
[6.6 cm]
Hole Contour
AromaCloud
TM
Contour
AROMACLOUD HOLE DRAWING
When choosing the position of
AromaCloud on the bath, consider
the following points:
• The Bainultra recommended
position
• The position of controls
• The position of fittings
• The position of tiling flange
if present
• The desired direction with respect
to the bath and the room entrance
Notes: - AromaCloud must be installed
on bath decking.
- After drilling, verify that there
is a 1/16 inch gap between
the hole and the AromaCloud
housing.
RECOMMENDED STEPS
• Choose a position for AromaCloud
on the bath.
• Place the adhesive masking paper
over the area of the bath where
AromaCloud will be installed, to
protect the acrylic.
• Drill the 4 holes on the template,
using a ¼ inch drill bit.
• Complete the rectangular cutout
using a jigsaw equipped with a fine-
tooth metal blade.
Note : Non-factory installation
requires special care (read
the warranty carefully).
AROMACLOUDTM
IMPORTANT
Drawing is to scale.
Drawing of AromaCloud hole.
DRILLING TEMPLATES
