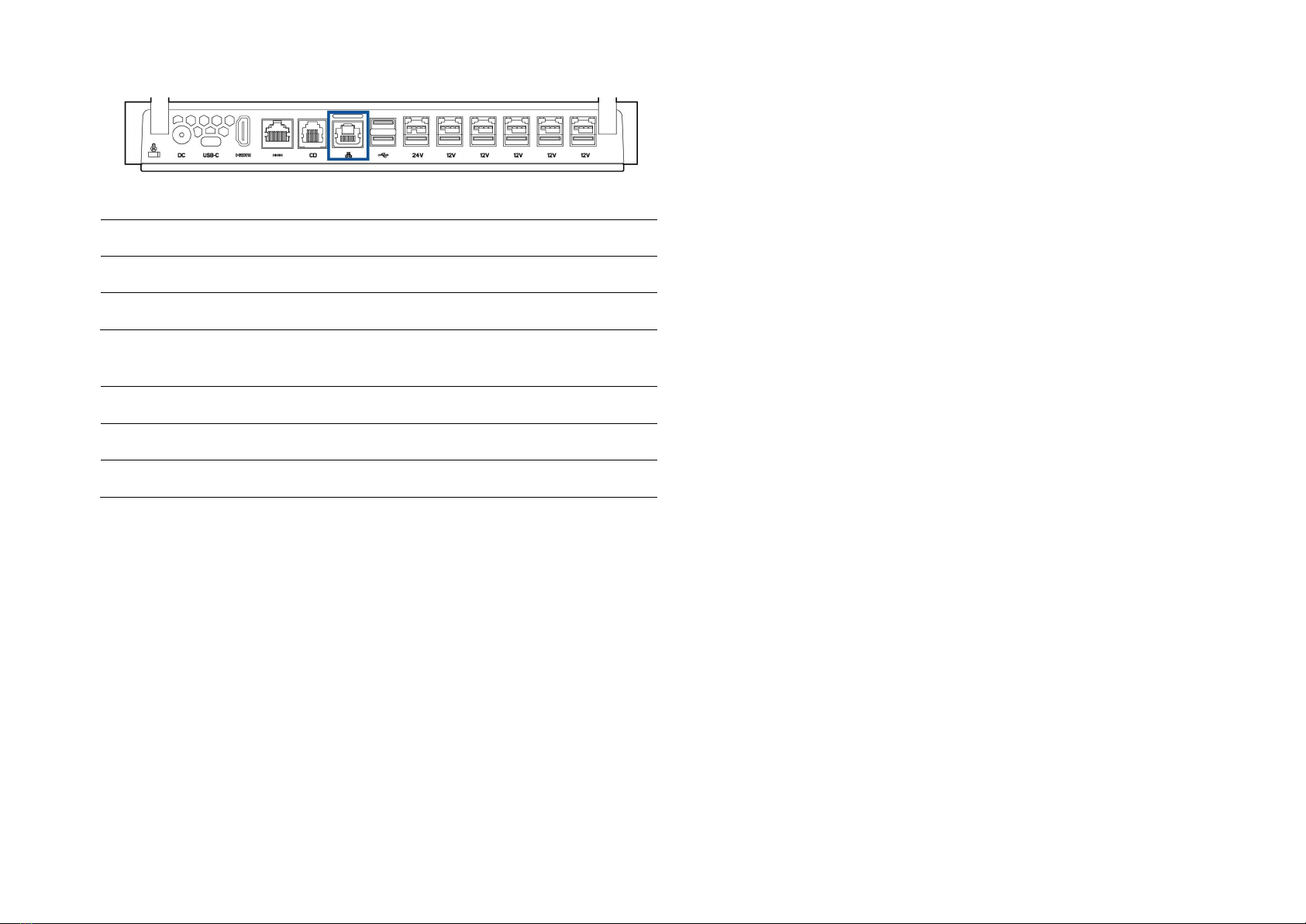

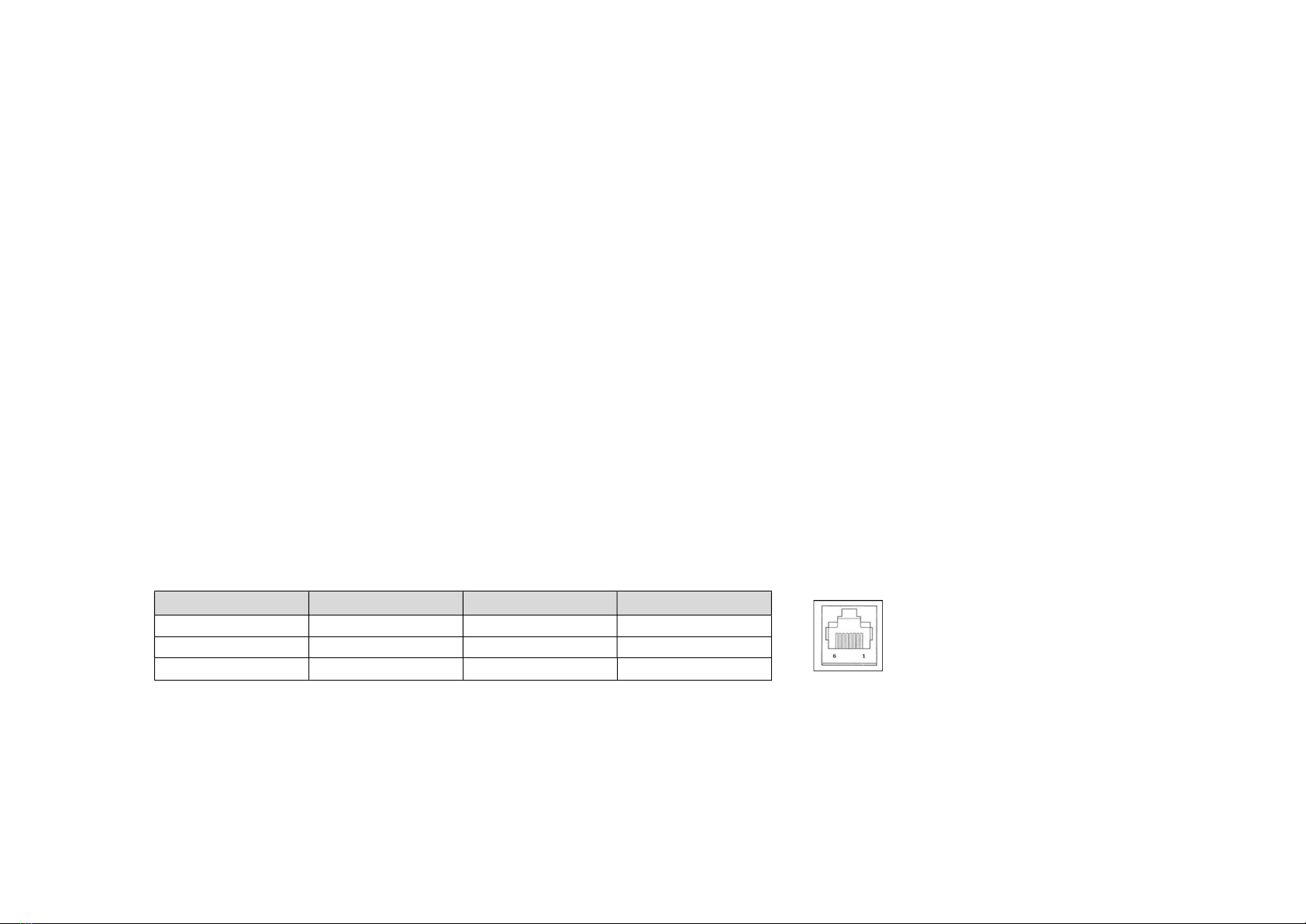

13. Ethernet LAN Port
The Ethernet LAN Port provides up to 1 Gbps speed capability for networking.
14. USB 3.0 Port (0.9A)
Two standard Super Speed USB 3.0 ports are available on the rear side.
15. +24 Volts Powered USB Port
The +24 Volts Powered USB Port is included on all models. The maximum power rating of the +24 Volts Powered USB is 24 Volts at 0.5 Amps. If
your EloPOS Pack is running at 100% load and all I/O ports, except 24V Powered USB port are connected, at the maximum power load of each
port, DO NOT use the +24 Volts Powered USB port, use an external power adapter for the +24 Volts Powered peripheral.
Please ensure your overall peripheral power consumption does not exceed the following (assuming the EloPOS Pack is running at max power
consumption):
a. Do not exceed 145W for EPS00E2 models.
b. Do not exceed 130W for EPS00E3 models.
c. Do not exceed 124W for EPS00E5 models.
16. +12 Volts Powered USB Port
The maximum power rating of the +12 Volts Powered USB is 12 Volts at 1 Amps.
17. Kensington Lock
Kensington Lock is a standard anti-theft mechanism to secure the EloPOS Pack to the desired mounting location. The Kensington cable lock is
not included.

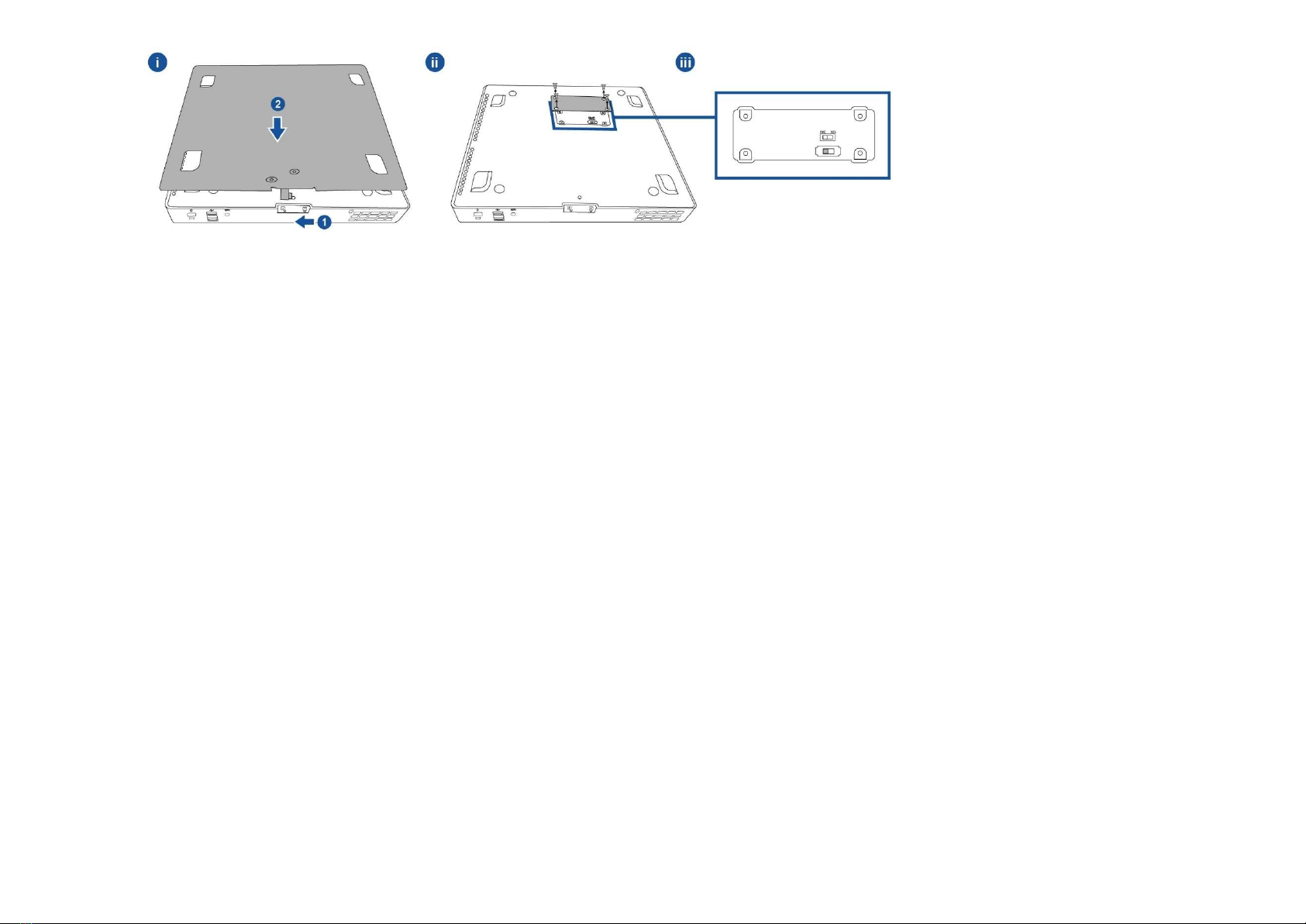

18. Mounting Bracket
The bracket has four holes to mount on a table by using four M4 or #8 mounting screws. The screw head height must be 3.0 mm (0.118”) or less.
When mounting on a wall, it is recommended using four M3 or #8 screws. The screw length must be longer than 25 mm, and the screw head
height must be 3.0 mm (0.118”) or less.
