Elsa Microlink isdn/pcc-16 User manual

MicroLink ISDN/PCC-16

User's Manual

Data Communications

Computer Graphics

All the information contained in this manual has been carefully checked. It does not, however, provide

any assurances about specific product features. ELSA assumes liability only in the scope covered in

its General Terms and Conditions.

No part of this manual or the software supplied with the product may be reproduced or passed on in

any form without the written permission of ELSA. ELSA reserves the right to make appropriate

changes to any of its products at any time.

ELSA GmbH is a DIN EN ISO 9001 certified company. With the certificate of May 16, 1995, the

authorized certification institute TÜV CERT has confirmed the conformity of ELSA GmbH with the

worldwide quality standard DIN EN ISO 9001. The certificate number of ELSA GmbH is 09 100 5069.

Trademarks

ELSA MicroLink is a registered trademark of ELSA.

IBM is a registered trademark of International Business Machines.

Aachen, November 1997

ELSA GmbH ELSA Inc.

Sonnenweg 11 2150 Trade Zone Blvd., Suite 101

52070 Aachen San Jose, CA 95131

Germany USA

Internet http://www.elsa.de Internet http://www.elsa.com

Art. No. 20532/1297

Contents

1 Introduction..................................................................................................................................5

1.1 Brief Description of the MicroLink ISDN/PCC-16..........................................................................6

2 Hardware Installation................................................................................................................7

2.1 For Your Safety...............................................................................................................................7

2.2 Inserting the Board.........................................................................................................................7

3 ISDN Driver Installation............................................................................................................9

3.1 Installation under DOS...................................................................................................................9

3.2 Installation under Window 3.x.....................................................................................................10

3.3 Installation under Windows 95....................................................................................................11

3.4 Installation under Windows NT...................................................................................................14

3.5 Installation under OS/2................................................................................................................15

4 Operation in AT Mode..............................................................................................................17

4.1 Installing the cFos Driver..............................................................................................................17

4.1.1 Starting cFos............................................................................................................................18

4.2 General.........................................................................................................................................18

4.2.1 Entering AT Commands in a Terminal Program......................................................................19

4.2.2 Instructions for Your First ISDN Connection under DOS.........................................................20

Appendices................................................................................................................................21

A Technical Specifications..............................................................................................................21

CE Approval and FCC Rules.....................................................................................................22

B ISDN Driver Overview..................................................................................................................23

C The CAPI Drivers...........................................................................................................................25

The CAPI 1.1 Driver.................................................................................................................25

The CAPI 2.0 Driver.................................................................................................................26

CAPI 1.1 Error Codes...............................................................................................................28

New ELSA Error Codes............................................................................................................31

CAPI 2.0 Error Messages.........................................................................................................31

D Options with the ISDN Drivers for DOS.......................................................................................34

Euro-ISDN Drivers...................................................................................................................34

Euro-ISDN CAPI 1.1 Drivers – Assigning EAZs to MSNs........................................................34

1TR6 (Germany) Drivers...........................................................................................................35

Drivers for the USA.................................................................................................................36

F What is the ISDN?........................................................................................................................37

The History of ISDN.................................................................................................................37

The Services............................................................................................................................37

ISDN Service Features............................................................................................................38

Basic Access............................................................................................................................38

The Protocols...........................................................................................................................38

Software Interface to ISDN Adapter Boards..........................................................................39

EuroFileTransfer......................................................................................................................39

Contents

G Answers to Frequently Asked Questions.....................................................................................40

General....................................................................................................................................40

Telix.........................................................................................................................................41

H Product Support............................................................................................................................42

I Warranty Conditions....................................................................................................................46

J Glossary........................................................................................................................................48

K Index.............................................................................................................................................52

Introduction

1 Introduction

About this manual This manual describes the installation, the features and the operation of the

MicroLink ISDN/PCC-16

ISDN adapter board.

Symbols and

conventions Symbols and icons are used throughout this manual to highlight pertinent

sections of text:

◊NOTE ◊denotes important information

A list of items is indicated by bullet symbols:

n...

Procedures consist of numbered steps:

1. ...

<CR> (Carriage Return) means that the Return or Enter key should be pressed

S0interface In this manual, the interface between the ISDN Network Terminator (NT) and

S/T interface the terminal devices is generally referred to as "S0interface" or "S0bus". In

other countries other names may be common, such as "S/T interface"

which is commonly used in the USA.

Changes to this

manual ELSA MicroLink ®products are subject to continual development. Thus it is

possible that the printed documentation does not correspond to the latest

release. You will always, however, find the latest information on the ELSA

ONLINE Support BBS. See page 42 for contact numbers.

Package contents Before you start installing your ELSA MicroLink ®ISDN adapter board, please

make sure that your package is complete:

n MicroLink ISDN adapter board

n ISDN line connection cable

n Printed manuals

n MicroLink CD

n Proof of license (yellow label)

◊NOTE ◊If any item is missing or damaged, please contact your dealer. ELSA reserves

the right to make changes to the package contents without prior notice.

Introduction

1.1 Brief Description of the MicroLink ISDN/PCC-16

MicroLink ISDN/PCC-16 from ELSA's family of ISDN products is an expansion board for IBM Personal

Computers and compatibles. It allows your PC to be connected to an S0interface, making it suitable

for the operation with an ISDN Basic Rate Interface or a private automatic branch exchange equipped

with an S0interface.

CAPI interface The CAPI driver (Common ISDN Application Programming Interface, version

1.1 and 2.0) is a standardized software interface between your MicroLink

ISDN/PCC-16 and any standard ISDN communications software for fax group

4, data transfer, remote computing and file transfer.

FOSSIL interface The supplied FOSSIL (Fido/Opus/SEAdog Standard Interface Layer) driver

cFos allows non-ISDN, cFos-compatible communications programs (such as

Telix or Telix for Windows) to be used with your ISDN adapter board.

ISDN operation Using the CAPI interface, MicroLink ISDN/PCC-16 can transfer data at a speed

of 64,000 bps or 56,000 bps on each B channel. Both B channels (data

channels) can be used simultaneously.

Status display for

diagnostics The mounting bracket of your ISDN adapter board has two color-coded LEDs

which allow you to monitor the ISDN interface and the line connection status.

These help with diagnostics and trouble-shooting if problems arise such as

errors in installing the ISDN interface.

Hardware Installation

2 Hardware Installation

2.1 For Your Safety

In the interests of your safety and the correct operation of your ELSA MicroLink ®ISDN adapter board

and computer system, please regard the following:

n Use only the ISDN line connection cable supplied.

n Please follow the installation instructions in this chapter.

2.2 Inserting the Board

The following illustration shows the mounting bracket of your ISDN adapter board:

Installation Proceed as follows to install the ISDN adapter board in your PC:

1. Configuring the Use the DIP switches 1..5 on the board to select the I/O address and IRQ line

interface of the ISDN adapter board:

S1 S2 I/O address of the ISDN adapter board

OFF

0x160h (default setting)

0x170h

0x260h

0x360h

Hardware Installation

S3 S4 S5 IRQ line of the ISDN adapter board

OFF

IRQ2

IRQ3

IRQ5

IRQ10* (default setting)

IRQ11*

IRQ15*

*only if a 16-bit slot is used

◊NOTE ◊Make sure that the selected IRQ line is not used by any other device in your

PC, as a conflict may result in a malfunction of the ISDN adapter board. It is

common for IRQ2 and IRQ3 to be in use, and in some systems IRQ5 and IRQ15

can also be occupied.

2. Switching the Switch your PC off and unplug its power line from the power socket. This is

PC off very important for your safety!

3. Inserting the Remove the cover of the PC housing. Most PCs require some screws on the

adapter board rear side to be removed first, while others have a cover which opens up when

you press two locking buttons on both sides of the housing. Refer to the

manual of your PC for detailed instructions.

Select an empty slot of the required length, remove the blind bracket and

insert your the ISDN adapter board into the slot. If you are using an 8-bit slot

(MicroLink ISDN/PCC-16 only), you can only use the IRQ lines 2, 3 and 5. If

you are using a 16-bit slot, you can use any IRQ line (see table above).

Screw the mounting bracket of the ISDN adapter board tight, close the cover

of the PC housing. You can now reconnect your PC's power cable.

4. Connection to To connect your ISDN adapter board to the ISDN, plug the supplied cable

the ISDN into both the ISDN line connector in the mounting bracket of the board and

the S0wall socket of your ISDN line.

5. Switching the You can now switch your PC on.

PC on

Ready for operation The ISDN adapter board will be ready for operation after installing the card

and after successfully loading the driver software (see chapter 3, "ISDN Driver

Installation" for details). If the green LED in the adapter board's mounting

bracket is shining constantly, then your ISDN adapter board is ready for

operation and you can start your application software.

ISDN Driver Installation

3 ISDN Driver Installation

Before starting with the installation of your ISDN adapter board, check which protocol your ISDN

connection uses. This information should have been supplied by your ISDN provider. In Europe, the

protocol Euro-ISDN (DSS1) is wide spread, though in Germany some lines still use the older 1TR6

national ISDN protocol. With Euro-ISDN, you will require information about the Multiple Subscriber

Numbers (MSNs) assigned to your ISDN line. In the USA, you should have information about your

SPID and DN.

3.1 Installation under DOS

Installing the CAPI driver for DOS is simplicity itself with ELSA COMman, the menu-driven program for

driver installation. Run COMman direct from the \ELSAWARE\COMMAN\DOS directory on the CD

supplied by starting INSTALLD.EXE and follow the on-screen instructions. Please note that the

README file contains important information for the driver installation.

The program carries out an automatic diagnosis, after which you can use Installation, ISDN

Settings, User-defined to define your parameters and phone numbers. The online Help is always

available with useful advice and information about the various parameters.

After successfully installing the ISDN drivers the computer must be restarted.

ISDN Driver Installation

3.2 Installation under Window 3.x

Installing the CAPI driver for Windows 3.x is simplicity itself with ELSA COMman, the menu-driven

program for driver installation. Run COMman direct from the \ELSAWARE\COMMAN\WIN31

directory on the CD supplied by starting SETUP.EXE and follow the on-screen instructions. Please

note that the README file contains important information for the driver installation.

The program carries out an automatic diagnosis, after which you can use Installation, ISDN

Settings, User-defined to define your parameters and phone numbers. The online Help is always

available with useful advice and information about the various parameters.

If you plan to work exclusively with Windows communications applications, we recommend that you

activate the WINSTART.BAT option which ensures that the ISDN driver does not occupy any DOS

memory. If you wish to make use of communications programs from within DOS boxes, then you will

have to start the ISDN driver from the AUTOEXEC.BAT.

After successfully installing the ISDN driver, your computer should be restarted.

ISDN Driver Installation

3.3 Installation under Windows 95

Requirements To install the Windows 95 CAPI driver you will require the ELSA MicroLink CD

and your Windows 95 CD.

Install Dial-Up

Networking Before installing the CAPI driver, the Dial-Up Networking in Windows 95 must

be properly installed. Proceed as follows:

1. Start Windows 95 and double-click the symbols in the following series:

My Computer, Control Panel, Add/Remove Programs and

Windows Setup.

2. Select the component Communications.

3. Select Details and highlight the Dial-Up Networking component.

Confirm with OK.

4. From the Control Panel, double-click on the Network icon. If there is

no Dial-Up Adapter present, then select Add..., Adapter, Add.... Now

select Microsoft from the Manufacturer dialog, select the Network

Adapter, and click on OK.

The Dial-Up Networking should now be properly installed and ready for

operation. In case you require further help, please refer to the Windows 95

documentation.

Install the

Network Adapter The installation of the ISDN CAPI 2.0 drivers under Windows 95 is performed

via the CAPI Subsystem which is supplied on your ELSA MicroLink CD. You

should also have your Windows 95 diskettes or CD ready. The installation is

described as follows:

1. Insert your ELSA MicroLink CD into your CD-ROM drive (e.g. drive d:)

2. In Windows 95, double-click on the symbols My Computer, Control

Panel, and Network. The Network dialog will be opened; click

on Add:

ISDN Driver Installation

3. In the Select Network Component Type window, select the Adapter

component and then click on Add:

4. The Select Network Adapters window will be displayed; click on

Have Disk:

ISDN Driver Installation

5. The dialog for Install From Disk will follow. Use Browse to select the

CD-ROM drive and go to the drivers directory for your ISDN adapter, e.g.

\MICROLNK\PCC16\DRIVER\WIN95 and confirm with OK:

6. In the Select Network Adapter window, select your ISDN connection

protocol and click on OK:

7. The ISDN protocol and the ACOTEC CAPI 2.0 driver are now installed as

network components. After closing the windows by clicking on OK, the

files will be copied to your hard disk:

ISDN Driver Installation

After the driver files have been copied, a restart of Windows 95 will be required. At this time, insert

your Windows 95 CD into the CD-ROM drive and confirm with OK to copy the files. Restart Windows

95.

3.4 Installation under Windows NT

The installation of the CAPI driver under Windows NT 3.51 and 4.0 is simplicity itself with the menu

driven installation program supplied. This program is started with the SETUP.EXE file on your CD in

the directory \MICROLNK\PCC16\DRIVER\WINNT. Follow the on-screen instructions.

Select your D channel protocol used by your ISDN connection.

After a successful installation, you must restart Windows NT.

ISDN Driver Installation

3.5 Installation under OS/2

The CAPI driver installation for OS/2 is simplicity itself with the menu-driven installation program

ELSA COMman. Start the file INSTALL.EXE from the \ELSAWARE\COMMAN\OS2 directory on your

CD. Follow the on-screen instructions. Please take note of the README files, which contain

important information about the installation.

The program carries out an automatic diagnosis, after which you can use Installation, ISDN

Settings, User-defined to define your parameters and phone numbers. The online Help is always

available with useful advice and information about the various parameters.

As an alternative, the OS/2 driver can also be installed via OS/2's System Configuration.

ISDN Driver Installation

Notes:

Operation in AT Mode

4 Operation in AT Mode

The AT command set, well known in the world of analog communications, can be used in ISDN

communications with the help of the FOSSIL driver cFos/DOS Lite, included in your package, when

used with a DOS terminal program supporting INT 14 or FOSSIL output.

With the driver cFos/WIN Lite, common Windows data communications software such as Telix for

Windows can be used with ISDN adapter boards. The cFos driver enables the use of virtual COM port

emulation under Windows 3.1, meaning no additional FOSSIL- or INT 14 mode software is necessary.

4.1 Installing the cFos Driver

To install cFos on your computer, please proceed as follows:

1. Insert the CD or floppy disk into the appropriate disk drive. If you are

installing from CD, select the directory for your adapter board, i.e.

MICROLINK\PCC16\DRIVER\ CFOS.

2. Enter the command

install <CR>

to start the installation. Choose the language you wish to work with.

3. Either accept the suggested target directory for the installation or enter

the path of your choice. Confirm your entries with <CR> and follow the

program instructions.

If you require cFos for COM port emulation under Windows 3.x or

Windows 95, call SETUP and follow the program instructions. To

enable the automatic loading of cFos when Windows starts, the

changes to the file WIN.INI must be confirmed with Yes (the computer

will be started anew).

If you have problems during installation, please refer to the file

README.WIN.

4. After the installation is ended, start the configuration program with

<CR> and choose the desired language.

5. The final step is to run the Software Adjustment program. Confirm

the ELSA modem settings (the program knows these already!) with Yes

and choose the software (e.g.Telix) that you will be using. Finish the

configuration with = and exit the program with End.

Operation in AT Mode

4.1.1 Starting cFos

Requirements for

cFos Before starting cFos, you must first load the required CAPI driver. To start

cFos in DOS, call the file STARTFOS.BAT from the cFos directory, or enter

cfos i <CR>

Entering STOPCFOS.BAT will stop cFos, as will the alternative

cfos d <CR>

In Windows, cFos is automatically started if the WIN.INI file was updated

during installation.

◊NOTE ◊To load these drivers automatically at startup, these drivers can be called from

the AUTOEXEC.BAT

cFos does not support the same AT command user interface as ATCAPI. Thus, some

AT commands familiar to ATCAPI users may not be recognized or executed. Please

refer to the cFos driver documentation. Further information to this subject is to be

found in the files CFOS.DOC, MODEM.DOC AND CFOS.FAQ.

The following options, or combinations thereof, are available:

Option Meaning

-cn

none

Loading cFos driver

Unloading cFos driver

Load FOSSIL port n, e.g. COM3 is loaded with -c2

Display help

4.2 General

AT command set The AT command set has established itself as the world-wide standard for

modem control command syntax (AT = command prefix ATtention).

Two operating states The two general operating states of the ISDN adapter board in the AT mode

are the command state and the online state (transmission state).

Command input,

execution After the drivers have been loaded, the ISDN adapter board is in the

command state. Commands can be accepted, interpreted and executed in

this state only. After a successful connection with the other party, the ISDN

adapter board automatically changes to the online state.

Data transmission Online state signifies that a connection to another party exists. The ISDN

adapter board is "online", either with a successful connection (outgoing call)

or with the acceptance of an incoming call. In this state data exchange is

possible between the two connected stations.

Operation in AT Mode

4.2.1 Entering AT Commands in a Terminal Program

If you want to use the AT command set known from analog modems, you must load a suitable FOSSIL

(Fido/Opus/SEAdog Standard Interface Layer) driver, e.g. cFos, in addition to the CAPI driver. The

cFos/DOS driver shipped with your ISDN adapter board allows the use of communications programs

supporting Interrupt14h or FOSSIL output (such as Telix or Telix for Windows) and must be loaded in

addition to the CAPI 1.1 driver. The FOSSIL driver emulates the AT command interface in order to

allow FOSSIL-supporting communications programs, which are normally used with analog modems, to

work directly with ISDN adapter boards.

We will use Telix as an example to demonstrate how to enter AT commands in a terminal program.

For operation with your ISDN adapter board, Telix must be set to INT14 mode. This is a special mode

in which Telix directs data output not to the serial COM port, but via the BIOS interrupt 14 which

enables the use of passive ISDN adapter boards via suitable driver software. Note that Telix versions

older than 3.50 do not support the INT14 mode (except for Telix INT14, a special variant of Telix 3.15,

which works in INT14 mode only).

The cooperation between Telix and the ISDN adapter board can be shown as follows:

Telix for DOS (INT14 Mode)

Communications Program Telix sends your AT commands to the

FOSSIL driver cFos using the BIOS

interrupt 14h.

Interrupt 14h / FOSSIL

Interface

cFos/DOS

FOSSIL Driver

The FOSSIL driver converts your AT

commands for the standardized CAPI

interface.

CAPI Interface

DSS1CAPX / ISDNCAPX

CAPI Driver

The CAPI driver is the software link to your

ISDN adapter board.

MicroLink ISDN/PCC-16

ISDN Adapter Board

The ISDN adapter board is the hardware

link between you computer and the ISDN

network.

ISDN S0Interface

Operation in AT Mode

4.2.2 Instructions for Your First ISDN Connection under DOS

To establish a test connection, for example to our Support BBS ELSA ONLINE, please proceed as

follows:

nStart the CAPI driver DSS1CAPX.EXE (for Euro-ISDN), US__CAPX.EXE (for US protocols) or

ISDNCAPX.EXE (for 1TR6).

nStart the FOSSIL driver cFos by calling STARTCFOS.BAT or by entering cfos i.

nStart Telix and enable the INT14 mode. The COM port must be set to COM 2. This port is the

default link to the FOSSIL driver via the interrupt 14h (if you have started cFos with a different

port setting, you must set this port in Telix as well). In INT14 mode the COM ports are not

related to physical serial interfaces, therefore you need not set any bit rate or data format. In

ISDN operation, Telix always uses the highest possible bit rate.

nTo establish the connection, type ATD 0241 9177 7800 (from within Germany, otherwise enter

your international access code (+49) and omit the first 0) in terminal mode and press <CR>. Telix

will establish an ISDN connection with the Support BBS ELSA ONLINE. You can terminate the

connection at any time with the Telix command <Alt><H>.

Table of contents

Other ELSA Adapter manuals

ELSA

ELSA AirLancer MC-2 User manual

ELSA

ELSA TanGo 2000 User manual

Popular Adapter manuals by other brands

Encore

Encore ENUWI-SG Specifications

INFOSEC UPS SYSTEM

INFOSEC UPS SYSTEM U70 Slim user guide

ZyXEL Communications

ZyXEL Communications AG-120 quick start guide

SEH

SEH FC126 Hardware installation guide

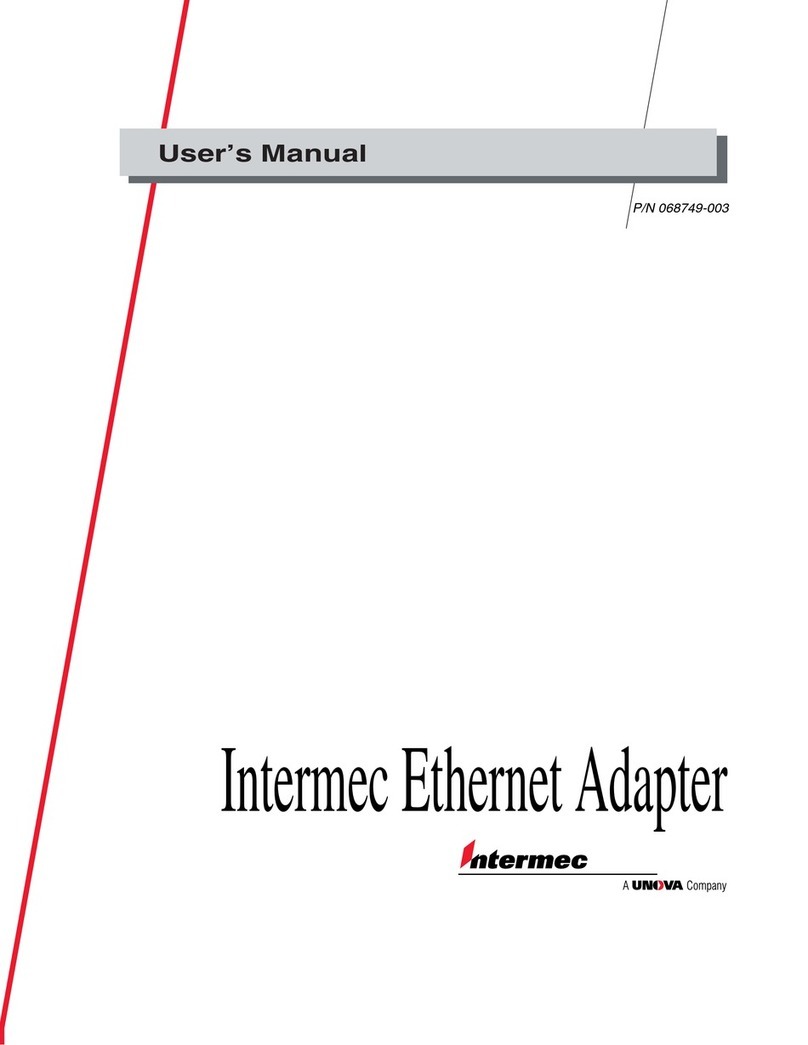

Intermec

Intermec Ethernet Adapter user manual

Svive

Svive Virga AC1200 Quick installation guide

Tyco

Tyco TF-3 quick start guide

Devolo

Devolo dLAN 500 AVsmart+ manual

Philips

Philips 1FF3FPW Specifications

TRENDnet

TRENDnet TPL-307E user guide

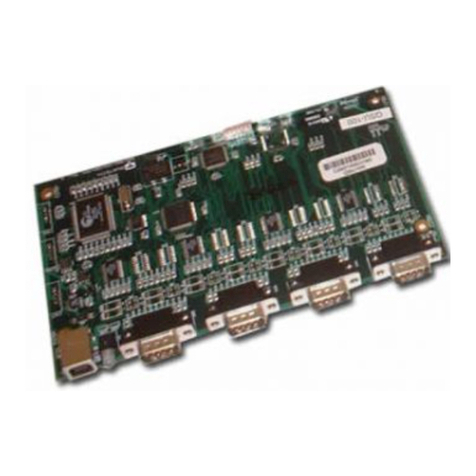

Quatech

Quatech ESU-100-EMB Specifications

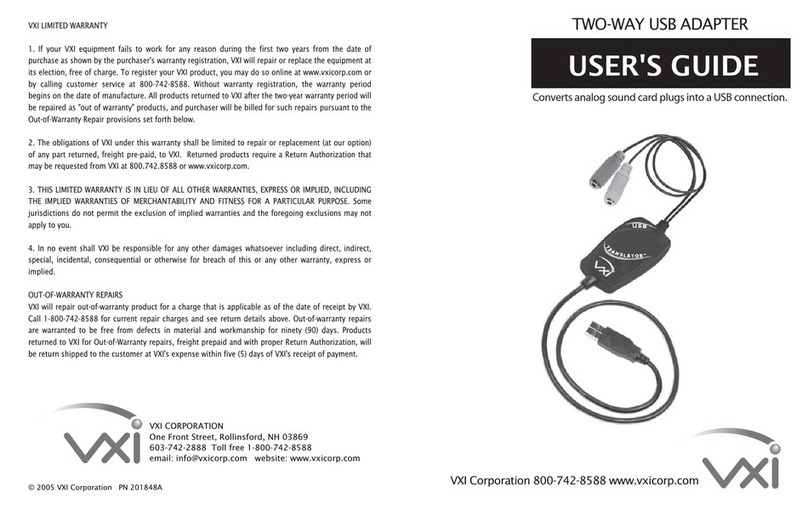

VXI

VXI TWO-WAY USB user guide

Matatakitoyo Torque Tools

Matatakitoyo Torque Tools WET Operation manual

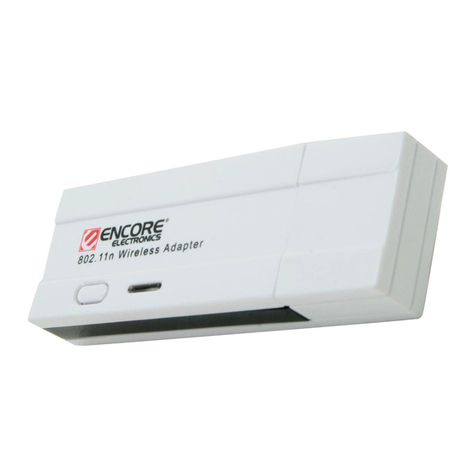

Encore

Encore ENUWI-N3 user manual

LSI

LSI LSI21002 user guide

NETGEAR

NETGEAR WG111UNA - DOUBLE 108MBPS WRLS USB 2.0 user manual

Conceptronic

Conceptronic CSATAi23U user manual

Hitachi

Hitachi GVX-CC64G*BX user guide

ELSA MicroLink ISDN/PCC-16 User manual

Popular Adapter manuals by other brands
