Operating and assembly manual:
Electric instantaneous flow heater “Admiral”
(build in AsC and AsC-W electric heating boilers or sold separately)
Available power: 7,5kW; 12kW; 15kW; 18kW; 21kW

2
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
Safety instructions:
1. The installation of this Admiral appliance set must be in compliance with the National Electrical Code, as
well as your local electrical and plumbing codes.
2. The unit must be properly earthed in accordance with all current regulations and laws.
3. Flow heater has to be connected and used in accordance with this manual.
4. All wiring and installation must be supervised by a qualified and trained electrician.
5. This appliance is not intended for use by persons (including children) with reduced physical sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
6. This appliance must be permanently connected to the fixed circuit breaker and it must be installed
vertically. Do not install this appliance near to tinder or strong magnetic field place.
7. Keep the flow heater off when exposed to freezing, do not install this unit in below zero °C conditions.
8. Please test the outlet hot water temperature with your hand to make sure it is suitable for showering
before doing so.
9. The heating chamber is treated with composite nano insulation material; it is natural if there might be a
bit of smell or green blue smoke when the unit is used for the first time.
10. In case of cable/wire damage you must contact qualified electrician to replace it with a new wire(s).
11. Please flush the system through completely by opening the hot tap on the water heater circuit furthest
away from the heater. Allow all air and debris to pass before closing the hot tap.
12. Before the installation please make sure that water flow is present, only then connect the power supply.
The heater cannot be activated without water supply, otherwise damage may occur.
13. Opening external casing of this flow heater may result in electric shock.
14. Lack of mesh filter on supply side may cause damage and may void the warranty.
15. This water heater may cause small amount of water expansion due to residual heat after operation. In
most systems this is easily accommodated by the distribution pipework and water supply system
Please read this manual prior installation and use of purchased product. Efficiency of every flow heater is
mentioned in technical data table. Using unit with insufficient power compared to hot water requirement
will result in too low output temperature.
Do not turn flow heater on in case of suspicion, that it may contain frozen water!
Instantaneous flow heater Admiral requires permanent connection to electrical network,
installation itself should be done by qualified electrician (in accordance with manual).
Flow heater cannot be connected to electrical installation using electric plug.

3
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
Safety features in Admiral:
Against water leakage • Build-in safety pressure valve
Against overheating • Heater protection - no operation when lack of water
Product description:
Electric instantaneous flow heater Admiral is a device, which heats domestic hot water in flow manner.
That is the most efficient way to obtain domestic hot water in faucet, sink or shower. Water is not pre-
heated and stored, but heated directly when needed. As a consequence, no energy is lost in the process.
Admiral has state-of-the-art, patented heat exchanger, solution which eliminates scale deposition –most
common issue with standard flow devices with build-in heaters. Water is completely separated from live
components, what ensures high durability and 100% safety.
Use:
Electric instantaneous flow heater Admiral can be used to obtain domestic hot water in sink or shower.
Warranty doesn't cover mechanical damages being installers' fault, as well as poor water quality
(np. sedimentation, high water hardness, etc.).

4
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
Device schematics:
1. Thermic switch
2. Reset (of thermic switch)
3. Heat block
4. Temperature sensor
5. Flowmeter
6. Triac
7. Connecting block
8. Thermic safety fuse
9. Hot water outlet
10. Cold water inlet
Electric schematics:
Device installation - remarks:
The installation must only be carried out by qualified installer and installed in accordance to all national
and local electrical and plumbing regulations.
1. Make sure the device is not mechanically damaged and complete.
2. Do not install in premises where temperature falls below 0°C.
3. Compare your installation with device requirement (power allocation, supply voltage, water pressure,
earth, wires cross section, proper fuses both over-current and differential-current, etc.).
4. Device needs to be earthed!
5. Main power circuit needs to be protected both over-current and differential-current fuses.
6. Do not install close to strong magnetic field.
7. In case of longer idle time of device, power supply needs to be disconnected.
8. We highly recommend fitting an isolation valve and ball valve before the unit to close system before
removal of the tap and servicing.

5
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
Installation step-by-step:
1. Front and back sides of the unit.
2. Remove screws which fixed the bracket on back of the heating unit.
3. Hold the back bracket hanger in position against the wall and mark three mounting holes. Drill three holes
of 6.00mm diameter, the distance between every two holes is 100mm. (Put plastic anchor in the hole, fix the
bracket on the wall and secure the hanger using the screws supplied or an appropriate alternative method).
4. Uninstall screws on appliance to remove the front cover, please use hand to pull out the screen row line
plug carefully before removing the front cover. Once your product has been fixed in accordance with the
diagrams above please connect your product to the mains water supply using a 1/2" tap pipes to the blue
connection of the unit.
Electrical works:
1. The installation must only be carried out by qualified electrician in accordance with all regulations.
2. The unit must be properly earthed and proper fuses need to be installed.
3. While connecting device, main electrical switch needs to be turned off (on electrical switchboard).
Flow heater Admiral 7,5 kW (single phase) has power cord taken out enabling to connect device
without removing external casing!
Flow heaters supplied with 400 V~ do not have power cord taken out. Connection to be made
directly to connecting block inside device. The hole for inserting power cord is placed on the
bottom side!

6
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
Water connection:
1. All water pipes and other accessories must be in accordance with all current regulations and laws.
2. Device has to be connected vertically (connections from bottom side). Horizontal placement is forbidden.
Blue connection is for cold water inlet, red one for hot water outlet.
3. Flush the system through completely by opening the hot tap on the water heater circuit furthest away
from the heater. Allow all air and debris to pass before closing the hot tap.
4. Remember to use rubber gaskets on water connections.
5. On cold water inlet, rubber gasket should be equipped with mesh net. All connections need to be checked
for tightness.
Use:
Flow heater starts operation when water flow sensor detects demand for hot water (eg. starting a
shower) –only then device turns on and starts to consume electrical energy). Device is turned off instantly
when demand for hot water stops. It is possible to set required water temperature level, what additionally
reduces total energy consumption.
Flow heaters are equipped in overheating safety feature. When water temperature exceeds 67°C (7,5 kW)
and 72°C (12 - 21 kW) device will enter into pause mode in order to avoid scales deposition. It will be
indicated by "E1" shown on display. Device will return to standard mode after temperature cools down to
58°C. Automatics also monitors current loss, which when detected is indicated by "E2" shown on display.
"E3" is shown when temperature sensor has been damaged.
Admiral also protects build-in heating element from overheating –electric supply is turned off when
heating element temperature reaches 95°C (7,5 kW) and 90°C (12 - 21 kW). In case this protective system is
activated, one should remove external case and press RESET button.
Control:
1. Open the water faucet for a few minutes until water flow is continuous and all air is purged from water
pipes, after turning water off turn on power supply.
2. With vented installation and turned on power supply, Admiral can be used. Press , and open running
water to ensure flow rate of more than 3,2 l/min for flow heaters 12-21 kW and more than 2 l/min for flow
heater 7,5 kW.
3. In order to turn device off simply stop using hot water.
4. Use and buttons to change requested temperature.
5. During standard operation display shows current water temperature, by pressing buttons
set temperature is visible.
6. Device is equipped in safety valve, which will be triggered automatically when inside pressure exceeds 1,2
Mpa.
Water connection need to be performed using elastic hoses with gasket. Do not use teflon or
oakum for that purpose. Please pay special attention while making water connection, rotating or
breaking connection may cause irreparable damage to the device.

7
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
7. Press to learn electricity and water usage.
8. Admiral has build-in memory ensuring all parameters are kept in case of lack of electricity
9. If the unit has been paused, you may initially get a short burst of very hot water while you turn on again.
Please run the water through for a few seconds to let the temperature settle down. Please check hot water
with hand before you taking a shower. If the unit will not be used in winter, drain out water completely so
that the heater will not freeze and be permanently damaged.

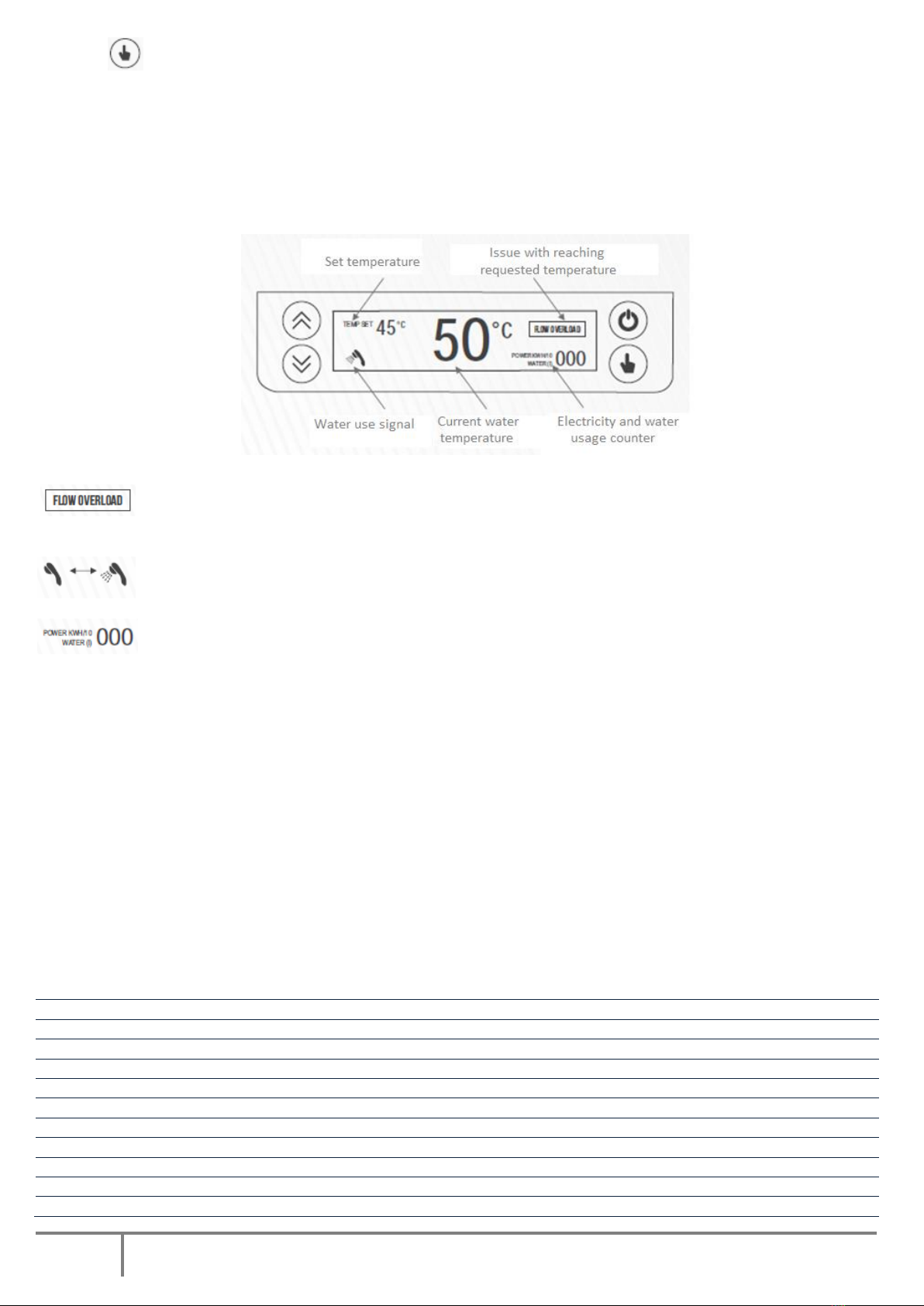

Control panel:
Information is shown when reaching requested temperature is not possible as a consequence
of too high demand for hot water or too low starting temperature.
Information of flow heater status - blinking icon signals water consumption. Flow rate
activating heating: 3,2 l/min for flow heaters 12-21 kW and 2 l/min for flow heater 7,5 kW.
Counter showing electricity and water consumption. Change by pressing button.
Maintenance:
Although it is not required by any regular maintenance procedures, please ensure consistent water flow,
it is recommended for the following maintenance:
1. Periodically remove scale and dirt that may build up at the aerator of the faucet or in the shower head.
Please periodically clean inlet strainer and the shower to keep a free water flow.
2. There is a built in meshed gasket screen at inlet connection which should be cleaned from periodically
depends on your water quality. Please shut the water flow before doing so.
Technical parameters:
Power and supply
7,5 kW
230 V~
12 kW
400 V~
15 kW
400 V~
18 kW
400 V~
21 kW
400 V~
Minimal cable requirement
3 x 6 mm2
5 x 2,5 mm2
5 x 2,5 mm2
5 x 2,5 mm2
5 x 2,5 mm2
Water temperature range
30 - 55°C
30 - 60°C
30 - 60°C
30 - 60°C
30 - 60°C
Minimal current
32,61 A
3x17,3 A
3x21,7 A
3x26 A
3x30,3 A
Safety fuses
40 A
20 A
25 A
32 A
40 A
Tapping size
G 1/2”
G 1/2”
G 1/2”
G 1/2”
G 1/2”
Water supply pressure
0,02 - 0,6 MPa
0,02 - 0,6 MPa
0,02 - 0,6 MPa
0,02 - 0,6 MPa
0,02 - 0,6 MPa
Water flow activating heating
2 l/min
3,2 l/min
3,2 l/min
3,2 l/min
3,2 l/min
Water temperature limiter
67°C
72°C
72°C
72°C
72°C
Overheating sensor
95°C
90°C
90°C
90°C
90°C
Flow rate with Δt=30°C
3,6 l/min
5,8 l/min
7,2 l/min
8,7 l/min
10,1 l/min
Protection
IP25
IP25
IP25
IP25
IP25

8
Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl
Dimensions:
Troubleshooting:
Problem
Cause
Solution
Water leakagefrom connections.
A. Not properly screwed connections.
B. Lack of seal.
A. Try to screw properly.
B. Exchange seal.
LED is not working.
A. Lack of electricity.
B. Damaged diode.
A. Connect electricity.
B. Exchange diode (service).
Buttons does not work.
A. Water supply is turned off.
B. Too low water pressure.
C. Device malfunction.
A. Turn water supply on.
B. Check water pressure.
C. Service required.
Water is too hot.
A. Too high water temperature setting.
B. Too low water pressure.
A. Decrease water temperature setting.
B. Increase water flow.
Water is too cold.
A. Too low water temperature setting.
B. Too high water demand compared
with device power.
A. Increase water temperature setting.
B. Decrease water flow (e.g. use only 1
intake point at one time).
Water pressure is dropping.
Mesh filter is filled.
Check and clean filter.
No water heating.
Thermic switch was activated.
Take casing off and press reset button.
Display shows E1.
Water temperature exceeded 67°C.
Reduce temp.
Increase water supply.
Display shows E2.
Leakage.
Contact service.
Display shows E3.
Sensor malfunction.
Contact service.
Any attempt to fix device outside authorized service causes warranty loss!
