Dear Customer,
The Eltex cable rewinders of series 601KR ensure that the ground cable is
safely reeled back after use, protecting it from damage and dirt.
The aluminum cable rewinder is made of impact-proof aluminum and is
mounted with an assembly bracket. This allows the cable rewinder to be
turned into the direction of the cable run making unwinding and rewinding
easy. At type 601KR/AW the rubber cable outlet prevents moisture and
dirt from penetrating the housing. The built-in cable stop mechanism
allows the cable to be locked in place and released as required.
The plastic cable rewinder is encased in a robust and sturdy plastic
housing. The cable outlet is fitted with four cable guide rollers for easy
cable guidance.
The cable rewinders and the clamp holder are designed for wall mounting
and may be used in zones with potentially explosive atmospheres.
Please read the operating instructions carefully before starting the
instrument. This will help you prevent personal injuries and damage to
property.
Please give us a call if you have any suggestions, proposals or ideas for
improvements. We greatly appreciate the feedback from the users of our
appliances.

BA-en-4007-2107_601KR/70 5
1. Overview
Fig. 1:
Cable rewinders
series 601KR
Cable rewinders
Aluminium
601KR/AW (active)
Aluminium
601KR/DW (active) / 601KR/EW (passive)
Plastic
601KR/KW (active)
Z-114868y_7
Z-114868y_8
Z-114868y_9
Z-113113_1y

6BA-en-4007-2107_601KR/70
Design Variants
Cable rewinders for active grounding:
601KR/AW: Cable rewinder in impact-proof aluminum housing, IP43
assembly bracket for wall mounting, swivel-type
stop mechanism for ground cable
2.5 meters connecting cable
20 meters ground cable, cable color: light blue
ground clamp connection via coupling socket
601KR/DW: Cable rewinder in impact-proof aluminum housing, IP42
assembly bracket for wall mounting, swivel-type
stop mechanism for ground cable
2.5 meters connecting cable
12 meters ground cable, cable color: light blue
ground clamp connection via coupling socket
601KR/KW: Cable rewinder in plastic housing, IP42
assembly plate for wall mounting
2.5 meters connecting cable
9 meters ground cable, cable color: light blue
ground clamp connection via coupling socket
Cable rewinders for passive grounding:
601KR/EW: Cable rewinder in impact-proof aluminum housing
IP42
assembly bracket for wall mounting, swivel-type
stop mechanism for ground cable
2.5 meters connecting cable
12 meters ground cable, cable color: orange
ground clamp connection via coupling socket

BA-en-4007-2107_601KR/70 7
2. Safety
The units have been designed, built and tested using state-of-the-art engi-
neering, and have left the factory in a technically and operationally safe
condition. If used improperly, the units may nevertheless be hazardous to
personnel and may cause injury or damage. Read the operating instruc-
tions carefully and observe the safety instructions.
For warranty conditions, please refer to the General Terms and Conditions
(GTC), see www.eltex.de.
2.1 Identification of risks and hazards
Possible risks and hazards resulting from the use of the units are referred
to in these operating instructions by the following symbols:
Warning!
This symbol appearing in the operating instructions refers to operations
which, if carried out improperly, may result in serious personal injuries.
Caution!
This symbol appearing in the operating instructions refers to operations
which, if carried out improperly, may result in damage to property.
Ex Warning!
Only for units with Ex approval.
This symbol denotes the special conditions which must be observed when
operating the units in explosion hazard areas as specified in the
approvals.
2.2 Technical advance
The manufacturer reserves the right to make changes to the technical
specifications without prior notice in order to adapt the units to state-of-
the-art engineering. Eltex will provide the latest information on any
changes or modifications in the operating instructions on request.
Ex!

8BA-en-4007-2107_601KR/70
2.3 Proper use
Active grounding
The cable rewinder series 601KR must be used only for static grounding
and must be connected to the appropriate Eltex ground monitoring
systems.
The application area are for example: refilling and filling stations, agitators
or dryers for liquid or powdery substances, and in conveyor and
transportation equipment with potentially explosive atmosphere.
The cable rewinders series 601KR are not suitable for use in a saline
environment (e.g. sea ports).
The manufacturers will not assume any liability and warranty if the units
are used improperly or used outside the intended purpose.
Modifications or changes made to the devices are not permitted.
Use only original Eltex spare parts and equipment.

BA-en-4007-2107_601KR/70 9
2.4 Work and operational safety
Warning!
Carefully observe the following notes and the complete chapter 2 "Safety”,
page 7!
• The local standards, rules and regulations relating to the installation
and operation of electrical appliances in potentially explosive atmos-
pheres must be observed.
• Appliances designed for use in potentially explosive atmospheres must
not be modified. The technical specifications for ambient conditions and
operation must be maintained and observed (see chapter 6 "Technical
specifications”, page 19).
• Electrical systems in potentially explosive atmospheres must always be
in perfect technical condition. Defects must be rectified immediately
(see chapter 4 "Operation”, page 18).
• Any work involving the units must be carried out by qualified electrici-
ans (see chapter 3 "Installation and assembly”, page 10, chapter 5
"Maintenance”, page 18).
• The unit may only be used by qualified personnel trained for explosion
hazard areas.
• Please note the type plate indicating the connection data (supply vol-
tage) of the units (see chapter 4 "Operation”, page 18).
• A „Connect/Disconnect Approval“ by the plant operator must be
obtained before carrying out any installation, assembly, service, repair
or maintenance work in potentially explosive atmospheres. Make sure
that there is no potentially explosive atmosphere existing in the working
area. Ensure adequate ventilation and/or screening (see chapter 3
"Installation and assembly”, page 10, chapter 5 "Maintenance”,
page 18).
• The equipotential bonding line to the housing of the cable rewinders
must be connected permanently according to the universal rules of
electrical engineering. The terminal cross-section must equal at least
the cross-section of the power supply of the ground testing device (see
chapter 3.3 "Electrical connection of the cable rewinder”, page 15).
• The housing of the cable rewinders may not be opened; the internal,
pre-tensioned spring represents a significant risk. Only the cap may be
removed to configure the stop mechanism (see chapter 3.3 "Electrical
connection of the cable rewinder”, page 15).
• Perform regular checks to ensure that the cable and the insulation
show no tears or abrasion that could impair the cable's insulation or
functioning (see chapter 5.1 "Cable rewinders”, page 18).

10 BA-en-4007-2107_601KR/70
3. Installation and assembly
When installing the systems in potentially explosive zones, every possible
precaution must be taken to ensure that no explosive atmosphere exists!
3.1 Aluminum cable rewinder
The aluminum cable rewinder is attached to a wall, column or ceiling via
the installation bracket as shown in Fig. 2. Roofing must be provided when
installing the unit outside. Select a suitable installation height to make sure
that the ground clamp is within easy reach and does not make contact
with the floor. The cable rewinder type 601KR/AW may be turned by 320°
and types 601KR/DW and 601KR/EW by 170° around its installation axis.
The cable rewinder is suitable for hazardous location area.
Ex!
Fig. 2:
Assembly of the
aluminum cable
rewinder
601KR/AW
Z-114868y_1



s
s
3$/


 











s
s

BA-en-4007-2107_601KR/70 11
Fig. 3:
Assembly of the
aluminum cable
rewinder
601KR/DW
601KR/EW
Z-114868y_2

 

s
s
3$/










s
s

12 BA-en-4007-2107_601KR/70

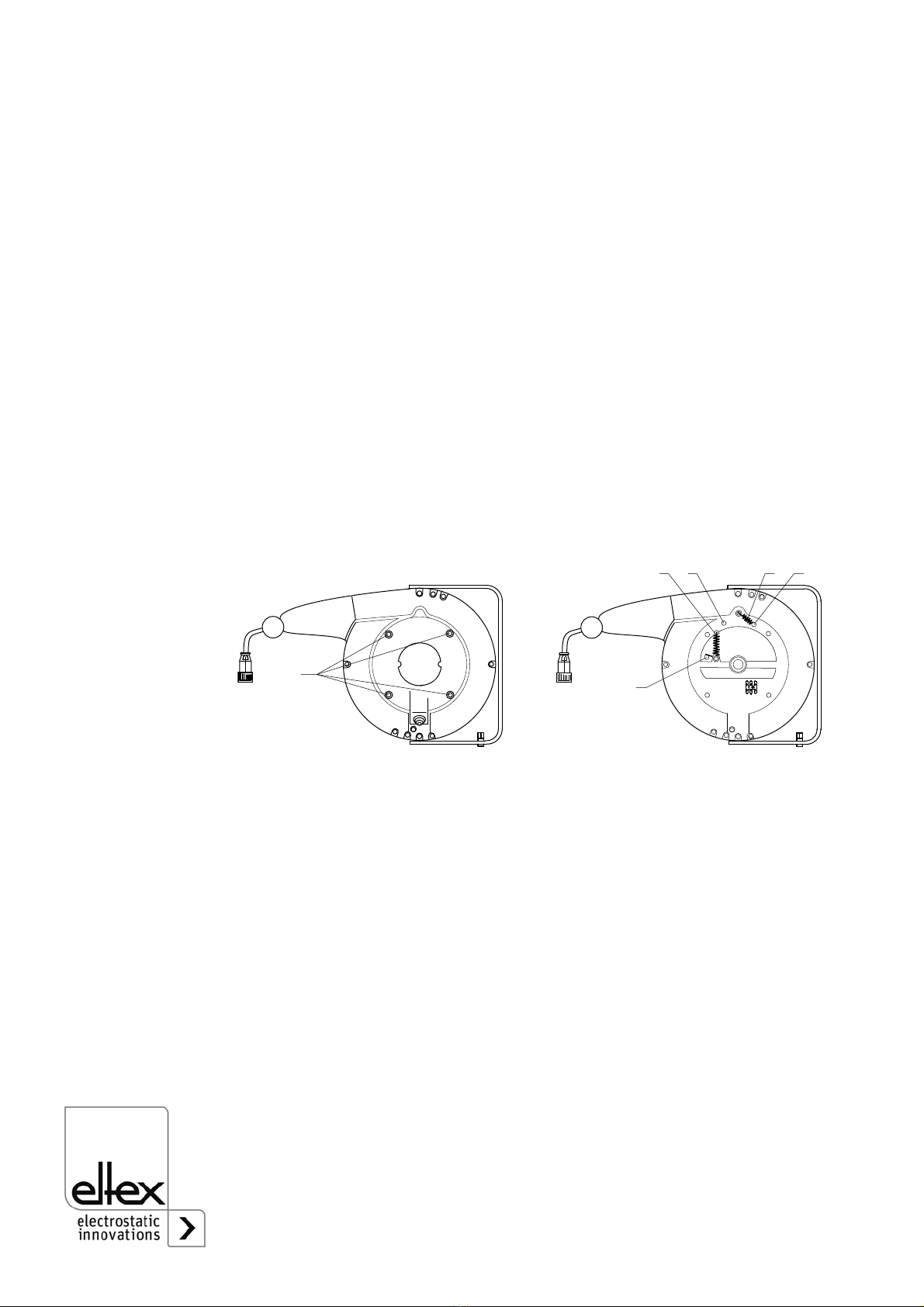

Stop mechanism, aluminum cable rewinder 601KR/AW
Enabling the stop mechanism:
• Remove the four bolts (1) and take off the side cover (see Fig. 4).
• Take the spring (4) off bolt (5) and hook into bolt (6).
• Remove the screw (2) to make sure that the locking mechanism (3) is
free.
• Replace the side cover.
Disabling the stop mechanism:
• Remove the four bolts (1) and take off the side cover (see Fig. 7).
• Take the spring (4) off bolt (6) and hook into bolt (5).
• Turn the locking mechanism (3) by 120° in clockwise direction and turn
in the screw (2) fully to make sure that the locking mechanism is
disabled.
• Replace the side cover.

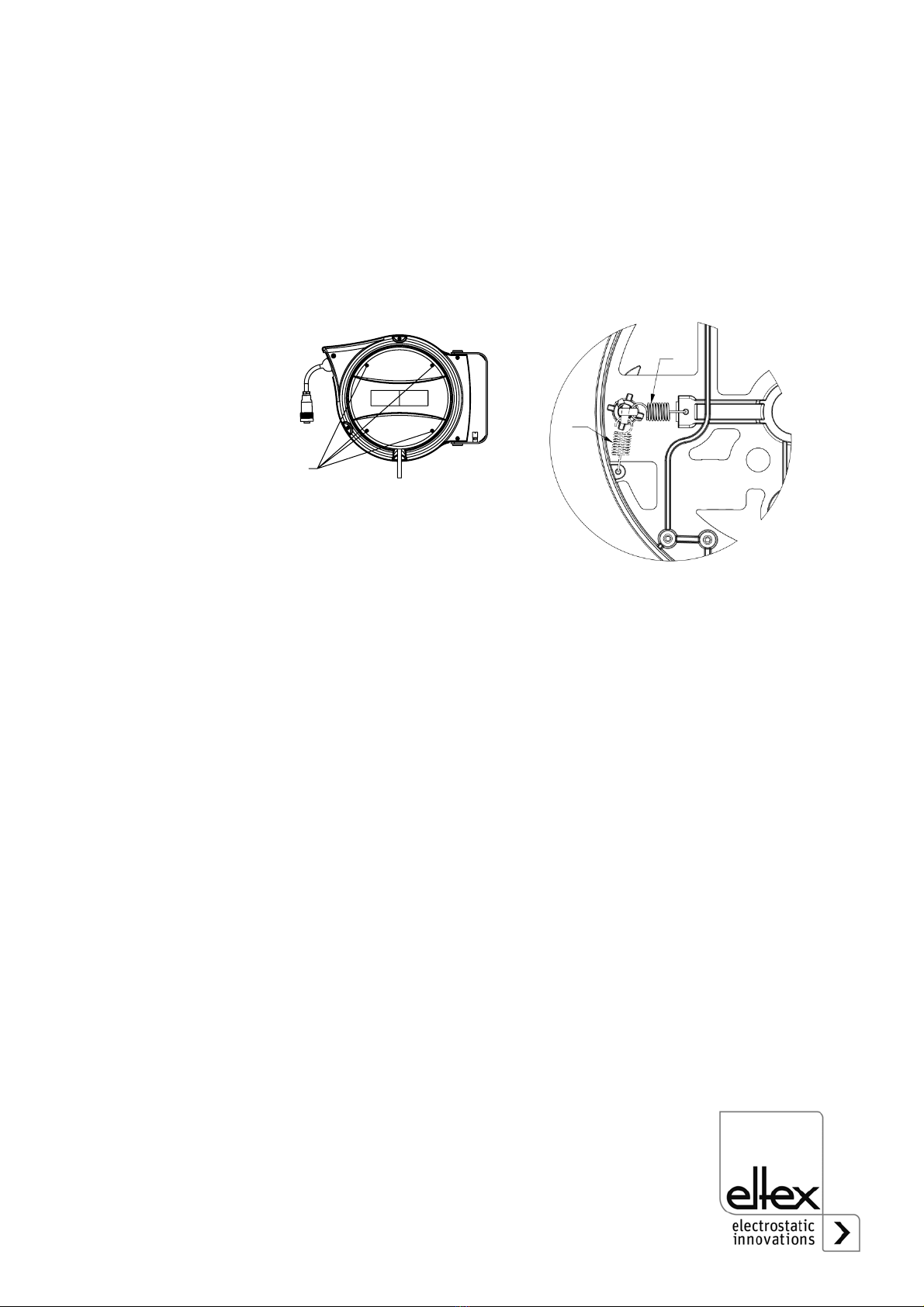

Fig. 4:
Locking
mechanism of the
aluminum cable
rewinder for type
601KR/AW
Z00099y
13
2546

BA-en-4007-2107_601KR/70 13
Type 601KR/DW and Type 601KR/EW
Enabling / Disabling the stop mechanism
• Remove the four bolts (1) and take off the side cover (seeFig. 5 ).
• Take the spring and hook into according position 2 resp. 3.
• Replace the side cover.
Fig. 5:
Locking
mechanism of the
aluminum cable
rewinder for type
601KR/DW and
601KR/EW
Z-114868y_10+Z2017y

2 = enabled stop mechanism
3 = disabled stop mechanism
3
2

14 BA-en-4007-2107_601KR/70
3.2 Plastic cable rewinder
The cable rewinder made of weather-resistant plastic is designed for wall
mounting. It can be installed in the explosion hazard zone.
The cable rewinder is attached to a wall, column or ceiling via the
installation bracket as shown in Fig. 6. Roofing must be provided when
installing the unit outside. Select a suitable installation height to make sure
that the ground clamp is within easy reach and does not make contact
with the floor.
Fig. 6:
Assembly of the
plastic cable
rewinder
type 601KR/KW
Z-114868y_3


 

s
s
3$/







BA-en-4007-2107_601KR/70 15
3.3 Electrical connection of the cable rewinder
• The equipotential bonding line to the housing of the cable rewinders
must be connected permanently according to the universal rules of
electrical engineering. The terminal cross-section must equal at least
the cross-section of the power supply of the ground testing device.
• The housing may not be opened; the internal, pre-tensioned spring re-
presents a significant risk. Only the cap may be removed to configure
the stop mechanism.
Active grounding
The cable rewinder in connection with the active ground clamps is
connected to the Eltex ground monitoring system via the terminal box of
the cable rewinder. The cable rewinder must be permanently connected to
an equipotential bonding lead.
The ground clamps are connected via the existing coupling plug.
Ex!
Fig. 7:
Connecting the
aluminum cable
rewinder
601KR/AW
a = blue
b = brown
c = green/yellow
Z-114868y_4
3$/
EDF
EDF

16 BA-en-4007-2107_601KR/70
Fig. 8:
Connecting the
aluminum cable
rewinder
601KR/DW
a = blue
b = brown
c = green/yellow
Z-114868y_5
Fig. 9:
Connecting the
plastic cable
rewinder
601KR/KW
a = blue
b = brown
c = green/yellow
Z-114868y_6
3$/
EFD
EFD
3$/
F
D
E
F
D
E

BA-en-4007-2107_601KR/70 17
Passive grounding
The cable rewinder in connection with the 70SG passive ground clamps is
connected to the equipotential bonding via the terminal box of the cable
rewinder. The cable rewinder must be permanently connected to the
equipotential bonding via the three-wire connecting cable. All three wires
must be connected to the equipotential bonding.
3.4 Pin assignment of the coupling plug
3.5 Cable specifications
• three-core 3 x 1.5 mm2
• wire color blue, brown, green/yellow,
light blue-sheathed for active grounding,
orange-sheathed for passive grounding
• oil and gasoline resistant
Fig. 10:
Connecting the
aluminum cable
rewinder
601KR/EW
All three wires
must be
permanently
connected to
the PAL
Z-114868y_5
3$/
EFD
EFD
Fig. 11:
Pin assignment
of the coupling
plug
a = blue
b = brown
c = green/yellow
A = socket
B = plug
Z00108y
A B
a
b
a
b
cc

18 BA-en-4007-2107_601KR/70
4. Operation
Electrical systems used in explosion hazard areas must at all times be in a
technically faultless condition. Any defects must be repaired or remedied
immediately.
Caution!
Observe the connection ratings (supply voltage) of the units.
5. Maintenance
When maintaining or servicing the systems in potentially explosive zones,
every possible precaution must be taken to ensure that no explosive
atmosphere exists!
Warning!
Maintenance and repair work must be carried out only by qualified
personnel trained in working in potentially explosive areas.
5.1 Cable rewinders
Perform regular checks to ensure that the cable and the insulation show
no tears or abrasion that could impair the cable's insulation or functioning.
Clean the cable with a cloth soaked in warm water to remove dirt or
incrustations and ensure perfect unwinding.
Defective devices must be sent in for repair.
Ex!
Ex!

BA-en-4007-2107_601KR/70 19
6. Technical specifications
6.1 Cable rewinder for active grounding
Type 601KR/AW
Enclosure
Rewind mechanism
Protection class
Operating
ambient temperature
Attachment
Ground cable
Connecting lead
Dimensions
Weight
Inductance
Capacitance
Approval /
Identification marking
ribbed and reinforced aluminum,
protected cable inlet aperture with stopper
automatic, special spring, on-off function
IP43, EN 60529
–40...+70 °C (–40...+158 °F)
wall assembly via assembly bracket
20 m oil and gasoline resistant control lead,
3 x 1.5 mm2, color: light blue
temperature range –40...+90 °C (–40...+194 °F),
connected 4-pin socket IP67
2.5 m, connecting cable 3 x 1.5 mm2

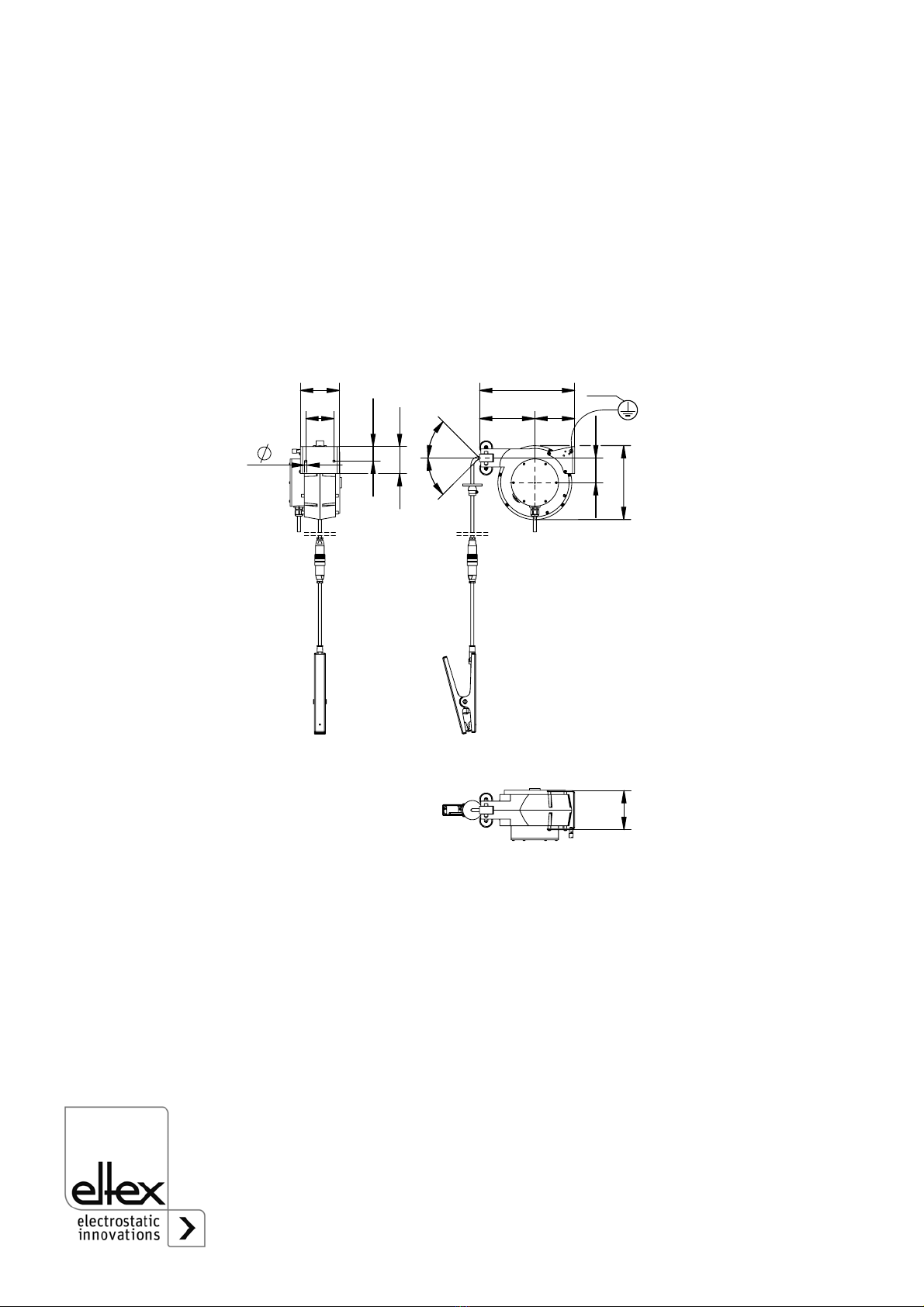

see Fig. 12
approx. 14 kg with 20 m ground cable
approx. 0.1 mH
approx. 2.3 nF
ATEX: DMT 00 ATEX E 068 X
II 2D Ex ia IIIC T135°C Db, II 2G Ex ia IIC T6 Gb
IECEx: BVS 16.0016
Ex ia IIIC T135°C Db, Ex ia IIC T6 Gb
Typ 601KR/DW
Enclosure
Rewind mechanism
Protection class
Operating ambient
temperature
Attachment
Ground cable
Connecting lead
Dimensions
Weight
Inductance
Capacitance
Aproval /
Identification marking
Aluminium with rollers and stopper
automatic, stop mechanism with on/off function
IP42 according to EN 60529
–40...+70°C (–40...+158°F)
wall assembly via assembly bracket
12 m oil and gasoline resistant control lead
3 x 1.5 mm2, color: light blue
temperature range –40...+90°C (–40...+194°F),
connected 4-pin socket IP67
2.5 Meter, connecting cable 3 x 1.5 mm2, color: light blue
see Fig. 14
approx. 5.7 kg with 12 m ground cable
approx. 0,07 mH
approx. 1.6 nF
ATEX: DMT 00 ATEX E 068 X
II 2D Ex ia IIIC T135°C Db, II 2G Ex ia IIC T6 Gb
IECEx: BVS 16.0016X
Ex ia IIIC T135°C Db, Ex ia IIC T6 Gb
as shown on
appliance
marking:
as shown on
applicance
marking:

20 BA-en-4007-2107_601KR/70
6.2 Cable rewinder for passive grounding
Type 601KR/KW
Enclosure
Protection class
Operating
ambient temperature
Attachment
Ground cable
Connecting lead
Dimensions
Weight
Inductance
Capacitance
Approval /
Identification marking
plastic, cable inlet aperture with rollers
IP42 according to EN 60529
–20...+70°C (–4...+158°F)
wall assembly via metal assembly plate
9 m oil and gasoline resistant control lead
3 x 1.5 mm2, color: light blue
temperature range –40...+90°C (–40...+194°F),
connected 4-pin socket IP67
2.5 m, connecting cable 3 x 1.5 mm2, color: light blue
see Fig. 15
approx. 4 kg with 9 m ground cable
approx. 0.05 mH
approx. 1.20 nF
DMT 00 ATEX E 068 X
ATEX: DMT 00 ATEX E 068 X
II 2D Ex ia IIIC T135°C Db, II 2G Ex ia IIC T6 Gb
IECEx: BVS 16.0016X
Ex ia IIIC T135°C Db, Ex ia IIC T6 Gb
Typ 601KR/EW
Enclosure
Rewind mechanism
Protection class
Operating ambient
temperature
Attachment
Ground cable
Connecting lead
Dimensions
Weight
Inductance
Capacitance
Aproval /
Identification marking
Aluminium with rollers and stopper
automatic, stop mechanism with on/off function
IP42 according to EN 60529
–40...+70°C (–40...+158°F)
wall assembly via assembly bracket
12 m oil and gasoline resistant control lead
3 x 1.5 mm2, color: orange
temperature range –40...+90°C (–40...+194°F),
connected 4-pin socket IP67
2.5 Meter, connecting cable 3 x 1.5 mm2, color: orange
see Fig. 14
approx. 5.7 kg with 12 m ground cable
approx. 0,07 mH
approx. 1.6 nF
PTB: 05ATEXD121-1
II 2D c T80°C, II 2G c T6
as shown on
appliance
marking:
