Elumen8 ELUM031 User manual

eLumen8
KUDOS CM 120 MKII
Order code: ELUM031
User Manual
Contents
1. Safety Instructions
2. Features & Specifications
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning

1. Safety Instructions
WARNING
Please keep this User Guide for future consultation. If you sell the unit to another
user be sure that they also receive this.
Unpack and check carefully that there is no transportation damage before using
the unit.
!Before operating, ensure that the voltage and frequency of the power supply
match the power requirements of the unit.
!It’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
!The unit is for indoor use only. Use only in a dry location.
!The unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surfaces. Be sure that no ventilation slots are blocked.
!Disconnect the mains power before replacement or servicing.
!Make sure there are no flammable materials close to the unit while operating as
they may cause a fire hazard.
!Always use a safety cable when installing this unit.
!The maximum ambient temperature is: 40°. Don’t operate it where the
temperature is higher than this.
!In the event of a serious operating problem stop using the unit immediately.
Never try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.
!Do not touch any power cables during operation as the high voltage may cause
an electric shock.
Warning
!To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.
!Do not open the unit within five minutes after switching off.
!The housing and lenses must be replaced if they are visibly damaged.
!This lighting fixture is for professional use only - it is not designed for or suitable
for household use. The product must be installed by a qualified technician in
accordance with local territory regulations. The safety of the installation is the
responsibility of the installer. The fixture presents risks of severe injury or death
due to fire hazards, electric shock and falls.
!Warning! Risk Group 2 LED product according to EN 62471. Do not view the
light output with optical instruments or any unit that may concentrate the beam.
!WARRANTY: Two years from date of purchase.
Installation
The unit should be mounted via its screw holes onto the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. Make
sure that the structure to which you are attaching the unit to is secure and is able
to support a weight of 10 times of the unit’s weight. Always use a safety cable that
can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be installed by professionals and it must be installed in a
place where is out of the reach of people and no one can pass by or under it
2. Features & Specifications
◇Extremely small, fast and powerful LED moving beam.
◇DMX Channels: 9/12/14/16/28
◇Pan/Tilt: 630/200, speed adjustable
◇Smooth electronic dimming: 0-100%
◇Electronic strobe with pulse and random effects
◇Optional easy controller CA-8 for instant lighting shows at your fingertips
◇High efficiency, low power consumption
◇Super compact, low weight
l12pcs of 10W RGBW quad colour LEDs
lVoltage: 100V~240V, 50/60Hz
lFuse: T 6.3A
lPower consumption: 150W
lDimension: 304 x 267 x 167 mm
lWeight: 5.8 kg
lPower sockets:IEC IN/OUT
lXLR sockets: 3-pin XLR IN/OUT
3. How To Set The Unit
3.1 Control panel
Please read the instructions carefully as they include
important information about installation, usage and
maintenance.

Display
Show the various menus and the selected functions
LEDs
DMX
On
DMX input present
MASTER
On
Master Mode
SLAVE
On
Slave Mode
SOUND
Flashing
Sound activation
Button
MENU
To select the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
To confirm the selected functions
3.2 Main Function
To select any of the functions press the MENU button up to where the
required one is showing on the display. Select the function by pressing
the ENTER button and the display will blink. Use the DOWN and UP
buttons to change the mode. Once the required mode has been
selected press the ENTER button to confirm.
The main functions are as below:
Menu
DMX Address setting
001-512
Channel mode
9CH
12CH
14CH
16CH
28CH
Show mode
Show 1
Show 2
Show 3
Show 4
Dimmer curve
Mode 1
Mode 2
Mode 3
Mode 4
Slave mode
Slave1
Slave2
Blackout
Yes - No
Sound
ON - OFF
Sound Sensitivity
0-100
Pan inverse
Yes - No
Tilt inverse
Yes - No
Back Light
ON - OFF
Function Delay
NO delay
1S delay
2S delay
3S delay
White Balance
Red
Green
Blue
Manual Test
Pan
Tilt
Red1
Green1
Blue1
White1
…
Red4
Green4
Blue4
White4
Dimmer
Shutter
Auto-Test
Auto-Test
Temp:
0 -XXX˚C
Fixture Time
Firmware version
Ver XXX
Defaults
Yes - No
Reset

DMX Address
Select DMX Address, press the ENTER button and the current mode
will blink on the display. Use the UP and DOWN buttons to adjust the
address from 1to 512. Once the address has been selected press the
ENTER button to confirm.
Channel Mode
Select Channel Mode, press the ENTER button to confirm and the
current mode will blink on the display. Use the DOWN and UP buttons
to select the 9, 12, 14, 16 or 28 channel mode. Once the mode has
been selected press the ENTER button to confirm.
Show Mode
Select Show Mode, press the ENTER button and the current mode will
blink on the display. Use the DOWN and UP buttons to select Show 1
or Show 2 or Show 3 or Show 4 mode. Once the mode has been
selected press the ENTER button to confirm.
Dimmer Curve
To select Dimmer Curve, press the ENTER button to show DIMMER
CURVE on the display. Use the DOWN/UP buttons to select Mode
1(Optically Linear) or Mode 2(Square Law) or Mode 3(Inverse Square
Law) or Mode 4(S-Curve). Once the mode has been selected press the
ENTER button to setup.
Mode 1(Optically Linear): The increase in light intensity appears to
be linear as the DMX value is increased.
Mode 2(Square Law): Light intensity control is finer at low levels and
coarser at high levels.
Mode 3(Inverse Square Law): Light intensity control is coarser at
low levels and finer at high levels.
Mode 4(S-curve): Light intensity control is finer at low levels and high
levels and coarser at medium levels.
Slave Mode
Select Slave Mode, press the ENTER button and the current mode will
blink on the display. Use the DOWN and UP buttons to select Slave 1
(normal) or Slave 2 (2 light show) mode. Once the mode has been
selected press the ENTER button to confirm.
Black Out
Select Blackout Mode, press the ENTER button and the current mode
will blink on the display. Use the DOWN and UP buttons to select Yes
(yes blackout) or No (no blackout) mode. Once the mode has been
selected press the ENTER button to confirm.
Sound State
Select Sound State, press the ENTER button and the current mode
will blink on the display. Use the DOWN and UP buttons to select ON
(Sound on) or OFF (Sound Off) mode. Once the mode has been
selected press the ENTER button to confirm.
Sound Sensitivity
Select Sound Sense, press the ENTER button to confirm and the
current mode will blink on the display. Use the DOWN and UP buttons
to adjust the sensitivity from 0…100 and press the ENTER button to
confirm.
Pan Inverse
Select Pan Inverse, press the ENTER button and the current mode
will blink on the display. Use the DOWN and UP buttons to select Yes
(pan inversion) or No (normal) mode and press the ENTER button to
confirm.
Tilt Inverse
Select Pan Inverse, press the ENTER button and the current mode
will blink on the display. Use the DOWN and UP buttons to select Yes
(tilt inversion) or No (normal) mode and press the ENTER button to
confirm.
Back Light
Select Back Light, press the ENTER button and the current mode will
blink on the display. Use the DOWN and UP buttons to select ON (Led
display menu on) or OFF (Led display menu off) mode. Press the
ENTER button to confirm.
Function Delay
Select Function Delay, press ENTER button to confirm, present mode
will blink on the display. Use DOWN and UP button to select the No
Delay or 1S/2S/3S Delay (Wait for 1/2/3 seconds before these
Functions of 9/16/28CH are activated/deactivated) mode. Once the
mode has been selected, press the ENTER button to setup.
White Balance
Select White Balance, press the ENTER button and the current mode
will blink on the display. Use the DOWN and UP buttons to select

Red/Green/Blue. Once the mode has been selected press the ENTER
button to setup, use the DOWN and UP buttons to change the value
(125~255) and press the ENTER button to confirm.
Manual Test
Select Manu Test, press the ENTER button to confirm, present mode
will blink on the display. Use the DOWN and UP button to select the
Pan/Tilt/Red1/Green1/Blue1/White1/…Red4/Green4/Blue4/
White4/Dimmer or Strobe. Once the mode has been selected, press
the ENTER button to setup, use the DOWN and UP button to change
the value (0~255). Once the mode has been selected, press the
ENTER button to setup.
Auto-Test
Press the MENU button until the Auto-Test is blinking on the display.
Press the ENTER button and the unit will run self-test with the built-in
programs.
Temperature
Press the MENU button until the Temperature Test is blinking on the
display. The temperature will be shown on the display.
Fixture Time
Press the MENU button up to when the Fixture Time is blinking on the
display. Pressing ENTER button and the display will show the number
of working hours of the unit.
Firmware Version
Press the MENU button up to when the Firmware version is blinking on
the display. Pressing ENTER button and the display will show the
version of software of the unit.
PRO Defaults: For professional users, a detailed explanation follows:
FSlave Mode àSlave 1
FBlack Out àYes
FSound State àOff
FPan Inverse àNo
FTilt Inverse àNo
FBack Light àOff
FFunction delay à3S delay
Reset
Press the MENU button until the Reset is blinking on the display. Press
the ENTER button and all channels of the unit will return to their
standard position.
3.3 Home Position Adjust
Hold the Enter button for at least 3 seconds to enter offset mode. Use
the DOWN and UP buttons to choose Pan Offset or Tilt Offset and
then press the ENTER button and the display will blink. Use the DOWN
and UP buttons to adjust the home position of the Pan or Tilt, Once the
position has been selected, press the ENTER button to confirm.
4. How To Control The Unit
1) Master/slave built-in preprogram function
2) Universal DMX controller
3) Easy controller
There is no need to turn the unit off when you change the DMX address
as the new DMX address setting will be effected at once. Every time
you turn the unit on, it will show “CM-120” on the display and move all
the motors to their ‘home’ position.
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will
control the other units to give an automatic, sound activated,
synchronized light show. This function is good when you want an
instant show. You have to set the first unit as master and select show
1, show 2, show 3 or show 4 from the Show Mode. The DMX input
must be unplugged. The master LED will be constantly on and the
sound LED will blink. The other units must be set to either Slave 1
(normal) or Slave 2 (2 light show) mode. DMX cables between the
units for linking are needed. The LED indicators on the slave units will
constantly be on if the setting is correct.
2-light show
In slave mode, Slave 1 means the unit works normally and Slave 2
means 2-light show. In order to create a great light show, you can set
Slave 2 on for the second unit to get contrast movement to each other,
even if you only have two units.

4.2 Easy Controller
The easy remote controller is used only in master/slave mode. By
connecting to the 1/4 microphone jack of the first unit, the remote
controller on the first unit will control all the other units in Stand by
and Mode Selection.
Stand By
Blackout the unit
Function
1. Sync. Strobe
2. Async. Strobe
3. Sound Strobe
Show
1-4
1. Pan Index
2. Tilt index
3. Dimmer
Fade Speed
1. Fast
2. Middle
3. Slow
Mode
Sound
(LED OFF)
Show
(LED Slow
Blinking)
Show
(LED Fast
Blinking)
LED ON
DMX Controller
By using a universal DMX controller to control the units, you will need
to set DMX address from 1 to 512 so that the units can receive DMX
signal. Press the MENU button until DMX Address is showing on the
display. Press the ENTER button and the display will blink. Use the
DOWN and UP buttons to change the DMX 512 address. Once the
address has been selected, press the ENTER button to confirm.
Please refer to the below diagram to address your DMX512 channel for
the first 4 units：
Channel
mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
9channel
1
10
19
28
12channels
1
13
25
37
14channels
1
15
29
43
16channels
1
9
17
25
28channels
1
29
57
85
4.3 DMX 512 Configuration
9 channels mode：
Channel
Value
Function
1
000-255
Pan
2
000-255
Tilt
3
248-255
Open
240-247
Random Strobe
232-239
Open
190-231
Slow close
Fast Open
182-189
Open
140-181
Slow Open
Fast close
132-139
Open
16-131
Strobe(slow-fast)
000-15
Open
4
000-255
Red
5
000-255
Green
6
000-255
Blue
7
000-255
White
8
000-255
Dimmer
9
250-255
Stand By
210-249
NO Function
200-209
Reset All
090-199
NO Function
080-089
Disable Blackout while Pan/Tilt Move
070-079
Enable Blackout while Pan/Tilt Move
000-069
NO Function
12 channels mode:
Channel
Value
Function
1
Shutter Effect
0-019
Shutter closed
020-049
Shutter open
050-064
Strobe 1 (Faster to Slow)
065-069
Shutter Open
070-084
Strobe 2 (Faster to Slow)
085-089
Shutter Open
090-104
Strobe 3 (Faster to Slow)
105-109
Shutter Open

110-124
Strobe 4 (Faster to Slow)
125-129
Shutter Open
130-144
Strobe 5 (Faster to Slow)
145-149
Shutter Open
150-164
Strobe 6 (Faster to Slow)
165-169
Shutter Open
170-184
Strobe 7 (Faster to Slow)
185-189
Shutter Open
190-204
Strobe 8 (Faster to Slow)
205-209
Shutter Open
210-224
Strobe 9 (Faster to Slow)
225-229
Shutter open
230-244
Strobe 10 (Fast to slow)
245-255
Shutter Open
2
0-255
DIMMER 0％-100％
3
0-255
PAN
4
0-255
PAN FINE
5
0-255
TILT
6
0-255
TILT FINE
7
Control setting
000-009
No function
010-014
Reset
015-039
No function
040-044
Pan/tilt speed(Normal)
045-049
Pan/tilt speed(Fast)
050-054
Pan/tilt speed(Slow)
055-059
No function
060-064
Fan Mode Full
065-069
No function
070-074
Fan Mode Regulated
075-094
No function
095-099
Enable Blackout while Pan/tilt
100-104
No function
105-109
Disable blackout while pan/tilt
110-114
Dimmer speed(slow to fast)
115-119
No function
120-124
DIMMER 0％-100％
125-249
Illuminate display
250-255
Stand alone
8
Colour wheel effect
000-009
Open-RGB Colour mixing
010-014
LEE790-Moroccan Pink
015-019
LEE157-Pink
020-024
LEE332-Special rose pink
025-029
LEE328-Follies pink
030-034
LEE345-Fuchsia Pink
035-039
LEE194-Surprise pink
040-044
LEE181-Congo Blue
045-049
LEE071-Tokyo Blue
050-054
LEE120-Deep Blue
055-059
LEE079-Just Blue
060-064
LEE132-Medium Blue
065-069
LEE200-Double CT Blue
070-074
LEE161-Slate Blue
075-079
LEE201-Full CT Blue
080-084
LEE202-Half CT Blue
085-089
LEE117-Steel Blue
090-094
LEE353-Lighter Blue
095-099
LEE118-Light Blue
100-104
LEE116-Medium Blue Green
105-109
LEE124-Dark Green
110-114
LEE139-Primary Green
115-119
LEE089-Moss Green
120-124
LEE122-Fern Green
125-129
LEE738-JAS Green
130-134
LEE088-Lime Green

135-139
LEE100-Spring Yellow
140-144
LEE104-Deep Amber
145-149
LEE179-Chrome Orange
150-154
LEE105-Orange
155-159
LEE021-Gold Amber
160-164
LEE778-Millennium Gold
165-169
LEE135-Deep Golden Amber
175-179
Open
180-201
Colour Speed(Fast to Slow)
202-2-7
Stop
208-229
Colour Speed(Slow to Fast)
230-234
Open
235-239
Colour Speed(Fast)
240-244
Colour Speed(Medium)
245-249
Colour Speed(Slow)
250-255
Open
9
000-255
RED
10
000-255
GREEN
11
000-255
BLUE
12
000-255
WHITE
14 channels mode：
Channel
Value
Function
1
000-255
Pan
2
000-255
Pan Fine
3
000-255
Tilt
4
000-255
Tilt Fine
5
000-255
Pan/tilt speed
6
Pan/tilt macro
236-255
Macro 12
216-235
Macro 11
196-215
Macro 10
176-195
Macro 9
156-175
Macro 8
136-155
Macro 7
116-135
Macro 6
096-115
Macro 5
076-095
Macro 4
056-075
Macro 3
036-055
Macro 2
016-035
Macro 1
000-015
No effect
7
000-255
Pan/tilt macro speed
8
250-255
Stand By
210-249
NO Function
200-209
Reset All
090-199
NO Function
080-089
Disable Blackout while Pan/Tilt Move
070-079
Enable Blackout while Pan/Tilt Move
000-069
NO Function
250-255
Stand By
210-249
NO Function
9
000-255
Dimmer
10
248-255
Open
240-247
Random Strobe
232-239
Open
190-231
Slow close
Fast Open
182-189
Open
140-181
Slow Open
Fast close
132-139
Open
16-131
Strobe(slow-fast)
8-15
Open
000-007
Blackout
11
000-255
1st Quadrant LED Colour Macro’s
12
000-255
2nd Quadrant LED Colour Macro’s
13
000-255
3rd Quadrant LED Colour Macro’s.
14
000-255
4th Quadrant LED Colour Macro’s
16 channels mode：
Channel
Value
Function

1
000-255
Pan
2
000-255
Pan fine
3
000-255
Tilt
4
000-255
Tilt fine
5
000-255
Pan/tilt speed
6
Pan/tilt macro
236-255
Macro 12
216-235
Macro 11
196-215
Macro 10
176-195
Macro 9
156-175
Macro 8
136-155
Macro 7
116-135
Macro 6
096-115
Macro 5
076-095
Macro 4
056-075
Macro 3
036-055
Macro 2
016-035
Macro 1
000-015
No effect
7
000-255
Pan/tilt macro speed
8
250-255
Stand By
210-249
NO Function
200-209
Reset All
090-199
NO Function
080-089
Disable Blackout while Pan/Tilt Move
070-079
Enable Blackout while Pan/Tilt Move
000-069
NO Function
250-255
Stand By
210-249
NO Function
9
000-255
Dimmer
10
248-255
Open
240-247
Random Strobe
232-239
Open
190-231
Slow close
Fast Open
182-189
Open
140-181
Slow Open
Fast close
132-139
Open
16-131
Strobe(slow-fast)
8-15
Open
000-007
Blackout
11
000-255
Red.
12
000-255
Green.
13
000-255
Blue.
14
000-255
White.
15
000-007
Normal
008-127
Colour Macro 1-32
128-135
Colour Chase
136-143
Fade In/Out
144-191
Quadrant Macro Chase
192-219
2 Colour Cross Fades
220-255
3 Colour Cross Fades
16
000-255
Fade Speed
24 channels mode：
Channel
Value
Function
1
000-255
Pan
2
000-255
Pan fine
3
000-255
Tilt
4
000-255
Tilt fine
5
000-255
Pan/tilt speed
6
Pan/tilt macro
236-255
Macro 12
216-235
Macro 11
196-215
Macro 10
176-195
Macro 9
156-175
Macro 8
136-155
Macro 7
116-135
Macro 6
096-115
Macro 5
076-095
Macro 4
056-075
Macro 3
036-055
Macro 2
016-035
Macro 1

000-015
No effect
7
000-255
Pan/tilt macro speed
8
250-255
Stand By
210-249
NO Function
200-209
Reset All
090-199
NO Function
080-089
Disable Blackout while Pan/Tilt Move
070-079
Enable Blackout while Pan/Tilt Move
000-069
NO Function
250-255
Stand By
210-249
NO Function
9
000-255
Dimmer
10
248-255
Open
240-247
Random Strobe
232-239
Open
190-231
Slow close
Fast Open
182-189
Open
140-181
Slow Open
Fast close
132-139
Open
16-131
Strobe(slow-fast)
0-15
Open
11
000-255
Red1.
12
000-255
Green1.
13
000-255
Blue1.
14
000-255
White1.
15
000-255
Red2.
16
000-255
Green2.
17
000-255
Blue2.
18
000-255
White2.
19
000-255
Red3.
20
000-255
Green3.
21
000-255
Blue3.
22
000-255
White3.
23
000-255
Red4.
24
000-255
Green4.
25
000-255
Blue4.
26
000-255
White4
27
000-007
Normal
008-127
Colour Macro 1-32
128-135
Colour Chase
136-143
Fade In/Out
144-191
Quadrant Macro Chase
192-219
2 Colour Cross Fade
220-255
3 Colour Cross Fade
28
000-255
Fade Speed

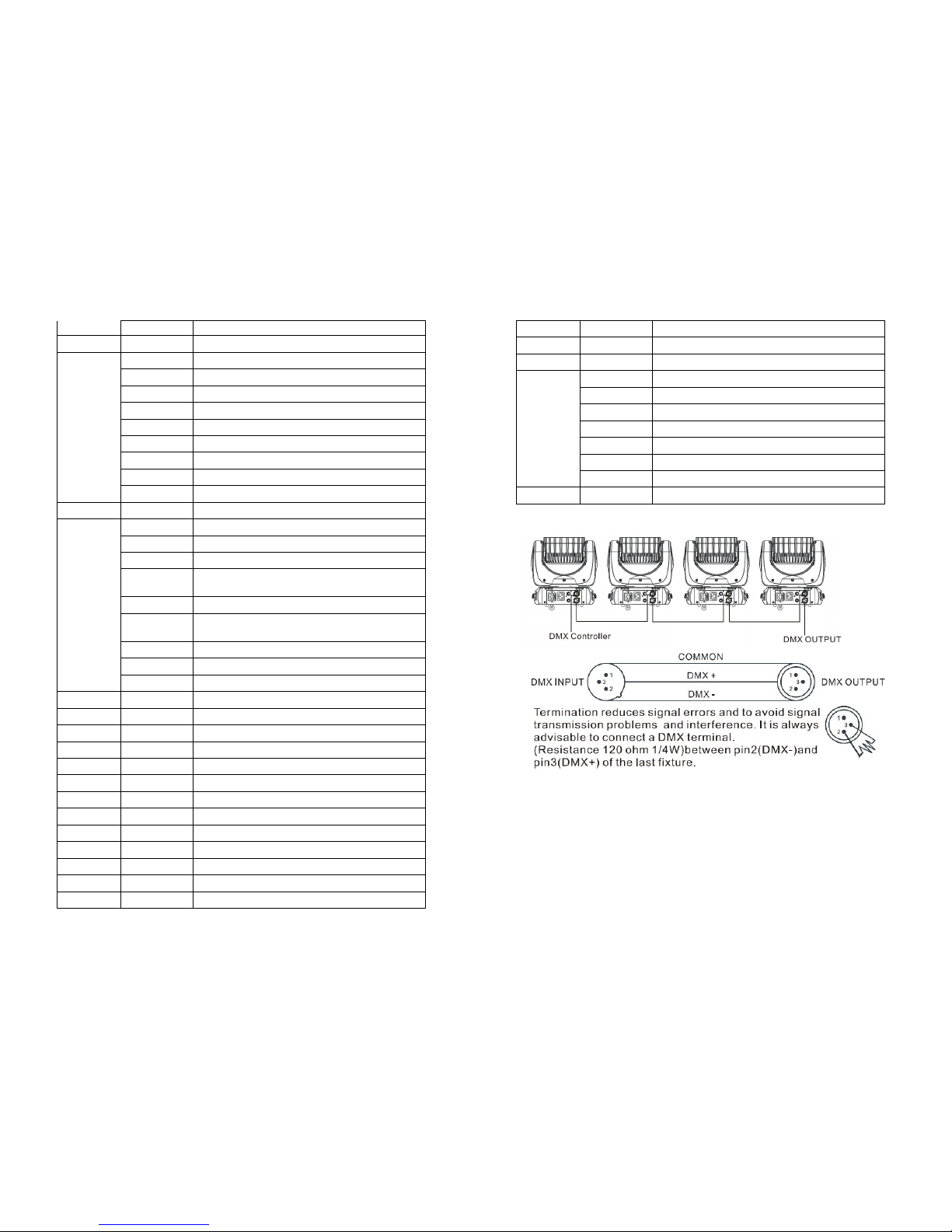

4.4 DMX 512 Connection
1) In the last unit, the DMX cable has to be terminated with a
terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-)
and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-
output of the last unit.
2) Connect the units together in a `daisy chain` with XLR cables from
the output of the unit to the input of the next unit. The cable
cannot branch or split to a `Y` cable.
3) The DMX output and input connectors are a pass-through type to

maintain the DMX circuit even when one of the units’ power is
disconnected.
4) Each unit needs to have an address setup to receive the data sent
from the controller. The address number is between 1-512
5) 3 pin wiring configuration:
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive
signal (+)
5. Trouble shooting
Following are a few common problems that may occur during
operation and some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of power and the main fuse.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX cables
to see if linked correctly.
2. If the DMX LED is on and no response to the controller check the
address settings and DMX polarity.
3. Try another DMX controller.
C. No response to the sound
1.Make sure the unit is not receiving a DMX signal.
2.Check the microphone to see if it is O.K. by tapping it.
The microphone is located on the base of the unit.
3.Check that the unit is not set into “BLACKOUT” mode.
6. Fixture Cleaning
The cleaning of the external optical lenses must be carried out
periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: damp, smoky or
particularly dirty surrounding can cause a greater accumulation of dirt
on the unit’s optics.
!Clean with soft cloth using normal glass cleaning fluid
or mild soapy water.
!Always dry the parts carefully.
!Clean the external optics at least every 20 days.
----------------------www.prolight.co.uk----------------------------------
