Elvox 46216.310E User manual

Manuale per l’installazione e l’uso
Installation and operation manual
46216.310E
Telecamera Bullet IR IP 5 Mpx, obiettivo 3,6-10 mm, PoE, H.265
IP IR Bullet camera, 5 Mpx, 3.6-10 mm lens, PoE, H.265

2

1
Telecamera Istruzioni
per l’uso CD Modello Viti Cacciavite
Cavo di
connessione
CVBS e DC
IN
Cappuccio
impermeabile




























I
Avvertenze
- Prima di utilizzare il prodotto si raccomanda vivamente di leggere il manuale e di conservarlo in un luogo sicuro per consulta-
zione futura.
- Utilizzarel'alimentazionespecicataperilcollegamento.
- Evitare di azionare il prodotto in modo improprio, sottoporlo a urti o vibrazioni, forti pressioni che possono danneggiarlo.
- Non utilizzare detergenti corrosivi per pulire il corpo principale della telecamera. Se necessario, utilizzare un panno morbido
e asciutto per pulirla; in caso di sporco resistente utilizzare un detergente neutro. È possibile utilizzare detergenti per mobili di
qualità.
- Non puntare la telecamera direttamente verso oggetti estremamente luminosi, ad esempio il sole, in quanto si potrebbe dan-
neggiare il sensore d'immagine.
- Seguire le istruzioni per installare la telecamera. Non rovesciare la telecamera, altrimenti riceverà un'immagine rovesciata.
- Nonazionarlasetemperatura,umiditàealimentazionenoncorrispondonoailimitiovalorispecicati.
- Tenere lontano da fonti di calore quali radiatori, bocchette dell'aria calda, stufe e simili.
- Il presente documento contiene le istruzioni per l'uso del prodotto. Non è la garanzia di qualità. Ci riserviamo il diritto di correg-
gere errori di stampa, incongruenze con la versione più recente, aggiornamenti del software e miglioramenti, interpretazione
emodichealprodotto.Talicambiamentisarannopubblicatinellaversionepiùrecentesenzaprevianotica.
- Quando il prodotto è in uso, sono applicabili i contenuti di Microsoft, Apple e Google. Le immagini e le schermate di questo
manuale hanno lo scopo di spiegare l'utilizzo del prodotto. La proprietà dei marchi commerciali, dei logo e altre proprietà
intellettuali relative a Microsoft, Apple e Google appartengono alle suddette aziende.
1 Confezione
Una volta ricevuto il dispositivo, controllare gli accessori indicati di seguito.
Le immagini valgono solo come riferimento.
2 Panoramica
Questa serie di telecamere supporta obiettivi varifocali.
1Cavo di rete 7Cavo alimentazione
2Cavo microfono 8Zoom
3Cavocufe 9Messa a fuoco
4Uscita video CVBS 10 Foro per il reset
5Ingresso/Uscita allarme 11 Porta CVBS/DC IN per test
6Cavo RS485 12 Slot per scheda TF

















2
I
5RXWHU
&RPSXWHU
1HWZRUN&DEOH
1HWZRUN&DEOH
1HWZRUN&DEOH
1HWZRUN&DEOH
1HWZRUN&DEOH
0 R GHP
,QWHUQHW
0, &,1
0RQL WRU
+HDGSKRQH
'&9
$/0&20
$/012
$/0,1
$/0*1'
567 
567
Collegamento dell'allarme
- Ingresso allarme: Sono presenti un morsetto di ingresso allarme (ALM-IN) e un morsetto di messa a terra (ALM-GND).
Nonsonorichiestisensoriditipospecico,datochesaràpossibileselezionarelamodalitàNO(normalmenteaperto)oNC
(normalmente chiuso). Unire i terminali di messa a terra del sensore e della telecamera, quindi collegare il cavo del segnale
del sensore alla porta di ingresso allarme della telecamera.
- Uscita allarme: Èpresenteun’uscitaallarme1CH,disponibilesulleconnessioniCOMeNO.
 Allentarelevitidelmorsettodiuscitaallarme.CollegareicavideldispositivodiallarmerispettivamentealleconnessioniNO
eCOM.Inneserrareleviti.Alcunidispositiviesternidiuscitaallarmenecessitanodialimentazione.
Connessione RS485
È possibile controllare la Speed dome tramite l'interfaccia RS485.
Connessione cavo di rete
Router
Modem
Microfono
12 Vdc
Internet
Computer
Cufe
Cavi di rete
Cavi di rete
Cavi di rete
Cavi di rete
ALM-COM
ALM-NO
ALM-IN
ALM-GND
RS485T+
RS485T-
Cavi di rete
Monitor
3 Connessioni


3
r
r



r
I
4 Installazione
Primadiiniziare,assicurarsichelapareteoilsofttosianosufcientementesolidipersopportaretrevolteilpesodellateleca-
mera. Installare e utilizzare la telecamera in ambiente asciutto. Si consiglia di riposizionare il copriobiettivo entro 4 ore dalla sua
rimozione. La procedura di montaggio è la seguente:
1) Praticare i fori per le viti e per il cavo sulla parete utilizzando la dima di foratura.
2) Passare i cavi e collegare il cavo di alimentazione e il cavo video.
3) Fissare la base di montaggio della telecamera alla parete con le viti, come descritto di seguito.
4) Regolazione della staffa. Prima della regolazione, visualizzare l’immagine della telecamera su un monitor e quindi allentare
laghieradissaggioperregolarel’angolodivisualedellatelecamera.
5)Regolazionedellamessaafuocoedellozoom(selatelecameraèdotatadiobiettivosso,saltarequestopassaggio).Ri-
muovereilcopriobiettivoeregolarelevitiperlamessaafuocoelozoomperottenereun'immaginenitida.Inne,serrarele
due viti e il copriobiettivo.
Copri obiettivo Zoom
Messa a fuoco
6) Rimuovere delicatamente la pellicola di protezione per completare l'installazione.
Brandeggio
Vitisse
Inclinazione Rotazione

4
I
5 Connessioni di rete IE
Come esempio, accediamo alla telecamera IP attraverso la LAN. In una LAN è possibile accedere in due modi: 1. Accesso
tramite IP-Tool; 2. Accesso diretto tramite Internet Explorer.
►AccessoallatelecameratramiteIP-Tool
1) Assicurarsi che la telecamera e il PC siano connessi alla LAN.
2) IndividuareIP-ToolnelCDeinstallarlosulcomputer.Inne,avviareIP-Toolcomemostratodiseguito.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
3)Modicarel'indirizzoIP.L'indirizzoIPpredenitodiquestatelecameraè192.168.226.201.Fareclicsulleinformazionidella
telecameraelencatenellatabellasoprariportatapervisualizzareleinformazionidiretesulladestra.Modicarel'indirizzoIP
e il gateway della telecamera e assicurarsi che l'indirizzo di rete si trovi nello stesso segmento della rete locale del computer.
Modicarel'indirizzoIPdeldispositivoinbaseallasituazionespecica.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
Ad esempio, l'indirizzo IP del computer in uso è 192.168.1.4. Di conseguenza
l'indirizzo IP della telecamera deve essere cambiato in 192.168.1.X.
Dopolamodicainserirelapassworddiamministratoreefareclicsulpulsante"Modica"permodicarel'impostazione.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
Lapasswordpredenitadell'amministratoreè123456.
4) Fare doppio clic sull'indirizzo IP, il sistema aprirà Internet Explorer per collegare l'IP-CAM. Internet Explorer scarica auto-
maticamenteicontrolliActiveX.Dopoildownloadvienevisualizzatalanestradiaccesso.ImmettereUserName(Nome
utente) e Password per accedere.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
IlNomeUtentepredenitoèadmin, la Password è 123456.
► Accesso diretto da Internet Explorer
Leimpostazionidiretepredenitesonoindicatediseguito:
Indirizzo IP: 192.168.226.201 HTTP:80
Subnet Mask: 255.255.255.0 Porta Dati:9008
Gateway: 192.168.226.1

5
I
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3
Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
2)AprireInternetExplorer,inserirel'indirizzopredenitodell'IP-CAMeconfermare.InternetExplorerscaricaautomaticamente
i controlli ActiveX.
3)DopoildownloaddeicontrolliActiveX,vienevisualizzatalanestradidialogodiaccesso.
4)InserireilNomeUtenteelaPasswordpredenitequindipremereInvio.
Èpossibileutilizzareleimpostazionipredenitesoprariportatequandosieseguel'accessoallatelecameraperlaprimavolta.

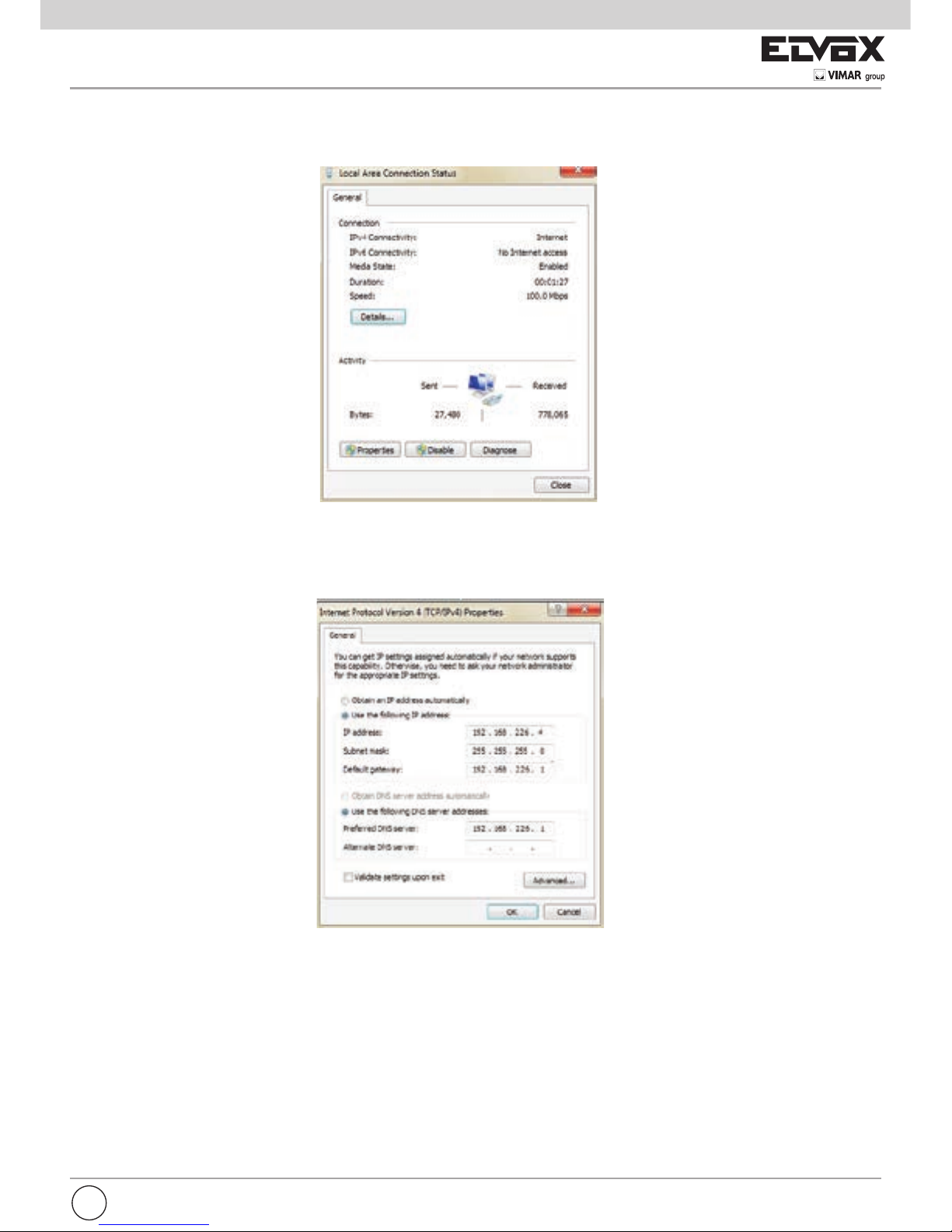

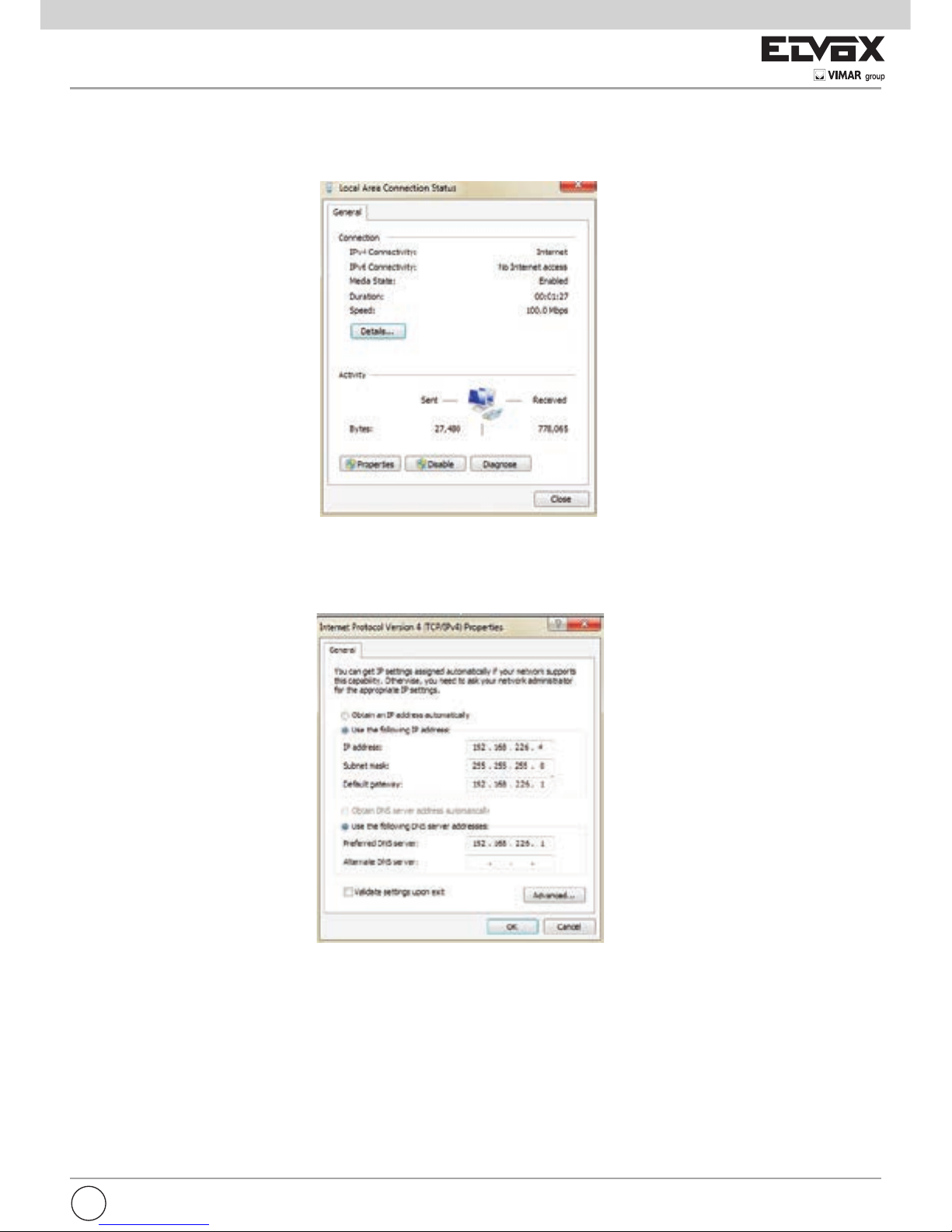

1)Impostarel'indirizzoIPdelPCeassicurarsicheilsegmentodellaretecorrispondaaquellodelleimpostazionipredenite
dell'IP-CAM.Aprirelareteeilcentrodicondivisione.Fareclicsu"Connessioneallaretelocale(LAN)"pervisualizzarela
seguentenestra.
Selezionare"Proprietà"equindiilprotocolloInternetopportuno(adesempio,IPV4).Inne,fareclicsulpulsante"Proprietà"per
impostare la rete del PC.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3
Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration

6
I
Articolo 46216.310E
Telecamera
Sensore di immagine 1/1.8"CMOS
Dimensione immagine 2592×1944
Otturatoreelettronico 1/25 s ~ 1/100000 s
Diaframma automatico Diaframmasso
Illuminazione minima 0,01lux(conF1.2),AGCON:0LuxconIR
Obiettivo 3,6~10 mm (con F1,4), angolo di visuale: 83,7°~36,7°
Attacco obiettivo ø14
Day & Night (giorno/notte) ICR
WDR WDR digitale
NR digitale DNR 3D
Regolazione angolo Qualsiasi angolo
Immagine
Compressione video H.265/H.264/MJPEG
Tipo H.265 Proloprincipale(conLivello4.1HighTier)
Bit Rate video 64 Kbps ~ 10 Mbps
Risoluzione 5MP (2592×1944), 2K (2560×1440), 1080P (1920×1080), 720P
(1280×720), D1, CIF, 480×240
Flusso principale 60Hz: 5MP (1~30fps) / 2K (1~30fps) / 1080P (1~30fps) / 720P (1~30fps)
50Hz: 5MP (1~25fps) / 2K (1~25fps) / 1080P (1~25fps) / 720P (1~25fps)
Impostazioni immagine Saturazione, luminosità, colore, contrasto, WDR, nitidezza, riduzione
rumore, ecc., regolabile tramite il software client o il browser web
ROI Supporto
Interfacce
Rete 1 Porta RJ45 10M/100M/1000M
Video Uscita CVBS (BNC ×1)
Audio Ingresso MIC × 1, Uscita MIC × 1
Archiviazione SupportoschedaTF,noa64GB
RS485 Supporto
Allarme Ingresso allarme 1CH; uscita allarme 1CH.
Funzione
Monitoraggio remoto Browser IE, controllo da remoto con CMS
Collegamento online Supportailmonitoraggiosimultaneonoa10utentietrasmissionemulti
usso
Protocollo di rete TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Protocollo interfaccia ONVIF,GB-T/28181-2011
Archiviazione Archiviazione su scheda TF, archiviazione remota in rete
Allarme intelligente Allarme movimento, Allarme sensore
Funzione
Portata IR 30~50 m
Livello protezione IP66
Alimentazione 12 VCC / PoE
Assorbimento <3W(ICROFF);<7,5W(ICRON)
Parametri ambientali Temperatura: -20°C ~ 50°C, Umidità: 10%~90%

7
EN
Cautions
- Before operation, we strongly advise users to read this manual and keep it properly for using later.
- Pleaseusethespeciedpowersupplytoconnect.
- Avoid from in correct operation, shock vibration, heavy pressing which can cause damage to product.
- Do not use corrosive detergent to clean main body of the camera. If necessary, please use soft dry cloth to wipe dirt; for hard
contamination, use neutral detergent. Any cleanser for high grade furniture is applicable.
- Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this may damage the image sensor.
- Please follow the instructions to install the camera. Do not reverse the camera, or the reversing image will be received.
- Do not operate it incase temperature, humidity and power supply are beyond the limited stipulations.
- Keep away from heat sources such as radiators, heat registers, stove., etc.
- This is product instructions not quality warranty. We may reserve the rights of amending the typographical errors, inconsisten-
cieswiththelatestversion,softwareupgradesandproductimprovements,interpretationandmodication.Thesechangeswill
bepublishedinthelatestversionwithoutspecialnotication.
- When this product is in use, the relevant contents of Microsoft, Apple and Google will be involved in. The pictures and scre-
enshots in this manual are only used to explain the usage of our product. The ownerships of trademarks, logos and other
intellectual properties related to Microsoft, Apple and Google belong to the above-mentioned companies.
Camera Quick Start
guide CD Drill template
Screws &
spiles
Screw-
driver
CVBS & DC
IN cables
Water-proof
Cap
































1 Package
After you receive your device, please check the following accessories.
The pictures here are for reference only.
2 Overview
This series of cameras support varifocal lens.
1Network Cable 7Power Cable
2Microphone Cable 8Zoom
3Headphone Cable 9Focus
4CVBSVideoOutput 10 Reset Hole
5AlarmInput/Output 11 CVBS/DC IN port for testing
6RS485 Cable 12 TF Card Slot













8
5RXW HU
&RPSXWHU
1HWZRUN&DEOH
1HWZRUN&DEOH
1HWZRUN&DEOH
1HWZRUN&DEOH
1HWZRUN&DEOH
0 R GHP
,QWHUQHW
0, &,1
0RQL WRU
+HDGSKRQH
'&9
$/0&20
$/012
$/0,1
$/0*1'
567 
567
Alarm Connection:
- Alarm Input: There is one independent alarm input port (ALM-IN) and one grounding port (ALM-GND).There are no type
requirementsforsensors.NOandNCarebothavailable.Jointhegroundingendsofthesensorandthecameraandthen
connect the signal cable of the sensor to the alarm input port of the camera.
- Alarm Output: Thereis1CHalarmoutputincludingCOMandNOconnections.
 Loosenthescrewsinthealarmoutputport.TheninsertthesignalwiresofthealarmoutputdevicesintotheportofNOand
COMseparately.Finallytightenthescrews.Someoftheexternalalarmoutputdevicesneedthepowersupply.
RS 485 Connection:
You can control the speed dome by RS485 interfaces.
Network Cable Connection:
EN
Router
Modem
Mic IN
12 Vdc
Internet
Computer
Headphone
Network cables
Network cables
Network cables
Network cables
ALM-COM
ALM-NO
ALM-IN
ALM-GND
RS485T+
RS485T-
Network
cables
Monitor
3 Connections


9
EN
4 Installation
Before start, please make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. Please
install and use the camera in the dry environment. You’d better install back the lens cover less than 4 hours after removing it.
The mounting steps are as follows:
1) Drill the screw holes and the cable hole on the wall according to the drill template.
2) Route the cables and connect the power cable and video cable.
3) Secure the mounting base with camera to the wall with screws as shown below.
4)Bracketadjustment.Beforeadjustment,previewtheimageofthecameraonamonitorandthenloosenthexedringtoadjust
the view angle of the camera.
r
r



r
5)Focusandzoomadjustment(Ifthemodelyougetisxedlens,pleaseskipthisstep).Removethelenscoverandthenadjust
the focus and zoom screws to get a clear image. Finally, tighten these two screws and the lens cover.
Lens cover Zoom
Focus
6)Removetheprotectionlmsoftlytonishtheinstallation.
PAN
Fixed screws
Tilt Rotate

10
EN
5 IE Network Connections
Here we take accessing IP camera via LAN for example. In LAN, there are two ways to access. 1. Access through IP-Tool; 2.
Directly Access through IE Browser
►AccessthecamerathroughIP-Tool
1) Make sure that the camera and the PC are well connected to the LAN.
2) Find the IP-Tool from the CD and then install it in the computer. After that, run the IP-Tool as shown below.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
3) Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the information of the camera listed
in the above table to show the network information on the right hand. Modify the IP address and gateway of the camera and
make sure its network address is in the same local network segment as the computer’s. Please modify the IP address of your
device according to the practical situation.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
For example, the IP address of your computer is 192.168.1.4. So the IP
address of the camera shall be changed to 192.168.1.X.
Aftermodication,pleaseinputthepasswordoftheadministratorandclick“Modify”buttontomodifythesetting.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
The default password of the administrator is 123456.
4) Double-click the IP address and then the system will pop up the IE browser to connect IP-CAM . IE browser will automati-
cally download the Active X control. After downloading, a login window will pop up. Input the user name and password to
login.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3 Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
The default user name is admin; the default password is 123456.
► Directly Access Through IE
The default network settings are as shown below:
IP address: 192.168.226.201 HTTP:80
Subnet Mask: 255.255.255.0 Data Port:9008
Gateway: 192.168.226.1

11
EN
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3
Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration
2)OpentheIEBrowserandinputthedefaultaddressofIP-CAMandconrm.TheIEbrowserwilldownloadActiveXcontrol
automatically.
3) After downloading Active X control, the login dialog box will pop up.
4) Input the default username and password and then enter to view.
Youmayusetheabovedefaultsettingswhenyouloginthecameraforthersttime.
1) Set the IP address of the PC and make sure the network segment should be as the same as the default settings of IP-CAM.
Openthenetworkandsharecenter.Click“LocalAreaConnection”topopupthefollowingwindow.
Select“Properties”andthenselectInternetprotocolaccordingtotheactualsituation(forexample:IPv4).Next,click“Properties”
button to set the network of the PC.
Mac Address
IP Address
Modify Network Parameter
Modify
CE :98 :23 :75 :35 :22
192 .168 . 1 . 201
255 . 255 . 255 . 0
192 .168 . 1 . 1
Subnet Mask
Gateway
Device Network Search
Immediate Refresh
name
name
name
IPC
IPC
IPC
unknown
unknown
unknown
192.168.226.201
192.168.1.2
192.168.1.3
80
80
80
9008
9008
9008
255.255.
255.255.
255.255.
Modify Network Parameter
Mac Address
IP Address
Modify
CE :98 :23 :75 :35 :22
192 .168 . 226 . 201
255 . 255 . 255 . 0
192 .168 . 226 . 1
i
Tip: Enter the administrator password, and
then modify the network parameters.
Total Device: 3
Local IP Address:192.168.1.4Subnet Mask:255.255.255.0 Gateway: 192.168.1.1DNS͹210.21.196.6
Device NameDevice Type IP AddressHttp Port Data Port Subnet Product Model
About
Subnet Mask
Gateway
Restore IPC Default Configuration

12
Article 46216.310E
Camera
Image Sensor 1/1.8"CMOS
Image Size 2592×1944
Electronic Shutter 1/25 s ~ 1/100000 s
Auto Iris Fixed iris
Min. llumination 0.01lux@F1.2,AGCON:0luxwithIR
Lens 3.6~10 mm @ F1.4, angle of view: 83.7°~36.7°
Lens mount ø14
Day & Night ICR
WDR Digital WDR
Digital NR 3D DNR
Angle Adjustment Any angle
Video compression H.265/H.264/MJPEG
H.265 Type MainProle@Leve4.1HighTier
Video Bit Rate 64 Kbps ~ 10 Mbps
Resolution 5MP (2592×1944), 2K (2560×1440), 1080P (1920×1080), 720P (1280×720), D1, CIF,
480×240
Main Stream 60Hz: 5MP (1~30fps) / 2K (1~30fps) / 1080P (1~30fps) / 720P (1~30fps)
50Hz: 5MP (1~25fps) / 2K (1~25fps) / 1080P (1~25fps) / 720P (1~25fps)
Image Settings Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adju-
stable through client or web browser
ROI Support
Interfaces
Network 1 RJ45 10M/100M/1000M port
Video CVBS output (BNC ×1)
Audio MICIN×1;MICOUT×1
Storage Support TF card, up to 64GB
RS485 Support
Alarm 1 CH alarm input; 1 CH alarm output
Function
Remote Monitoring IE browser, CMS remote control
OnlineConnection Support simultaneous monitoring for up to 10 users and multi-stream transmission
Network Protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol ONVIF,GB-T/28181-2011
Storage TF card storage; network remote storage
Smart Alarm Motion alarm; sensor alarm
Function
IR Distance 30~50 m
Protection Grade IP66
Power 12 Vdc / PoE
Power Consumption <3W(ICROFF);<7.5W(ICRON)
OpteratingEnvironment Temperature: -20 °C~50 °C; Humidity: 10%~90%
EN

13

Vimar SpA: Viale Vicenza, 14
36063 Marostica VI - Italy
Tel. [phone] - Fax (Italia) 0424 488 188
Fax (Export) 0424 488 709
www.vimar.com
49400986A0 00 16 01
VIMAR - Marostica - Italy
