eM355 Series
Quick Guide

eM355 Series
© 2011 All Rights Reserved
eMachines eM355 Series Quick Guide
Original Issue: 02/2011
Model number: _________________________________
Serial number: __________________________________
Date of purchase: _______________________________
Place of purchase: _______________________________
eMachines eM355 Series Notebook PC

1
Quick Guide
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer/Importer is responsible for this declaration:
Product: Notebook PC
Brand: eMachines
Model Number: PAV70
Machine Type: 355 series
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.
Contact Person: Acer Representative
Phone No.: 1-254-298-4000
Fax No.: 1-254-298-4147
February 14, 2011

2
eM355 Series
CE Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]
And,
Acer Italy s.r.l
Via Lepetit, 40, 20020 Lainate (MI) Italy
Tel: [phone]
Fax: [phone]
www.acer.it
Hereby declare that:
Product: Notebook Computer
Trade Name: eMachines
Model Number: PAV70
Machine Type: 355 series
Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have
been taken and are in force to assure that production units of the same product will continue comply with the requirements
R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:
• Article3.1(a)HealthandSafety
-. EN60950-1
-. EN62311
• Article3.1(b)EMC
-. EN301 489-1
-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN301 489-7
-. EN301 489-17
-. EN301 489-24

3
Quick Guide
• Article3.2SpectrumUsages
-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN300 328
-. EN301 511
-. EN301 893 (Applicable to 5GHz high performance RLAN).
-. EN301 908-1
-. EN301 908-2
EMCDirective2004/108/ECasattestedbyconformitywiththefollowingharmonizedstandards:
-. EN55022, AS/NZS CISPR22, Class B
-. EN55024
-. EN61000-3-2 Class D
-. EN61000-3-3
LowVoltageDirective2006/95/ECasattestedbyconformitywiththefollowingharmonizedstandard:
-. EN60950-1
CouncilDecision98/482/EC(CTR21):
(Applicable to product with pan- European single terminal connection to the Public Switched Telephone Network (PSTN).)
RoHSDirective2002/95/EContheRestrictionoftheUseofcertainHazardousSubstancesinElectricalandElectronicEquipment
-. The maximum concentration values of the restricted substances by weight in homogenous material are:
Lead 0.1% Polybrominated Biphenyls (PBB’s) 0.1%
Mercury 0.1% Polybrominated Diphenyl Ethers (PBDE’s) 0.1%
Hexavalent Chromium 0.1% Cadmium 0.01%
Directive2009/125/ECwithregardtoestablishingaframeworkforthesettingofecodesignrequirementsforenergy-relatedproduct.
YeartobeginafxingCEmarking2010.
Easy Lai /Manager
Regulation Center, Acer Inc.
Feb. 14, 2011
Date

4
eM355 Series

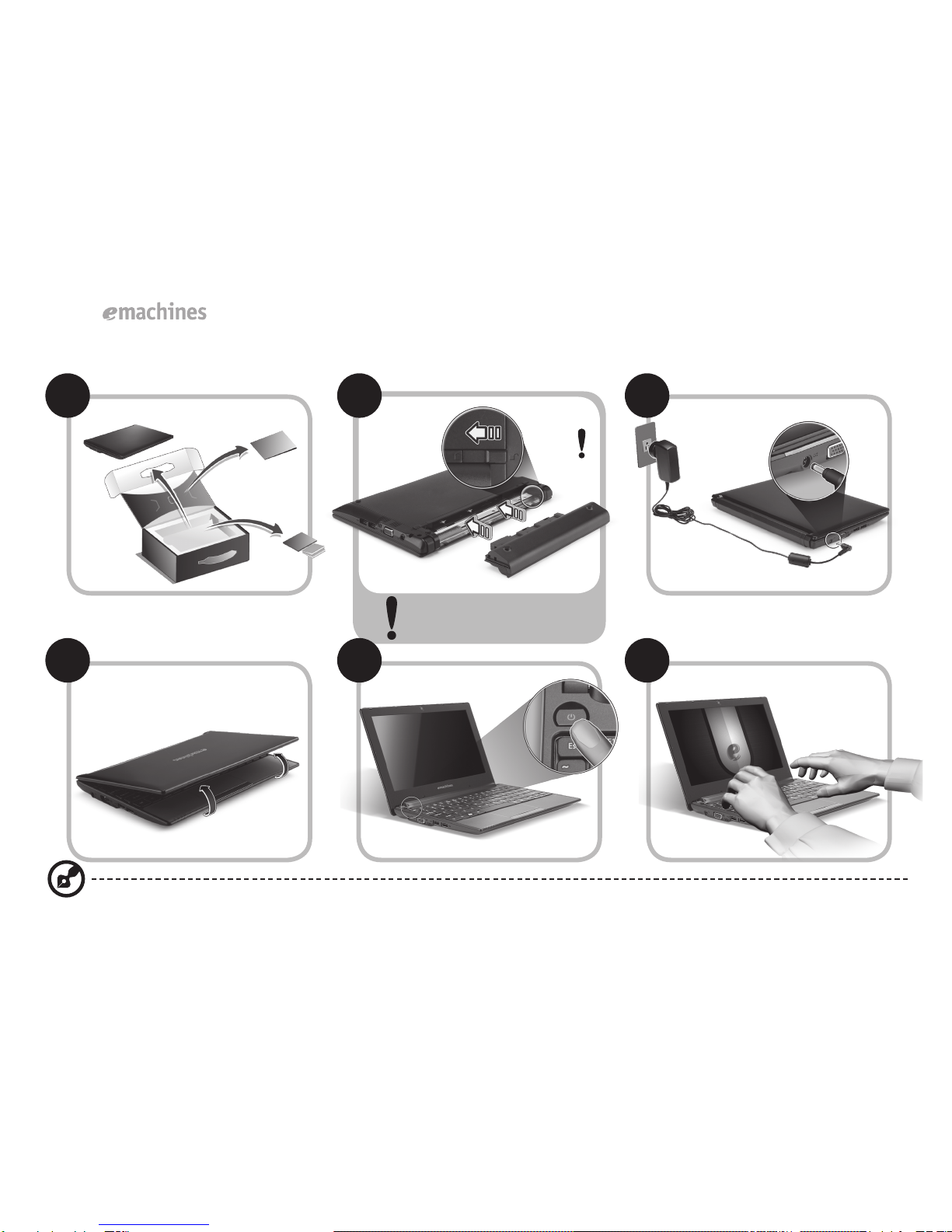

Just for starters
1 2 3
4 5 6
3-1
3-2
2-1
2-2
Illustrations are for reference only. Actual product specifications may vary.
Ensure that the battery is properly
locked in place, as illustrated in
2-2.

5
Quick Guide
First things first
We would like to thank you for making an eMachines notebook your choice for meeting your mobile computing needs.
Your guides
To help you use your notebook, we have designed a set of guides*:
First off, the Quick Guide helps you get started with setting up your computer.
For more on how your computer can help you to be more productive, please refer to the eMachines System User Guide. This guide contains
detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains
warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and
comes preloaded on your notebook.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on eMachines System User
Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions
on how to use Adobe Reader, access the Help and Support menu.
*IMPORTANTNOTICE:Pleasenotethattheguidesmentionedherein,whetherinprintedorelectronicform,areforyourreference
onlyandexceptasprovidedinthespecicwarrantyinformationcontainedintheeMachinesSystemUserGuidenothingcontainedin
theseguidesshallconstitutearepresentationorwarrantybyAcerwithregardtotheproductyoupurchased.Acerexpresslydisclaims
anyliabilityforerrorscontainedintheguides.

6
eM355 Series
Networkconguration
This guide will help you configure your LAN and wireless network settings to enable you to connect to the Internet.
SettingupLANconnection
Simply plug in the LAN cable to the Ethernet (RJ-45) port. Please refer to "Leftview"onpage8 for the location of the Ethernet port.
Settingupawirelessconnection
1. Press <Fn>+<F3> to access the communication manager. Here you can turn on the Wi-Fi connection by clicking on the red button next to
Wi-Fi.
Note: Bluetooth is also accessible through the communication manager. Communication devices vary by model.
2. Click the icon on your system tray and choose the wireless access point you want to connect to.

Quick Guide
7
Your eMachines notebook tour
After setting up your computer as illustrated in the Just for starters
section, let us show you around your new notebook.

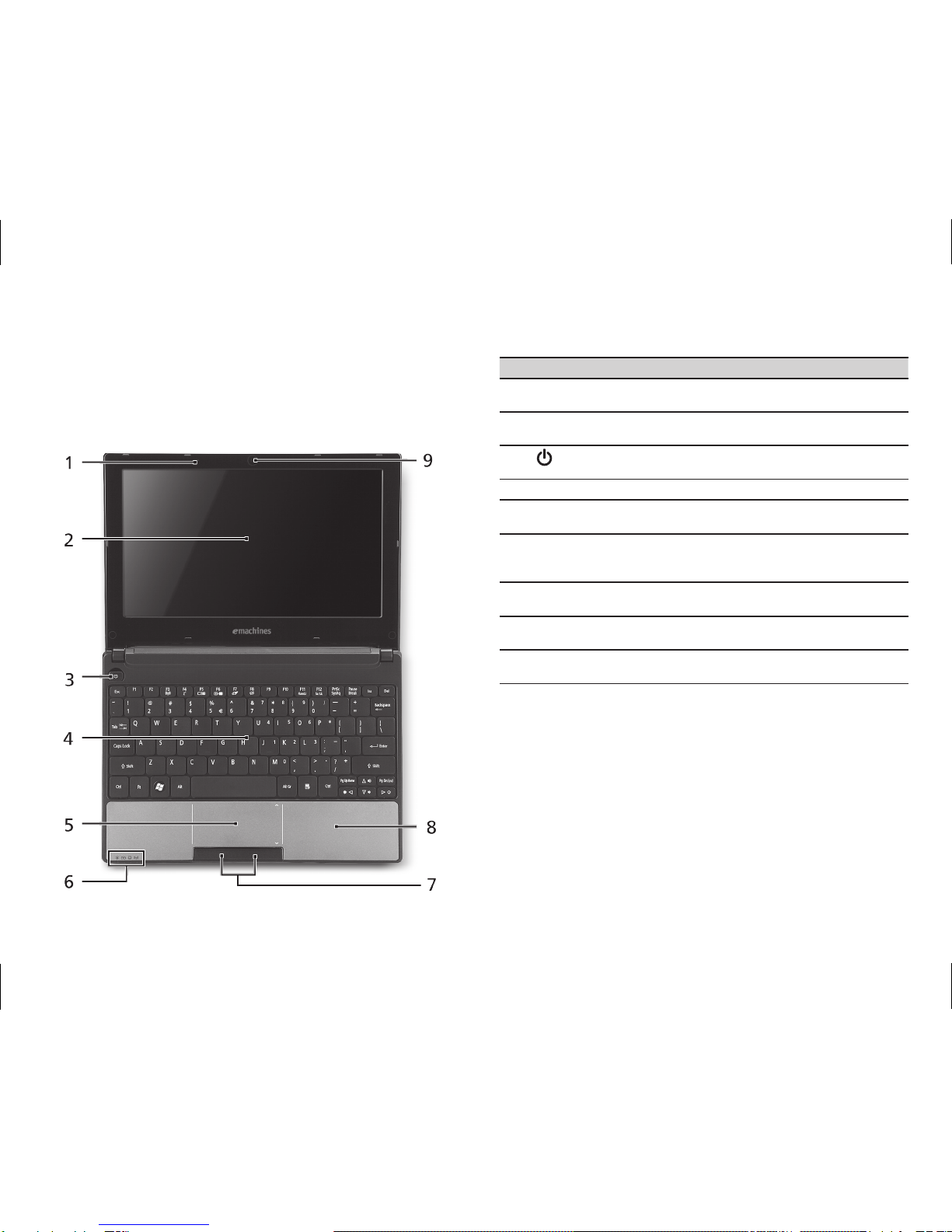

Topview
# Icon Item Description
1Microphone Internal microphone for sound
recording.
2Display screen Also called Liquid-Crystal Display
(LCD), displays computer output.
3Power button/
indicator
Turns the computer on and off.
4Keyboard For entering data into your computer.
5Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
6Status indicators1Light-Emitting Diodes (LED) that
light up to show the status of the
computer's functions and components.
7Click buttons
(left and right)
The left and right buttons function like
the left and right mouse buttons.
8Palmrest Comfortable support area for your
hands when you use the computer.
9Integrated webcam Web camera for video communication
(configuration may vary by model).

8
eM355 Series

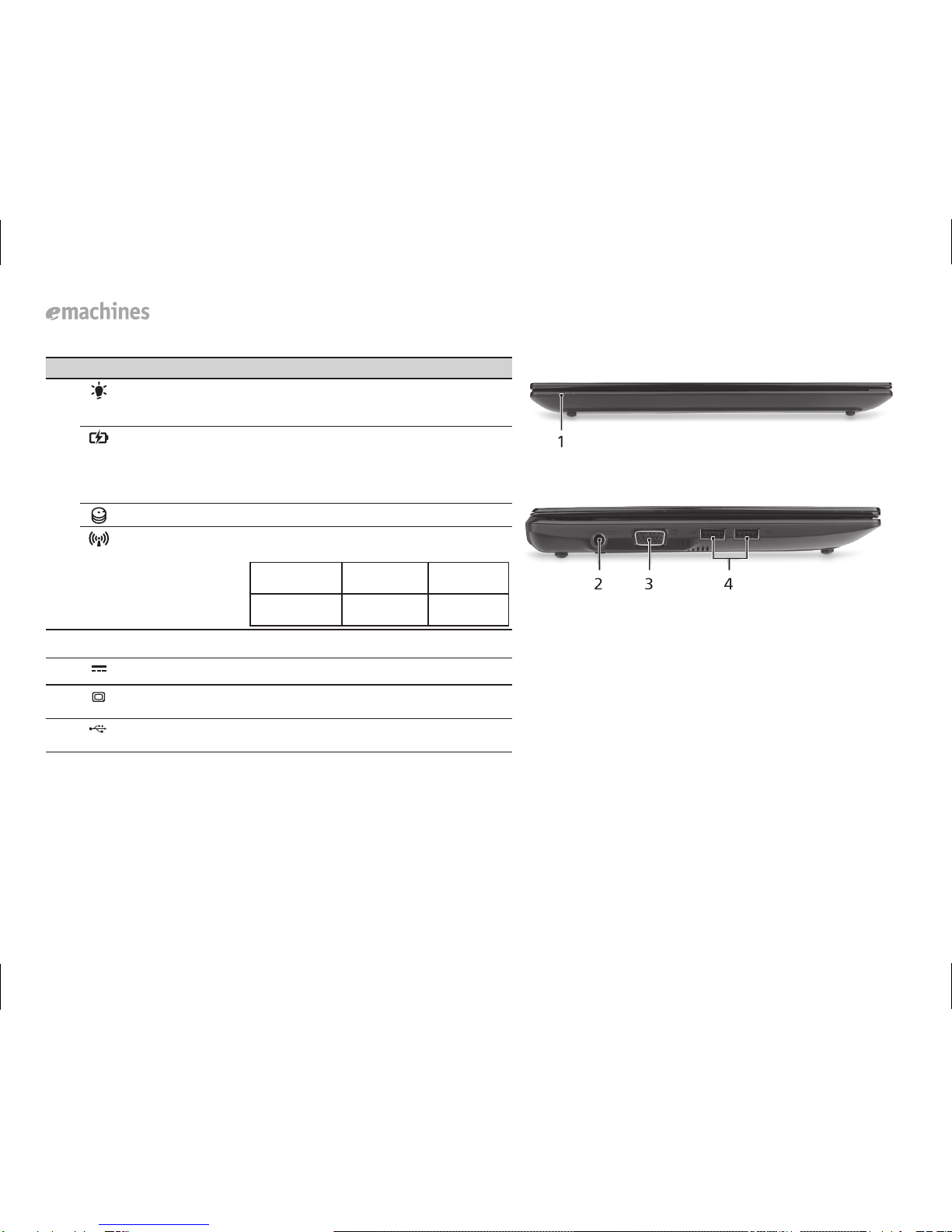

Closed front view
# Icon Item Description
1Power indicator Light-Emitting Diodes (LED) that light up to
show the status of the computer's functions and
components.
Battery indicator Indicates the computer's battery status.
1. Charging: The light shows amber when the
battery is charging.
2. Fully charged: The light shows blue when in
AC mode.
HDD indicator Indicates when the hard disk drive is active.
Communication
indicator
Indicates the status of 3G / Wi-Fi
communication.
Blue light on Orange light
on
onNot lit
3G on / Wi-Fi on
3G on / Wi-Fi off
3G off / Wi-Fi
on
3G off / Wi-Fi
off
Left view
2DC-in jack Connects to an AC adapter.
3External display (VGA)
port
Connects to a display device
(e.g., external monitor, LCD projector).
4USB 2.0 port Connect to USB devices (e.g., USB mouse, USB
camera).

Quick Guide
9
Right view
# Icon Item Description
52-in-one card reader Accepts Secure Digital (SD), MultiMediaCard
(MMC)
Note: Push to remove/install the card. Only
one card can operate at any given time.
6Headphone/speaker/
line-out jack
Connects to an AC adapter.
Microphone-in jack Connects to a Kensington-compatible
computer security lock.
7USB port Connects to USB devices
(e.g., USB mouse, USB camera).
8Kensington lock slot Connects to a Kensington-compatible
computer security lock.
9Ethernet (RJ-45) port Connects to an Ethernet 10/100 based
network.
Rear & base views
10 Ventilation slots and/or
cooling fan
Enables the computer to stay cool, even after
prolonged use.
Note:Do not cover or obstruct the opening of
the fan.
11 Battery release latch Releases the battery for removal.
12 3G SIM card slot Accepts a 3G SIM card for 3G connectivity
(only for certain models).
13 Battery bay Houses the computer's battery pack.
14 Battery lock Locks the battery in position.
15 Speaker Emits audio from your computer.

10
eM355 Series
Environment
Temperature:
Operating: 5°C to 35°C
Non-operating: -20°C to 65°C
Humidity(non-condensing):
Operating: 20% to 80%
Non-operating: 20% to 80%
