Networking Your Notebook
■Introducing the wireless features on your
new notebook
■Turning wireless networking on and off
■Using a wireless network
■Creating a wireless network
■Testing your network
■Sharing your resources
■Troubleshooting your wireless network

2www.eMachines.com
Networking Your Notebook
What is a wireless network?
Any network is a collection of computers and other devices that
communicate with each other.
Wireless networks are built around an access point that typically includes
a switch or router. This access point routes the signals so the computers
in the network can share files, folders, printers, and access to the Internet.
Computers communicate with their access point in one of two ways:
■In wired networks, Ethernet cables carry the signals to and from the
computer and the access point.
■In wireless networks, radio waves transmit the signals to and from
special wireless components in both the computers and the access
point.
With some notebooks and computers, you have to purchase a special
wireless component, but with your eMachines notebook, you can go
wireless right out of the box!
Why go wireless?
Because it frees you from your desk!
With a wireless home network, you can use your notebook wherever you
like. From the comfort of your sofa, in your kitchen, or on your patio,
you can browse the Internet, send and receive e-mails, transfer files, and
use your printer.
You can even stay connected when you are away from your home by
connecting to public “hotspots.” These hotspots are becoming more and
more common and are readily available in airports, libraries, book stores,
and coffee shops.

3
www.eMachines.com
Wireless features on your notebook
Wireless features on your
notebook
54gTM, the most advanced wireless networking technology available, is
incorporated into your notebook. Also known as 802.11g, this
up-and-coming wireless networking standard is up to 5 times faster than
the widely used, older standard, 802.11b. Instead of communicating at
a maximum speed of 11 megabits per second (Mbps), your notebook,
equipped with 802.11g, can communicate at speeds up to 54 Mbps!
Because 802.11g is backward compatible with Wi-Fi 802.11b networks,
you will be able to access networks that have not yet upgraded to the
new standard.
When going wireless with your notebook, you can work faster and play
harder:
■Speed –communicate at speeds up to 5 times faster than 802.11b,
on an 802.11g network.
■Compatibility –connect to already-installed 802.11b networks.
■Range –extend the reach of your network, up to 300 feet.
■Security –protect your notebook and your data with wired
equivalent privacy (WEP) encryption.
■Resource sharing –share your network resources, such as your
broadband Internet connection, printers, and storage.
Turning wireless networking on and off
For wireless security reasons, when you received your notebook, wireless
networking was turned off. After you have completed your initial
Windows setup, you can turn on wireless networking.
To turn wireless networking on and off:
■Press FN+ F2 on the keyboard.

4www.eMachines.com
Networking Your Notebook
Using a wireless network
A wireless network is ideal for creating a home or office network or adding
mobility to an existing wired network. A wireless network lets you move
about your home or office with your notebook or tablet PC. For example,
you can take your notebook or tablet PC from your home office to your
patio without having a wired network jack available.
Warning Radio frequency wireless communication can interfere with
equipment on commercial aircraft. Current aviation
regulations require wireless devices to be turned off while
traveling in an airplane. IEEE 802.11g communication
devices are examples of devices that provide wireless
communication. For more information, see “Turning
wireless networking on and off” on page 3.
Important See “Safety, Regulatory, and Legal Information” in your
user guide for general wireless regulatory and safety
guidelines.
Important Note any antenna placement constraints in the user guide
of each type of wireless device in your network.
Important IEEE 802.11a uses a different radio frequency than
IEEE 802.11g. All wireless components must use the
same frequency. A combination of IEEE 802.11a only and
IEEE 802.11g only components will not work. Some
wireless devices can broadcast and receive signals on
both frequencies.
Important The speed of a wireless network is related to signal
strength. Signal strength is affected by the distance
between your wireless network devices, by radio
interference, and by interference from natural obstructions
such as walls, floors, and doors.

5
www.eMachines.com
Using a wireless network

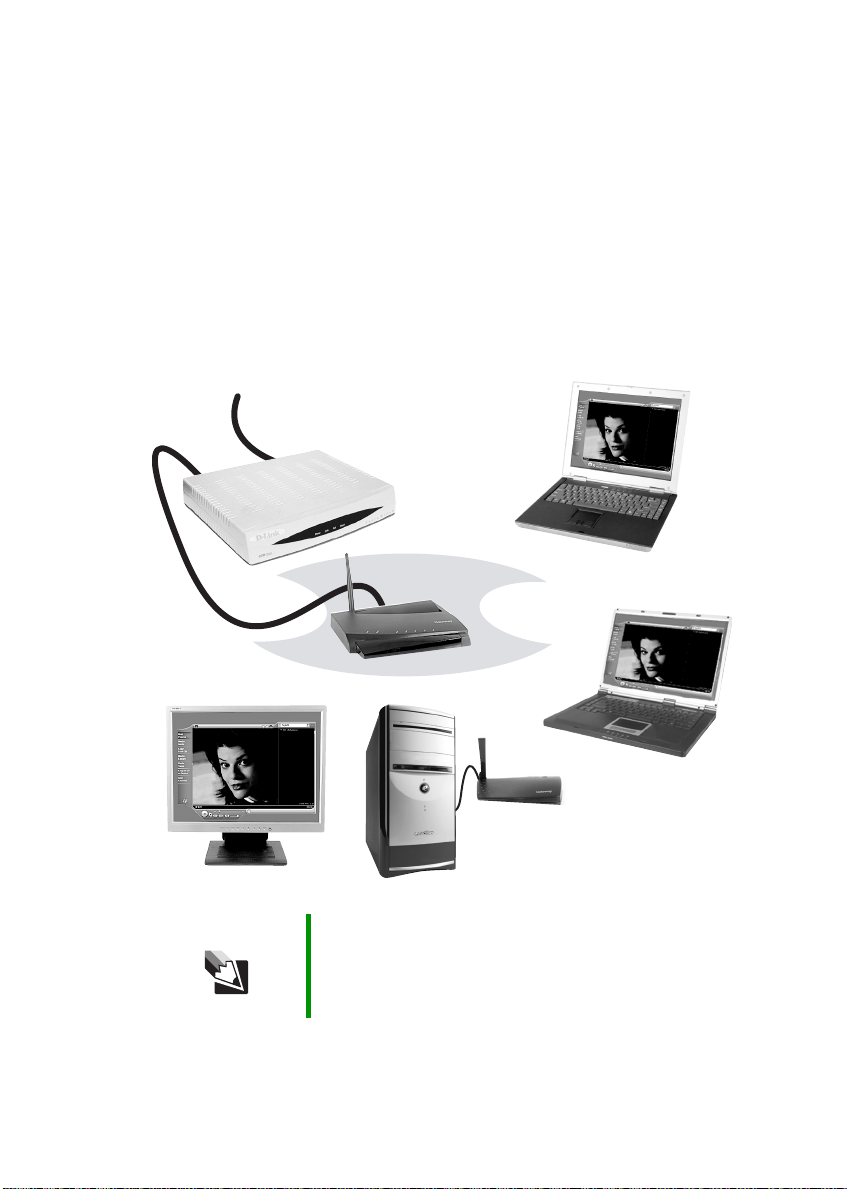

Example access point wireless network
By using an access point, you can join a wireless network and access a
wired network, such as the Internet.
The following is an example of an access point wireless network that
shows how an access point also lets you access the Internet. The network
is made up of an access point, a cable or DSL modem, and your
computers. The access point is the central control point for the network.
Attached to the access point is the cable or DSL modem that provides
access to the Internet. Each of the computers or network-ready devices
communicate with the access point using radio waves.
Tips & Tricks To add the ability to access a wired network to your
wireless network, connect an access point to the router or
use a router that has a built-in access point, such as the
Linksys wireless access point router with 4-port switch.
Cable/DSL
modem
Access point
USB wireless
adapter

6www.eMachines.com
Networking Your Notebook
Equipment you need for an access point
wireless network
For an access point wireless network you need:
■Your new eMachines notebook with built-in wireless networking
■One access point
■One broadband Internet connection (optional)
Tips & Tricks When buying your access point, be sure the model
includes everything your network needs, including:
■802.11g support - for next-generation, high-speed
wireless communications
■Internet security features - such as a firewall to protect
your network from unwanted intruders
■Wireless security features - such as 128-bit WEP
encryption
■4-port switch - to eliminate the need for additional
network hardware
■DHCP server/dynamic IP address assignment - to
automatically configure network and IP addresses

7
www.eMachines.com
Setting up a wireless network
Setting up a wireless network
Setting up your wireless network involves the following three steps:
1Making sure your broadband connection works.
2Setting up your access point.
3Setting up your notebook.
Making sure your broadband connection
works
Before you change anything about your home setup, make sure that your
broadband connection is working correctly. To test the connection, log
onto the Internet using your current setup. If the connection is not
working, contact your Internet service provider.
Setting up your access point
See the instructions that came with your access point or wireless access
point router for initial setup. How you set up your access point varies
depending on the features of the access point and your networking
situation.
Important If you do not have a broadband connection already
installed, make the necessary arrangements with your ISP.
Be sure to find out how soon after the installation the line
will be activated.
Important Broadband Internet settings will differ from ISP to ISP.
Before you begin setting up your network, you should
contact your ISP for any specific instructions they have for
setting up a network.

8www.eMachines.com
Networking Your Notebook
Mounting the access point
When selecting a place to mount your access point, consider the
following guidelines:
■Mount your access point as high as possible (to avoid interference
from natural obstacles and appliances).
■Mount your access point in a location where you can run a cable
from the access point to either your wired network or your cable or
DSL modem.
Configuring the access point
To configure the Linksys wireless access point router with 4-port
switch:
1Plug one end of a straight-through cable into the WAN port on the
wireless access point router and the other end into the DSL or cable
modem.
2Plug one end of the power adapter into the AC connector on the
router and the other end into a grounded, 110V electrical outlet.
3Turn on the DSL or cable modem.
4Press the reset button on the wireless access point router.
5Temporarily connect your notebook to the wireless access point
router using a straight-through cable and turn your notebook on.
6From your notebook, open your Web browser.
7In the browser’s Address box, type http://192.168.1.1, then press
ENTER.
8When prompted for a username and password, leave the username
box empty and type admin in the password box, then click OK. The
setup page opens.
Important The following configuration information applies to the
Linksys wireless access point router with 4-port switch. For
any other brand or model of access point, see the
manufacturer’s documentation, which may accompany the
access point or be available from the manufacturer’s Web
site.

9
www.eMachines.com
Setting up a wireless network
9Enter the following values in the appropriate fields:
■Host Name and Domain Name - Check with your ISP to see if entries
are required in these fields and, if so, what entries are required.
■Enable/Disable wireless - Click Enable to turn on the wireless
functions of your access point router.
■SSID - Type a unique name for your wireless access point.
■Allow Broadcast SSID to associate - Clicking Yes lets you
automatically see the SSID in the Available Networks list (see
“Connecting to your access point” on page 11). Clicking No
means that you will need to manually add the access point (see
“Adding an access point” on page 14). Clicking No makes your
wireless network more secure because intruders will not be able
to connect to your network without knowing the name of your
access point.
■Channel - In the United States, you can specify any channel
between 1 and 11.
■WEP - To use WEP (wired equivalent privacy) encryption, select
Mandatory. If you use WEP encryption, all computers on your
network must use the same WEP encryption. See the
documentation that came with your access point on how to use
WEP encryption.
■WAN Connection Type - If your ISP assigns you a different IP address
each time you log on, click Obtain an IP Address Automatically. If
your ISP requires a fixed IP address, click Static IP, then type the
values provided by your ISP.
10 Click Apply, then click Continue to save the settings.
11 Disconnect your notebook from the access point router.
Tips & Tricks If you live in an apartment building or dormitory, you may
want to click No to prevent your neighbors from discovering
and accessing your network.

10 www.eMachines.com
Networking Your Notebook
12 Reset the power on your cable or DSL modem. This step is important
because it establishes communication between your broadband
modem and the access point router.
13 Restart your notebook.
Setting up your notebook
Naming the computers and the workgroup
To identify this computer on the network:
1Click Start, then click Control Panel. The Control Panel window opens.
If your Control Panel is in Category View, click Performance and
Maintenance. The Performance and Maintenance window opens.
2Click/Double-click System. The System Properties dialog box opens.
3Click Computer Name.
4Click Change. The Computer Name Changes dialog box opens.
5Type a unique computer name in the Computer name box. This name
identifies the computer to other users on the network. Use a
computer name of up to 15 characters with no blank spaces. Each
computer name must be unique on your network. All-numeric
computer names are not allowed. Names must contain some letters.
6Type a name for your workgroup in the Workgroup box. Use a
workgroup name of up to 15 characters with no blank spaces. The
workgroup name must be the same for all computers in your network
workgroup, and the name must be different than any computer
name on your network.
7Click OK to close the Computer Name Changes dialog box.
Important You must give each computer on the network a unique
Computer Name and the same Workgroup Name.

11
www.eMachines.com
Setting up a wireless network
Connecting to your access point
After you have set up your wireless access point, you need to set up the
network connection on your computers.
To connect to an access point wireless network:
1Turn on wireless networking. For more information, see “Turning
wireless networking on and off” on page 3.
2Click Start, then click Control Panel. The Control Panel window opens.
If your Control Panel is in Category View, click Network and Internet
Connections. The Network and Internet Connections window opens.
3Click/Double-click Network Connections. The Network Connections
window opens.

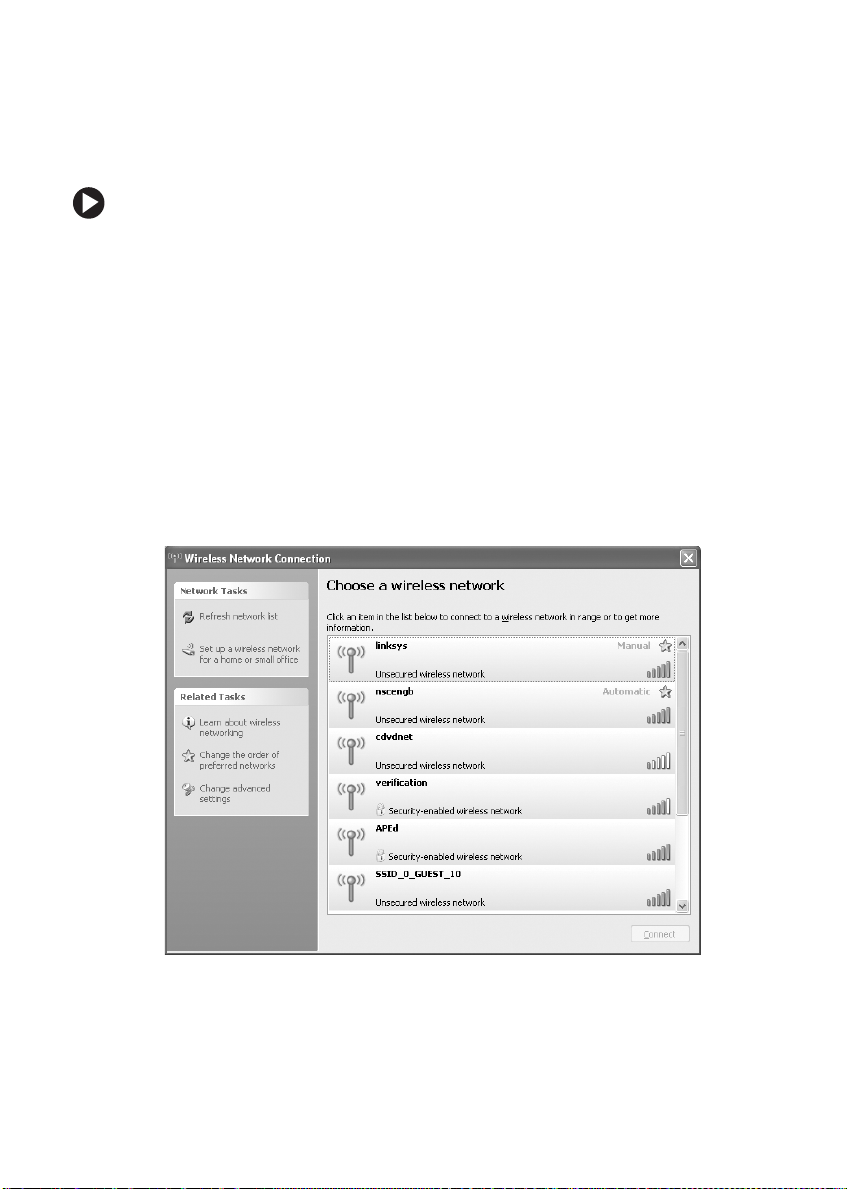

4Right-click the Wireless Network Connection icon, then click View
available wireless networks. The Wireless Network Connection dialog
box opens.

12 www.eMachines.com
Networking Your Notebook
5Click the network you created in the Choose a wireless network list,
then click Connect. If you successfully connected to the network, go
to “Testing your network” on page 17.
-OR-
If you are unable to connect to the network in the Choose a wireless
network list, go to “Configuring computer settings for an access
point” on page 12.
-OR-
If your network does not appear in the Choose a wireless network list,
go to “Adding an access point” on page 14.
Configuring computer settings for an access point
If you are unable to connect to an access point in the Choose a wireless
network list, the most likely cause is that the access point is using WEP
security. You need to configure your network settings to use the same
WEP security settings as those used by the access point.
To configure computer settings with WEP security for an access point
wireless network:
1With the Wireless Network Connection dialog box open, click Change
advanced settings. The Wireless Network Connection Properties dialog
box opens.
Help and
Support
For more information about connecting to a wireless
network, click Start, then click Help and Support. Type
the keyword connecting to wireless network in the
Search box , then click the arrow.
Important If the
Wireless Network Connection dialog box is not open,
follow the instructions in “Connecting to your access point”
on page 11.

13
www.eMachines.com
Setting up a wireless network

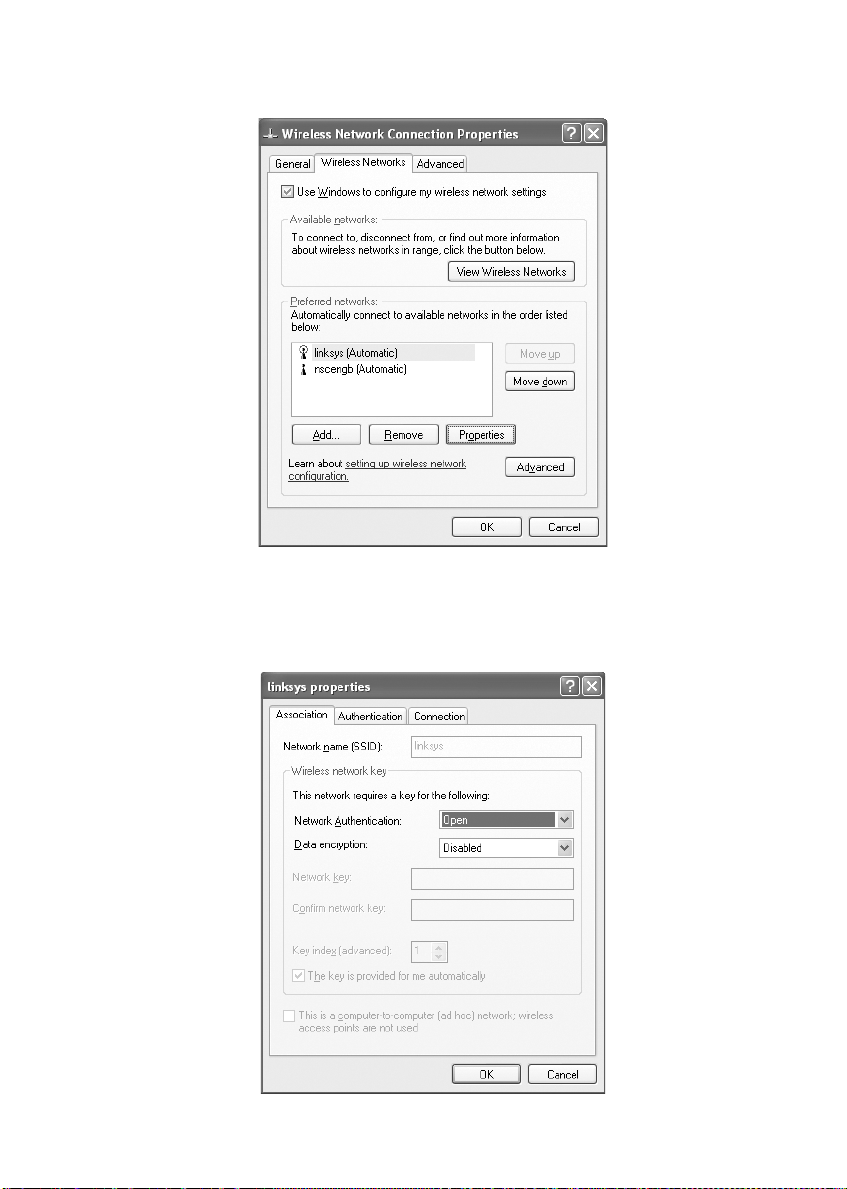

2Click the Wireless Networks tab.
3Click to select the access point network in the Preferred networks list,
then click Properties. A dialog box opens. The name of the network
already appears in the Network name (SSID) box.

14 www.eMachines.com
Networking Your Notebook
4Click the arrow button to open the Data encryption list, then click
WEP.
5If the WEP network key is not provided automatically, click to clear
The key is provided for me automatically check box, then type the
network key settings in the Network key and Confirm network key boxes
to match those set on the access point.
- OR -
If the WEP network key is provided automatically, leave the check
mark in The key is provided for me automatically check box.
6Make sure that the This is a computer-to-computer (ad hoc) network;
wireless access points are not used check box is not selected.
7Click OK to close the dialog box. Your network should be running.
Go to “Testing your network” on page 17.
Adding an access point
If an access point does not appear in the Choose a wireless network list,
and you know the access point is turned on, you need to add it manually.
This typically happens when you set the access point’s Allow Broadcast
SSID to associate to No. For more information, see “Configuring the access
point” on page 8.
To manually add an access point wireless network:
1With the Wireless Network Connection window open, click Change
advanced settings. The Wireless Network Connection Properties dialog
box opens.
Help and
Support
For more information about configuring a wireless network,
click Start, then click Help and Support. Type the keyword
wireless network in the Search box
, then click the arrow.
Important If the Wireless Network Connection dialog box is not open,
follow the instructions in “Connecting to your access point”
on page 11.

15
www.eMachines.com
Setting up a wireless network
2Click the Wireless Networks tab.
3Click Add. The Wireless network properties dialog box opens.

16 www.eMachines.com
Networking Your Notebook
4Type the name of the network in the Network name (SSID) box.
5Click the arrow button to open the Network Authentication list, then
click the network authentication option you want.
6If this is a security-enabled network, click the arrow button to open
the Data encryption list, then click WEP.
7If the WEP network key is not provided automatically, click to clear
The key is provided for me automatically check box, then type the
network key settings in the Network key and Confirm network key boxes
to match those set on the access point.
- OR -
If the WEP network key is provided automatically, leave the check
mark in The key is provided for me automatically check box.
8Make sure that the This is a computer-to-computer (ad hoc) network;
wireless access points are not used check box is not selected.
9Click OK to close the Wireless Network Properties dialog box. Your
network should be running. Go to “Testing your network” on
page 17.
Help and
Support
For more information about configuring a wireless network,
click Start, then click Help and Support. Type the keyword
wireless network in the Search box
, then click the arrow.

17
www.eMachines.com
Testing your network
Testing your network
Now that your home network is set up, log onto your notebook and access
a favorite Internet Web site.
If you are unable to connect to the Internet:
■Run the New Connection Wizard (see “Internet Explorer is unable
to access the Internet.” on page 27).
■Check all physical cable connections
■Compare the status lights on the front of the access point with the
patterns described in the access point documentation
■Temporarily turn off any firewall software on your notebook
■Turn off all of the devices, then turn them back on
■Refer to your access point’s troubleshooting information
■Contact your Internet service provider

18 www.eMachines.com
Networking Your Notebook
Sharing drives and printers
With a network, you can share drives (for example hard drives, diskette
drives, and CD or DVD drives) and printers among the computers
connected to the network.
After the drives and printers on each network computer are shared, you
can access them as though they were attached directly to your computer.
Then you can:
■View a network drive
■Open and copy files stored on other network computers
■Print documents on network printers
Sharing drives or folders
If you want to share a drive or folder, use the following instructions.
To share drives or folders:
1In My Computer or Windows Explorer, right-click the drive or folder
that you want to share, then click Sharing and Security. The folder
properties dialog box opens.
If you share a drive, the entire contents of that drive will be available
to everyone on your network. If you share a folder, only the contents
of that folder will be available to everyone on the network.
Important To share a printer among the network computers, each
computer must have the shared printer’s drivers installed.
Follow the instructions included with your printer to install
the printer drivers on each computer.
