eMachines eM350 Series User manual

Contents
English
Français
Deutsch
Italiano
Español
Português
Nederlands
Norsk
Dansk
Svenska
Suomi
Русский
Polski
Magyar
Čeština
Slovenčina
Slovenski
Hrvatski
Română
Български
Eesti
Latviski
Lietuviškai
Ελληνικά
Türkçe

eM350 Series
Quick Guide

eM350 Series
© 2010 All Rights Reserved
eMachines eM350 Series Quick Guide
Original Issue: 04/2010
Model number: _________________________________
Serial number: __________________________________
Date of purchase: _______________________________
Place of purchase: _______________________________
eMachines eM350 Series Notebook PC

1
Quick Guide
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer/Importer is responsible for this declaration:
Product: Notebook PC
Brand: eMachines
Model Number: NAV51
Machine Type: eM350 series
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.
Contact Person: Acer Representative
Phone No.: 1-254-298-4000
Fax No.: 1-254-298-4147
April 6, 2010

2
eM350 Series
CE Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]
And,
Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland
Hereby declare that:
Product: Notebook Computer
Trade Name: eMachines
Model Number: NAV51
Machine Type: eM350 series
Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have
been taken and are in force to assure that production units of the same product will continue comply with the requirements.
EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:
-. EN55022, AS/NZS CISPR22, Class B
-. EN55024
-. EN61000-3-2 Class D
-. EN61000-3-3
Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:
-. EN60950-1

3
Quick Guide
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment
-. The maximum concentration values of the restricted substances by weight in homogenous material are:
Lead 0.1% Polybrominated Biphenyls (PBB’s) 0.1%
Mercury 0.1% Polybrominated Diphenyl Ethers (PBDE’s) 0.1%
Hexavalent Chromium 0.1% Cadmium 0.01%
Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.
R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:
• Article 3.1(a) Health and Safety
-. EN60950-1
-. EN62311
• Article 3.1(b) EMC
-. EN301 489-1
-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN301 489-17
• Article 3.2 Spectrum Usages
-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN300 328
-. EN301 893 (Applicable to 5GHz high performance RLAN).
Year to begin affixing CE marking 2010.
Easy Lai /Manager
Regulation Center, Acer Inc.
Apr. 6, 2010
Date

4
eM350 Series

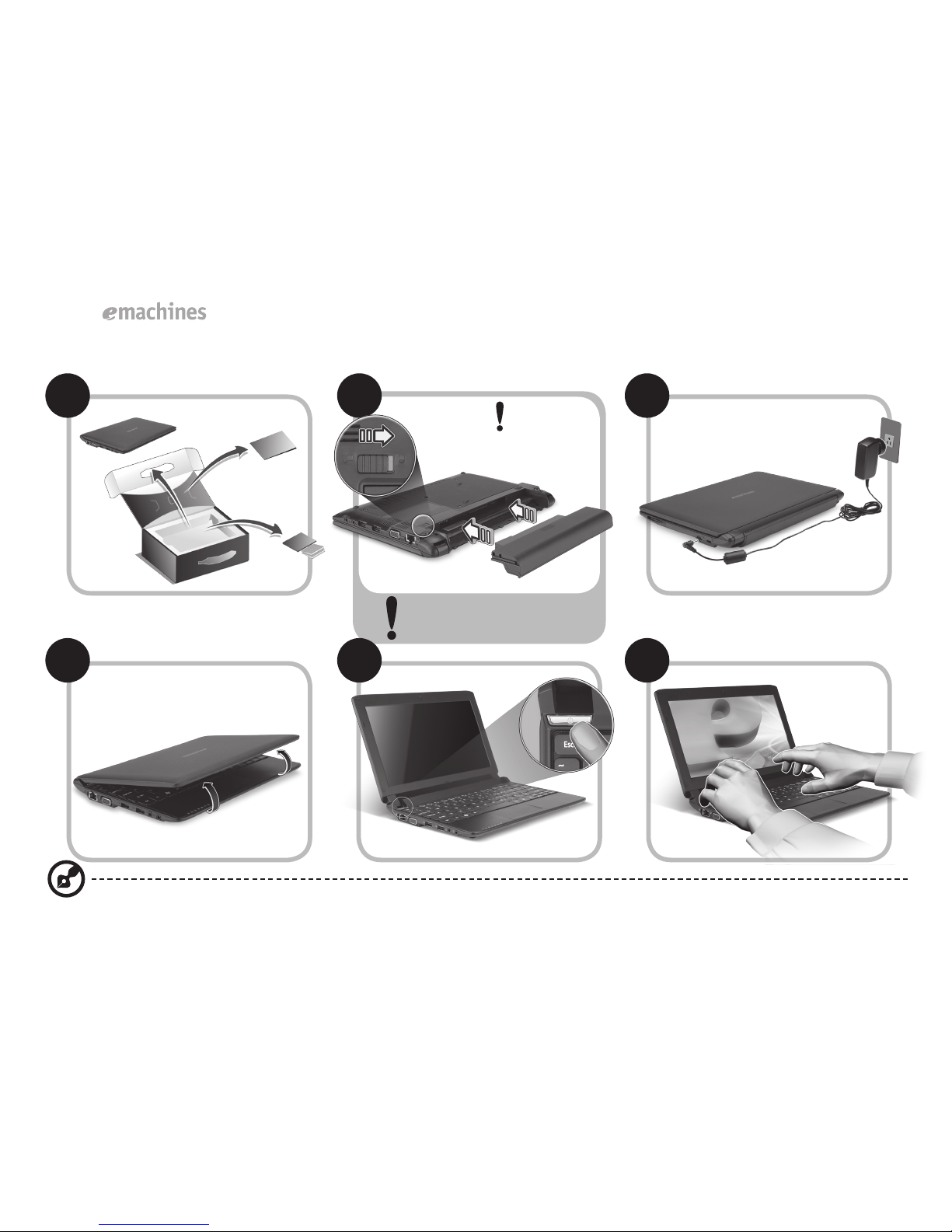

Just for starters
1 2 3
4 5 6
3-1
3-2
2-1
2-2
Illustrations are for reference only. Actual product specifications may vary.
Ensure that the battery is properly
locked in place, as illustrated in
2-2.

5
Quick Guide
First things first
We would like to thank you for making an eMachines notebook your choice for meeting your mobile computing needs.
Your guides
To help you use your notebook, we have designed a set of guides*:
First off, the Quick Guide helps you get started with setting up your computer.
For more on how your computer can help you to be more productive, please refer to the eMachines System User Guide. This guide contains
detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains
warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and
comes preloaded on your notebook.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on eMachines System User
Guide will run the Adobe Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions
on how to use Adobe Reader, access the Help and Support menu.
* IMPORTANT NOTICE: Please note that the guides mentioned herein, whether in printed or electronic form, are for your reference
only and except as provided in the specific warranty information contained in the eMachines System User Guide nothing contained in
these guides shall constitute a representation or warranty by Acer with regard to the product you purchased. Acer expressly disclaims
any liability for errors contained in the guides.

6
eM350 Series
Network configuration
This guide will help you configure your LAN and wireless network settings to enable you to connect to the Internet.
Setting up LAN connection
Simply plug in the LAN cable to the Ethernet (RJ-45) port. Please refer to "Left view" on page 8 for the location of the Ethernet port.
Setting up a wireless connection
1. Press <Fn> + <F3> to access the communication manager. Here you can turn on the Wi-Fi connection by clicking on the red button next to
Wi-Fi.
Note: Bluetooth is also accessible through the communication manager. Communication devices vary by model.
2. Click the icon on your system tray and choose the wireless access point you want to connect to.

Quick Guide
7
Your eMachines notebook tour
After setting up your computer as illustrated in the Just for starters
section, let us show you around your new notebook.
Top view
# Icon Item Description
1Webcam Web camera for video communication.
2Microphone Internal microphone for sound
recording.
3Display screen Also called Liquid-Crystal Display
(LCD), displays computer output.
4Power button/
indicator Turns the computer on and off.
5Keyboard For entering data into your computer.
6Power indicator Indicates the computer's power status.
Battery indicator Indicates the computer's battery
status.
HDD indicator Indicates when the hard disk drive is
active.
Num Lock indicator Lights up when Num Lock is activated.
Caps Lock indicator Lights up when Caps Lock is activated.
Wireless LAN
communication
indicator
Indicates the status of Wireless LAN
communication.
Bluetooth
communication
indicator
Indicates the status of the Bluetooth
communication (only for certain
models).
7Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
8Click buttons (left and
right) The left and right buttons function like the left and right mouse buttons.

8
eM350 Series
Closed front view
# Icon Item Description
1Status indicators Light-Emitting Diodes (LED) that light up to
show the status of the computer's functions and
components.
Left view
2Ethernet (RJ-45) port Connects to an Ethernet 10/100-based network.
3External display (VGA)
port Connects to a display device (e.g., external monitor, LCD projector).
4USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse).
5Microphone-in jack Accepts inputs from external microphones.
6Headphone/speaker/
line-out jack Connects to line-out audio devices (e.g., speakers, headphones).

Quick Guide
9
Right view
# Icon Item Description
72-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard
(MMC).
Note: Push to remove/install the card. Only
one card can operate at any given time.
8DC-in jack Connects to an AC adapter.
9Kensington lock slot Connects to a Kensington-compatible
computer security lock.
Rear & base views
10 Battery bay Houses the computer's battery pack.
Note: The battery shown is for reference
only. Your PC may have a different battery,
depending on the model purchased.
11 Battery release latch Releases the battery for removal.
12 Hard disk/Wireless LAN
communication bay Houses the computer's hard disk/Wireless LAN communication (secured with screws).
13 Memory compartment Houses the computer's main memory.
14 Ventilation slots and/or
cooling fan Enables the computer to stay cool, even after prolonged use.
Note: Do not cover or obstruct the opening of
the fan.
15 Battery lock Locks the battery in position.

10
eM350 Series
Environment
Temperature:
Operating: 5°C to 35°C
Non-operating: -20°C to 65°C
Humidity (non-condensing):
Operating: 20% to 80%
Non-operating: 20% to 80%

Gamme eM350
Guide rapide

Gamme eM350
© 2010 Tous droits réservés
Guide rapide de la gamme eMachines eM350
Première publication : 04/2010
Numéro de modèle : _____________________________
Numéro de série : _______________________________
Date d'achat : __________________________________
Lieu d'achat : ___________________________________
Ordinateur notebook de la gamme eMachines eM350

1
Guide rapide
Federal Communications Commission
Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer/Importer is responsible for this declaration:
Product: Notebook PC
Brand: eMachines
Model Number: NAV51
Machine Type: eM350 series
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St., San Jose
CA 95110, U. S. A.
Contact Person: Acer Representative
Phone No.: 1-254-298-4000
Fax No.: 1-254-298-4147
April 6, 2010

2
Gamme eM350
CE Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan
Contact Person: Mr. Easy Lai, e-mail:[e-mail]
And,
Acer Europe SA
Via Cantonale, Centro Galleria 2 6928 Manno Switzerland
Hereby declare that:
Product: Notebook Computer
Trade Name: eMachines
Model Number: NAV51
Machine Type: eM350 series
Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have
been taken and are in force to assure that production units of the same product will continue comply with the requirements.
EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:
-. EN55022, AS/NZS CISPR22, Class B
-. EN55024
-. EN61000-3-2 Class D
-. EN61000-3-3
Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:
-. EN60950-1

3
Guide rapide
RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment
-. The maximum concentration values of the restricted substances by weight in homogenous material are:
Lead 0.1% Polybrominated Biphenyls (PBB’s) 0.1%
Mercury 0.1% Polybrominated Diphenyl Ethers (PBDE’s) 0.1%
Hexavalent Chromium 0.1% Cadmium 0.01%
Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.
R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:
• Article 3.1(a) Health and Safety
-. EN60950-1
-. EN62311
• Article 3.1(b) EMC
-. EN301 489-1
-. EN301 489-3 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN301 489-17
• Article 3.2 Spectrum Usages
-. EN300 440-2 (Applicable to non-bluetooth wireless keyboard mouse set).
-. EN300 328
-. EN301 893 (Applicable to 5GHz high performance RLAN).
Year to begin affixing CE marking 2010.
Easy Lai /Manager
Regulation Center, Acer Inc.
Apr. 6, 2010
Date

4
Gamme eM350
Pour partir du bon pied
1 2 3
4 5 6
3-1
3-2
2-1
2-2
Les illustrations sont mises uniquement à titre de référence. Les caractéristiques réelles des produits peuvent changer.
Assurez que la batterie est
correctement verrouillée en place,
comme illustré à 2-2.
