Emdoor X11 User manual

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
1
X11 Win10 OS Operation Instruction
Foreword:
Dear user, thanks for you use our company product. In order to faster know about the product for
you, please refer file instruction when you have question . The file mainly introduce X11 item body
interface and system use instruction. Through picture sign information , user can faster know about
the use way of product. Please connect our company technology staff to solve when you encounter
question that you can’t deal with, thanks for your Trust
Content

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
2

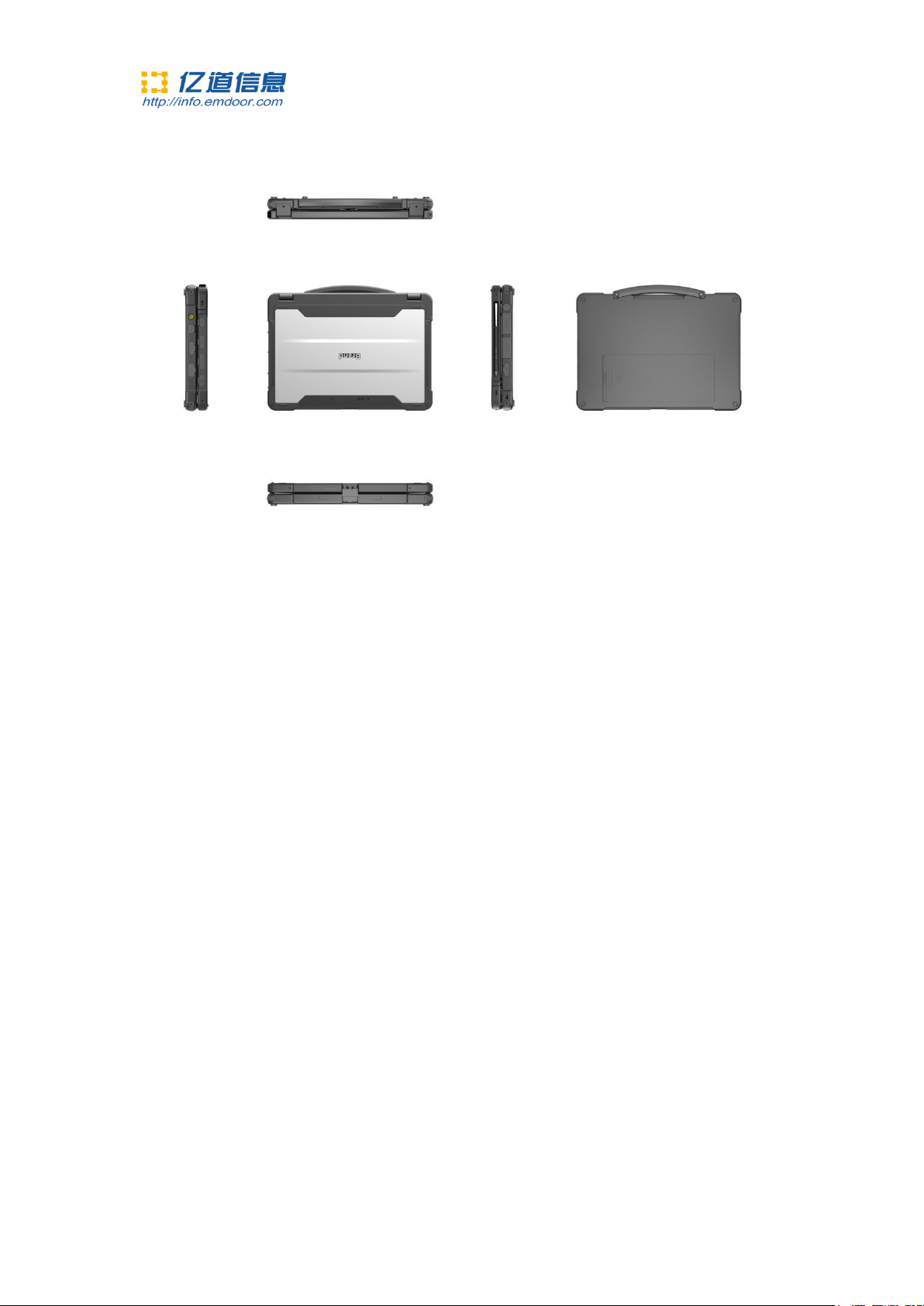

1. Product appearance six views
1.1 close six views
File name
X11 Win10 OS Operation Instruction
File number
0001
Version
V1.0
Issue date
2017-09-26
Pages
Change records
Change
record
Change record
Change
record
Change record
Change record
Change
record
1
YDXX-01
V1.0
2017-09-26
First published
Service FAE
department

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
3

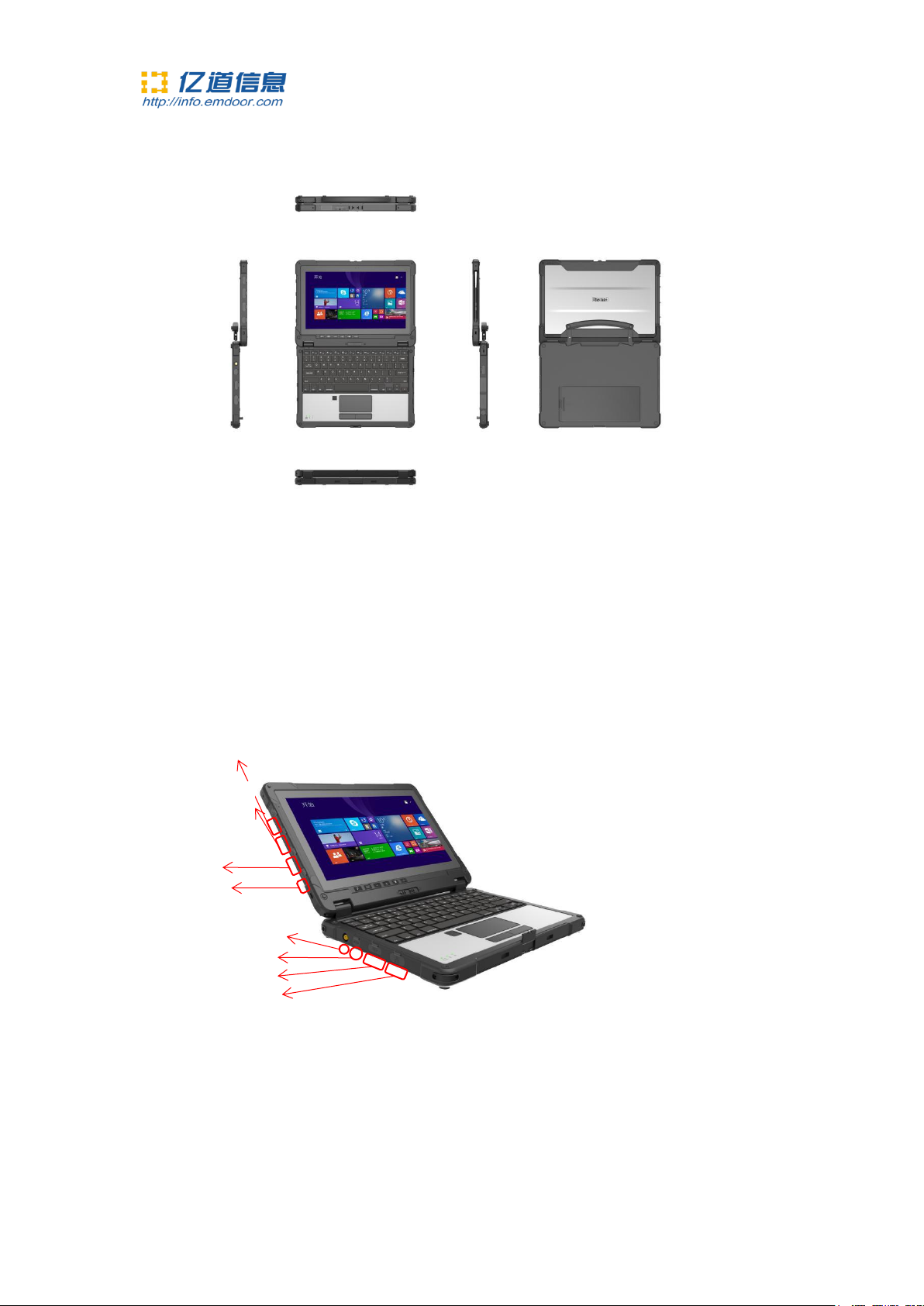

1.2 unfold six views

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
4
2. Product external interface
2.1 Product ports on left side
1.TF card 及
SIM card slot
2.HDMI and headphone port
slot
8.RJ45 网口接口
7.USB2.0 接口
4.DC 电源接口
3.USB3.0
port
6.DC 充电接口
5.GPS 外接天线接口

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
5
1. The TF card and SIM card slot, insert TF card here can extend storage space , insert SIM
card can use mobile data traffic to surf the Internet;
2. HDMI and headphone jack - HDMI for transmission to the projector or HDTV video
file;Interface is 3.5 mm standard headsets, can use the 3.5 mm audio cables to connect
speakers to play audio files
3. USB3.0 interface - USB high speed data transmission interface, can connect USB storage
devices and connect to plug and play USB devices
4. 12 v 4 a power supply interface - The host DC power supply interface, after connecting the
power supply can work directly from the battery or to recharge the battery.
5. GPS module in external antenna - when using external antenna of the keyboard can use this
interface to external connect antenna port
6.
Keyboard terminal DC power supply interface - 12 v 4 a DC power supply interface, after
connecting the power supply can work directly from the battery or to recharge the battery.
7. USB2.0 interface - USB data transmission interface, connect USB storage devices and plug and
play USB devices
8. RJ45 Internet interface --Can be directly connect the network cable to this interface to access
the network
2.2 Product ports on right side
4.RS232 接口
3.RS485 接口
2.USB2.0 接口
1.触控笔

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
6
1.Stylus - can be directly used for touch screen, handwriting and so on, can be used for drawing
in the drawing software
2.USB2.0 interface (keyboard) - USB data transmission interface, connect USB storage devices
and plug and play USB devices
3.RS485 interface - used in PC and intelligent communications equipment by means of RS232 and
RS485, Ethernet, etc;
4.RS232 interface - used in computer peripherals connect the serial interface.Connecting cable
and mechanical, electrical properties, signal functions and transmission
2.3 Product Front side
1. F function keys - is used to control the switch 1d / 2 d scanning module
2. The keyboard buttons - when the host and the keyboard in separation can use this button to
calls a virtual keyboard
3. VOLUME - Button - used to adjust volume to reduce the volume
4. volume + button used to adjust volume to increase the volume
5. Windows "HOM button - used to open the Windows shortcuts
6. The power button - used to sleep wake up the device and the switch on/off equipment;
10
13
12
9
11
8
7
6
5
4
3
2
1

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
7
7. Keyboard lock - for host connected after the keyboard locked, to prevent fall off
8. Keyboard area - used for text input and control system function
9. The fingerprint - used for log in Windows or file encryption
10. Touchpad - used to simulate the mouse operate and work computer, two fingers sliding at the
same time online simulation mouse wheel
11. indicator Light - used to show the battery, the system working status and network status;
12. Left button - the mouse left function key;
13. Right button - the mouse right function key;
1.Device initialize Setting
1.1 language choice
According to different international customers with the use of different language, when you first
meet language Settings page after starting , where users can define customer language according
to demand (system default in English and Chinese two languages commonly, can be customized
as the required language)

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
8
1.2 User agreement
CLICK and accept and enter into Next Step
1.3 Network setting
下一步
接受

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
9
1.4 Quick start
User can choose quick setting or user-defined
jump

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
10
1.5 Account setting
User can user-defined set account code, or directly set account without set code entering the next
step:
Quick setting
user-defined setting

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
11
1.6 Waiting after 5 minutes, system finished initialization can enter automatic desktop:
Confirm code
next
User name
code
Code cue

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
12

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
13
2. Desktop layout：win10 system desktop location and components
introduction, as the follow picture:
3. Basic function operation introduction
Network setting
File resource mangement
IE browser
browser
Microsoft mall
Volume adjust
Time date
Soft key
Quick setting
battary
Experience area
Deploy all application
setting
Put off restart option
File resource management

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
14
Rugged tablet operation is touch screen, “click”, “double click”can press screen with finger. “right
click”operation need to press the screen a little longer, about 1-2 second, loosing will pop up more
menu options, then choosing corresponding.

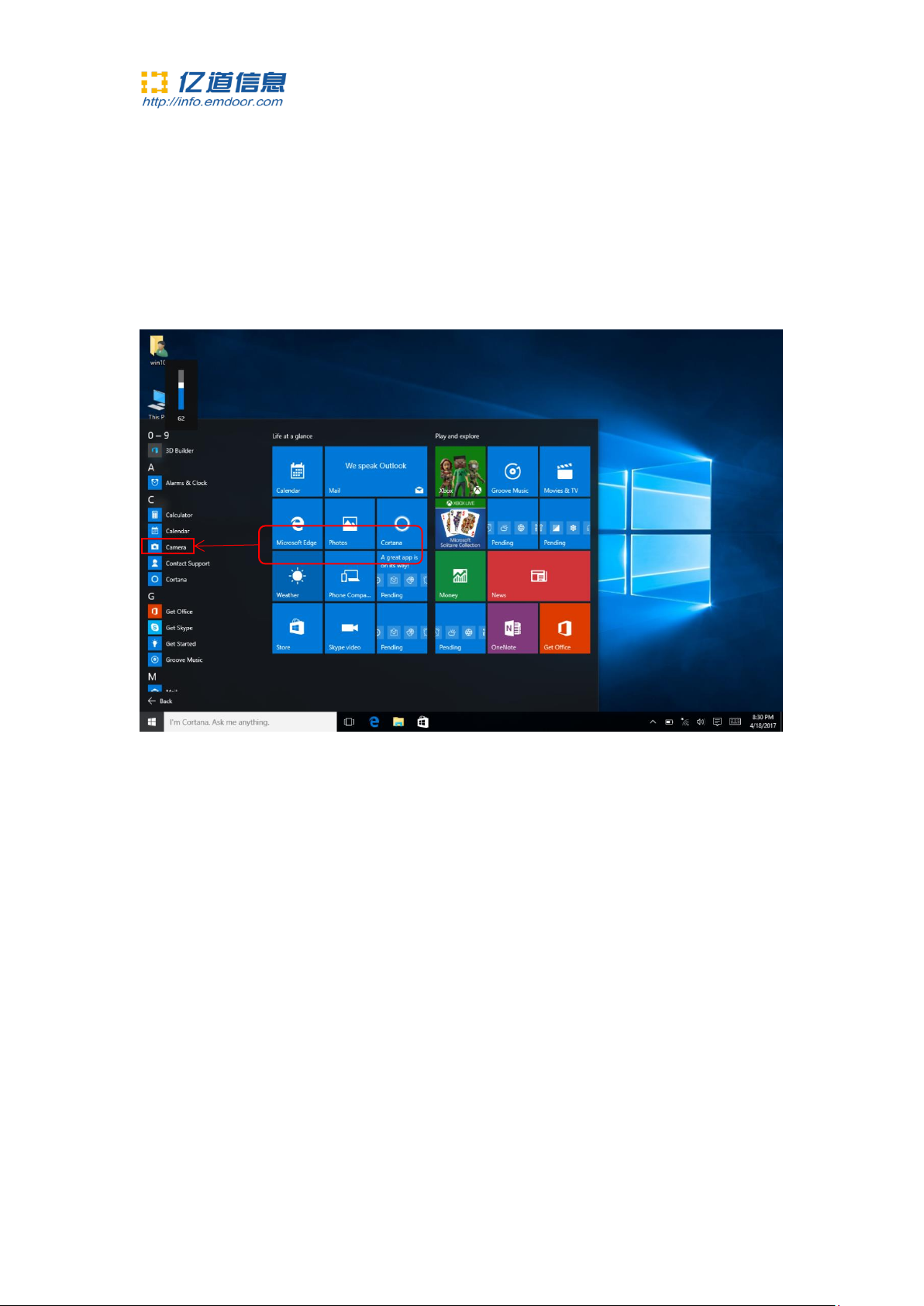

4. Application start introduction
Press after deploy all application can enter the next picture interface, installed all application can
be found in here, slide screen up and down. Such as camera: press the next picture sign can start
camera, can switch front/ back camera in camera interface:
5. Quick set switch and sign information:
Press shortcut can start quick setting switch and system sign information interface, user can shut
up or open required function, wifi/bluetooth/GPS etc，as the follow picture：
Click start camera

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
15
6. System information look up：
6.1 longer pressing or press the right key of mouse to start, as the follow picture:
Can open some high setting option in this interface, such as: open control board can set code,
change user name, alter language, unload procedure and so on. Device management can look up
each device whether in working order. Event viewer can look up Windows system daily record.
6.2syatem and configuration information:
Start shortcut setting
System sign information
will appear in here
Event viewer
Press can look up system information
Press can open device management
Press can open control board

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
16
Can look up system type in here, CPU model number，run memory and other information. as
the follow picture：
System property page can look up Windows version information, processor/RAM（run memory）
/system type/pen and touch ect information，activation code information show: 00325-00000-
00000-AAOEM not activation, as above picture, you can open device management /remote
setting/system protecting/high system setting and so on.
7. System setting：
7.1 Open all setting in quick setting, can open the next picture interface, in this interface can set all
computer system, as the follow picture:
System activation code

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
17
7.2 System setting: after choosing system can appear, inform, apply, power and so on setting, as
the follow picture:
Above picture circled option from up to down order:display setting->inform and
operation->Application and function->More task->Rugged tablet mode->power saving
mode->power and sleep->storage->offline map->default application->about
7.3 Device setting:
individuation
n
Update and safe
Time and language
network
privacy
device
Lightly use
account
system

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
18
In this setting page can set: 1.printer and scanner（can add and delete printer and scanner）.
2.Connected device（can look up connect rugged tablet device）3.bluetooth（can look up
searched or connect bluetooth device, and high settingdelete device and so on action）；4.mouse
and touch board（can set the main key of mouse is left key or right key, set mouse scroll wheel of
a multi line or a screen operation）；5.input（in this can set user personal input habit or only
input，can open or close touch keyboard warning tone ect operation）and so on. As the follow
picture：
7.4 network and INTERNET setting：in this page can run WIFI、airplane mode, mobile phone
network, mobile hotspot, VPN, dial, agency and so on setting, As follow of picture ：

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
19
7.5 Individual setting：In this page you can run background, color, clock interface, theme, start
and so on setting operation, As follow of picture：

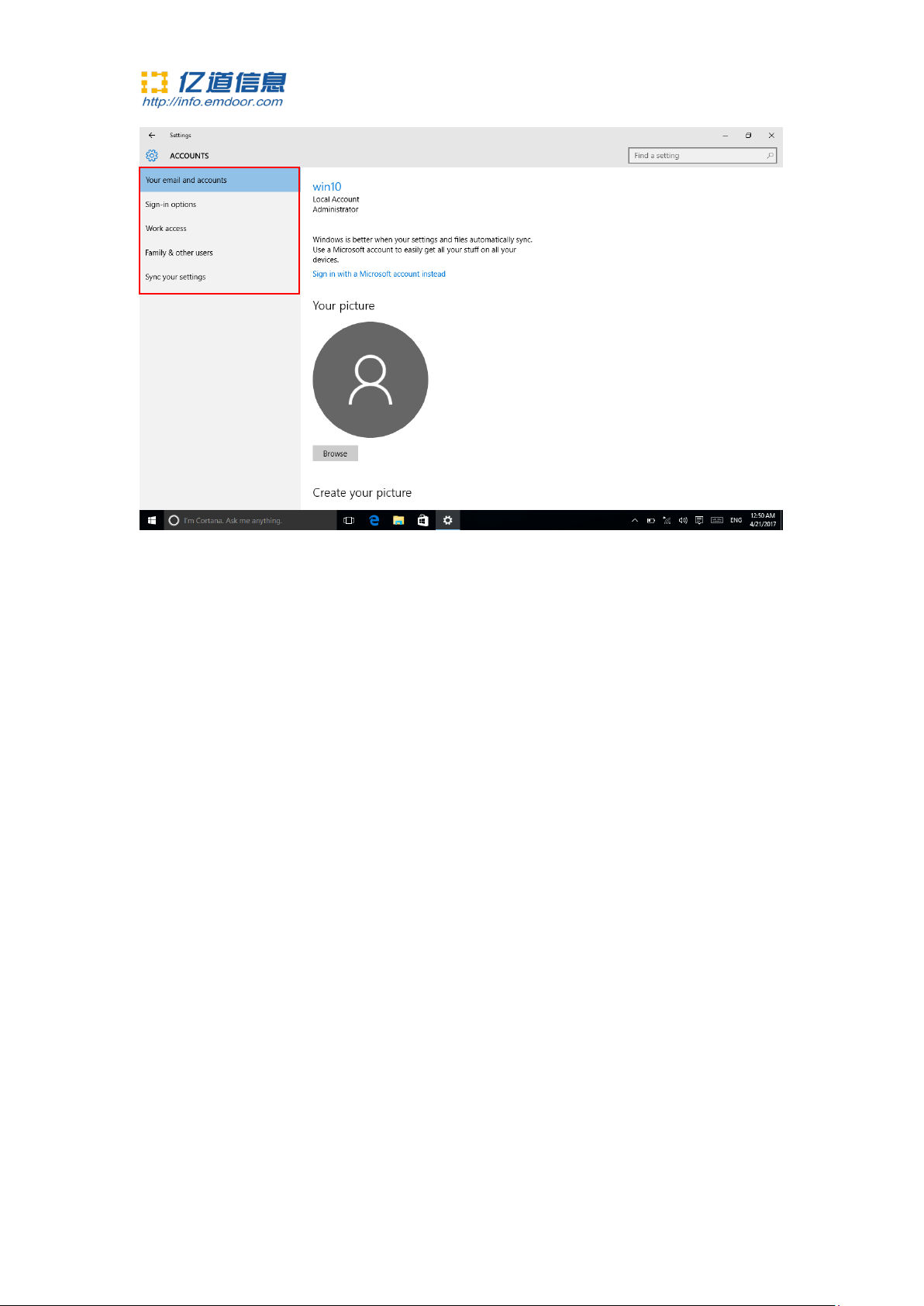

7.6 Account setting: In this interface you can change user name, add and delete account or e-mail,
left menu order: e-mail and account, login option, work unit access, family and other user,
synchronization setting and so on operation option, user can change settings according to their
requirement, As follow of picture：

深圳市亿道信息股份有限公司
EMDOOR INFORMATION CO.,LTD
20
7.7 Date and time setting:In this page you can set Windows appear language，input method and
use area/ zone and so on information, As follow of picture：
