EMIU 125/250/400W Mini Inverter
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed, including the following:
READ THIS MANUAL AND FOLLOW ALL SAFETY INSTRUC TIONS
THOROUGHLY BEFORE OPERATING THE EMIU INVERTER SYSTEM
SAVE THESE INSTRUCTIONS
1. DO NOT USE
OUTDOORS.
2. All unused wires must be insulated to prevent shorting.
3. Do not mount near gas or electric heaters.
4. Do not let power supply cords touch hot surfaces.
5. Do not use this equipment for other than its intended
use.
6. The EMIU should be mounted securely and in locations and at heights where it will not be readily subjected to tampering by
unauthorized personnel.
7. The use of accessory equipment and replacement parts not recommended by manufacturer may cause an unsafe condition and
void the warranty.
8. The AC voltage rating of this equipment is specified on the product label. Do not connect the EMIU equipment to any other voltage.
9. Replacement fuse is supplied.
10. The EMIU uses sealed valve regulated lead acid batteries. Batteries can be punctured if
not handled properly, therefore use caution
when servicing batteries. In the event battery acid comes in contact with eyes or skin, flush with fresh water and consult a physician
immediately.
11. Install in accordance with the National Electrical Code and local regulations.
12. The EMIU contains
potentially hazardous voltages. Installation, maintenance and service work should be performed by qualified
and trained personnel.
13. Electricians and end-users need to ensure product system compatibility before final
installation.
14. Units to be installed only as per configuration described in this instruction manual.
IMPORTANT: Do not exceed the total rating of the Mini Inverter. Unit is rated at maximum Watt and maximum VA, where Max.W
= Max.VA. Total load (W) must be derated when load power factor (PF) is less than 0.9 (for maximum performance).
All Emergi-Lite®inverter products receive 100% quality inspection before shipment to ensure proper and satisfactory operation.
When operated under normal conditions, Emergi-Lite®inverter products will provide years of dependable service. This unit is backed by
a 3-7 year warranty. The unit is covered by a complete 3-year warranty against defects in material or workmanship, and a 7-year pro-rata
battery warranty.
BEFORE CONTACTING TECHNICAL SUPPORT PLEASE REFER TO THE TROUBLESHOOTING GUIDE INCLUDED IN
THIS MANUAL.
MODEL NUMBER AC SPECS EMERGENCY POWER AVAILABLE FOR LOAD APPROX.
WEIGHT
90 MIN 2H 3H 4H
EMIU-125
120/277 VAC, 60Hz
1.50 / 0.70 Amps 125W 85W 65W 50W 50LBS.
EMIU-250 2.75 / 1.20 Amps 250W 170W 125W 95W 100LBS.
EMIU-400 4.60 / 2.00 Amps 400W 300W 200W 150W 150LBS.
WARRANTY
EMIU 125/250/400W Mini Inverter
INTERRUPTIBLE EMERGENCY LIGHTING
UNIT INVERTER INSTRUCTION MANUAL
THIS UNIT CONTAINS A
RECHARGEABLE VALVE-REGULATED
LEAD ACID BATTERY. PLEASE
RECYCLE OR DISPOSE OF
PROPERLY.
i

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
2/12
®
EMIU 125/250/400W Mini Inverter
WARNING: THE MINI INVERTER MUST BE MOUNTED SECURELY USING A 1/4” (MIN) SCREW AND FLAT
WASHER FOR EVERY KEYHOLE. THE MOUNTING SURFACE MUST ALSO BE SUFFICIENTLY
REINFORCED TO ACCOMODATE THE WEIGHT LISTED (SEE PAGE 1). FAILURE TO SECURE THE
UNIT SUFFICIENTLY CAN DAMAGE THE EQUIPMENT AND/OR CAUSE SERIOUS INJURY.
WARNING: DO NOT ENERGIZE THE CIRCUIT UNTIL ALL STEPS HAVE BEEN SUCCESSFULLY COMPLETED.
WARNING: DO NOT RELY SOLELY ON THE INVERTED T-BAR STRUCTURE TO SUPPORT THE UNIT. FAILING TO
INSTALL WIRE SUPPORTS CAN LEAD TO SERIOUS INJURY.
WARNING: FAILURE TO CONNECT THE BATTERY(S) PROPERLY MAY RESULT IN EQUIPMENT FAILURE OR
AN UNSAFE CONDITION AND WILL VOID THE WARRANTY. A SMALL SPARK MAY OCCUR WHEN
CONNECTING TO THE BATTERY WIRES. THIS IS NORMAL AND IS CAUSED BY LARGE
CAPACITORS CONTAINED IN THE MINI INVERTER BEING CHARGED.
WARNING:
ALWAYS TURN OFF THE INVERTER MODULE AND THE AC SUPPLY TO THE EQUIPMENT AND
DISCONNECT THE BATTERY BEFORE SERVICING. ONLY QUALIFIED SERVICE TECHNICIANS
SHOULD SERVICE THIS EQUIPMENT. THE USE OF PARTS SUPPLIED BY OTHER THAN THE
MANUFACTURER MAY RESULT IN AN UNSAFE CONDITION OR EQUIPMENT FAILURE AND WILL
VOID THE WARRANTY.
CAUTION: THIS UNIT PROVIDES MORE THAN ONE POWER SUPPLY OUTPUT SOURCE. TO REDUCE THE
RISKOF ELECTRICAL SHOCK WHEN SERVICING, DISCONNECT BOTH NORMAL AND
EMERGENCY SOURCES BY TURNING OFF THE A.C. BRANCH CIRCUIT AND BY DISCONNECTING
THE BATTERY.
CAUTION: BEFORE INSTALLING, MAKE CERTAIN THE A.C. POWER IS OFF.
NOTE: THE BATTERY(S) ARE SHIPPED SEPARATELY. PLACE THEM IN A LOCATION AWAY FROM
THE WORK AREA TO AVOID DAMAGE UNTIL THEY ARE TO BE INSTALLED.
CAUTION: ONLY ONE VOLTAGE IS ALLOWED (120V OR 277V). CONNECTION TO MORE THAN ONE VOLTAGE
MAY RESULT IN EQUIPMENT FAILURE AND VOID THE WARRANTY.
CAUTION: FOR NORMALLY ON UN-SWITCHED UNITS: THE JUMPER WIRE IS PRESET FOR 120VAC. IF THE
UNIT IS TO BE WIRED FOR 277VAC, REMOVE THE JUMPER WIRE FROM THE 120VAC INPUT
POWER TERMINALS AND REINSTALL THE JUMPER WIRE INTO THE 277VAC INPUT POWER
TERMINALS.
CAUTION: IF CONNECTED TO 277V INPUT, USE A 277V RATED SWITCH. FAILURE TO USE THE PROPER
VOLTAGE SWITCH MAY RESULT IN SWITCH FAILURE, A SHOCK HAZARD, AN UNSAFE
CONDITION AND/OR EQUIPMENT FAILURE.
CAUTION:
THE MINI INVERTER HAS A SELF-TEST FEATURE AND CAN ENTER IN SELF-TEST MODE (MONTHLY,
BIANNUAL OR ANNUAL) AT ANY TIME. WHEN THIS OCCURS, POWER WILL BE AVAILABLE AT THE
OUTPUT OF THE MINI INVERTER, EVEN IF THE LATTER WAS CONFIGURED FOR NORMALLY-OFF
OPERATION. ALWAYS TURN OFF THE INVERTER MODULE INSIDE THE MINI INVERTER BEFORE
WORKING WITH THE WIRING SYSTEM OF THE EMERGENCY LIGHTING SYSTEM.
IMPORTANT: WHEN MAKING CONNECTIONS TO THE MINI INVERTER, YOU MUST RESPECT THE
APPROPRIATE WIRING DIAGRAMS. DO NOT CONNECT THE “INPUT POWER” NEUTRAL TO THE
“LOAD” NEUTRAL. FAILURE TO COMPLY WITH THIS DIRECTIVE MAY RESULT IN EQUIPMENT
FAILURE AND VOID THE WARRANTY.
IMPORTANT: FOR NORMALLY OFF LOAD: REMOVE THE JUMPER WIRE BEFORE WIRING THE UNIT.

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
3/12
®
EMIU 125/250/400W Mini Inverter
INSTALLATION
a. Remove the front cover of the Mini Inverter by removing the two screws at the top of the cover.
b. Extend the unswitched, properly-rated voltage AC supply and remote fixture wires to the installation area.
c. Use keyhole slots at the rear of the unit and mount the Mini Inverter securely to the wall.
d. Connect the conduit containing the AC supply and remote fixture leads to the Mini Inverter. Use the provided knock-outs on the
side of the Mini Inverter for connecting the incoming wires.
e. Install the batteries at this time, but do not connect the battery leads until other wiring is completed.
NOTE: For Ceiling Mount Application , the Mini Inverter requires a minimum of 12″clearance all around the unit and 2″above.
a. Remove the side cover from the Mini Inverter.
b. Remove the ceiling tile in the desired installation location.
c. Extend the unswitched, properly-rated voltage AC supply and remote fixture wires to the installation area.
d. Place the Mini Inverter across the 2′T-bars of the ceiling grid. Support the unit with wires attached to the building steel framing.
Holes are provided at the top of the Mini Inverter to support wire connection.
e. Connect the conduit containing the AC supply and remote fixture leads to the Mini Inverter. Use the provided knock-outs on the
Mini Inverter for connecting the incoming wires.
f. After installation is complete, replace properly-sized tile into the ceiling grid. The tile should rest on the flange of the Mini Inverter.
a. For 120V supply, connect the AC Line wire to the 120V (UN-SWT) position of the INPUT POWER section of the terminal block.
For 277V supply, connect the AC Line wire to the 277V (UN-SWT) position of the INPUT POWER section of the terminal block.
b. Connect the NEUTRAL wire to the NEUTRAL position of the INPUT POWER section of the terminal block.
c. Connect the ground wire in accordance with local and national codes.
d. For Nexus wired (option): Refer to the “WIRING FOR NEXUS®” on the page 4.
a. Connect the remote emergency fixtures to the correct position of the OUTPUT terminal block, respecting the operating voltage.
All remote circuitry is to be wired in accordance with Article 700 of the National Electric Code. Do not exceed the total rating of
the Mini Inverter. Unit is rated at maximum Watt and maximum VA, where Max.W = Max.VA. Total load (W) must be
derated when load power factor (PF) is less than 0.9 (for maximum rating). Special attention shall be taken when load
consists of LED lamps with no built-in power factor correction. Example: most of the single LED lamps (Screw-on, GU-10, etc.)
have a power factor of less than 0.6. This translates to a derating close to 50%.
b. NORMALLY-OFF FIXTURES (only come on during power failure) - Connect the AC Line input wire of the fixtures to the
appropriate position of the LOAD terminal block (120V OR 277V). Connect the fixture Neutral to the Neutral position of the LOAD
terminal block. Refer to Figure 2B.
c. UN SWITCHED NORMALLY-ON LOAD - Connect the AC Line input wire of the fixtures to the appropriate position of the LOAD
terminal block (120V OR 277V). Connect the fixture Neutral to the Neutral position of the LOAD terminal block.
Refer to Figure 2C.
d. SWITCHED NORMALLY-ON LOAD (fixtures may be turned on and off locally, but will come on during power failure regardless of
switch position) - Follow Step 3B above. Connect the Line side of the switch to the (UN-SWT) position of the INPUT POWER ter-
minal block, respecting the operating voltage (120V OR 277V). Connect the load side of the switch to the (SWT) position on the
INPUT POWER terminal block, respecting the operating voltage (120V OR 277V). Refer to Figure 2A.
e. Connect the Fixture Supply Ground to the Mini Inverter Ground.
a. Position the battery(s) in the unit.
b. Refer to figure 1. Connect the RED wire to the positive (+) post of the battery. Connect the BLUE wire to the negative (-) post of
the battery. Tighten all bolts to a recommended torque of 78 lbf-in ± 4 lbf-in. Put the protective red cover completely over the pos-
itive battery post (125W T-BAR unit only).
NOTE: THE EMERGENCY LIGHT AND INDICATORS WILL NOT TURN ON AT THIS TIME.
STEP 1A: MOUNTING THE MINI INVERTER TO THE WALL
STEP 1B: RECESSED T-BAR CEILING MOUNT (EMIU-125W ONLY)
STEP 2: CONNECT THE NORMAL AC INPUT (SEE FIGURE 2A, 2B, 2C OR 2D)
STEP 3: CONNECT THE REMOTE EMERGENCY FIXTURES (SEE FIGURE 2A, 2B, 2C OR 2D)
STEP 4: CONNECT THE BATTERY(S)
STEP 5: SWITCH ON THE INVERTER MODULE (SWITCH IS LOCATED ON THE RIGHT SIDE OF
THE INVERTER MODULE).

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
4/12
®
EMIU 125/250/400W Mini Inverter
a. Energize the AC supply. The Status Indicator will illuminate. Refer to the operation information below for more information about
the Status Indicator.
b. Normally-ON fixtures shall be ON, Normally-OFF shall be OFF. Switched Emergency Fixtures shall be ON only when the switch is
in the ON position.
c. Manually test the unit by pressing the test switch for 1 second and then release it. Refer to “MANUAL TEST” for more details.
d. If status LED is not green, reset the system. (Refer to “SYSTEM RESET”).
e. Properly re-install the cover of the Mini Inverter using all the original hardware.
WIRING FOR NEXUS®(OPTION)
a. Route the NEXUS®data cables in the unit and strip 30mm of the double insulation.The two cables
are identical and both contain 2 wires of different colors: color A and color B.
b. Gather the color A wire from each cable, and connect them to the same pole on the terminal block.
Gather the color B wire from each cable, and connect them to the other pole on the terminal block.
The result must be 2 wires of the same color in each pole on the terminal block.
See Figure on side.
c. Leave a minimum of one inch (25mm) between the live voltage cabling and the unsheathed low
voltage data cabling.
NOTE: NO WIRING IS REQUIRED FOR THE NEXUS®WIRELESS VERSION.
MANUAL TEST
A manual test is initiated once the test switch is pressed for 1 second and then released. The Status Indicator will start flashing green.
The designated fixtures will either illuminate if they were off or will stay on if they were normally illuminated. Test duration is fixed at 1
minute.
At the end of the 1-minute test, the unit will revert to recharge mode. The status indicator will be steady ON green if no fault has been
detected. If a fault is detected, please refer to the FEATURES AND OPTIONS instructions on pages 8-9 for more details on the
diagnostics and auto test features.
Allow the batteries to charge for a minimum of 48 hours after installation or power failure before conducting a 90-minute discharge test.
The Life Safety Code and the Authorities Having Jurisdiction require that the 90-minute discharge test be performed on an annual basis.
SYSTEM RESET
Resetting the system:
Depending on the sequence of installation, some units may require a system reset. To reset the system, press the test switch
for 6 seconds.
STEP 6: COMPLETE THE INSTALLATION
1 inch Wire
Wire
color A
color B
25mm
3

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
5/12
®
EMIU 125/250/400W Mini Inverter
MAINTENANCE
BATTERY: The batteries supplied in this equipment are high quality maintenance-free Valve Regulated Lead Acid design.
They require no maintenance and, when installed in an ambient temperature of 20° to 30° C (68° to 86° F), their life
expectancy is 8 to 10 years.
However, as stated above, the equipment must be tested for a minimum of 90 minutes once per year. When the batteries
will no longer operate the load for 90 minutes, they must be replaced. Replace only with manufacturer supplied parts.
Properly dispose of or recycle the Lead-Acid battery.
FIGURE 1A
RED(+)
BLUE(-)
125W BATTERY
CONFIGURATION
250W BATTERY
CONFIGURATION
400W BATTERY
CONFIGURATION
RED(+)
BLUE(-)
RED(+)
BLUE(-)
2 BLACK WIRES
B+
B-
B+
B-
B+
B-
B+
B-
B+
B-
B+
B-
FIGURE 1C
FIGURE 1B

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
6/12
®
EMIU 125/250/400W Mini Inverter

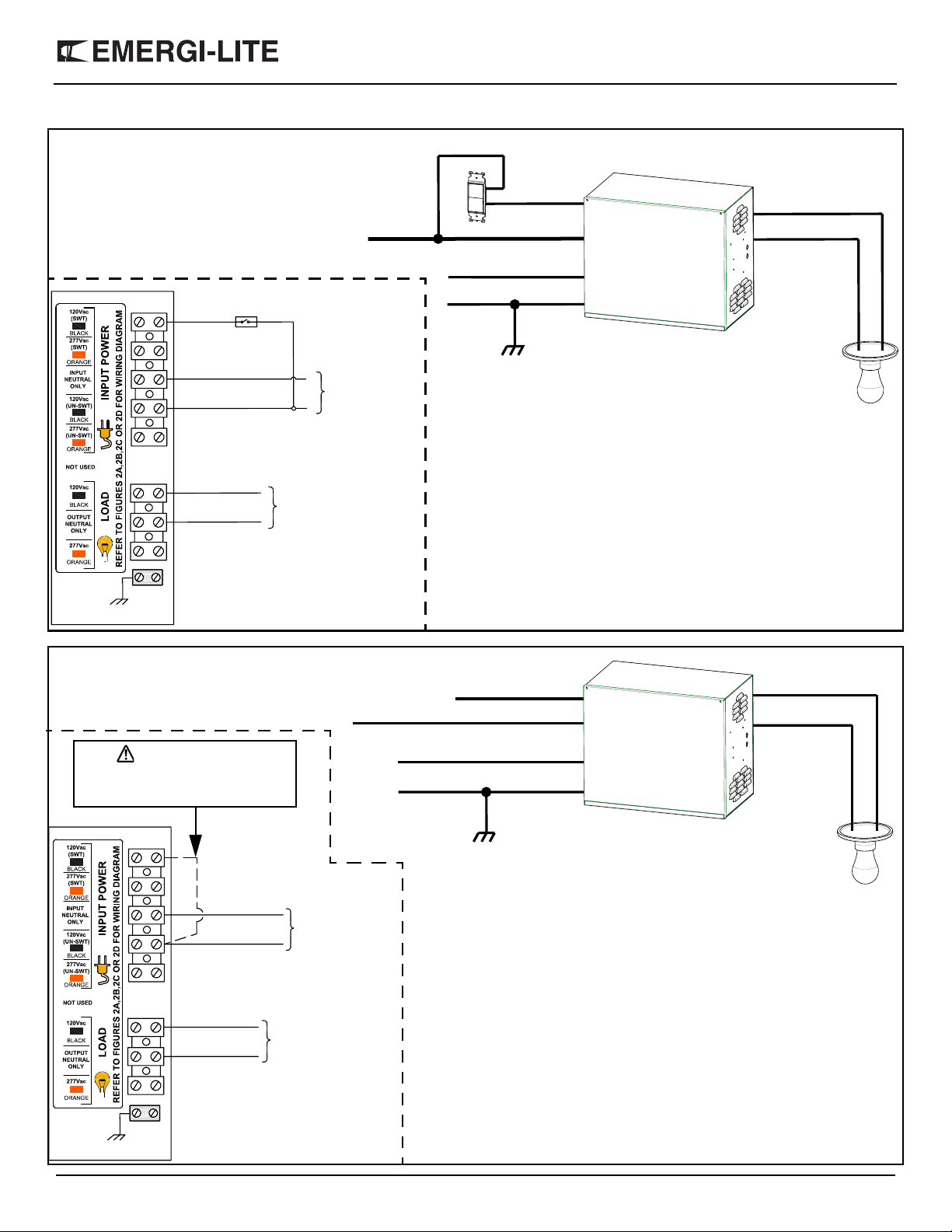

NOTE: THE FOLLOWING WIRING DIAGRAMS HAVE BEEN SIMPLIFIED FOR CLARITY.
ACTUAL POSITION OF COMPONENTS WILL VARY
Line 120Vac
Switched or
Neutral
120V
Neutral
Input Wiring
Ground
Notes:
1. Connect fixture supply and unit ground in accordance with
local and national codes.
2. Single voltage wiring only. Either 120V or 277V. Input and
output voltage must be the same.
3. DO NOT COMBINE THE INPUT POWER NEUTRAL
WITH THE LOAD NEUTRAL.
Neutral
Lighting Load
Primary
Un-Switched
AC Input
Un-Switched
Neutral
Ground
Line
(see note 3)
(see note 3)
Wall Switch
Normally ON
Lighting Load
Output Wiring
Triac Dimmer
Device
Fluorescent, LED,
Incandescent
FIGURE 2A
WIRING DIAGRAM:
SWITCHED
NORMALLY ON LOAD
Line 120Vac
Neutral
120V
Neutral
Ground
Ground
Neutral
Line
Switched Line(Not Used)
Un-Switched Line
Neutral
(see note 3)
(see note 3)
FIGURE 2B
WIRING DIAGRAM:
NORMALLY OFF LOAD
IMPORTANT:
FOR NORMALLY OFF LOADS:
REMOVE THIS JUMPER WIRE.
Lighting Load
Primary
Un-Switched
AC Input
Normally ON
Lighting Load
Fluorescent, LED,
Incandescent
Notes:
1. Connect fixture supply and unit ground in accordance with
local and national codes.
2. Single voltage wiring only. Either 120V or 277V. Input and
output voltage must be the same.
3. DO NOT COMBINE THE INPUT POWER NEUTRAL
WITH THE LOAD NEUTRAL.
Input Wiring Output Wiring

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
7/12
®
EMIU 125/250/400W Mini Inverter
Line 120Vac
Neutral
120V
Neutral
120Vac
Ground
FIGURE 2C
WIRING DIAGRAM:
UN-SWITCHED
NORMALLY ON LOAD
Primary
Un-Switched
AC Input
Normally ON
Lighting Load
(see note 4)
Input Wiring Output Wiring
Ground
Neutral
Line
Switched Line
Un-Switched Line
Neutral
Lighting Load
Fluorescent, LED,
Incandescent
(see note 4)
Notes:
1. Connect fixture supply and unit ground in accordance with local and national
codes.
2. Single voltage wiring. Either 120V or 277V. Input and output voltage must be
the same.
3. Unit jumper wire is preset for 120Vac. If the unit is to be wired for 277Vac,
remove the jumper wire from the 120Vac INPUT POWER terminals and
reinstall the jumper wire into the 277Vac INPUT POWER terminals.
4. DO NOT COMBINE THE INPUT POWER NEUTRAL WITH THE LOAD
NEUTRAL.
(Un-Switched)
(see note 3)
Line 120Vac
Neutral
120V
Neutral
120Vac
Ground
0-10V
FIGURE 2D
WIRING DIAGRAM:
UN-SWITCHED
NORMALLY ON LOAD
WITH LCO.
(REFER TO FIGURE 6)
0-10V
LCO
Primary
Un-Switched
AC Input
Normally ON
Lighting Load
(see note 4)
Input Wiring Output Wiring
Ground
Switched Line
Un-Switched Line
Neutral
Lighting Load
Fluorescent, LED,
Incandescent
(see note 4)
Notes:
1. Connect fixture supply and unit ground in accordance with local and national
codes.
2. Single voltage wiring. Either 120V or 277V. Input and output voltage must be
the same.
3. Unit jumper wire is preset for 120Vac. If the unit is to be wired for 277Vac,
remove the jumper wire from the 120Vac INPUT POWER terminals and
reinstall the jumper wire into the 277Vac INPUT POWER terminals.
4. DO NOT COMBINE THE INPUT POWER NEUTRAL WITH THE LOAD
NEUTRAL.
(Un-Switched)
(see note 3)
Wire
LCO
Wire
Lighting Control Wires to connect to
the Ballast / Driver
Line
Neutral

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
8/12
®

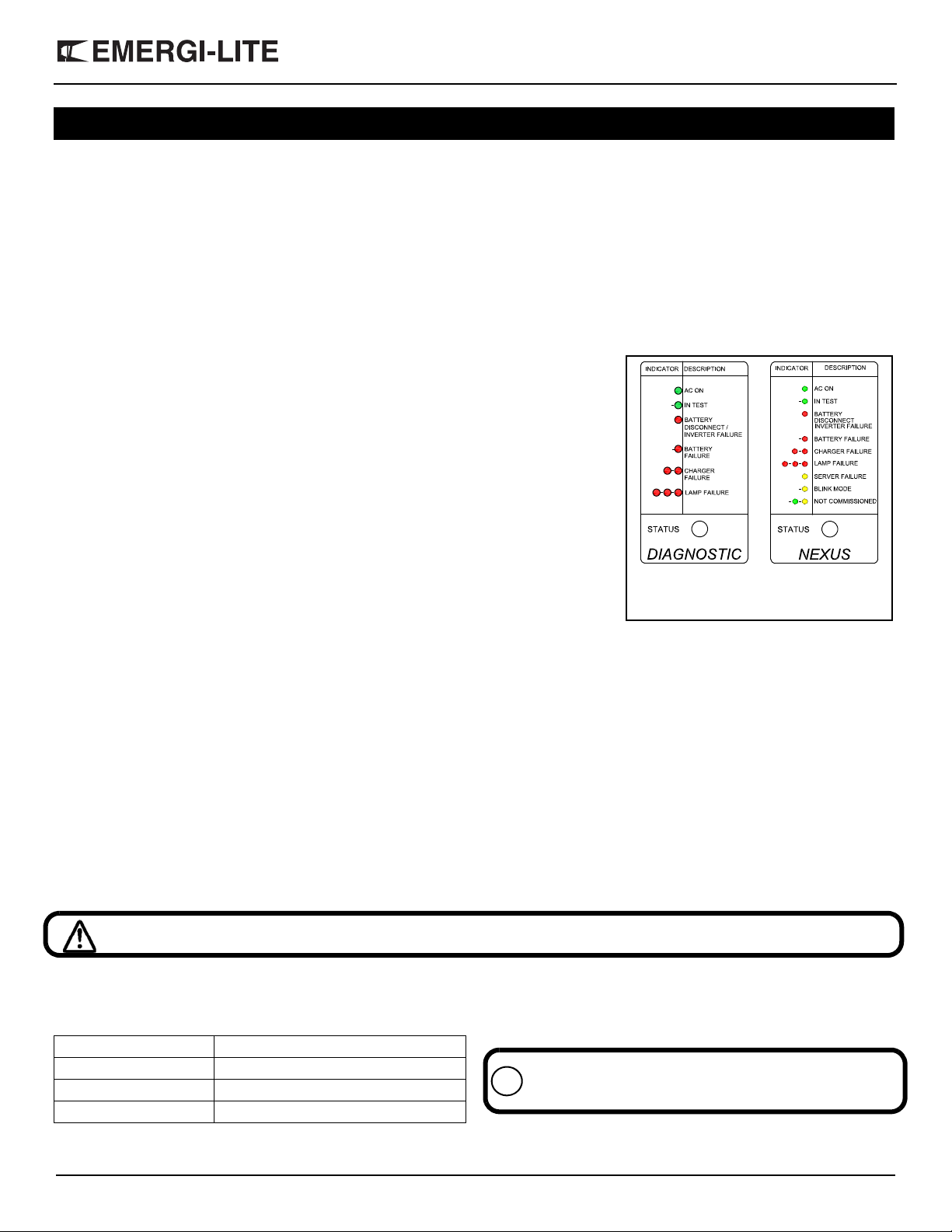

EMIU 125/250/400W Mini Inverter
SYSTEM OPERATION
• The diagnostic/charger is a self-contained, fully automatic microcontroller-based system.
• Once the installation is complete, it is not necessary to have the AC power energized. Only the battery needs to be connected.
The unit goes directly into lockout mode and waits for AC power to be restored.
1. ALARM SILENCE / MANUAL TEST / SYSTEM INITIALIZATION
• Alarms are silenced by pushing the “TEST” switch less than one half second. Alarm indication can only be silenced after correcting the
fault or by re-initializing the system.
• Manual forced tests are initiated by pushing and holding the “TEST” switch more than one second. The 1-minute test will start.
• System initialization is done by holding the “TEST” switch for at least 6 seconds.
2. DIAGNOSTIC AND NEXUS®(OPTION)
If the audible alarm has been activated, any fault condition will produce an audible warning that
consists of an intermittent beep: one second on, one second off.
Refer to figure 3 for two lists of possible conditions.
a. BATTERY DISCONNECT / INVERTER FAILURE
The status indicator displays a steady red LED if the battery circuit is open or
shorted, or if there is an Inverter failure.
b. BATTERY FAILURE
The status indicator displays 1 red blink and a pause of 5 seconds if an incorrect battery
is installed (e.g. 12V battery on a 6V system), or if the battery has failed a timed or forced
test (reached LVD level before the end of the test).
c. CHARGER MONITORING
The status indicator displays 2 red blinks and a pause of 4 seconds if the charging cur-
rent does not fall within limits corresponding to the charger command state.
d. LIGHTING LOAD CAPTURE SEQUENCE
The capture sequence is initiated only by a reset of the system. This is done by holding the “TEST” switch for at least 6 seconds. The
reset also initializes the main counter. This renewal takes place to compensate for system variations when the unit ages. Renewal is not
allowed if there is a lighting load failure alarm. This is not applicable for units with no auto-test option.
e. SERVER FAILURE
The Nexus server (controller or PC) is no longer communicating with the RF unit’s modem. To solve this issue, you need to verify if the
Nexus server is up and running. If it is up and running, check to see if other surrounding emergency lighting units are not powered. If they
are powered off, they will prevent the unit in question to communicate with the modem. Otherwise simply reset the modem.
f. BLINK MODE
A “Blink mode” signal was sent from the Nexus server (controller or PC) to the emergency lighting unit. To stop the “Blink mode”, you
need to access the Nexus server and execute a stop blink mode operation.
g. NOT COMMISSIONED
The unit was not commissioned and therefore not registered in the Nexus server. Once the unit is commissioned, the auto-test will be dis-
abled and the LED will show a steady green for 10 seconds and steady orange for 1 second.
To cancel a fault condition, after applying all corrective actions, simply reset the unit.
*Refer to Nexus®installation addendum for more details.
3. AUTOMATIC UNIT TEST (30-DAY TEST)
Every 30 days, while in charging mode, the sequence generator will generate a command to energize the transfer on the emergency
lighting circuit for a variable test period depending on the yearly sequence.
• If the battery fails to complete the discharge test, the charger will display a battery failure and the test will abort.
• The 30-day automatic test sequence is reset every time the lighting load is turned on, including the manual test.
FEATURES AND OPTIONS
IMPORTANT: Reset the system whenever you add or change the lighting load. To reset the system, press the
test switch for 6 seconds.
US (MIN)
NOTE:
AUTO-TESTING IS NOT PROVIDED IN SOME UNITS.
REFER TO FEATURE 8.
Monthly test 1
6 month test 30
12 month test 90
Figure 3
i

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
9/12
®
EMIU 125/250/400W Mini Inverter
4. LIGHTING LOAD TESTING
The test is fully automatic. To maintain accurate data, these 2 conditions must be met prior to acquiring values from an all-good lighting load:
• The battery has to be at or near full power. The program will delay data capture for a minimum of 48 hours following any
discharge or reset.
• The charger will also wait to be in hysteresis mode (charger cycling on/off).
5. AUDIBLE ALARM (BUZZER)
This option can be activated or de-activated in the field. Refer to Figure 4.
To select the audible alarm option:
a. Remove all power sources to the board (AC and battery).
b. With long-nose pliers, pull on the shunt (little black box) until it is free from the pins.
c. Put the shunt back in place according to the option selection.
d. Reconnect AC power and the battery.
6. SERVICE ALARM OPTION (INDICATOR)
If installed, insert each wire of the Building Alarm Panel into separate terminals of the terminal
block marked “SERVICE ALARM”.
Alarm Panel shall provide a 24V signal. The charger board will indicate a fault by closing a
contact. Polarity is not specified.
7. LIGHTING CONTROL OVERRIDE
This feature is used with lighting loads equipped with low voltage dimming control. The dimming
function must be disabled during a power failure in order for the load to provide a 100% level of lighting.
The circuit consists of a single-pole dry-contact relay that is normally closed in stand-by operation. In emergency mode (power failure) the relay
contacts open and disconnect the dimming signal from the lighting load, allowing the load to operate at 100% light level.
INSTALLATION:
1. Locate the Lighting Control signal cable pair.
2. Cut, strip and extend one wire only, of the Lighting Control signal cable.
3. Connect to the terminal block marked "LIGHTING CONTROL OVERRIDE" as shown in the wiring diagram below.
8. UNITS WITH NO AUTO-TEST
This equipment is not self-testing in conformance with the Life Safety Code, ANSI/NFPA 101.
IMPORTANT: Must install a minimum lamp load equvivalent to 10% of the rated capacity of the unit.
Example: 12.5W/VA for a 125W inverter unit.
IMPORTANT: Only one control signal can be handled by one LCO module. Multi control signals require one LCO per control
signal. Consult customer service if there is more than one Lighting Control signal to be overridden.
Shunt for
enable / disable
Buzzer
BUZZER
‘’Active’’
BUZZER
’’Silent’’
Shunt to
enable / disable
Buzzer
Figure 4
Master
Lighting
Control
Open(cut) one side of the
Light Control
Lighting Control Cable
Wires to be connected into the
“Lighting Control Overeride”
terminal block.
LCO
Mini Inverter
LCO Contact Specification:
Max. voltage: 60V
Max. current: 250mA
A.C. load output
from the Mini Inverter.
Figure 5
Lighting Fixtures
(Fluorescent or LED)
used for emergency
lighting.
i

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
10/12
®
EMIU 125/250/400W Mini Inverter
TROUBLESHOOTING GUIDE (PAGE 1 OF 2)
STATUS
INDICATOR (LED) TROUBLESHOOTING GUIDE
DISPLAY DETAIL SYMPTOMS PROBLEM CORRECTIVE ACTION
LED GREEN
ON Steady,
not flashing
Lamp load is on None if unit is in normally on mode Unit is operating correctly
Lamp load is off None if unit is in normally off mode Unit is operating correctly
Lamp load is OFF, but
the unit is in normally
on mode
The fuses are burnt
Replace the fuses after verifying that there is no
short circuit in the load
-Lamp load is OFF
(if installation is
normally OFF)
- Lamp load is ON
(if installation is
normally ON)
Power at primary AC input +
battery discharged (at LVD) + no
reaction with test button
- Remove the primary AC input + disconnect the
battery + wait minimum 10 seconds
- connect the battery + connect the primary AC input
=> the unit will restart
- if the unit did not restart + call the technical support.
LED flashing
GREEN/
ORANGE
Lamp load is ON None if unit is in normally on mode
+Nexus option
Unit is operating correctly. Unit is not commissioned
to the Nexus system
Lamp load is OFF None if unit is in normally off mode
+Nexus option
Unit is operating correctly. Unit is not commissioned
to the Nexus system
LED flashing
GREEN/OFF
Lamp load is ON None the unit is in test mode or is
sampling load Unit is operating correctly
Lamp load is OFF
Inverter switched OFF
Check the inverter ON/OFF switch => Turn it on.
Switch is located on the right side of the inverter
module.
The output fuse is burnt Replace the fuses after verifying that there is no
short circuit in the load
LED steady
OFF, not
flashing
Lamp load is ON No power at primary AC input + in
emergency mode Check the circuit breaker panel
Lamp load is OFF
No power at primary AC input +
emergency mode stop (battery
discharged)
Check the circuit breaker panel
- Lamp load is OFF
(if installation is
normally OFF)
- Lamp load is ON
(if installation is
normally ON)
Power at primary AC input +
battery discharged (at LVD) + no
reaction with test button
- Remove the primary AC input + disconnect the
battery + wait minimum 10 seconds
- connect the battery + connect the primary AC input
=> the unit will restart
- if the unit did not restart, call for technical support at
1-(888)-552-6467.
LED RED
steady ON
Battery Disconnect
Error No battery installed in the unit Install the battery following the installation guide

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
11/12
®
EMIU 125/250/400W Mini Inverter
STATUS
INDICATOR (LED) TROUBLESHOOTING GUIDE
DISPLAY DETAIL SYMPTOMS PROBLEM CORRECTIVE ACTION
LED Flashing
RED 1 times
every 6
seconds
Battery Failure Error
The battery did not last enough for
a manual or monthly test Replace the batteries
The battery did not last enough for
an annual test Replace the batteries
Battery fail in charge Replace the batteries
LED Flashing
RED 2 times
every 6
seconds
Charger Failure Error Charger not working Reset the unit (see page 4) and if the same error is
displayed, replace the charger board
LED Flashing
RED 3 times
every 6
seconds
Lamp Failure Error Lost 10% or more if initial lamp
loading is lost Replace the bad lamp and reset the unit
LED AMBER
(ORANGE)
steady On
Network server down
The Nexus modem is no longer
sending a signal to the Nexus
server.
See Nexus manual system
LED flashing
between
AMBER/OFF
Wink mode The unit is in yellow blink mode Stop the wink mode by sending a message from the
Nexus server or reset the unit (see page 4).
TROUBLESHOOTING GUIDE (PAGE 2 OF 2)

Emergi-Lite® Tel: [phone] Fax: [phone] www.emergi-lite.com 06/18 750.1782 Rev. J
12/12
®
EMIU 125/250/400W Mini Inverter
CONTACT CUSTOMER SERVICE FOR REPLACEMENT PARTS.
SERVICING MUST BE PERFORMED BY QUALIFIED PERSONNEL.
Consult Customer Service for current warranty information.
All information and specifications contained in these instructions are subject to change
due to engineer design, errors and omissions.
© 2014 Thomas & Betts Limited. All rights reserved
