Emerson HD8116 User manual

PersonalCD-R/RWPlayer
with60 Second Electronic
Anti-SkipProtection,
and StereoAM/FMRadio
HD8116
OWNER’SMANUAL
Visitourweb siteatwww.emersonradio.com
HD8116_B100305.p65 4/10/2005, 15:2823

1
Thankyou.........
Forpurchasing thisEmerson PersonalCD PlayerwithAM/FMRadio.The
CD playerhasa20 track programmablememorysoyou can listen tothe
songson yourfavoriteCD'sinanyorderyou choose.Oryou can usethe
Randomplayback featureand letthe playerselectthe playback orderfor
you.Usethe 3-wayRepeatfeaturetorepeatasingletrack,the entiredisc,
oraprogrammed sequenceoftracks,indefinitely.We'vealsoincluded 60
second ElectronicAnti-SkipProtection whichmakesthisplayervirtually
skip-free during mostactiveuses.There'salsoaBass BoostControlthat
increasesand enhancesthe bass response.
Pleaseread thisinstruction manualcompletelyand carefullytomakesure
you understand the properoperation ofthisproduct, and getthe maximum
enjoymentoutofall the featuresofthisstate-of-the-artCD player.
Onceagain,thanks forpurchasing thisEmerson product.
HD8116_B100305.p65 4/10/2005, 15:281

2
WARNING: TOPREVENTFIREORSHOCKHAZARD,
DONOTEXPOSETHISUNITTORAINORMOISTURE.
Thisdevicecomplieswithpart15 ofthe FCC rules.Operation issubjecttothe
condition thatthisdevicedoesnotcauseharmfulinterference.
CLASS 1LASERPRODUCT
CLASS 1LASERPRODUCT
APPAREILÁLASERDECLASSE 1
PRODUCTOLASERDECLASE 1
CAUTION
INVISIBLELASERRADIATION
WHENOPENAND INTERLOCKS
DEFEATED.
AVOIDEXPOSURETOBEAM
ThisproductcontainsalowpowerLaserDevice.
•Placesexposed todirectsunlightor
closetoheatradiatingappliancessuch
aselectricheaters.
Avoidinstalling theunitinlocationsdescribedbelow:
•Dustyplaces.
•Placessubjecttoconstant
vibration.
•Humidormoistplaces.
CAUTION
THISLASERCOMPACTDISCPLAYERFUNCTIONSBY HELPOFINVISIBLE
LASERLIGHTAND ISEQUIPPEDWITHSAFETYSWITCHES TOAVOID
EXPOSUREWHENDOORISOPENAND SAFETYINTERLOCKS ARE
DEFEATED.ITISDANGEROUSTODEFEATORBYPASS SAFETYSWITCHES.
DANGEROUSVOLTAGE
Uninsulated DangerousVoltage,thatmaybe ofsufficient
magnitude toconstitutearisk ofelectricshock topersonsis
presentwithinthisproduct'senclosure.
ATTENTION
The Owner'sManualcontainsimportantoperating and
maintenanceinstructions.
Foryoursafety,itisnecessarytorefertothe manual.
!
IMPORTANT NOTES
HD8116_B100305.p65 4/10/2005, 15:282

3
Remove The Transit Card
This personal CD player is shipped with a dummy CD ‘transit card’ inside the CD
compartment. The purpose of this card is to prevent the laser from moving during
shipment of the product. This card must be removed before using the CD player.
Slide the OPEN switch to the right to unlock the CD door. Remove the ‘transit card’
from the player and discard it.
Power Sources
This personal CD player is designed to operate on two “AA” batteries, not included.
Use a well known brand of alkaline batteries for longest life and best performance.
This player can also be operated by an optional AC/DC converter/adapter, not
included. If you decide to purchase an optional AC/DC adapter the specification
must be as follows:
Input: 120V 60Hz AC
Output: 4.5V DC, 500 mA.
Plug: Female Type with Positive Center, “UL” Listed.
You may also purchase a “Universal” type AC/DC adapter which allows you to
select the required output voltage and plug polarity, and normally includes multiple
plug sizes to fit most brands of equipment. Always look for the “UL” listing mark
when you purchase an adapter.
Positive(+)Negative(–)
PREPARATION FOR USE
AM/FM - STEREO
PROG. P. MODE
OPEN
HD8116_B100305.p65 4/10/2005, 15:283

4

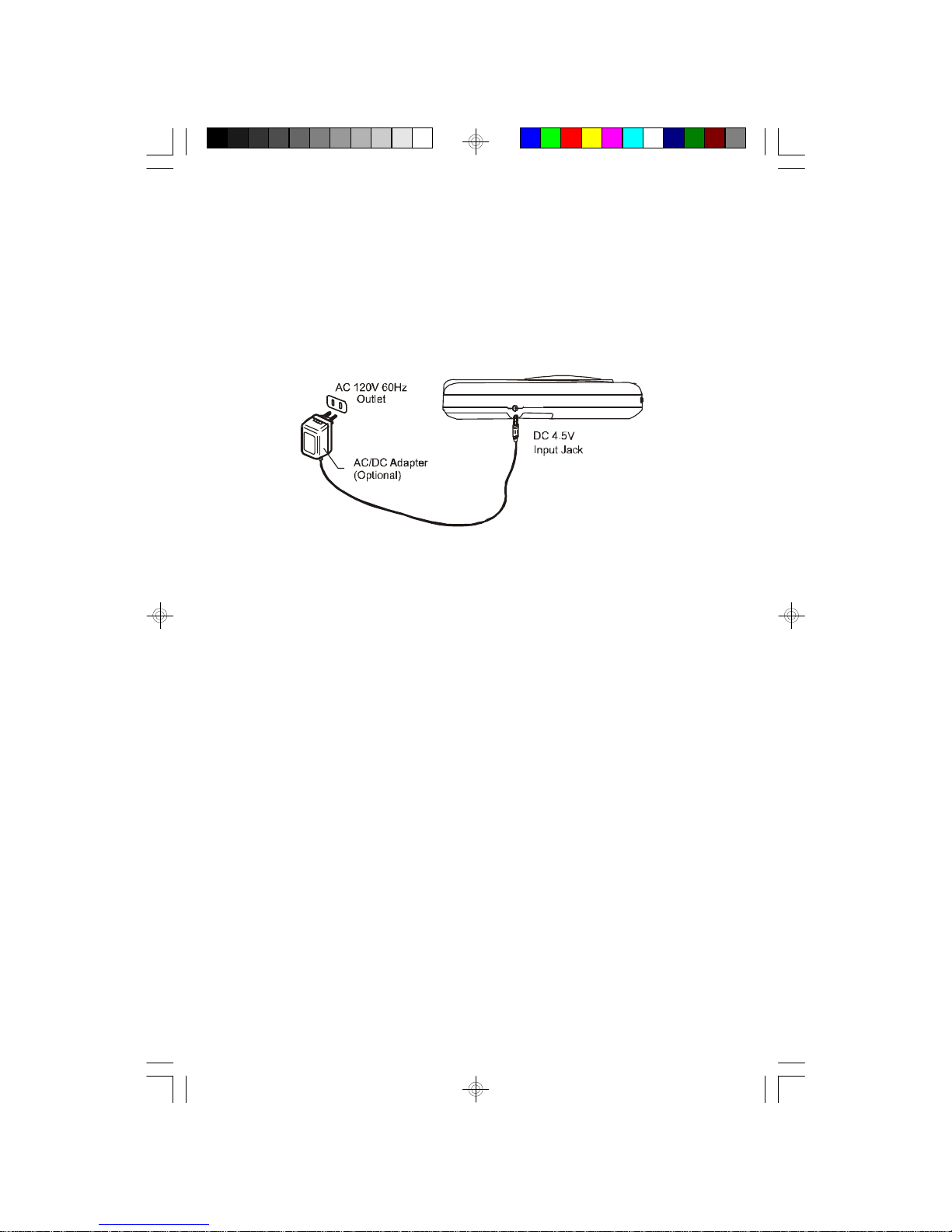

Connecting The Optional AC Adapter (Not Included)
1.) Connect the small female plug of the optional AC adapter to the DC 4.5V jack
on the left side of the CD player.
2.) Connect the adapter housing to your 120V AC 60Hz outlet.
NOTES:
• Never connect or disconnect the adapter from the AC outlet while your hands
are wet.
• The housing of the AC adapter may become warm during operation. This is
normal.
• The female plug of the AC adapter must be completely disconnected from the
CD player in order to operate the player on batteries.
HD8116_B100305.p65 4/10/2005, 15:284

5
Installing TheBatteries
1.)Open the batterycompartmentdooron the bottomcabinetbysliding itinthe
direction ofthe arrowand then lifting itopen.Topreventloss,the doorcannot
be removed fromthe unit.
2.)Insert2"AA"batteries(notincluded)into
thecompartment. Usealkalinebatteries
forlongestlife.Followthe polarity
markingsinside the compartment. If the
batteriesareinserted incorrectlythe unit
will notwork.
3.)Closethe batterydoor.
NOTE:Inordertooperatethe playeron batteriesthe optionalACadapter
mustbe disconnected fromthe DC 4.5Vjack.
BatteryReplacement
When the batteriesbecometoo weakthe batterylevelindicatorflashesand
operation maybecomeerratic.When thisoccursreplacethe batteriesimmediately.
If the display remains blank when you press the PLAY/PAUSE button, the
batteries are completely dead. Replace them immediately. If dead batteries are
left inside the battery compartment for a long period of time they may leak and
cause damage to the unit, and such damage or corrosion from leaking batteries is
not covered by your warranty.
BatteryPrecautions
•Replacementofbatteriesmustbe done byan adult.
•Donotmixoldand newbatteries.
•Donotmixalkaline,standard(carbon-zinc)orrechargeable(nickel-cadmium)
batteries.
•The supplyterminalsarenottobe short-circuited.
•Non-rechargeablebatteriesarenottobe recharged.
•Exhausted batteriesaretobe removed.
•Onlybatteriesofthe equivalenttype aretobe used.
•Batteriesaretobe inserted withthe correctpolarity.
•Disposeofbatteriesproperly.Donotdisposeofbatteriesinfire.The batteries
mayexplode orleak.
HD8116_B100305.p65 4/10/2005, 15:285

6
Connecting The Stereo Headphones
Connect the plug of the supplied stereo headphones to the headphone jack on
the right side of the cabinet.
NOTE: Make sure the headphone plug is inserted into the headphone jack
as far as it will go. If the plug is not fully inserted, you may only hear sound
from one side of the headphones.
IMPORTANT!
Always set the VOLUME control to a ‘low level’ before you put the headphones on
and begin playing a CD. Then start playback and gradually increase the volume to
a comfortable listening level.
Do not play the CD at loud volume levels that might prevent you from hearing
warning sounds such as car horns, etc.
AM/FM - STEREO
PROG. P. MODE
HD8116_B100305.p65 4/10/2005, 15:286

7
LOCATION OF CONTROLS AND INDICATORS
AM/FM - STEREO
PROG. P. MODE
6
7
8
9
10
11
12
13
14
15
16
17
5
4
3
2
1
HD8116_B100305.p65 4/10/2005, 15:287

8
1.)OPENSwitch–Slide tothe righttounlock and open the CD
door.
2.)BatteryCompartment(on bottomcabinet).
3.)SKIPREV.Button.
4.)P.MODEButton –Selectsthe playback mode:Repeat1/All,Shuffle,
orIntro.
5.)PROG. (Program) Button.
6.)DC 4.5VInputJack –Connectan ACadapter(notincluded)tothis
jack touse120V60Hzhousecurrent.
7.)CDDoor.
8.)PLAY/PAUSE Button.
9.) Multifunction LCDDisplay.
10.)CD-AM-FMSelectorSwitch.
11.)HOLD’On/Off’SelectorSwitch.
12.)STOPButton.
13.)TUNINGControl.
14.)SKIPFWD.Button.
15.)VOLUMEControl–Raisesorlowersthe volume.
16.)Headphone Jack –Connectstereo headphones,included,tothis
jack.
17.)BBS‘On/Off’Switch-Slide tothe righttoincreasebass response.
HD8116_B100305.p65 4/10/2005, 15:288

9
1.)TimeDisplay–Showselapsed timeand totalplaying timeon the CD.
2.)ST(Stereo)Indicator–Appearswhen tuned inFMStereo station.
3.)Track NumberDisplay–Showsthe track whichisbeing played,and the total
tracks on the CD.
4.)Repeat1/ALL Indicators–Appearswhen the Repeatplayback mode is
selected.
5.)SHUF(Shuffle)Indicator–Appearswhen Randomplayback mode isselected.
6.)INTROIndicator–Appearswhen Introplayback mode isselected.
7.)FrequencyDisplay–ShowstheAM/FMtuned infrequencies.
8.)BatteryLevelIndicator–Flasheswhen batteriesneed tobe replaced.
9.)ASP Indicator–IndicatesAnti-SkipProtection isactivated.
10.)HOLDIndicator–Appearswhen HOLDswitchissetto‘On’.
11.)PGM(Program)Indicator–Appearswhen programming tracks orplaying
programmed tracks.
LCD DISPLAY INDICATORS
11
3
4
5
6
7
8
9
10
1
2
HD8116_B100305.p65 4/10/2005, 15:289

10
HOLD Switch
The HOLD switch (on the right side cabinet) must be in the ‘Off’ (left) position to
start the CD player.
If you plan to carry the CD player in a handbag, briefcase, school bag, back pack,
etc, slide the HOLD switch to the ‘On’ (right) position.
While the HOLD switch is ‘On’ all of the controls on the CD door are disabled. This
prevents the player from starting accidentally by something pressing against the
PLAY/PAUSE button.
After you begin CD playback you may also slide the HOLD switch to the ‘On’ (right)
position to disable all the controls on the CD door.
You can then place the player in a handbag, backpack, etc, and do not have to
worry that the player will be accidentally turned off by something pressing against
the STOP button or Track Skip buttons.
OPERATING INSTRUCTIONS
HOLD
HD8116_B100305.p65 4/10/2005, 15:2810

11
ElectronicAnti-SkipProtection
This CD player is equipped with automatic 60 second ElectronicAnti-Skip Protection
and that will eliminate virtually all skipping during most active uses.
When you press the PLAY/PAUSE button to begin playback, the player
immediately begins to store 60 seconds of music in a solid state memory that is
impervious to shock. The player is always reading the disc 60 seconds ahead of
the music you are hearing and storing that information in the memory.
If the player is subjected to shock or bumps of less than 60 seconds duration you
will not notice them at all.
If the bumps last longer than 60 seconds the anti-skip memory may be depleted
and the player may skip or stop.
When playback begins the ASP indicator begins ‘flashing’ in
the display.
When the ASP indicator remains ‘On’, the Anti-Skip memory
is ‘Full’ and contains 60 seconds of music.
If the player is bumped or shaken the ASP indicator will flash again as the memory
is depleted. The player may skip if the bumps continue.
When the bumps stop the memory starts to fill up again and the ASP indicator
remains ‘On’.
HD8116_B100305.p65 4/10/2005, 15:2811

12
Normal CD Playback
• Make sure you have installed the batteries.
• Make sure the HOLD switch is set to the ‘Off’ (left) position.
• Make sure to set the VOLUME control to a low setting before you put on
the headphones.
IMPORTANT:
This CD player can play normal CDs plus CD Recordable (CD-R) and CD
ReWritable (CD-RW) discs. However the playability of CD-R/RW discs may be
affected by the type of software that was used in ‘ripping’ the tracks from the
original discs and ‘burning’ the tracks onto the blank media. Playability may also
be affected by the quality and condition of the blank media you use for recording.
100% compatibility cannot be guaranteed. This is not an indication of any problems
with your player.
1.) Slide theCD-AM-FM function selector toCD position.
2.) Slide the CD door OPEN switch to the right to unlock
and open the CD door.
3.) Place your CD on the center spindle with the printed
label side facing up. Press downward on the disc
near the center hole until the disc is fully seated on
the spindle.
4.) Close the CD door and connect the headphones to the Headphone jack by
pushing the headphone plug into the Headphone jack until a ‘click’ sound
is heard.
Music
AM/FM - STEREO
PROG. P. MODE
HD8116_B100305.p65 4/10/2005, 15:2812

13
5.) Press the PLAY/PAUSE button to begin playback. The display will briefly
show two flashing dashes “– –” as the player reads the disc.
The total tracks and playing time will appear briefly in the display and then the
playback will begin on track “01”.
The display will show the elapsed playing time of the track being played.
6.) Adjust the VOLUME control to your listening preference.
If you prefer more bass, slide the BBS switch to ‘On’ position.
7.) Playback will continue until the end of the disc, then the player will stop
automatically and the display will again show the total tracks and playing time
on the disc.
After approximately 30 seconds the power switches ‘Off’ automatically to
conserve the batteries and the display goes blank.
To stop playback before the disc ends press the STOP button at any time.
Press the STOP button after the disc has stopped to shut the power ‘Off’’
completely.
Pause Control
To pause momentarily during playback press the PLAY/
PAUSE button again. The sound stops but the disc
continues to spin. The display flashes.
Press the PLAY/PAUSE button once more to cancel Pause mode and resume
normal playback. The display stops flashing.
HD8116_B100305.p65 4/10/2005, 15:2813

14
Skip/Search ( / ) Controls
Press the SKIP FWD. or SKIP REV. buttons repeatedly during playback to
skip to higher or lower numbered tracks. Playback will begin on the selected track.
To search within a track at high speed to locate a specific musical passage depress
and hold either the SKIP FWD. or SKIP REV. controls.
The player moves forward or reverse at high speed. When you reach the desired
point in the track, release the buttons and normal playback resumes.
HD8116_B100305.p65 4/10/2005, 15:2814

15
P. MODE Button
Pressing the P. MODE button during CD playback cycles the player through the
following four special playback modes:
Repeat 1 Repeat ALLALL INTRO SHUF (Shuffle)
Playback.
Repeat Playback
The player can be programmed to continuously repeat a single track or the entire
disc automatically.
One Track Repeat
During playback press the or buttons to select the
track to be repeated, then press the P. MODE button once.
The 1 indicator appears in the display and the selected
track will be repeated continuously.
Press the STOP button to cancel One Track Repeat playback.
All Tracks Repeat
Press the PLAY/PAUSE button to begin playback, then
press the P. MODE button twice.
The ALL indicator will appear in the display and the
entire disc will be repeated continuously.
Press the STOP button to cancel All Tracks Repeat playback.
HD8116_B100305.p65 4/10/2005, 15:2815

16
INTRO (Intro Scan) Playback
The Intro Scan feature plays only the first 10 seconds of each track on the disc.
This feature is useful when you are trying to find a particular song but you cannot
remember the title.
1.) Load your disc in the player as usual and press the PLAY/PAUSE button
to begin playback.
2.) When playback begins press the P. MODE button three times.
The INTRO indicator flashes.
3.) Press the PLAY/PAUSE button once more. The
INTRO indicator stops flashing and remains ‘On’.
The player backs up to the beginning of track “01”, plays the first 10 seconds
of each track on the disc, and then stops.
To cancel Intro Scan playback press the STOP button.
SHUFFLE (Random) Playback
When Shuffle playback is selected all the tracks on the disc will be played back in
random order.
1.) Load your disc in the player as usual and press the PLAY/PAUSE button
to begin playback.
2.) When playback begins press the P. MODE button four times.
The SHUF indicator flashes.
3.) Press the PLAY/PAUSE button once more. The
SHUF indicator stops flashing and remains ‘On’.
The player randomly selects a track for playback.After each track has played
once the player stops.
To cancel Shuffle playback press the STOP button.
HD8116_B100305.p65 4/10/2005, 15:2816

17
Programmed Playback
You can program up to 20 tracks on a disc to play in any desired order.
Note: You can program a disc either during Playback or in Stop mode.
1.) Press the PROG. button once. The Program Number
“01” appears. The PGM indicator and the the track
number “00” flash.
2.) Press the or button to select the first track to be
programmed.
Example: Track “07”.
3.) When the desired track number is flashing in the display, press the PROG.
button again to enter the desired track number in Program Number “01”.
The track number returns to “00” and the Program
Number advances to “02”.
4.) Repeat Steps 2 and 3 to program additional tracks up to a maximum of 20.
5.) Press thePLAY/PAUSE button to begin programmed
playback. The PGM indicator remains in the display.
• Playback begins with the first track you programmed and
continues until all programmed tracks have been played,
and then the player stops.
The programmed sequence will remain in the memory until the power shuts
‘Off’ (approximately 30 seconds) or until the CD door is opened.
• If you press the PROG. and PLAY/PAUSE buttons again before the power
shuts off, the programmed sequence will play again.
HD8116_B100305.p65 4/10/2005, 15:2817

18
Listening To The Radio
TunerInformation
ThissystemfeaturesanormalAM/FManalog tuning system.Unlikeadigitaltuner
itdoesnotautomaticallylock inon the exactfrequency ofastation.However
instead ofadialscaleandamoving dialpointerwehaveincluded adigitalfrequency
displaytohelpyou tune moreaccurately.
Donotbe concerned ifyou cannoteasilytune the displaytothe exactfrequency of
yourfavoritestations,especiallyon theAMband.Slowlyrotatethe TUNINGcontrol
until the displayapproachesthe frequency ofthe desired station and stop when
getthe strongest, noisefree reception -even ifthe displayisnotindicating the
exactfrequency ofdesired station.
1.) Slide the CD-AM-FM function selector to FM or AM
position as desired.
2.)Rotatethe TUNINGcontroluntil the exactfrequency of
thedesiredstation appearsonthedisplay,oruntil youare
receiving the strongest, clearestsignal.
If youhavetunedtoan FMStereo stationtheSTindicator
will appearinthe display.
3.) Adjust the VOLUME control to your listening preference.
4.) If you prefer more bass, slide the BBS switch to ‘On’ position.
5.) To turn off the radio, slide the CD-AM-FM function switch to CD position to
shut power ‘Off’.
Antenna Information
FM
The stereo headphone cable serves as the FM antenna when listening to FM
stations. Make sure that the headphone cable is unwound completely in order to
provide the best reception.
AM
The AM antenna is located inside the cabinet of the CD player. If AM reception is
weak, try changing the position of the CD player itself until the internal antenna is
pointing in the general direction of the radio transmitter. This should provide
improved reception.
HD8116_B100305.p65 4/10/2005, 15:2818

19
Cleaning theCabinet
Wipe withasoft cloth.If the cabinetisverydirty,dampen the clothwithaweak
solution ofneutraldetergentand water,and then wipe clean.
Cleaning theLens
Adirtylenswill causesound skipping and,ifthe lensisverydirty,the CD maynot
work.Open the disc coverand clean the lensasfollows:
DustorDryParticles
Using acameralensbrush/blower,blowon the lens
severaltimes,then wipe itlightlywiththe brushtoremove
dust. Then,blowon the lensoncemore.
Fingerprints
Toremovefingerprintsfromthe lens,useacotton swab
starting inthe middleand working tothe outside edge.
Useonlyverylightpressureon the lenstoavoidforcing
itoutofalignment.
Cleaning theDisc
When adisc becomesdirty,clean itwithacleaning cloth.Wipe the disc fromthe
centerout.
CARE AND MAINTENANCE
HD8116_B100305.p65 4/10/2005, 15:2819
