Emerson U40310001 User manual

U40310001
star marks
rating label
serial number
POWER
CHANNEL
PLAY
STOP/EJECT
VIDEO
VCR
AUDIO
REW
OPEN/CLOSE
F.F W DPLAY FWD/SKIPSTOP SKIP/REV
REC
VCRDVD
PLAY DISC IN TIMER/REC
OUTPUT
DVD
SERVICEMANUAL
Sec. 1: Main Section
ISpecifications
IPreparation for Servicing
IAdjustment Procedures
ISchematic Diagrams
ICBA’s
Sec. 2: Deck Mechanism Section
IStandard Maintenance
IAlignment for Mechanism
IDisassembly/Assembly of Mechanism
IAlignment Procedures of Mechanism
Sec. 3: Exploded views
and Parts List Section
IExploded views
IParts List
EWD2203
OPEN/CLOSE
OUTPUT REC REW FF
VIDEO AUDIO CH-DOWN
POWER
CH-UP STOP/EJECT
PLAY
DVD VCR
TIMER REC
STOP
PLAY
DISC IN
FWD
REV PLAY
DVD PLAYER &
VIDEO CASSETTE RECORDER
This service manual is for the EWD2203 and
EWD2003 Updated Version, which the
serial numbers are later than U40310001
(EWD2203) or U44310001 (EWD2003).
These models differ from the models with
the previous EWD2203 or EWD2003, and
that star marks ( ) are printed on the
rating label are their applicable models. For
the rating label on the rear panel, refer to
right (example: EWD2203).
EWD2003

IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing service
operations. Some of these service special tools should be used when and as
recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk of
personal injury to service personnel. The possibility exists that improper ser-
vice methods may damage the equipment. It also is important to understand
that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not
possibly know, evaluate and advice the service trade of all conceivable ways
inwhichservicemightbedoneorofthepossiblehazardousconsequencesof
each way. Consequently, Funai has not undertaken any such broad evalua-
tion.Accordingly,aservicerwhousesaserviceprocedureortoolwhichisnot
recommended by Funai must first use all precautions thoroughly so that nei-
ther his safety nor the safe operation of the equipment will be jeopardized by
theservicemethodselected.
Manufactured under license from Dolby Laboratories. "Dolby" and
the double-D symbol are trademarks of Dolby Laboratories.

MAIN SECTION
DVD PLAYER &
VIDEO CASSETTE RECORDER
EWD2203/EWD2003
TABLE OF CONTENTS
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1-1
Laser Beam Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2-1
Important Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3-1
Standard Notes for Servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4-1
Preparation for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1
Operating Controls and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6-1
Cabinet Disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7-1
Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8-1
FIRMWARE Renewal Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1
Schematic Diagrams / CBA’s and Test Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11-1
Waveforms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13-1
System Control Timing Charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-14-1
IC Pin Function Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-15-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16-1
Sec. 1: Main Section
ISpecifications
IPreparation for Servicing
IAdjustment Procedures
ISchematic Diagrams
ICBA’s

1-1-1 H94X1SP
SPECIFICATIONS
< VCR Section >
Note: Nominal specs represent the design specs. All units should be able to approximate these – some will exceed
and some may drop slightly below these specs. Limit specs represent the absolute worst condition that still might
be considered acceptable; In no case should a unit fail to meet limit specs.
Description Unit Minimum Nominal Maximum Remark
1. Video
1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 SP Mode
1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2
1-3. Video S/N Y (R/P) dB 40 45 SP Mode,
W/O Burst
1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode
1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode
1-6. Resolution (PB) Line 230 245 SP Mode
2. Servo
2-1. Jitter Low µsec 0.07 0.12 SP Mode
2-2. Wow & Flutter % 0.3 0.5 SP Mode
3. Normal Audio
3-1. Output (PB) dBV -9 -6 -3 SP Mode
3-2. Output (R/P) dBV -9 -6 -1.5 SP Mode
3-3. S/N (R/P) dB 36 41 SP Mode
3-4. Distortion (R/P) % 1.0 4.0 SP Mode
3-5. Freq. resp (R/P) at 200Hz dB -11 -4 SP Mode
(-20dB ref. 1kHz) at 8kHz dB -14 -4 SP Mode
4. Tuner
4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode
4-2. Video S/N dB 39 42 E-E Mode
4-3. Audio output dB -10 -6 -2 E-E Mode
4-4. Audio S/N dB 40 46 E-E Mode

1-1-2 H94X1SP
< DVD Section >
NOTES:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply : AC120 V 60 Hz
3. Load imp. : 100 K ohm
4. Room ambient : +25 °C
ITEM CONDITIONS UNIT NOMINAL LIMIT
1. Video Output 75 ohm load Vpp 1.0 ± 0.1
2. Coaxial Digital Out 75 ohm load mVpp 500 ± 100
3. Audio (PCM)
3-1. Output Level 1kHz 0dB Vrms 2.0
3-2. S/N dB 100
3-3. Freq. Response
DVD fs=48kHz 20~22kHz dB ± 0.5
CD fs=44.1kHz 20~20 kHz dB ± 0.5
3-4. THD+N
DVD 1 kHz 0dB % 0.05
CD 1 kHz 0dB % 0.003

1-2-1 DVD_LASER
Drive Mecha Assembly
Laser Beam Radiation
Laser Pickup
Turntable
LASER RADIATION
WHEN OPEN. DO NOT
STARE INTO BEAM.
CAUTION
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
Caution: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against
your skin.
Location: Inside Top of DVD mechanism.

1-3-1 DVD_SFN1
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not evi-
dent from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a #on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review contin-
uously and new instructions are issued whenever
appropriate. Prior to shipment from the factory, our
products are carefully inspected to confirm with the
recognized product safety and electrical codes of the
countries in which they are to be sold. However, in
order to maintain such compliance, it is equally impor-
tant to implement the following precautions when a set
is being serviced.
Precautions during Servicing
A. Parts identified by the #symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise block-
ing capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1)Wires covered with PVC tubing
2)Double insulated wires
3)High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1)Insulation tape
2)PVC tubing
3)Spacers
4)Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before solder-
ing.
F. Observe that the wires do not contact heat produc-
ing parts (heatsinks, oxide metal film resistors, fus-
ible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type connectors
which connect the power cord and the primary side
of the transformer. When replacing the transformer,
follow these steps carefully and precisely to pre-
vent shock hazards.
Replacement procedure
1)Remove the old connector by cutting the wires at a
point close to the connector.
Important: Do not re-use a connector. (Discard it.)
2)Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
3)Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4)Use a crimping tool to crimp the metal sleeve at its
center. Be sure to crimp fully to the complete clo-
sure of the tool.
L. When connecting or disconnecting the internal con-
nectors, first, disconnect the AC plug from the AC
outlet.

1-3-2 DVD_SFN1
Chassis or Secondary Conductor
dd'
Primary Circuit Terminals
AC Voltmeter
(High Impedance)
Exposed Accessible Part
BEarth Ground
Power Cord Plug Prongs
Z
1.5k 0.15 F
Safety Check after Servicing
Examine the area surrounding the repaired location for
damage or deterioration. Observe that screws, parts,
and wires have been returned to their original posi-
tions. Afterwards, do the following tests and confirm
the specified values to verify compliance with safety
standards.

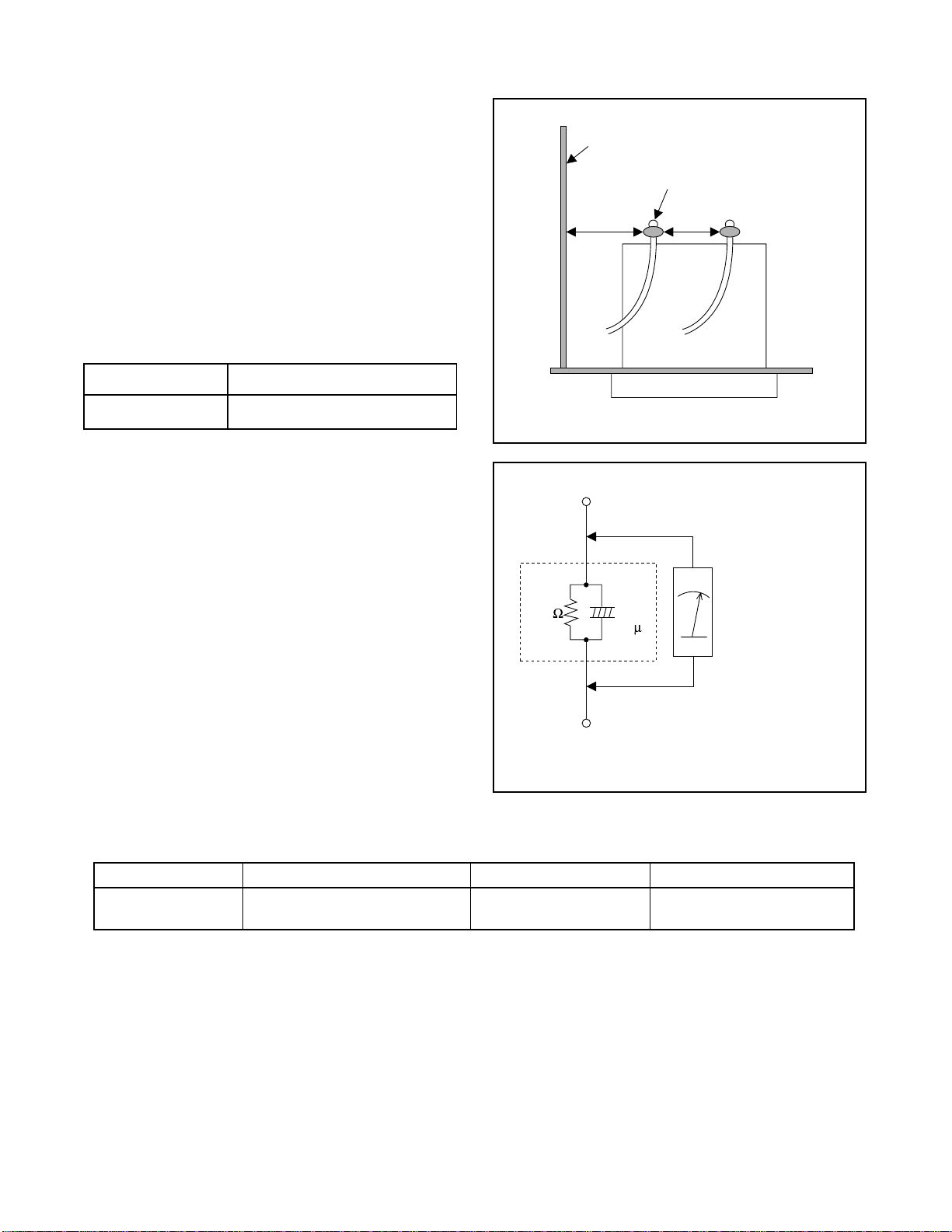

1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between sol-
dered terminals, and between terminals and surround-
ing metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note: This table is unofficial and for reference only.
Be sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs)
and externally exposed accessible parts (RF termi-
nals, antenna terminals, video and audio input and
output terminals, microphone jacks, earphone jacks,
etc.) is lower than or equal to the specified value in the
table below.
Measuring Method (Power ON) :
Insert load Z between B (earth ground, power cord
plug prongs) and exposed accessible parts. Use an
AC voltmeter to measure across the terminals of load
Z. See Fig. 2 and the following table.
AC Line Voltage Clearance Distance (d) (d’)
120 V ≥3.2mm (0.126 inches)
Table 2: Leakage current ratings for selected areas
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V 0.15µF CAP. & 1.5kΩ RES.
Connected in parallel i≤0.5mA Peak Exposed accessible parts
Fig. 1
Fig. 2

1-4-1 DVD_NOTE
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is indi-
cated as shown.
2. For other ICs, pin 1 and every fifth pin are indicated
as shown.
3. The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an angle.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:.
(1) Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
(2) Remove the flat pack-IC with tweezers while apply-
ing the hot air.
(3) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Caution:
1. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage to
the chip parts may occur. Put masking tape around
the flat pack-IC to protect other parts from damage.
(Fig. S-1-2)
2. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when removing
it.
Top View
Out In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2

1-4-2 DVD_NOTE
With Soldering Iron:
(1)Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2)Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
(3)Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(4)Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
With Iron Wire:
(1)Using desoldering braid, remove the solder from all
pins of the flat pack-IC. When you use solder flux
which is applied to all pins of the flat pack-IC, you
can remove it easily. (Fig. S-1-3)
(2)Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
(3)While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA contact
pads as shown in Fig. S-1-5
(4) Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
(5) Release the flat pack-IC from the CBA using twee-
zers. (Fig. S-1-6)
Note:
When using a soldering iron, care must be taken
to ensure that the flat pack-IC is not being held by
glue. When the flat pack-IC is removed from the
CBA, handle it gently because it may be damaged
if force is applied.
Flat Pack-IC Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6

1-4-3 DVD_NOTE

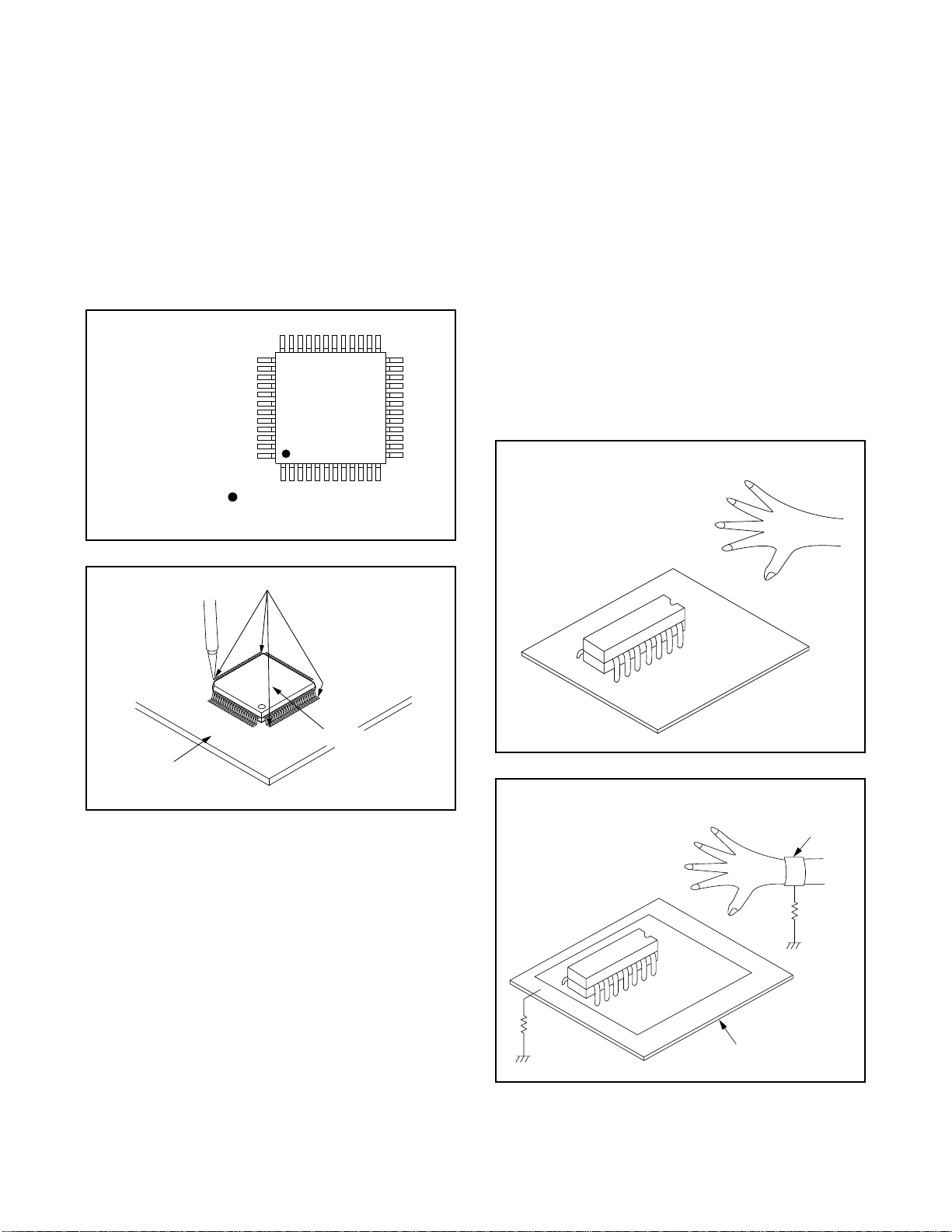

2. Installation
(1)Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
(2)The “I” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
(3)Solder all pins of the flat pack-IC. Be sure that none
of the pins have solder bridges.
Instructions for Handling
Semi-conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by electro-
static charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1MΩ) that is prop-
erly grounded to remove any static electricity that may
be charged on the body.
2. Ground for Workbench
(1) Be sure to place a conductive sheet or copper plate
with proper grounding (1MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body ground-
ing band, be careful to avoid contacting semi-con-
ductors with your clothing.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark. Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
CBA
< Incorrect >
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
< Correct >

1-5-1 H9400PFS
PREPARATION FOR SERVICING
How to Enter the Service Mode
About Optical Sensors
Caution:
An optical sensor system is used for the Tape Start
and End Sensors on this equipment. Carefully read
and follow the instructions below. Otherwise the unit
may operate erratically.

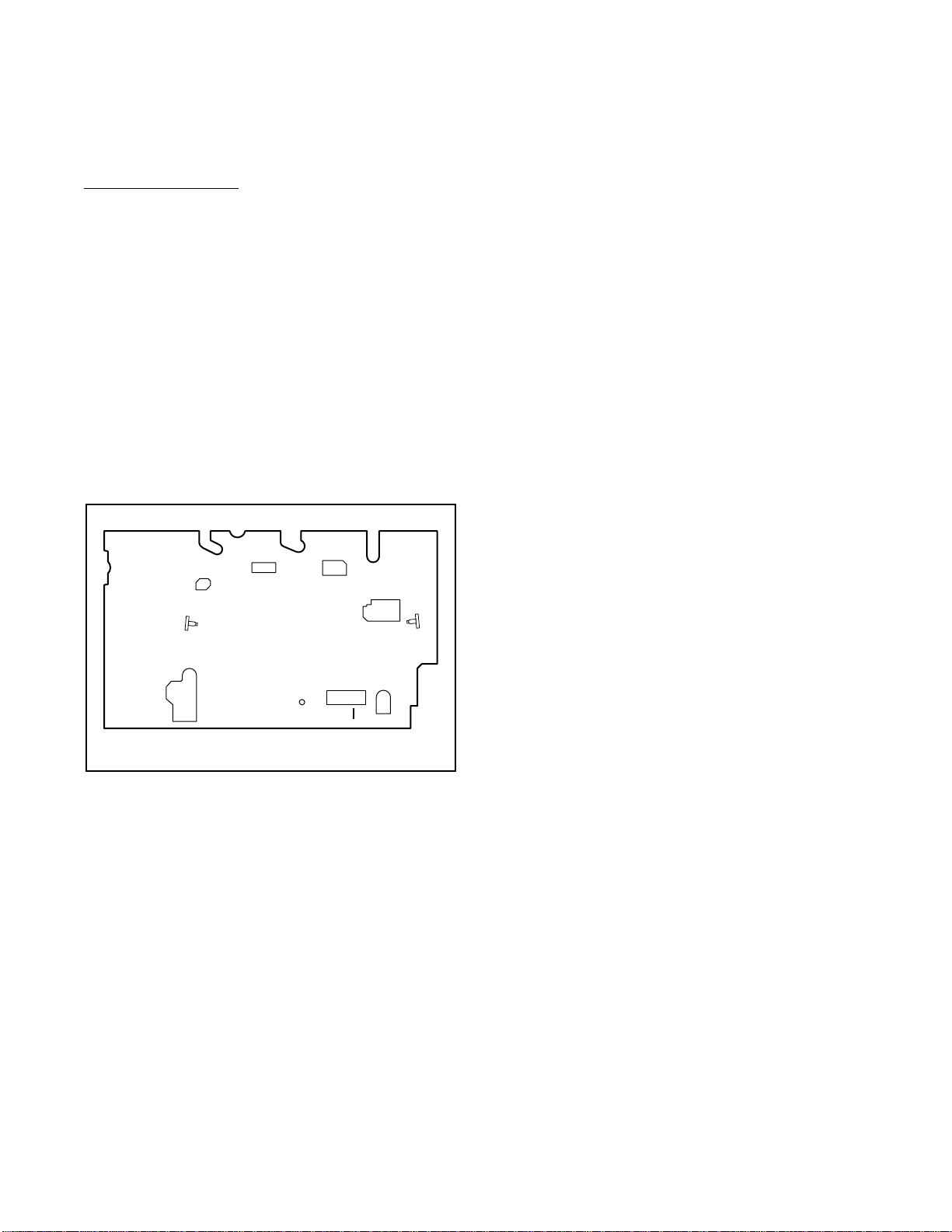

What to do for preparation
Insert a tape into the Deck Mechanism Assembly and
press the PLAY button. The tape will be loaded into
the Deck Mechanism Assembly. Make sure the power
is on, connect TP502 (SENSOR INHIBITION) to GND.
This will stop the function of Tape Start Sensor, Tape
End Sensor and Reel Sensors. (If these TPs are con-
nected before plugging in the unit, the function of the
sensors will stay valid.) See Fig. 1.
Note: Because the Tape End Sensors are inactive, do
not run a tape all the way to the start or the end of the
tape to avoid tape damage.
TP502
S-INH
Q504
Q503
Fig. 1

1-6-1 H94X1IB
OPEN/CLOSE
OUTPUT REC REW FF
VIDEO AUDIO CH-DOWN
POWER
CH-UP STOP/EJECT
PLAY
DVD VCR
TIMER REC
STOP
PLAY
DISC IN
FWD
REV PLAY
1 2 3 4 768
25 2324 22 20 19 18 17
1615 141312 1110
5
921
FRONT PANEL
REMOTE CONTROL
+
123
456
789
010
SPEED AUDIO
POWER
SKIP/CH.
SLOW
VCR/TV
DISPLAY PAUSE
PLAY
STOP
RECORD
ENTER
RETURNTITLE
MENU
SETUP
CLEAR/
C.RESET
ZOOMMODE
A - B ANGLE
SEARCH
MODE
REPEAT SUBTITLE
T-SET
DVD VCR
27
26
28
29
30 31
32 33
34 35
37
38
40 39
36
55
51
52 53
50
54
49
48
46 45
47
42 43
44
41
1. Disc loading tray
2. OPEN/CLOSE Button
Press to insert discs into or remove them from the
tray.
3. DVD OUTPUT Light (Green)
This light appears when the DVD output mode is
selected. You can only watch DVDs when the green
DVD OUTPUT light is on. To make the green DVD
OUTPUT light come on, press DVD on the remote
control or OUTPUT on the front panel.
4. VCR OUTPUT Light (Green)
This light appears when the VCR output mode is
selected. You can only watch tapes when the green
VCR OUTPUT light is on. To make the green VCR
OUTPUT light come on, VCR on the remote control
or OUTPUT on the front panel.
5. CASSETTE COMPARTMENT
6. POWER Button
Press to turn the power on and off.
7. POWER Light (red)
Light appears when the power is on.
8. STOP/EJECT Button (VCR)
EJECT
Press to remove the tape from the VCR.
STOP
Press to stop the tape motion.
9. PLAY Button(VCR)
Press to begin playback.
10. CH-(UP/DOWN) Buttons
In VCR mode, press to change TV channels on t
he
VCR; press to adjust the tracking during normal
or
slow motion playback; press to remove vertical jitt
er
in a Still picture.
11. AUDIO In Jack
Connect an audio cable coming from the audio o
ut
jack of a camcorder, another VCR, or an audio sour
ce
here.
12. VIDEO In Jack
Connect a video cable coming from the video o
ut
jack of a camcorder, another VCR, or a video sour
ce
(laser disc player, camcorder, etc.) here.
13. FF Button (VCR)
Press to rapidly advance the tape, or view the pictu
re
rapidly in forward during playback. (Forwa
rd
Search).
14. REW Button (VCR)
Press to rewind the tape, or to view the picture rapi
d-
ly in reverse during the playback mode (Rewin
d
Search).
15. REC Button
Press once to start a recording. Press repeatedly
to
start a One-Touch Recording.
16. REC Light
Light appears during recording.
17. TIMER Light
Light appears when the DVD/VCR is in standb
y
mode for a timer recording or during a One-Tou
ch
Recording. It flashes if T-SET is pressed for a tim
er
recording, but there is no tape in the DVD/VCR.
It
flashes when all timer recordings or One-Tou
ch
Recordings are finished.
OPERATING CONTROLS AND FUNCTIONS
[ EWD2203 ]

1-6-2 H94X1IB
1
8. OUTPUT Button
Press to select DVD mode or VCR mode.
You can switch the output mode either by pressing
OUTPUT on the front panel, or by pressing DVD
or VCR on the remote control. However, if you
press OUTPUT on the front panel first, you
need to re-select the corresponding mode by
pressing DVD or VCR on the remote control.
1
9. Remote Sensor Window
2
0. DISC IN Light (green)
Light appears when a disc is in the DVD Player.
2
1. PLAY Light (green)
Light appears during Disc playback.
2
2. FWD Button (DVD)
Press to fast forward the Disc. Press PAUSE, then
press this button to begin slow motion playback.
Press this button repeatedly to change the forward
speed of slow motion.
Press to skip Chapters or Tracks.
2
3. PLAY Button (DVD)
Press to begin playback.
2
4. REV Button (DVD)
Press to view the DVD picture in fast reverse motion
or to reverse playback of an Audio CD.
Press to skip Chapters or Tracks.
2
5. STOP Button (DVD)
Stops operation of the disc.
2
6. SPEED Button
Press to select the VCR’s recording speed
(SP or SLP)
2
7. POWER Button
Press to turn the power on and off.
2
8. Number Buttons
DVD mode
Press to select numbered items in a menu.
+10
Use this button to enter number 10 and above.
VCR mode
Press to select TV channels on the VCR.
To select channels, enter channel numbers as a
two-digit number for the quickest results. For
example, to select channel 6, press 0 then 6.
2
9. DISPLAY Button
DVD mode
Press to access or remove the display screen during
DVD or Audio CD playback.
VCR mode
Press to access or remove the VCR’s on-screen sta-
tus display.
3
0. DVD Button
Press to select DVD mode for the remote control.
You can switch the output mode either by pressing
OUTPUT on the front panel, or by pressing DVD or
VCR on the remote control. However, if you press
OUTPUT on the front panel first, you need to re-
select the corresponding mode by pressing DVD or
VCR on the remote control.
3
1. hButton
DVD mode
Press to view the DVD picture in fast reverse motion.
Press PAUSE, then press this button to begin slow
motion playback. Press this button repeatedly to
change the reverse speed of slow motion.
VCR mode
Press to rewind the tape, or to view the picture rapidly
in reverse during the playback mode (Rewind Search).
32. STOP Button
DVD mode
Press to stop the disc motion.
VCR mode
Press to stop the tape motion.
33. RECORD Button
Press once to start a recording.
34. MENU Button
DVD mode
Press to display the menu of the Disc.
VCR mode
Press to access the VCR menu.
35. TITLE Button
36. SETUP Button
Press to enter DVD player setup mode.
37. ZOOM Button
Enlarges part of a DVD-reproduced image.
38. MODE Button
Activates program playback or random playbac
k
mode when playing CDs or MP3. Sets Black lev
el
and virtual surround.
39. SUBTITLE Button
Press to select the desired subtitle language.
39. T-SET Button
Press to put the VCR into standby mode for a time
r
recording.
40. ANGLE Button
Press to change the camera angle to see the sequenc
e
being played back from a different angle.
41. REPEAT Button
Repeats playback of the current disc, title, chapter o
r
track.
42. A-B REPEAT Button
Repeats playback of a selected section.
43. SEARCH MODE Button
DVD mode
Press to access or remove the Search displa
y,
which allows you to go directly to a specif
ic
Title/Chapter/Track/Time.
VCR mode
Press to perform a Time Search or an Index Searc
h.
44. CLEAR/C.RESET Button
DVD mode
Press to reset the setting.
VCR mode
Press to reset the counter. Press to exit from th
e
MENU screen.
45. RETURN Button
DVD mode
Returns to the previous operation.
46. Arrow Buttons
Use when making settings while watching the di
s-
play on a TV screen.
DVD mode
Moves the cursor and determines its position.
VCR mode
p/oButtons
Press to enter digits when setting program (Fo
r
example: setting clock or timer program). Press t
o
select the setting modes from the on screen menu
.
BButton
When setting program (For example: setting cloc
k
or timer program), press to determine your selec
-
tion and proceed to the next step you want to inpu
t.
Press to determine the setting modes from the o
n
screen menu. Press to add or delete channel num
-
bers during channel preset.

1-6-3 H94X1IB
sButton
Press to cancel a setting of timer program. Press to
correct digits when setting program (For example:
setting clock or timer program). Press to add or
delete channel numbers during channel preset.
4
7. ENTER Button
DVD mode
Press to accept a setting.
4
8. gButton
DVD mode
Press to fast forward the Disc. Press PAUSE, then
press this button to begin slow motion playback.
Press this button repeatedly to change the forward
speed of slow motion.
VCR mode
Press to rapidly advance the tape, or view the pic-
ture rapidly in forward during playback (Forward
Search).
4
9. PLAY Button
DVD mode
Press to begin playback.
VCR mode
Press to begin playback.
5
0. VCR Button
Press to select VCR mode for the remote control.
You can switch the OUTPUT mode either by press-
ing OUTPUT on the front panel, or by pressing
DVD or VCR on the remote control. However, if
you press OUTPUT on the front panel first, you
need to re-select the corresponding mode by
pressing DVD or VCR on the remote control.
51. PAUSE Button
DVD mode
Press to pause Disc playback. Press repeatedly
to
advance the DVD picture step by step (or on
e
frame at a time).
VCR mode
While recording, press to temporarily stop th
e
recording (pause). Press a second time to resum
e
normal recording. You can not pause a One-Touc
h
Recording. Or, press during tape playback
to
freeze the picture. Press to advance the picture on
e
frame at a time during still mode.
52. SLOW Button
During tape playback, press to view the video tape
in
slow motion. To return to playback, press PLAY.
This button does not affect DVD playback.
53. VCR/TV Button
Use to select VCR or TV position.
VCR Position
To view playback, to monitor video recording or
to
watch TV using the VCR tuner.
TV Position
To watch TV or to view one program while recor
d-
ing another.
54. SKIP/CH. Buttons
DVD mode
Press to skip Chapters or Tracks.
VCR mode
Press to change TV channels on the VCR.
55. AUDIO Button
Press to select a desired audio language or soun
d
mode.
Notes
To use the remote control to operate the DVD/VC
R
COMBINATION UNIT and its features, press DVD o
n
the remote control before pressing other DVD oper
a-
tion button. Verify that the green DVD OUTPUT Lig
ht
is on.
To use the remote control to operate the VCR and i
ts
features, press VCR on the remote control befo
re
pressing other VCR operation button. Verify that th
e
green VCR OUTPUT Light is on.

1-6-4 H94X1IB
LOADING THE BATTERIES
1
. Open the battery compartment cover.
2
. Insert two AA batteries (supplied), with each one oriented correctly.
3
. Close the cover.
N
otes
Do not mix alkaline and manganese batteries.
Do not mix old and new batteries.
5
6. ANT-IN (Antenna In) Jack
Connect your antenna, Cable Box, or Satellite decoder
box.
5
7. DVD/VCR AUDIO OUT Jacks
Connect the supplied audio cables here and to the
Audio In jacks of a television or other audio equip-
ment.
5
8. AUDIO IN Jack
Connect an audio cable coming from the audio out
jack of a camcorder, another VCR, or an audio
source here.
5
9. AC Power Cord
Connect to a standard AC outlet to supply power to
the DVD/VCR COMBINATION UNIT.
6
0. COMPONENT VIDEO OUT Jacks
Connect optional component video cables here and
to the component Video In jacks of a television.
6
1. COAXIAL Jack
Connect an optional coaxial digital audio cable here
and to the Coaxial DigitalAudio In jack of a decoder
or audio receiver.
62. DVD ANALOG AUDIO OUT Jacks
Connect the supplied audio cables here and to th
e
Audio In jacks of a television or other audio equi
p-
ment (DVD only).
63. S-VIDEO OUT Jack
Connect an optional S-Video cable here and to the
S-
Video In jack of a television. (DVD only).
64. VIDEO IN Jack
Connect a cable coming from the video out jack of
a
camcorder, another VCR, or an audio-visual sour
ce
(laser disc player, video disc player, etc.) here.
65. DVD/VCR VIDEO OUT Jack
Connect the yellow video cable (supplied) here an
d
to the TV’s Video In jack.
66. ANT-OUT (Antenna Out) Jack
Use the supplied RF coaxial cable to connect th
is
jack to the ANTENNA IN Jack on your TV.
Notes
The S-VIDEO OUT jack, COAXIAL jack, and COM
-
PONENT VIDEO OUT jack are only useful
in
DVDmode.
Caution: Do not touch the inner pins of the jacks
on the rear panel. Electrostatic discharge may
cause permanent damage to the player.
DVD Playback only
ANT-IN
ANT-OUT VIDEO OUT
AUDIO OUT S-VIDEO
OUT AUDIO OUT
DIGITAL
AUDIO OUT
COAXIAL
Y
Cb
Cr
L
R
COMPONENT
VIDEO OUT
AUDIO IN
VIDEO IN
DVD/VCR VCR DVD
R
L
66 65 64 63 62 61
5756 58 59 60
REAR VIEW

1-6-5 H94X1IB
[ EWD2003 ]
POWER
CHANNEL
PLAY
STOP/EJECT
VIDEO
VCR
AUDIO
REW
OPEN/CLOSE
F.FW DPLAY FWD/SKIPSTOP SKIP/REV
REC
VCRDVD
PLAY DISC IN TIMER/REC
OUTPUT
DVD
1 2 3 4 768
2325 2224 20 21 1817
16
15
14 1312 11 10
5
9
19
FRONT PANEL
REMOTE CONTROL
SEARCH
MODE
+
123
456
789
010
SPEED AUDIO
POWER
SKIP/CH.
SLOW
VCR/TV
DISPLAY PAUSE
PLAY
STOP
RECORD
ENTER
RETURNTITLE
MENU
SETUP
CLEAR/
C.RESET
ZOOMMODE
A - B ANGLE REPEAT SUBTITLE
T-SET
DVD VCR
27
26
28
29
30 31
32 33
34 35
37
38
40 39
36
55
51
52 53
50
54
49
48
46 45
47
42 43
44
41
1. Disc loading tray
2. OPEN/CLOSE Button
Press to insert discs into or remove them from the tray.
3. DVD OUTPUT Light (Green)
This light appears when the DVD output mode is select-
ed. You can only watch DVDs when the green DVD
OUTPUT light is on. To make the green DVD OUT-
PUT light come on, press DVD on the remote control or
OUTPUT on the front panel.
4. VCR OUTPUT Light (Green)
This light appears when the VCR output mode is select-
ed. You can only watch tapes when the green VCR
OUTPUT light is on. To make the green VCR OUTPUT
light come on, VCR on the remote control or OUTPUT
on the front panel.
5. Cassette compartment
6. POWER Button
Press to turn the power on and off.
7. POWER Light
This light appears when the power is on.
8. STOP/EJECT Button (VCR)
EJECT
Press to remove the tape from the VCR.
STOP
Press to stop the tape motion.
9. PLAY Button(VCR)
Press to begin playback.
10. CHANNEL (
o/p ) Buttons
In VCR mode, press to change TV channels on t
he
VCR; press to adjust the tracking during normal or slo
w
motion playback; press to remove vertical jitter in a St
ill
picture.
11. AUDIO In Jack
Connect audio cable coming from the audio out jack
of
a camcorder, another VCR, or an audio source here.
12. VIDEO In Jack
Connect a video cable coming from the video out ja
ck
of a camcorder, another VCR, or a video source (las
er
disc player, camcorder, etc.) here.
13. F.FWD Button (VCR)
Press to rapidly advance the tape, or view the pictu
re
rapidly in forward during playback. (Forward Search
).
14. REW Button (VCR)
Press to rewind the tape, or to view the picture rapid
ly
in reverse during the playback mode (Rewind Search
).
15. REC/OTR Button
Press once to start a recording. Press repeatedly to sta
rt
a One-Touch Recording.
16. REC Light
Lights up during recording.
17. TIMER REC Light
This light appears when the DVD/VCR is in standb
y
mode for a timer recording or during a One-Tou
ch
Recording. It flashes if T-SET is pressed for a tim
er
recording, but there is no tape in the DVD/VCR.
It
flashes when all timer recordings or One-Tou
ch
Recordings are finished.
18. OUTPUT Button
Press to select DVD mode or VCR mode.
●You can switch the output mode either by pressing
OUTPUT on the front panel, or by pressing DVD
or
VCR on the remote control. However, if you pre
ss
OUTPUT on the front panel first, you need to r
e-
select the corresponding mode by pressing DVD
or
VCR on the remote control.

1-6-6 H94X1IB
1
9. Remote Sensor Window
2
0. DISC IN Light (green)
Light appears when a disc is in the DVD Player.
2
1. PLAY Light (green)
Light appears during Disc playback.
2
2. FWD/SKIP Button (DVD)
Press this button during playback to fast forward the Disc.
Press this button in PAUSE mode to slow forward the Disc.
Press to skip Chapters or Tracks
.
2
3. PLAY Button (DVD)
Press to begin playback.
2
4. SKIP/REV Button (DVD)
Press this button during playback to fast reverse the Disc.
Press this button in PAUSE mode to slow reverse the Disc.
Press to skip Chapters or Tracks.
2
5. STOP Button (DVD)
Stops operation of the disc.
2
6. SPEED Button
Press to select the VCR’s recording speed (SP or SLP)
2
7. POWER Button
Press to turn the power on and off.
2
8. Number Buttons
●DVD mode
Press to select numbered items in a menu.
+10
Use this button to enter number 10 and above.
●VCR mode
Press to select TV channels on the VCR.
To select channels, enter channel numbers as a two-
digit number for the quickest results. For example, to
select channel 6, press 0 then 6.
2
9. DISPLAY Button
●DVD mode
Press to access or remove the display screen during
DVD or Audio CD playback.
●VCR mode
Press to access or remove the VCR’s on-screen status
display.
3
0. DVD Button
Press to select DVD mode for the remote control.
●You can switch the OUTPUT mode either by pressing
OUTPUT on the front panel, or by pressing DVD or
VCR on the remote control. However, if you press
OUTPUT on the front panel first, you need to re-
select the corresponding mode by pressing
DVD or VCR on the remote control.
3
1. hButton
●DVD mode
Press to view the DVD picture in fast reverse motion.
Press PAUSE, then press this button to begin slow
motion playback. Press this button repeatedly to
change the reverse speed of slow motion.
●VCR mode
Press to rewind the tape, or to view the picture rapidly in
reverse during the playback mode (Rewind Search)
.
3
2. STOP Button
●DVD mode
Press to stop the disc motion.
●VCR mode
Press to stop the tape motion.
3
3. RECORD Button
Press once to start a recording.
3
4. MENU Button
●DVD mode
Press to display the menu of the Disc.
●VCR mode
Press to access the VCR menu.
35. TITLE Button
36. SETUP Button
Press to enter DVD player setup mode.
37. ZOOM Button
Enlarges part of a DVD-reproduced image.
38. MODE Button
Activates program playback or random playback mod
e
when playing CDs or MP3. Sets Black level and virtua
l
surround.
39. SUBTITLE Button
Press to select the desired subtitle language.
39. T-SET Button
Press to put the VCR into standby mode for a time
r
recording.
40. ANGLE Button
Press to change the camera angle to see the sequenc
e
being played back from a different angle.
41. REPEAT Button
Repeats playback of the current disc, title, chapter o
r
track.
42. A-B REPEAT Button
Repeats playback of a selected section.
43. SEARCH MODE Button
●DVD mode
Press to access or remove the Search displa
y,
which allows you to go directly to a specifi
c
Title/Chapter/Track/Time.
●VCR mode
Press to perform a Time Search or an Index Search.
44. CLEAR/C.RESET Button
●DVD mode
Press to reset the setting.
●VCR mode
Press to reset the counter. Press to exit from th
e
MENU screen.
45. RETURN Button
●DVD mode
Returns to the previous operation in the DVD setup
mode.
46. Arrow Buttons
Use when making settings while watching the displa
y
on a TV screen.
●VCR mode
p/oButtons
Press to enter digits when setting program (For exam
-
ple: setting clock or timer program). Press to selec
t
the setting modes from the on screen menu.
BButton
When setting program (For example: setting clock o
r
timer program), press to determine your selection an
d
proceed to the next step you want to input. Press t
o
determine the setting modes from the on scree
n
menu. Press to add or delete channel numbers durin
g
channel preset.
sButton
Press to cancel a setting of timer program. Press t
o
correct digits when setting program (For example
:
setting clock or timer program). Press to add or delet
e
channel numbers during channel preset.
47. ENTER Button
●DVD mode
Press to accept a setting.

1-6-7 H94X1IB
4
8. gButton
●DVD mode
Press to fast forward the Disc. Press PAUSE, then
press this button to begin slow motion playback.
Press this button repeatedly to change the forward
speed of slow motion.
●VCR mode
Press to rapidly advance the tape, or view the picture
rapidly in forward during playback (Forward Search).
4
9. PLAY Button
●DVD mode
Press to begin playback.
●VCR mode
Press to begin playback.
5
0. VCR Button
Press to select VCR mode for the remote control.
●You can switch the OUTPUT mode either by pressing
OUTPUT on the front panel, or by pressing DVD or
VCR on the remote control. However, if you press
OUTPUT on the front panel first, you need to re-
select the corresponding mode by pressing DVD or
VCR on the remote control.
5
1. PAUSE Button
●DVD mode
Press to pause Disc playback. Press repeatedly to
advance the DVD picture step by step (or one frame
at a time).
●VCR mode
While recording, press to temporarily stop the record-
ing (pause). Press a second time to resume normal
recording. You can not pause a One-Touch
Recording. Or, press during tape playback to freeze
the picture. Press to advance the picture one frame at
a time during still mode.
52. SLOW Button
During tape playback, press to view the video tape
in
slow motion. To return to playback, press PLAY.
53. VCR/TV Button
Use to select VCR or TV position.
●VCR Position
To view playback, to monitor video recordings or
to
watch TV using the VCR tuner.
●TV Position
To watch TV or to view one program while recordi
ng
another.
54. SKIP/CH. Buttons
●DVD mode
Press to skip Chapters or Tracks.
●VCR mode
Press to change TV channels on the VCR.
55. AUDIO Button
Press to select a desired audio language or sound mod
e.
5
6. ANT-IN (Antenna In) Jack
Connect your antenna, Cable Box, or Satellite decoder
box.
5
7. DVD/VCR AUDIO OUT Jacks
Connect the supplied audio cables here and to theAudio
In jacks of a television or other audio equipment.
5
8. AUDIO IN Jack
Connect audio cable coming from the audio out jack of
a camcorder, another VCR, or an audio source here.
59. AC Power Cord
Connect to a standard AC outlet to supply power to t
he
DVD/VCR COMBINATION UNIT.
60. COMPONENT VIDEO OUT Jacks
Connect optional component video cables here and
to
the component Video In jacks of a television.
61. COAXIAL Jack
Connect an optional coaxial digital audio cable here an
d
to the Coaxial Digital Audio In jack of a decoder
or
audio receiver.
DVD Playback only
DVD/VCR VCR
AUDIO OUT
AUDIO IN
VIDEO OUT VIDEO IN
S-VIDEO
OUT
COMPONENT
VIDEO OUT AUDIO OUT
DVD
Y
Cb L
Cr R
ANT-IN
ANT-OUT
L
R
DIGITAL
AUDIO OUT
COAXIAL
66 65 64 63 62 61
5756 58 59 60
REAR VIEW
Notes
To use the remote control to operate the DVD/VC
R
COMBINATION UNIT and its features, press DV
D
on the remote control before pressing other DVD
’s
operation buttons. Verify that the green DVD OU
T-
PUT Light is on.
To use the remote control to operate the VCR and
its
features, press VCR on the remote control befo
re
pressing other VCR’s operation buttons. Verify th
at
the green VCR OUTPUT Light is on.

1-6-8 H94X1IB
LOADING THE BATTERIES
1
. Open the battery compartment
cover.
2
. Insert two AA batteries, with each
one oriented correctly.
3
. Close the cover.
N
otes
Do not mix alkaline and manganese batteries.
Do not mix old and new batteries.
6
2. DVD ANALOG AUDIO OUT Jacks
Connect the supplied audio cables here and to theAudio
In jacks of a television or other audio equipment (DVD
only).
6
3. S-VIDEO OUT Jack
Connect an optional S-Video cable here and to the S-
Video In jack of a television. (DVD only)
6
4. VIDEO IN Jack
Connect a cable coming from the video out jack of a
camcorder, another VCR, or an audio-visual source
(laser disc player, video disc player, etc.) here.
65. DVD/VCR VIDEO OUT Jack
Connect the yellow video cable (supplied) here and
to
the TV’s Video In jack.
66. ANT-OUT (Antenna Out) Jack
Use the supplied RF coaxial cable to connect this ja
ck
to the ANTENNA IN Jack on your TV.
Caution: Do not touch the inner pins of the jacks
on the rear panel. Electrostatic discharge may
cause permanent damage to the player.
