Submittal for SiteI/O 10/0E
Liebert Corporation Page 1of 4Rev. 4; 10/03
DESCRIPTION: The SiteI/O 10/0E is part of the SiteI/O-Line and is intended to be used with
SiteScan Web systems specifically. It is a 32 bit microprocessor-based device designed to monitor up to
ten thermistors, and/or dry contact type signals. Logically the device, sits on the Ethernet network,
providing the interface to SiteScan Web. This effectively creates a device that is a router / gateway and
I/O module in one device. Screw terminal blocks are provided to terminate power, communication, and
input signal wiring.
DIMENSIONS: Module: 7 1/8" H x 6 1/4" W X 1 5/8” D
18.10cm H x 15.88cm W X 4.13cm D
Enclosure: 12”H x 14.25" W x 2.85" D
(painted steel) 419.1mm x 301.3mm x 78.6mm
POWER: 24 VAC ±10%, 50-60 Hz, 7.2 VA.
ENVIRONMENTAL
OPERATING RANGE:0 to 130°F (-17.8 to 54.4°C); 10 to 90% relative humidity, non-condensing.
For UUKL Smoke Control Systems, 32°-120.2°F (0°-49°C); 10 to 85% relative
humidity, non-condensing.
COMMUNICATIONS: One (1) Ethernet 10BaseT RJ-45 port
MEMORY: 1 MB flash, 1 MB RAM.
BATTERY: Seven-year lithium battery provides a minimum of 10,000 hours of data retention
during power outages.
FAULT DETECTION:Hardware watchdog timer.
PROTECTION: Built-in surge and transient protection circuitry.

Submittal for SiteI/O 10/0E
Liebert Corporation Page 2of 4Rev. 4; 10/03

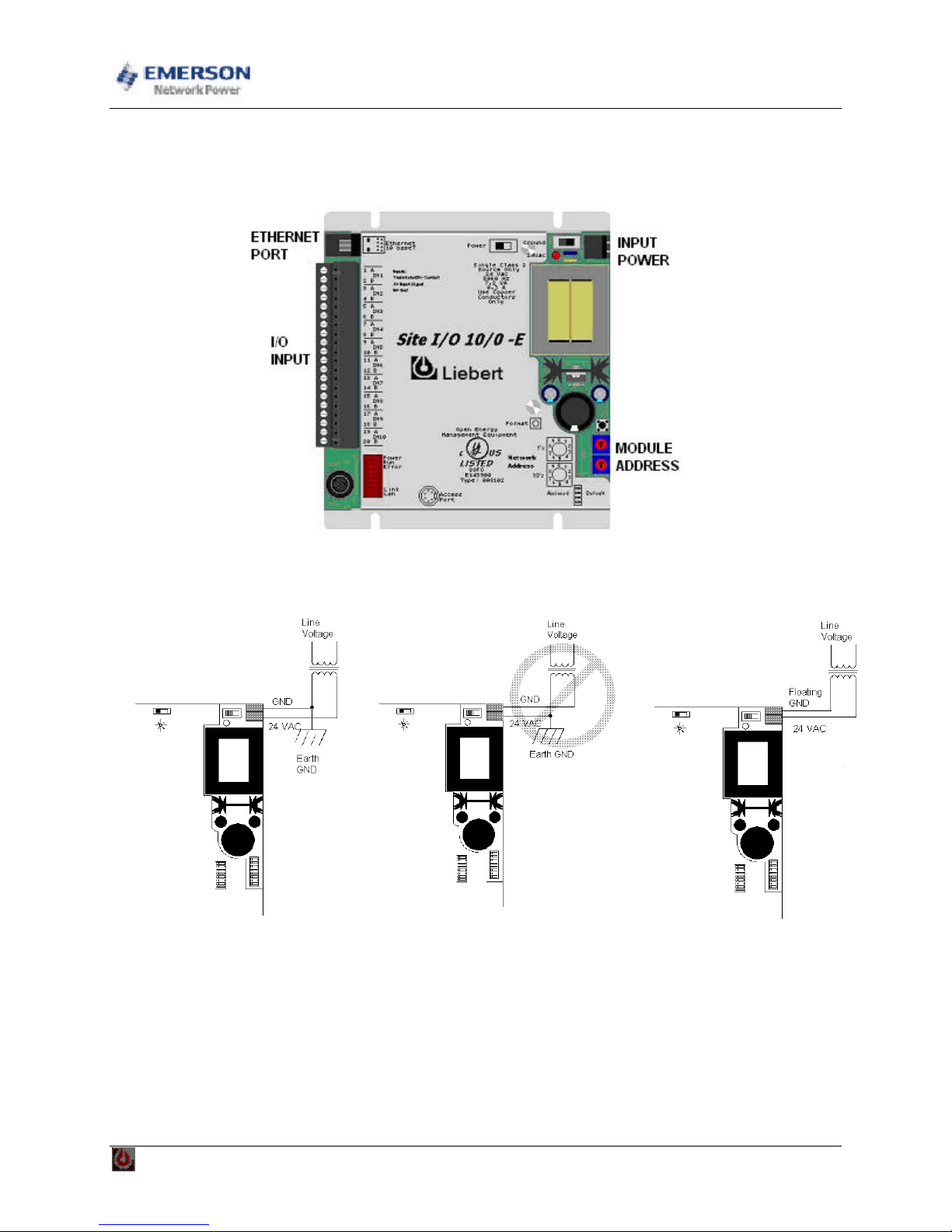

MODULE DIMENSIONS AND LAYOUT
POWER WIRING DIAGRAMS

Submittal for SiteI/O 10/0E
Liebert Corporation Page 3of 4Rev. 4; 10/03

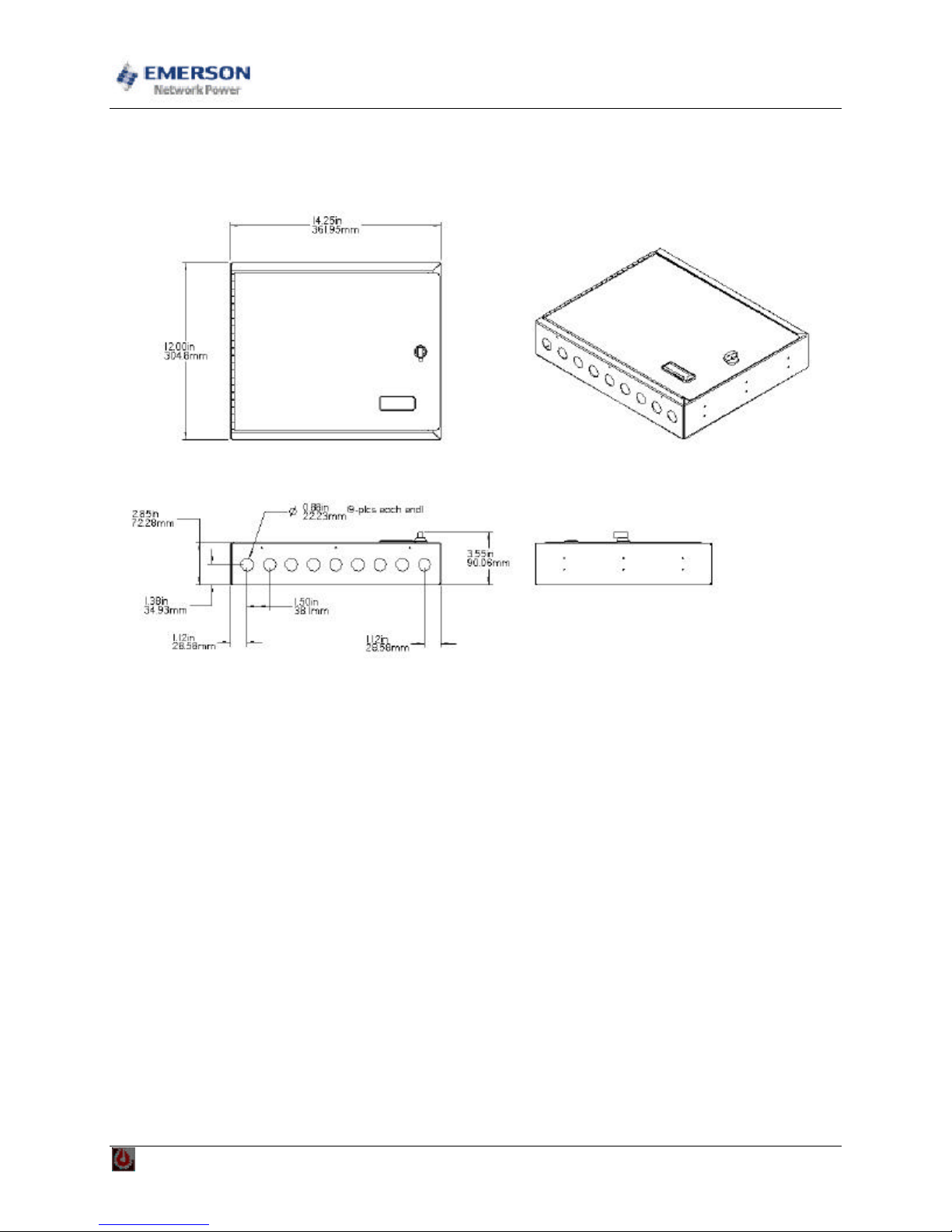

ENCLOSURE DIMENSIONS

Submittal for SiteI/O 10/0E
Liebert Corporation Page 4of 4Rev. 4; 10/03
Enclosure Wall Mounting
Enclosure Floor Mounting
