ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 13

2
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Electric Pasta Cooker ,that provides high efficiency has been designed to
be used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.7ME010
400x730x285
20
480x800x590
EMP.9ME010
400x900x850
60
430x950x1050
A2 TECHNICAL INFORMATION
Product Code
Electric Inlet
Cable
(mm²)
Power
(KW)
EMP.7ME010
400 V. AC 3N PE
5x4
10,5
EMP.9ME010
400 V. AC 3N PE
5x4
12

4
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
* This appliance can not be moved by hand from area to area. Therefore Use a hauling truck
(forklift or pallet jack) to move the appliance. ( The lifting arms of the of forklift or pallet jack
must reach up to more than half part of t appliance underneath.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by our company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*If the location where electrical pasta cooker placed is covered with nonflammable heat
insulation material,the distance between them must be 5 cm.Otherwise it should be at least 20
cm.The appliance shouldn’t be operated under chimney hood.
!

5
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity .
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
* All the damages because of not having earthing connection will not be on
warranty.
*Do not add water to the appliance’s tank more than maximum level.
*Do not turn off the drainage system of overflowed water during cooking.
!
!
!

!
!
!

!
!

6
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A: Heat setting button
B: Indicator lamp
C: Water valve
*Operating;
•Place the filter and and basket into the tank before operating the appliance.
•Be sure that water drainage pipe is off. ( pull the slide valve on the water drainage pipe to
left side).
•Add water till the maximum level live.
•Plug in the appliance.
•Set thermostat to desired heat to operate the appliance.
•When thermostat is switched,the heaters start to work and indicator lamps on it signals
during the operation.
•When water temperature reaches to indicator temperature,the heaters are disabled.If the
water temperature is lower than indicator temperature ,thermostat steps in.
•On the sidelines of water heating, Put the macaroni that will be cooked into the tank as 4
portion and cook
•After cooking take off the basket from tank by holding its handle and leave it to be filtered.
•After cooking process finish ,switch thermostat to (0) position and unplug the appliance.
•Before draining the water,first leave it to be cooled.
•In order to drain cooking water,connect drainage pipe to the valve that is in undercounter
cabinet and drain the water.

7
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Clean the outer surface of the appliance with moist cloth and chrome shiner.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
•Take off the basket and filter that are in tank while cleaning the inside of the
appliance.
•Clean the residues that is accumulated at cooking tank after every use.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•If the used water is limy and hard,check the resistances in periodic times and clean
the limes.
•Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.

8
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check the resistances.
THE APPLIANCE DOESN’T COOK WELL
1. Check the level of water.
2. Check the thermostat switch.If the water
temperature doesn’t reach to desired
temperature,contact with authorized
service.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
•If pasta cooking is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları

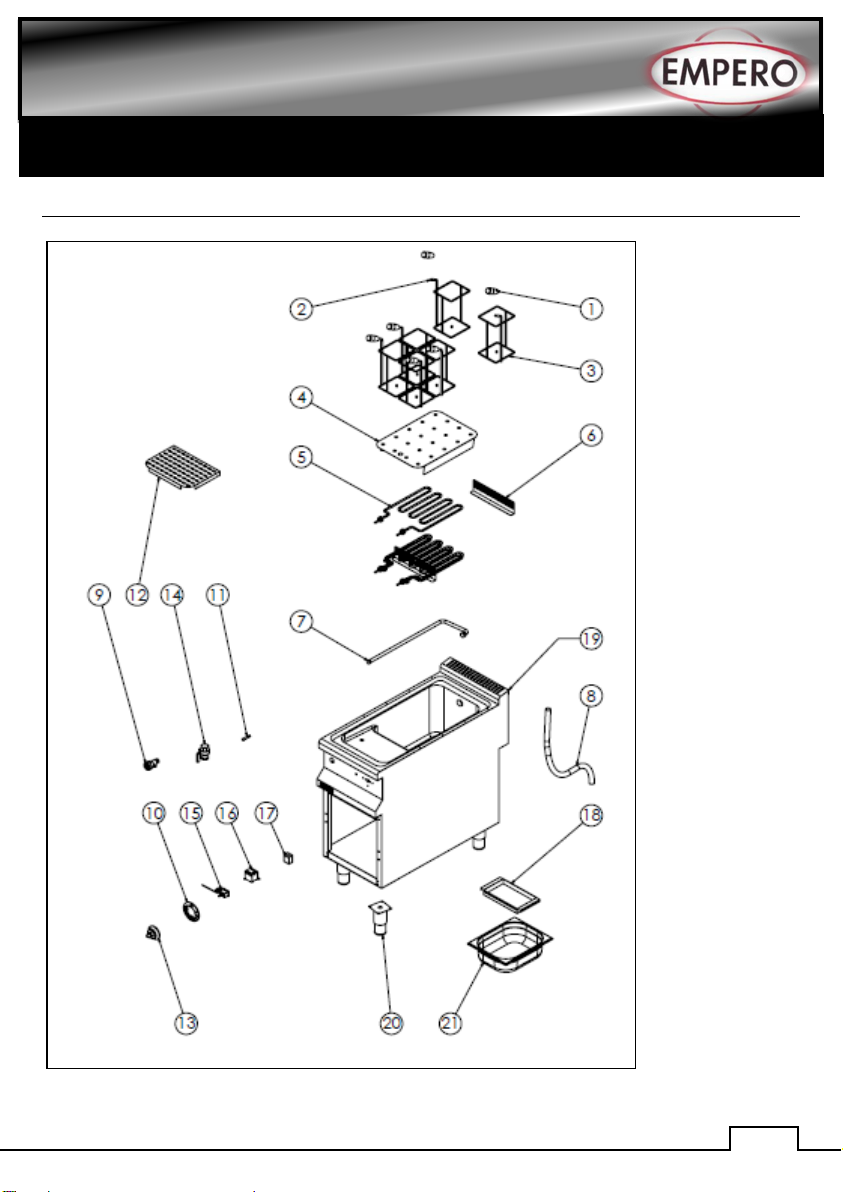

G SPARE PART LIST-EXPLODING DRAWING
EMP.7ME010

10
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7ME010
NO
PRODUCT NAME
P.CODE
1
HANDLE
Y.EMP.7ME010.001
2
LEFT BASKET
Y.EMP.7ME010.002
3
RIGHT BASKET
Y.EMP.7ME010.003
4
BASKET BOTTOM SHEETMETAL
Y.EMP.7ME010.004
5
RESISITANCE
Y.EMP.7ME010.005
6
RESISITANCE SUPPORT SHEETMETAL
Y.EMP.7ME010.006
7
FLEX HOSE 100CM
Y.EMP.7ME010.007
8
FOAM DRAINAGE HOSE
Y.EMP.7ME010.008
9
TAP
Y.EMP.7ME010.009
10
BUTTON BUFFER
Y.EMP.7ME010.010
11
WARNING LAMP
Y.EMP.7ME010.011
12
DRAINAGE PIPE
Y.EMP.7ME010.012
13
BUTTON
Y.EMP.7ME010.013
14
VALVE
Y.EMP.7ME010.014
15
THERMOSTAT 30-110
Y.EMP.7ME010.015
16
CONTACTOR 3TF41
Y.EMP.7ME010.016
17
LIMIT 126º
Y.EMP.7ME010.017
18
VALVE HANDLE
Y.EMP.7ME010.018
19
BASE FRAME
Y.EMP.7ME010.019
20
FEET
Y.EMP.7ME010.020
21
FOAM FILTER SHEETMETAL
Y.EMP.7ME010.021

11
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
EMP.9ME010

12
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9ME010
NO
PRODUCT NAME
P.CODE
1
HANDLE
Y.EMP.9ME010.001
2
LEFT BASKET
Y.EMP.9ME010.002
3
RIGHT BASKET
Y.EMP.9ME010.003
4
BASKET BOTTOM SHEETMETAL
Y.EMP.9ME010.004
5
RESISTANCE
Y.EMP.9ME010.005
6
RESISTANCE SUPPORT SHEETMETAL
Y.EMP.9ME010.006
7
FLEX HOSE 100CM
Y.EMP.9ME010.007
8
FOAM DRAINAGE HOSE
Y.EMP.9ME010.008
9
TAP
Y.EMP.9ME010.009
10
BUTTON BUFFER
Y.EMP.9ME010.010
11
WARNING LAMP
Y.EMP.9ME010.011
12
FOAM FILTER SHEETMETAL
Y.EMP.9ME010.012
13
BUTTON
Y.EMP.9ME010.013
14
VALVE
Y.EMP.9ME010.014
15
THERMOSTAT 30-110
Y.EMP.9ME010.015
16
CONTACTOR 3TF41
Y.EMP.9ME010.016
17
LIMIT 126º
Y.EMP.9ME010.017
18
FILTER
Y.EMP.9ME010.018
19
BASE FRAME
Y.EMP.9ME010.019
20
FEET
Y.EMP.9ME010.020
21
VESSEL
Y.EMP.9ME010.021

13
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.7ME010
T
LT
C1
L1
R1
Thermostat (30-
110ºC)
Limit thermostat
126ºC
Contactor
Thermostat signal
lamp
Resistance

14
ELECTRIC PASTA COOKER
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.9ME010
T
LT
C1
L1
R1
Thermostat
(30-110ºC)
Limit
thermostat
126º
Contactor
Thermostat
signal lamp
Resistance
