EMPERO EMP.9KE030 User manual

1
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 18

2
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Electric Cooker (with Hot Plate) ,that provides high efficiency has been
designed to be used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.7KE010
400x730x285
20
480x800x590
EMP.7KE020
800x730x285
41
830x800x590
EMP.7KE030
1200x730x285
84
1230x800x590
EMP.9KE010
400x900x285
32
430x1000x590
EMP.9KE020
800x900x285
75
830x1000x590
EMP.9KE030
1200x900x285
122
1230x1000x590
A2 TECHNICAL INFORMATION
Product
Code
Model
Electric Inlet
Cable
(mm²)
Power
(KW)
EMP.7KE010
Electric Cooker/2 Hot Plate
200 V. AC N PE
3x2,5
4
EMP.7KE020
Electric Cooker/4 Hot Plate
400 V. AC 3N PE
5x2,5
8
EMP.7KE030
Electric Cooker/6 Hot Plate
400 V. AC 3N PE
5x4
12
EMP.9KE010
Electric Cooker/2 Hot Plate
400 V. AC 3N PE
5x2,5
8
EMP.9KE020
Electric Cooker/4 Hot Plate
400 V. AC 3N PE
5x4
16
EMP.9KE030
Electric Cooker/6 Hot Plate
400 V. AC 3N PE
5x6
24

4
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
* This appliance can not be moved by hand from area to area. Therefore Use a hauling truck
(forklift or pallet jack) to move the appliance. ( The lifting arms of the of forklift or pallet jack
must reach up to more than half part of t appliance underneath.)
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*If the location where electric ranges placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.
!

5
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.

!
!
!
!
!

!

6
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A: Heat setting button
B: Indicator lamp
*Operating;
Plug in the appliance.
Put the pot that wanted cook or heat on the hot plate.
Adjust heat setting butttons to desired temperature.
The range reaches the desired temperature and starts to operate.
When the range’s temperature reaches to indicator temperature,the buttons on indicator
lamp become off due to having thermostat.
When the range’s temperature is reduced,indicator lamp signals and range’s temperature
reaches to desired temperature again.
Range’s heaters can be controlled by stage switch seperately.
After operation is completed,switch heat setting buttons to (0) position and unplug the
appliance.

7
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Always turn off the appliance and disconnect from the power supply before cleaning.
Clean the outer surface of the appliance with a wet cloth and chrome shiner.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
Get the periodic maintenance of the appliance once in every 15 days.
Check the heater’s electric connection in periodic times.
Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.

8
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
THE APPLIANCE DOESN’T COOK WELL
1. Check if it is operated at required heat
or not.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
If cooking at electric ranges with cupboard is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları

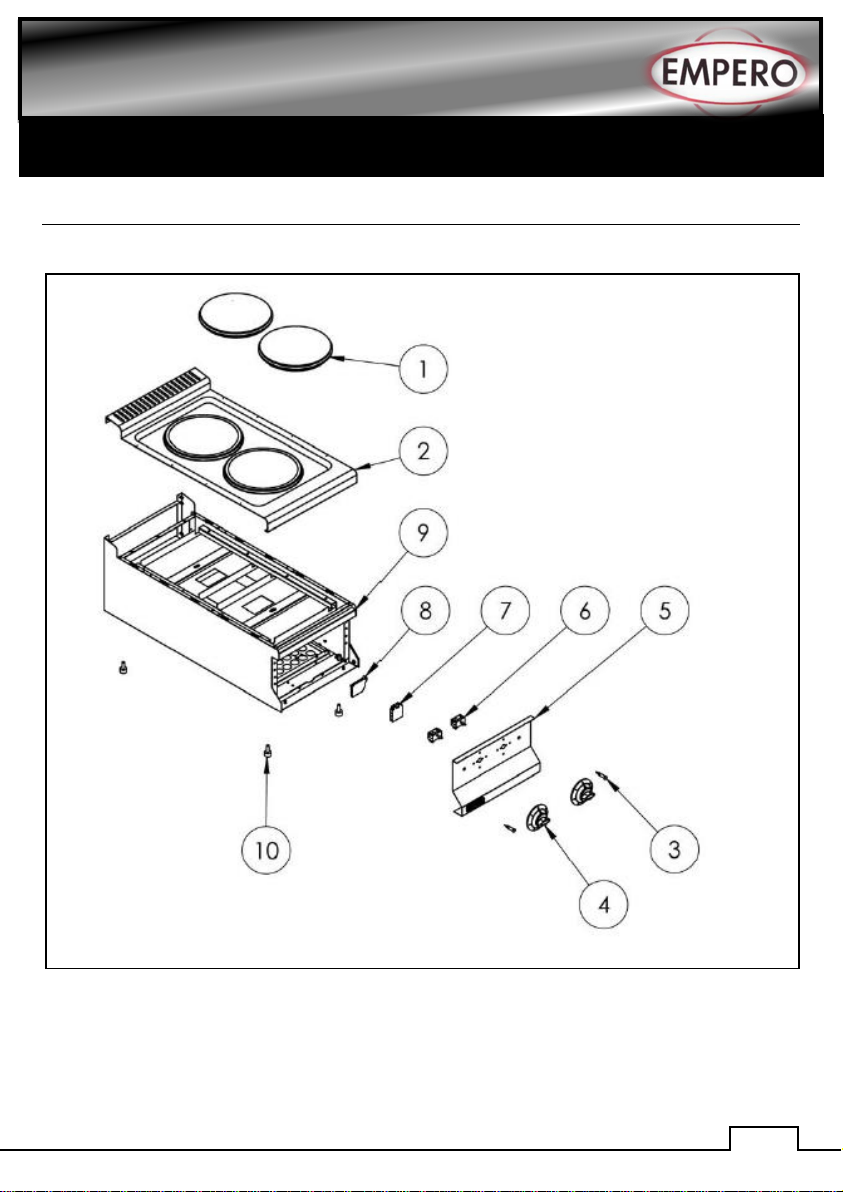

G SPARE PART LIST-EXPLODING DRAWING
EMP.7KE010-9KE010

10
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EMP.7KE010
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PLATE (4 KW)
Y.EMP.7KE010.001
2
PLATFORM
Y.EMP.7KE010.002
3
WARNING LAMP
Y.EMP.7KE010.003
4
SWITCH
Y.EMP.7KE010.004
5
PANEL
Y.EMP.7KE010.005
6
SWITCH (0-6)
Y.EMP.7KE010.006
7
TERMINAL BLOCK
Y.EMP.7KE010.007
8
TERMINAL BLOCK BASE
Y.EMP.7KE010.008
9
BASE FRAME
Y.EMP.7KE010.009
10
FEET
Y.EMP.7KE010.010

11
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9KE010
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PLEYT (4KW)
Y.EMP.9KE010.001
2
TABLA
Y.EMP.9KE010.002
3
İKAZ LAMBASI
Y.EMP.9KE010.003
4
DÜĞME
Y.EMP.9KE010.004
5
PANEL
Y.EMP.9KE010.005
6
ŞALTER (0-6)
Y.EMP.9KE010.006
7
KLEMENS
Y.EMP.9KE010.007
8
KLEMENS ALTLIĞI
Y.EMP.9KE010.008
9
ŞASE
Y.EMP.9KE010.009
10
AYAK
Y.EMP.9KE010.010

12
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları

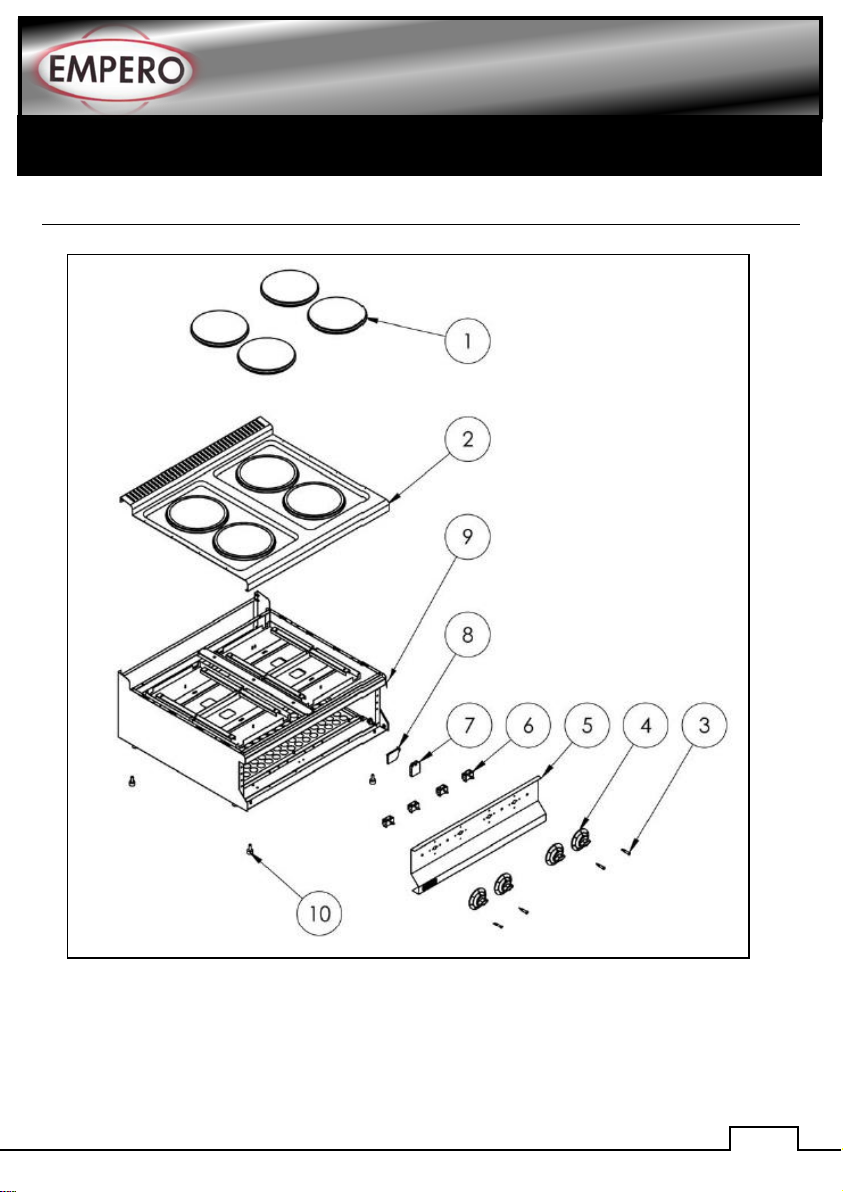

G SPARE PART LIST-EXPLODING DRAWING
EMP.7KE020-9KE020

13
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9KE020
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PLATE (4KW)
Y.EMP.9KE020.001
2
PLATFORM
Y.EMP.9KE020.002
3
WARNING LAMP
Y.EMP.9KE020.003
4
SWITCH
Y.EMP.9KE020.004
5
PANEL
Y.EMP.9KE020.005
6
SWITCH (0-6)
Y.EMP.9KE020.006
7
TERMINAL BLOCK
Y.EMP.9KE020.007
8
TERMINAL BLOCK
BASE
Y.EMP.9KE020.008
9
BASE FRAME
Y.EMP.9KE020.009
10
FEET
Y.EMP.9KE020.010

14
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7KE020
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PLATE (4KW)
Y.EMP.7KE020.001
2
PLATFORM
Y.EMP.7KE020.002
3
WARNING LAMP
Y.EMP.7KE020.003
4
SWITCH
Y.EMP.7KE020.004
5
PANEL
Y.EMP.7KE020.005
6
SWITCH (0-6)
Y.EMP.7KE020.006
7
TERMINAL BLOCK
Y.EMP.7KE020.007
8
TERMINAL BLOCK
BASE
Y.EMP.7KE020.008
9
BASE FRAME
Y.EMP.7KE020.009
10
FEET
Y.EMP.7KE020.010

15
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
EMP.7KE030-9KE030

16
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7KE030
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PLATE (4KW)
Y.EMP.7KE030.001
2
PLATFORM
Y.EMP.7KE030.002
3
WARNING LAMP
Y.EMP.7KE030.003
4
SWITCH
Y.EMP.7KE030.004
5
PANEL
Y.EMP.7KE030.005
6
SWITCH (0-6)
Y.EMP.7KE030.006
7
TERMINAL BLOCK
Y.EMP.7KE030.007
8
TERMINAL BLOCK
BASE
Y.EMP.7KE030.008
9
BASE FRAME
Y.EMP.7KE030.009
10
FEET
Y.EMP.7KE030.010

17
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9KE030
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PLATE (4KW)
Y.EMP.9KE030.001
2
PLATFORM
Y.EMP.9KE030.002
3
WARNING LAMP
Y.EMP.9KE030.003
4
SWITCH
Y.EMP.9KE030.004
5
PANEL
Y.EMP.9KE030.005
6
SWITCH (0-6)
Y.EMP.9KE030.006
7
TERMINAL BLOCK
Y.EMP.9KE030.007
8
TERMINAL BLOCK
BASE
Y.EMP.9KE030.008
9
BASE FRAME
Y.EMP.9KE030.009
10
FEET
Y.EMP.9KE030.010

18
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları

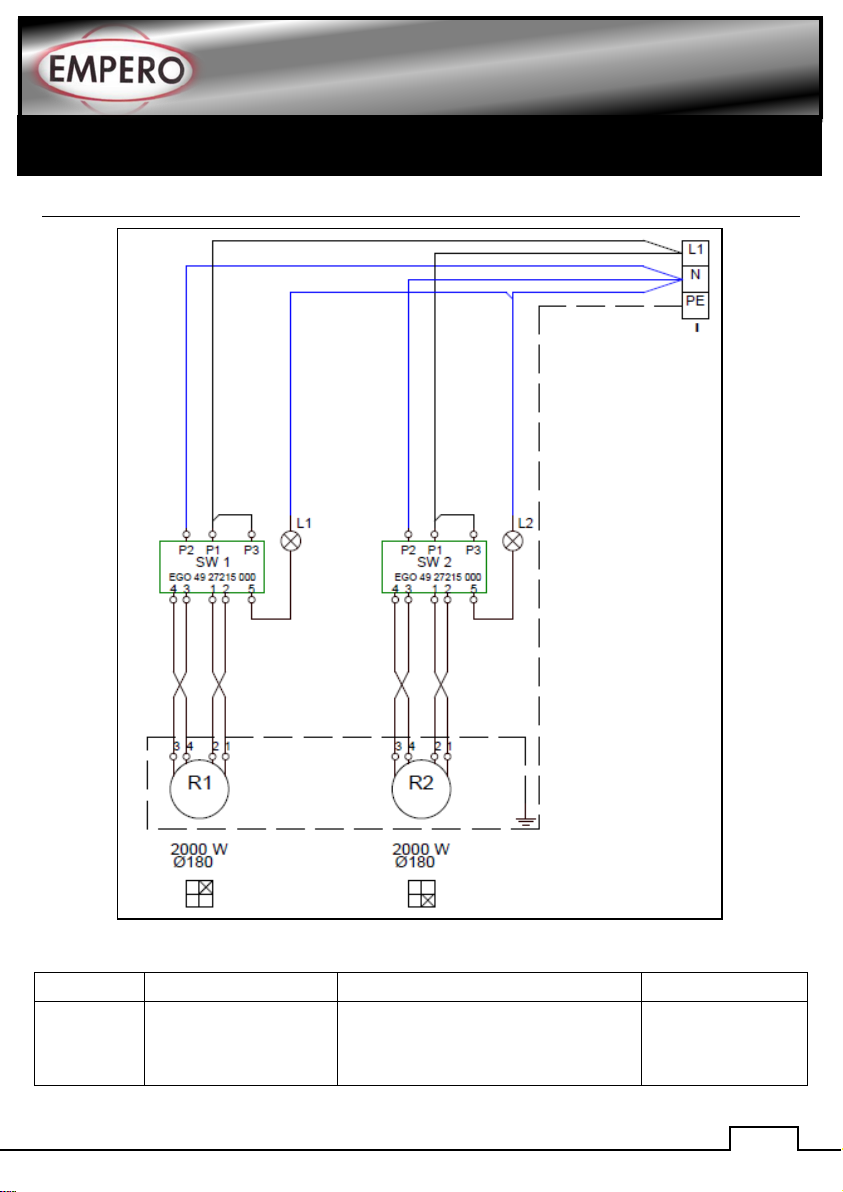

H ELECTRIC CIRCUIT SCHEMA
EMP.7KE010-9KE
I
SW1.SW2
R1.R2
L1.L2
Terminal
6 Kademeli şalter
Pleyt rezistans 2000 W 230V
Sinyal lambası

19
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.7KE020-9KE
I
SW1.SW2.SW3.SW4
R1.R2.R3.R4
L1.L2.L3.L4
Terminal
6 Kademeli şalter
Pleyt rezistans 2000
W 230V
Şalter sinyal lambası

20
ELECTRIC COOKER / HOT PLATE
Kasap Tip Dik Buzdolapları

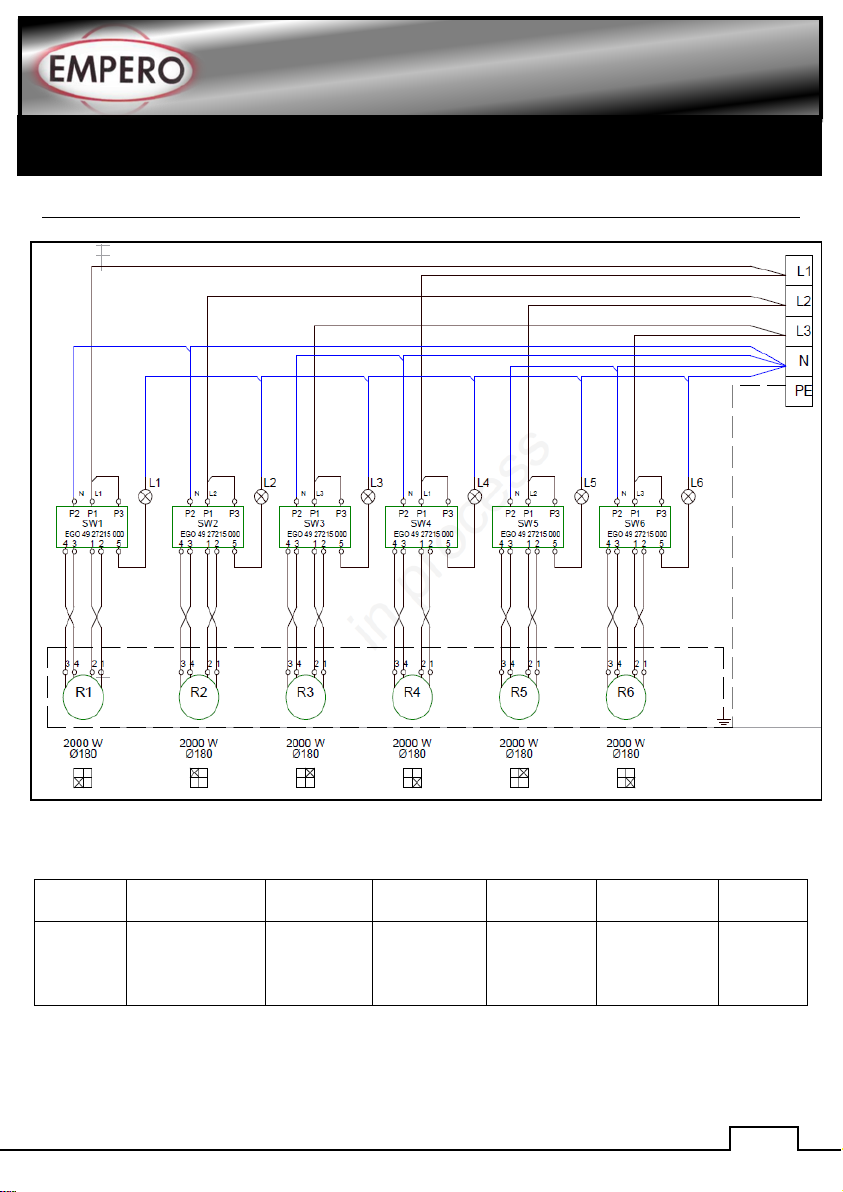

H ELECTRIC CIRCUIT SCHEMA
EMP.7KE030-9KE
I
R1.R2.R3.R4
R5.R6
SW1.SW2.
SW3.SW4
SW5.SW6
L1.L2.L3.L4
L5.L6
Terminal
Plate
resistance
2000 W 230V
Plate
resistance
2000 W
230V
6 Gradual
Switch
6 Gradual
Switch
Signal Lamp
Signal
Lamp
