EMPERO EMP.7FRG01 User manual

1

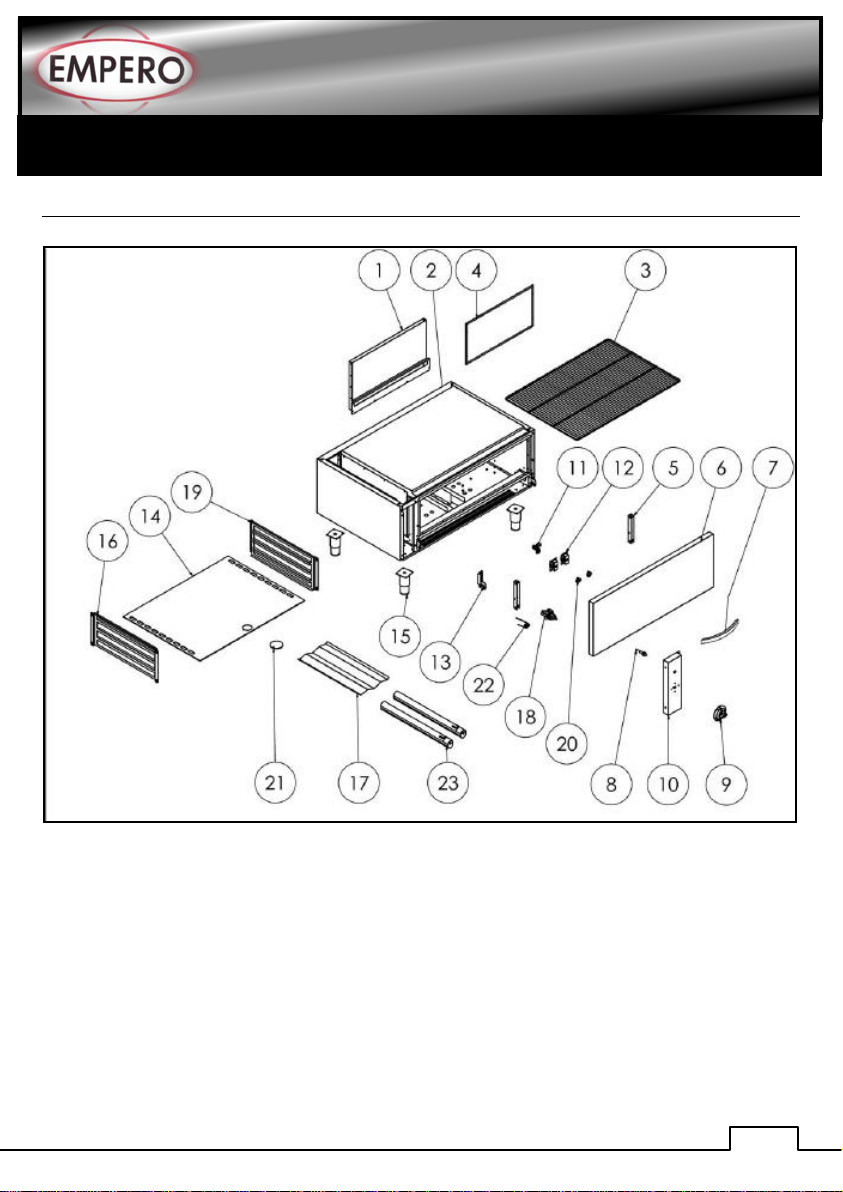

PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G INJECTOR CHANGE AND GAS SETTING Sayfa 9
H GAS CONNECTION IMAGES Sayfa 10
I SPARE PART LIST- EXPLODING DRAWING Sayfa 12

2
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
* This product is a Ovens –Gas that provides high efficiency has been designed to be used
in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.7FRG01
800X680X565
50
840x770x670
EMP.7FRG02
1200X680X565
70
1230x770x670
EMP.7FRG03
1200X680X565
80
1230x770x670
EMP.9FRG01
800X847X565
60
840x940x670
EMP.9FRG02
1200X847X565
80
1230x940x670
EMP.9FRG03
1200X847X565
90
1230x940x670
A2 TECHNICAL INFORMATION
Product Code
Power (Kw)
Model
Capacity
EMP.7FRG01
9
Set Altı Fırın – Gazlı
2xGN 2/1
EMP.7FRG02
9
Set Altı Fırın – Gazlı
2xGN 2/1
EMP.7FRG03
18
Set Altı Maxi Fırın – Gazlı
2xGN 2/1
EMP.9FRG01
12
Set Altı Fırın – Gazlı
2xGN 2/1
EMP.9FRG02
12
Set Altı Fırın – Gazlı
2xGN 2/1
EMP.9FRG03
24
Set Altı Maxi Fırın – Gazlı
2xGN 2/1

4
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
* This appliance can not be moved by hand from area to area. Therefore Use a hauling truck
(forklift or pallet jack) to move the appliance. ( The lifting arms of the of forklift or pallet jack
must reach up to more than half part of t appliance underneath.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Gas Fitment must be done by authorized person.
*The area where the appliance is must have enough ventilation and vent-hole.
*The appliance must be connected correctly according to local and national gas standards of
your country.
*The appliance gas entrances are indicated with ‘’G’’ label on the body.
*Connection to gas fitment must be done with suitable diameter metal flex pipe and spheric
valve.The spheric valve must be immobilized to a place that is far away from heat and
accessible during the danger.After gas entrance connection done,gas leakages must be
checked.
*According to the datas on appliance information plate,gas and pressure must be adjusted.If
the gas type that is adjusted is not the suitable with gas type that is at installation place,apply
the instructions that is about adjustment of different gas type. (Event :G)
* If the location where gas ranges placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.

5
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*If there is gas leakage where the appliance is, .do not fire absolutely and do not use
electric.
*Do not work the oven by closing or by disassembling its pipe.
*Definitely do not allow to check the sealing with flame.
!

!
!
!
!
!
!
!
!

6
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A- Lighter Position
B- Gas Off Position
C- Pilot Flame Position
D- Fire Levels
*Operating;
Lift the front side of the bottom cast of oven
Press oven gas button and provide the pilot to be in flame position and fire the pilot.
After the pilot is fired,press the button for a couple seconds (min:10) to heat safety
thermocouple’s end.
By turning the button to left side according to the degree of heat on writen on scala.
Brülör primer ve sekonder yanma özelliği sayesinde yüksek yanma veriminin yanında
düşük CO2 ve CO atık gaz emisyonu ile dünya standartlarında ve çevrecidir.
Through Primary and secondary combustion burners feature, it is in world-class and is
eco-friendlystandards with the specifications ‘’Hign Burning Efficiency’’ and ‘’Low Waste
Gas Emission’’ (CO2 and CO).

7
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Turn off the gas connection before cleaning.
Clean the outer surface of the appliance with moist cloth.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not wash the appliance with pressure water.
Do not clean the appliance with a materials that may damage chrome material.
Wash the baking trays after each use with warm water and dry.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
These parts ; Gas storage,thermocouples,taps,burner,lighter and spark plug cable
are not maintained so they need to be changed when they have error.
Check the gas connection hoses in periodic time.If there is slit,hole..etc,change the
hoses.
Ventilate the area where the device is in periodic times.

8
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the gas connection is done or
not.
2. If there is no gas entrance to safety and
firing part,the appliance is not operated.
3. If the hoses that have gas entrance lose
gas due to slit,hole.etc.,the appliance is
not operated.
THE APPLIANCE DOESN’T COOK WELL
1. Check if it is operated at suitable gas
setting or not.
2. Do not load so less or more than oven
trays’ capacity
3. Check the temperature adjustment of
oven.
THE APPLIANCE STOPPED
1. When there is gas leakage,if there is
solenoid gas stopper alarm,gas flow is
stopped and the appliance is not
operated.Ventilate the area through the
agency of vent-hole.
If cooking at Oven-Gas is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
G INJECTOR CHANGE AND GAS SETTING
BURNER FOR GAS RANGES WITH OVEN - INJECTOR CHANGE CHART
Gas
Group
Gas
SMALL
MEDIUM
LARGE
OVEN
Pilot
Injector
mm
Injector
mm
Injector
mm
Injector
mm
Injector
mm
Injector
mm
2
G20
1,6
1,9
2,15
1,35
2,15
0,41
G25
1,6
1,9
2,15
1,3
2,15
0,41
3
G30
30
mbar
1
1,2
1,35
0,85
1,35
0,22
50
mbar
0,85
1
1,6
0,72
1,15
0,20
G31
37
mbar
1
1,2
1,35
0,85
1,35
0,22
30
mbar
0,95
1,15
1,3
0,81
1,3
0,20
Change of Oven Injectors;
1. Rip off the screws ‘’F’’ from the ‘’E’’ Bottom cast of Oven Lid. (Image 5)
2. Change the Oven injector with the suitable injector according to the gas type that will be
used. (Image 6)
3. Change "C" Pilot Flame injector of Oven by paying attention to the datas at chart with
suitable injector.
( Image 3)
Setting of Half Flame;
1. Remove the tap button and set by turning tap half flame screw (K) with suitable
screwdriver.(Image 4) Turn it to left for transformation from LPG to N.G,turn it right for
transformation from N.G to LPG.
2. After this process,operate the appliance and set it not to be deflated during transition
from full flame to half flame.

10
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 3
Image 4

11
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 5
Image 6

12
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
9FRG.01-7FRG01

13
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9FRG01
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PIPE
Y.EMP.9FRG01.001
2
BASE FRAME
Y.EMP.9FRG01.002
3
SHELF
Y.EMP.9FRG01.003
4
WICK
Y.EMP.9FRG01.004
5
HINGE
Y.EMP.9FRG01.005
6
LID
Y.EMP.9FRG01.006
7
HANDLE
Y.EMP.9FRG01.007
8
LIGHTER
Y.EMP.9FRG01.008
9
SWITCH
Y.EMP.9FRG01.009
10
PANEL
Y.EMP.9FRG01.010
11
PİLOT
Y.EMP.9FRG01.011
12
BURNER BRACKET
Y.EMP.9FRG01.012
13
LOCK
Y.EMP.9FRG01.013
14
BOTTOM PLATE
Y.EMP.9FRG01.014
15
FEET
Y.EMP.9FRG01.015
16
SHELF PLATE LEFT
Y.EMP.9FRG01.016
17
FLAME PLATE
Y.EMP.9FRG01.017
18
THERMOSTAT
Y.EMP.9FRG01.018
19
SHELF PLATE RIGHT
Y.EMP.9FRG01.019
20
L NUT
Y.EMP.9FRG01.020
21
SURVEILLANCE
Y.EMP.9FRG01.021
22
TERMO PART
Y.EMP.9FRG01.022
23
BURNER
Y.EMP.9FRG01.023

14
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7FRG01
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PIPE
Y.EMP.7FRG01.001
2
BASE FRAME
Y.EMP.7FRG01.002
3
SHELF
Y.EMP.7FRG01.003
4
WICK
Y.EMP.7FRG01.004
5
HINGE
Y.EMP.7FRG01.005
6
LID
Y.EMP.7FRG01.006
7
HANDLE
Y.EMP.7FRG01.007
8
LIGHTER
Y.EMP.7FRG01.008
9
SWITCH
Y.EMP.7FRG01.009
10
PANEL
Y.EMP.7FRG01.010
11
PİLOT
Y.EMP.7FRG01.011
12
BURNER BRACKET
Y.EMP.7FRG01.012
13
LOCK
Y.EMP.7FRG01.013
14
BOTTOM PLATE
Y.EMP.7FRG01.014
15
FEET
Y.EMP.7FRG01.015
16
SHELF PLATE LEFT
Y.EMP.7FRG01.016
17
FLAME PLATE
Y.EMP.7FRG01.017
18
THERMOSTAT
Y.EMP.7FRG01.018
19
SHELF PLATE RIGHT
Y.EMP.7FRG01.019
20
L NUT
Y.EMP.7FRG01.020
21
SURVEILLANCE
Y.EMP.7FRG01.021
22
TERMO PART
Y.EMP.7FRG01.022
23
BURNER
Y.EMP.7FRG01.023

15
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
9FRG02-7FRG02

16
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE :EMP.9FRG02
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PIPE
Y.EMP.9FRG02.001
2
BASE FRAME
Y.EMP.9FRG02.002
3
SHELF
Y.EMP.9FRG02.003
4
WICK
Y.EMP.9FRG02.004
5
HINGE
Y.EMP.9FRG02.005
6
LID
Y.EMP.9FRG02.006
7
HANDLE
Y.EMP.9FRG02.007
8
LIGHTER
Y.EMP.9FRG02.008
9
SWITCH
Y.EMP.9FRG02.009
10
PANEL
Y.EMP.9FRG02.010
11
PİLOT
Y.EMP.9FRG02.011
12
BURNER BRACKET
Y.EMP.9FRG02.012
13
LOCK
Y.EMP.9FRG02.013
14
BOTTOM PLATE
Y.EMP.9FRG02.014
15
FEET
Y.EMP.9FRG02.015
16
SHELF PLATE LEFT
Y.EMP.9FRG02.016
17
FLAME PLATE
Y.EMP.9FRG02.017
18
THERMOSTAT
Y.EMP.9FRG02.018
19
SHELF PLATE RIGHT
Y.EMP.9FRG02.019
20
L NUT
Y.EMP.9FRG02.020
21
SURVEILLANCE
Y.EMP.9FRG02.021
22
TERMO PART
Y.EMP.9FRG02.022
23
BURNER
Y.EMP.9FRG02.023
24
MAGNET
Y.EMP.9FRG02.024
25
LID
Y.EMP.9FRG02.025

17
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EMP.7FRG02
NUMBER
PRODUCT NAME
PRODUCT CODE
1
PIPE
Y.EMP.7FRG02.001
2
BASE FRAME
Y.EMP.7FRG02.002
3
SHELF
Y.EMP.7FRG02.003
4
WICK
Y.EMP.7FRG02.004
5
HINGE
Y.EMP.7FRG02.005
6
LID
Y.EMP.7FRG02.006
7
HANDLE
Y.EMP.7FRG02.007
8
LIGHTER
Y.EMP.7FRG02.008
9
SWITCH
Y.EMP.7FRG02.009
10
PANEL
Y.EMP.7FRG02.010
11
PİLOT
Y.EMP.7FRG02.011
12
BURNER BRACKET
Y.EMP.7FRG02.012
13
LOCK
Y.EMP.7FRG02.013
14
BOTTOM PLATE
Y.EMP.7FRG02.014
15
FEET
Y.EMP.7FRG02.015
16
SHELF PLATE LEFT
Y.EMP.7FRG02.016
17
FLAME PLATE
Y.EMP.7FRG02.017
18
THERMOSTAT
Y.EMP.7FRG02.018
19
SHELF PLATE RIGHT
Y.EMP.7FRG02.019
20
L NUT
Y.EMP.7FRG02.020
21
SURVEILLANCE
Y.EMP.7FRG02.021
22
TERMO PART
Y.EMP.7FRG02.022
23
BURNER
Y.EMP.7FRG02.023
24
MAGNET
Y.EMP.7FRG02.024
25
LID
Y.EMP.7FRG02.025

18
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
9FRG03-7FRG03

19
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
ÜRÜRN KODU : EMP.9FRG03
NO
ÜRÜN ADI
ÜRÜN KODU
1
PIPE
Y.EMP.9FRG03.001
2
BASE FRAME
Y.EMP.9FRG03.002
3
SHELF
Y.EMP.9FRG03.003
4
WICK
Y.EMP.9FRG03.004
5
HINGE
Y.EMP.9FRG03.005
6
LID
Y.EMP.9FRG03.006
7
HANDLE
Y.EMP.9FRG03.007
8
LIGHTER
Y.EMP.9FRG03.008
9
SWITCH
Y.EMP.9FRG03.009
10
PANEL
Y.EMP.9FRG03.010
11
PİLOT
Y.EMP.9FRG03.011
12
BURNER BRACKET
Y.EMP.9FRG03.012
13
LOCK
Y.EMP.9FRG03.013
14
BOTTOM PLATE
Y.EMP.9FRG03.014
15
FEET
Y.EMP.9FRG03.015
16
SHELF PLATE LEFT
Y.EMP.9FRG03.016
17
FLAME PLATE
Y.EMP.9FRG03.017
18
THERMOSTAT
Y.EMP.9FRG03.018
19
SHELF PLATE RIGHT
Y.EMP.9FRG03.019
20
L NUT
Y.EMP.9FRG03.020
21
SURVEILLANCE
Y.EMP.9FRG03.021
22
TERMO PART
Y.EMP.9FRG03.022
23
BURNER
Y.EMP.9FRG03.023

20
PLUS OVENS - GAS
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
ÜRÜRN KODU : EMP.7FRG03
NO
ÜRÜN ADI
ÜRÜN KODU
1
PIPE
Y.EMP.7FRG03.001
2
BASE FRAME
Y.EMP.7FRG03.002
3
SHELF
Y.EMP.7FRG03.003
4
WICK
Y.EMP.7FRG03.004
5
HINGE
Y.EMP.7FRG03.005
6
LID
Y.EMP.7FRG03.006
7
HANDLE
Y.EMP.7FRG03.007
8
LIGHTER
Y.EMP.7FRG03.008
9
SWITCH
Y.EMP.7FRG03.009
10
PANEL
Y.EMP.7FRG03.010
11
PİLOT
Y.EMP.7FRG03.011
12
BURNER BRACKET
Y.EMP.7FRG03.012
13
LOCK
Y.EMP.7FRG03.013
14
BOTTOM PLATE
Y.EMP.7FRG03.014
15
FEET
Y.EMP.7FRG03.015
16
SHELF PLATE LEFT
Y.EMP.7FRG03.016
17
FLAME PLATE
Y.EMP.7FRG03.017
18
THERMOSTAT
Y.EMP.7FRG03.018
19
SHELF PLATE RIGHT
Y.EMP.7FRG03.019
20
L NUT
Y.EMP.7FRG03.020
21
SURVEILLANCE
Y.EMP.7FRG03.021
22
TERMO PART
Y.EMP.7FRG03.022
23
BURNER
Y.EMP.7FRG03.023
