EMPERO EMP.PKF-40-K User manual

1
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
B İNSTALLATION Page 3
B1 LOCATİON and ORGANİZATİON Page 4
C USAGE and SAFETY Page 4
C1 USER SAFETY Page 4
C2 INSTALATION and HOW TO USE Page 5
D CLEANİNG, HYGİENE and STORAGE Page 5
D1 AFTER USE Page 6
D2 STORAGE Page 6
EMAİNTANCE Page 6
FPARTS LİST and EXPLODED VİEW Page 7

2
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
BEFORE İNSTALLATİON READ CAREFULLY THE OPERATİNG AND MAINTANCE
INSTRUCTIONSBU.WRONG INSTALLATION AND PARTS REPLACEMENT CAN CAUSE
DAMAGE TO THE DEVİCE OR USERS CAN GET INJURED. INTENDED CAUSE OF
DAMAGE TO THE DEVİCE,NEGLECT, DİSOBEYİNG THE INSTRUCTIONS AND
DIRECTING AND ANY DAMAGE AND INJURY CAUSED OF THİS CAN NOT BE HELD
RESPONSİBLE TO THE MANUFACTURER. UNAUTHORİSED INTERVENTION WILL
INVALID THE WARRANTY.
1. Keep this booklet in a safe and reachable place so that future operators can use it in case
of need.
2. The device installation should be done by authorised personel conform the
instructions of the country the device is installed.
3. This device should be operated by personel that has been educated.
4. At maulfunctioning stop the device and call only authorised technicians for help. Only use
original spare parts.

3
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
The professionel charcoal oven is developed for cooking meat.
This professionel device provides efficienty in dining halls and restaurants.
Code
Dimensions(mm)
Weight (kg)
Grid (mm)
EMP.PKF-40-K
710x730x666/1271
160
560x524
EMP.PKF-40-S
710x730x666/1271
160
560x524
EMP.PKF-50-K
890X825X648/1271
190
740x650
EMP.PKF-50-S
890X825X648/1271
190
740x650
Code
Heat capacity
(°C)
Cooking capacity kg/h
Max. Coal capacity(kg)
EMP.PKF-40-K
500
20
10
EMP.PKF-40-S
500
20
10
EMP.PKF-50-K
500
30
20
EMP.PKF-50-S
500
30
20

4
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
B INSTALLATION
WARNİNGI!!
*This charcoal oven is for professionel use and for safe use and maintance providing it’s
nessacery is’s done by authorised personel.
*Use the device in well lighted facilities. (for applicability country look at the technical
directing.)
*Using the device be carefull for moving parts.it could cause injury.
*don’t use the device nearby explosive materials.
B1 LOCATİON and ORGANİZATİON
*Put the charcoal oven on a flat and sturdy floor and prevent tilting .
!

5
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
C USAGE and SAFETY
WARNING !!
-Before using the device be sure that the fleu cover is opened. (The cover is compleet open
at level 5)
-clean the oven before using the first time.
-When igniting the charcoal always use safety.
-By-passing or disrupting the safety systems can cause damage and injuries!!!!
-Before every use always check the safety equipments.
-For health and safety use an headscarve operating the device.
CAUTION: At use, cleaning and maintance there is always a risk getting injured. Never
use force, always follow the instruction rules and use safety equipments.
C1 USER SAFETY
- No burned leftover charcoal in the oven at no operating .
- Using safety equipments during the cooking.,
- Also Using safety equipments during the cooking with optionel ovens
- >Following the instructions garantees the operating, cleaning and maitaining the device.
- C2 INSTALATION and HOW TO USE
At first igniting the charcoal and not opening the hood lid will cause stuffiness
and the coal will not burn properly what resumes in a low temperature in the device. (For
high temperature performance we advice to work with pressed charcoal brickets.)
Usage;
•Open the devices front lid.
•Insert the amount of charcoal that has been given as capacity of the device.
!
!

6
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
•Choose the right accessory regarding what product you want to grill, put it in to the
device and close the lid.
•After ignting the charcoal manuely close the front lid.
•You can open the air inlet at the front bottom by pulling the shaft what resumes in a
faster fireup.
•Wait until the charcoal is burned complete.
•When the burning is complete you will have to regulate the temperature by adjusting
the hood lid.
•You can see the temperature level in the device watching the thermometer o top of it.
•When the desired temerature is reached, ut the product in to the oven.
•Use the right equipments for turning the products.
•After grilling is done, clean the grid of the device.
•Wait until the charcoal is completely burned out and empty it after every use.
D CLEANİNG, HYGİENE and STORAGE
WARNING I!!
Before disassambling a part be sure there is no heat remaining in the device.
Before every cleaning read carefully the cleaning products instructions and safety
regulations. Do not clean with pressurised cleaning equipments.
Always be carefull when touching the device and not get burning injuries.
D1 AFTER USE
- Clean the dismantelable parts in a hot tub with disinfectant oil solvent detergent.
- Clean the outher surface of the oven with a damp cloth.
- Don’t clean the oven with acid and derivative products.
- Don’t clean the oven with pressurized water.(the coal drawer can get water)
- Clean the grid in a hot tub with disinfectant oil solvent detergent.
- Clean glassed surfaces of the oven with a damp cloth.
!

7
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
D2 STORAGE
After cleaning keep the dismantelable parts at a safe place.
If the meat is not grilled with enough get in touch with your local distribütör.
E MAİNTANCE
Maintance can be only done by qualified, educated and autorized personel.
Maintance
➢The hood, it’s filters and air flaps need to be checked and cleaned .

8
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları

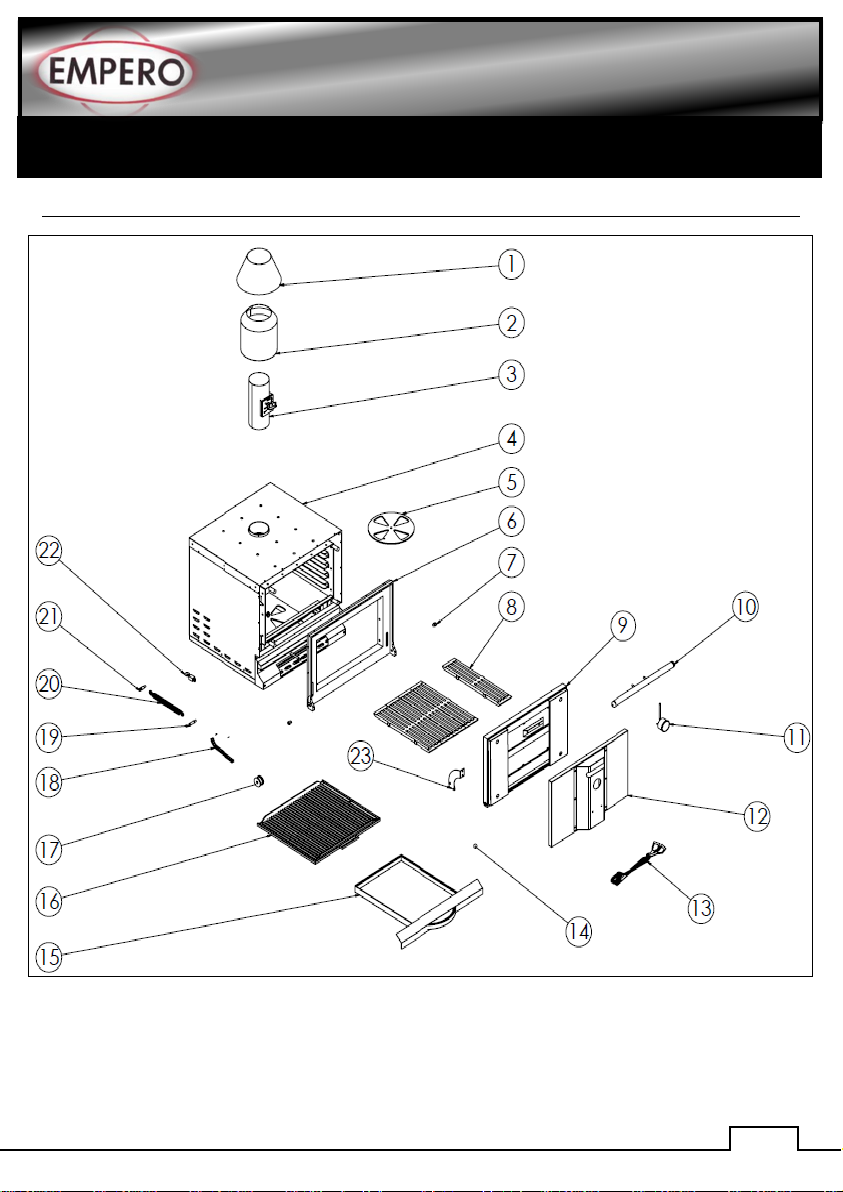

F PARTS LİST and EXPLODED VİEW
EMP.PKF-40

9
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
F PARTS LİST and EXPLODED VİEW
PRODUCT CODE: EMP.PKF-40-K
NO
PRODUCT NAME
P.CODE
1
FIREBREAK HOOD
Y.EMP.PKF-40-K.001
2
FIREBREAK
Y.EMP.PKF-40-K.002
3
UPPER VENT
Y.EMP.PKF-40-K.003
4
BASE FRAME
Y.EMP.PKF-40-K.004
5
VENT COVER
Y.EMP.PKF-40-K.005
6
DOOR FRAME
Y.EMP.PKF-40-K.006
7
DOOR SCREW
Y.EMP.PKF-40-K.007
8
CHARCOAL GRATE
Y.EMP.PKF-40-K.008
9
CAST IRON DOOR
Y.EMP.PKF-40-K.009
10
HANDLE
Y.EMP.PKF-40-K.010
11
THERMOMETER
Y.EMP.PKF-40-K.011
12
FRONT DOOR SHEET METAL
Y.EMP.PKF-40-K.012
13
CHARCOAL TONGS
Y.EMP.PKF-40-K.013
14
LOVER VENT KNOB
Y.EMP.PKF-40-K.014
15
ASH DRAWER
Y.EMP.PKF-40-K.015
16
CAST IRON GRILL RACK
Y.EMP.PKF-40-K.016
17
CABLE PULLY
Y.EMP.PKF-40-K.017
18
CABLE
Y.EMP.PKF-40-K.018
19
CABLE PULLY PIN
Y.EMP.PKF-40-K.019
20
DOOR SPRING
Y.EMP.PKF-40-K.020
21
DOOR SPRING PIN
Y.EMP.PKF-40-K.021
22
SPRING STRETCHING PART
Y.EMP.PKF-40-K.022
23
DOOR HOLDER METAL
Y.EMP.PKF-40-K.023

10
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
F PARTS LİST and EXPLODED VİEW
PRODUCT CODE: EMP.PKF-40-S
NO
PRODUCT NAME
P.CODE
1
FIREBREAK HOOD
Y.EMP.PKF-40-S.001
2
FIREBREAK
Y.EMP.PKF-40-S.002
3
UPPER VENT
Y.EMP.PKF-40-S.003
4
BASE FRAME
Y.EMP.PKF-40-S.004
5
VENT COVER
Y.EMP.PKF-40-S.005
6
DOOR FRAME
Y.EMP.PKF-40-S.006
7
DOOR SCREW
Y.EMP.PKF-40-S.007
8
CHARCOAL GRATE
Y.EMP.PKF-40-S.008
9
CAST IRON DOOR
Y.EMP.PKF-40-S.009
10
HANDLE
Y.EMP.PKF-40-S.010
11
THERMOMETER
Y.EMP.PKF-40-S.011
12
FRONT DOOR SHEET METAL
Y.EMP.PKF-40-S.012
13
CHARCOAL TONGS
Y.EMP.PKF-40-S.013
14
LOVER VENT KNOB
Y.EMP.PKF-40-S.014
15
ASH DRAWER
Y.EMP.PKF-40-S.015
16
CAST IRON GRILL RACK
Y.EMP.PKF-40-S.016
17
CABLE PULLY
Y.EMP.PKF-40-S.017
18
CABLE
Y.EMP.PKF-40-S.018
19
CABLE PULLY PIN
Y.EMP.PKF-40-S.019
20
DOOR SPRING
Y.EMP.PKF-40-S.020
21
DOOR SPRING PIN
Y.EMP.PKF-40-S.021
22
SPRING STRETCHING PART
Y.EMP.PKF-40-S.022

11
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
F PARTS LİST and EXPLODED VİEW
EMP.PKF-50

12
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
F PARTS LİST and EXPLODED VİEW
PRODUCT CODE: EMP.PKF-50-K
NO
PRODUCT NAME
P.CODE
1
FIREBREAK HOOD
Y.EMP.PKF-50-K.001
2
FIREBREAK
Y.EMP.PKF-50-K.002
3
UPPER VENT
Y.EMP.PKF-50-K.003
4
BASE FRAME
Y.EMP.PKF-50-K.004
5
VENT COVER
Y.EMP.PKF-50-K.005
6
DOOR FRAME
Y.EMP.PKF-50-K.006
7
DOOR SCREW
Y.EMP.PKF-50-K.007
8
CHARCOAL GRATE
Y.EMP.PKF-50-K.008
9
CAST IRON DOOR
Y.EMP.PKF-50-K.009
10
HANDLE
Y.EMP.PKF-50-K.010
11
THERMOMETER
Y.EMP.PKF-50-K.011
12
FRONT DOOR SHEET METAL
Y.EMP.PKF-50-K.012
13
CHARCOAL TONGS
Y.EMP.PKF-50-K.013
14
LOVER VENT KNOB
Y.EMP.PKF-50-K.014
15
ASH DRAWER
Y.EMP.PKF-50-K.015
16
CAST IRON GRILL RACK
Y.EMP.PKF-50-K.016
17
CABLE PULLY
Y.EMP.PKF-50-K.017
18
CABLE
Y.EMP.PKF-50-K.018
19
CABLE PULLY PIN
Y.EMP.PKF-50-K.019
20
DOOR SPRING
Y.EMP.PKF-50-K.020
21
DOOR SPRING PIN
Y.EMP.PKF-50-K.021
22
SPRING STRETCHING PART
Y.EMP.PKF-50-K.022
23
DOOR HOLDER METAL
Y.EMP.PKF-50-K.023

13
PROFESSİONAL CHARCOAL OVEN
Kasap Tip Dik Buzdolapları
F PARTS LİST and EXPLODED VİEW
PRODUCT CODE: EMP.PKF-50-S
NO
PRODUCT NAME
P.CODE
1
FIREBREAK HOOD
Y.EMP.PKF-50-S.001
2
FIREBREAK
Y.EMP.PKF-50-S.002
3
UPPER VENT
Y.EMP.PKF-50-S.003
4
BASE FRAME
Y.EMP.PKF-50-S.004
5
VENT COVER
Y.EMP.PKF-50-S.005
6
DOOR FRAME
Y.EMP.PKF-50-S.006
7
DOOR SCREW
Y.EMP.PKF-50-S.007
8
CHARCOAL GRATE
Y.EMP.PKF-50-S.008
9
CAST IRON DOOR
Y.EMP.PKF-50-S.009
10
HANDLE
Y.EMP.PKF-50-S.010
11
THERMOMETER
Y.EMP.PKF-50-S.011
12
FRONT DOOR SHEET METAL
Y.EMP.PKF-50-S.012
13
CHARCOAL TONGS
Y.EMP.PKF-50-S.013
14
LOVER VENT KNOB
Y.EMP.PKF-50-S.014
15
ASH DRAWER
Y.EMP.PKF-50-S.015
16
CAST IRON GRILL RACK
Y.EMP.PKF-50-S.016
17
CABLE PULLY
Y.EMP.PKF-50-S.017
18
CABLE
Y.EMP.PKF-50-S.018
19
CABLE PULLY PIN
Y.EMP.PKF-50-S.019
20
DOOR SPRING
Y.EMP.PKF-50-S.020
21
DOOR SPRING PIN
Y.EMP.PKF-50-S.021
22
SPRING STRETCHING PART
Y.EMP.PKF-50-S.022
23
DOOR HOLDER METAL
Y.EMP.PKF-50-S.023
