EMPERO EMP.9FRE01 User manual

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
1

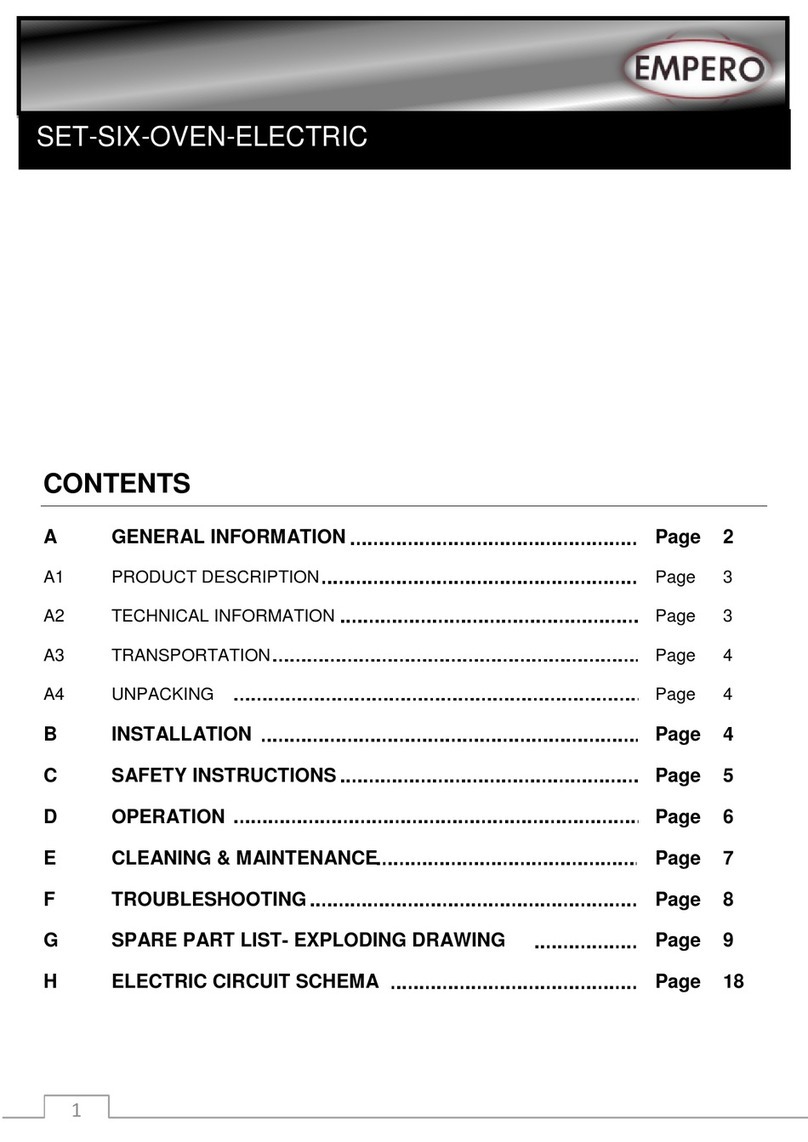

CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 18

2
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
3
A1 PRODUCT DESCRIPTION
* The Professional Machine ,that provides high efficiency has been designed to be used in
industrial kitchens
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.9FRE01
800x847x565
60
840X940X670
EMP.9FRE02
1200x847x565
80
1230X940X670
EMP.9FRE03
1200x847x565
90
1230X940X670
EMP.7FRE01
800X680X565
50
840X770X670
EMP.7FRE02
1200X680X565
70
1230X770X670
EMP.7FRE03
1200X680X565
80
1230X770X670
A2 TECHNICAL INFORMATION
Product Code
Model
Electric Inlet
Cable
(mm²)
Power (KW)
EMP.9FRE01
400 V. AC 3N PE
5X2,5
9
2xGN 2/1
EMP.9FRE02
400 V. AC 3N PE
5X2,5
9
2xGN 2/1
EMP.9FRE03
400 V. AC 3N PE
5X4
15
2xGN 2/1
EMP.7FRE01
400 V. AC 3N PE
5X2,5
9
2xGN 2/1
EMP.7FRE02
400 V. AC 3N PE
5X2,5
9
2xGN 2/1
EMP.7FRE03
400 V. AC 3N PE
5X4
15
2xGN 2/1

4
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
BINSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*If the location where electric ranges with oven placed is covered with nonflammable heat
insulation material,the distance between them must be 5 cm. Otherwise it should be at least
20 cm.The appliance shouldn’t be operated under chimney hood.
!

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
5
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
!

!
!
!
!
!


6
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
D OPERATION
* Control Panel:
A : Oven OFF position
B : Oven upper heating
C : Oven lower heating
D : Oven upper-lower heating
E : heating setting lamp
F : Lower –upper setting lamp
G : Oven heat setting button
* Operating:
•Plug in the appliance.
•Put the cooker on the range.
•Adjust heat setting butttons to desired temperature
•The range reaches the desired temperature and starts to operate
•When the range’s temperature is reduced,indicator lamp signals and range’s temperature
reaches to desired temperature again.
•As soon as the oven temperature drops indicator (indicator) lights up and reaches the
oven temperature indicator value again.
•After operation is completed,switch heat setting buttons to (0) position and unplug the
appliance.

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
7
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Clean the outer surface of the appliance with a wet cloth and chrome shiner.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
•Clean the oven trays with hot water and then dry after every use.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•Check the heater’s electric connection in periodic times.
•Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.

8
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
THE APPLIANCE DOESN’T COOK WELL
1. Check if it is operated at required heat
or not.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
•If cooking at electric ranges with oven is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
9
G SPARE PART LIST-EXPLODING DRAWING
EMP.9FRE01-7FRE01

10
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9FRE01
NO
PRODUCT NAME
P.CODE
1
CHIMNEY HOOD
Y.EMP.9FRE01.001
2
BASE FRAME
Y.EMP.9FRE01.002
3
SHELF
Y.EMP.9FRE01.003
4
LID GASKET
Y.EMP.9FRE01.004
5
HINGE
Y.EMP.9FRE01.005
6
LID
Y.EMP.9FRE01.006
7
HANDLE
Y.EMP.9FRE01.007
8
WARNING LAMP
Y.EMP.9FRE01.008
9
BUTTON
Y.EMP.9FRE01.009
10
TRIPHASE SWITCH 0-1
Y.EMP.9FRE01.010
11
THERMOSTAT 50-300
Y.EMP.9FRE01.011
12
COMUTATOR-LEVEL 0-3
Y.EMP.9FRE01.012
13
HINGE HOLDER
Y.EMP.9FRE01.013
14
BASE SHEETMETAL
Y.EMP.9FRE01.014
15
FEET
Y.EMP.9FRE01.015
16
SHELF SHEETMETAL
Y.EMP.9FRE01.016
17
COMUTATOR BUTTON BUFFER
Y.EMP.9FRE01.017
18
RESISTANCE
Y.EMP.9FRE01.018
19
THERMOSTAT BUTTON BUFFER
Y.EMP.9FRE01.019

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
11
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7FRE01
NO
PRODUCT NAME
P.CODE
1
CHIMNEY HOOD
Y.EMP.7FRE01.001
2
BASE FRAME
Y.EMP.7FRE01.002
3
SHELF
Y.EMP.7FRE01.003
4
LID GASKET
Y.EMP.7FRE01.004
5
HINGE
Y.EMP.7FRE01.005
6
LID
Y.EMP.7FRE01.006
7
HANDLE
Y.EMP.7FRE01.007
8
WARNING LAMP
Y.EMP.7FRE01.008
9
BUTTON
Y.EMP.7FRE01.009
10
TRIPHASE SWITCH 0-1
Y.EMP.7FRE01.010
11
THERMOSTAT 50-300
Y.EMP.7FRE01.011
12
COMUTATOR-LEVEL 0-3
Y.EMP.7FRE01.012
13
HINGE HOLDER
Y.EMP.7FRE01.013
14
BASE SHEETMETAL
Y.EMP.7FRE01.014
15
FEET
Y.EMP.7FRE01.015
16
SHELF SHEETMETAL
Y.EMP.7FRE01.016
17
COMUTATOR BUTTON BUFFER
Y.EMP.7FRE01.017
18
RESISTANCE
Y.EMP.7FRE01.018
19
THERMOSTAT BUTTON BUFFER
Y.EMP.7FRE01.019

12
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
EMP.9FRE02-7FRE02

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
13
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9FRE02
NO
PRODUCT NAME
P.CODE
1
CHIMNEY HOOD
Y.EMP.9FRE02.001
2
BASE FRAME
Y.EMP.9FRE02.002
3
SHELF
Y.EMP.9FRE02.003
4
LID GASKET
Y.EMP.9FRE02.004
5
HINGE
Y.EMP.9FRE02.005
6
LID
Y.EMP.9FRE02.006
7
HANDLE
Y.EMP.9FRE02.007
8
WARNING LAMP
Y.EMP.9FRE02.008
9
BUTTON
Y.EMP.9FRE02.009
10
TRIPHASE SWITCH 0-1
Y.EMP.9FRE02.010
11
THERMOSTAT 50-300
Y.EMP.9FRE02.011
12
COMUTATOR-LEVEL 0-3
Y.EMP.9FRE02.012
13
HINGE HOLDER
Y.EMP.9FRE02.013
14
BASE SHEETMETAL
Y.EMP.9FRE02.014
15
FEET
Y.EMP.9FRE02.015
16
SHELF SHEETMETAL
Y.EMP.9FRE02.016
17
COMUTATOR BUTTON BUFFER
Y.EMP.9FRE02.017
18
RESISTANCE
Y.EMP.9FRE02.018
19
MAGNET
Y.EMP.9FRE02.019
20
THERMOSTAT BUTTON BUFFER
Y.EMP.9FRE02.020
21
CABINET LID
Y.EMP.9FRE02.021
22
CABINET HANDLE
Y.EMP.9FRE02.022
23
HINGE GROUP
Y.EMP.9FRE02.023

14
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7FRE02
NO
PRODUCT NAME
P.CODE
1
CHIMNEY HOOD
Y.EMP.7FRE02.001
2
BASE FRAME
Y.EMP.7FRE02.002
3
SHELF
Y.EMP.7FRE02.003
4
LID GASKET
Y.EMP.7FRE02.004
5
HINGE
Y.EMP.7FRE02.005
6
LID
Y.EMP.7FRE02.006
7
HANDLE
Y.EMP.7FRE02.007
8
WARNING LAMP
Y.EMP.7FRE02.008
9
BUTTON
Y.EMP.7FRE02.009
10
TRIPHASE SWITCH 0-1
Y.EMP.7FRE02.010
11
THERMOSTAT 50-300
Y.EMP.7FRE02.011
12
COMUTATOR-LEVEL 0-3
Y.EMP.7FRE02.012
13
HINGE HOLDER
Y.EMP.7FRE02.013
14
BASE SHEETMETAL
Y.EMP.7FRE02.014
15
FEET
Y.EMP.7FRE02.015
16
SHELF SHEETMETAL
Y.EMP.7FRE02.016
17
COMUTATOR BUTTON BUFFER
Y.EMP.7FRE02.017
18
RESISTANCE
Y.EMP.7FRE02.018
19
MAGNET
Y.EMP.7FRE02.019
20
THERMOSTAT BUTTON BUFFER
Y.EMP.7FRE02.020
21
CABINET LID
Y.EMP.7FRE02.021
22
CABINET HANDLE
Y.EMP.7FRE02.022
23
HINGE GROUP
Y.EMP.7FRE02.023

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
15
G SPARE PART LIST-EXPLODING DRAWING
EMP.9FRE03-7FRE03

16
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.9FRE03
NO
PRODUCT NAME
P.CODE
1
CHIMNEY HOOD
Y.EMP.9FRE03.001
2
BASE FRAME
Y.EMP.9FRE03.002
3
SHELF
Y.EMP.9FRE03.003
4
LID GASKET
Y.EMP.9FRE03.004
5
HINGE
Y.EMP.9FRE03.005
6
LID
Y.EMP.9FRE03.006
7
HANDLE
Y.EMP.9FRE03.007
8
WARNING LAMP
Y.EMP.9FRE03.008
9
BUTTON
Y.EMP.9FRE03.009
10
TRIPHASE SWITCH 0-1
Y.EMP.9FRE03.010
11
THERMOSTAT 50-300
Y.EMP.9FRE03.011
12
COMUTATOR-LEVEL 0-3
Y.EMP.9FRE03.012
13
HINGE HOLDER
Y.EMP.9FRE03.013
14
BASE SHEETMETAL
Y.EMP.9FRE03.014
15
FEET
Y.EMP.9FRE03.015
16
SHELF SHEETMETAL
Y.EMP.9FRE03.016
17
COMUTATOR BUTTON BUFFER
Y.EMP.9FRE03.017
18
RESISTANCE
Y.EMP.9FRE03.018
19
THERMOSTAT BUTTON BUFFER
Y.EMP.9FRE03.019

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
17
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EMP.7FRE03
NO
PRODUCT NAME
P.CODE
1
CHIMNEY HOOD
Y.EMP.7FRE03.001
2
BASE FRAME
Y.EMP.7FRE03.002
3
SHELF
Y.EMP.7FRE03.003
4
LID GASKET
Y.EMP.7FRE03.004
5
HINGE
Y.EMP.7FRE03.005
6
LID
Y.EMP.7FRE03.006
7
HANDLE
Y.EMP.7FRE03.007
8
WARNING LAMP
Y.EMP.7FRE03.008
9
BUTTON
Y.EMP.7FRE03.009
10
TRIPHASE SWITCH 0-1
Y.EMP.7FRE03.010
11
THERMOSTAT 50-300
Y.EMP.7FRE03.011
12
COMUTATOR-LEVEL 0-3
Y.EMP.7FRE03.012
13
HINGE HOLDER
Y.EMP.7FRE03.013
14
BASE SHEETMETAL
Y.EMP.7FRE03.014
15
FEET
Y.EMP.7FRE03.015
16
SHELF SHEETMETAL
Y.EMP.7FRE03.016
17
COMUTATOR BUTTON BUFFER
Y.EMP.7FRE03.017
18
RESISTANCE
Y.EMP.7FRE03.018
19
THERMOSTAT BUTTON BUFFER
Y.EMP.7FRE03.019

18
UNDER BENCH OVEN-ELECTRIC
SET ALTI FIRIN - ELEKTRİKLİ
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EMP.7FRE-9FRE01-02
T
R1
R2
SW1
SW2
L5.L6
Thermostat
(50-300ºC)
Plate
Resistance
3x1500 W 230
V.
Oven upper
resistance
3x1500 W
230 V.
0-3 gradual
komutatör
0-1
Trıfaze
şalter
Oven signal
lamp

UNDER BENCH OVEN-ELECTRIC
Kasap Tip Dik Buzdolapları
19
H ELECTRIC CIRCUIT SCHEMA
EMP.FRE-9FRE03
T
R1
R2
SW1
SW2
L5.L6
Thermostat
(50-300ºC)
Plate
Resistance
5x1500 W
230 V.
Oven
upper
resistance
5x1500 W
230 V.
0-3 gradual
komutatör
0-1
Trıfaze
şalter
Oven
signal lamp
