EMPERO EMP.KFE.020 User manual

1
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 8
F TROUBLESHOOTING Page 9
G SPARE PART LIST- EXPLODING DRAWING Page 10
H ELECTRIC CIRCUIT SCHEMA Page 13

2
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional electrical potato baking ovens,that provides high efficiency has been
designed to be used in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.KFE.020
500x700x750
45
720x620x1000
EMP.KFE.030
500x700x980
60
580x780x1100
A2 TECHNICAL INFORMATION
CODE
EMP.KFE.020
EMP.KFE.030
CAPACITY
24-30 pieces/hour
36-45 pieces/hour
POWER (KW)
3
5
OPERATİNG VOLTAGE (V)
380V –50 HZ
380V –50 HZ
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on
pallet with forklift truck.

4
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*For easy cleaning and maintenance of the appliance,there must be at least 50 cm space at
right and left side of the appliance. The appliance should be operated under the chimney
hood.
!

5
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Get the necessary cautions against electric danger.
!

!
!
!
!
!



6
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
D OPERATION

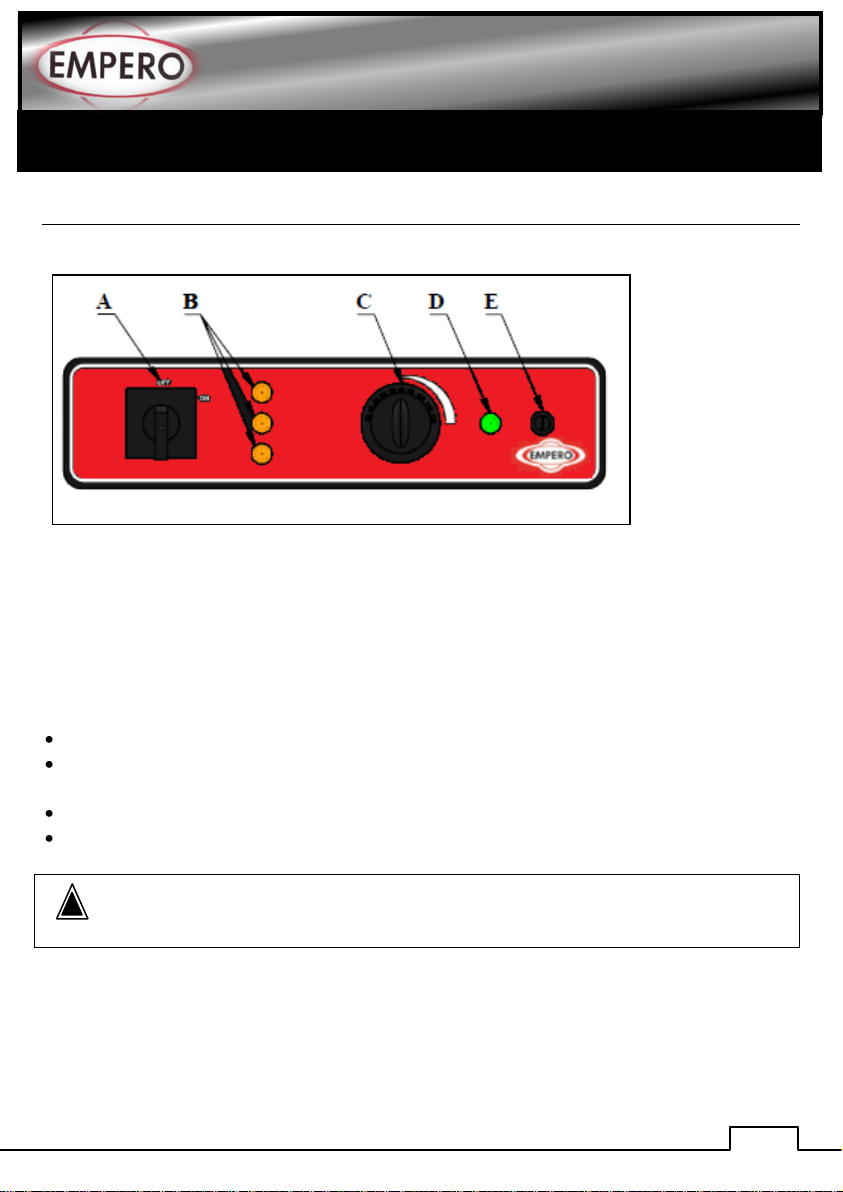

*Control Panel:
A. ON/OFF SWITCH
B. TRIFAZ SIGNAL LAMP
C. THERMOSTAT BUTTON
D. THERMOSTAT “ON” LAMP
E. LİMİT THERMOSTAT
* Operating:
Plug in the appliance and switch (ON) position.
When you switch the thermostat, the heaters start to work and and indicator lamps on it
signal as it works.(optimal heaters 180-220ºC)
Put the potatoes and cook for drawers.
Absolute, after the operation is completed,switch (OFF) position.
There may be a smell and fog due to isolation material and heater during first use.
Therefore switch the thermostat and operate it for 30 min.when it is empty before using.
!

7
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Be sure that electric connections are off before cleaning.
Clean the drawers of appliance with moist cloth after every use.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not use pressure water or vapor during the cleaning, otherwise resistance may
get damaged.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
Get the periodic maintenance of the appliance once in every 15 days.
Check the power cable sometimes if it is damaged or not.

8
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check if the fuse is on or off.
4. Check the resistances.
THE APPLIANCE DOESN’T COOK WELL
1. Check the heat settings.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
2. Check the heat settings.
If cooking at Potato Baking Ovens is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları

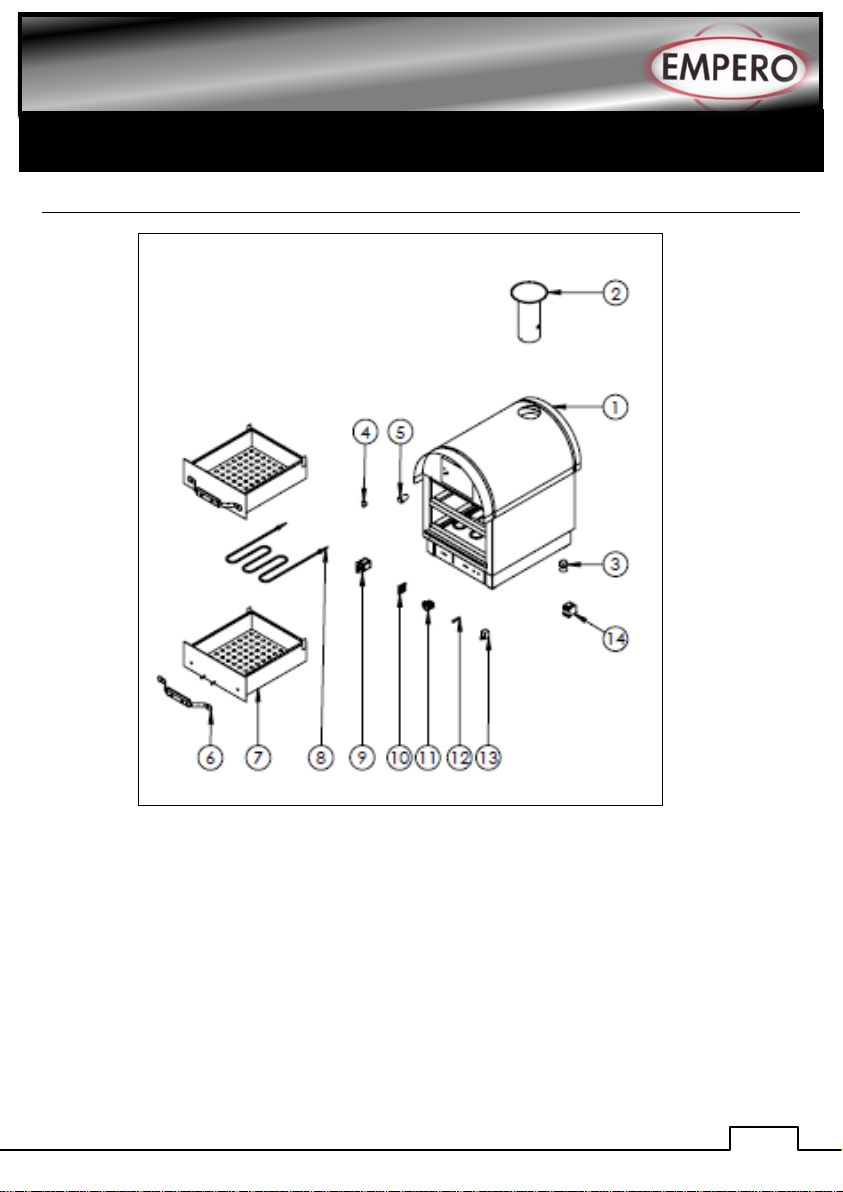

G SPARE PART LIST- EXPLODING DRAWINGS

10
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE:EMP.KFE.020
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.KFE.020.1001
2
CHIMNEY
Y.EMP.KFE.020.1002
3
FEET
Y.EMP.KFE.020.1003
4
LOCK
Y.EMP.KFE.020.1004
5
BAKELITE HANDLE
Y.EMP.KFE.020.1005
6
HANDLE
Y.EMP.KFE.020.1006
7
DRAWER
Y.EMP.KFE.020.1007
8
RESİSTANCE
Y.EMP.KFE.020.1008
9
SWITCH
Y.EMP.KFE.020.1009
10
WARNING LAMP (ORANGE)
Y.EMP.KFE.020.1010
11
THERMOSTAT (50-300)
Y.EMP.KFE.020.1011
12
WARNING LAMP (GREEN)
Y.EMP.KFE.020.1012
13
LİMİT THERMOSTAT
Y.EMP.KFE.020.1013
14
CONTACTOR
Y.EMP.KFE.020.1014

11
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS

12
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları
G SPARE PART LIST- EXPLODING DRAWINGS
PRODUCT CODE:EMP.KFE.030
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.KFE.030.1001
2
CHIMNEY
Y.EMP.KFE.030.1002
3
FEET
Y.EMP.KFE.030.1003
4
LOCK
Y.EMP.KFE.030.1004
5
BAKELITE HANDLE
Y.EMP.KFE.030.1005
6
HANDLE
Y.EMP.KFE.030.1006
7
DRAWER
Y.EMP.KFE.030.1007
8
RESİSTANCE
Y.EMP.KFE.030.1008
9
SWITCH
Y.EMP.KFE.030.1009
10
WARNING LAMP (ORANGE)
Y.EMP.KFE.030.1010
11
THERMOSTAT (50-300)
Y.EMP.KFE.030.1011
12
WARNING LAMP (GREEN)
Y.EMP.KFE.030.1012
13
LİMİT THERMOSTAT
Y.EMP.KFE.030.1013
14
CONTACTOR
Y.EMP.KFE.030.1014

13
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları

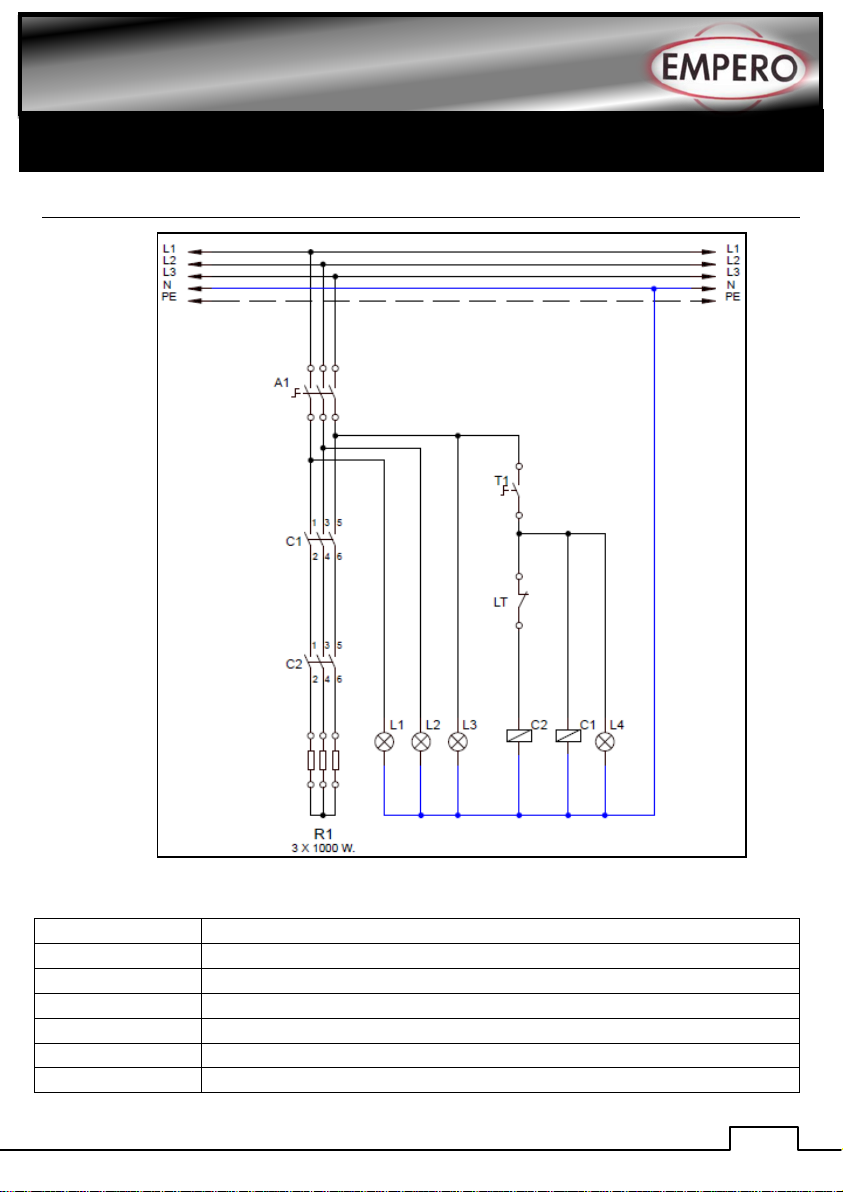

H ELECTRIC CIRCUIT SCHEMA
EMP.KFE020
A
ON/OFF SWITCH
T
50-300ºC THERMOSTAT
LT
LİMİT THERMOSTAT 230ºC
C1-C2
RESISTANCE CONTACTOR 220 V
R1
RESISTANCE 1000W 220 V
L1-L2-L3
TRIFAZ SIGNAL LAMP 220 V
L4
THERMOSTAT SIGNAL LAMP 220 V

14
ELECTRICAL POTATO BAKING OVEN
Kasap Tip Dik Buzdolapları

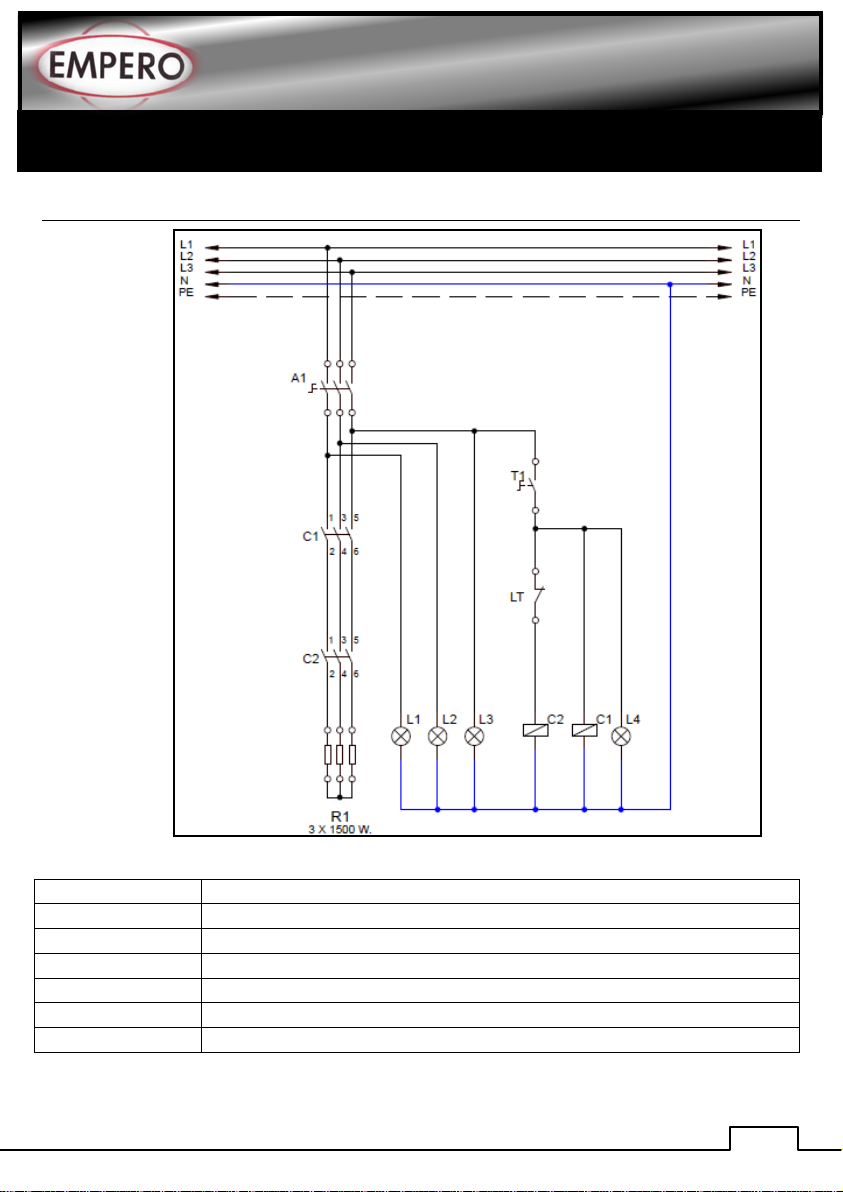

H ELECTRIC CIRCUIT SCHEMA
EMP.KFE030
A
ON/OFF SWITCH
T
50-300ºC THERMOSTAT
LT
LİMİT THERMOSTAT 230ºC
C1-C2
RESISTANCE CONTACTOR 220 V
R1
RESISTANCE 1500W 220 V
L1-L2-L3
TRIFAZ SIGNAL LAMP 220 V
L4
THERMOSTAT SIGNAL LAMP 220 V
