EMPERO EMP.6KG010 User manual

1
GAS RANGES
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 3
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G INJECTOR CHANGE AND GAS SETTING Page 9
H GAS CONNECTION IMAGES Page 10
I SPARE PART LIST- EXPLODING DRAWING Page 12

2
GAS RANGES
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
GAS RANGES
Kasap Tip Dik Buzdolapları
A1 PRODUCT DESCRIPTION
*The Professional Gas Ranges,that provides high efficiency has been designed to be used in
industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EMP.6KG010
400x650x290
24
490x710x570
EMP.6KG020
600x650x290
44
680x710x580
A2 TECHNICAL INFORMATION
Product Code
Model
Power
(KW)
Gas
Consumption
(NG)
Gas
Consumption
(LPG)
EMP.6KG010
2 Burner Gas Ranges
6
0,47 m³/h
0,35 kg/h
EMP.6KG020
4 Burner Gas Ranges
12
0,95 m³/h
0,71 kg/h
A3 TRANSPORTATION
*This appliance can be moved by hand from area to area.Do not crash and drop the appliance
while transporting.

4
GAS RANGES
Kasap Tip Dik Buzdolapları
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Gas Fitment must be done by authorized person.
*The area where the appliance is must have enough ventilation and vent-hole.
*The appliance must be connected correctly according to local and national gas standards of
your country.
*The appliance gas entrances are indicated with ‘’G’’ label on the body.
*Connection to gas fitment must be done with suitable diameter metal flex pipe and spheric
valve.The spheric valve must be immobilized to a place that is far away from heat and
accessible during the danger.After gas entrance connection done,gas leakages must be
checked.
*According to the datas on appliance information plate,gas and pressure must be adjusted.If
the gas type that is adjusted is not the suitable with gas type that is at installation place,apply
the instructions that is about adjustment of different gas type. (Event :G)
*If the location where gas ranges placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.

5
GAS RANGES
Kasap Tip Dik Buzdolapları
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*If there is gas leakage where the appliance is, .do not fire absolutely and do not use
electric.
*Definitely do not allow to check the sealing with flame.
!
!
!
!
!
!

!
!

6
GAS RANGES
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel;
A: OFF Position
B : Lighter Position
C : Full Flame
D: Half Flame
E: Tank Position
F : Lighter
*Operating;
According to type of use,make gas entrance connection from behınd the
machine.Because the machine is operated with LPG and NG.
Press the Range Gas Button and provide full flame position and fire the range at pressed
position.
After the range is fired,press the button for a couple seconds to heat safety
thermocouple’s end.
According to cooking type ( half/full flame ),the position can be adjusted.

7
GAS RANGES
Kasap Tip Dik Buzdolapları
E CLEANING & MAINTENANCE
CLEANING AND MAINTENANCE AFTER EVERY USE
Turn off the gas connection before cleaning.
Clean the outer surface of the appliance with a wet cloth and chrome shiner.
Do not use abrasive cleaning chemicals as these can leave harmful residues.
Do not wash the appliance with pressure water.
Do not clean the appliance with a materials that may hurt chrome material.
Wash the grills with hot water and then dry after every use.
PERIODIC CLEANING AND MAINTENANCE
Maintenance should be done by qualified person.
These parts ; Gas storage,thermocouples,taps,burner,lighter and spark plug cable
are not maintained so they need to be changed when they have error.
Check the gas connection hoses in periodic time.If there is slit,hole..etc,change the
hoses.
Ventilate the area where the device is in periodic times.

8
GAS RANGES
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the gas connection is done or
not.
2. If there is no gas entrance to pilot,the
appliance is not operated.
3. If the hoses that have gas entrance lose
gas due to slit,hole.etc.,the appliance is
not operated.
MEATS ARE NOT COOKED WELL
1. Check if it is operated at suitable gas
setting or not.
THE APPLIANCE STOPPED
1. Gas flow is stopped automatically when
the flame is off due to having gas tap
that has safety valve.In this situation the
appliance is not operated.
2. When there is gas leakage,if there is
solenoid gas stopper alarm,gas flow is
stopped and the appliance is not
operated.Ventilate the area through the
agency of vent-hole.
If cooking at gas ranges is not done at suitable quality
If any function of security doesn’t work
Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
GAS RANGES
Kasap Tip Dik Buzdolapları
G INJECTOR CHANGE AND GAS SETTING
GAS RANGE BURNER - INJECTOR CHANGE CHART
Gas
Group
Gas
Small
Middle
Big
Pilot
Injector 
mm
Infector 
mm
Injector 
mm
Injector 
mm
Injector 
mm
2
G20
1,6
1,9
2,15
1,35
0,41
G25
1,6
1,9
2,15
1,3
0,41
3
G30
30
mbar
1
1,2
1,35
0,85
0,22
50
mbar
0,85
1
1,6
0,72
0,20
G31
37
mbar
1
1,2
1,35
0,85
0,22
50
mbar
0,95
1,15
1,3
0,81
0,20

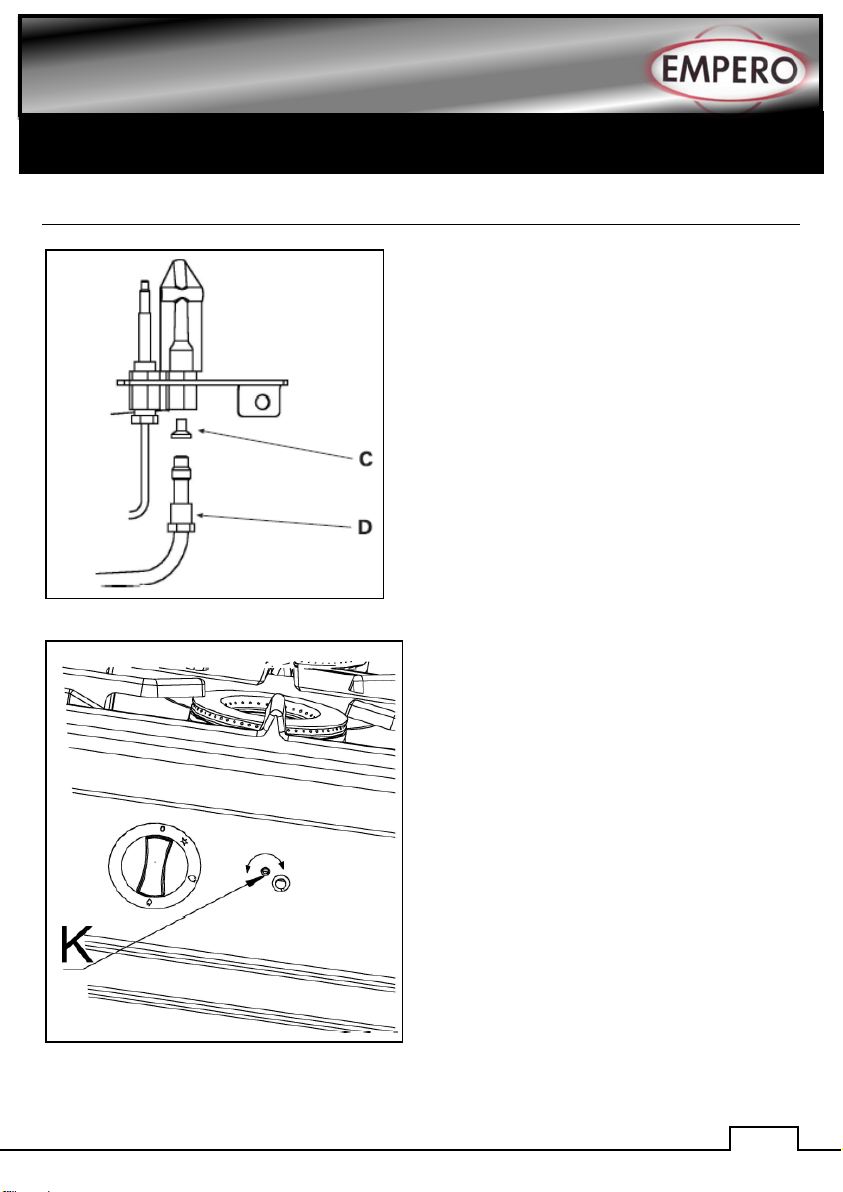

Change of Burner Injector;
1. Take off the grill and burner upper lid (Image 1)
2. Change A injector by paying attention to the datas at chart with suitable injector.
3. Change C injector by paying attention to the datas at chart with suitable injector.For
this it is enough to take off ‘D’ fitting and pull the gas pipe to down.
Setting of Half Flame;
1. Remove the tap button and set by turning tap half flame screw (K) with suitable
screwdriver.
(Image 4)Turn it to left for transformation from LPG to N.G,turn it right for transformation
from N.G to LPG.
2. After this process,operate the appliance and set it not to be deflated during transition
from full flame to half flame.

10
GAS RANGES
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 1
Image 2

11
GAS RANGES
Kasap Tip Dik Buzdolapları
H GAS CONNECTION IMAGES
Image 3
Image 4

12
GAS RANGES
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.6KG010

13
GAS RANGES
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EMP.6KG010
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.6KG010.001
2
CASTING GRILL
Y.EMP.6KG010.002
3
BURNER
Y.EMP.6KG010.003
4
SPARKING PLUG+CABLE
Y.EMP.6KG010.004
5
THERMO PART
Y.EMP.6KG010.005
6
FEET
Y.EMP.6KG010.006
7
LIGHTER
Y.EMP.6KG010.007
8
GAS TAP
Y.EMP.6KG010.008
9
GAS BUTTON
Y.EMP.6KG010.009
10
TAP BUFFER
Y.EMP.6KG010.010
11
INJECTOR GROUP
Y.EMP.6KG010.011
12
GAS TANK
Y.EMP.6KG010.012
13
FLEX HOSE 60 CM
Y.EMP.6KG010.013

14
GAS RANGES
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
EMP.6KG020

15
GAS RANGES
Kasap Tip Dik Buzdolapları
I SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE:EMP.6KG020
NO
PRODUCT NAME
P.CODE
1
BASE FRAME
Y.EMP.6KG020.001
2
BUTTON BUFFER
Y.EMP.6KG020.002
3
BUTTON
Y.EMP.6KG020.003
4
LIGHTER
Y.EMP.6KG020.004
5
GAS TAP
Y.EMP.6KG020.005
6
FEET
Y.EMP.6KG020.006
7
CASTING GRILL
Y.EMP.6KG020.007
8
BURNER
Y.EMP.6KG020.008
9
THERMO PART
Y.EMP.6KG020.009
10
SPARKING PLUG+CABLE
Y.EMP.6KG020.010
11
INJECTOR GROUP
Y.EMP.6KG020.011
12
GAS TANK
Y.EMP.6KG020.012
13
FLEX HOSE 40CM
Y.EMP.6KG020.013
